Blocking of 2D bistable reaction-diffusion fronts by obstacles

J.-G. Caputo , G. Cruz-Pacheco , J. Gatlik , B. Sarels This is my paper

Pith reviewed 2026-05-10 09:39 UTC · model grok-4.3

classification 🧮 math-ph math.MPphysics.bio-ph
keywords reaction-diffusion frontsbistable systemsfront blockinggeometric obstacleswaveguide geometryconical regionsconservation lawstraveling wave solutions
0
0 comments X

The pith

The integral of the reaction term provides an effective driving force that, combined with the one-dimensional traveling wave solution, yields an analytical model for predicting when bistable fronts are blocked by two-dimensional obstacles.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to derive quantitative criteria for the propagation or blocking of two-dimensional bistable reaction-diffusion fronts in the presence of geometric obstacles. It does this by showing through a conservation law that the integrated reaction term acts as a driving force and then reducing the problem using the exact one-dimensional traveling wave solution. This approach produces explicit conditions for front propagation in a waveguide connected to a conical region of angle theta, provided the width w is less than 4, and the predictions match numerical simulations well. The model accounts for both the geometry of the obstacles and the nonlinearity of the reaction, offering a way to understand front behavior without full 2D computations.

Core claim

Using a conservation law approach, the integral of the reaction term is shown to act as an effective driving force for the front. This insight, combined with the exact one-dimensional traveling wave solution, allows construction of a reduced analytical model that predicts blocking thresholds. Explicit conditions are obtained for front propagation in a waveguide connected to a conical region of angle theta, valid for widths w less than 4. The model captures the influence of both geometry and nonlinearity and agrees with numerical simulations. The analysis is extended to checkerboard-like obstacles with simple heuristic rules.

What carries the argument

the reduced analytical model obtained by treating the integral of the reaction term as an effective driving force and combining it with the one-dimensional traveling wave solution

If this is right

  • Explicit conditions for front propagation or blocking in waveguide-to-conical geometries when width w < 4.
  • The reduced model incorporates effects of both geometry (angle theta) and the nonlinearity of the bistable reaction.
  • Predictions show good quantitative agreement with direct numerical simulations of the 2D system.
  • Simple heuristic rules can be derived for front propagation through more complex checkerboard-like obstacle patterns.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar reductions might apply to other obstacle shapes or to three-dimensional fronts.
  • The effective driving force concept could help design obstacle configurations to control or stop fronts in applications like flame propagation or biological invasion.
  • Testing the model on wider waveguides (w > 4) or different nonlinearities would reveal the limits of the reduction.

Load-bearing premise

The integral of the reaction term can be treated as an effective driving force that reduces the two-dimensional problem to the one-dimensional traveling wave solution, remaining valid for waveguide-conical geometries when the width is less than 4.

What would settle it

Numerical simulation of a specific waveguide-cone setup with w less than 4 where the front either propagates or blocks contrary to the explicit condition derived from the reduced model.

Figures

Figures reproduced from arXiv: 2604.15246 by B. Sarels, G. Cruz-Pacheco, J. Gatlik, J.-G. Caputo.

Figure 2

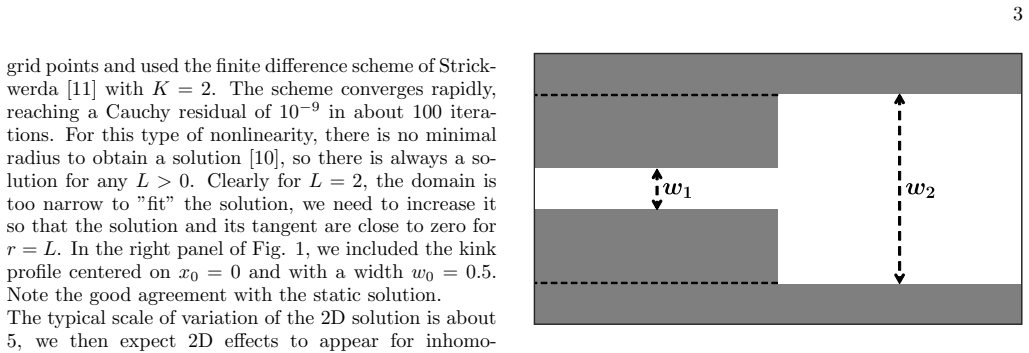

Figure 2. Figure 2: FIG. 2. An inhomogeneous waveguide: the gray area corre [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Analysis of a trapped kink in a waveguide: the con [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

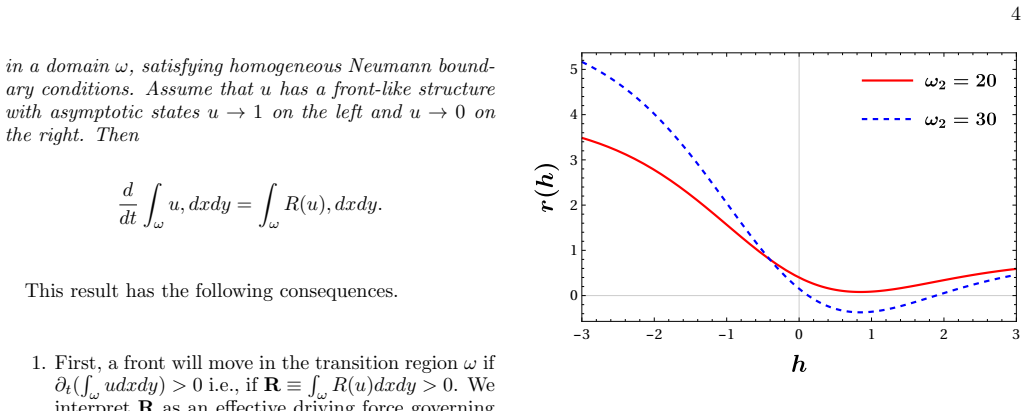

Figure 4. Figure 4: shows a plot of r(h) for w1 = 4 and for two values of w2, namely 20 and 30. We clearly see that r(h) for w2 = 30 goes through zero so that the kink gets trapped. We will see in the next section that this analysis is in agreement with the numerical results. -3 -2 -1 0 1 2 3 0 1 2 3 4 5 FIG. 4. Plot of r(h) for w1 = 4, w2 = 20 and w2 = 30. Note that if the nonlinearity is multiplied by a factor s then the eq… view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Analysis of a trapped kink in a waveguide connected [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Blocking of a front by a cone of angle [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 7

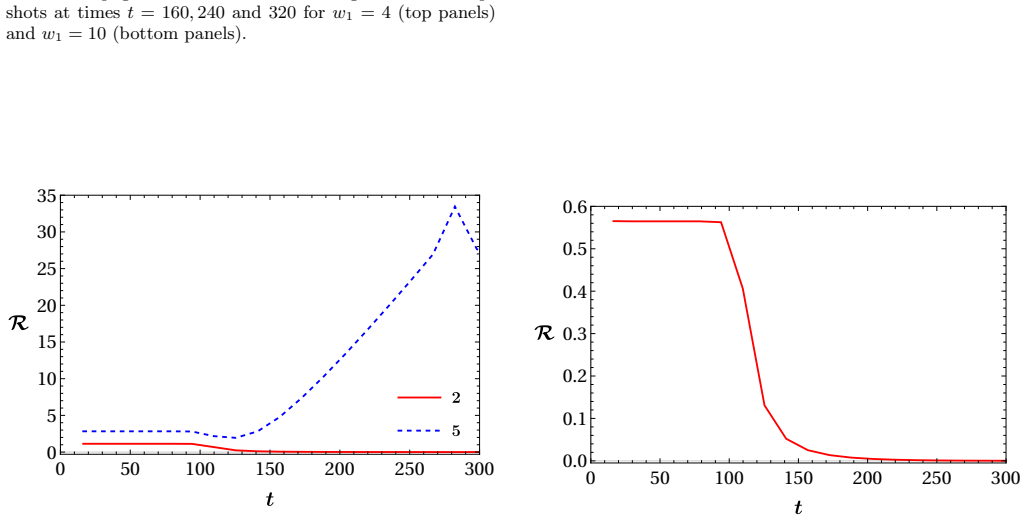

Figure 7. Figure 7: FIG. 7. Time evolution of the integral of the reaction term [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10. Parameter plane ( [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
Figure 13
Figure 13. Figure 13: FIG. 13. Kink evolution in two waveguides of width [PITH_FULL_IMAGE:figures/full_fig_p008_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: FIG. 14. Parameter space ( [PITH_FULL_IMAGE:figures/full_fig_p008_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: FIG. 15. Schematic drawing of a checkerboard obstacle. [PITH_FULL_IMAGE:figures/full_fig_p009_15.png] view at source ↗
Figure 16

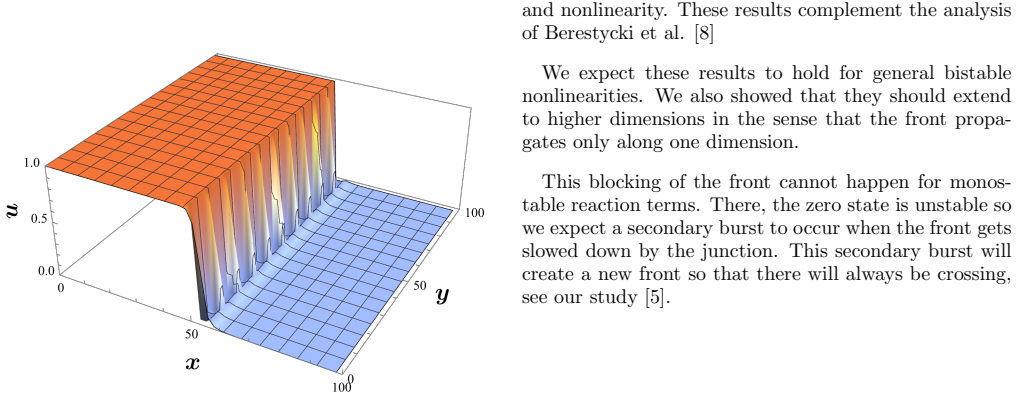

Figure 16. Figure 16: FIG. 16. A kink trapped by a checkerboard obstacle for [PITH_FULL_IMAGE:figures/full_fig_p009_16.png] view at source ↗
read the original abstract

We investigate numerically the blocking of two-dimensional bistable reaction diffusion fronts by geometric obstacles. Our goal is to derive quantitative criteria for front propagation in the presence of spatial heterogeneities. Using a conservation law approach, we show that the integral of the reaction term acts as an effective driving force for the front. Combining this insight with the exact one-dimensional traveling wave solution, we construct a reduced analytical model that predicts blocking thresholds. In particular, we obtain explicit conditions for front propagation in a waveguide connected to a conical region of angle theta, valid for widths w less than 4. The model captures the influence of both geometry and nonlinearity, and shows good agreement with numerical simulations. Finally, we extend the analysis to more complex geometries, including checkerboard-like obstacles, and derive simple heuristic rules governing front propagation. ~

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper numerically studies blocking of 2D bistable reaction-diffusion fronts by geometric obstacles. It derives a conservation-law identity showing that the integral of the reaction term acts as an effective driving force, then combines this with the exact 1D traveling-wave solution to construct a reduced analytical model. The model yields explicit blocking thresholds for a waveguide connected to a conical region of angle theta, stated to hold for widths w < 4; it also provides heuristic rules for more complex obstacles such as checkerboards and reports good agreement with direct numerical simulations.

Significance. If the reduced model remains accurate in the stated regime, the work supplies a practical analytical tool that incorporates both geometry and nonlinearity to predict propagation thresholds, which is useful for applications involving heterogeneous media. The explicit conditions and numerical agreement constitute a clear strength, though the scope is restricted to w < 4 and the extension to complex geometries relies on heuristics.

major comments (2)
  1. [Derivation of the reduced model (waveguide-conical geometry)] The central reduction treats the reaction integral as an effective driving force inserted into the 1D traveling-wave ODE to obtain explicit thresholds for the waveguide-to-cone transition. However, this step implicitly assumes that the front normal velocity and profile remain close to the planar 1D solution after entering the conical region. No a-priori estimate is given showing that curvature-driven (mean-curvature) contributions from the 2D Laplacian and transverse diffusion remain O(ε) small up to w = 4, so the validity bound rests on an unproven regime.
  2. [Numerical simulations and comparison] The numerical validation is cited as showing 'good agreement,' yet the manuscript does not report quantitative error measures (e.g., relative discrepancy in predicted versus observed blocking thresholds) or the precise range of w and theta values tested. Without these, it is difficult to assess how close the simulations come to the w = 4 boundary where 2D corrections are expected to grow.
minor comments (2)
  1. [Abstract] The abstract states the model is 'valid for widths w less than 4' without specifying the nondimensionalization of w or the precise definition of the conical angle theta; these should be stated explicitly at first use.
  2. [Model formulation] Notation for the reaction term f(u) and the traveling-wave speed c should be introduced consistently in the main text before being used in the reduced-model equations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. The points raised regarding the justification of the reduced model's validity range and the quantitative presentation of numerical comparisons are well taken. We address each major comment in detail below and indicate the revisions made to the manuscript.

read point-by-point responses

  1. Referee: The central reduction treats the reaction integral as an effective driving force inserted into the 1D traveling-wave ODE to obtain explicit thresholds for the waveguide-to-cone transition. However, this step implicitly assumes that the front normal velocity and profile remain close to the planar 1D solution after entering the conical region. No a-priori estimate is given showing that curvature-driven (mean-curvature) contributions from the 2D Laplacian and transverse diffusion remain O(ε) small up to w = 4, so the validity bound rests on an unproven regime.

    Authors: We agree that the reduced model relies on the front profile remaining close to the 1D traveling-wave solution, an assumption that is not supported by a rigorous a-priori estimate of curvature effects. The bound w < 4 is determined empirically from the regime in which the model predictions remain consistent with direct 2D simulations. In the revised manuscript we have added a paragraph in Section 3 explicitly stating that the validity range is heuristic and based on numerical evidence rather than a proven smallness of mean-curvature corrections. We have also included additional simulation data for w approaching 4 to illustrate the gradual growth of discrepancies. revision: partial

  2. Referee: The numerical validation is cited as showing 'good agreement,' yet the manuscript does not report quantitative error measures (e.g., relative discrepancy in predicted versus observed blocking thresholds) or the precise range of w and theta values tested. Without these, it is difficult to assess how close the simulations come to the w = 4 boundary where 2D corrections are expected to grow.

    Authors: We concur that quantitative error measures and explicit parameter ranges would improve the assessment of the model's accuracy. In the revised version we have added a table (new Table 1) that reports the relative discrepancy between predicted and observed blocking thresholds for w ranging from 0.5 to 3.8 and theta from 15° to 75°. The table shows that the maximum relative error stays below 6 % for w ≤ 3.5 and rises to approximately 11 % near w = 3.8 for the largest angles tested. The text in Section 4 now states these ranges explicitly. revision: yes

Circularity Check

0 steps flagged

Derivation from conservation law plus exact 1D TW is self-contained; no reduction to fitted inputs or self-citations

full rationale

The paper derives an effective driving force from the integral of the reaction term via a conservation-law identity, then inserts the known exact 1D traveling-wave profile to obtain explicit blocking thresholds for the waveguide-cone geometry when w<4. This construction is independent of the numerical simulations used only for validation; the thresholds are not obtained by fitting parameters to the same data that later tests them, nor does any step rename a fitted quantity as a prediction. No self-citations appear in the load-bearing steps, and the w<4 regime is presented as an a-priori applicability limit rather than a result forced by definition. The central claim therefore remains non-circular.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on treating the integrated reaction term as a driving force and on the applicability of the 1D traveling-wave solution to the reduced 2D setting; these are domain assumptions rather than derived results.

free parameters (1)
  • width validity bound
    The model is stated to be valid for widths w less than 4; this bound is presented as a condition derived from the analysis.
axioms (1)
  • domain assumption The integral of the reaction term acts as an effective driving force for the front
    This conservation-law insight is the key step used to construct the reduced analytical model.
