EfficientUICoder: A Bidirectional Token Compression Framework for Efficient MLLM-Based UI Code Generation

T0 review · 5 major / 5 minor · reviewed 2026-08-04 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read EfficientUICoder claims UI-to-code generation can drop roughly 60% of visual tokens and cut compute and latency by nearly half without hurting webpage fidelity.

desk verdict Real efficiency gains, but the 'without compromising quality' claim is not supported by the reported tables. read the letter →

arxiv 2509.12159 v2 pith:AWUNLKQK submitted 2025-09-15 cs.SE cs.AI

Jingyu Xiao , Zhongyi Zhang , Yuxuan Wan , Yintong Huo , Yang Liu , Michael R. Lyu This is my paper · ORCID
classification cs.SEcs.AI
keywords UI-to-codegenerationmultimodallargelanguagemodeltokencompressionvisualpruningrepetitionsuppressionHTML/CSSefficientinferencelayout-awareselection
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

EfficientUICoder tries to establish that the dominant cost of turning a webpage screenshot into HTML/CSS—very long image-token and code-token sequences—is largely redundant, and that this redundancy can be removed from both ends of a multimodal model. On the input side, it detects UI elements and builds a minimum-spanning-tree layout representation so only tokens that belong to meaningful elements and their spatial relations survive; on the output side, it tracks repeated HTML/CSS/text structures during decoding and applies an exponential penalty to suppress them. On two UI-to-code benchmarks with open 7B and 34B multimodal models, the reported effect is a 55–60% input-token compression, a 41% drop in generated tokens, and roughly 45–49% reductions in FLOPs, prefill time, and inference time, with rendered quality at or above the uncompressed baseline. If correct, this makes screenshot-to-code generation substantially cheaper, faster, and less prone to looping failures.

What carries the argument

The load-bearing objects are (1) a UI element tree: detected bounding boxes become graph nodes, edge weights are shortest spatial distances between boxes, and a minimum spanning tree yields the least-token representation that preserves element and layout relationships; (2) attention scores from the vision encoder's class token, used to rank token importance for refinement; (3) structure-frequency counters fed by CSS/HTML parsers that apply an exponential logit penalty to the next s tokens when repetitions are detected. The element tree performs coarse semantic selection, attention performs fine-grained pruning, and the penalty suppresses repetition loops at decode time.

What would settle it

Construct a set of UI screenshots where a small but essential element (a form field, icon, or link) is missed by element detection or receives near-zero attention. Run EfficientUICoder and the uncompressed model on them; if the compressed outputs systematically omit that element while the uncompressed outputs include it, the central quality-preservation claim fails. A second check: perturb detected bounding boxes slightly and measure block-match on the full benchmark—if quality collapses, the method's safety margin is critically thin.

Watch

Extended reading notes

Core claim

The central discovery is that UI images and MLLM-generated HTML/CSS both contain removable redundancy, attackable on opposite sides of the model. Encoding-side element detection builds a UI element graph weighted by spatial distance, then a minimum spanning tree selects tokens that cover UI elements and layout; attention scores then trim low-value tokens inside selected regions and recover high-attention background tokens. Decoding-side HTML/CSS parsers count repeated selector-property pairs, tag/content quadruples, and repeated text, and apply an exponential logit penalty. The reported effect is 55–60% input compression, roughly 41% fewer output tokens, and about 45–49% lower FLOPs, prefill

Load-bearing premise

The load-bearing premise is that the element detector's boxes and the vision encoder's attention scores jointly capture every UI detail, and that the grid-searched parameter settings transfer to the full test sets; if either fails, compressed inputs can omit critical elements and the 'without compromising quality' claim breaks.

Editorial extensions

If this is right

  • UI2Code workloads on large multimodal models could run at roughly half the compute and latency while producing webpages of comparable or better quality.
  • Suppressing repetitive HTML/CSS/text does more than save tokens: it prevents models from getting trapped in generation loops that produce invalid or oversized webpages.
  • Attention-based visual token pruning alone is insufficient for UI tasks; combining element/layout structure with attention refinement preserves critical UI elements that pure attention methods miss.
  • Input-side visual compression and output-side code suppression address independent redundancies, so combining them yields efficiency gains larger than either approach alone.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Beyond the paper's tests, the element-tree selection strategy may transfer to other structured visual generation tasks—slides, posters, or form designs from images—where layout hierarchy matters more than pixel-level detail.
  • A testable extension would apply the repetition-suppression idea to general code generation outside UI, where boilerplate inflates token budgets; the parser-based counters would need a language-specific grammar.
  • The reported gains depend on open models that expose visual-encoder and decoding hook points; closed API models may not permit the same input-token surgery, so deployment benefits in proprietary settings remain an open question.
  • One implicit consequence: on long, dense webpages the benefits may be larger than the reported averages, since both attention scatter and repetition loops worsen with sequence length.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 5 minor

Summary. The paper proposes EfficientUICoder, a token-compression framework for MLLM-based UI-to-code generation. It combines three modules: Element and Layout-aware Token Compression (ELTC), which detects UI elements, builds a UI element graph, and applies a minimum spanning tree; Region-aware Token Refinement (RTR), which uses CLIP attention scores to refine the selected token set; and Adaptive Duplicate Token Suppression (ADTS), which tracks HTML/CSS/text repetition frequencies and applies an exponential penalty during decoding. The authors report experiments on Design2Code and WebCode2M using Llava-v1.6-7b/34b, claiming 55%–60% image-token compression, large reductions in FLOPs, prefill time, and inference time, and maintained or improved output quality. The manuscript also includes ablation, parameter, and human evaluation studies.

Significance. If the claims are substantiated, the paper addresses a real practical bottleneck in UI2Code: the high computational cost of long image-token sequences and repetitive output tokens. The direction is novel relative to prior visual-token compression methods (FastV, Pdrop, VisionZip), which ignore UI structure and do not address output redundancy. The paper is extensive: it includes two datasets, two model scales, automatic and human evaluation, an ablation study, parameter analyses, and a public code repository. The main contribution, however, rests on the assertion that large token compression can be achieved 'without compromising webpage quality'. That assertion is not consistently supported by the paper's own tables, and several key mechanism details are underspecified. The significance is therefore conditional on substantial revision.

major comments (5)
  1. [§6.1, Table 2] The central claim of 'without compromising webpage quality' is contradicted by the paper's own results. For Llava-v1.6-34b/WebCode2M, EfficientUICoder is numerically lower than Vanilla on every automatic quality metric: Block 0.4382 vs 0.4688, Text 0.7533 vs 0.8207, Position 0.5907 vs 0.6441, Color 0.5313 vs 0.5546, CLIP 0.7270 vs 0.7554, BLEU 0.2634 vs 0.2689. Additional drops appear in Block match for the other three configurations and in BLEU for Design2Code-34b. No confidence intervals, error bars, or significance tests are reported anywhere. The statement in §6.1 that human evaluation 'corroborate[s] our automatic metrics' does not resolve this discrepancy, because the human study compares methods against Vanilla and may not align with the automatic metrics for this configuration. The efficiency gains in Table 3 can still hold with a quality drop; the 'free lunch' claim, however, ca
  2. [§4.1–4.2] The mapping from the UI element tree / MST to the actual visual-token mask is never specified. Section 4.1 defines a graph and an MST over element bounding boxes, but it does not state which image patches are retained: all patches inside bounding boxes? Patches whose centers fall inside a box? How are tokens between or on the boundaries of boxes handled? How are overlapping boxes (after the merge step) reconciled with the token grid? The MST's edges are used only to define a tree, but there is no algorithmic rule connecting tree nodes/edges to token indices. Consequently, the ELTC module—the first and most novel stage—is not fully derivable or reproducible from the text. Section 4.2 describes refining the 'selected' and 'unselected' sets, but again relies on the unspecified output of ELTC. Please provide a precise, step-by-step algorithm for token selection, including any threshold or pa
  3. [§5.3.2 and §6.1] The compression-ratio definition is inconsistent with the reported numbers and with the abstract's '55%-60% compression' claim. Equation for R in §5.3.2 defines R = C_compressed / C_original. Under that definition, a value of 60.36% (Design2Code) or 55.86% (WebCode2M) means the method retains 60.36% and 55.86% of the original tokens, i.e., removes 39.64% and 44.14%, not 'compressing 55%-60% of tokens' as stated in §6.1 and the abstract. If the intended meaning is that 55%–60% of tokens are removed, then the formula and the reported percentages must be corrected. This is a headline-number inconsistency and must be fixed before the paper can be assessed fairly.
  4. [§6.4 and §5.2] The hyperparameters (s=3, λ=1/2, r=5–10%) are tuned on 100 webpages from Design2Code and 50 from WebCode2M, and the final performance tables (§6.1) report results on the full datasets. The paper does not state that the tuning samples are excluded from the final test sets, nor does it describe any held-out split or cross-validation for Design2Code/WebCode2M. Because parameter selection directly maximizes the same evaluation metrics on subsets of the same datasets, the reported numbers may be optimistically biased. Please clarify whether the tuning samples overlap with the final test sets and, if so, provide a separate held-out evaluation or internal cross-validation.
  5. [§4.3.2, Eq. (9)] The ADTS penalty procedure is underspecified. Equation (9) states that 'when duplicates occur, we will impose the following penalties on the subsequent s tokens’ logits' and writes z_i = z_i * λ^c for all i in {1,...,s}. In an autoregressive decoder, only the current step's logits can be modified; future tokens have not yet been generated. Does the method (a) at each step, penalize the logits of any token that has appeared in a tracked repeated structure, with intensity λ^c, for the next s decoding steps, or (b) re-score already generated tokens? The description in Algorithm 1 and the paragraph are too vague to reimplement. Please specify exactly which logits are modified at each decoding step, which tokens are eligible for penalty (e.g., all occurrences of the repeated string? only tokens that continue the repeated pattern?), and how c is maintained per structure.
minor comments (5)
  1. [§4.1.2] Typos: 'elememt' and 'construted' appear in the same paragraph. Please proofread.
  2. [Figures 8–10] Figure captions contain 'datatset' (Figures 8 and 9) and a mismatched caption: Figure 10 is titled 'Inference time under different λ and r' but the axes show decay factor λ and suppression step s, not r.
  3. [§7] The Threat to Validity section refers to 'human evaluation (Section 2)', but human evaluation is described in Section 6.1, not Section 2. The reference should be corrected.
  4. [§6.1, Human Evaluation] The human evaluation reports only win/tie/lose percentages. It does not report the number of comparisons per annotator, pairwise inter-annotator agreement (e.g., Fleiss' kappa), or confidence intervals. These are standard for preference studies and would strengthen the claim that human results 'corroborate' the automatic metrics.
  5. [§5.3.1] The metric group is titled 'High-level Similarity', but BLEU is a code-text n-gram overlap measure, not a visual similarity. Consider renaming the group to 'Overall Similarity' or splitting the metrics.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: EfficientUICoder's claims are empirical system results, not derived by construction from their inputs.

full rationale

The paper contains no derivation chain that reduces by construction to its own inputs. The three components are concrete mechanisms: ELTC builds a UI element tree via UIED detection and a minimum spanning tree; RTR uses CLIP CLS-token attention scores to drop/add tokens; ADTS tracks HTML/CSS/text frequencies and applies an exponential logit penalty. None of these steps defines a target metric in terms of the method's own outputs, and none fits a parameter that is then reported as a prediction. The compression ratio, token reductions, FLOPs savings, and latency numbers are measured outcomes on external benchmarks (Design2Code, WebCode2M) using external metrics (CLIP, BLEU, and the Si et al. element-matching metrics), not quantities forced by the method's construction. Hyperparameters (s=3, lambda=1/2, r=5-10%) are tuned on sampled subsets and then applied to full test sets; this is standard model selection and could be a generalization risk, but it is not circularity. Self-citations (MRWeb, Interaction2Code, DesignBench, DCGen) appear only in related work and are not load-bearing evidence for the paper's central efficiency or quality claims. No uniqueness theorem from the authors' prior work is invoked to forbid alternatives, and no external method is re-imported as an unexamined ansatz via self-citation. The apparent quality drop for Llava-v1.6-34b on WebCode2M in Table 2 is a possible empirical contradiction of the 'without compromising quality' claim, but that is a correctness or significance-testing concern, not a circular derivation. Accordingly, no circular step is identified.

Assumptions & free parameters 3 free parameters · 5 assumptions · 0 invented entities

The framework introduces no new physical or semantic entities. All free parameters are decoding/refinement hyperparameters, several tuned on the same datasets used for final evaluation. The key domain assumptions are about the reliability of UIED detection and CLIP attention as proxies for UI semantics.

free parameters (3)
  • Suppression step s = 3
    Grid-searched over {1,3,5,10} on 100 Design2Code and 50 WebCode2M samples (Section 6.4.1). Used in the final evaluation on the full datasets.
  • Decay factor lambda = 1/2
    Grid-searched over {7/8, 3/4, 1/2, 1/3} on the same samples (Section 6.4.1).
  • Refinement ratio r = 10% (Design2Code), 5% (WebCode2M)
    Tuned per dataset on a subset of the test data (Section 6.4.2). Determines how many low-attention tokens are dropped from selected regions and how many high-attention tokens are added from unselected regions.
assumptions (5)
  • domain assumption UIED element detection accurately identifies all UI element bounding boxes on arbitrary webpage screenshots.
    Invoked in Section 4.1.2; if the detector misses elements or produces inaccurate boxes, the compressed token set may omit critical UI content.
  • domain assumption CLS-token attention scores from the frozen CLIP visual encoder reliably indicate which visual tokens are semantically important for UI code generation.
    Used in Section 4.2, Eq. 6, for the RTR refinement. The paper only provides a visual motivation (Fig. 3), not a quantitative justification.
  • standard math The FLOPs formula in Eq. (1) accurately models LLM inference cost for the efficiency comparison.
    Standard approximation of transformer complexity used in Section 2.2; reasonable for comparing sequence-length reductions.
  • domain assumption Incremental parsing of generated HTML/CSS during decoding can robustly identify intended structure repetitions.
    The ADTS parsers (Algorithms 2 and 3) assume token-by-token parsing of well-formed markup; if the model generates malformed code, the tracking may behave unpredictably.
  • domain assumption CLIP score, BLEU, and the block/text/position/color element-matching metrics adequately capture 'webpage quality'.
    The authors rely on these metrics plus a small human evaluation (Section 6.1); if the metrics miss semantic errors, the quality-preservation claim is weaker.

how reviews work

0 comments
Cite this review

Pith. "Pith review of EfficientUICoder: A Bidirectional Token Compression Framework for Efficient MLLM-Based UI Code Generation." pith.science (2026). https://pith.science/paper/AWUNLKQK

@misc{pith2026250912159,
  author       = {Pith},
  title        = {Pith review of: EfficientUICoder: A Bidirectional Token Compression Framework for Efficient MLLM-Based UI Code Generation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/AWUNLKQK}},
  note         = {Machine review of arXiv:2509.12159}
}
read the original abstract

Multimodal Large Language Models have demonstrated exceptional performance in UI2Code tasks, significantly enhancing website development efficiency. However, these tasks incur substantially higher computational overhead than traditional code generation due to the large number of input image tokens and extensive output code tokens required. Our comprehensive study identifies significant redundancies in both image and code tokens that exacerbate computational complexity and hinder focus on key UI elements, resulting in excessively lengthy and often invalid HTML files. We propose EfficientUICoder, a compression framework for efficient UI code generation with three key components. First, Element and Layout-aware Token Compression preserves essential UI information by detecting element regions and constructing UI element trees. Second, Region-aware Token Refinement leverages attention scores to discard low-attention tokens from selected regions while integrating high-attention tokens from unselected regions. Third, Adaptive Duplicate Token Suppression dynamically reduces repetitive generation by tracking HTML/CSS structure frequencies and applying exponential penalties. Extensive experiments show EfficientUICoder achieves a 55%-60% compression ratio without compromising webpage quality and delivers superior efficiency improvements: reducing computational cost by 44.9%, generated tokens by 41.4%, prefill time by 46.6%, and inference time by 48.8% on 34B-level MLLMs. Code is available at https://github.com/WebPAI/EfficientUICoder.

Figures

Figures reproduced from arXiv: 2509.12159 by the authors.

Figure 1
Figure 1. The token ratios of different datasets. Compared to traditional code generation tasks [20, 24, 26, 37], UI2Code presents unique compu￾tational challenges in practice. These tasks consume substantially more tokens due to two primary factors: the extensive number of input image tokens required to represent complex visual designs, and the large volume of generated code tokens needed to describe complete webpage structu… view at source ↗
Figure 2
Figure 2. MLLM-based UI2Code task pipeline. 2.2 MLLMs Background Architecture. As illustrated in [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Visual encoders’ attention score visualization and distribution on two webpages. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (9 more)
Figure 4
Figure 4. Figure 4: Duplicate code token examples. (2) Attention distraction: excessive redundant tokens (e.g., background) scatter the model’s attention across uninformative visual regions, diminishing its capacity to focus on semantically crucial interface elements. Observation 1: Redun…
Figure 5
Figure 5. Figure 5: EfficientUICoder framework. relationship defined by the minimum distance between the boundaries of the two bounding boxes: 𝑤𝑖𝑗 = min 𝑝∈𝜕𝐵𝑖 ,𝑞∈𝜕𝐵𝑗 ∥𝑝 − 𝑞∥2, (3) where 𝜕𝐵𝑖 and 𝜕𝐵𝑗 denote the boundaries of bounding boxes 𝐵𝑖 and 𝐵𝑗 , and ∥ · ∥2 represents the Euclidean nor…
Figure 6
Figure 6. Figure 6: Human Evaluation on Design2Code. 0 20 40 60 80 100 Percentage (%) EUC Visionzip Pdrop FastV Random 48% 26% 26% 34% 28% 38% 42% 28% 30% 36% 28% 36% 32% 30% 38% Win Tie Lose (a) Llava-v1.6-7b. 0 20 40 60 80 100 Percentage (%) EUC Visionzip Pdrop FastV Random 50% 36% 14% …

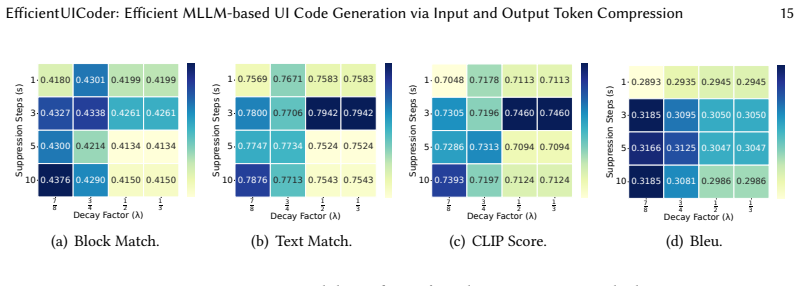

Figure 8
Figure 8. Figure 8: Suppression step 𝑠 and decay factor 𝜆 analysis on Design2Code datatset. 7 8 3 4 1 2 1 3 Decay Factor (λ) 1 3 5 10 Suppression Steps (s) 0.2468 0.2314 0.2304 0.2304 0.2412 0.2390 0.2656 0.2656 0.2463 0.2463 0.2504 0.2504 0.2465 0.2314 0.2435 0.2435 (a) Block Match. 7 8 …
Figure 9
Figure 9. Figure 9: Suppression step 𝑠 and decay factor 𝜆 analysis on WebCode2M datatset. Answer to RQ3: Each component of EfficientUICoder has a positive impact on results. The combination of all components brings the best results, which is much better than using any subset of the three …
Figure 11
Figure 11. Figure 11: Refinement ratio 𝑟 analysis. 0 20 40 60 80 100 Ratio (%) 0.2 0.3 0.4 0.5 0.6 0.7 0.8 Block Text Position Color CLIP Bleu (a) Performance on D2C. 0 20 40 60 80 100 Ratio (%) 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 Block Text Position Color CLIP Bleu (b) Performance on WC2M. 0 …
Figure 12
Figure 12. Figure 12: The performance and efficiency on two datasets when adding unselected token. D2C denotes [PITH_FULL_IMAGE:figures/full_fig_p016_12.png]
Figure 13
Figure 13. Figure 13: Case study of webpages generated by Vanilla, EfficientUICoder and VisionZip. ) UI I (b) ill () ffiiCd [PITH_FULL_IMAGE:figures/full_fig_p017_13.png]
Figure 15
Figure 15. Figure 15: Output redundancy case study. comparable to the Vanilla approach while significantly outperforming VisionZip. Detailed analysis reveals that VisionZip fails to generate essential elements including contact information (name, phone number, email), interactive component…
