A two-disk approach to the synthesis of coherent passive equalizers for linear quantum systems

Shuixin Xiao; Valery Ugrinovskii

arxiv: 2502.01332 · v3 · pith:AZUXU4PInew · submitted 2025-02-03 · 🪐 quant-ph · cs.SY· eess.SY· math.OC

A two-disk approach to the synthesis of coherent passive equalizers for linear quantum systems

Valery Ugrinovskii , Shuixin Xiao This is my paper

Pith reviewed 2026-05-23 03:33 UTC · model grok-4.3

classification 🪐 quant-ph cs.SYeess.SYmath.OC

keywords coherent equalizationlinear quantum systemspassive equalizerstwo-disk problemH infinity controlquantum communication

0 comments

The pith

Linking the coherent equalization problem to the classical two-disk H∞ control problem allows synthesis of passive equalizers for a broader class of linear quantum communication channels.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a method to design quantum systems that serve as near-optimal filters for quantum communication channels by modeling them as linear quantum systems. It connects this to the two-disk problem in classical robust control theory for uncertain systems. This connection yields an improved synthesis technique for the equalizers' transfer functions. The result extends the method to channels beyond those handled by earlier approaches, potentially simplifying quantum filter design.

Core claim

By formulating the coherent equalization problem using the two-disk problem from classical H∞ control, the authors obtain a method for synthesizing transfer functions of coherent passive equalizers that applies to a broader class of linear quantum communication channels than previous methods.

What carries the argument

The two-disk problem formulation transferred from classical H∞ control to the linear quantum system model of the channel.

If this is right

The method produces mean-square near-optimal equalizing filters.
It applies without introducing quantum-specific corrections.
It covers a wider range of linear quantum channels.
The synthesis is based on the linear quantum system model.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

This transfer might enable use of classical control design tools for quantum problems.
Future work could test the equalizers in actual quantum optical experiments.
Similar connections could be explored for other quantum control tasks like state preparation.

Load-bearing premise

The two-disk problem from classical control for uncertain linear systems can be transferred to the quantum linear system model without quantum-specific corrections.

What would settle it

Demonstrating that the synthesized equalizer does not achieve near-optimal performance on a quantum channel that fits the broader class but not previous methods would falsify the claim.

Figures

Figures reproduced from arXiv: 2502.01332 by Shuixin Xiao, Valery Ugrinovskii.

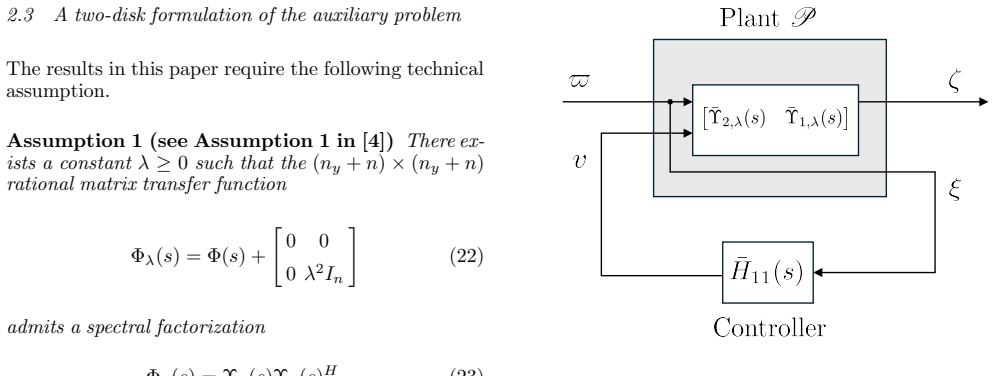

**Figure 2.** Figure 2: The H∞ control setting for the auxiliary problem. Lemma 1 (Lemma 2, [4]) A stable proper transfer function H11(s) which is analytic in a half-plane Re s > −τ (∃τ > 0) satisfies (12) if and only if Tλ(iω) †Tλ(iω) < γ¯ 2 In ∀ω ∈ R¯ , (26) where Tλ(s) ≜ Υ¯ λ(s) " H¯ 11(s) In # . (27) It is straightforward to show that the transfer function Tλ(s) in (27) is the linear fractional transformation 4 involving the… view at source ↗

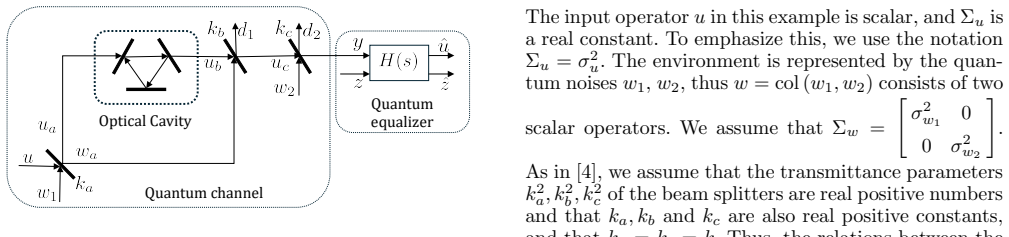

**Figure 3.** Figure 3: A cavity, beam splitters and an equalizer system from [PITH_FULL_IMAGE:figures/full_fig_p014_3.png] view at source ↗

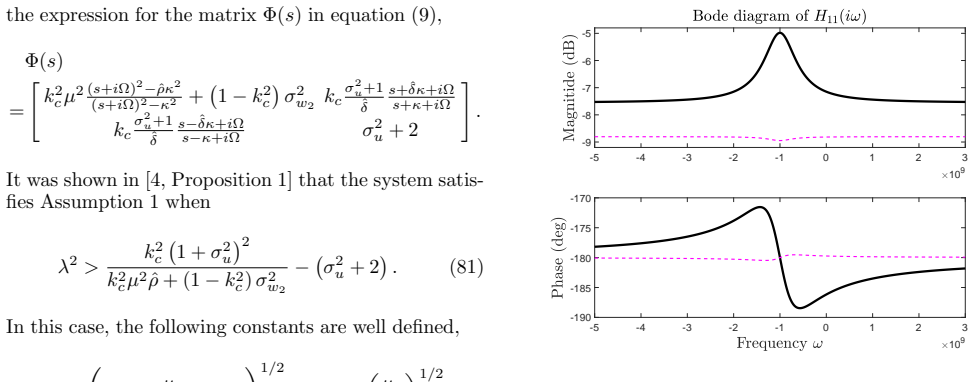

**Figure 4.** Figure 4: The Bode plots of the transfer function H11(s) in equation (84) (the solid black line) and the corresponding transfer function in [4] (the dashed magenta line) for σ 2 w2 = 3. κ, and Ω as those used in the example in [4]: σ 2 u = 0.1, σ 2 w1 = 0.2, σ2 w2 = 3, k = 0.4, kc = 1/ √ 2, κ = 5 × 108 , Ω = 109 . Also, we chose the same value of γ 2 = 1.9448 and found that Assumption 2(ii) was satisfied with λ = 0… view at source ↗

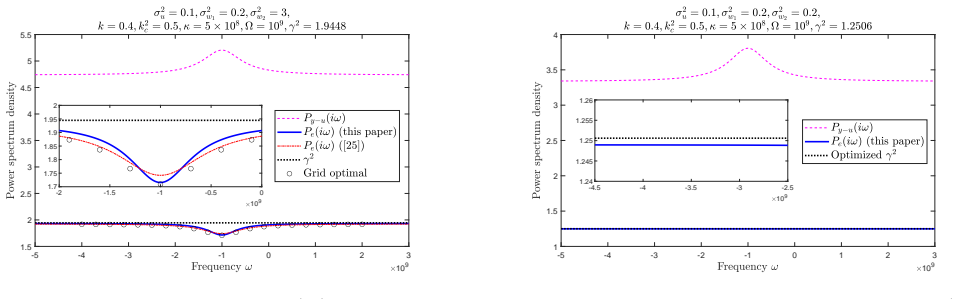

**Figure 5.** Figure 5: The power spectrum density Pe(iω) for the system with the equalizer (84) (the solid blue line). Also shown in the figure are the power spectrum density Py−u(iω) of the difference y − u (the dashed magenta line), the power spectrum density Pe(iω) for the system with the equalizer obtained in [4] (the dash-dotted red line) for this γ 2 , and the values obtained from the semidefinite program (75) (the circles… view at source ↗

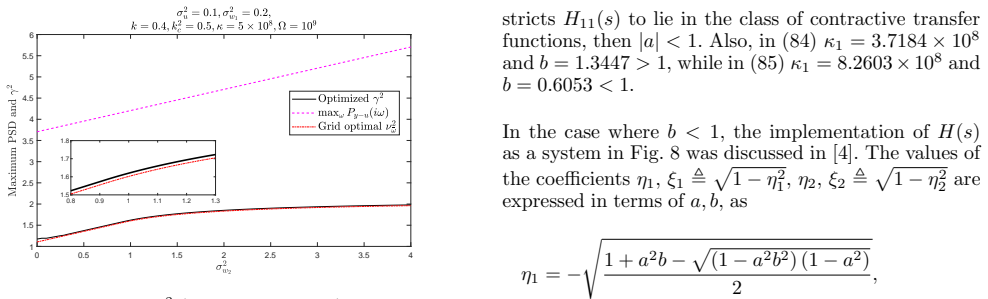

**Figure 7.** Figure 7: The optimized γ 2 (the solid black line), the maximal value of Py−u(iω) (the dashed magenta lines) and ν 2 ω¯ for a range of σ 2 w2 . Optical Cavity [PITH_FULL_IMAGE:figures/full_fig_p017_7.png] view at source ↗

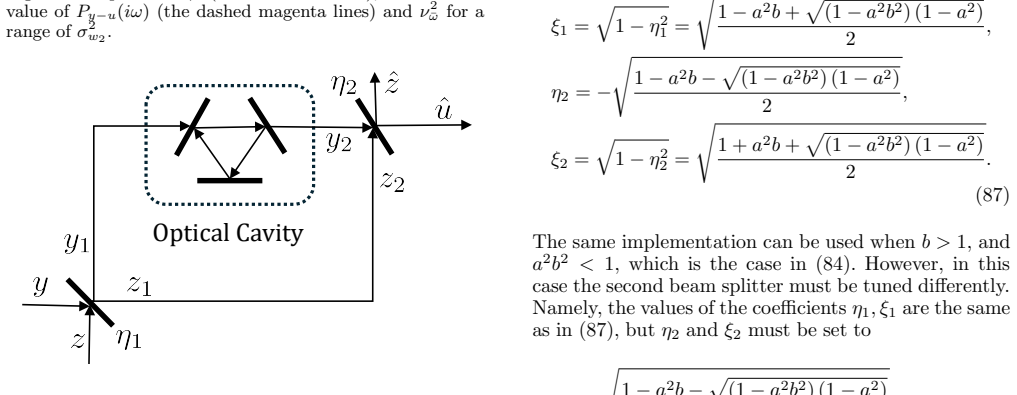

**Figure 8.** Figure 8: A cavity and beam splitters realization of the equalizer [PITH_FULL_IMAGE:figures/full_fig_p017_8.png] view at source ↗

read the original abstract

The coherent equalization problem consists in designing a quantum system acting as a mean-square near-optimal filter for a given quantum communication channel. The paper develops an improved method for the synthesis of transfer functions for such equalizing filters, based on a linear quantum system model of the channel. The method draws on a connection with the two-disk problem of ${H}_{\infty}$ control for classical (i.e., non-quantum) linear uncertain systems. Compared with the previous methods, the proposed method applies to a broader class of linear quantum communication channels.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper maps coherent equalizer synthesis for linear quantum systems onto the classical two-disk H∞ problem and claims this covers more channels than prior work, but the transfer needs explicit checks on commutation relations.

read the letter

The core move is connecting the quantum equalizer design task to the two-disk problem from classical uncertain-system H∞ control. This lets the method handle a strictly larger set of linear quantum channels than the earlier approaches cited in the abstract. That connection is the actual new piece; it reframes the synthesis as an instance of an existing classical result rather than deriving everything from quantum-specific equations. If the mapping works cleanly, it gives a practical route to mean-square near-optimal filters without inventing new quantum control machinery from scratch. The abstract is clear on the scope: linear systems only, passive equalizers, and a focus on transfer-function synthesis. That keeps the claim modest and tied to the model they use. The main soft spot is whether the classical optimizer automatically produces matrices that satisfy the quantum commutation relations [x, x^T] = i ħ J at all times. The two-disk formulation was built for classical uncertain systems, so the resulting A, B, C, D blocks could violate those algebraic constraints or require extra post-processing that breaks the claimed optimality. The abstract gives no derivation steps or example matrices to show this is handled, and the stress-test concern about preserving physical realizability lands directly on the central claim. Without that check, the broader channel class may not actually be reachable by valid quantum systems. The paper is aimed at researchers who already work with linear quantum models for communication channels and want a synthesis procedure. Someone building hardware filters or running simulations on small linear networks could extract a usable method if the full derivations close the gap. It is worth sending to peer review because the idea is concrete, the literature link is external rather than circular, and the potential engineering payoff is real even if revisions are needed on the quantum constraints.

Referee Report

1 major / 0 minor

Summary. The manuscript develops a method for synthesizing coherent passive equalizers for linear quantum systems by reformulating the coherent equalization problem as an instance of the classical two-disk H∞ control problem for uncertain linear systems. It claims that this connection yields transfer functions applicable to a strictly broader class of linear quantum communication channels than prior approaches.

Significance. If the mapping is shown to be valid, the result would extend the design of mean-square near-optimal coherent filters to a larger set of quantum channels, providing a more general synthesis tool grounded in established classical control techniques.

major comments (1)

The central claim that the method applies to a broader class of channels rests on the direct transfer of the classical two-disk formulation to quantum (A,B,C,D) matrices. Without explicit verification that the resulting matrices satisfy the canonical commutation relations [x,xᵀ]=iħJ (or the associated physical realizability conditions) for all time, the synthesized equalizer may not correspond to a valid quantum system, undermining the broadening claim.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thoughtful review and the opportunity to address the concern regarding physical realizability of the synthesized equalizers. We respond to the major comment below.

read point-by-point responses

Referee: The central claim that the method applies to a broader class of channels rests on the direct transfer of the classical two-disk formulation to quantum (A,B,C,D) matrices. Without explicit verification that the resulting matrices satisfy the canonical commutation relations [x,xᵀ]=iħJ (or the associated physical realizability conditions) for all time, the synthesized equalizer may not correspond to a valid quantum system, undermining the broadening claim.

Authors: We agree that explicit verification of the physical realizability conditions is essential to support the claim of applicability to a broader class of channels. The manuscript models both the channel and the equalizer within the linear quantum systems framework, where the two-disk H∞ synthesis is performed on system matrices that inherit the commutation structure from the original quantum channel. The resulting transfer function is therefore constructed to satisfy the required conditions by the properties of the underlying linear quantum system representation. Nevertheless, we acknowledge that the current presentation does not include a dedicated verification step. We will revise the manuscript to add an explicit subsection demonstrating that the synthesized (A,B,C,D) matrices preserve the canonical commutation relations [x,xᵀ]=iħJ for all time, thereby strengthening the validity of the broadening claim. revision: yes

Circularity Check

0 steps flagged

No circularity: external classical mapping applied to quantum model

full rationale

The derivation rests on establishing a connection between the coherent equalization problem for linear quantum systems and the classical two-disk H∞ problem for uncertain linear systems. This mapping is presented as an application of an independent external result rather than a self-definition, fitted prediction, or self-citation chain. The abstract and description frame the broader applicability as a consequence of the transferred formulation, with no equations or steps shown reducing by construction to the paper's own inputs or prior self-citations. The central claim remains an external transfer whose validity is independent of the present work's fitted values.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no concrete free parameters, axioms, or invented entities; the central claim rests on an unexamined transfer of the classical two-disk formulation to quantum linear systems.
