Kinetically Controlled Condensation Boundary Governing Indium Incorporation in InGaN Metal Organic Vapor Phase Epitaxy

Pith reviewed 2026-06-30 03:14 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords InGaNMOVPEindium incorporationcondensation boundaryBurton-Cabrera-Frank modelcrystal truncation roddroplet formationGaN
0
0 comments X

The pith

A kinetically controlled condensation boundary sets the maximum indium composition in InGaN at a given temperature.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper combines in situ synchrotron X-ray crystal truncation rod measurements with a binary Burton-Cabrera-Frank model to track indium incorporation during InGaN growth by metal-organic vapor phase epitaxy on GaN. The model separates mobile In adatoms from condensed droplets and includes coupled Ga-In kinetics, which produces the observed nonlinear dependence of indium fraction on precursor fluxes and temperature. A critical In coverage marks the highest attainable composition before droplets form; this coverage arises from the kinetic balance between adatom supply and the surface incorporation capacity. The boundary moves with temperature and Ga flux, and the model predicts its location in quantitative agreement with independent measurements. This supplies a practical way to select growth conditions that reach higher indium levels while remaining below the droplet threshold.

Core claim

The central claim is that indium incorporation during InGaN MOVPE is governed by a kinetically controlled condensation boundary whose critical In coverage is fixed by the balance between In adatom supply and the incorporation capacity of the coupled Ga-In system in the binary Burton-Cabrera-Frank model. The model distinguishes adatoms from droplets, reproduces the nonlinear composition response to flux and temperature, and quantitatively predicts the boundary location, which shifts with temperature and Ga flux and matches separate experimental checks.

What carries the argument

binary Burton-Cabrera-Frank model that distinguishes In adatoms from condensed droplets and incorporates coupled Ga-In incorporation kinetics

If this is right

  • Indium composition depends nonlinearly on precursor flux and growth temperature.
  • The condensation boundary position changes with temperature and Ga flux.
  • Quantitative model predictions of the boundary agree with independent measurements.
  • Growth conditions can be chosen to maximize In content while avoiding droplet formation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same kinetic-balance approach could be tested on other ternary nitrides to locate their composition ceilings.
  • Recipes that hold growth just below the predicted boundary may stabilize high-In films at higher temperatures than current practice allows.
  • Increasing Ga flux may widen the window of allowable In coverage at fixed temperature.

Load-bearing premise

The binary Burton-Cabrera-Frank model with coupled Ga-In kinetics and explicit distinction between In adatoms and condensed droplets accurately represents the surface processes without missing rate-limiting steps or unmodeled interactions.

What would settle it

An X-ray measurement of In coverage at the temperature and flux values predicted for the critical boundary that shows the observed maximum In composition lying outside the predicted coverage window would falsify the boundary claim.

Figures

Figures reproduced from arXiv: 2606.29163 by Bo Shen, Erqi Xu, Guangxu Ju, Haitao Wang, Haixin Qi, Hiroshi Amano, Jiale Wang, Jiaqing Yue, Jia Wang, Junlin Wu, Liyi Luo, Qihui Lin, Zihao Xu.

Figure 1

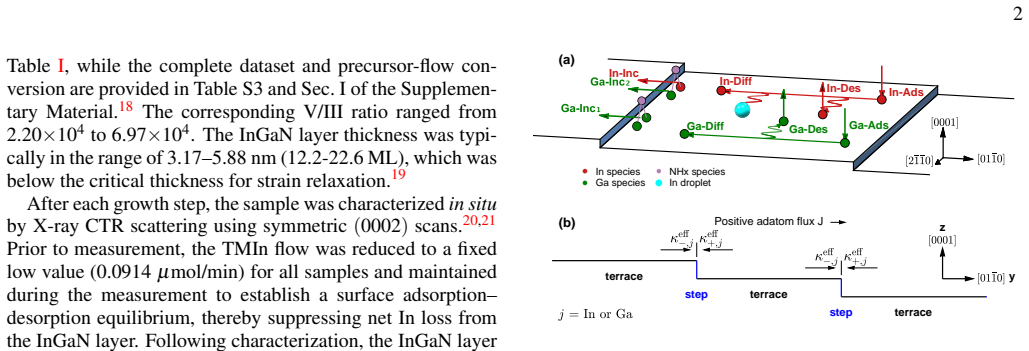

Figure 1. Figure 1: FIG. 1. (a) Schematic of InGaN growth on a vicinal surface. In and [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

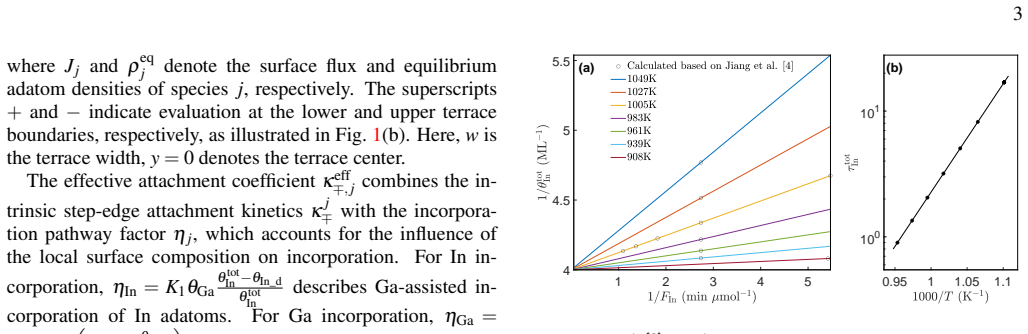

Figure 2. Figure 2: FIG. 2. (a) 1 [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4

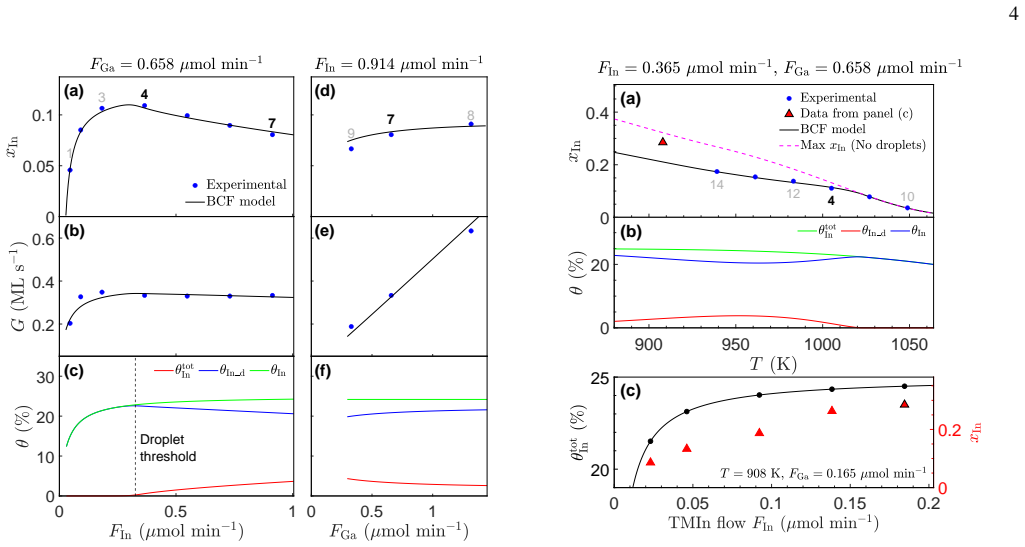

Figure 4. Figure 4: FIG. 4. (a,b) Temperature dependence of [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
read the original abstract

We combine in situ synchrotron X-ray crystal truncation rod measurements with a binary Burton-Cabrera-Frank model to quantify indium incorporation during InGaN growth by metal-organic vapor phase epitaxy (MOVPE) on GaN(0001). By distinguishing In adatoms from condensed droplets and incorporating coupled Ga-In incorporation kinetics, the model captures the intrinsically nonlinear dependence of indium composition on precursor flux and growth temperature. The critical In coverage corresponding to the maximum attainable In composition at a given temperature is determined by a kinetic balance between In adatom supply and incorporation capacity, defining a kinetically controlled condensation boundary that shifts with temperature and Ga flux. The model quantitatively predicts this boundary, in agreement with independent measurements, and provides a predictive framework for optimizing high-In-content InGaN growth while avoiding droplet formation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript combines in situ synchrotron X-ray crystal truncation rod measurements with a binary Burton-Cabrera-Frank model to quantify indium incorporation during InGaN MOVPE on GaN(0001). The model distinguishes In adatoms from condensed droplets, incorporates coupled Ga-In kinetics, and captures the nonlinear composition dependence on flux and temperature. It claims that the critical In coverage at maximum attainable composition is set by kinetic balance between supply and incorporation capacity, defining a kinetically controlled condensation boundary that the model quantitatively predicts in agreement with independent measurements.

Significance. If the central claim holds, the work supplies a predictive framework for optimizing high-In-content InGaN growth while avoiding droplet formation. The integration of in situ X-ray CTR data with an explicit adatom/droplet kinetic model is a methodological strength, and the reported experimental agreement would constitute a concrete validation if the fitting and prediction steps are shown to be independent.

major comments (2)
  1. [Abstract] Abstract: the claim of quantitative agreement with independent measurements is unsupported because the manuscript provides no model equations, no values or fitting procedure for the free parameters (In adatom incorporation rate constants and Ga-In coupling coefficients), no error analysis, and no data-exclusion rules. Without these, the strength of the validation cannot be assessed.
  2. [Model section] Model section: the condensation boundary is defined directly from the kinetic balance inside the binary BCF model. Because the free parameters are fitted to the same X-ray composition data used to validate the boundary, the reported quantitative prediction risks being circular rather than an independent test; this directly undermines the central claim that the model 'quantitatively predicts this boundary'.
minor comments (1)
  1. [Abstract] Abstract: 'independent measurements' are referenced but never identified or distinguished from the in situ X-ray CTR data set.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on the abstract and model validation. We address each point below and will revise the manuscript accordingly to strengthen the presentation of the model details and validation procedure.

read point-by-point responses
  1. Referee: [Abstract] Abstract: the claim of quantitative agreement with independent measurements is unsupported because the manuscript provides no model equations, no values or fitting procedure for the free parameters (In adatom incorporation rate constants and Ga-In coupling coefficients), no error analysis, and no data-exclusion rules. Without these, the strength of the validation cannot be assessed.

    Authors: The full Model section contains the binary BCF equations, the fitted values of the In adatom incorporation rate constants and Ga-In coupling coefficients, the fitting procedure to the X-ray CTR composition data, error analysis, and data-exclusion rules. The abstract's claim of quantitative agreement refers to the model's derived condensation boundary matching separate independent measurements of droplet formation thresholds. We will revise the abstract to briefly reference the model parameters and the independence of the boundary validation. revision: yes

  2. Referee: [Model section] Model section: the condensation boundary is defined directly from the kinetic balance inside the binary BCF model. Because the free parameters are fitted to the same X-ray composition data used to validate the boundary, the reported quantitative prediction risks being circular rather than an independent test; this directly undermines the central claim that the model 'quantitatively predicts this boundary'.

    Authors: The parameters are fitted to the X-ray CTR composition versus flux and temperature. The condensation boundary is then computed from the kinetic balance using those parameters and tested against independent measurements of the droplet onset (e.g., ex situ or additional in situ data not entering the fit). This is an out-of-sample test rather than circular. We will add explicit text in the revised Model section distinguishing the fitting dataset from the boundary validation data. revision: partial

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper's derivation uses a binary Burton-Cabrera-Frank kinetic model to obtain the condensation boundary from explicit supply-incorporation balance equations. This boundary is then compared to independent X-ray CTR and composition measurements rather than being validated against the same fitted parameters used to define it. No load-bearing step reduces by construction to a self-citation, a renamed fit, or an ansatz smuggled from prior author work; the model equations and experimental agreement remain distinct. The central prediction therefore retains independent content against external benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The central claim rests on the applicability of an extended BCF model whose kinetic parameters are not independently derived; no free parameters are explicitly listed but are implied by the quantitative fitting to data.

free parameters (2)
  • In adatom incorporation rate constants
    Required to set the kinetic balance that defines the condensation boundary; values must be chosen or fitted to match observed nonlinear composition dependence.
  • Ga-In coupling coefficients
    Control the coupled incorporation kinetics in the binary model; not derivable from first principles in the abstract.
axioms (1)
  • domain assumption The Burton-Cabrera-Frank framework extended to binary systems accurately describes InGaN surface kinetics during MOVPE.
    Invoked to distinguish adatoms from droplets and to derive the condensation boundary.
