Reinforcement Learning-based Control via Y-wise Affine Neural Networks: Comparative Case Studies for Chemical Processes

Austin Braniff , Yuhe Tian This is my paper

Pith reviewed 2026-05-21 03:43 UTC · model grok-4.3

classification 📡 eess.SY cs.LGcs.SYmath.OC
keywords reinforcement learningchemical process controlYANNneural network initializationNMPCCSTRprocess systemscontrol benchmarks
0
0 comments X

The pith

YANN-RL uses strategic neural-network initialization to cut training time and data for reinforcement learning control in chemical processes while approaching NMPC performance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests YANN-RL on three standard chemical process benchmarks: a continuous stirred tank reactor, a four-tank system, and a multistage extraction column. It initializes actor and critic networks with Y-wise Affine structures to create confident and interpretable starting points instead of random ones. Results show the method trains faster with less data than PPO, SAC, DDPG, and TD3 while delivering performance close to nonlinear model predictive control without needing a complete nonlinear model of the plant. This directly tackles the main barriers that have kept RL out of chemical process control: long unreliable training and lack of trust in the resulting policies.

Core claim

YANN-RL algorithms supply confident and interpretable initializations for actor and critic networks that allow reinforcement learning to be applied to chemical process control with greatly reduced training time and data requirements, while reaching performance levels comparable to nonlinear model predictive control across the CSTR, four-tank, and extraction column case studies without requiring a full nonlinear process model.

What carries the argument

Y-wise Affine Neural Networks (YANN), which structure the actor and critic networks to deliver confident and interpretable starting points for RL training in control tasks.

If this is right

  • RL agents become practical to train and deploy for chemical process systems with far less data and time.
  • Control performance can reach levels close to NMPC while avoiding the need for a complete nonlinear plant model.
  • Standard RL algorithms such as PPO and SAC are outperformed in training efficiency on the same process benchmarks.
  • The approach applies across distinct process types including reactors, tanks, and extraction columns.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The initialization technique could be tested on other industrial control domains such as robotics or power systems to check transferability.
  • Partial plant models might be combined with YANN-RL to narrow any remaining performance gap to full NMPC.
  • Improved interpretability from the affine structure could support safety certification steps in regulated process industries.

Load-bearing premise

The YANN initialization developed in prior work reliably transfers to produce confident starting points for these specific chemical process control problems.

What would settle it

If the reported experiments show that YANN-RL requires comparable or greater training time and data than PPO, SAC, DDPG, or TD3, or fails to approach NMPC performance on any of the three PC-Gym case studies, the central performance claims would be falsified.

Figures

Figures reproduced from arXiv: 2605.21211 by Austin Braniff, Yuhe Tian.

Figure 1
Figure 1. Figure 1: Actor-critic reinforcement learning with nomencla [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: Conceptualization of YANN-Critic 4. CASE STUDIES All case studies for evaluating YANN-RL utilize the YANN-DDPG algorithm, which is summarized in Algo￾rithm 1. In all figures, Oracle refers to well-tuned NMPC which assumes perfect and noiseless nonlinear models as an ideal benchmark. Control performance metrics such as in￾tegral squared error (ISE), integral time-weighted absolute error (ITAE), steady-state… view at source ↗
Figure 5
Figure 5. Figure 5: Control comparison metrics are provided in Table 2 [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 4
Figure 4. Figure 4: Control studies of RL algorithms on a CSTR. [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

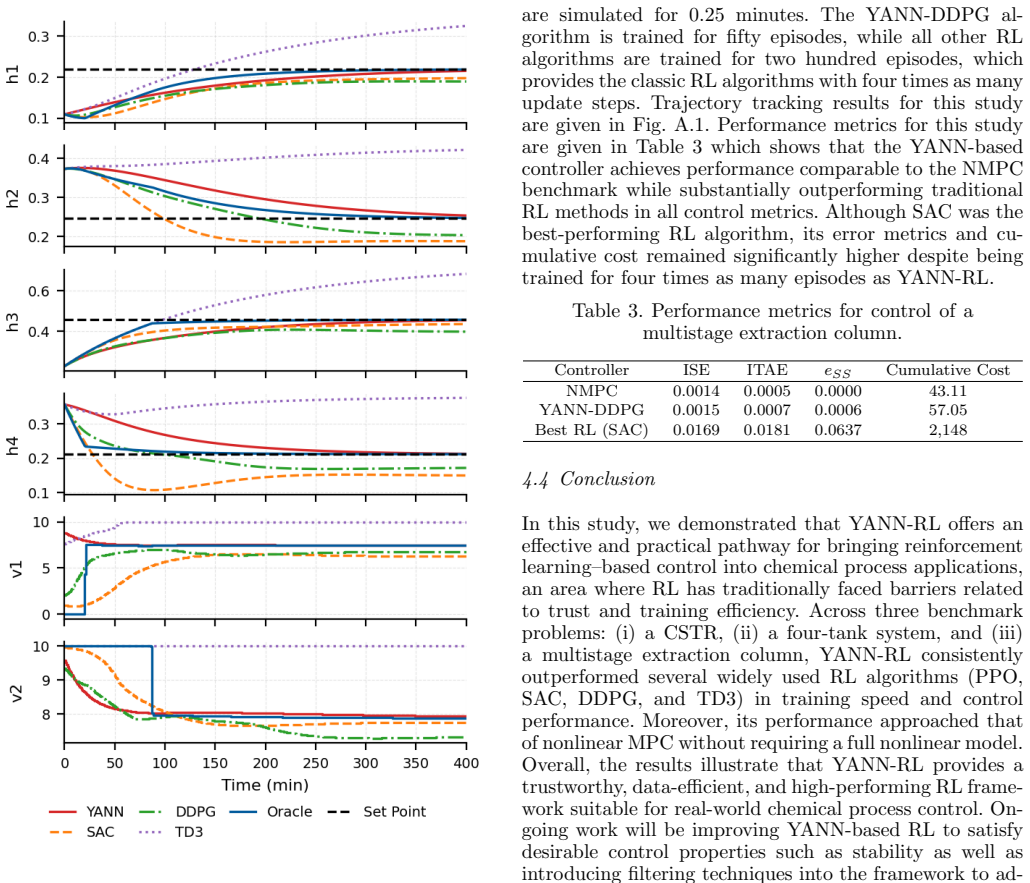

Figure 5
Figure 5. Figure 5: Control studies of RL algorithms on a four-tank [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
read the original abstract

In this work we present an efficient and practically implementable approach for the application of reinforcement learning (RL)-based control in chemical process systems. This is an area that has yet to widely adopt RL-based control largely due to inherent challenges in trusting RL algorithms and the time-consuming process of training reliable agents. To address these challenges, we leverage a class of RL algorithms termed Y-wise Affine Neural Network (YANN)- RL, which we have developed in our prior work (Braniff and Tian, 2025a). By strategically initializing actor and critic networks YANN-RL algorithms provide confident and interpretable starting points within control schemes. We apply this RL-based control approach to three different process engineering case studies publicly available on the PC-Gym library (Bloor et al., 2026): (i) a continuous stirred tank reactor (CSTR), (ii) a four-tank system, and (iii) a multistage extraction column. Our approach is compared to several popular RL algorithms (PPO, SAC, DDPG, and TD3) and is benchmarked against nonlinear model predictive control (NMPC). These case studies demonstrate that YANN-RL can greatly reduce the training time and data needed, can be deployed with confidence for chemical process systems, and can approach the performance of NMPC without the knowledge of a full nonlinear model.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript applies YANN-RL (building on the authors' prior initialization method) to three PC-Gym chemical process benchmarks: CSTR, four-tank system, and multistage extraction column. It compares performance against PPO, SAC, DDPG, TD3, and NMPC, claiming that YANN-RL greatly reduces training time and data needs, supports confident deployment in chemical systems, and approaches NMPC performance without requiring a full nonlinear model.

Significance. If the reported advantages hold under proper validation, the work could help address adoption barriers for RL in process control by leveraging interpretable initializations. The choice of public PC-Gym environments supports potential reproducibility, though the reliance on prior initialization results limits the independence of the new contributions.

major comments (2)
  1. Abstract: The claims that YANN-RL 'greatly reduce[s] the training time and data needed' and enables 'deploy[ment] with confidence' rest on the transfer of initialization benefits from Braniff and Tian (2025a). No ablation isolating YANN initialization versus random or standard initialization is described for the CSTR, four-tank, or extraction-column tasks, so the performance edge cannot be confidently attributed to the YANN property rather than hyperparameter choices or environment specifics.
  2. Abstract and comparative results section: The manuscript states that YANN-RL 'can approach the performance of NMPC without the knowledge of a full nonlinear model,' yet provides no quantitative metrics, error bars, training curves, or statistical tests to support this in the new domains. Without these, the comparative advantage over baselines remains unverifiable.
minor comments (2)
  1. Ensure all figures include clear legends, axis labels, and units consistent with the PC-Gym environments.
  2. Add explicit references to the exact PC-Gym versions and environment parameters used for each case study to aid reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. Below we respond point by point to the major comments and indicate the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: Abstract: The claims that YANN-RL 'greatly reduce[s] the training time and data needed' and enables 'deploy[ment] with confidence' rest on the transfer of initialization benefits from Braniff and Tian (2025a). No ablation isolating YANN initialization versus random or standard initialization is described for the CSTR, four-tank, or extraction-column tasks, so the performance edge cannot be confidently attributed to the YANN property rather than hyperparameter choices or environment specifics.

    Authors: We agree that an explicit ablation would make the attribution clearer. The initialization benefits were established in Braniff and Tian (2025a), and the present manuscript applies the resulting YANN-RL agents to new PC-Gym benchmarks while comparing against standard RL baselines. To address the referee's concern directly, the revised manuscript will include a new ablation subsection that compares YANN initialization against random initialization (with all other hyperparameters held fixed) on the CSTR and four-tank tasks. These results will be reported alongside the existing comparisons. revision: yes

  2. Referee: Abstract and comparative results section: The manuscript states that YANN-RL 'can approach the performance of NMPC without the knowledge of a full nonlinear model,' yet provides no quantitative metrics, error bars, training curves, or statistical tests to support this in the new domains. Without these, the comparative advantage over baselines remains unverifiable.

    Authors: We acknowledge that the original submission would benefit from more complete quantitative support. The manuscript already contains performance tables and selected training curves, but we agree that error bars, full training curves for all algorithms, and statistical tests are needed for verifiability. The revised version will add (i) mean and standard-deviation error bars computed over five independent random seeds for every reported metric, (ii) complete training curves for PPO, SAC, DDPG, TD3, and YANN-RL on all three case studies, and (iii) paired t-test results comparing YANN-RL against each baseline and against NMPC. The abstract will be updated to reference these supporting metrics. revision: yes

Circularity Check

1 steps flagged

YANN-RL performance claims rest on self-cited initialization without ablation or transfer validation

specific steps
  1. self citation load bearing [Abstract]
    "we leverage a class of RL algorithms termed Y-wise Affine Neural Network (YANN)- RL, which we have developed in our prior work (Braniff and Tian, 2025a). By strategically initializing actor and critic networks YANN-RL algorithms provide confident and interpretable starting points within control schemes. We apply this RL-based control approach to three different process engineering case studies publicly available on the PC-Gym library"

    The asserted benefits (reduced training time, confident deployment, interpretable starting points) are justified solely by the self-citation to the authors' earlier paper; the current results are applications of that method to PC-Gym cases without new validation or ablation of the initialization's contribution, making the load-bearing premise dependent on the prior self-cited claim rather than independent evidence here.

full rationale

The paper's central claims—that YANN-RL greatly reduces training time/data, enables confident deployment, and approaches NMPC performance—explicitly rest on the initialization strategy from the authors' prior work (Braniff and Tian, 2025a) producing reliable, interpretable starting points that transfer to the new CSTR, four-tank, and extraction-column tasks. The manuscript applies the method and reports comparisons but provides no ablation isolating the initialization effect nor domain-specific confirmation that the prior benefits persist, so the performance edge reduces to an unverified assumption of transfer from the self-citation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work depends on the transferability of YANN initialization benefits from prior work to these specific process control tasks; no new free parameters or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption YANN-RL initialization provides confident and interpretable starting points that improve training reliability in control applications
    Invoked when claiming reduced training time and confident deployment; drawn from the 2025 prior work rather than re-derived here.
