arxiv: 2606.29943 · v1 · pith:BXWETQY3new · submitted 2026-06-29 · 🪐 quant-ph

Finite-key security analysis of decoy-state QKD with source and detector imperfections

Pith reviewed 2026-06-30 06:36 UTC · model grok-4.3

classification 🪐 quant-ph
keywords quantum key distributiondecoy-state protocolfinite-key analysisdevice imperfectionssecurity proofside-channel leakagedetection efficiency mismatch
0
0 comments X

The pith

A finite-key security proof for decoy-state QKD now incorporates state-preparation flaws, side-channel leakage, intensity fluctuations and detection-efficiency mismatches in one analytical bound.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The work derives an analytical expression for the length of the secure key that can be extracted from a finite number of pulses when the source and detector deviate from ideal behavior in several ways at once. It combines recent proof techniques to remove the common assumption that signals are independent and identically distributed. A reader should care because high-speed QKD systems always exhibit these imperfections, and earlier proofs either ignored them or required experimental conditions that are hard to verify. If the bound holds, one can calculate concrete key rates directly from measured device parameters without additional idealizing assumptions.

Core claim

We obtain a tight finite-key length formula for decoy-state QKD that simultaneously accounts for state-preparation flaws, bit and basis side-channel leakage and correlations, setting-independent intensity fluctuations, and detection-efficiency mismatches.

What carries the argument

The extended finite-key security bound constructed by merging recent advances on imperfect sources and detectors into a single analytical expression.

If this is right

  • Key rates can be evaluated without assuming signals are independent and identically distributed.
  • The same proof framework applies to both transmitter and receiver imperfections at once.
  • Experimenters obtain explicit dependence of the key length on each measured flaw parameter.
  • High-speed implementations can use the bound without additional assumptions that are difficult to justify.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The modular structure of the proof may allow similar combinations for other QKD variants such as measurement-device-independent schemes.
  • One could test the bound by feeding it real calibration data from a deployed QKD link and checking whether the predicted key rate matches observed performance.
  • If additional unmodeled imperfections appear in practice, the current formula would need an extra term rather than a complete rewrite.
  • The approach suggests that future security analyses can be assembled from reusable sub-proofs for individual device flaws.

Load-bearing premise

The listed imperfections are treated as the complete set of relevant deviations from ideal behavior.

What would settle it

An experiment that measures the listed imperfections, computes the bound, and then extracts a longer key than the formula permits would falsify the claim.

Figures

Figures reproduced from arXiv: 2606.29943 by \'Alvaro Navarrete, Guillermo Curr\'as-Lorenzo, Marcos Curty, Margarida Pereira, V\'ictor Zapatero, Xoel Sixto.

Figure 1

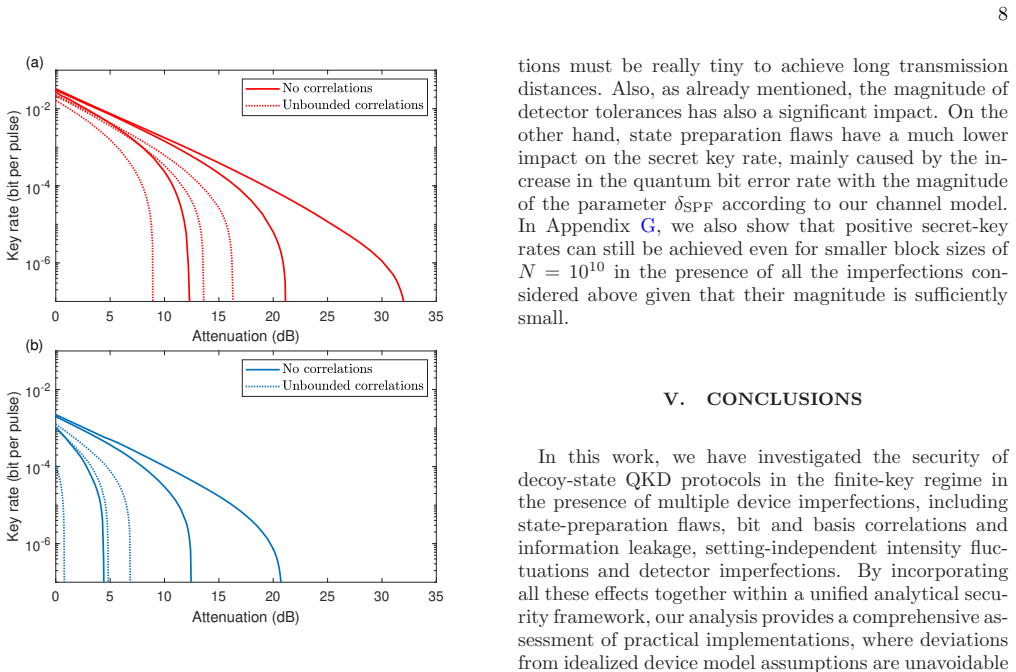

Figure 1. Figure 1: Finite secret-key rate of a decoy-state BB84 [PITH_FULL_IMAGE:figures/full_fig_p008_1.png] view at source ↗
Figure 2

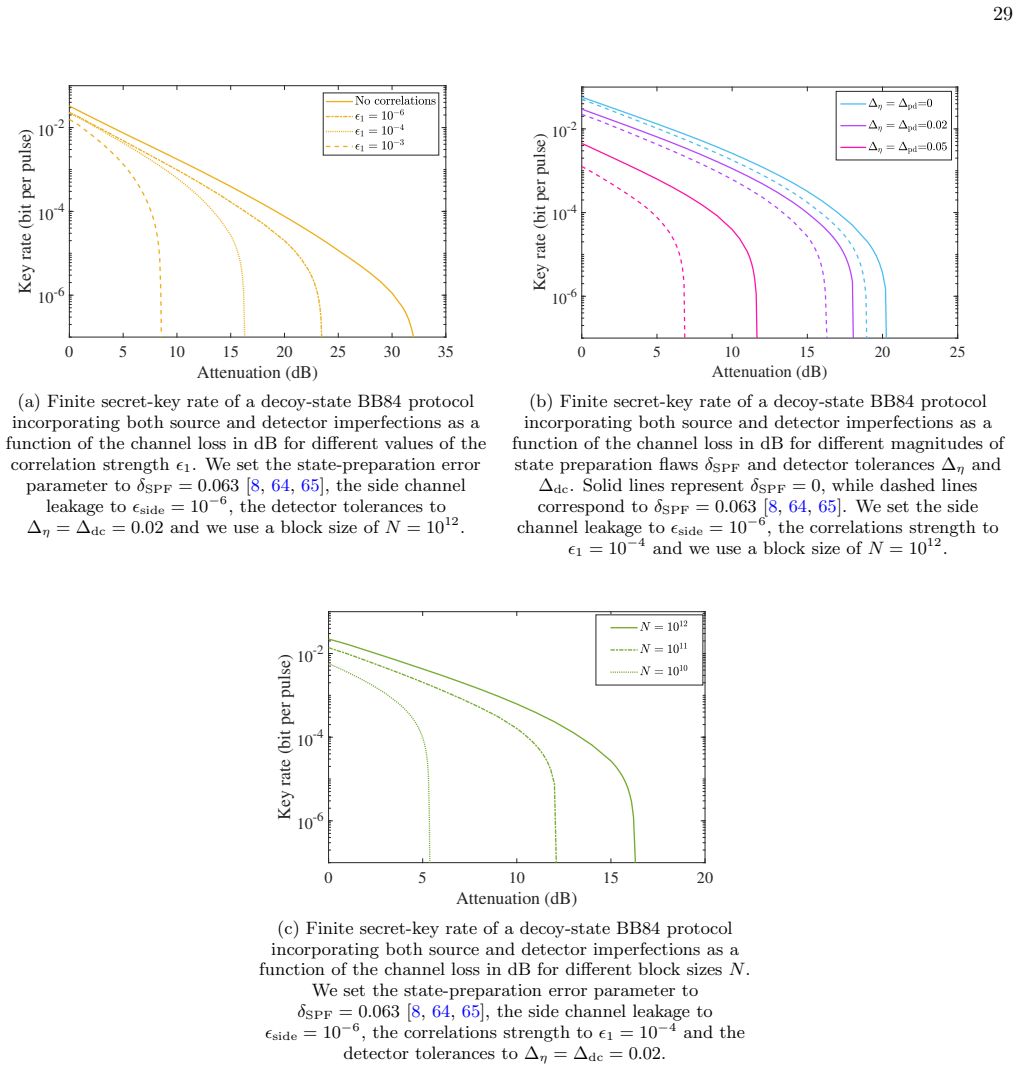

Figure 2. Figure 2: Numerical simulations of the finite secret-key rate of the [PITH_FULL_IMAGE:figures/full_fig_p029_2.png] view at source ↗
read the original abstract

Decoy-state quantum key distribution (QKD) is the most widely adopted approach for overcoming the limitations of imperfect single-photon sources. However, existing security proofs typically either neglect important device imperfections or rely on assumptions that are difficult to justify in realistic high-speed implementations, such as the independent and identically distributed nature of the emitted signals. In this work, we combine and extend several recent theoretical advances to provide a comprehensive analytical finite-key security proof for decoy-state QKD that simultaneously incorporates multiple practically relevant transmitter and receiver imperfections, including state-preparation flaws, bit and basis side-channel leakage and correlations, setting-independent intensity fluctuations, and detection-efficiency mismatches.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper claims to combine and extend recent theoretical advances to deliver an analytical finite-key security proof for decoy-state QKD that simultaneously accounts for state-preparation flaws, bit and basis side-channel leakage and correlations, setting-independent intensity fluctuations, and detection-efficiency mismatches.

Significance. If the derivation is sound and the model is complete, the result would supply a more realistic finite-key bound for practical high-speed QKD systems than proofs that omit these imperfections, directly improving the accuracy of extractable key lengths under realistic device conditions.

major comments (1)
  1. Abstract (and implied model definition): the central claim requires that the enumerated imperfections constitute a closed, sufficient set; no bounding argument or completeness proof is supplied showing why other realistic deviations (e.g., residual phase correlations across pulses or detection timing jitter) are either negligible or absorbed into the listed terms. This assumption is load-bearing for the validity of the extracted key-length formula, exactly as the weakest-assumption note indicates.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful review and the positive assessment of the work's potential significance. We address the single major comment below.

read point-by-point responses
  1. Referee: Abstract (and implied model definition): the central claim requires that the enumerated imperfections constitute a closed, sufficient set; no bounding argument or completeness proof is supplied showing why other realistic deviations (e.g., residual phase correlations across pulses or detection timing jitter) are either negligible or absorbed into the listed terms. This assumption is load-bearing for the validity of the extracted key-length formula, exactly as the weakest-assumption note indicates.

    Authors: We agree that the manuscript does not supply a formal completeness proof or explicit bounding argument establishing that the listed imperfections form a closed set. The analysis extends recent finite-key techniques to simultaneously treat the four classes of imperfections that are most frequently cited as dominant in high-speed implementations. Effects such as residual phase correlations are typically mitigated by hardware stabilization and can be partially absorbed into the side-channel leakage parameters already included; timing jitter is usually small enough to be bounded within the detection-efficiency mismatch model under standard assumptions. Nevertheless, an explicit discussion of scope and limitations would strengthen the presentation. In the revised version we will add a dedicated paragraph (or short subsection) in the model section that states the imperfections under which the key-length formula is derived, notes that additional deviations are assumed either negligible or mitigable by other means, and references the relevant experimental literature. revision: yes

Circularity Check

0 steps flagged

No circularity; derivation claims external advances without self-referential reduction in visible text

full rationale

The provided abstract states that the work 'combine[s] and extend[s] several recent theoretical advances' to produce a finite-key security proof incorporating listed imperfections, but supplies no equations, fitted parameters, or self-citations that would allow any prediction or bound to reduce by construction to its own inputs. No self-definitional steps, fitted-input predictions, load-bearing self-citations, or ansatz smuggling are exhibited. The central claim therefore remains a composite of external results whose independence cannot be contradicted from the given text; this matches the default expectation that most papers are non-circular when no explicit reduction is quotable.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Review based solely on abstract; no explicit free parameters, invented entities, or non-standard axioms are stated in the provided text. Typical QKD domain assumptions (e.g., quantum mechanics, standard probability bounds) are presumed but not enumerated.

pith-pipeline@v0.9.1-grok · 5656 in / 1132 out tokens · 27993 ms · 2026-06-30T06:36:01.443494+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

98 extracted references · 5 canonical work pages · 3 internal anchors

  1. [1]

    Protocol description and security framework We start by reviewing the different steps of the actual protocol a nd its equivalent source-replaced description. For generality, the following description is given for generic prepare-an d-measure protocols rather than for the specific BB84 implementation of the main text, so that the results also apply f or inst...

  2. [2]

    For the BB84 protocol, this state corresponds to Eq

    State preparation: For each round k ∈ { 1,...,N }, Alice randomly selects a certain encoding setting jk with probability pjk and an intensity setting µ k with probability pµ k , and then prepares a quantum state ρµ k,j k|jk− 1 1 . For the BB84 protocol, this state corresponds to Eq. ( 1) in the main text. She sends this state to Bob through the quantum channel

  3. [3]

    Eve’s action: Eve applies an arbitrary quantum operation on all the transmitted s tates and re-sends some output systems BN 1 to Bob, while keeping some ancillary system E

  4. [4]

    Bob records his measurement outcomes

    Bob’s measurements: For each roundk, Bob choosesξk ∈ { key, test} with probabilitypξk and performs the corresponding POVM; ⃗Γ key ifξk = key, or ⃗Γ test ifξk = test. Bob records his measurement outcomes

  5. [5]

    For the detected rounds, Alice announces the intensity se tting µ k

    Sifting: Bob announces which rounds resulted in a detection, along with his ch oice ofξk for each detected round. For the detected rounds, Alice announces the intensity se tting µ k. Also, for the detected rounds with ξk = test, and for the detected rounds with ξk = key and jk /∈ { 0, 1}, Alice announces jk. For the detected rounds with ξk = key and jk ∈ ...

  6. [6]

    They announce which rounds belong to this subset

    Bit-error-rate estimation: Alice and Bob choose a random subset, denoted by Dkey, of the detected rounds in which ˜Bk =ξk = key, which will be used to generate the sifted key [ 72]. They announce which rounds belong to this subset. For the remaining rounds with ˜Bk = ξk = key, Alice and Bob announce their bit values to estimate the bit-error rate

  7. [7]

    Sifted key formation: For each round k ∈ D key , Alice’s sifted key bit is jk and Bob’s sifted key bit is his measurement outcome, which we denote by bk

  8. [8]

    V ariable-length decision: Let ⃗ ndenote all the data announced by Alice and Bob in the previous steps. Using this data, Alice and Bob compute the number of bits λ EC to be revealed for one-way error correction and the length of the final key ℓ, which includes the estimation of all relevant parameters required to determine ℓ. Aborting corresponds to ℓ = 0. 11

  9. [9]

    Error correction and verification: They perform one-way error correction revealing λ EC bits, and verify correctness using a randomly chosen hash function from a t wo-universal family with output length log2(2/ε corr), with one party announcing the hash value for comparison

  10. [10]

    The security of the above protocol is analyzed using the source-r eplacement technique

    Privacy amplification: Given that error verification succeeds, they apply a randomly selec ted two- universal hash function to the sifted key to obtain a final key of len gth ℓ. The security of the above protocol is analyzed using the source-r eplacement technique. In this picture, Alice’s prepare-and-measure procedure is equivalent to one in which she fi rst...

  11. [11]

    ( A1) and sends the photonic systems T N 1 through the quantum channel to Bob, while retaining the registers AN 1 ,I N 1 and M N 1

    State preparation: Alice prepares the global entangled state |Ψ N ⟩AN 1 I N 1 M N 1 T N 1 given by Eq. ( A1) and sends the photonic systems T N 1 through the quantum channel to Bob, while retaining the registers AN 1 ,I N 1 and M N 1

  12. [12]

    Eve’s action: Eve applies an arbitrary quantum operation on all the transmitted s tatesT N 1 , and sends the output systems BN 1 to Bob, possibly retaining an ancillary system E

  13. [13]

    If ξk = key, he applies the filter operation {F, I − F } to determine whether a detection occurs

    Detection and test: For each round, Bob selects ξk ∈ { key, test} with probability pξk . If ξk = key, he applies the filter operation {F, I − F } to determine whether a detection occurs. If ξk = test, he performs the measurement ⃗Γ test (a POVM with an arbitrary number of outcomes prescribed by the actual protocol). Bob announces which rounds result in a d...

  14. [14]

    She measures her sys temIk in the basis |µ k⟩Ik and announces her results

    Key/test determining, setting announcement and photon num ber measurement: For the detected rounds, Alice proceeds as follows. She measures her sys temIk in the basis |µ k⟩Ik and announces her results. Also, if ξk = test, Alice measures her system Ak in the { |jk⟩Ak } jk∈J basis and announces her outcome jk. If ξk = key, she performs a projection onto the...

  15. [15]

    Bit-error-rate estimation: Alice and Bob choose a random subset Dkey from the set of detected rounds in which ˜Bk = ξk = key, which will be used to generate the sifted key, and announce t his information. For the remaining rounds in which ˜Bk =ξk = key, Alice measures Ak in {|0⟩Ak, |1⟩Ak } and Bob measures his filtered system using {G0,G 1}, a two-outcome ...

  16. [16]

    The sifted key is defined by their respective bit outcomes in these rounds

    Sifted-key measurements: For each round k ∈ D key , Alice measures Ak in {|0⟩Ak, |1⟩Ak } and Bob measures his filtered system using {G0,G 1}. The sifted key is defined by their respective bit outcomes in these rounds. 7–9. Same as in the Actual protocol. 12 Finally, before stating the main result, we also define the Phase-err or estimation protocol, which is...

  17. [17]

    We denote the single-photon phase-error rate eph, 1 as the fraction of events in which their outcomes differ among the rounds in which mk = 1

    Single-photon phase-error measurement: For each round k ∈ D key , Alice measures Ak in {|+⟩Ak, |−⟩Ak }, where |±⟩Ak = ( |0⟩Ak ± |1⟩Ak )/ √ 2, and Bob measures his filtered system using {G+,G − }. We denote the single-photon phase-error rate eph, 1 as the fraction of events in which their outcomes differ among the rounds in which mk = 1. With this latter pro...

  18. [18]

    For that, we partition the protocol rounds into ( lc + 1) groups, where rounds within each group are separated by at least lc positions and thus uncorrelated

    Technical results Having established that suitable bounds on the number of single-pho ton key rounds and the single-photon phase- error rate suffice to guarantee security, we now show how to boun d the latter in the presence of bit and basis correlations of range lc. For that, we partition the protocol rounds into ( lc + 1) groups, where rounds within each ...

  19. [19]

    (a) Bit measurements for rounds in P ¯w : For each round k ∈ D key ∩ P ¯w, Alice measures Ak in {|0⟩Ak, |1⟩Ak } and Bob measures his filtered system using {G0,G 1}

    Measurements in sifted-key rounds: Define the set of rounds Pw = {k :k ≡ w (modlc + 1)} and its complementP ¯w = {k :k ̸≡ w (modlc + 1)}. (a) Bit measurements for rounds in P ¯w : For each round k ∈ D key ∩ P ¯w, Alice measures Ak in {|0⟩Ak, |1⟩Ak } and Bob measures his filtered system using {G0,G 1}. (b) Phase-error measurements for rounds in Pw : For each...

  20. [20]

    Then: (a) Phase-error measurements for rounds in Pw : For each round k ∈ D key ∩ Pw, Alice measures Ak 16 in {|+⟩Ak, |−⟩Ak } and Bob measures the filtered system using {G+,G − }

    Measurements in sifted-key rounds: Partition the rounds k ∈ { 1,...,N } into the sets Pw = {k : k ≡ w (modlc + 1)}. Then: (a) Phase-error measurements for rounds in Pw : For each round k ∈ D key ∩ Pw, Alice measures Ak 16 in {|+⟩Ak, |−⟩Ak } and Bob measures the filtered system using {G+,G − }. We denote the single-photon phase-error rate of the w-th partit...

  21. [21]

    (D17) Applying the triangle inequality to Eqs

    guarantees that the actual emitted states with fixed past sett ings are close to the ideal reference state, which in trace distance reads T ( |φ 1 jk ⟩, |ψ 1 ˆjk− 1 k− lc ,j k ⟩ ) ≤ √ ǫside. (D17) Applying the triangle inequality to Eqs. ( D16)–(D17) and converting back to fidelity we obtain ǫideal ≤ ( √ ǫside + lc∑ l=1 √ ǫSP l )2 . (D18) Next, we define the...

  22. [22]

    (D20) The future-pulse subsystem involves lc such steps

    guarantees that, for each pulse separation l we have that, ⏐ ⏐ ⏐⟨Ψ jk− l− 1 k− lc+1,γ,j k k− l+1 |Ψ jk k− lc+1 ⟩ ⏐ ⏐ ⏐ 2 ≥ 1 − ǫWCP l . (D20) The future-pulse subsystem involves lc such steps. Their combined effect satisfies ǫcorrelations ≤ 1 − lc∏ l=1 (1 − ǫWCP l ) ≤ lc∑ l=1 ǫWCP l , (D21) where in the last inequality we have applied the Weierstrass produc...

  23. [23]

    Secure quan- tum key distribution,
