LHCb's 164-server GPU cluster processes all 32 Tbps of collision data in real time.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · deepseek-v4-flash

2026-08-01 07:16 UTC pith:CCLWV5UC

load-bearing objection LHCb shows a real 32 Tbps trigger-less DAQ+GPU HLT architecture; the integrated claim is credible but the full-system test used a passthrough selection, so treat the headline as slightly ahead of the evidence. the 2 major comments →

arxiv 2607.21492 v1 pith:CCLWV5UC submitted 2026-07-23 hep-ex

A converged architecture for processing 32 Tbps of physics data in real-time at the LHCb experiment

Roel Aaij , Christina Agapopoulou , Thomas Boettcher , Dorothea vom Bruch , Daniel Hugo C\'ampora P\'erez , Adrian Casais Vidal , Tommaso Colombo , Daniel C. Craik
show 22 more authors
Tim Evans Placido Fernandez Declara Marianna Fontana Vladimir V. Gligorov Arthur Hennequin Louis Henry Brij Kishor Jashal Saverio Mariani Rosen Matev Niklas Nolte Niko Neufeld Arantza Oyanguren Alberto Perro Flavio Pisani Renato Quagliani Florian Reiss Kate A. Richardson Alessandro Scarabotto Rainer Schwemmer Patrick Spradlin Marian Stahl Jiahui Zhuo
This is my paper
classification hep-ex PACS 07.05.Hd
keywords data acquisitionGPU triggerevent buildingzero-copyInfiniBandreal-time processingLHCbhigh-level trigger
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The upgraded LHCb detector has no hardware pre-trigger, so every one of the 30 million proton collisions per second must be read out and filtered in software — a 40-fold increase in data rate over the previous design. This paper reports a converged architecture that meets that requirement: 164 off-the-shelf servers ingest the detector's 32 Tbps, assemble events over an InfiniBand fat-tree using zero-copy RDMA transfers, and run the entire first-stage trigger (HLT1) reconstruction and selection on GPUs. The authors claim this is the highest real-time software data-processing rate achieved in any physics experiment, with the GPU stage measured at 41 MHz peak versus the 30 MHz target, leaving 36% headroom for additional physics algorithms.

Core claim

The central claim is that a converged architecture can handle the full 32 Tbps of LHCb detector output — roughly 150 kB per event at 30 MHz — in real time, reducing the event rate by a factor of 30. The system collapses three traditionally separate roles (readout, event building, and filtering) onto the same servers, connected by a non-blocking two-layer InfiniBand fat-tree. Event building is treated as an all-to-all personalized exchange with strict scheduling, and per-fragment buffers measured in seconds eliminate the need for deep-buffered switches. The assembled events are processed entirely on GPUs by a trigger application that batches events into groups of 600–800 per stream, uses stat

What carries the argument

The load-bearing mechanism is the convergence of readout, event building, and filtering on a single node: FPGA DAQ cards, InfiniBand host adapters, and GPUs share the same server and are kept within NUMA domains to avoid cross-socket traffic. Zero-copy RDMA (kernel bypass) moves event fragments from readout buffers through the fat-tree to builder buffers, and the GPU processes events directly from host memory. The GPU application's multi-event scheduler — which batches events into aligned execution masks and topologically sorts algorithm sequences under two heuristics (spread data providers, tighten masks of expensive algorithms) — is what makes full-event processing at 30 MHz feasible on co

Load-bearing premise

The 32 Tbps end-to-end claim rests on the assumption that the full-system test, which used a data generator and a passthrough selection at 30:1 acceptance, reproduces the I/O, memory, and PCIe behaviour of the real production HLT1 reconstruction closely enough that the isolated 41 MHz GPU peak still holds inside the complete chain.

What would settle it

Run the production physics sequence — not a passthrough selection — at the design 30 MHz input rate on the full 164-node cluster for a sustained period, and check for zero event loss and bounded buffer occupancy. If buffer depths grow without limit or events are dropped, the 32 Tbps claim fails.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • The trigger now uses the full detector information instead of a subset from specialized sensors, reducing selection bias and improving physics efficiency.
  • The 36% headroom at the GPU stage means additional reconstruction algorithms can be added to HLT1 without hardware changes, expanding the physics programme.
  • The architecture demonstrates that custom trigger electronics and deep-buffered switches can be replaced with commodity HPC components, a path available to future experiments.
  • The zero-copy all-to-all event-building pattern is a scalable solution for any DAQ facing the incast problem at multi-Tbps rates.
  • The cross-architecture (CUDA/HIP/CPU) trigger code and the static-memory design make the software portable to future accelerator hardware.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the passthrough-based full-system test faithfully mimics the memory and PCIe profiles of production reconstruction, the 36% GPU headroom suggests the 32 Tbps claim would survive a full end-to-end production test; that test is not reported here.
  • The same converged design points toward the planned LHCb Upgrade II: each node has one free PCIe slot, so adding a third GPU per server could raise throughput further without network changes.
  • One could expect other LHC experiments to revisit the idea of a trigger-free readout as GPU performance per watt keeps climbing, since the main bottleneck shown here is memory bandwidth (160 GB/s per node), not compute.
  • Because the selection is software-defined, physics changes can be deployed by recompiling the trigger rather than redesigning electronics, shortening the loop between theory and data-taking.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. The paper presents the Run-3 LHCb data acquisition and first-level trigger (HLT1) architecture: 164 servers equipped with FPGA readout cards, an InfiniBand fat-tree event builder using all-to-all personalized exchange, and a fully GPU-based HLT1 implemented in Allen. The authors claim that this converged architecture processes the full 32 Tbps of detector data in real time at 30 MHz with a 30:1 filter, the highest software data rate in any physics experiment. Measurements include single-server scaling across GPUs, multi-server event-builder scaling, an isolated 41 MHz peak for the production HLT1 sequence, and a full-system integration test at 30 MHz using a data generator and a passthrough selection with 30:1 acceptance.

Significance. If substantiated, this is a major engineering milestone for real-time data processing in high-energy physics: a compact, COTS-based DAQ that handles an order of magnitude more software input data than other LHC experiments, with a production trigger running entirely on GPUs. The paper has clear strengths: a full-scale cluster deployment, explicit instrumentation of throughput and resource utilization, a useful comparison table across experiments, and a detailed description of zero-copy, scheduling, and memory-management techniques. The main weakness is that the end-to-end 32 Tbps claim rests on a full-system test with a passthrough selection rather than the production HLT1 reconstruction, so the isolated 41 MHz GPU headroom has not been shown to survive the complete data path.

major comments (2)
  1. [§V-B and §V-C] The headline claim (abstract and §VI) that the system processes the full 32 Tbps in real time is not directly demonstrated. The full-system integration test in §V-C uses a 'passthrough selection with an acceptance rate of 30:1' and a data generator, not the production HLT1 reconstruction sequence. The production sequence is measured at 41 MHz 'in isolation' (§V-B), i.e., without event-building traffic, PCIe/DMA contention, or shared-memory backpressure from the full chain. The 36% headroom is necessary but not sufficient: heavier GPU compute could alter kernel durations, memory access patterns, and buffer occupancy, potentially introducing backpressure into the event-builder or contending with DMA transfers. To support the end-to-end claim, the authors should either run the production HLT1 sequence in the full-system test at 30 MHz, or provide quantitative evidence (e.g., latency/backpre
  2. [Table 1] There is a numerical inconsistency in the central throughput figure. Table 1 lists the LHCb event size as 150 kB at 30 MHz, which corresponds to 4.5 TB/s = 36 Tbps, not 32 Tbps. The abstract and §I meanwhile state 32 Tbps throughout. If the average event size is actually ~133 kB (with 150 kB as a maximum), the table should say so; if the 32 Tbps figure is the design input rate, the event-size/rate row should be consistent. Because 32 Tbps is the paper's primary quantitative claim, this arithmetic discrepancy must be resolved.
minor comments (4)
  1. [§V-C] The sentence 'The data generator produces additional memory pressure that does not affect the performance of our application' is an unsupported assertion. A comparison run without the generator, or a quantification of the generator's memory footprint, would make the claim verifiable.
  2. [§IV-C] The manuscript defines peak versus sustained performance but does not report run-to-run variability, error bars, or the number of measurement repetitions. For an engineering performance paper, a statement of measurement uncertainty (even approximate) would strengthen the reported 41 MHz and 30 MHz numbers.
  3. [§III-C] The acronym MIPS (5,596,800) is used without expansion. Please define it at first use (million instructions per second, presumably).
  4. [Throughout] Several typos and spacing artifacts appear in the text: 'A TLAS', 'V ertex Locator', 'zeroMQ' (should be ZeroMQ), 'STL thread' (should be std::thread). These should be corrected during copyediting.

Circularity Check

0 steps flagged

No significant circularity: the 32 Tbps claim rests on in-paper measurements; self-citations are contextual.

full rationale

This is an empirical performance paper rather than a derivation. The central claim—that the converged architecture processes 32 Tbps in real time—is supported by in-paper measurements: the isolated HLT1 peak of 41 MHz with 36% headroom (Sec. V-B), the event-builder scaling test (Fig. 6), and the full integration test at 30 MHz (Sec. V-C). No parameter is fitted and then renamed as a prediction, and no result is defined in terms of another result by construction. The full-system test uses a passthrough selection with a 30:1 acceptance rather than the production HLT1 sequence; this is a validity or representativeness caveat about whether the end-to-end benchmark exercises the same GPU/data-movement behavior as full reconstruction, but it is not a circularity. The self-citations in the paper ([31], [39], [40], [41], [43]) describe the DAQ system, scheduler, Allen framework, and hardware-choice comparison; they are contextual and are not load-bearing for the main throughput claim, which is measured directly in this paper. Accordingly, no circular step is identified.

Axiom & Free-Parameter Ledger

3 free parameters · 5 axioms · 0 invented entities

No physically invented entities are introduced. The load-bearing assumptions are the representativeness of the synthetic input model, the equivalence of passthrough selection to production HLT1 in the full-system test, and the operational stability of the InfiniBand/all-to-all design at 32 Tbps. These are engineering assumptions rather than free parameters fitted to data, but they determine whether the headline number is real.

free parameters (3)
  • Nominal input rate / event size model = 30 MHz, ~150 kB per event
    The claimed 32 Tbps load is set by these experiment inputs; the full-system test uses a 'realistic event size model' at 30 MHz (Table 1, Sec. V-C). If actual Run 3 data have a different distribution or heavier tails, the throughput margin changes.
  • HLT1 rejection factor = 30:1
    Used as the full-system test's passthrough acceptance rate (Sec. V-C); if production filtering has a different acceptance or processing cost, output volume and back-pressure change.
  • Event batch size = 600-800 events
    Performance is tuned via a batch-size scan (Fig. 4); the chosen configuration contributes to the 41 MHz peak but is an engineering tuning parameter rather than a fitted physics constant.
axioms (5)
  • domain assumption The 'realistic event size model' and nominal 30 MHz non-empty collision rate are representative of actual LHCb Run 3 data load.
    Sec. V-C uses a realistic model at 30 MHz; if real events, pile-up, or noise exceed this model, the 32 Tbps claim is threatened.
  • ad hoc to paper The full-system passthrough selection with 30:1 acceptance reproduces the I/O, memory, and PCIe behavior of the production HLT1 physics sequence.
    Sec. V-C 'performs a passthrough selection' while the production physics sequence is only benchmarked in isolation (Sec. V-B); this I/O equivalence is not demonstrated.
  • domain assumption All-to-all personalized exchange over the InfiniBand fat-tree sustains full 32 Tbps without incast with the implemented scheduling.
    Sec. III-B and Fig. 6 show weak scaling to 1000 data sources; long-term stability, retransmission rates, and failure modes under sustained production load are not fully specified.
  • domain assumption The GPU HLT1 precision choices (single precision, restricted Kalman filter region, two half-precision pattern-recognition paths) preserve the physics efficiency required by LHCb.
    Sec. III-C states Monte Carlo validation but gives no efficiency numbers; the claim of extending the physics programme depends on this.
  • domain assumption The custom FPGA PCIe receiver cards and commercial NICs deliver the stated per-node rates (150 Gb/s FPGA, 100 Gb/s NIC) under full-system conditions.
    Sec. IV-A describes the hardware limits; the full-system test assumes these devices sustain the required throughput with the observed NUMA/PCIe balance.

pith-pipeline@v1.3.0-alltime-deepseek · 16865 in / 14718 out tokens · 143098 ms · 2026-08-01T07:16:07.866347+00:00 · methodology

0 comments
read the original abstract

The LHCb detector at the Large Hadron Collider has been upgraded to acquire an unprecedented 32 Tbps of particle-collision data to provide new insights in the High Energy Physics domain. The data produced by the detector is filtered in real-time to select interesting collisions. As part of the upgrade, a pre-filtering stage has been removed leading to a factor 40 increase in data rate. To deal with the high throughput demands of LHCb real-time data processing, we present an off-the-shelf network architecture using zero-copy techniques in conjunction with an efficient, fully-GPU-based filter. Our converged architecture is able to process the full 32 Tbps of particle-collision data in real-time, the highest in any physics experiment to date. Our result extends the reach of the LHCb physics programme and sets a new standard for real-time data processing at particle physics experiments.

Figures

Figures reproduced from arXiv: 2607.21492 by Adrian Casais Vidal, Alberto Perro, Alessandro Scarabotto, Arantza Oyanguren, Arthur Hennequin, Brij Kishor Jashal, Christina Agapopoulou, Daniel C. Craik, Daniel Hugo C\'ampora P\'erez, Dorothea vom Bruch, Flavio Pisani, Florian Reiss, Jiahui Zhuo, Kate A. Richardson, Louis Henry, Marianna Fontana, Marian Stahl, Niklas Nolte, Niko Neufeld, Patrick Spradlin, Placido Fernandez Declara, Rainer Schwemmer, Renato Quagliani, Roel Aaij, Rosen Matev, Saverio Mariani, Thomas Boettcher, Tim Evans, Tommaso Colombo, Vladimir V. Gligorov.

Figure 1
Figure 1. Figure 1: FIGURE 1: Overview of the current data-acquisition system [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIGURE 2: Data flow schema within one LHCb cluster node. [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIGURE 3: Hardware view of one LHCb cluster node. [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

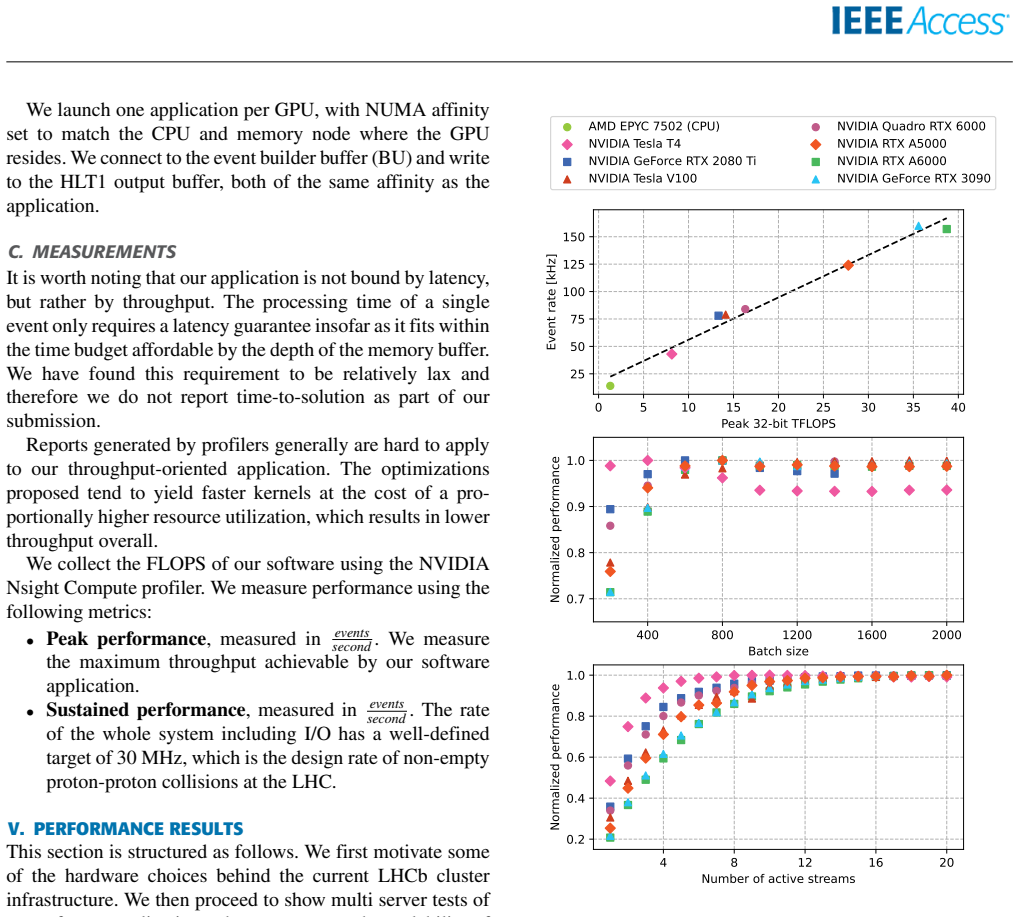

Figure 4
Figure 4. Figure 4: FIGURE 4: Top: Event rate attained by HLT1 across ar [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIGURE 5: Throughput of LHCb HLT1 across architectures. [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIGURE 6: Scalability test of the event builder (EB). The [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIGURE 7: Full integration test of the EB+HLT1 applica [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
