diffSPH: Differentiable Smoothed Particle Hydrodynamics for Adjoint Optimization and Machine Learning

T0 review · 4 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read diffSPH makes particle-fluid simulation end-to-end differentiable, so gradients can drive inverse design and learned corrections.

desk verdict diffSPH is a genuinely useful differentiable SPH framework with solid forward validation, but the headline particle-shifting application is currently an initial-condition optimizer and the code/reproducibility details are missing. read the letter →

arxiv 2507.21684 v1 pith:CPHLIEWJ submitted 2025-07-29 physics.flu-dyn cs.AIcs.LG

Rene Winchenbach , Nils Thuerey This is my paper
classification physics.flu-dyncs.AIcs.LG
keywords differentiableprogrammingsmoothedparticlehydrodynamicsautomaticdifferentiationadjointoptimizationshiftingsolver-in-the-loopinverseproblemscomputationalfluiddynamics
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

diffSPH is an open-source smoothed particle hydrodynamics framework built in a GPU-accelerated automatic-differentiation tensor framework, designed so gradients flow through the entire simulation loop rather than only through a neural-network wrapper. The paper's central claim is that this design makes SPH usable for adjoint-style inverse problems and hybrid machine learning: optimizing initial conditions and physical parameters to match target trajectories, optimizing geometry, training a neural-network corrector inside the solver, and a target-oriented particle-shifting scheme that minimizes physical loss terms directly. The authors validate the forward physics against standard benchmark cases and demonstrate backpropagation through up to 832 full simulation steps and up to 65,536 particles. A sympathetic reader should take the contribution as a general-purpose differentiable platform for compressible, weakly compressible, and incompressible SPH, with the memory cost of automatic differentiation kept tractable by checkpointing and on-the-fly recomputation.

What carries the argument

The load-bearing mechanism is the differentiable SPH operator stack: kernels, gradient/divergence/curl/Laplacian operators, density summations, equations of state, boundary extrapolation, and timesteppers are all composed from differentiable tensor operations, with kernel values and spatial derivatives precomputed per particle pair to shorten the backward graph. To keep memory bounded, the framework uses gradient checkpointing and recomputes intermediates on the fly rather than storing all pair interactions for all timesteps. The neighbor list itself is deliberately treated as non-differentiable, since particle adjacency is a binary choice; gradient information flows only through interactions that exist in the forward pass, and the coordinate-list storage of pairs makes that flow bidirectional. Analytical higher-order kernel derivatives, including a regularized Hessian at zero separation, are defined so that backpropagation through kernel evaluations stays finite.

What would settle it

Run a small inverse problem in which the target trajectory requires particles to cross into or out of each other's support radius, and compare the diffSPH gradient with a finite-difference or fully differentiable-adjacency reference gradient over the same rollout; if the gradients diverge and the optimizer stalls or converges to a visibly wrong optimum, the non-differentiable neighbor list is the cause.

Watch

Extended reading notes

Core claim

The paper's core discovery is that a Lagrangian SPH solver can be made end-to-end differentiable without storing every pairwise intermediate, by building each SPH operator as a differentiable module and recomputing intermediate values during the backward pass. The authors establish this by differentiating through hundreds of timesteps in five application demonstrations, including recovering noise-free initial conditions and the adiabatic exponent from Sod shock-tube trajectories, maximizing wave intensity at a target point by moving a wave source, training a graph-network corrector that turns explicit Euler into RK4-like integration, and generating optimized particle distributions by minimizing SPH interpolation and gradient errors rather than by heuristic rules. The common thread is that inverse problems in CFD reduce to gradient descent on a loss defined in terms of the solver's own state, and diffSPH provides that gradient path directly.

Load-bearing premise

The load-bearing assumption is that the neighbor list can be treated as non-differentiable without losing the gradient information needed for optimization, because gradient flow only passes through particle pairs that exist in the forward pass; if gradients through particle-pair creation or removal are essential, the inverse, shape, and particle-shifting results could fail.

Editorial extensions

If this is right

  • Inverse problems in SPH, such as recovering initial conditions or physical parameters from a target trajectory, can be set up in a few lines of code by marking inputs as differentiable and running an off-the-shelf optimizer.
  • Hybrid solver-in-the-loop models can be trained with temporal unrolling, because the solver itself is differentiable; the paper shows unrolling yields substantially more stable learned correctors than training on single steps.
  • Particle shifting can be reformulated as an optimization problem: minimizing physical losses and regularization terms over particle positions produces initial distributions that match or beat inverse-CDF sampling, including at sharp density interfaces.
  • The same differentiable core supports compressible, weakly compressible, and incompressible SPH schemes, so gradient-based design and learning are available across these regimes rather than only in one specialized solver.
  • Because the neighbor search is non-differentiable but memory-bounded, the framework scales to millions of particles and supports backpropagation through hundreds of steps, making long-horizon optimization tasks practical.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial inference: the non-differentiable-neighbor-list choice is most vulnerable when an optimum requires particles to enter or leave each other's support; if such adjacency changes carry essential gradient information, inverse problems near contact or phase boundaries could converge to biased optima.
  • Editorial inference: the target-oriented particle-shifting scheme could be extended to a learned shifting rule, where a small network predicts a regularization strength or a per-particle shift that minimizes the same physical losses, since the framework already provides the gradient path for such a loss.
  • Editorial inference: the wave-equation example suggests the framework is not limited to fluids; any particle-based PDE discretization expressible with SPH operators could inherit the same adjoint optimization and solver-in-the-loop capabilities.
  • Editorial inference: a direct test of gradient quality would be to compare diffSPH gradients against finite differences or an adjoint implementation on a problem with strong particle reordering; the paper does not report such a comparison.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper introduces diffSPH, a PyTorch-based differentiable Smoothed Particle Hydrodynamics framework that supports compressible, weakly compressible, and incompressible SPH schemes, as well as a wave-equation variant. It describes the software architecture, including differentiable neighborhood search, custom SPH operators, gradient checkpointing, and C++/CUDA extensions, and validates the forward solvers against a series of standard benchmarks in Appendix E. The authors demonstrate the differentiable capabilities on four application classes: inverse problems for shock tubes, shape optimization for wave propagation, solver-in-the-loop neural network corrections, and an optimization-based approach to initial particle distributions that they label 'particle shifting.' The central advertised contribution is a general-purpose differentiable SPH platform with gradient propagation over hundreds of simulation steps.

Significance. If the central claims hold, diffSPH would be a valuable open-source platform that lowers the barrier for adjoint optimization and hybrid machine-learning research with SPH. The forward validation in Appendix E is a genuine strength: the linear wave convergence test, Sod shock tube, Rayleigh-Taylor instability, Taylor-Green vortex, lid-driven cavity, and oscillating droplet all match established results, giving confidence that the differentiable core wraps a physically correct solver. The demonstrations of backpropagation through 500 to 832 timesteps and of temporal unrolling in the solver-in-the-loop setup are concrete and useful. However, the particle-shifting claim, which appears in the abstract and Section 4.5 as a headline capability, is not supported by the experiments as presented, because the method optimizes static initial configurations rather than correcting evolving particle disorder. This is a load-bearing mismatch between the paper's stated contribution and its actual demonstration, though it is fixable by rewording or by adding an in-simulation shifting experiment.

major comments (4)
  1. [4.5 / Abstract] The abstract and Section 4.5 present 'addressing particle shifting via a novel, target-oriented approach' as a headline contribution, but the experiments in Sections 4.5.1-4.5.3 optimize static initial particle distributions, not the time-evolving particle disorder that 'particle shifting' refers to in the SPH literature (e.g., Sun et al. [41], Rastelli et al. [42]). Section 4.5.2 explicitly frames the task as 'find optimal initial conditions' and Figures 13-15 show one-shot optimization of initial positions; no mechanism applies the target-oriented loss repeatedly during the forward simulation to correct developing particle anisotropy. The authors should either add an in-loop shifting demonstration or revise the terminology throughout the abstract, Section 1, and Section 4.5 to describe optimization-based initial-condition generation rather than particle shifting.
  2. [4.5.2, Eq. (24), Figs. 14-16] The regularization term is essential to the 2D and 3D results: without it, Figure 13b shows pairing instability, while with it Figures 14b, 15, and 16 achieve near-uniform distributions. However, the paper never gives the explicit form or weight of this regularizer; it only states that it adds 'a penalty term if particles are closer than a fraction of the initial particle spacing Δx' and that the results use 'an additional regularizer.' This omission prevents reproduction and quantitative comparison of the claimed improvements. The exact penalty formula and its coefficient should be stated, or provided in an appendix.
  3. [4.3, Eq. (19)] Equation (19) defines the loss as the squared deviation from an arbitrarily chosen target amplitude of 5, and the text describes the objective as 'maximize the magnitude' of the wave field at the target point. For a scalar field u, minimizing (5-u)^2 and maximizing |u| are not equivalent for u<5, and the reported improvement from -0.18 to 0.43 is a signed value, not a magnitude. This ambiguity affects the interpretation of the shape-optimization result; the authors should clarify whether the goal is to drive u to +5 or to maximize |u|, and if the latter, use a loss on |u| or report unsigned magnitudes.
  4. [3.3 / Appendix D] The paper validates the forward solvers extensively in Appendix E, but it does not report any direct verification of the computed gradients, such as a finite-difference or analytical gradient check. This is particularly relevant because the framework relies on manually defined higher-order kernel derivatives (e.g., Eq. (16)), custom backward passes for C++/CUDA functions, and a Hessian regularization at zero separation. Since the central claim of the paper is exact differentiability, a gradient check for representative SPH operators and for one full timestep would substantiate that claim and would help users trust the framework for adjoint optimization.
minor comments (5)
  1. [1 / Abstract] The paper describes diffSPH as 'open-source' but does not provide a repository URL, version number, or DOI anywhere in the text; this should be included for reproducibility.
  2. [A.6, Eq. (46)] Reference [86] (J. Liu, 'Fuzzy modularity and fuzzy community structure in networks') does not appear related to the boundary extrapolation linear system in Eq. (46); this citation should be corrected or replaced with the appropriate boundary-condition reference.
  3. [Throughout] There are several typographical and stylistic inconsistencies: 'Dirchlet' should be 'Dirichlet' (Sec. 3.4), 'Maronne' in the references should be 'Marrone', 'compSPH' and 'CompSPH' are used interchangeably, and 'velocity verlet' should be capitalized consistently.
  4. [4.5.3] The text claims the optimized 3D sampling has a density variation of 'less than ±0.00005' but does not specify the density scale or the initial variation; stating these quantities would make the improvement quantitative and comparable.
  5. [4.1 / Figure 2] The text reports O(n) scaling for the solver and O(n log n) for the neighborhood search due to the sort operation, but Figure 2 presents the overall solver scaling as linear. The sentence should clarify that the neighborhood search cost is negligible in the tested regime, otherwise the apparent contradiction is confusing.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: diffSPH's differentiable-SPH claims are supported by independent forward validation and explicit loss-based demonstrations, not by self-referential reductions.

full rationale

The paper's forward solver is validated in Appendix E against external references (e.g., Frontiere et al. for the linear-wave and Sod-shock cases, Sun et al. for the oscillating droplet, and Bender & Koschier for DFSPH), so the physical correctness of the differentiable core does not rest on the authors' own prior outputs. The inverse-problem demonstrations in Sec. 4.2 generate reference states with the same forward solver, but this is a standard gradient-correctness and adjoint check rather than a fitted prediction: the optimized quantities (initial mass noise, adiabatic constant gamma) are not closed-form functions of the loss, and the loss is evaluated through full unrolled trajectories of hundreds of steps. Sec. 4.3 optimizes a geometric source position against a target-point amplitude, and Sec. 4.4 trains a GNN corrector against an RK4 trajectory and evaluates on an unseen rollout; both have independent target data. Sec. 4.5 minimizes well-defined SPH-operator losses (Eqs. 21, 23, 24) with respect to particle positions; the resulting distributions are minima of those explicit losses, so they are definitional demonstrations of gradient-based optimization rather than disguised predictions. The self-citations that appear (e.g., [38], [62], [68]) support implementation details such as neighbor search, boundary handling, and memory structures; they are not load-bearing for the central differentiability claim. The mismatch between the abstract's 'particle shifting' wording and Sec. 4.5's initial-condition optimization is a scope and claims issue, not circularity, and the omitted regularization weight in Sec. 4.5.2 is a reproducibility gap rather than evidence of a circular derivation.

Assumptions & free parameters 3 free parameters · 4 assumptions · 0 invented entities

The core of the paper is a reimplementation of established SPH schemes in a differentiable framework; it introduces no new physics or entities. Its claims rest on correct software implementation and standard benchmark validation. The main unstated ingredients are the loss weights in the new particle-shifting application and the assumed correctness of custom backward passes.

free parameters (3)
  • Particle shifting regularization coefficient and distance fraction = not reported
    In Sec 4.5.2, a penalty term is added when particles are closer than 'a fraction of the initial particle spacing', but the exact coefficient and fraction are never given; the optimized 2D/3D distributions depend on these values.
  • Loss weights for density, gradient, and regularization terms = not reported
    Equations 23 and 24 show unweighted sums, but the regularized variant described in Sec 4.5.2 and used for Figures 14b, 15, and 16 must assign weights to the three competing terms; these weights are not specified.
  • Wave optimization target amplitude (value 5) = 5
    In Sec 4.3 the loss is defined against 'an arbitrary choice of 5' as the target magnitude; this is a user-chosen constant that shapes the optimization, though it is not fitted to data.
assumptions (4)
  • domain assumption SPH discretizations of the Navier-Stokes equations using compact kernels converge to the PDE solutions for the tested regimes
    All implemented schemes depend on standard SPH gradient, divergence, and Laplacian approximations (Secs 2.1, A.2-A.4) whose numerical properties are inherited from the cited literature rather than proven here.
  • standard math Kernel functions follow the Dehnen-Aly form and possess a well-defined Hessian extension at zero separation
    Equation 16 in Sec 3.3 defines a modified Hessian with epsilon regularization to avoid singularities at x_ij=0; the backpropagation through kernels in several schemes relies on this extension.
  • domain assumption Reference benchmark results from Frontiere et al. [44] and Sun et al. [41,88] are correct and accurately represent the expected physics
    The validation in Appendix E compares diffSPH outputs against these external results (linear wave convergence, RT instability, droplet energy loss); if those references were erroneous, the validation would be misleading.
  • ad hoc to paper Reverse-mode automatic differentiation with checkpointing and recomputation computes exact gradients of the discretized forward pass
    The framework assumes that the custom backward passes for C++/CUDA kernels and the checkpointing strategy (Secs 3.1, 3.3) produce correct gradients, but no formal proof or gradient-accuracy test is provided beyond the convergence of specific optimizations.

how reviews work

0 comments
Cite this review

Pith. "Pith review of diffSPH: Differentiable Smoothed Particle Hydrodynamics for Adjoint Optimization and Machine Learning." pith.science (2026). https://pith.science/paper/CPHLIEWJ

@misc{pith2026250721684,
  author       = {Pith},
  title        = {Pith review of: diffSPH: Differentiable Smoothed Particle Hydrodynamics for Adjoint Optimization and Machine Learning},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/CPHLIEWJ}},
  note         = {Machine review of arXiv:2507.21684}
}
read the original abstract

We present diffSPH, a novel open-source differentiable Smoothed Particle Hydrodynamics (SPH) framework developed entirely in PyTorch with GPU acceleration. diffSPH is designed centrally around differentiation to facilitate optimization and machine learning (ML) applications in Computational Fluid Dynamics~(CFD), including training neural networks and the development of hybrid models. Its differentiable SPH core, and schemes for compressible (with shock capturing and multi-phase flows), weakly compressible (with boundary handling and free-surface flows), and incompressible physics, enable a broad range of application areas. We demonstrate the framework's unique capabilities through several applications, including addressing particle shifting via a novel, target-oriented approach by minimizing physical and regularization loss terms, a task often intractable in traditional solvers. Further examples include optimizing initial conditions and physical parameters to match target trajectories, shape optimization, implementing a solver-in-the-loop setup to emulate higher-order integration, and demonstrating gradient propagation through hundreds of full simulation steps. Prioritizing readability, usability, and extensibility, this work offers a foundational platform for the CFD community to develop and deploy novel neural networks and adjoint optimization applications.

Figures

Figures reproduced from arXiv: 2507.21684 by the authors.

Figure 1
Figure 1. A schematic overview of the diffSPH framework showcasing how all aspects of our simulation are differentiable, from the initialization using CSG, to the time stepping and boundary handling, to the evaluation of the final simulation results, allowing us to close the loop around any and all parts of the simulation for gradient computations. 3.1 Core Framework Architecture and PyTorch Integration The diffSPH framework … view at source ↗
Figure 2
Figure 2. Compute scaling for the Sod Shock Tube in 1D with increasing numbers of particles. The [PITH_FULL_IMAGE:figures/full_fig_p015_2.png] view at source ↗
Figure 3

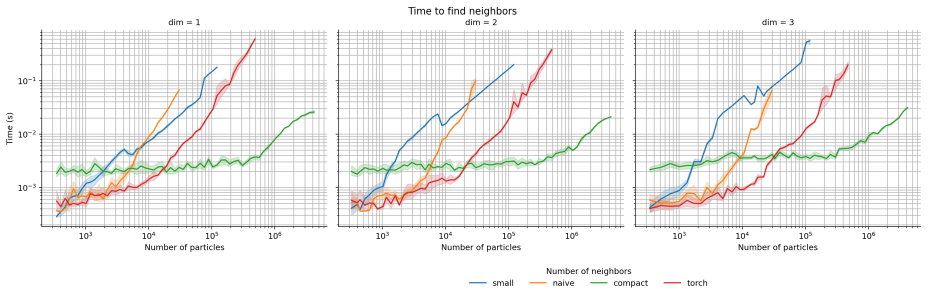

Figure 3. Compute scaling for the neighbor search for increasing numbers of particles in a densely sampled [PITH_FULL_IMAGE:figures/full_fig_p016_3.png] view at source ↗
Figures from the paper (22 more)
Figure 4
Figure 4. Figure 4: Optimization trajectory of the optimization of the adiabatic constant [PITH_FULL_IMAGE:figures/full_fig_p018_4.png]
Figure 5
Figure 5. Figure 5: Comparison of the Sod-Shock Tube simulated using the noise free (orange) and the noisy (blue) [PITH_FULL_IMAGE:figures/full_fig_p018_5.png]
Figure 6
Figure 6. Figure 6: Result of the optimization process showing both the initial noisy conditions and the optimized [PITH_FULL_IMAGE:figures/full_fig_p019_6.png]
Figure 7
Figure 7. Figure 7: Result of the simulation after 250 timesteps using the initial geometry and the results for the [PITH_FULL_IMAGE:figures/full_fig_p020_7.png]
Figure 8
Figure 8. Figure 8: Comparison of the wave equation setup from Sec. 4.4, evaluated for 250 timesteps using both [PITH_FULL_IMAGE:figures/full_fig_p021_8.png]
Figure 9
Figure 9. Figure 9: The results of training a solver-in-the-loop approach for the wave equation using no temporal [PITH_FULL_IMAGE:figures/full_fig_p021_9.png]
Figure 10
Figure 10. Figure 10: Schematic representations of the solver-in-the-loop architecture (left) and the internal architecture [PITH_FULL_IMAGE:figures/full_fig_p022_10.png]
Figure 11
Figure 11. Figure 11: Results for generating initial conditions for a sinusoidal density profile [PITH_FULL_IMAGE:figures/full_fig_p023_11.png]
Figure 12
Figure 12. Figure 12: Results for generating initial conditions for a sinusoidal density profile [PITH_FULL_IMAGE:figures/full_fig_p023_12.png]
Figure 13
Figure 13. Figure 13: This figure shows the initial random configuration of particles used to highlight the applicability [PITH_FULL_IMAGE:figures/full_fig_p025_13.png]
Figure 14
Figure 14. Figure 14: This figure shows a comparison of using the gradient of the color field as an additional loss term [PITH_FULL_IMAGE:figures/full_fig_p026_14.png]
Figure 15
Figure 15. Figure 15: This figure shows the result of adding a boundary obstacle to the domain, where our loss-based [PITH_FULL_IMAGE:figures/full_fig_p027_15.png]
Figure 16
Figure 16. Figure 16: This figure shows the result of performing the optimization task in 3D by highlighting the achieved [PITH_FULL_IMAGE:figures/full_fig_p027_16.png]
Figure 17
Figure 17. Figure 17: Linear Wave Propagation test after 5 wave periods. The left figure shows the absolute density [PITH_FULL_IMAGE:figures/full_fig_p038_17.png]
Figure 18
Figure 18. Figure 18: Convergence of the Linear Wave Propagation test for increasing resolution for a simulation with [PITH_FULL_IMAGE:figures/full_fig_p040_18.png]
Figure 19
Figure 19. Figure 19: Results of running the Sod-Shock tube as described in Sec. E.2, for the compSPH scheme without [PITH_FULL_IMAGE:figures/full_fig_p040_19.png]
Figure 20
Figure 20. Figure 20: Results of the Rayleigh Taylor Instability using the compSPH scheme in [PITH_FULL_IMAGE:figures/full_fig_p041_20.png]
Figure 21
Figure 21. Figure 21: Results of running the Taylor Green Vortex simulation with [PITH_FULL_IMAGE:figures/full_fig_p042_21.png]
Figure 22
Figure 22. Figure 22: Visualization of the per-timestep number of solver iterations to solve the incompressible and [PITH_FULL_IMAGE:figures/full_fig_p043_22.png]
Figure 23
Figure 23. Figure 23: Result of the Lid-Driven Cavity simulation using [PITH_FULL_IMAGE:figures/full_fig_p044_23.png]
Figure 24
Figure 24. Figure 24: Visualization of the particle state after one period of oscillation for the Oscillating Droplet case. [PITH_FULL_IMAGE:figures/full_fig_p045_24.png]
Figure 25
Figure 25. Figure 25: Density, Energy, and position evolution of the oscillating droplet for one period. Note that the [PITH_FULL_IMAGE:figures/full_fig_p045_25.png]
