arxiv: 2606.24075 · v1 · pith:CR6UGGIXnew · submitted 2026-06-23 · 💻 cs.CV · cs.AI

End-to-End Radar and Communication Modulation Recognition with Neuromorphic Computing

Xiaohu Li , Chongxiao Qu , Caiyong Lin , Chenxiao Dou , Wei Hua This is my paper

Pith reviewed 2026-06-26 01:23 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords automatic modulation recognitionspiking neural networkneuromorphic computingtransformerenergy efficiencyIQ waveformsradarcommunication signals
0
0 comments X

The pith

EMRFormer spiking network reaches state-of-the-art accuracy in modulation recognition with over 90% lower energy use.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces EMRFormer, an end-to-end spiking neural network for automatic modulation recognition of radar and communication signals. It combines spike-driven transformers with adaptive encoding and integer LIF neurons to process raw IQ data while fitting neuromorphic hardware constraints. This yields higher accuracy than prior methods on standard datasets, holds up in low signal-to-noise conditions, and slashes theoretical energy consumption by more than 90 percent. On the KA200 chip it uses up to five times less power than a GPU or Orin NX. Readers should care because it shows how spike-based models can bring accurate signal classification to power-limited devices without sacrificing performance.

Core claim

EMRFormer applies spike-driven transformer to AMR by integrating spike-separable CNNs into SpikeFormer, using an adaptive spike encoder and Integer Leaky Integrate-and-Fire neurons to extract multi-scale temporal features from raw IQ waveforms, achieving state-of-the-art accuracy while reducing energy consumption by over 90% and demonstrating up to 5 times power reduction on neuromorphic hardware.

What carries the argument

EMRFormer, a spiking neural network architecture that incorporates spike-separable Convolution Neural Networks into Spike-Driven Transformers along with an adaptive spike encoder and Integer Leaky Integrate-and-Fire neurons.

If this is right

  • EMRFormer outperforms all baselines in accuracy on mainstream AMR datasets.
  • The model maintains strong performance in low SNR environments.
  • Theoretical energy consumption is reduced by over 90%.
  • The model achieves up to 5 times reduction in power on the KA200 neuromorphic chip compared to a 3090 GPU or Orin NX.
  • This enables practical AMR on resource-constrained devices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Neuromorphic platforms may support real-time modulation recognition in mobile or embedded radar systems without large batteries.
  • The same architecture could be tested on other sequential signal tasks such as spectrum sensing or anomaly detection in communications.
  • If the reported gains hold on additional hardware, designers might prioritize spike-based models over conventional CNNs for edge signal processing.

Load-bearing premise

The claimed accuracy gains, energy reductions, and hardware performance are measured under conditions that generalize without post-hoc tuning or platform-specific implementation details.

What would settle it

Independent reproduction of the KA200 chip measurements showing whether the reported accuracy and power savings hold on the same datasets and conditions.

Figures

Figures reproduced from arXiv: 2606.24075 by Caiyong Lin, Chenxiao Dou, Chongxiao Qu, Wei Hua, Xiaohu Li.

Figure 1
Figure 1. Figure 1: Overall architecture of the EMRFormer.(a)Adaptive spike encoder Module: converts raw IQ to spikes train; (b)SSCNN Module: multi-scale local [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

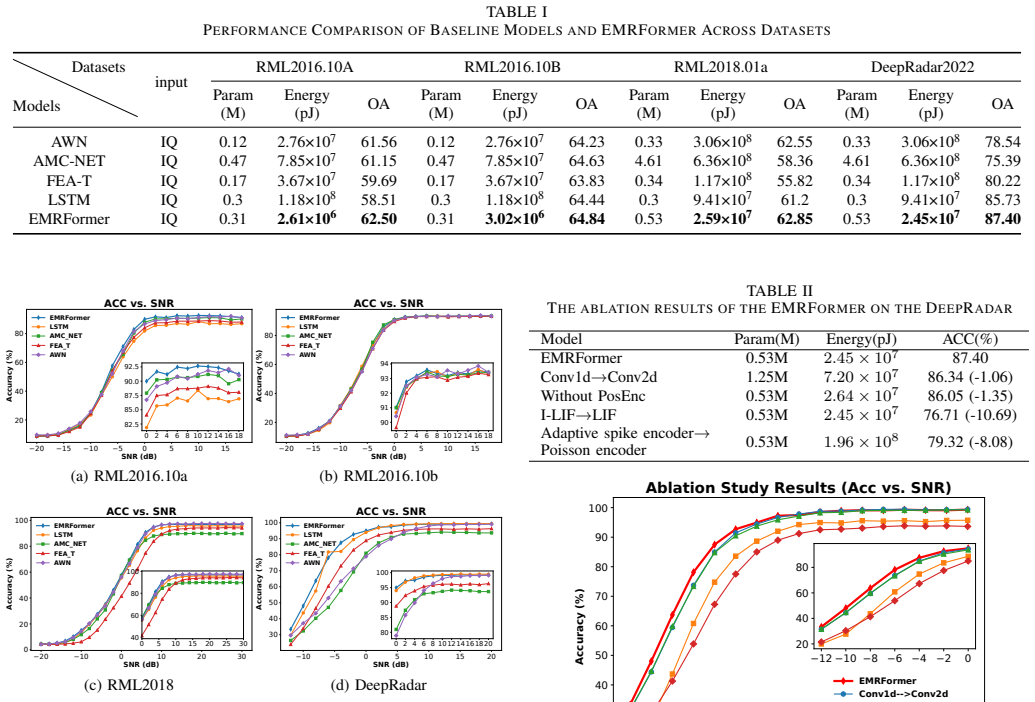

Figure 2. Figure 2: Accuracy-SNR curves on different datasets. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

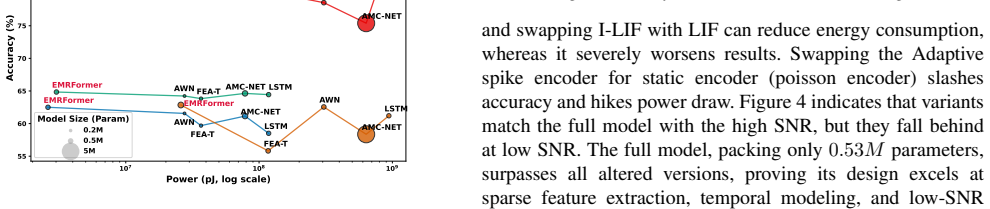

Figure 3. Figure 3: EMRFormer versus baseline methods on four datasets [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

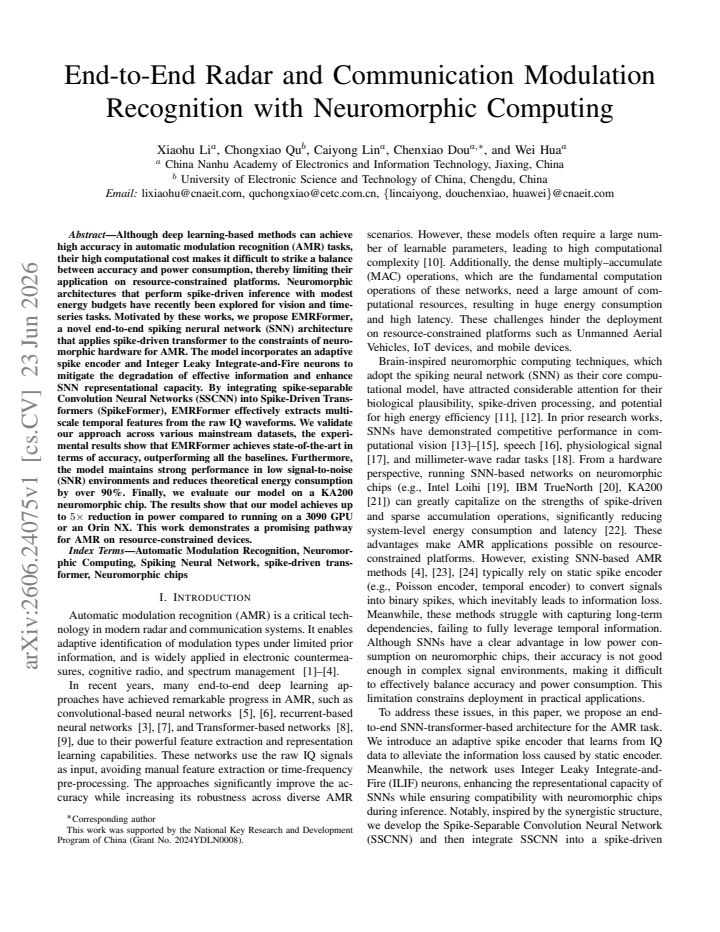

read the original abstract

Although deep learning-based methods can achieve high accuracy in automatic modulation recognition (AMR) tasks, their high computational cost makes it difficult to strike a balance between accuracy and power consumption, thereby limiting their application on resource-constrained platforms. Neuromorphic architectures that perform spike-driven inference with modest energy budgets have recently been explored for vision and timeseries tasks. Motivated by these works, we propose EMRFormer, a novel end-to-end spiking nerural network (SNN) architecture that applies spike-driven transformer to the constraints of neuromorphic hardware for AMR. The model incorporates an adaptive spike encoder and Integer Leaky Integrate-and-Fire neurons to mitigate the degradation of effective information and enhance SNN representational capacity. By integrating spike-separable Convolution Neural Networks (SSCNN) into Spike-Driven Transformers (SpikeFormer), EMRFormer effectively extracts multi-scale temporal features from the raw IQ waveforms. We validate our approach across various mainstream datasets, the experimental results show that EMRFormer achieves state-of-the-art interms of accuracy, outperforming all the baselines. Furthermore, the model maintains strong performance in low signal-to-noise(SNR) environments and reduces theoretical energy consumption by over 90%. Finally, we evaluate our model on a KA200 neuromorphic chip. The results show that our model achieves up to 5 times reduction in power compared to running on a 3090 GPU or an Orin NX. This work demonstrates a promising pathway for AMR on resource-constrained devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes EMRFormer, an end-to-end spiking neural network architecture for automatic modulation recognition (AMR) on raw IQ waveforms. It incorporates an adaptive spike encoder, Integer Leaky Integrate-and-Fire (ILIF) neurons, and integrates spike-separable CNN (SSCNN) blocks into Spike-Driven Transformers (SpikeFormer) for multi-scale temporal feature extraction. The central empirical claims are state-of-the-art accuracy on mainstream datasets (outperforming baselines), robust low-SNR performance, >90% reduction in theoretical energy consumption, and up to 5 imes power reduction when deployed on the KA200 neuromorphic chip versus a 3090 GPU or Orin NX.

Significance. If the accuracy, energy, and hardware claims prove reproducible under disclosed conditions, the work would offer a concrete demonstration of spike-driven transformers applied to communication/radar signals, advancing neuromorphic deployment for resource-constrained AMR. The combination of ILIF neurons with SSCNN+SpikeFormer blocks and the reported hardware numbers on a real neuromorphic chip constitute the primary potential contributions.

major comments (2)
  1. [Hardware evaluation section] Hardware evaluation section: the claim of 'up to 5 times reduction in power' on the KA200 chip versus 3090 GPU or Orin NX is presented without any description of the end-to-end spike-driven mapping, inclusion/exclusion of the adaptive spike encoder overhead, batch size, spike rate, or power measurement protocol. Because the abstract separately qualifies the 90% energy figure as 'theoretical,' the hardware result cannot be assessed for fairness or generalizability.
  2. [Experimental results section] Experimental results section: the assertion that EMRFormer 'achieves state-of-the-art accuracy, outperforming all the baselines' on 'various mainstream datasets' provides no dataset names, baseline implementations, training hyperparameters, number of runs, or error bars. This absence makes it impossible to evaluate whether the SOTA claim is load-bearing or subject to post-hoc selection.
minor comments (2)
  1. [Abstract] Abstract contains typographical errors: 'interms' o 'in terms'; 'signal-to-noise(SNR)' lacks a space; 'nerural' o 'neural'.
  2. [Abstract] The phrase 'theoretical energy consumption' is used without a definition or derivation; a brief equation or reference to how the >90% figure is obtained would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive review. The comments highlight important areas for improving reproducibility and clarity. We address each major comment below and will incorporate revisions to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Hardware evaluation section] Hardware evaluation section: the claim of 'up to 5 times reduction in power' on the KA200 chip versus 3090 GPU or Orin NX is presented without any description of the end-to-end spike-driven mapping, inclusion/exclusion of the adaptive spike encoder overhead, batch size, spike rate, or power measurement protocol. Because the abstract separately qualifies the 90% energy figure as 'theoretical,' the hardware result cannot be assessed for fairness or generalizability.

    Authors: We agree that the hardware evaluation section requires additional methodological detail to allow proper assessment of the power reduction claims. In the revised manuscript, we will expand this section to describe the end-to-end spike-driven mapping procedure on the KA200 neuromorphic chip, explicitly state whether the adaptive spike encoder overhead is included, report the batch size and measured spike rate, and outline the power measurement protocol (including instrumentation and conditions). These additions will clarify the comparison to the 3090 GPU and Orin NX baselines. revision: yes

  2. Referee: [Experimental results section] Experimental results section: the assertion that EMRFormer 'achieves state-of-the-art accuracy, outperforming all the baselines' on 'various mainstream datasets' provides no dataset names, baseline implementations, training hyperparameters, number of runs, or error bars. This absence makes it impossible to evaluate whether the SOTA claim is load-bearing or subject to post-hoc selection.

    Authors: We acknowledge that the experimental results section would benefit from greater specificity to support the SOTA claims. In the revision, we will name the specific mainstream datasets employed, provide details on baseline implementations (including sources or references), list the training hyperparameters, report the number of independent runs performed, and include error bars or standard deviations. These changes will enhance transparency and allow readers to better evaluate the robustness of the reported accuracy improvements. revision: yes

Circularity Check

0 steps flagged

No circularity; purely empirical performance claims with no derivations or fitted parameters.

full rationale

The paper presents an SNN architecture (EMRFormer) and reports experimental accuracy, energy, and hardware power results on datasets and the KA200 chip. No equations, derivations, or parameter-fitting steps are described that could reduce to self-defined inputs. All claims are direct empirical measurements, not predictions or theorems derived from the model's own outputs. This matches the default expectation of no circularity for empirical work.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only input yields no explicit free parameters, axioms, or invented entities; all claims rest on unstated standard assumptions in SNN training and neuromorphic hardware benchmarking.

axioms (1)
  • domain assumption Standard assumptions about SNN training convergence and neuromorphic hardware energy models hold for this architecture.
    Invoked implicitly by performance and energy claims but not stated.

pith-pipeline@v0.9.1-grok · 5801 in / 1291 out tokens · 20998 ms · 2026-06-26T01:23:07.042367+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

29 extracted references · 1 canonical work pages

  1. [1]

    A survey on deep learning techniques in wireless signal recognition,

    X. Li, F. Dong, S. Zhang, and W. Guo, “A survey on deep learning techniques in wireless signal recognition,”Wireless Communications and Mobile Computing, vol. 2019, no. 1, p. 5629572, 2019

    2019

  2. [2]

    A comprehensive survey on deep learning-based lora radio frequency fingerprinting iden- tification,

    A. Ahmed, B. Quoitin, A. Gros, and V . Moeyaert, “A comprehensive survey on deep learning-based lora radio frequency fingerprinting iden- tification,”Sensors, vol. 24, no. 13, p. 4411, 2024

    2024

  3. [3]

    Lstm framework for classification of radar and communications signals,

    V . Clerico, J. Gonz´alez-L´opez, G. Agam, and J. Grajal, “Lstm framework for classification of radar and communications signals,” in2023 IEEE Radar Conference (RadarConf23). IEEE, 2023, pp. 1–6

    2023

  4. [4]

    Spiking neural networks for lpi radar waveform recogni- tion with neuromorphic computing,

    A. Henderson, S. Harbour, C. Yakopcic, T. Taha, D. Brown, J. Tieman, and G. Hall, “Spiking neural networks for lpi radar waveform recogni- tion with neuromorphic computing,” in2023 IEEE Radar Conference (RadarConf23). IEEE, 2023, pp. 1–6

    2023

  5. [5]

    Toward the automatic modu- lation classification with adaptive wavelet network,

    J. Zhang, T. Wang, Z. Feng, and S. Yang, “Toward the automatic modu- lation classification with adaptive wavelet network,”IEEE Transactions on Cognitive Communications and Networking, vol. 9, no. 3, pp. 549– 563, 2023

    2023

  6. [6]

    Convolutional radio modula- tion recognition networks,

    T. J. O’Shea, J. Corgan, and T. C. Clancy, “Convolutional radio modula- tion recognition networks,” inInternational conference on engineering applications of neural networks. Springer, 2016, pp. 213–226

    2016

  7. [7]

    Real-time radio technology and modulation classification via an lstm auto-encoder,

    Z. Ke and H. Vikalo, “Real-time radio technology and modulation classification via an lstm auto-encoder,”IEEE Transactions on Wireless Communications, vol. 21, no. 1, pp. 370–382, 2021

    2021

  8. [8]

    Amc-net: An effective network for automatic modulation classification,

    J. Zhang, T. Wang, Z. Feng, and S. Yang, “Amc-net: An effective network for automatic modulation classification,” inICASSP 2023- 2023 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP). IEEE, 2023, pp. 1–5

    2023

  9. [9]

    Abandon locality: Frame-wise embedding aided transformer for automatic modulation recognition,

    Y . Chen, B. Dong, C. Liu, W. Xiong, and S. Li, “Abandon locality: Frame-wise embedding aided transformer for automatic modulation recognition,”IEEE Communications Letters, vol. 27, no. 1, pp. 327– 331, 2022

    2022

  10. [10]

    Mobilerat: a lightweight radio transformer method for automatic modulation classification in drone communication systems,

    Q. Zheng, X. Tian, Z. Yu, Y . Ding, A. Elhanashi, S. Saponara, and K. Kpalma, “Mobilerat: a lightweight radio transformer method for automatic modulation classification in drone communication systems,” Drones, vol. 7, no. 10, p. 596, 2023

    2023

  11. [11]

    Towards spike-based machine intelligence with neuromorphic computing,

    K. Roy, A. Jaiswal, and P. Panda, “Towards spike-based machine intelligence with neuromorphic computing,”Nature, vol. 575, no. 7784, pp. 607–617, 2019

    2019

  12. [13]

    Spike-driven transformer v2: Meta spiking neural network architecture inspiring the design of next-generation neuromorphic chips,

    M. Yao, J. Hu, T. Hu, Y . Xu, Z. Zhou, Y . Tian, B. Xu, and G. Li, “Spike-driven transformer v2: Meta spiking neural network architecture inspiring the design of next-generation neuromorphic chips,”arXiv preprint arXiv:2404.03663, 2024

    work page arXiv 2024

  13. [14]

    Integer-valued training and spike-driven inference spiking neural network for high-performance and energy-efficient object detection,

    X. Luo, M. Yao, Y . Chou, B. Xu, and G. Li, “Integer-valued training and spike-driven inference spiking neural network for high-performance and energy-efficient object detection,” inEuropean Conference on Computer Vision. Springer, 2024, pp. 253–272

    2024

  14. [15]

    Scaling spike-driven transformer with efficient spike firing approximation training,

    M. Yao, X. Qiu, T. Hu, J. Hu, Y . Chou, K. Tian, J. Liao, L. Leng, B. Xu, and G. Li, “Scaling spike-driven transformer with efficient spike firing approximation training,”IEEE Transactions on Pattern Analysis and Machine Intelligence, 2025

    2025

  15. [16]

    Deep spiking neural networks for large vocabulary automatic speech recognition,

    J. Wu, E. Yılmaz, M. Zhang, H. Li, and K. C. Tan, “Deep spiking neural networks for large vocabulary automatic speech recognition,”Frontiers in neuroscience, vol. 14, p. 199, 2020

    2020

  16. [17]

    Decoding eeg with spiking neural networks on neuromorphic hardware,

    N. Kumar, G. Tang, R. Yoo, and K. P. Michmizos, “Decoding eeg with spiking neural networks on neuromorphic hardware,”Transactions on Machine Learning Research, 2022

    2022

  17. [18]

    Radar-based hand gesture recognition using spiking neural networks,

    I. J. Tsang, F. Corradi, M. Sifalakis, W. Van Leekwijck, and S. Latr ´e, “Radar-based hand gesture recognition using spiking neural networks,” Electronics, vol. 10, no. 12, p. 1405, 2021

    2021

  18. [19]

    Loihi: A neuromorphic manycore processor with on-chip learning,

    M. Davies, N. Srinivasa, T.-H. Lin, G. Chinya, Y . Cao, S. H. Choday, G. Dimou, P. Joshi, N. Imam, S. Jainet al., “Loihi: A neuromorphic manycore processor with on-chip learning,”Ieee Micro, vol. 38, no. 1, pp. 82–99, 2018

    2018

  19. [20]

    Truenorth: Design and tool flow of a 65 mw 1 million neuron programmable neurosynaptic chip,

    F. Akopyan, J. Sawada, A. Cassidy, R. Alvarez-Icaza, J. Arthur, P. Merolla, N. Imam, Y . Nakamura, P. Datta, G.-J. Namet al., “Truenorth: Design and tool flow of a 65 mw 1 million neuron programmable neurosynaptic chip,”IEEE transactions on computer- aided design of integrated circuits and systems, vol. 34, no. 10, pp. 1537–1557, 2015

    2015

  20. [21]

    Towards artificial general intelligence with hybrid tianjic chip architecture,

    J. Pei, L. Deng, S. Song, M. Zhao, Y . Zhang, S. Wu, G. Wang, Z. Zou, Z. Wu, W. Heet al., “Towards artificial general intelligence with hybrid tianjic chip architecture,”Nature, vol. 572, no. 7767, pp. 106–111, 2019

    2019

  21. [22]

    Dvs-aware visual perception for pose estimation of mobile robots with neuromorphic implementation,

    H. Zhong, Y . Jin, G. Li, Z. Wang, and X. Li, “Dvs-aware visual perception for pose estimation of mobile robots with neuromorphic implementation,” in2025 IEEE International Conference on Robotics and Automation (ICRA). IEEE, 2025, pp. 11 721–11 727

    2025

  22. [23]

    An end-to-end neuromorphic radio classification system with an efficient sigma-delta-based spike encoding scheme,

    W. Guo, K. Yang, H.-G. Stratigopoulos, H. Aboushady, and K. N. Salama, “An end-to-end neuromorphic radio classification system with an efficient sigma-delta-based spike encoding scheme,”IEEE Transac- tions on Artificial Intelligence, vol. 5, no. 4, pp. 1869–1881, 2023

    2023

  23. [24]

    Modulation classification through convo- lutional spiking neural networks,

    G. Velusamy and R. Lent, “Modulation classification through convo- lutional spiking neural networks,” inProceedings of the International Symposium on Intelligent Computing and Networking 2024:(ISICN 2024), vol. 1094. Springer Nature, 2024, p. 307

    2024

  24. [25]

    A convolutional spiking neural network with adaptive coding for motor imagery classi- fication,

    X. Liao, Y . Wu, Z. Wang, D. Wang, and H. Zhang, “A convolutional spiking neural network with adaptive coding for motor imagery classi- fication,”Neurocomputing, vol. 549, p. 126470, 2023

    2023

  25. [26]

    Mobilenetv2: Inverted residuals and linear bottlenecks,

    M. Sandler, A. Howard, M. Zhu, A. Zhmoginov, and L.-C. Chen, “Mobilenetv2: Inverted residuals and linear bottlenecks,” inProceedings of the IEEE conference on computer vision and pattern recognition, 2018, pp. 4510–4520

    2018

  26. [27]

    An introduction to deep learning for the physical layer,

    T. O’shea and J. Hoydis, “An introduction to deep learning for the physical layer,”IEEE Transactions on Cognitive Communications and Networking, vol. 3, no. 4, pp. 563–575, 2017

    2017

  27. [28]

    Radio machine learning dataset generation with gnu radio,

    T. J. O’shea and N. West, “Radio machine learning dataset generation with gnu radio,” inProceedings of the GNU radio conference, vol. 1, no. 1, 2016

    2016

  28. [29]

    Over-the-air deep learning based radio signal classification,

    T. J. O’Shea, T. Roy, and T. C. Clancy, “Over-the-air deep learning based radio signal classification,”IEEE Journal of Selected Topics in Signal Processing, vol. 12, no. 1, pp. 168–179, 2018

    2018

  29. [30]

    1.1 computing’s energy problem (and what we can do about it),

    M. Horowitz, “1.1 computing’s energy problem (and what we can do about it),” in2014 IEEE international solid-state circuits conference digest of technical papers (ISSCC). IEEE, 2014, pp. 10–14

    2014
