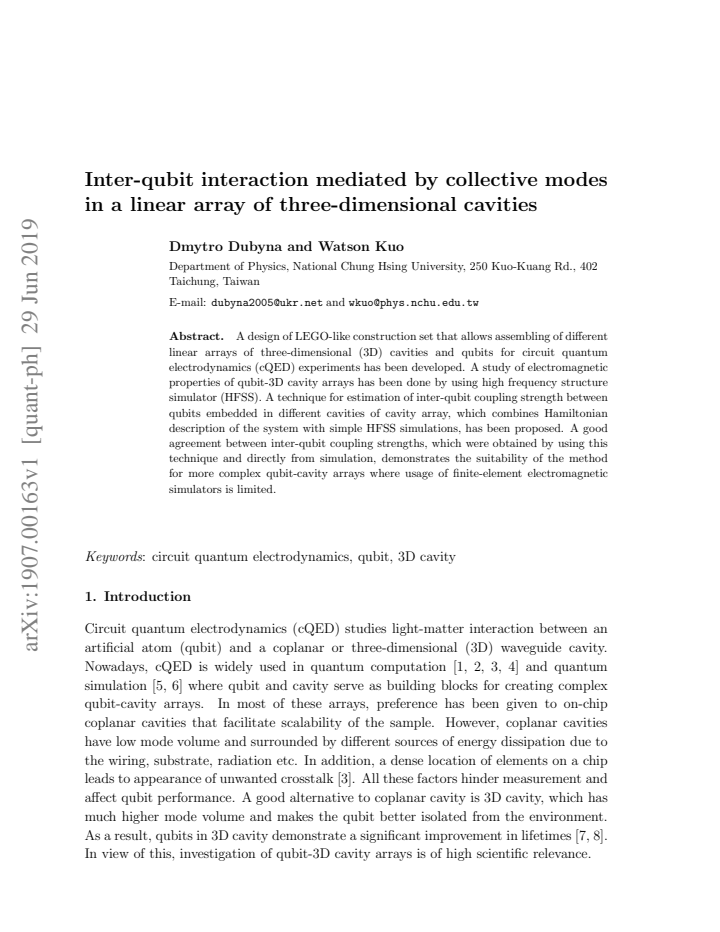

Inter-qubit interaction mediated by collective modes in a linear array of three-dimensional cavities

Dmytro Dubyna , Watson Kuo This is my paper

Pith reviewed 2026-05-25 13:13 UTC · model grok-4.3

classification 🪐 quant-ph cond-mat.supr-con
keywords circuit quantum electrodynamics3D cavity arraysinter-qubit couplingHFSS simulationHamiltonian modelcollective modes
0
0 comments X

The pith

A hybrid technique estimates inter-qubit coupling in 3D cavity arrays by combining Hamiltonians with simple simulations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a modular LEGO-style assembly system for creating linear chains of three-dimensional cavities that each contain a qubit. Electromagnetic behavior of these arrays is examined with HFSS simulations. The central contribution is a hybrid method that uses a Hamiltonian description of the collective cavity modes together with limited HFSS results to calculate the effective coupling between qubits sitting in separate cavities. When tested on a three-cavity chain, the hybrid estimates match the couplings obtained from full direct simulation. This match indicates the approach remains usable for larger or more intricate arrays in which exhaustive finite-element modeling becomes impractical.

Core claim

Inter-qubit interactions in a linear array of 3D cavities are mediated by collective electromagnetic modes, and these interaction strengths can be obtained accurately from a Hamiltonian model supplemented by only simple HFSS runs rather than complete electromagnetic simulations of every configuration.

What carries the argument

The hybrid estimation technique that merges a Hamiltonian description of the multi-cavity system with targeted HFSS simulation outputs to extract inter-qubit couplings mediated by collective modes.

If this is right

  • Coupling strengths between distant qubits can be predicted without performing a complete electromagnetic simulation of the entire array.
  • The modular cavity construction allows rapid experimental testing of different linear layouts while the hybrid method supplies the theoretical couplings.
  • The same collective-mode mediation picture can be applied to estimate interactions once the array size exceeds what full HFSS can comfortably handle.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach may lower the computational barrier for exploring scaling limits in cavity-based quantum processors.
  • Validation on two-dimensional cavity lattices would test whether the same Hamiltonian-plus-limited-simulation logic extends beyond linear chains.

Load-bearing premise

The agreement between hybrid estimates and full simulations observed for three-cavity lines will continue to hold for larger or differently arranged qubit-cavity arrays.

What would settle it

A direct side-by-side comparison on a four-cavity linear array in which the hybrid method and a full HFSS simulation produce inter-qubit coupling values that differ by more than the reported agreement margin for the three-cavity case.

Figures

Figures reproduced from arXiv: 1907.00163 by Dmytro Dubyna, Watson Kuo.

Figure 1

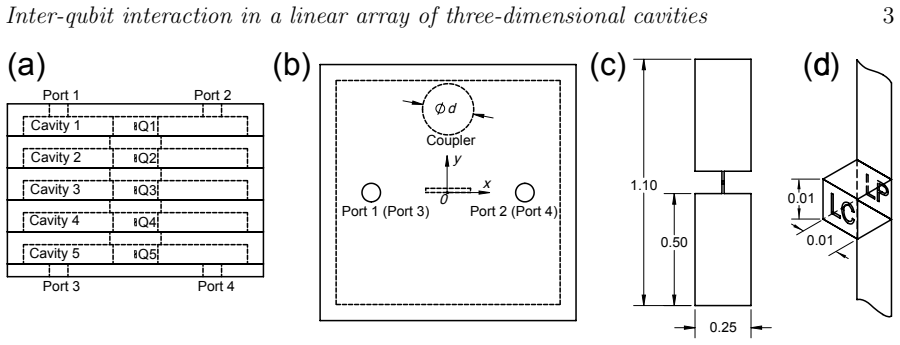

Figure 1. Figure 1: (a) Side and (b) top view of the cavity array assembly. Ind [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

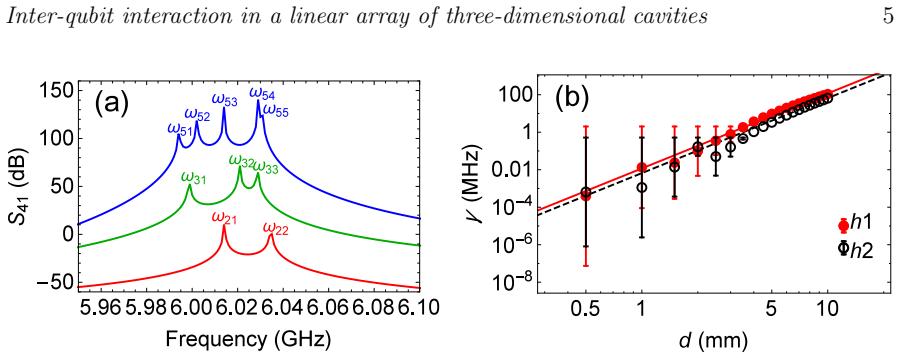

Figure 2. Figure 2: (a) S41-parameters for 2- (bottom), 3- (middle) and 5-cavity arrays (top) with h1 cavity height. For clarity, middle and top S41-parameters are shifted by 50 dB and 140 dB upwards, respectively. (b) Dependence of inter-cavity coupling strength γ on coupler diameter d for h1 (solid circles) and h2 (open circles) cavity heights in 2-cavity array. Solid and dashed lines are fitting functions of γ(d) = αd4 wit… view at source ↗
Figure 3

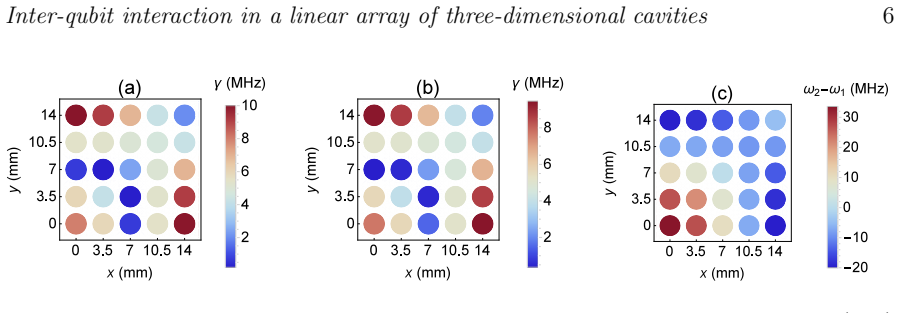

Figure 3. Figure 3: Dependence of inter-cavity coupling strength [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

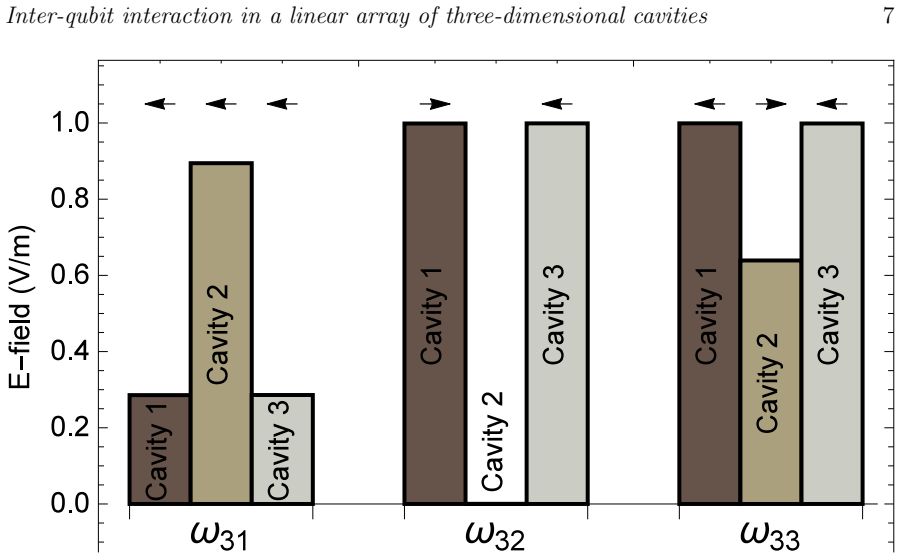

Figure 4. Figure 4: Single photon E-field for 3 normal modes in the cavities of 3- [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

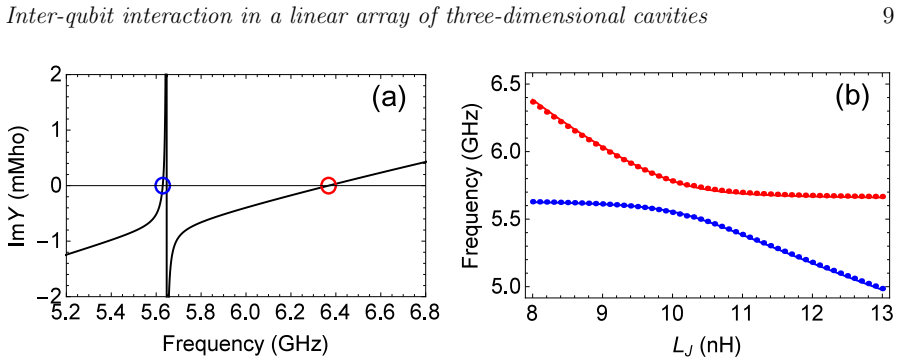

Figure 5. Figure 5: (a) Dependence of imaginary part of admittance Im [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6

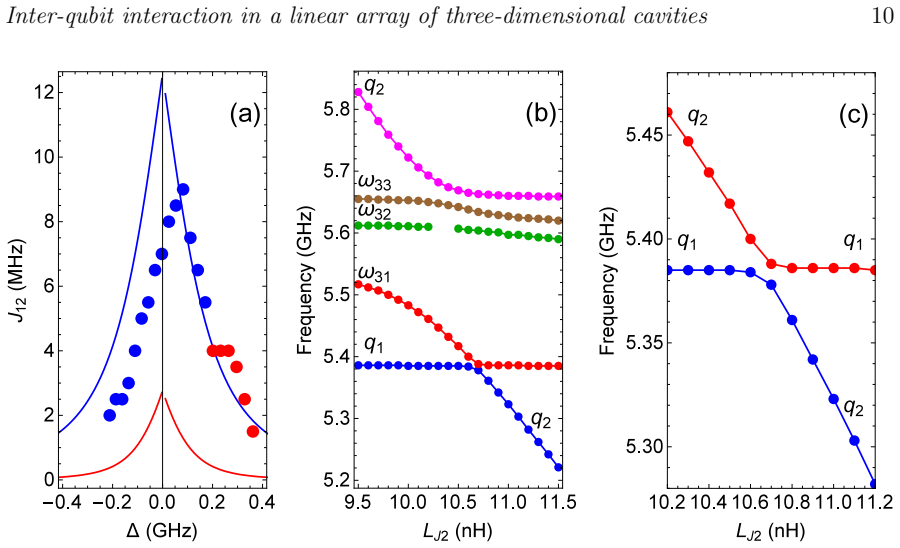

Figure 6. Figure 6: (a) Dependences of the inter-qubit coupling strength [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
