R3Det: Refined Single-Stage Detector with Feature Refinement for Rotating Object

T0 review · 2 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Feature-aligned single-stage rotation detector hits 73.79 mAP on DOTA.

desk verdict Useful, reproducible rotation detector with a genuinely clean feature-refinement idea, but the headline 'FRM alone' attribution is confounded in the tables and the approximate SkewIoU loss is oversold as a gradient approximation. read the letter →

arxiv 1908.05612 v6 pith:DEFZ3GCU submitted 2019-08-15 cs.CV cs.LGeess.IV

Xue Yang , Junchi Yan , Ziming Feng , Tao He This is my paper · ORCID
classification cs.CVcs.LGeess.IV
keywords rotatingobjectdetectionfeaturealignmentsingle-stagedetectorrefinementmoduleapproximateSkewIoUlossaerialimageryscenetextcoarse-to-fineregression
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Rotating objects in aerial and scene-text images are hard because small angle errors destroy overlap for long, thin boxes and because dense arrangements confuse detectors. The paper sets out to show that a single-stage detector can have both the speed of one-stage models and the accuracy of refined multi-stage ones, if each refinement step re-aligns the features to the current predicted box. To that end it introduces R3Det, which regresses progressively from horizontal to rotated anchors, reconstructs the feature map from the refined box through interpolation, and uses a differentiable approximation of SkewIoU as the regression loss. The claimed payoff is state-of-the-art accuracy at high speed: 73.79% mAP on DOTA without multi-scale training, 96.17% on UCAS-AOD, 96.01% on HRSC2016, and 84.96% Hmean on ICDAR2015.

What carries the argument

The load-bearing mechanism is the Feature Refinement Module (FRM), which re-encodes the position of the current refined bounding box onto the feature map. For every feature point, five points on the refined box (center plus four corners) are projected onto the feature map; bilinear interpolation extracts a feature vector for each, the five vectors are summed, and this replaces the original feature point, reconstructing a whole aligned feature map that is added to the input. A box-filtering step keeps only the highest-scoring box per feature point so each location maps to one refined box, and a large-kernel convolution broadens context before reconstruction. The complementary mechanism is the approximate SkewIoU loss, which multiplies the magnitude of a SkewIoU-derived term by the unit vector of a smooth-L1-plus-horizontal-IoU regression loss, so the gradient direction comes from a differentiable proxy while the loss magnitude tracks actual rotated overlap. The progressive regression scheme (horizontal anchors first, rotated anchors in later stages) is what makes refinement affordable while keeping recall high.

What would settle it

Take pairs of rotated boxes with aspect ratio 5:1 and small angle differences, compute the cosine similarity between the gradient of L_reg (Eq. 3) and the numerically computed gradient of SkewIoU; if the similarity is close to zero or negative across the early-training distribution, the loss is not steering toward higher overlap and the central mechanism fails.

Watch

Extended reading notes

Core claim

The central claim is that feature misalignment, not the number of regression stages, is what limits refined single-stage rotation detectors. Existing refined detectors reuse the same feature map for later stages even though the predicted box has moved, so classification and regression see stale features. The paper's fix, the Feature Refinement Module (FRM), samples five feature points per map location—the center and four corners of the current refined box—interpolates them bilinearly, reconstructs the entire feature map, and adds it back. This is a pure computation, not a learned offset, which keeps the detector fully convolutional. For the angle, the paper replaces smooth-L1 regression with an approximate SkewIoU loss: the magnitude of a SkewIoU-based term scales the loss, while gradient direction comes from a unit vector based on smooth-L1 angle plus horizontal IoU, making the loss differentiable. The paper's ablation attributes a 2.79-point DOTA gain to FRM (63.52 to 66.31 mAP, Table 1) and reports state-of-the-art results on four rotation-sensitive benchmarks.

Load-bearing premise

Everything rests on the assumption that the gradient direction of L_reg — smooth-L1 on angle plus horizontal IoU — points the same way as the true SkewIoU gradient; the SkewIoU magnitude is detached from backpropagation, so if that direction misleads, the loss cannot deliver the claimed rotation accuracy.

Editorial extensions

If this is right

  • Feature alignment in single-stage detectors does not require RoI pooling or learned deformable offsets; a fixed interpolation scheme can realign features while preserving a fully convolutional network.
  • Because the network uses horizontal anchors at the first stage, it needs far fewer anchors than a fully rotated-anchor detector; the speed advantage grows with the number of categories since anchor count scales as (5 + C) per location.
  • Approximate SkewIoU loss stabilizes training relative to smooth-L1 and improves angle accuracy for high-aspect-ratio objects; the training-loss curve in the paper shows lower variance.
  • Beyond two refinement stages, additional stages add little mAP on DOTA; three stages is the practical ceiling for this architecture.
  • The same detector transfers to scene text: on ICDAR2015 it reaches 84.96% Hmean at 13.5 fps without extra training data.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Because FRM is a fixed geometric operation rather than a learned module, it could be plugged into any refined detector architecture; the cost is minimal sampling and the benefit should scale with aspect ratio.
  • The paper never measures how well the gradient direction of L_reg matches the true SkewIoU gradient; comparing against a fully differentiable SkewIoU (e.g., by numerical differentiation) would settle whether the direction or the magnitude is responsible for the gain.
  • The interpolation weights being location-sensitive (random permutation of weights destroys accuracy) suggests FRM is doing real geometric alignment, not just adding nonlinearity; a similar sensitivity test on other pixel-wise reconstruction methods could generalize this conclusion.
  • The speed comparison on HRSC2016 is single-class; on multi-class datasets, the anchor-count argument predicts R3Det's speed edge over rotated-anchor baselines widens, which is testable with the released code.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. The paper proposes R3Det, a refined single-stage rotation detector that combines three components: a progressive coarse-to-fine regression scheme that starts from horizontal anchors and refines with rotating anchors; a feature refinement module (FRM) that reconstructs the feature map by bilinear interpolation of five feature points (center and four corners) per refined box; and an approximate SkewIoU loss that uses the SkewIoU value as a detached magnitude scaling a smooth-L1-plus-horizontal-IoU gradient term. Experiments on DOTA, HRSC2016, UCAS-AOD, and ICDAR2015 report state-of-the-art accuracy among single-stage methods, and the authors release TensorFlow and PyTorch implementations.

Significance. The empirical results are strong: R3Det achieves 73.79% mAP on DOTA without multi-scale training, outperforming prior single-stage rotation detectors, and the public code supports reproducibility. The FRM idea—reconstructing the whole feature map from refined box positions rather than cropping instance-level features—is a useful contribution, and the ablation in Table 3 showing sensitivity to the interpolation formula gives credible evidence that feature alignment matters. However, the two central technical claims have important gaps: the approximate SkewIoU loss is not a differentiable surrogate for SkewIoU in gradient direction, since the SkewIoU term is detached from backpropagation and the gradient comes entirely from L_reg; and the key FRM ablation in Table 1 is confounded with a change in the regression loss. These issues affect the paper's contribution claims even though the overall detector works well in practice.

major comments (2)
  1. [Section 3.1, Eq. (2)-(3)] The proposed approximate SkewIoU loss does not provide gradients that approximate the gradient of SkewIoU. In Eq. (2), the term |f(SkewIoU)| is explicitly detached from backpropagation (as stated in the text: "|.| is used to obtain the modulus of the vector and is not involved in gradient back propagation"), so the gradient direction is entirely determined by L_reg, which is smooth-L1 on the angle plus horizontal IoU. The paper's claim that "L_reg/|L_reg| determines the direction of gradient propagation" is misleading because this quotient is a scalar ±1; the parameter-space direction is ∇L_reg. Thus the loss is a sample-reweighted smooth-L1 loss, not an approximation of the SkewIoU loss. No analysis or experiment is provided showing that ∇L_reg is a good proxy for the true SkewIoU gradient direction. Table 5 only varies the detached magnitude function f, so it cannot validate the claimed "more accurate rotation estimation" through gradient alignment. The paper should either re-scope the contribution as a heuristic reweighting scheme or provide direct evidence of direction alignment.
  2. [Section 4.3, Table 1 and Table 2] The ablation attributed to the feature refinement module (FRM) is confounded. In Table 1, the comparison that Section 4.3 uses to claim FRM increases performance by 2.79% is between R3Det* (mAP 63.52) and R3Det (mAP 66.31). According to Section 4.2, R3Det* is the refined detector without feature refinement; its single checkmark in Table 1 corresponds to the approximate SkewIoU loss column, while R3Det has checkmarks for BF&FR and LK but no checkmark for the approximate loss. Therefore the two rows differ in both FRM and the regression loss, and the +2.79 mAP cannot be attributed to FRM alone. A controlled comparison with and without FRM under the same loss is not reported. The same confounding appears in Table 2, where R3Det* and R3Det differ in both the loss (Table 1) and the FRM components. Since the paper's central component claim is that "FRM alone" gives a large gain, this needs to be re-established with a properly controlled ablation, e.g., R3Det with vs. without FRM while keeping the approximate SkewIoU loss fixed, and vice versa.
minor comments (5)
  1. [General] There are several typos: "Refined Rotation Singe-Stage Detector" in the contributions list, "ReitnaNet-H" in Section 4.2, "shell" for "shall" in Section 7, and "comparsion" in the Supplementary Material.
  2. [Table 1] The checkmark layout of Table 1 is ambiguous in the manuscript text. Please clarify which checkmarks correspond to BF&FR, LK, and approximate SkewIoU loss in each row, as the current formatting makes the ablation difficult to interpret.
  3. [Section 3.2] The reference to "Algorithm 3.2" appears to point to a numbered algorithm that is not present in the manuscript text. Please include the pseudo-code with a proper caption or remove the cross-reference.
  4. [Eq. (2)] The function f in Eq. (2) is not defined in the main text; the reader must infer from Table 5 that f can be 1−SkewIoU or exp(1−SkewIoU)−1. Please define f explicitly in Section 3.1.
  5. [Section 6.3] The supplementary text states that FRM does not work well for horizontal detection on COCO, but no experimental result is shown. Either include the COCO experiment or weaken the claim.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity found; the central components are empirically validated, with a confounded FRM ablation as a validity concern rather than a circular step.

full rationale

The paper's derivation chain is not circular. The approximate SkewIoU loss (Eqs. 2-3) uses the smooth-L1/horizontal-IoU direction as the backpropagated gradient and only a detached SkewIoU magnitude for scaling; using SkewIoU in training while also reporting SkewIoU-based mAP is objective alignment, not hidden reuse of the evaluation target. The claimed gains are supported by held-out benchmark comparisons against external methods and by controlled ablations of the loss function form (Table 5) and of the feature-interpolation weights (Table 3). The feature refinement module is a constructive mechanism with position-sensitive evidence, not a renamed existing result. The only notable weakness is that the headline FRM attribution compares R3Det* (with approximate loss, without FRM) to R3Det (with FRM, without approximate loss), so the 2.79-point gap in Table 1 is not a controlled FRM-only ablation; this is an experimental confound, not a reduction of the result to its inputs. The SCRDet self-citation for the loss is acknowledged inspiration, and the exact equations are given in the paper, so no load-bearing claim rests on an unverified self-citation. The paper's own limitation note in Sec. 6.3, saying FRM is unsatisfactory on horizontal COCO detection, is an honest scope limitation and does not indicate circularity.

Assumptions & free parameters 5 free parameters · 4 assumptions · 0 invented entities

The central claim rests on a set of hand-chosen hyperparameters (IoU thresholds, loss weights, anchor configuration, stage count) and on several unproven modeling assumptions about feature-map coherence, the oriented-box representation, and the direction of the regression loss. None of these are fitted to hidden data, and the paper is transparent about most of them, but they are still part of the input the reader pays for.

free parameters (5)
  • IoU thresholds per refinement stage = 0.5/0.4, 0.6/0.5, 0.7/0.6
    Hand-set in Section 3.2; stage count and thresholds are chosen by design, not derived.
  • Loss weights lambda_1, lambda_2, alpha_i = 1
    Set to 1 in Eq. 2 and Eq. 4; the paper provides no sensitivity analysis for these weights.
  • SkewIoU magnitude function f = exp(1 - SkewIoU) - 1
    Selected empirically in Table 5 from two candidates based on DOTA mAP; the linear candidate gives NAN in training.
  • Anchor configuration = 7 aspect ratios, 3 scales, 6 angles
    Chosen in Section 4.1; standard but hand-tuned, and rotating anchors multiply the anchor count by six.
  • Number of refinement stages = 2 (R3Det-dagger), 1 (R3Det)
    Selected from the ablation in Table 4; three or more stages do not improve DOTA mAP.
assumptions (4)
  • domain assumption The five-parameter oriented box representation with theta in [-pi/2, 0) fully describes the rotated objects in the target datasets.
    Section 3.1 defines the representation; this angle convention is a modeling choice and affects the regression targets and the anchor design.
  • domain assumption Bilinear interpolation at the center and four corners of the refined box provides features that are better aligned than features from the original anchor position.
    Section 3.2 and Eq. 5 rely on the feature map being spatially coherent; the supplementary material (Section 6.3) shows this fails for horizontal detection because the corner points are far from the object.
  • ad hoc to paper The gradient direction of L_reg is a sufficient proxy for increasing SkewIoU.
    Eq. 2-3; this is the core assumption behind the approximate SkewIoU loss, and it is not verified beyond final mAP numbers.
  • domain assumption Keeping only the highest-scoring box per feature point during refinement does not lose essential candidates.
    Section 3.2, box filtering (BF); this speed optimization could discard valid boxes in dense scenes, and the paper does not ablate it alone.

how reviews work

0 comments
Cite this review

Pith. "Pith review of R3Det: Refined Single-Stage Detector with Feature Refinement for Rotating Object." pith.science (2026). https://pith.science/paper/DEFZ3GCU

@misc{pith2026190805612,
  author       = {Pith},
  title        = {Pith review of: R3Det: Refined Single-Stage Detector with Feature Refinement for Rotating Object},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/DEFZ3GCU}},
  note         = {Machine review of arXiv:1908.05612}
}
read the original abstract

Rotation detection is a challenging task due to the difficulties of locating the multi-angle objects and separating them effectively from the background. Though considerable progress has been made, for practical settings, there still exist challenges for rotating objects with large aspect ratio, dense distribution and category extremely imbalance. In this paper, we propose an end-to-end refined single-stage rotation detector for fast and accurate object detection by using a progressive regression approach from coarse to fine granularity. Considering the shortcoming of feature misalignment in existing refined single-stage detector, we design a feature refinement module to improve detection performance by getting more accurate features. The key idea of feature refinement module is to re-encode the position information of the current refined bounding box to the corresponding feature points through pixel-wise feature interpolation to realize feature reconstruction and alignment. For more accurate rotation estimation, an approximate SkewIoU loss is proposed to solve the problem that the calculation of SkewIoU is not derivable. Experiments on three popular remote sensing public datasets DOTA, HRSC2016, UCAS-AOD as well as one scene text dataset ICDAR2015 show the effectiveness of our approach. Tensorflow and Pytorch version codes are available at https://github.com/Thinklab-SJTU/R3Det_Tensorflow and https://github.com/SJTU-Thinklab-Det/r3det-on-mmdetection, and R3Det is also integrated in our open source rotation detection benchmark: https://github.com/yangxue0827/RotationDetection.

Figures

Figures reproduced from arXiv: 1908.05612 by the authors.

Figure 2
Figure 2. Comparison between SkewIoU and Smooth L1 Loss. coarse-to-fine progressive regression approach to better ex￾ploring the two forms of anchors in a more flexible manner, tailored to each detection stage. Compared with the previ￾ous methods [35, 53, 12, 52, 51] using one single anchor form, our method is more flexible and efficient. 3) For arbitrarily-rotated objects, a derivable approx￾imate SkewIoU loss is devised for… view at source ↗
Figure 3
Figure 3. The SkewIoU scores vary with the angle de [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 5
Figure 5. Feature Refinement Module FRM. It mainly [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figures from the paper (7 more)
Figure 4

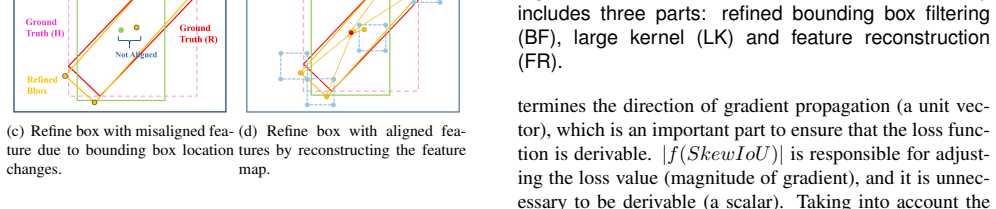

Figure 4. Figure 4: Root cause analysis of feature misalignment [PITH_FULL_IMAGE:figures/full_fig_p004_4.png]
Figure 6

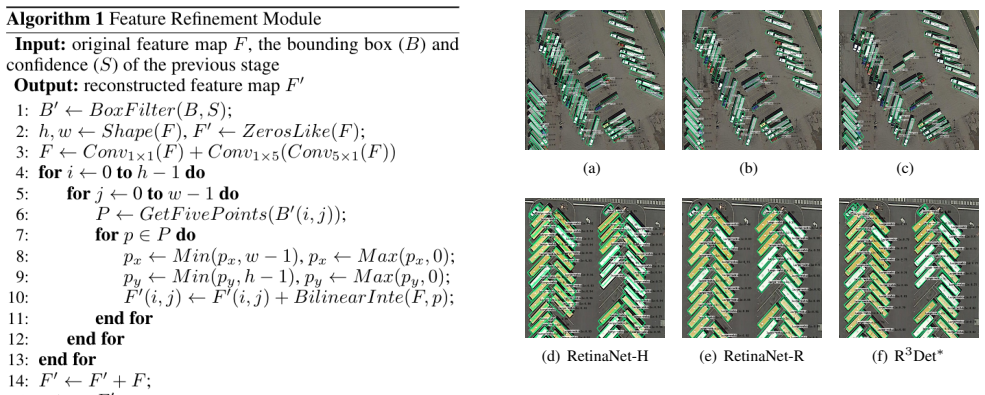

Figure 6. Figure 6: Visualization on DOTA. Here ‘H’ and ‘R’ represent the horizontal and rotating anchors, respec￾tively. Method FRM approximate SV. LV. SH. mAP BF&FR LK SkewIoU loss RetinaNet-R 64.64 71.01 68.62 62.76 RetinaNet-H 63.50 50.68 65.93 62.79 R 3Det∗ X 65.02 67.31 67.31 63.52 …
Figure 7
Figure 7. Figure 7: Performance versus speed on HRSC2016 [34] dataset. As can be seen, our algorithm signifi￾cantly surpasses competitors in accuracy, whilst run￾ning very fast. 6. Supplementary Material 6.1. Speed Comparison Due to the high-resolution test images and extra process￾ing su…
Figure 8
Figure 8. Figure 8: Schematic diagram of sampling points for [PITH_FULL_IMAGE:figures/full_fig_p009_8.png]
Figure 9
Figure 9. Figure 9: Training loss curve after using approximate [PITH_FULL_IMAGE:figures/full_fig_p010_9.png]
Figure 10
Figure 10. Figure 10: Text detection results on the ICDAR2015 benchmarks. (2018AAA0100704), NSFC (61972250, U19B2035). The author Xue Yang is supported by Wu Wen Jun Hon￾orary Doctoral Scholarship, AI Institute, Shanghai Jiao Tong University. 7. Broad Societal Implications This paper aims …
Figure 12
Figure 12. Figure 12: Detection results on the OBB task on DOTA. Our method performs better on those with large aspect [PITH_FULL_IMAGE:figures/full_fig_p011_12.png]
