pith. sign in

arxiv: 2605.16038 · v1 · pith:DOAB2PKSnew · submitted 2026-05-15 · ❄️ cond-mat.mtrl-sci

Interfacial Reconstructions and Engineering in III-V@II-VI Core-Shell Quantum Dots

Jordi Llusar , Abdessamad El Adel , Luca De Trizio , Liberato Manna , Zeger Hens , Ivan Infante This is my paper

Pith reviewed 2026-05-20 17:01 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords core-shell quantum dotsIII-V/II-VI interfacesinterfacial reconstructionalloyed interlayerdensity functional theorycharge redistributionInAs/CdSeband alignment
0
0 comments X

The pith

An alloyed interlayer mixing core and shell atoms restores energetic alignment and prevents band-gap collapse in InAs/CdSe quantum dots.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates the effects of different atomic arrangements at the boundary between an InAs core and a CdSe shell in quantum dots. Abrupt interfaces create charge imbalances that shrink the band gap and promote trap states, harming optoelectronic performance. Introducing an alloyed interlayer that blends atoms from both materials plus vacancies balances the local dipoles and yields delocalized band-edge states that match experimental results. The work also presents a charge-flow analysis to track how electrons redistribute across the entire dot. This framework supports more realistic modeling of how interlayers form during growth and guides the creation of cleaner interfaces.

Core claim

Using density functional theory on atomistic models of InAs/CdSe QDs, we systematically reconstruct atomic arrangements at the surface and interface to evaluate how local coordination and interfacial dipoles influence the electronic structure. Abrupt interfaces induce charge imbalance and band-gap collapse, whereas introducing an alloyed interlayer that mixes core and shell atoms and vacancies restores energetic alignment and yields delocalized band-edge states, consistent with experimental findings. We also introduce a charge-flow analysis that quantifies charge redistribution across the QD, providing a framework for realistic modeling of interlayer formation and predictive design of defect

What carries the argument

alloyed interlayer mixing core and shell atoms with vacancies to balance interfacial dipoles and restore band alignment

If this is right

  • Delocalized band-edge states reduce the density of trap states that degrade light emission and charge transport.
  • Charge-flow analysis supplies a quantitative tool for predicting how interlayers develop during colloidal synthesis.
  • The same reconstruction approach can guide interface design in other III-V@II-VI core-shell combinations.
  • Predictive modeling of defect-free interfaces becomes feasible once the charge redistribution pattern is known.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Synthesis recipes could be tuned to encourage controlled alloying rather than enforcing perfectly sharp boundaries.
  • The charge-flow method may transfer to modeling interfaces in other heterostructured nanocrystals where chemical discontinuities occur.
  • Device simulations that incorporate these reconstructed interfaces could better predict real-world efficiency limits.
  • Extension to larger dot diameters would test whether the same interlayer thickness remains optimal.

Load-bearing premise

The atomistic models with chosen surface and interface reconstructions accurately represent the actual atomic arrangements that form during synthesis of real InAs/CdSe QDs.

What would settle it

Spectroscopic measurements showing band-gap collapse in InAs/CdSe quantum dots that contain confirmed alloyed interlayers at the interface.

Figures

Figures reproduced from arXiv: 2605.16038 by Abdessamad El Adel, Ivan Infante, Jordi Llusar, Liberato Manna, Luca De Trizio, Zeger Hens.

Figure 1
Figure 1. Figure 1: Electronic structure and charge accumulation in InAs QD models. (a) Atomic structures of pure (left) and reconstructed (right) 2.1nm InAs cores, highlighting cation-rich ⟨111⟩, anion-rich ⟨$ 111 $$$$⟩ and ⟨100⟩ facets, along with an illustration of the Cl- substitution used to reconstruct the ⟨111 $$$$$⟩ facets. (b) Projected density of states (PDOS) for the pure and reconstructed models, with the optical … view at source ↗
Figure 2

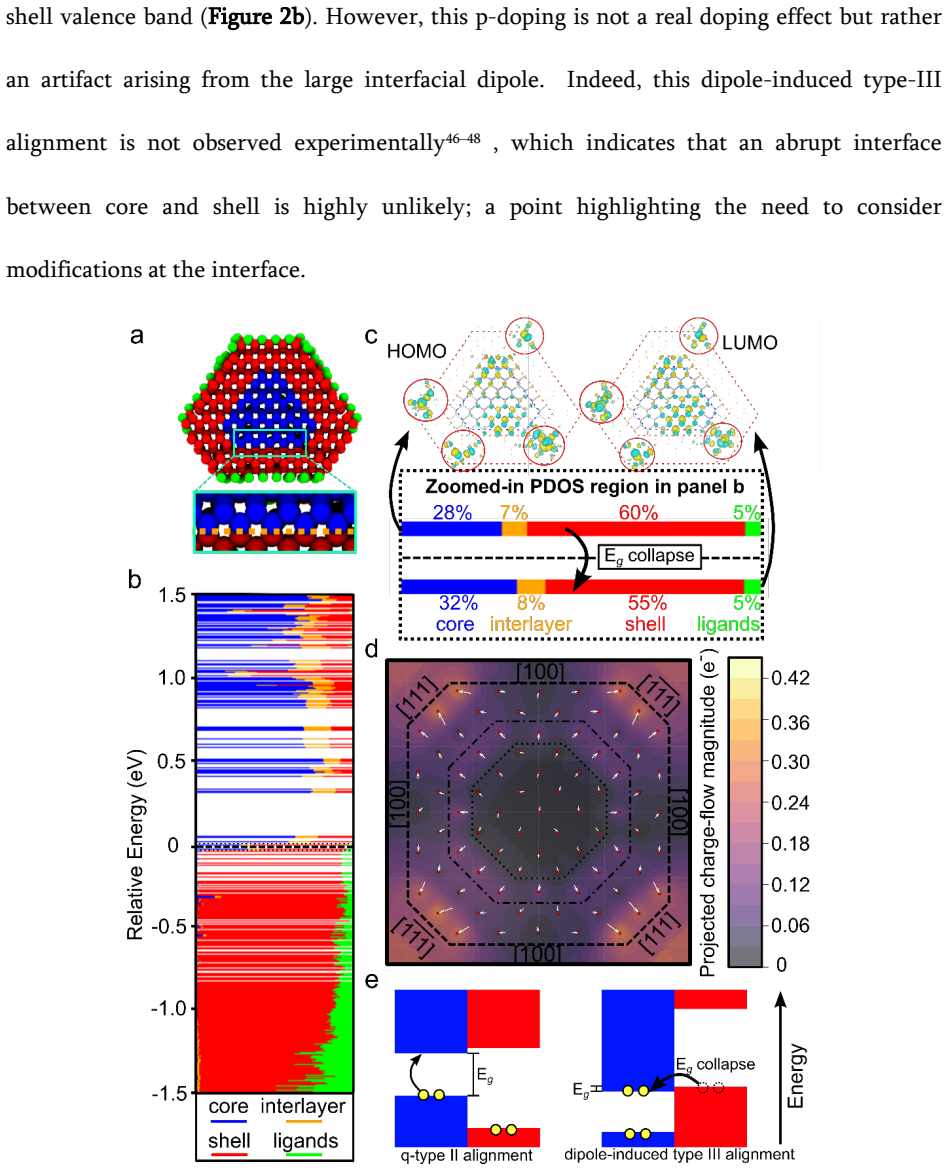

Figure 2. Figure 2: Electronic and charge-flow features of the InAs@CdSe QD model with an abrupt core-shell interface and reconstructed CdSe surface (3ML). (a) Atomistic model of the InAs@CdSe QD showing the abrupt interface [PITH_FULL_IMAGE:figures/full_fig_p012_2.png] view at source ↗
Figure 3

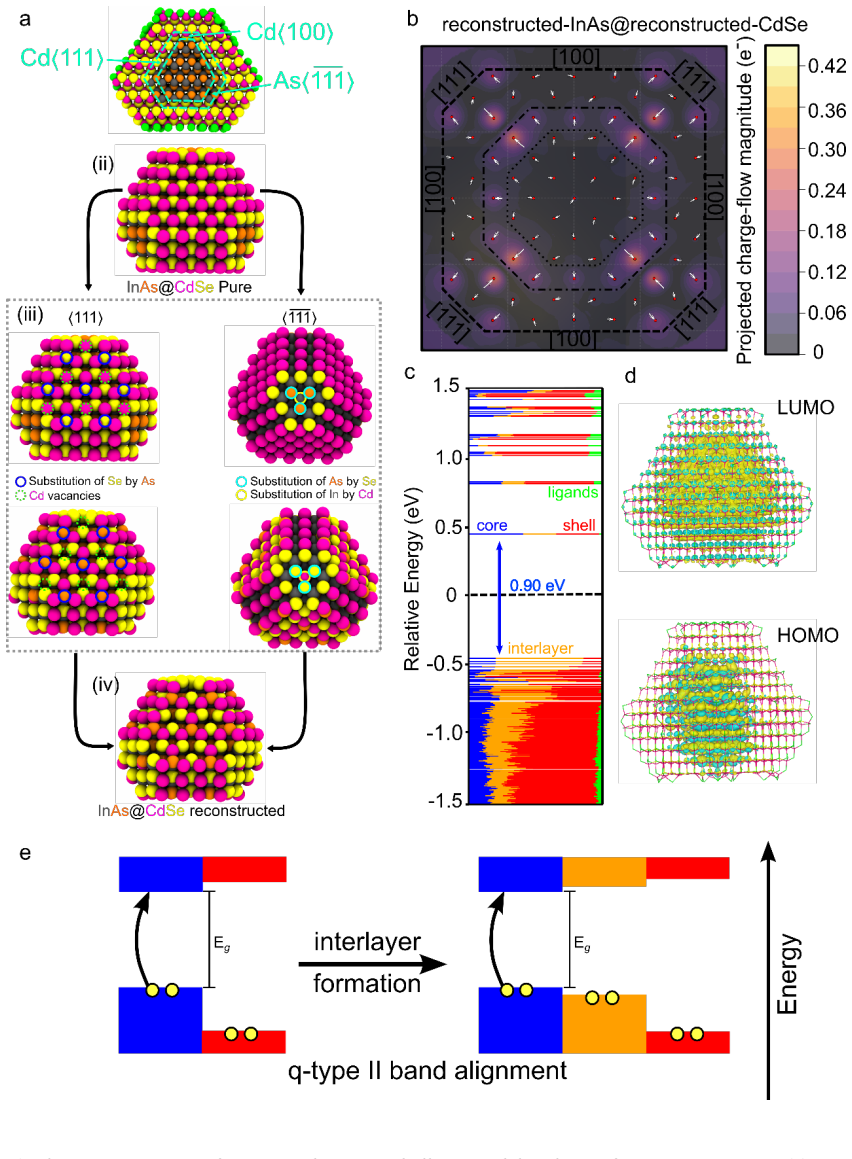

Figure 3. Figure 3: Electronic structure of a InAs@CdSe core@shell QD model with interface reconstructions. (a) Atomistic structures illustrating the interface-reconstruction strategy: (i) inner view of a pure core@shell system indicating the interlayer composition, Cd-rich at ⟨111⟩ and As-rich at ⟨$ 111 $$$$⟩, and shape (turquoise dashed lines); (ii) atomic [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗
read the original abstract

In core/shell quantum dots (QDs), the interface between semiconductors of different chemical character largely determines their optoelectronic properties. In III-V/II-VI systems, this boundary involves pronounced chemical and electronic discontinuities that can generate trap states even under complete surface passivation. Using density functional theory on atomistic models of InAs/CdSe QDs, we systematically reconstruct atomic arrangements at the surface and interface to evaluate how local coordination and interfacial dipoles influence the electronic structure. Abrupt interfaces induce charge imbalance and band-gap collapse, whereas introducing an alloyed interlayer that mixes core and shell atoms and vacancies restores energetic alignment and yields delocalized band-edge states, consistent with experimental findings. We also introduce a charge-flow analysis that quantifies charge redistribution across the QD, providing a framework for realistic modeling of interlayer formation and predictive design of defect-free interfaces in core@shell architectures.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript applies density functional theory to atomistic models of InAs/CdSe core-shell quantum dots, systematically exploring surface and interface atomic reconstructions. It claims that abrupt interfaces produce charge imbalance and band-gap collapse, whereas an alloyed interlayer mixing core and shell atoms with vacancies restores energetic alignment and yields delocalized band-edge states, consistent with experimental observations. A charge-flow analysis is introduced to quantify charge redistribution and support predictive interface design.

Significance. If the chosen reconstructions accurately capture real synthesis outcomes, the work supplies a concrete atomistic rationale for interface engineering in III-V/II-VI core-shell QDs and a quantitative charge-flow tool that could help avoid trap states. These elements would be useful for guiding defect-free heterostructure design.

major comments (1)
  1. [Abstract] Abstract, paragraph on systematic reconstruction: the central claim that alloyed interlayers restore alignment rests on the assumption that the selected atomistic models represent actual atomic arrangements formed during synthesis; no validation against experimental growth conditions, coordination statistics, or alternative reconstructions is provided, leaving the result sensitive to post-hoc model choices.
minor comments (1)
  1. [Abstract] The abstract states consistency with experiment but supplies no quantitative metrics, error estimates, or direct data overlays; a brief comparison table or figure reference would strengthen this statement.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading and constructive critique of our manuscript. We address the single major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract, paragraph on systematic reconstruction: the central claim that alloyed interlayers restore alignment rests on the assumption that the selected atomistic models represent actual atomic arrangements formed during synthesis; no validation against experimental growth conditions, coordination statistics, or alternative reconstructions is provided, leaving the result sensitive to post-hoc model choices.

    Authors: We agree that direct experimental mapping of specific atomic coordinates at the buried interface remains unavailable. Our models were generated by enumerating low-energy configurations that obey local charge neutrality, octet rule satisfaction, and minimal strain, following standard practice for DFT studies of reconstructed heterointerfaces. These criteria are documented in the Methods section and are consistent with the interdiffusion and alloying reported in the III-V/II-VI experimental literature we cite. In the revised manuscript we will (i) rephrase the abstract to state explicitly that the alloyed interlayer represents a representative low-energy reconstruction rather than a unique experimental snapshot, (ii) add a short paragraph in the main text summarizing the model-construction protocol and the higher-energy alternatives that were discarded, and (iii) include a supplementary table listing the formation energies of the principal reconstructions considered. These additions will make the rationale for model selection transparent without overstating experimental validation. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper employs density functional theory calculations on constructed atomistic models of InAs/CdSe core-shell quantum dots to explore surface and interface atomic reconstructions. Central results on charge imbalance from abrupt interfaces versus energetic alignment from alloyed interlayers follow directly from these simulations and are compared to external experimental observations. No self-definitional equations, fitted inputs renamed as predictions, or load-bearing self-citations appear in the provided text; the modeling chain remains independent of the target claims and does not reduce to prior inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Only abstract available, so ledger reflects standard DFT assumptions typical for such studies rather than explicit paper content.

axioms (1)
  • domain assumption Standard DFT approximations (e.g., exchange-correlation functional) are sufficient to capture interfacial electronic structure.
    Invoked implicitly when using DFT on atomistic QD models to evaluate band alignment.

pith-pipeline@v0.9.0 · 5700 in / 1115 out tokens · 65433 ms · 2026-05-20T17:01:01.582976+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

  • IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear
    ?
    unclear

    Relation between the paper passage and the cited Recognition theorem.

    Abrupt interfaces induce charge imbalance and band-gap collapse, whereas introducing an alloyed interlayer that mixes core and shell atoms and vacancies restores energetic alignment and yields delocalized band-edge states

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

7 extracted references · 7 canonical work pages

  1. [1]

    1 Interfacial Reconstructions and Engineering in III-V@II-VI Core-Shell Quantum Dots Jordi Llusar,1 * Abdessamad El-Adel,1 Luca De Trizio,2 Liberato Manna,3 Zeger Hens,4,5 and Ivan Infante1,6* 1BCMaterials, Basque Center for Materials, Applications, and Nanostructures, UPV/EHU Science Park, Leioa 48940, Spain. 2Chemistry Facility, Istituto Italiano di Tec...

    work page 2000

  2. [2]

    (a) InAs@CdSe atomistic models with 1, 2 and 3 CdSe shell MLs

    Evolution of the electronic structure and frontier orbitals in InAs@CdSe core@shell QD models with increasing shell thickness. (a) InAs@CdSe atomistic models with 1, 2 and 3 CdSe shell MLs. (b) PDOS with color-coded contributions from core (blue), interlayer (orange), shell (red) and ligands (green). The HOMO – LUMO energy gaps are indicated in blue arrow...

    work page doi:10.1126/science.aaz8541 2023

  3. [3]

    (28) Jardine, M

    https://doi.org/10.1002/0470090340. (28) Jardine, M. J. A.; Dardzinski, D.; Cai, Z.; Strocov, V. N.; Hocevar, M.; Palmstrøm, C. J.; Frolov, S. M.; Marom, N. First-Principles Assessment of ZnTe and CdSe as Prospective Tunnel Barriers at the InAs/Al Interface. ACS Appl. Mater. Interfaces 2025, 17 (3), 5462–5474. https://doi.org/10.1021/acsami.4c17957. (29) ...

    work page doi:10.1002/0470090340 2025

  4. [4]

    (33) Verma, P.; Truhlar, D

    https://doi.org/10.1021/acsnano.5c10371. (33) Verma, P.; Truhlar, D. G. HLE17: An Improved Local Exchange–Correlation Functional for Computing Semiconductor Band Gaps and Molecular Excitation Energies. The Journal of Physical Chemistry C 2017, 121 (13), 7144–7154. https://doi.org/10.1021/acs.jpcc.7b01066. (34) Henkelman, G.; Arnaldsson, A.; Jónsson, H. A ...

    work page doi:10.1021/acsnano.5c10371 2017

  5. [5]

    (38) Chatzigoulas, A.; Karathanou, K.; Dellis, D.; Cournia, Z

    https://doi.org/10.1039/b801115j. (38) Chatzigoulas, A.; Karathanou, K.; Dellis, D.; Cournia, Z. NanoCrystal: A Web-Based Crystallographic Tool for the Construction of Nanoparticles Based on Their Crystal Habit. J. Chem. Inf. Model. 2018, 58 (12), 2380–2386. https://doi.org/10.1021/acs.jcim.8b00269. (39) Leemans, J.; Dümbgen, K. C.; Minjauw, M. M.; Zhao, ...

    work page doi:10.1039/b801115j 2018

  6. [6]

    (45) Hu, C.; Channa, A

    https://doi.org/10.1002/advs.202400734. (45) Hu, C.; Channa, A. I.; Xia, L.; Li, X.; Li, Z.; Wang, Z. M.; Tong, X. Colloidal InAs Quantum Dots: Synthesis, Properties, and Optoelectronic Devices. Advanced Functional Materials. John Wiley and Sons Inc August 8,

    work page doi:10.1002/advs.202400734

  7. [7]

    (46) Cao, Y.-W.; Banin, U

    https://doi.org/10.1002/adfm.202500280. (46) Cao, Y.-W.; Banin, U. Synthesis and Characterization of InAs/InP and InAs/CdSe Core/Shell Nanocrystals. Angew. Chem. Int. Ed. 1999, 38 (24), 3692–3694. https://doi.org/10.1002/(SICI)1521-3773(19991216)38:24<3692::AID-ANIE3692>3.0.CO;2-W. (47) Cao; Banin, U. Growth and Properties of Semiconductor Core/Shell Nano...

    work page doi:10.1002/adfm.202500280 1999
