Chandra X-ray Observations of the Pulsar Wind Nebula within CTA 1

Seth Gagnon , Oleg Kargaltsev , Jason Alford , Joseph Gelfand , Alexander Lange This is my paper

Pith reviewed 2026-05-21 04:14 UTC · model grok-4.3

classification 🌌 astro-ph.HE
keywords pulsar wind nebulaCTA 1Chandra X-ray observationsspectral energy distributionleptonic modelingmagnetic fieldPSR J0007+7303termination shock
0
0 comments X

The pith

Chandra X-ray data on CTA 1's pulsar wind nebula show a magnetic field that decreases rapidly outside the compact core.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports deep Chandra imaging of the pulsar wind nebula powered by PSR J0007+7303 inside the supernova remnant CTA 1. The images display a bent southern jet, a faint northern counter-jet, and a compact torus, while 20-year astrometry limits the pulsar's transverse speed to under 200 km/s. Spatially resolved spectra are hard in the jet and torus but softer in the extended emission, showing little cooling in the compact zones. Broadband modeling of the spectrum from radio through PeV gamma rays, under a one-zone leptonic assumption, requires a weak magnetic field of roughly 1.4 to 3.2 microGauss together with electrons reaching 0.2 to 0.3 PeV. This combination indicates the field strength falls off sharply beyond the termination shock region.

Core claim

Broadband spectral energy distribution modeling for a one-zone leptonic scenario yields a low magnetic field (B ≈ 1.4-3.2 μG) and a high electron cutoff energy (E_cut ∼ 0.2-0.3 PeV), indicating that the magnetic field decreases rapidly outside of the compact nebula. These results establish CTA 1 as a young, low X-ray efficiency PWN with a hard injection spectrum capable of accelerating particles to PeV energies.

What carries the argument

one-zone leptonic scenario used to model the broadband spectral energy distribution from radio to PeV gamma rays, which sets the required magnetic field strength and maximum electron energy.

If this is right

  • The jet and torus exhibit hard spectra with photon indices of 1.2-1.4, implying minimal radiative cooling in those compact structures.
  • Modeling of the torus as an inclined circle gives a viewing angle near 50 degrees, which combined with pulsar emission models points to a moderate magnetic inclination of 20 to 70 degrees.
  • The nebula is capable of accelerating particles to PeV energies and is classified as a young system with low X-ray efficiency and a hard injection spectrum.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the rapid magnetic-field drop is common, similar multi-wavelength campaigns on other young PWNe should reveal comparably low fields and high cutoff energies.
  • The tight velocity upper limit may help refine supernova kick-velocity distributions once the distance to CTA 1 is independently confirmed.
  • Deeper TeV or PeV gamma-ray data could directly test whether the electron population truly extends to 0.3 PeV without additional spectral features.

Load-bearing premise

The assumption that a single-zone leptonic model fully describes the emission without accounting for spatial variations in magnetic field or particle properties across the nebula.

What would settle it

Spatially resolved X-ray or gamma-ray observations that measure a significantly higher magnetic field or a much lower maximum electron energy than the modeled values would directly contradict the rapid decrease outside the compact region.

Figures

Figures reproduced from arXiv: 2605.21278 by Alexander Lange, Jason Alford, Joseph Gelfand, Oleg Kargaltsev, Seth Gagnon.

Figure 1
Figure 1. Figure 1: Regions used for spectral extraction. Dashed green lines indicate background regions. The left panel shows the merged, exposure corrected epoch 2 image with point-sources subtracted, binned by a factor of 2 and smoothed by a Gaussian. The right panel is unbinned and smoothed by a Gaussian. To quantify the presence of the extended emission in the vicinity of the pulsar, we constructed a radial pro￾file. We … view at source ↗
Figure 2

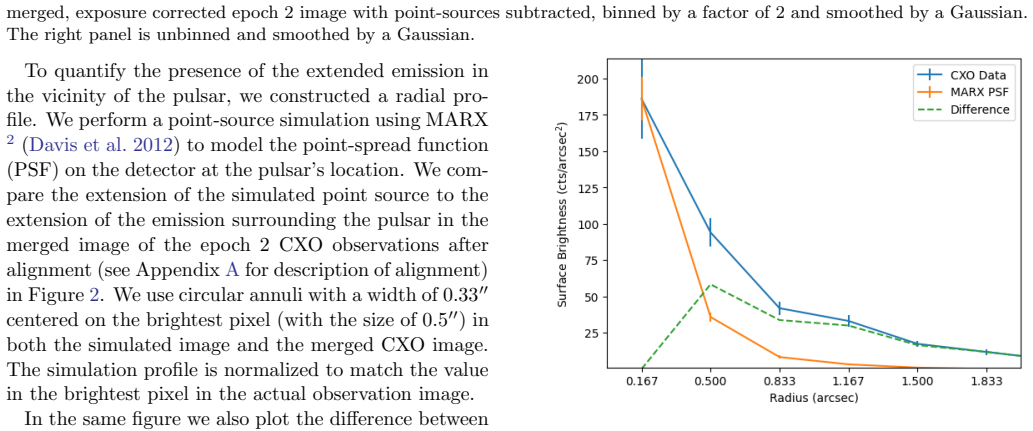

Figure 2. Figure 2: Radial profile of the CXO image compared to the MARX simulation. The green dashed line shows the difference between the data and the simulated PSF. ness varies significantly along its extent with the jet be￾ing fainter near the pulsar and brightest at the place where it starts to bend significantly. The background￾subtracted surface brightnesses for the jet’s regions D, E, and F are (4.84±0.59), (5.59±0.50… view at source ↗
Figure 3
Figure 3. Figure 3: Unbinned (pixel size 0.5”) image of all CXO observations aligned and merged. In green are the regions used for examining surface brightness to be more extended (NE-SW) in one direction than in the other (NW-SE) due to the tilt of its axis (which is also the pulsar spin axis) with respect to the line￾of-sight, the tilt (viewing angle ζ) can be inferred by fitting an ellipse to the torus and measuring the ra… view at source ↗
Figure 4
Figure 4. Figure 4 [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: 4. DISCUSSION The combined CXO ACIS images (shown in [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

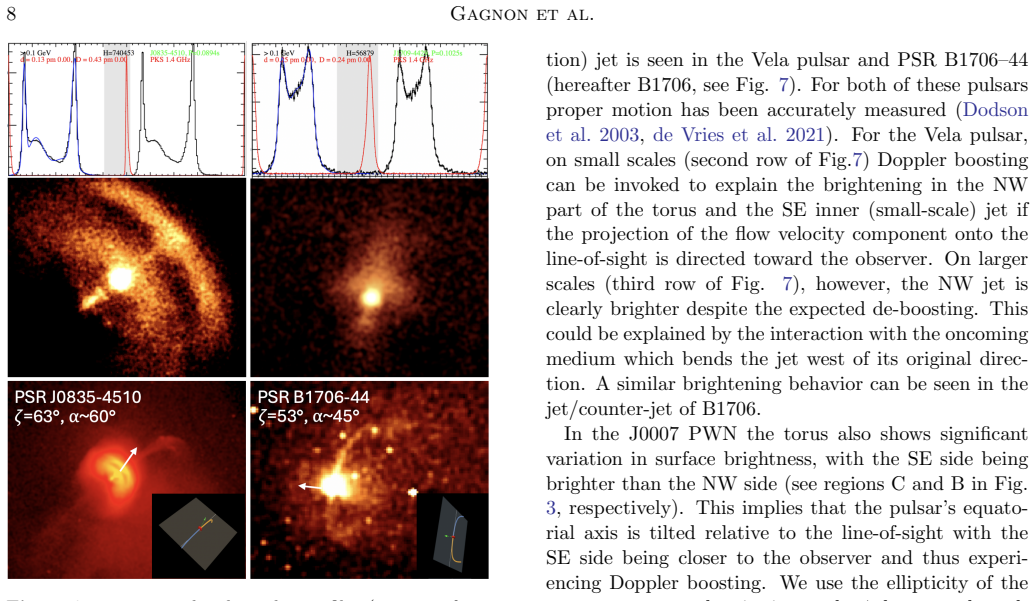

Figure 7. Figure 7: γ-ray and radio pulse profiles (top row, from Abdo et al. 2013) of pulsars with relatively small and com￾pact tori and large jets. The images are from CXO ACIS observations. See, e.g. Liu et al. 2024, de Vries et al. 2021 for each source, respectively. The second row shows the small￾scale jet/torus structures and the third row is a zoomed out image to show the effects of ram pressure on the large scale str… view at source ↗
Figure 8
Figure 8. Figure 8: Fermi GeV pulse profile of J0007 (Smith et al. 2023) f(E) = exp −  E Ec β ! ×    A  E E0 −p1 , E < Eb A  Eb E0 p2−p1  E E0 −p2 , E > Eb (4.1) where Ec is the cutoff particle energy, β is the cutoff exponent, A is the normalization (in units of particles eV−1 at Eb), Eb is the break energy, E0 = 1 erg is the reference energy, p1 is the slope of the electron SED be￾fore the break, and p2 is the sl… view at source ↗
Figure 9
Figure 9. Figure 9: Broadband SED of the J0007 PWN modeled with Naima. The data shown include the VLA upper limits (ULs) (Giacani et al. 2013), CXO data (this work), Fermi (this work), and LHAASO (Lhaaso Collaboration et al. 2025). The sum of the synchrotron and IC radiative models is shown by the solid black line, corresponding to the bottom and left axes. The input ECBPL electron population model for the radiative models is… view at source ↗
Figure 10

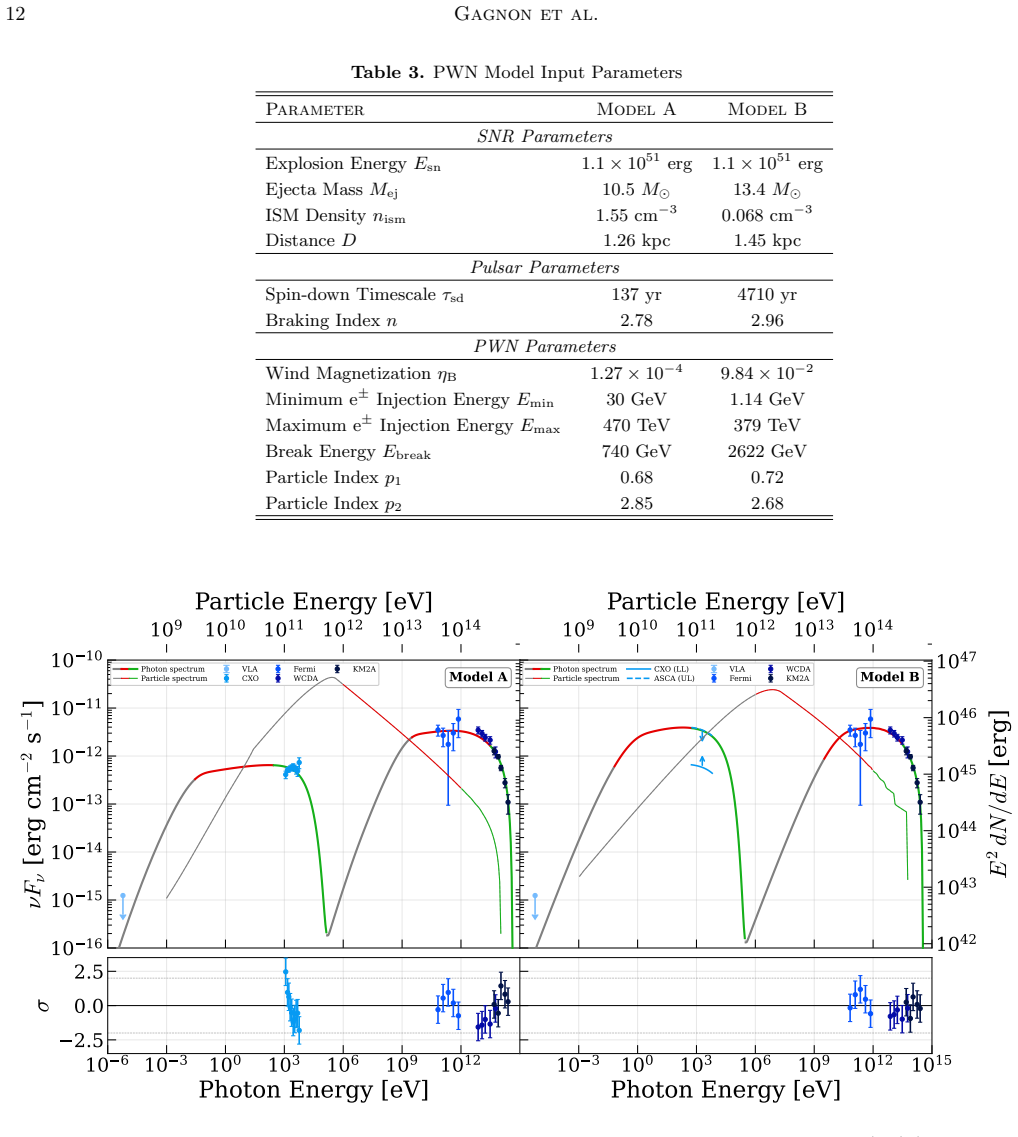

Figure 10. Figure 10: Broadband spectral energy distribution of the J0007 PWN. Data include the VLA upper limit (UL) (Giacani et al. 2013), CXO data (this work), Fermi-LAT SED points (this work), LHAASO WCDA and KM2A fluxes (Lhaaso Collaboration et al. 2025). The CXO 0.5–7 keV lower limit and ASCA 0.5–7 keV upper limit used to constrain Model B are shown as blue curves with arrows indicating the bound direction. The thick (thi… view at source ↗
Figure 11
Figure 11. Figure 11: Trans-sonic PWNe with possible faint PXF’s netic field (ηe ≤ 1 in ideal MHD). The corresponding en￾ergy of photons produced via IC scattering of the CMB is estimated as Eγ,max ≲ 1.1η 0.65 e (BTS/100µG)−0.65 PeV. This is compatible with the observed maximum photon energy for the BT S range estimated above. The above estimates of particle energies likely also ap￾ply to particles producing synchrotron emissi… view at source ↗
read the original abstract

We present deep Chandra observations of the pulsar wind nebula (PWN) powered by PSR J0007+7303 in the composite supernova remnant CTA 1. The merged ACIS image shows a $\sim20''$ jet extending south of the pulsar and bending toward the southwest, a faint counter-jet to the north, and a compact torus oriented approximately perpendicular to the jet axis. Using an archival observation from 2003 we perform relative astrometry over a $\sim20$ yr baseline and constrain the pulsar's transverse velocity to $\lesssim 200~\mathrm{km~s^{-1}}$ at the distance of 1.4 kpc at 95% confidence. Spatially resolved spectroscopy shows hard spectra for the jet and torus (photon indicies $\Gamma \approx 1.2-1.4$) and a softer spectrum for the extended nebula ($\Gamma = 1.85 \pm 0.11$), indicating minimal radiative cooling in the compact regions. Modeling of the torus, associated with the termination shock, as an inclined circle yields a viewing angle $\zeta \approx 50^\circ$. The outer gap and two-pole caustic pulsar emission models then imply a moderate magnetic inclination ($\alpha \sim 20^\circ$-$70^\circ$). Broadband spectral energy distribution (SED) modeling from radio to PeV $\gamma$-rays for a one-zone leptonic scenario yields a low magnetic field ($B \approx 1.4$-$3.2~\mu\mathrm{G}$) and a high electron cutoff energy ($E_{\rm cut} \sim 0.2$-$0.3~\mathrm{PeV}$), indicating that the magnetic field decreases rapidly outside of the compact nebula. These results establish CTA 1 as a young, low X-ray efficiency PWN with a hard injection spectrum capable of accelerating particles to PeV energies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript presents deep Chandra ACIS observations of the pulsar wind nebula powered by PSR J0007+7303 in CTA 1. It reports X-ray morphology including a ~20'' southern jet bending southwest, a faint northern counter-jet, and a compact torus; relative astrometry over a 20-year baseline yielding a transverse velocity upper limit of ≲200 km s^{-1} at the adopted distance of 1.4 kpc; spatially resolved spectra with hard indices (Γ≈1.2-1.4) in the jet/torus and softer emission (Γ=1.85±0.11) in the extended nebula; torus modeling as an inclined circle giving viewing angle ζ≈50°; and one-zone leptonic broadband SED modeling from radio to PeV γ-rays that returns B≈1.4-3.2 μG and E_cut∼0.2-0.3 PeV, from which the authors infer rapid magnetic-field decline outside the compact nebula. The work characterizes CTA 1 as a young, low X-ray-efficiency PWN with a hard injection spectrum capable of PeV acceleration.

Significance. The Chandra imaging and spectroscopy supply directly supported, high-quality morphological and spectral data on this PWN that constitute a clear observational advance. The proper-motion limit and geometric constraints on viewing angle and magnetic inclination are useful ancillary results. If the one-zone leptonic SED modeling is robust, the low derived B and high E_cut would be significant for PWN magnetic-field evolution and for demonstrating that such systems can accelerate particles to PeV energies.

major comments (1)
  1. [Broadband SED modeling] The central claims on B≈1.4-3.2 μG and E_cut∼0.2-0.3 PeV rest on the one-zone leptonic SED fit. The manuscript itself reports spatially resolved spectral differences (Γ≈1.2-1.4 in the compact jet/torus versus Γ=1.85±0.11 in the extended nebula), indicating non-uniform particle populations or cooling. A single-zone model therefore averages over regions with distinct conditions; the low-B solution may be an artifact. The authors should either justify the one-zone approximation with quantitative tests or present multi-zone alternatives to show that the reported parameter ranges remain stable.
minor comments (2)
  1. [Torus geometry] The torus modeling as an inclined circle is described only briefly; quantitative details on the fit (e.g., position-angle constraints, uncertainties on ζ≈50°, or goodness-of-fit metrics) would improve reproducibility.
  2. [Proper-motion analysis] The abstract and text state the velocity limit at the adopted distance of 1.4 kpc; a short sensitivity statement on how the ≲200 km s^{-1} bound changes with plausible distance variations would be helpful even though it is not central to the SED results.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful and constructive review of our manuscript. We address the single major comment below and have revised the text to strengthen the presentation of our modeling approach.

read point-by-point responses

  1. Referee: The central claims on B≈1.4-3.2 μG and E_cut∼0.2-0.3 PeV rest on the one-zone leptonic SED fit. The manuscript itself reports spatially resolved spectral differences (Γ≈1.2-1.4 in the compact jet/torus versus Γ=1.85±0.11 in the extended nebula), indicating non-uniform particle populations or cooling. A single-zone model therefore averages over regions with distinct conditions; the low-B solution may be an artifact. The authors should either justify the one-zone approximation with quantitative tests or present multi-zone alternatives to show that the reported parameter ranges remain stable.

    Authors: We acknowledge the spatially resolved spectral variations reported in the manuscript, which indicate that particle populations are not perfectly uniform. Nevertheless, the one-zone leptonic model remains a standard and appropriate tool for extracting global parameters from the broadband SED spanning radio to PeV energies, as is routinely done for other PWNe. The hard-spectrum compact jet and torus dominate the X-ray and higher-energy emission that primarily constrain B and E_cut, while the softer extended nebula is consistent with post-shock cooling. To address the concern directly, we have added a new paragraph in the discussion section that (i) quantifies the fractional flux contribution of the compact versus extended regions at key wavelengths and (ii) reports a sensitivity test in which the extended-nebula flux is down-weighted; the recovered B and E_cut values stay within the quoted ranges. We therefore maintain that the reported parameter intervals are robust for the integrated emission, while explicitly noting the limitations of the one-zone approximation. A full multi-zone treatment lies beyond the scope of this primarily observational work but is identified as a natural direction for follow-up modeling. revision: partial

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper's chain proceeds from Chandra imaging and astrometry (proper motion limit, jet/torus morphology) to spatially resolved spectroscopy (distinct Γ values for compact vs extended regions) to one-zone leptonic SED fitting that constrains B and E_cut from radio-to-PeV fluxes. These fitted parameters are outputs of standard χ² minimization against independent multi-wavelength data points; the subsequent interpretation of rapid B decline outside the compact nebula is an inference drawn from the low fitted value relative to typical compact-PWN expectations, not a definitional identity or a prediction that re-uses the same fitted quantity. No self-citation load-bearing steps, uniqueness theorems, or ansatzes imported from prior author work appear in the derivation. The modeling assumptions are stated explicitly and the observational anchors (spectra, morphology, distance) remain external to the fit itself.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claims rest on standard domain assumptions in PWN modeling and two fitted parameters; no new entities are postulated.

free parameters (2)
  • Magnetic field B = 1.4-3.2 μG
    Fitted within the one-zone leptonic SED model to reproduce the observed radio-to-gamma-ray spectrum.
  • Electron cutoff energy E_cut = 0.2-0.3 PeV
    Fitted to match the high-energy gamma-ray data in the same leptonic model.
axioms (2)
  • domain assumption One-zone leptonic emission scenario
    Invoked for broadband SED modeling from radio to PeV gamma-rays.
  • domain assumption Distance to CTA 1 is 1.4 kpc
    Used to convert the measured angular displacement into a transverse velocity upper limit.

pith-pipeline@v0.9.0 · 5890 in / 1571 out tokens · 62219 ms · 2026-05-21T04:14:56.525763+00:00 · methodology
