A Sub-Neptune Exoplanet with a Low-Metallicity Methane-Depleted Atmosphere and Mie-Scattering Clouds
Pith reviewed 2026-05-25 12:02 UTC · model grok-4.3
The pith
Sub-Neptune GJ 3470 b has a hydrogen-dominated atmosphere with near-solar metallicity and strong methane depletion.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central claim is that GJ 3470 b possesses a low-metallicity (O/H between 0.2 and 18 times solar), hydrogen-dominated atmosphere that is strongly depleted in methane, together with clouds whose opacity drops sharply between 2 and 3 microns in a manner characteristic of Mie scattering by particles of a limited size range. This composition is inferred from the joint fit to the multi-year, multi-instrument transmission and emission spectra, which also yield the first thermal emission measurement for a planet this cool.
What carries the argument
Joint atmospheric retrieval on the combined Hubble/Spitzer transit and eclipse dataset that simultaneously fits molecular abundances, metallicity, and a Mie-scattering cloud model to produce the reported water detection and methane depletion.
If this is right
- Planet formation models at masses below Neptune must accommodate near-solar metallicities and limited solid accretion after the initial gas envelope is in place.
- Chemical equilibrium calculations for close-in planets require a revised CH4/CO transition curve that allows faster methane destruction than previously assumed.
- Cloud particle sizes in sub-Neptune atmospheres can be tightly bounded once Mie-scattering signatures are detected at near-infrared wavelengths.
- GJ 3470 b becomes a high-priority target for mid-infrared spectroscopy that can further test the methane depletion and cloud properties.
Where Pith is reading between the lines
- If the low methane abundance is confirmed, similar depletion may be common among other sub-Neptunes and could alter expectations for their contribution to the observed exoplanet radius valley.
- The combination of low metallicity and efficient methane loss may indicate that vertical mixing or photochemistry dominates over equilibrium chemistry in this temperature regime.
- Extending the same retrieval approach to additional sub-Neptunes with comparable data sets would test whether the reported metallicity range is typical or an outlier.
Load-bearing premise
The multi-year, multi-instrument observations can be explained by one unchanging one-dimensional atmospheric structure without significant contamination from stellar activity, variable clouds, or instrument effects that could imitate the molecular and cloud signals.
What would settle it
A new, independent measurement of the planet's transmission spectrum at 3.6 and 4.5 microns that shows methane absorption features at least ten times stronger than the upper limits reported here.

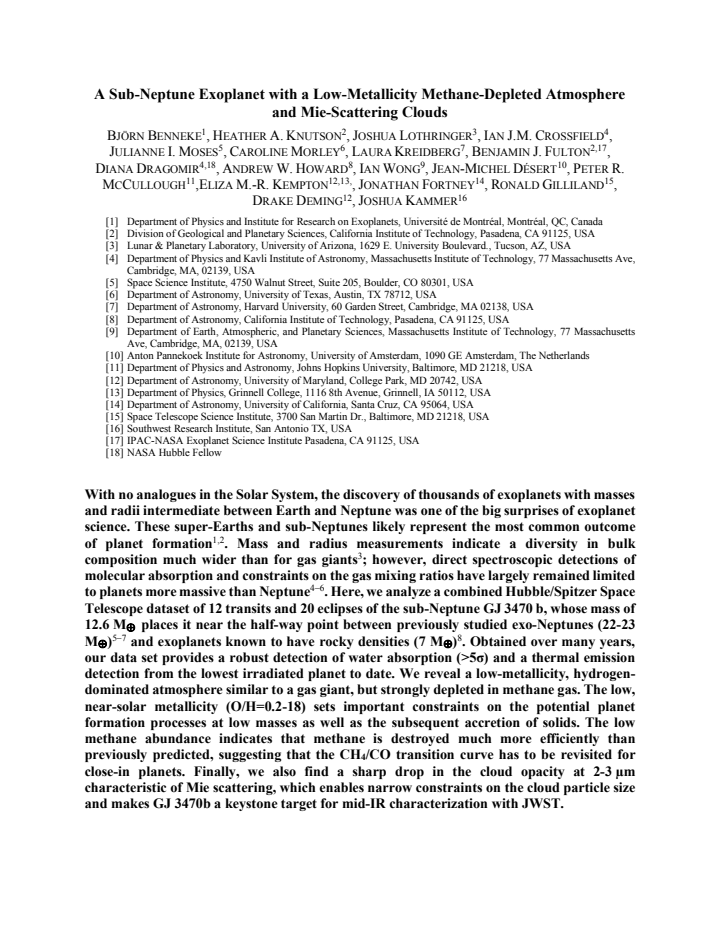

read the original abstract
With no analogues in the Solar System, the discovery of thousands of exoplanets with masses and radii intermediate between Earth and Neptune was one of the big surprises of exoplanet science. These super-Earths and sub-Neptunes likely represent the most common outcome of planet formation. Mass and radius measurements indicate a diversity in bulk composition much wider than for gas giants; however, direct spectroscopic detections of molecular absorption and constraints on the gas mixing ratios have largely remained limited to planets more massive than Neptune. Here, we analyze a combined Hubble/Spitzer Space Telescope dataset of 12 transits and 20 eclipses of the sub-Neptune GJ 3470 b, whose mass of 12.6 $M_\oplus$ places it near the half-way point between previously studied exo-Neptunes (22-23 $M_\oplus$) and exoplanets known to have rocky densities (7 $M_\oplus$). Obtained over many years, our data set provides a robust detection of water absorption (>5$\sigma$) and a thermal emission detection from the lowest irradiated planet to date. We reveal a low-metallicity, hydrogen-dominated atmosphere similar to a gas giant, but strongly depleted in methane gas. The low, near-solar metallicity (O/H=0.2-18) sets important constraints on the potential planet formation processes at low masses as well as the subsequent accretion of solids. The low methane abundance indicates that methane is destroyed much more efficiently than previously predicted, suggesting that the CH$_4$/CO transition curve has to be revisited for close-in planets. Finally, we also find a sharp drop in the cloud opacity at 2-3 $\mu$m characteristic of Mie scattering, which enables narrow constraints on the cloud particle size and makes GJ 3470b a keystone target for mid-IR characterization with JWST.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript analyzes a combined HST/Spitzer dataset of 12 transits and 20 eclipses of the sub-Neptune GJ 3470 b (12.6 M⊕). It reports a >5σ water absorption detection, thermal emission, a low near-solar metallicity (O/H = 0.2–18), strong methane depletion relative to equilibrium expectations, and a sharp drop in cloud opacity at 2–3 μm interpreted as Mie scattering. These properties are extracted from joint 1D atmospheric retrievals and are used to constrain formation pathways and non-equilibrium chemistry.
Significance. If the retrieval results are robust to the modeling assumptions, the near-solar metallicity at this mass provides a key datum for distinguishing core-accretion versus disk-instability pathways at low masses, while the CH4 depletion would require revision of the CH4/CO transition for highly irradiated planets. The cloud signature also identifies GJ 3470 b as a high-priority JWST target.
major comments (1)
- [Retrieval analysis and results] The central claims of low metallicity and CH4 depletion rest on the assumption that a single static 1D atmospheric structure can be jointly fit to the full multi-year, multi-instrument dataset. No quantitative test (epoch-by-epoch residuals, activity-indicator correlations, or alternative cloud/temperature assumptions) is shown to demonstrate that stellar spots, instrumental offsets, or time-variable clouds are sub-dominant. This is load-bearing for the reported O/H range and non-equilibrium chemistry interpretation.
minor comments (2)
- [Abstract] The abstract states O/H = 0.2–18 as 'near-solar'; the quoted range spans sub- to super-solar values, so the phrasing should be clarified or replaced with the actual posterior bounds.
- [Methods] The manuscript should explicitly state the number of free parameters, prior ranges, and convergence diagnostics for the retrievals to allow independent assessment of the >5σ water claim.
Simulated Author's Rebuttal
We thank the referee for their constructive feedback on our manuscript. We address the single major comment below regarding the retrieval analysis.
read point-by-point responses
-
Referee: [Retrieval analysis and results] The central claims of low metallicity and CH4 depletion rest on the assumption that a single static 1D atmospheric structure can be jointly fit to the full multi-year, multi-instrument dataset. No quantitative test (epoch-by-epoch residuals, activity-indicator correlations, or alternative cloud/temperature assumptions) is shown to demonstrate that stellar spots, instrumental offsets, or time-variable clouds are sub-dominant. This is load-bearing for the reported O/H range and non-equilibrium chemistry interpretation.
Authors: We agree that explicit tests for the impact of potential systematics on the joint 1D retrieval are necessary to support the central claims. The original analysis assumes a single static atmospheric structure for the combined multi-epoch, multi-instrument dataset but does not present the quantitative checks listed (epoch-by-epoch residuals, activity correlations, or alternative cloud/temperature models). In the revised manuscript we will add these tests, including consistency checks across individual transits and eclipses, assessment of any correlations with available activity indicators, and retrievals under varied cloud and temperature assumptions to quantify their effect on the retrieved O/H and CH4 abundances. These additions will directly address whether the reported low metallicity and methane depletion remain robust. revision: yes
Circularity Check
No circularity: atmospheric abundances and cloud properties are fitted outputs from external HST/Spitzer transit/eclipse data using standard retrieval methods.
full rationale
The paper derives its headline results (O/H = 0.2-18, CH4 depletion, Mie-scattering clouds) by performing atmospheric retrievals on a multi-year, multi-instrument dataset of 12 transits and 20 eclipses. These are direct fits to independent telescope photometry and spectroscopy; no paper equations or self-citations reduce the reported mixing ratios or opacities to quantities defined by the fit itself. The central claims rest on external observational inputs and conventional 1D retrieval frameworks rather than any self-definitional, fitted-input-renamed-as-prediction, or self-citation-load-bearing step.
Axiom & Free-Parameter Ledger
free parameters (2)
- O/H metallicity =
0.2-18
- CH4 volume mixing ratio =
strongly depleted
axioms (2)
- domain assumption Atmosphere can be represented by a single 1D temperature-pressure profile in local thermodynamic equilibrium
- domain assumption Multi-year dataset from different instruments can be combined without epoch-dependent systematics dominating the signal
