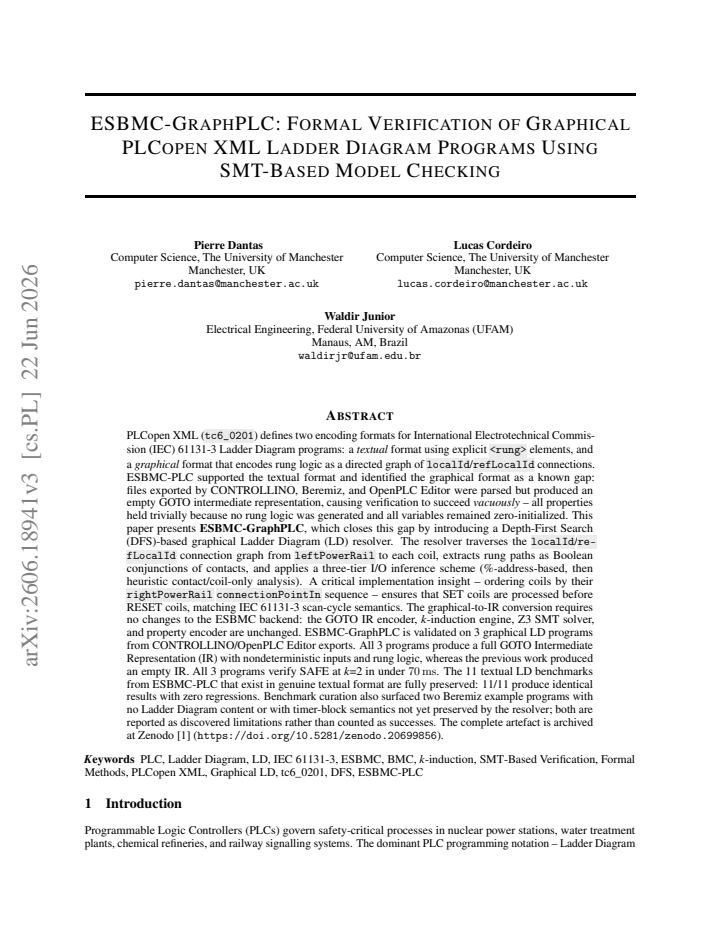

ESBMC-GraphPLC: Formal Verification of Graphical PLCopen XML Ladder Diagram Programs Using SMT-Based Model Checking

Pierre Dantas , Lucas Cordeiro , Waldir Junior This is my paper

Pith reviewed 2026-06-26 18:56 UTC · model grok-4.3

classification 💻 cs.PL cs.CL
keywords PLC verificationLadder DiagramSMT model checkingGraphical programsIEC 61131-3Formal verificationGOTO IRPLCopen XML
0
0 comments X

The pith

A DFS-based resolver now turns graphical PLC Ladder Diagram connection graphs into full GOTO IR for SMT verification.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

ESBMC-PLC previously turned graphical PLCopen XML Ladder Diagram exports into empty intermediate representation, so verification always succeeded vacuously. The new resolver walks the directed graph of localId connections from leftPowerRail to each coil, builds Boolean conjunctions for each rung path, and uses three-tier I/O inference plus right-to-left coil ordering to match IEC 61131-3 scan-cycle rules. The resulting IR is handed to the unchanged ESBMC backend. On three graphical programs from CONTROLLINO and OpenPLC Editor the tool now produces complete IR containing nondeterministic inputs and rung logic, and all three programs are reported SAFE at bound k=2 in under 70 ms. The eleven existing textual benchmarks continue to pass unchanged.

Core claim

ESBMC-GraphPLC adds a DFS-based graphical LD resolver that traverses the connection graph from leftPowerRail to each coil, extracts rung paths as Boolean contact conjunctions, applies a three-tier I/O inference scheme, and orders coils by rightPowerRail connectionPointIn sequence. This produces full GOTO IR with nondeterministic inputs and rung logic for graphical programs, enabling verification of safety properties at small bound k=2. The graphical-to-IR conversion leaves the ESBMC backend unchanged, and the eleven textual LD benchmarks remain fully preserved.

What carries the argument

DFS-based graphical LD resolver that traverses the directed connection graph and applies three-tier I/O inference with coil ordering by rightPowerRail sequence.

If this is right

  • Graphical LD programs now generate complete GOTO IR containing rung logic instead of empty IR.
  • All three tested graphical programs verify SAFE at k=2 in under 70 ms.
  • Textual LD benchmarks continue to verify with no regression.
  • Beremiz files lacking LD content or using unsupported timers are reported as limitations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same graph-walking technique could be applied to other graphical PLC formats whose exports expose similar connection graphs.
  • If coil ordering by connectionPointIn proves reliable across more editors, visual layout information itself becomes part of the formal semantics.
  • Extending the resolver to handle timers and other unsupported constructs would remove the remaining discovered limitations.

Load-bearing premise

The three-tier I/O inference scheme together with ordering coils by rightPowerRail connectionPointIn sequence correctly implements IEC 61131-3 scan-cycle semantics for the connection graphs exported by the tested editors.

What would settle it

A graphical program containing both SET and RESET coils whose rightPowerRail connectionPointIn order differs from the intended scan-cycle order; if the new tool reports SAFE while an equivalent textual version reports UNSAFE, the ordering rule is incorrect.

Figures

Figures reproduced from arXiv: 2606.18941 by Lucas Cordeiro, Pierre Dantas, Waldir Junior.

Figure 1

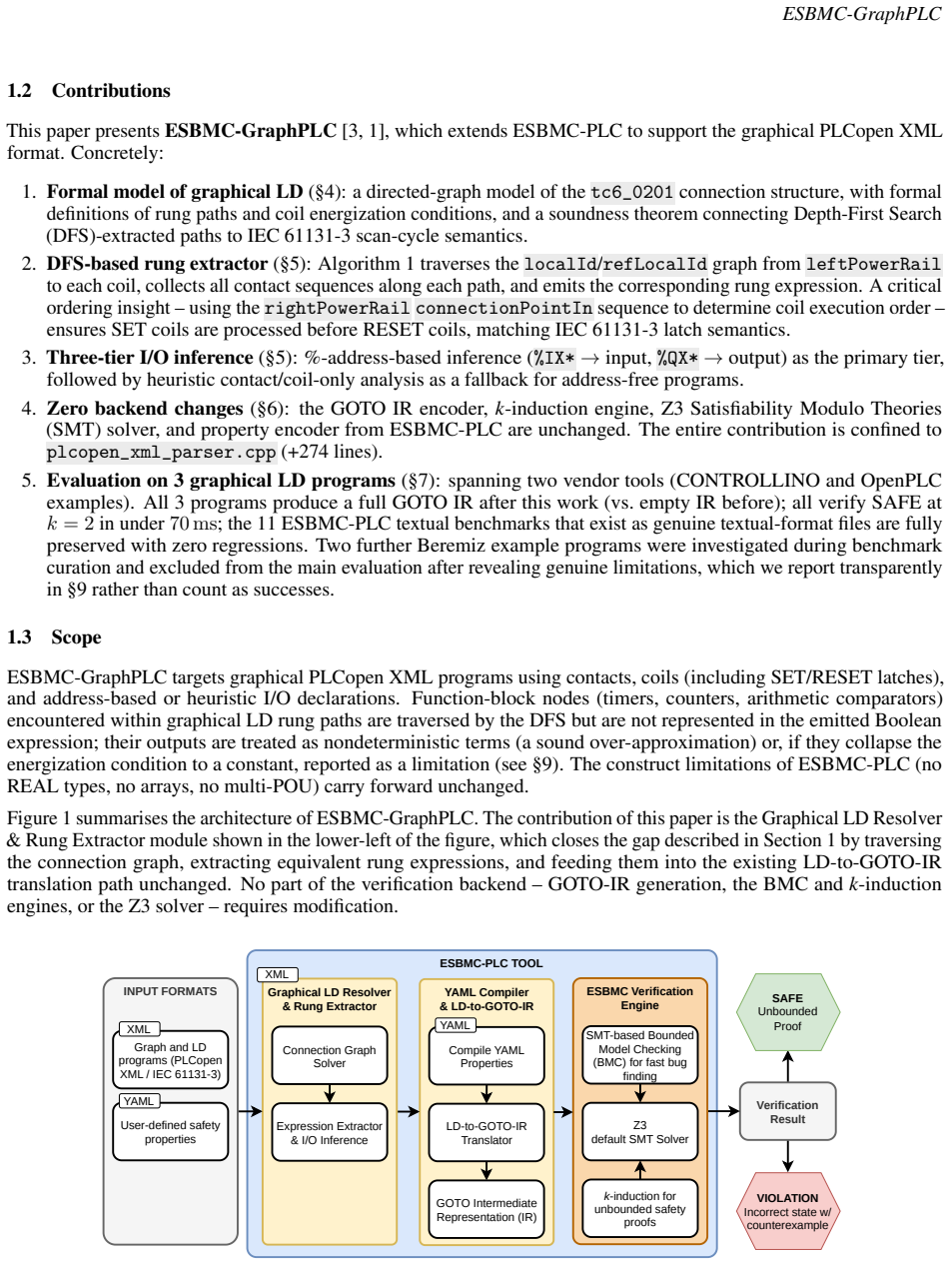

Figure 1. Figure 1: summarises the architecture of ESBMC-GraphPLC. The contribution of this paper is the Graphical LD Resolver & Rung Extractor module shown in the lower-left of the figure, which closes the gap described in Section 1 by traversing the connection graph, extracting equivalent rung expressions, and feeding them into the existing LD-to-GOTO-IR translation path unchanged. No part of the verification backend – GOTO… view at source ↗
Figure 2

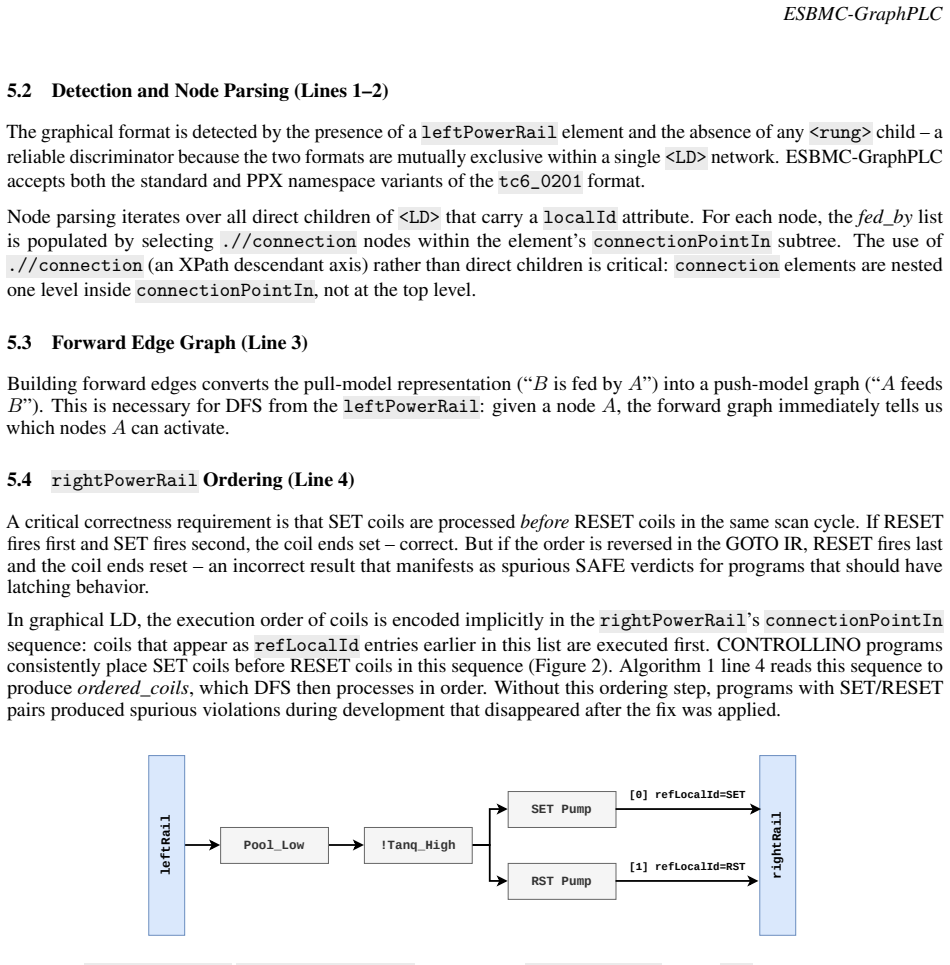

Figure 2. Figure 2: rightPowerRail connectionPointIn sequence for water_control. Entry [0] references the SET coil and entry [1] references the RESET coil; this order, not coil position in the XML document, determines scan execution order. 5.5 DFS Rung Extraction (Line 5) For each leftPowerRail r and each coil q in ordered_coils, the DFS collects all simple paths from r to q. Each path becomes one RungNode: the contacts along… view at source ↗
read the original abstract

PLCopen XML defines two encoding formats for IEC 61131-3 Ladder Diagram programs: a textual encoding using <rung> elements, and a graphical encoding that represents rung logic as a directed graph of localId/refLocalId connections. ESBMC-PLC supported the textual format but parsed graphical exports from CONTROLLINO, Beremiz, and OpenPLC Editor into an empty GOTO intermediate representation, causing vacuous verification success. This paper presents ESBMC-GraphPLC, which closes this gap with a DFS-based graphical LD resolver. The resolver traverses the connection graph from leftPowerRail to each coil, extracts rung paths as Boolean contact conjunctions, and applies a three-tier I/O inference scheme. Ordering coils by rightPowerRail connectionPointIn sequence ensures SET coils process before RESET coils, matching IEC scan-cycle semantics. The graphical-to-IR conversion leaves the ESBMC backend unchanged. Validation on 3 graphical LD programs from CONTROLLINO/OpenPLC Editor shows all produce full GOTO IR with nondeterministic inputs and rung logic, versus the empty IR previously. All 3 verify SAFE at k=2 under 70ms. The 11 textual LD benchmarks are fully preserved, with no regression. Two Beremiz examples with no LD content or unsupported timer semantics are reported as discovered limitations. Artifact at Zenodo (DantasCordeiro2026graphical, doi:10.5281/zenodo.20699856).

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 3 minor

Summary. The paper presents ESBMC-GraphPLC, an extension to ESBMC-PLC for verifying graphical PLCopen XML Ladder Diagram programs. It adds a DFS-based resolver that traverses the localId/refLocalId connection graph from leftPowerRail to coils, extracts rung paths as Boolean contact conjunctions, applies a three-tier I/O inference scheme, and orders coils by rightPowerRail connectionPointIn sequence to match IEC 61131-3 scan-cycle semantics (SET before RESET). The graphical-to-GOTO-IR conversion leaves the SMT-based model checker unchanged. Validation on three graphical LD programs from CONTROLLINO and OpenPLC Editor shows they now produce full IR containing nondeterministic inputs and rung logic (versus prior empty IR), all verify SAFE at k=2 in under 70 ms, and the eleven textual benchmarks exhibit no regression. Two Beremiz cases are reported as out-of-scope limitations.

Significance. If the results hold, the work is significant because it closes a practical gap in formal verification of industrial PLC programs: many editors export graphical rather than textual PLCopen XML, previously causing vacuous verification. The approach is pragmatic, reuses the existing ESBMC backend, preserves textual functionality, and ships a Zenodo artifact. It demonstrates that targeted graph traversal and inference rules suffice for the connection graphs produced by the tested editors, increasing the tool's applicability to real-world Ladder Diagram development without requiring changes to the core model checker.

major comments (1)
  1. [Abstract / validation section] Abstract and validation description: the claim that the three graphical programs now yield full IR and pass checks is supported by the reported outcomes, but the manuscript supplies no test-suite size, structural coverage metrics for the resolver, or comparison against an independent oracle for the extracted logic. This reduces the ability to assess whether the DFS traversal and three-tier I/O inference generalize even to other connection graphs from the same editors.
minor comments (3)
  1. [Resolver description] The three-tier I/O inference scheme is central to the resolver yet described only at a high level; a short pseudocode listing or explicit enumeration of the three tiers would improve clarity and reproducibility.
  2. [Validation] A small table or figure showing the generated GOTO IR fragment for one of the three graphical examples would help readers verify that nondeterministic inputs and rung logic are correctly emitted.
  3. [Limitations] The paper notes two Beremiz limitations but could briefly indicate whether the resolver's assumptions (e.g., presence of LD content or timer support) are documented in the artifact README.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive assessment and recommendation to accept. We address the single major comment below.

read point-by-point responses

  1. Referee: [Abstract / validation section] Abstract and validation description: the claim that the three graphical programs now yield full IR and pass checks is supported by the reported outcomes, but the manuscript supplies no test-suite size, structural coverage metrics for the resolver, or comparison against an independent oracle for the extracted logic. This reduces the ability to assess whether the DFS traversal and three-tier I/O inference generalize even to other connection graphs from the same editors.

    Authors: We agree that the validation uses only three graphical programs (plus eleven textual benchmarks) and provides neither structural coverage metrics nor an independent oracle. The resolver implements a deterministic left-to-right DFS over the PLCopen XML connection graph; therefore traditional coverage metrics do not apply, and correctness follows directly from the graph traversal definition together with the three-tier I/O inference rules and the IEC 61131-3 ordering of SET before RESET coils. To strengthen the presentation we will revise the validation section to (a) explicitly state the test-suite size, (b) describe the structural characteristics of the three programs (number of rungs, contacts per rung, coil types), and (c) note that the Zenodo artifact contains the complete extracted GOTO IR for each program, enabling manual or tool-based inspection by readers. We do not claim broad generalization beyond the tested editors. revision: partial

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper presents an engineering implementation of a DFS-based graphical LD resolver with three-tier I/O inference and rightPowerRail coil ordering to produce non-empty GOTO IR from PLCopen XML connection graphs. Central claims rest on direct empirical validation against three specific CONTROLLINO/OpenPLC Editor programs (full IR emitted, SAFE at k=2) plus unchanged textual benchmarks, with explicit out-of-scope notes for Beremiz cases. No equations, fitted parameters, predictions, or load-bearing self-citations reduce any result to its own inputs by construction; the resolver logic and scan-cycle semantics are presented as new code whose correctness is checked externally against editor outputs and IEC 61131-3 expectations.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The contribution rests on the domain assumption that the exported graphical connection graphs are well-formed directed graphs traversable by DFS and that the described coil ordering matches IEC scan-cycle rules; no free parameters or new entities are introduced.

axioms (2)
  • domain assumption Graphical PLCopen XML exports from CONTROLLINO, Beremiz, and OpenPLC Editor produce connection graphs whose left-to-right traversal yields the intended Boolean rung logic.
    Invoked when the resolver is described as extracting rung paths from leftPowerRail to coils.
  • domain assumption Ordering coils by rightPowerRail connectionPointIn sequence ensures SET coils are processed before RESET coils in the same scan cycle.
    Stated as matching IEC 61131-3 semantics.
