Chemo-mechanical coupling stabilizes mixed Ag_(x)Cu_(1-x)GaSe₂ solar-cell absorbers: Insights from Monte-Carlo simulations assisted by ab initio informed machine-learning potentials

Vasilios Karanikolas , Delwin Perera , Linus Erhard , Jochen Rohrer , Karsten Albe This is my paper

Pith reviewed 2026-05-20 09:42 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.mes-hall
keywords Ag-Cu miscibilitycoherency strainmachine learning potentialMonte Carlo simulationsolar cell absorbersCuGaSe2chemo-mechanical couplingphase stability
0
0 comments X

The pith

Incorporating coherency strains leads to complete Ag-Cu miscibility in mixed gallium selenide solar absorbers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates the stability of Ag-alloyed CuGaSe2 for solar cells, where ab initio calculations predict a miscibility gap but experiments show stable high-efficiency devices. Using off-lattice Monte Carlo simulations with a machine-learning interatomic potential, the authors find that coherency strains from a coherent interface eliminate the phase separation tendency, resulting in full miscibility. Without coherency, as in an incoherent setup with misfit dislocations, the expected separation occurs. This chemo-mechanical coupling explains the observed stability.

Core claim

Off-lattice Monte-Carlo simulations assisted by ab initio informed machine-learning potentials demonstrate that elastic energy contributions in a coherent setup result in complete Ag-Cu miscibility in Ag_x Cu_{1-x} GaSe_2, whereas phase separation occurs in the absence of coherency strains with respect to the end boundary phases mimicked by an incoherent interface.

What carries the argument

Machine-learning interatomic potential trained on ab initio data, used in off-lattice Monte-Carlo simulations to compute the free energy including both chemical and elastic contributions under coherent and incoherent boundary conditions.

If this is right

  • Complete miscibility implies that Ag-alloyed absorbers can maintain uniform composition without decomposing at operating temperatures.
  • The approach resolves the controversy between theory and experiment regarding long-term stability of record-efficiency solar cells.
  • The ML-MC framework offers a general method to study thermodynamic stability in systems where strain and chemistry compete.
  • Similar stabilization effects may be expected in other alloyed chalcopyrite materials for photovoltaics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Interface design to maintain coherency could be a strategy to enhance stability in thin-film solar cells.
  • Applying this method to other compositions or temperatures could predict optimal alloying ranges.
  • Validation would require comparing phase behavior in epitaxial coherent films versus polycrystalline or relaxed samples.

Load-bearing premise

The machine-learning potential accurately reproduces the elastic and chemical energies that determine phase stability when coherency strain is imposed.

What would settle it

An experiment demonstrating phase separation in a coherently strained thin film of Ag_x Cu_{1-x} GaSe_2 at ambient temperature would falsify the stabilization claim.

Figures

Figures reproduced from arXiv: 2605.18057 by Delwin Perera, Jochen Rohrer, Karsten Albe, Linus Erhard, Vasilios Karanikolas.

Figure 1
Figure 1. Figure 1: Upper panel: Ag0.5Cu0.5)GaSe2 structure with Ag-Cu atoms homo￾geneously distributed in sublattice-(I). Lower panel: AgGaSe2 and CuGaSe2 structures with a− and c− lattice parameters, which are investigated in Sec. III. the validation of structural and elastic properties (III A), the construction of the composition–temperature phase diagram (III B), and relax–tfMC/MC simulations of coherent and inco￾herent l… view at source ↗
Figure 2

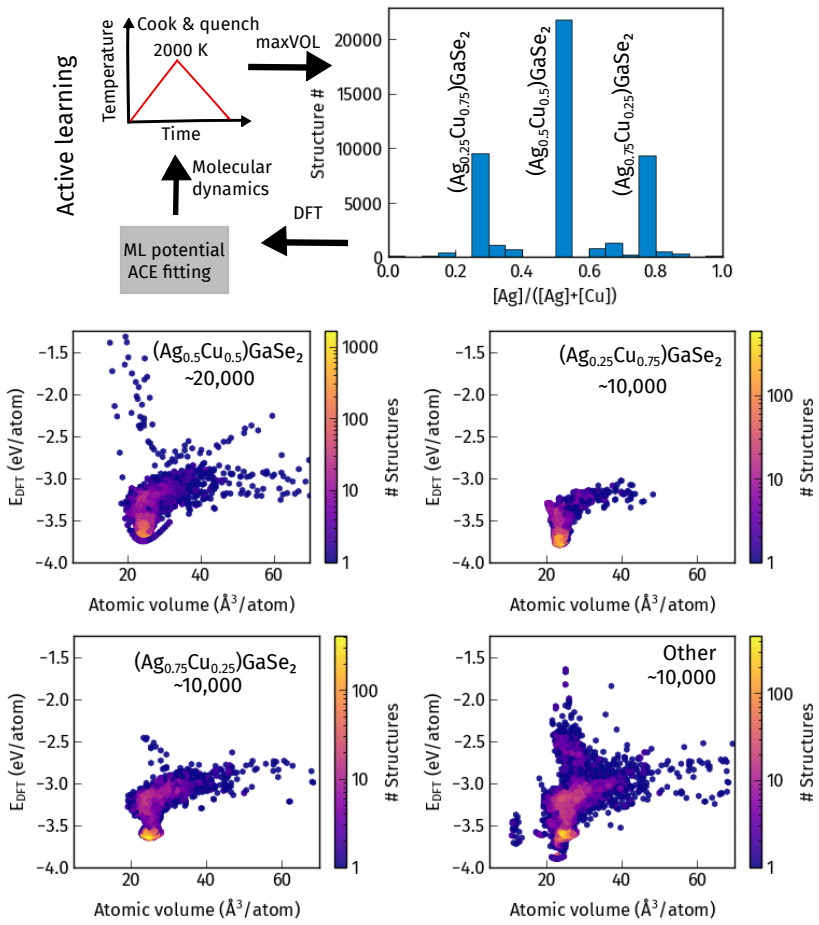

Figure 2. Figure 2: We present the workflow used to develop the machine-learning (ML) potential. Molecular-dynamics (MD) simulations are performed following a cook [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

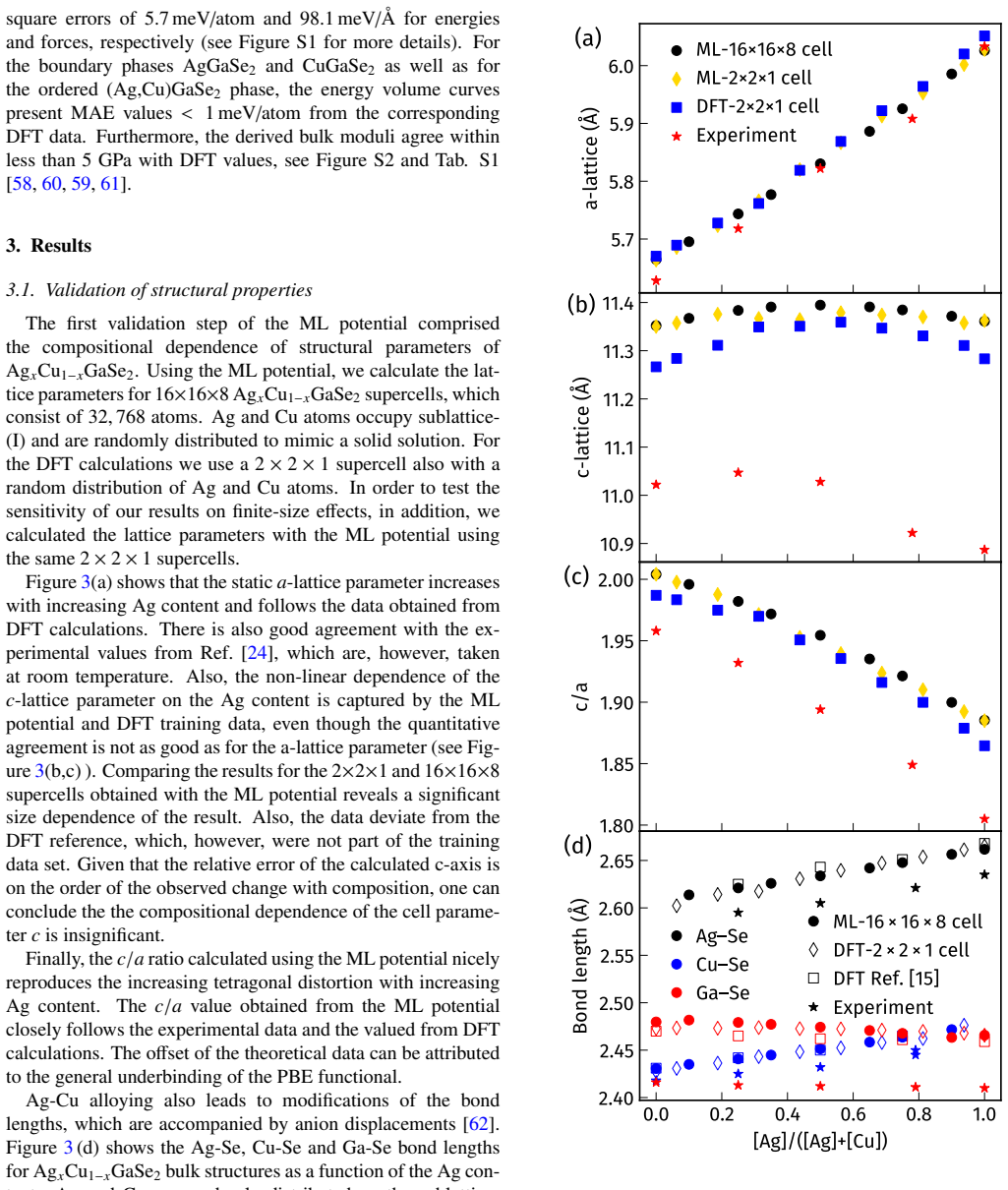

Figure 3. Figure 3: (a) shows that the static a-lattice parameter increases with increasing Ag content and follows the data obtained from DFT calculations. There is also good agreement with the ex￾perimental values from Ref. [24], which are, however, taken at room temperature. Also, the non-linear dependence of the c-lattice parameter on the Ag content is captured by the ML potential and DFT training data, even though the qua… view at source ↗
Figure 4
Figure 4. Figure 4: (a) The components of the stiffness tensor Ci j and the bulk modulus B are calculated using the ML potential, for varying Ag to Cu ratios. (b) The elas￾tic constants Ci j are used to calculate the effective moduli for a polycrystalline sample using the Voigt, Reuss and Hill measures. All calculation are done with 4 × 4 × 2 supercells and fully relaxed structures with different Ag to Cu ratios. we observe i… view at source ↗
Figure 5

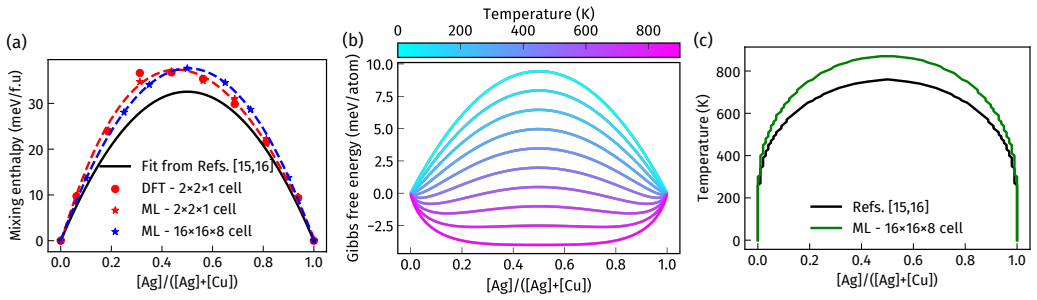

Figure 5. Figure 5: (a) Mixing enthalpy per formula unit for varying Ag to Cu ratios; the circular points give the DFT values and the star-shaped points give the predicted [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Equilibration of a coherent and incoherent layered interfaces using the relax-tfMC [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Panels (a-c) use as a reference the (Ag0.5Cu0.5GaSe2) coherent lattice parameters, whereas panels (d-f) use the end-point references corresponding to AgGaSe2 and CuGaSe2. Panels (a,d) show the induced coherency strain, panels (b,e) show ∆Hmix, Hel, and Htotal, and panels (c,f) show the Gibbs free energy of mixing at different temperatures. All quantities are reported as a function of composition (Ag to Cu … view at source ↗
read the original abstract

Alloying Ag into Cu(In,Ga)Se$_2$ has enabled record solar-cell efficiencies ($\sim23.6\%$), yet their long-term stability remains in question because initio calculations predict a Ag-Cu miscibility gap near ambient temperature. By off-lattice Monte-Carlo simulations using a newly developed machine learning (ML) interatomic potential we show that the presence of coherency strain is resolving the controversy between experimental observations and the predicted phase stability. Incorporating elastic energy contributions present in a coherent setup results in complete Ag-Cu miscibility, whereas the expected phase separation occurs in the absence of coherency strains with respect to the end boundary phases, which are mimicked by an incoherent interface with misfit dislocations. The developed ML-MC framework provides a novel approach for resolving discrepancies in thermodynamic stability for systems where mechanical and chemical effects compete.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript uses off-lattice Monte Carlo simulations driven by a machine-learning interatomic potential trained on ab initio data to examine Ag-Cu mixing in Ag_x Cu_{1-x} GaSe_2. It reports that imposing coherent boundary conditions (with coherency strains) produces complete miscibility, while incoherent boundaries that permit misfit dislocations recover the expected phase separation, thereby resolving the discrepancy between ab initio miscibility-gap predictions and experimental stability observations in solar-cell absorbers.

Significance. If the central result is robust, the work is significant because it isolates the role of chemo-mechanical coupling in suppressing phase separation in a technologically relevant photovoltaic alloy. The ML-MC framework offers a scalable route to treat competing chemical and elastic energies in large cells, which could be applied to other alloy systems where direct ab initio sampling is prohibitive.

major comments (2)
  1. [Methods] Methods (ML potential training and validation): the manuscript does not provide quantitative benchmarks showing that the surrogate potential reproduces the long-range elastic strain fields that penalize phase separation under coherent boundary conditions. Because ab initio training sets are typically limited to small supercells, it remains possible that the potential underestimates coherency-strain energy relative to the chemical mixing term; this directly affects the load-bearing claim that coherency produces complete miscibility.
  2. [Results] Results (coherent vs. incoherent comparison): the quantitative partitioning of total energy into chemical and elastic contributions is not shown for the two boundary-condition cases. Without this decomposition (e.g., via separate runs with and without the elastic term), it is difficult to confirm that the observed stabilization arises from coherency strain rather than from an imbalance in the fitted potential.
minor comments (2)
  1. [Abstract] The abstract states that the ML potential is 'newly developed' but the main text should include a short comparison of its accuracy on formation energies and elastic constants against existing empirical or other ML potentials for chalcopyrites.
  2. [Figures] Figure captions for the Monte Carlo snapshots should explicitly label the coherent and incoherent boundary conditions and note the system size used in each panel.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and for recognizing the potential significance of the chemo-mechanical coupling mechanism in resolving the stability discrepancy for Ag-Cu alloying in solar-cell absorbers. We address each major comment in detail below.

read point-by-point responses

  1. Referee: [Methods] Methods (ML potential training and validation): the manuscript does not provide quantitative benchmarks showing that the surrogate potential reproduces the long-range elastic strain fields that penalize phase separation under coherent boundary conditions. Because ab initio training sets are typically limited to small supercells, it remains possible that the potential underestimates coherency-strain energy relative to the chemical mixing term; this directly affects the load-bearing claim that coherency produces complete miscibility.

    Authors: We agree that explicit validation of the ML potential's reproduction of long-range elastic strain fields is essential to support the central claim. The training set incorporated strained and defect-containing configurations from ab initio calculations to capture elastic contributions, but we acknowledge that direct quantitative benchmarks against ab initio strain energies in larger coherent cells were not presented. In the revised manuscript we will add such benchmarks, including direct comparisons of coherency-strain energies for supercells up to the largest sizes feasible with ab initio methods, to demonstrate that the potential does not systematically underestimate the elastic penalty relative to the chemical term. revision: yes

  2. Referee: [Results] Results (coherent vs. incoherent comparison): the quantitative partitioning of total energy into chemical and elastic contributions is not shown for the two boundary-condition cases. Without this decomposition (e.g., via separate runs with and without the elastic term), it is difficult to confirm that the observed stabilization arises from coherency strain rather than from an imbalance in the fitted potential.

    Authors: We concur that an explicit energy decomposition would strengthen the attribution of stabilization to coherency strain. In the revised manuscript we will include a quantitative partitioning of the total energy into chemical (local bonding) and elastic (long-range strain) components for both the coherent and incoherent boundary-condition simulations. This will be obtained by performing auxiliary runs in which atomic relaxations are constrained to isolate the elastic contribution, allowing direct comparison that confirms the miscibility arises from the coherency-strain term rather than any fitting artifact. revision: yes

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The paper's central result—that coherency strains stabilize complete Ag-Cu miscibility—is obtained from explicit off-lattice Monte Carlo sampling in large cells with boundary conditions that enforce coherency versus an incoherent interface. The ML interatomic potential is trained on independent ab initio calculations, and the elastic versus chemical energy balance is evaluated numerically rather than imposed by definition or by a fitted parameter that is then relabeled as a prediction. No step in the reported workflow reduces the final miscibility outcome to an internal fit or to a self-citation whose content is itself unverified.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the transferability of the ML potential from ab-initio training data to finite-temperature Monte-Carlo runs and on the modeling choice that coherent interfaces carry only elastic strain while incoherent ones allow misfit dislocations. No new particles or forces are postulated.

axioms (1)
  • domain assumption The machine-learning potential trained on ab-initio calculations faithfully reproduces both chemical mixing energies and elastic moduli at the relevant compositions and temperatures.
    Invoked when the authors state that the ML potential enables off-lattice Monte-Carlo that captures chemo-mechanical coupling.
