REVIEW 3 major objections 5 minor 32 references
Optimization Framework for Reducing Mid-circuit Measurements and Resets
T0 review · 3 major / 5 minor · reviewed 2026-08-16 · deepseek-v4-flash
Pith's one-line read This paper claims that mid-circuit measurements and resets can be replaced at compile time by probabilistic or static subcircuits whenever the measured or reset state is fully known.
desk verdict The measurement-reduction half is a solid, implemented extension of the authors' prior PCM work, but the reset-removal theorem is built on a postselection model of reset that is wrong for entangled states, so the reset claims—including the BV demo—don't hold as stated. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The load-bearing object is the extended probabilistic gate $GP[(U_1,p_1),\dots,(U_k,p_k)]$, which compiles to one of $k$ static circuits according to a compile-time-sampled distribution. Around it the framework combines three components: quantum constant propagation (QCP), enhanced with entanglement-group splitting and reset-propagation rules; the state-transformation circuit $T_{|\psi\rangle\to|\varphi\rangle}=SP_{|\varphi\rangle}(SP_{|\psi\rangle})^{-1}$, built from ancilla-free state preparation; and the parameter $n_{\mathrm{pcm}}$, which decides whether a fully known state is small enough to synthesize. Theorem 1 uses this machinery to replace known-state measurements with probabilistic $X$-rotations, and Theorem 2 uses it to replace resets with a static transformation. The runtime-equivalence relation from the original probabilistic circuit model carries the correctness argument.
What would settle it
Prepare two qubits in the Bell state $(|00\rangle+|11\rangle)/\sqrt{2}$, reset the first qubit, and measure the expectation $\langle Z\rangle$ on the second qubit. The paper's projection semantics predicts $\langle Z\rangle=1$, while a physical reset yields $\langle Z\rangle=0$ because the second qubit becomes maximally mixed.
Extended reading notes
Core claim
The central claim is that dynamic-circuit overhead can be converted into static compile-time work. For any mid-circuit measurement whose input $n$-qubit state is fully known and whose support size is at most $n_{\mathrm{pcm}}$, Theorem 1 shows the measurement can be replaced by a probabilistic subcircuit: synthesize a circuit mapping the known state to $|0\rangle^{\otimes n}$, then apply $X_s$ with probability $|\alpha_s|^2$ and record the sampled string on the original classical wire. For any reset whose input state is fully known, Theorem 2 shows the reset can be replaced by a single static circuit that maps the pre-reset state to the state obtained by setting the target qubit to $|0\rangle$. This replacement relies on a reset semantics in which the reset projects the state onto the $|0\rangle$ subspace of that qubit and renormalizes. The evaluation reports that the method removes all resets in the qubit-reuse Bernstein-Vazirani example and outperforms the reference compiler passes on random dynamic circuits.
Load-bearing premise
The framework assumes that resetting a qubit is equivalent to projecting the whole state onto the $|0\rangle$ subspace of that qubit and renormalizing, so a single static subcircuit can reproduce the post-reset state; a physical reset of an entangled qubit leaves the other qubits mixed, which no unitary subcircuit can match.
Editorial extensions
If this is right
- Any dynamic circuit segment whose measured state is fully known can run without real-time feedback for that measurement, since the outcome is sampled at compile time.
- Fully known resets can be compiled away entirely, which is what lets qubit-reuse circuits like Bernstein-Vazirani lose all of their resets.
- Raising $n_{\mathrm{pcm}}$ removes additional dynamic operations, at the cost of longer synthesis runs and larger added gate counts, with diminishing returns set by QCP's entanglement-group limit $n_{\max}$.
- Compiling away resets first unblocks downstream structural optimizations, as the transpiled Bernstein-Vazirani circuit becomes much shorter after the framework runs.
- The method directly targets the dominant runtime cost of dynamic circuits, which is relevant for algorithms that interleave mid-circuit measurement with classical feed-forward.
Reading between the lines
- Because the equivalence for resets is stated under a projection semantics, a natural test is to compare the framework's prediction against physical reset on an entangled state; a Bell-state experiment would determine exactly where Theorem 2 applies.
- Pre-sampling known measurement outcomes is structurally similar to gate cutting and circuit knitting, so the framework could be combined with those techniques to schedule dynamic algorithms on fewer physical qubits.
- The $n_{\mathrm{pcm}}$ trade-off could be automated by predicting per-site synthesis cost and runtime savings, turning the manual knob into an optimization objective.
- The improved QCP with entanglement-group splitting is independent of the reset question and may benefit other static analyses of dynamic circuits.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper extends the probabilistic circuit model (PCM) to reduce the number of mid-circuit measurements and resets in dynamic quantum circuits. The framework uses quantum constant propagation (QCP) to obtain compile-time knowledge of quantum states, then replaces a mid-circuit measurement on a known state by a probabilistic subcircuit (Theorem 1) and a mid-circuit reset by a unitary state-transformation circuit (Theorem 2). A parameter n_pcm is introduced to trade optimization strength against synthesis cost. The method is evaluated on randomly generated dynamic circuits and on a Bernstein-Vazirani circuit with qubit reuse, where the authors report removing all resets. The paper also improves QCP by separating disentangled qubits and by propagating information through resets.
Significance. If correct, the framework would give a practical compile-time method for reducing dynamic-circuit overhead, complementing existing Qiskit passes, and the public implementation would be a useful resource. However, the central reset-removal claim rests on an incorrect model of reset semantics for entangled states: Section 3.3 defines the abstract reset effect as projection onto the |0> component followed by renormalization, which is postselection, not the CPTP reset performed on hardware. Since Theorem 2 and Algorithm 1 rely on this definition, the reset reductions reported in Section 4 are unsupported for entangled inputs. The measurement-reduction part is more plausible but also needs a precise statement about post-measurement states when the measured qubit is entangled with the rest of the system.
major comments (3)
- [Section 3.3 and Theorem 2, Eq. (2)] The reset replacement in Theorem 2 is not state-equivalent for entangled input states. The paper's abstract semantics, [[reset_i]]^# s = (1/lambda_norm) sum_{psi_j^i=0} lambda_j |psi_j>, is projection onto the subspace where qubit i is |0>, i.e., postselection. A physical reset is the CPTP map R_i(rho) = |0><0|_i (x) Tr_i(rho). For an entangled pure input such as (|00>+|11>)/sqrt(2), the actual post-reset state of the remaining qubit is maximally mixed, while any n-qubit unitary T maps the pure input to a pure state and leaves the remaining qubit pure. Hence Eq. (2) cannot hold for entangled states, and the QCP propagation rule in Section 3.3 records the postselected pure state rather than the actual mixture. Consequently, Algorithm 1 will replace resets with unitary circuits that change the output state, and the reset-removal results in Section 4, including the Bernstein-Vazirani example in Section 4.4, are unsupported whenever the reset input is entangled.
- [Theorem 1 and Algorithm 1, Eq. (1)] The measurement replacement in Theorem 1 also needs a careful statement of what is being preserved. Eq. (1) replaces the measurement of an n-qubit state by T_{|psi>->|0...0>} followed by a probabilistic X_s, which produces the computational basis state |s> on all n qubits. For a mid-circuit measurement of a single qubit that is entangled with the rest, the post-measurement state of the unmeasured qubits is a conditional pure state (or a mixture before conditioning on the classical outcome), and it is not reproduced by preparing |s> on the full register. If Theorem 1 is intended only for measurements of all n qubits whose outcomes are the only relevant outputs, then Algorithm 1's application to individual mid-circuit measurements requires an additional argument. As written, the claimed extension of measurement optimization to entangled multi-qubit states is not justified.
- [Section 4.3] The experimental evaluation reports counts of removed measurements and resets and introduced gates, but it never verifies that the optimized circuits are semantically equivalent to the original circuits, e.g., by comparing output distributions or state fidelities. Given that the reset transformation in Theorem 2 is not state-equivalent for entangled inputs, the reported reductions may partly reflect changes in circuit semantics rather than safe optimizations. A correctness check on the optimized circuits is needed before the empirical claims can be interpreted.
minor comments (5)
- [Figure 6 caption] There is a typo: 'Dimonstrative example' should be 'Demonstrative example', and the sentence 'applying the PCM-based optimization framework the circuit' is missing 'to'.
- [Example 6] The computation contains a typo: the text writes 'H ⊗ H ∈ C_{|00>}^{|+->}' but then evaluates '(H ⊗ XH)|+->'; the XH should be H.
- [Definition 4] The notation '1s0 (X0) ⊗ ... ⊗ 1sl−1 (Xl−1)' is confusing; the indicator function should be defined explicitly before use.
- [Section 2.3 and Theorem 1] The paper relies on 'runtime equivalence' defined in [6] but does not define it locally; since Theorem 1 and Theorem 2 both use this notion, a brief definition would make the paper more self-contained.
- [Section 4.3] The text says the data are obtained by evaluating 10 quantum circuits per scale, but the standard-deviation experiment uses 50 circuits; this should be stated explicitly to avoid ambiguity about which plots use which sample size.
Circularity Check
Reset removal in Algorithm 1 reduces to the paper's own definition of reset semantics in Section 3.3; the measurement reduction is independent.
-
self definitional
[Section 3.3, 'Propagation through resets'; Theorem 2 (Eq. 2); Algorithm 1]
"In the current version, suppose that s = Σ_j λ_j |ψ_j⟩, then [[reset_i]]^♯ s = 1/λ_norm (Σ_{ψ_j^i = 0} λ_j |ψ_j⟩), where ψ_j^i indicates the i-th qubit of the basis state |ψ_j⟩ and λ_norm is used to normalize the state after the reset. ... Theorem 2. Given an n-qubit state |ψ⟩ ... where |φ⟩ is the state after resetting the qubit q0 to 0, then Eq. (2) holds."
The QCP abstract semantics of reset is defined as projection onto the subspace where the reset qubit is |0⟩, followed by renormalization. Theorem 2 then declares that a reset can be replaced by the unitary T_{|ψ⟩→|φ⟩}, where |φ⟩ is taken to be exactly that projected state. Thus the reset-replacement identity is not derived from the physical CPTP reset (which traces out the reset qubit and yields a mixed state whenever the qubit is entangled); it is true by construction relative to the paper's own definition. Algorithm 1 uses Theorem 2 to remove resets, so the reported reset reductions are consequences of the chosen reset semantics rather than independent predictions. The measurement-reduction part (Theorem 1) is separate and remains non-circular.
full rationale
The paper's measurement-reduction chain is self-contained: QCP propagates a known pure state |ψ⟩, and Theorem 1 replaces the measurement by a probabilistic circuit whose probabilities are the Born amplitudes of that state. This is a standard identity, not a fitted parameter renamed as a prediction. The reset-reduction chain is different. In Section 3.3, the paper improves QCP by defining the abstract effect of a reset as [[reset_i]]^♯ s = 1/λ_norm Σ_{ψ_j^i=0} λ_j |ψ_j⟩, i.e., a projection plus normalization. Theorem 2 immediately uses this definition by choosing |φ⟩ as 'the state after resetting the qubit q0 to 0' and claiming Eq. (2), the replacement of the reset by a unitary T_{|ψ⟩→|φ⟩}. For an entangled input, this is not the physical reset, which is a CPTP map that leaves the remaining qubits mixed. Consequently, the reset-removal claim in Algorithm 1 reduces to the chosen abstract reset semantics; it is not an independent result about the hardware reset. The BV qubit-reuse demonstration may still be salvaged for product-state resets after measurement, but the general reset-removal theorem is circular in the sense of being true by definition. Because the measurement-reduction contribution is independent, the circularity is partial rather than total, giving a score of 6.
Assumptions & free parameters
free parameters (2)
- n_pcm
- n_max
assumptions (4)
- domain assumption All qubit initial states are |0>.
- domain assumption An ancilla-free state preparation procedure SP exists with depth and gate count O(2^n).
- ad hoc to paper Reset semantics is normalized projection onto components where the reset qubit is |0>.
- domain assumption Runtime equivalence relation from [6] is accepted.
Cite this review
Pith. "Pith review of Optimization Framework for Reducing Mid-circuit Measurements and Resets." pith.science (2026). https://pith.science/paper/G5KFA5ES
@misc{pith2026250416579,
author = {Pith},
title = {Pith review of: Optimization Framework for Reducing Mid-circuit Measurements and Resets},
year = {2026},
howpublished = {\url{https://pith.science/paper/G5KFA5ES}},
note = {Machine review of arXiv:2504.16579}
}

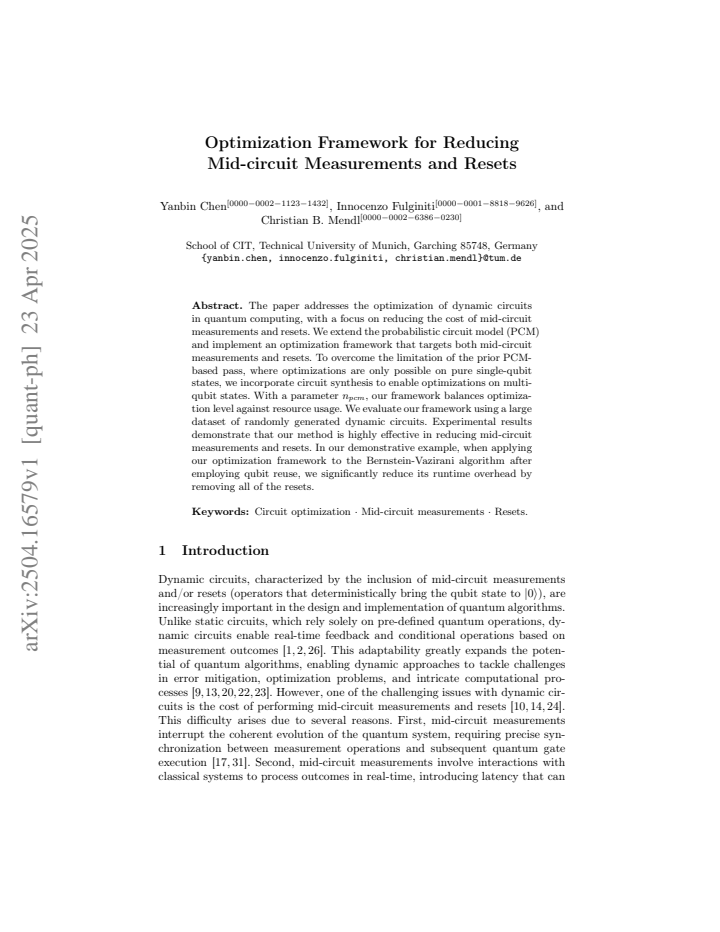

abstract
The paper addresses the optimization of dynamic circuits in quantum computing, with a focus on reducing the cost of mid-circuit measurements and resets. We extend the probabilistic circuit model (PCM) and implement an optimization framework that targets both mid-circuit measurements and resets. To overcome the limitation of the prior PCM-based pass, where optimizations are only possible on pure single-qubit states, we incorporate circuit synthesis to enable optimizations on multi-qubit states. With a parameter $n_{pcm}$, our framework balances optimization level against resource usage.We evaluate our framework using a large dataset of randomly generated dynamic circuits. Experimental results demonstrate that our method is highly effective in reducing mid-circuit measurements and resets. In our demonstrative example, when applying our optimization framework to the Bernstein-Vazirani algorithm after employing qubit reuse, we significantly reduce its runtime overhead by removing all of the resets.
