Unveiling the Trans-Neptunian Region with the SKA

Pablo Santos-Sanz , Y\"ucel Kilic , Thomas G. M\"uller , Emmanuel Lellouch , Javier Mold\'on , Jorma Harju This is my paper

Pith reviewed 2026-06-25 20:05 UTC · model grok-4.3

classification 🌌 astro-ph.EP astro-ph.IM
keywords SKATNOsCentaursthermal emissioncentimetre wavelengthsradiometric studiestrans-Neptunian objectsouter Solar System
0
0 comments X

The pith

The SKA-AA4 will enable thermal detections of several brightest TNOs and Centaurs at centimetre wavelengths.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines how the SKA-AA4 can detect and study thermal emission from trans-Neptunian objects and Centaurs at centimetre wavelengths. This sensitivity goes beyond what current radio facilities achieve for these distant icy bodies. The resulting data, paired with shorter-wavelength observations and occultation measurements, will supply new constraints on spectral emissivity behaviour, thermophysical properties, and subsurface structure. High angular resolution may also allow partial resolution of the largest objects, rings, and some wide binaries, while radio occultation observations become feasible for independent size and atmosphere checks.

Core claim

SKA-AA4's unprecedented sensitivity will enable thermal detections of several of the brightest TNOs and Centaurs at centimetre wavelengths, extending radiometric studies beyond the capabilities of current radio facilities. Combined with shorter-wavelength observations and occultation measurements, these data will provide new constraints on spectral emissivity behaviour, thermophysical properties, and subsurface structure. At its highest angular resolutions, SKA-AA4 may partially resolve the largest systems, enabling investigations of surface heterogeneity, extended structures such as rings, and the partial resolution of some wide binary systems. Radio occultation observations can additionall

What carries the argument

SKA-AA4 sensitivity at centimetre wavelengths for thermal emission detection from TNOs and Centaurs

If this is right

  • Thermal detections of several brightest TNOs and Centaurs, extending radiometric studies beyond current radio facilities.
  • New constraints on spectral emissivity behaviour, thermophysical properties, and subsurface structure when combined with shorter-wavelength data.
  • Partial resolution of largest systems to study surface heterogeneity, rings, and wide binary systems.
  • Feasibility of radio occultation observations for independent constraints on sizes, shapes, atmospheres, rings, or satellites.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Centimetre data could fill gaps in wavelength coverage when merged with ALMA and JWST results for the same objects.
  • Establishing centimetre studies as a routine complement to occultation campaigns would broaden the toolkit for outer Solar System characterisation.
  • Radio occultations might detect thin atmospheres or small satellites that are hard to see at other wavelengths.

Load-bearing premise

Assumed thermal emission models, object sizes, and SKA sensitivity calculations will accurately predict detectable signals without significant unaccounted systematics or calibration issues.

What would settle it

No detectable thermal emission from the predicted brightest TNOs and Centaurs in SKA-AA4 observations, or large mismatches between measured signals and the model predictions.

Figures

Figures reproduced from arXiv: 2606.25686 by Emmanuel Lellouch, Javier Mold\'on, Jorma Harju, Pablo Santos-Sanz, Thomas G. M\"uller, Y\"ucel Kilic.

Figure 1

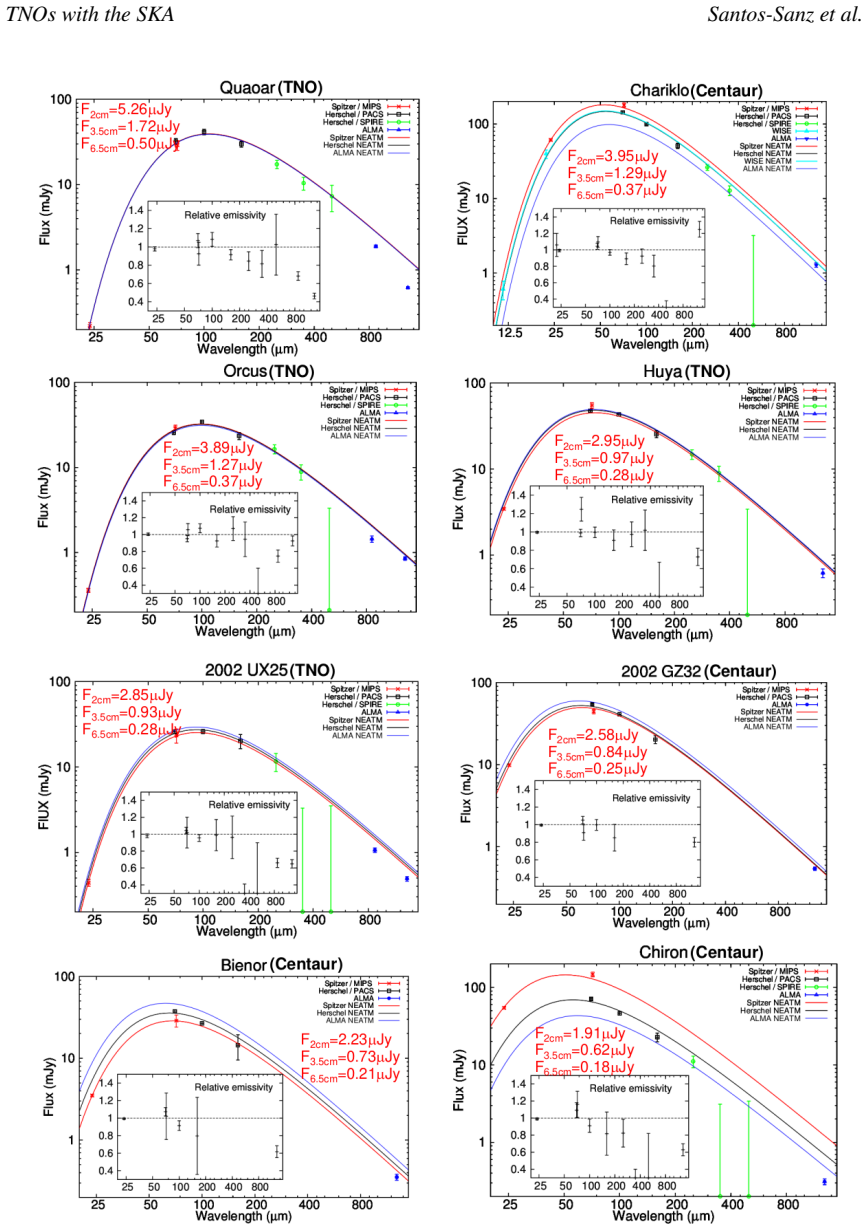

Figure 1. Figure 1: Thermal models for a selection of large TNOs and Centaurs, based on Spitzer, Herschel, and ALMA data. Insets show the spectral emissivity for each object. Expected SKA fluxes at 2, 3.5, and 6.5 cm (in red) are extrapolated assuming a relative spectral emissivity of 𝜖 = 0.7. Adapted from Lellouch et al. (2017) and subsequent works. 5 [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

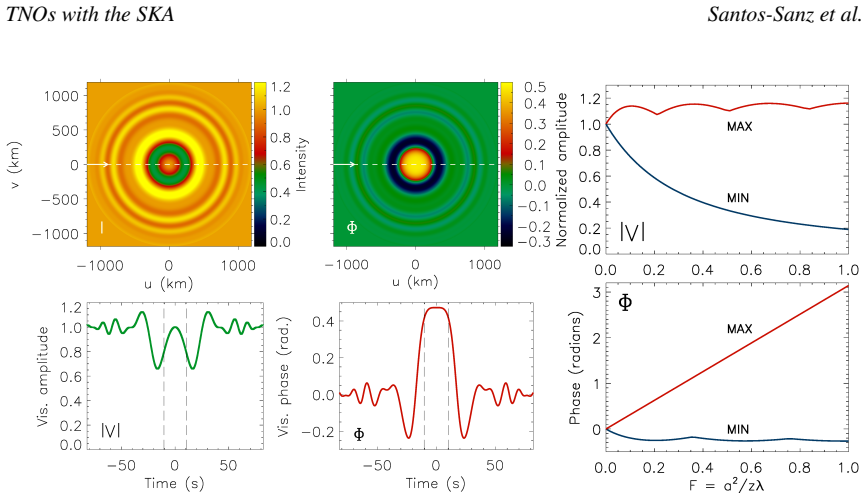

Figure 2. Figure 2: Left: Simulated diffraction patterns observed on Earth during a central radio occultation by a trans-Neptunian object (TNO) with a circular geometry. The TNO is assumed to have a diameter of 300 km and to be located at a heliocentric distance of 50 au. Observations are performed at 15 GHz (𝜆 = 2 cm), corresponding to a Fresnel number of 𝐹 = 0.15. The top panels display the two-dimensional intensity and pha… view at source ↗

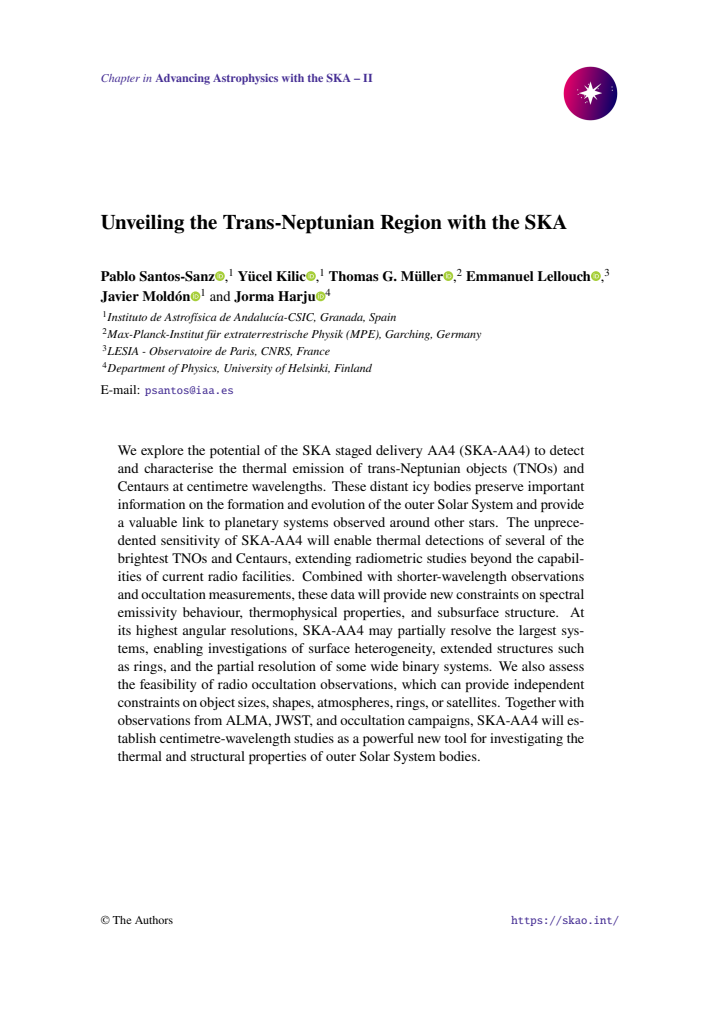

read the original abstract

We explore the potential of the SKA staged delivery AA4 (SKA-AA4) to detect and characterise the thermal emission of trans-Neptunian objects (TNOs) and Centaurs at centimetre wavelengths. These distant icy bodies preserve important information on the formation and evolution of the outer Solar System and provide a valuable link to planetary systems observed around other stars. The unprecedented sensitivity of SKA-AA4 will enable thermal detections of several of the brightest TNOs and Centaurs, extending radiometric studies beyond the capabilities of current radio facilities. Combined with shorter-wavelength observations and occultation measurements, these data will provide new constraints on spectral emissivity behaviour, thermophysical properties, and subsurface structure. At its highest angular resolutions, SKA-AA4 may partially resolve the largest systems, enabling investigations of surface heterogeneity, extended structures such as rings, and the partial resolution of some wide binary systems. We also assess the feasibility of radio occultation observations, which can provide independent constraints on object sizes, shapes, atmospheres, rings, or satellites. Together with observations from ALMA, JWST, and occultation campaigns, SKA-AA4 will establish centimetre-wavelength studies as a powerful new tool for investigating the thermal and structural properties of outer Solar System bodies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript explores the potential of the SKA staged delivery AA4 (SKA-AA4) to detect and characterise the thermal emission of trans-Neptunian objects (TNOs) and Centaurs at centimetre wavelengths. It claims that the unprecedented sensitivity will enable thermal detections of several of the brightest objects, extending radiometric studies beyond current facilities; combined with shorter-wavelength and occultation data these will yield new constraints on spectral emissivity, thermophysical properties and subsurface structure; at highest resolutions SKA-AA4 may partially resolve the largest systems and investigate surface heterogeneity, rings or wide binaries; and radio occultation observations are feasible for independent size, shape, atmosphere, ring or satellite constraints. The assessment relies on standard thermal emission models, literature object parameters and published SKA sensitivity estimates.

Significance. If the forward predictions hold, the work positions centimetre-wavelength observations as a new complementary tool for outer-Solar-System studies, linking TNO/Centaur properties to exoplanetary systems and extending radiometric techniques. The paper receives credit for grounding its claims in published SKA sensitivity figures and standard models rather than introducing new empirical results or derivations.

minor comments (2)
  1. The central feasibility claims would be strengthened by an explicit table (or section) listing the specific brightest TNOs and Centaurs expected to be detectable, together with their assumed diameters, albedos, predicted flux densities at the relevant frequencies, and integration times required to reach a stated S/N threshold.
  2. The discussion of radio occultation feasibility would benefit from a short quantitative estimate of the required baseline sensitivity or integration time for a typical TNO, even if only order-of-magnitude, to allow readers to judge the practicality of the proposed observations.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary, recognition of the manuscript's significance, and recommendation for minor revision. No major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The manuscript is an exploratory feasibility study that presents forward predictions of SKA-AA4 detectability for TNOs and Centaurs. These rely on standard radiometric emission models, object parameters drawn from the published literature, and externally published SKA sensitivity estimates. No equations, fitted parameters, self-citations, or derivations appear that reduce the central claims to the paper's own inputs by construction. The assessment is therefore self-contained against external benchmarks and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only content yields no identifiable free parameters, axioms, or invented entities; the work rests on general claims about instrument sensitivity without explicit quantitative foundations.
