Parallel Dynamic Programming for Conic Linear Quadratic Control

Pith reviewed 2026-06-25 22:53 UTC · model grok-4.3

classification 🧮 math.OC cs.ROcs.SYeess.SY
keywords parallel dynamic programmingconic linear quadratic controlADMMRiccati recursionmodel predictive controlmulti-core CPUoptimal controltime splitting
0
0 comments X

The pith

A parallel-in-time ADMM method splits conic LQ problems along the time horizon for independent Riccati solves via dynamic programming.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a parallel method for solving linear quadratic control problems that include conic constraints. It reformulates the inner ADMM update as an LQ problem and divides the problem into separate subproblems over segments of the time horizon. Each subproblem is then solved with a modified Riccati recursion obtained through dynamic programming. The split preserves the convergence behavior of the original ADMM iteration. Benchmarks on two real-world applications report speedups of as much as five times on multi-core CPU hardware.

Core claim

We present a parallel-in-time approach that solves computationally demanding conic optimal control problems through the use of the alternating direction method of multipliers (ADMM). In particular, we formulate the inner primal update of ADMM as an LQ problem and split the reformulated problem along the time horizon. This enables us to derive a variant of the Riccati recursion using dynamic programming to solve each subproblem in parallel.

What carries the argument

The time-horizon split of the ADMM primal LQ update, solved via a parallel Riccati recursion variant derived from dynamic programming.

If this is right

  • Conic model predictive control problems become solvable in real time on standard multi-core CPUs.
  • The method applies directly to linear control problems that include conic constraints.
  • The parallel solves maintain the optimality and convergence guarantees of the serial ADMM procedure.
  • Divide-and-conquer strategies can be applied to other ADMM-based solvers for optimal control.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same splitting idea may apply to related time-structured optimization problems outside of control.
  • Further gains could appear if the Riccati variant is adapted for GPU hardware.
  • The approach suggests a template for parallelizing other iterative solvers that rely on sequential Riccati steps.
  • Embedded systems using MPC may achieve lower latency without changes to the problem formulation.

Load-bearing premise

Splitting the reformulated LQ problem along the time horizon and solving the resulting subproblems independently with the derived Riccati variant preserves the convergence and optimality properties of the original ADMM iteration for conic problems.

What would settle it

A benchmark instance in which the parallel algorithm produces a solution that differs from the serial ADMM solution or fails to converge to the same optimal value.

Figures

Figures reproduced from arXiv: 2606.24632 by Brian Plancher, Gabriel Bravo-Palacios, Luyao Zhang, Sergio Grammatico.

Figure 1

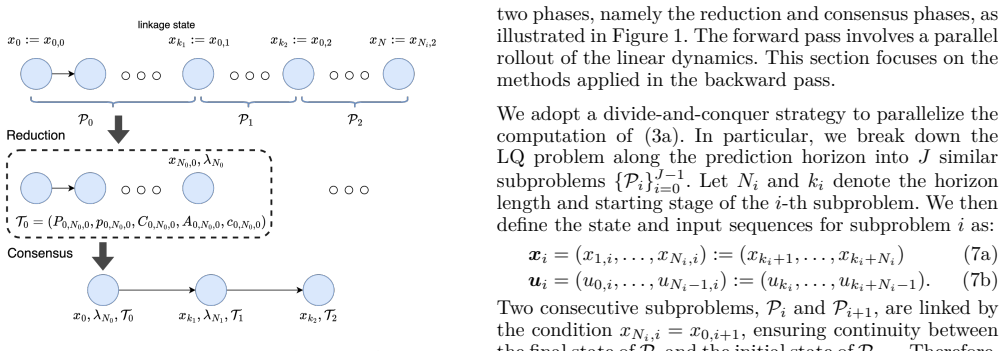

Figure 1. Figure 1: Parallel-in-time illustration for an LQ problem [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

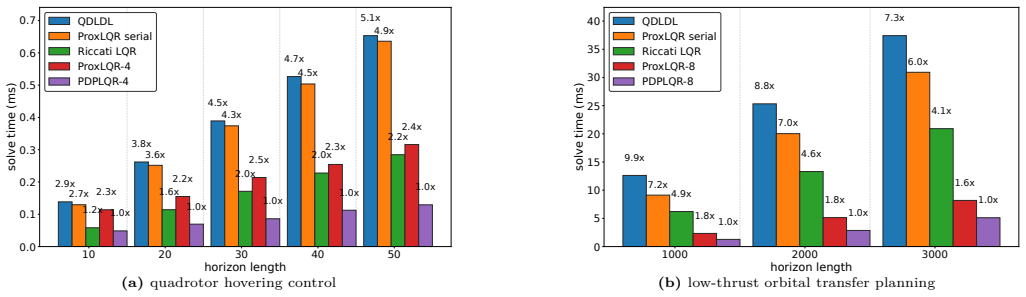

Figure 2. Figure 2: Benchmarking results across various horizon lengths. Above-bar numbers indicate the speedups achieved by our [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

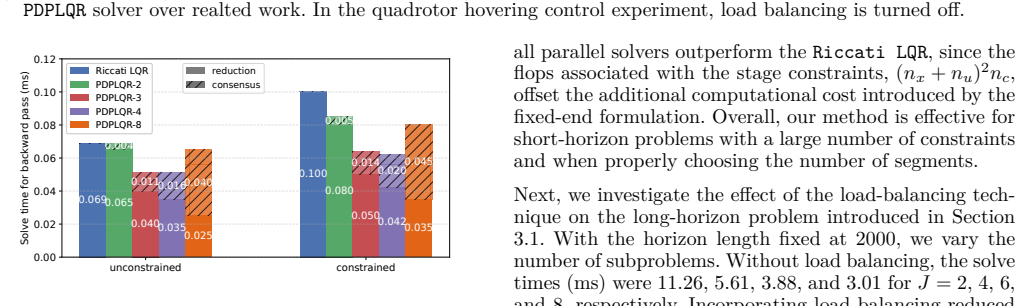

Figure 3. Figure 3: Solve times for the backward pass on the quadro [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
read the original abstract

Linear Quadratic (LQ) control problems are at the heart of linear control theory and Model Predictive Control (MPC). While performant, standard approaches to solving such problems are inherently serial, limiting real-time scalability despite the parallel computing power available on modern multi-core CPUs. Contributing to addressing this challenge and motivated by ``divide and conquer'' strategies, we present a parallel-in-time approach that solves computationally demanding conic optimal control problems through the use of the alternating direction method of multipliers (ADMM). In particular, we formulate the inner primal update of ADMM as an LQ problem and split the reformulated problem along the time horizon. This enables us to derive a variant of the Riccati recursion using dynamic programming to solve each subproblem in parallel. Numerical benchmarks on two real-world applications demonstrate as much as a 5x speedup compared to existing related approaches on multi-core CPU hardware.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes a parallel-in-time algorithm for conic linear-quadratic control problems that reformulates the ADMM primal update as an LQ problem, splits the horizon into independent subproblems, and solves them via a derived variant of the Riccati recursion obtained through dynamic programming; numerical results on two real-world applications report up to 5x speedup versus existing serial or related parallel methods on multi-core CPUs.

Significance. If the parallel splitting exactly reproduces the serial ADMM fixed-point and convergence properties, the method would offer a practical route to real-time scalable conic MPC on commodity parallel hardware, extending divide-and-conquer ideas to the conic setting where standard Riccati solvers remain serial.

major comments (2)
  1. [Derivation of the parallel Riccati recursion (main technical section)] The central construction (reformulation of the ADMM primal step as a time-split conic LQ problem followed by independent Riccati solves) must be shown to produce a concatenated solution that satisfies the original coupled KKT system, including any dual coupling or conic constraints that cross segment boundaries. The abstract states that a “variant of the Riccati recursion” is derived but supplies no indication of the boundary conditions or dual updates required for exact equivalence; this equivalence is load-bearing for the claim that the parallel algorithm inherits the convergence guarantees of standard ADMM.
  2. [Numerical benchmarks] The numerical benchmarks section reports “as much as a 5x speedup” but does not state whether the parallel iterates achieve the same primal/dual residuals or objective values as the serial ADMM reference at termination, nor the precise baseline implementations and core counts used; without these, it is impossible to determine whether the observed wall-clock improvement occurs at equivalent solution quality.
minor comments (2)
  1. [Abstract] The abstract introduces the method and the 5x claim but contains no equation or proof sketch; a one-sentence pointer to the key technical result (e.g., “the parallel Riccati recursion is shown in §4.2 to be algebraically equivalent to the serial ADMM update”) would improve readability.
  2. [Problem formulation and splitting] Notation for the time-segment boundaries and the handling of the conic constraint multipliers across segments should be introduced explicitly when the splitting is first defined.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address each major comment below and will incorporate clarifications and additional details in a revised manuscript.

read point-by-point responses
  1. Referee: [Derivation of the parallel Riccati recursion (main technical section)] The central construction (reformulation of the ADMM primal update as a time-split conic LQ problem followed by independent Riccati solves) must be shown to produce a concatenated solution that satisfies the original coupled KKT system, including any dual coupling or conic constraints that cross segment boundaries. The abstract states that a “variant of the Riccati recursion” is derived but supplies no indication of the boundary conditions or dual updates required for exact equivalence; this equivalence is load-bearing for the claim that the parallel algorithm inherits the convergence guarantees of standard ADMM.

    Authors: The derivation in Section 3 formulates each time-split subproblem such that the dual variables from the ADMM iteration serve as the boundary conditions at segment interfaces. This ensures that the concatenated primal solution, when combined with the subsequent dual update, satisfies the original coupled KKT system by construction, including any crossing conic constraints (which are handled locally within each subproblem but coupled via the shared duals). We agree that an explicit statement of these boundary conditions and a short equivalence argument would strengthen the presentation; we will add this to the revised manuscript. revision: yes

  2. Referee: [Numerical benchmarks] The numerical benchmarks section reports “as much as a 5x speedup” but does not state whether the parallel iterates achieve the same primal/dual residuals or objective values as the serial ADMM reference at termination, nor the precise baseline implementations and core counts used; without these, it is impossible to determine whether the observed wall-clock improvement occurs at equivalent solution quality.

    Authors: We will revise the numerical section to include explicit confirmation that the parallel and serial ADMM runs terminate at equivalent primal/dual residuals (within solver tolerance) and objective values. We will also specify the baseline (standard serial Riccati-based ADMM) and report the exact core counts (4–8 cores on the tested multi-core CPU) used for each timing result. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation from standard ADMM and DP is independent

full rationale

The paper derives a parallel-in-time solver by reformulating the ADMM primal step as a conic LQ problem, splitting along the time horizon, and obtaining a Riccati variant via dynamic programming. No equations reduce to fitted inputs by construction, no self-citation chains bear the central claim, and no uniqueness theorems or ansatzes are smuggled in. The reported speedups are empirical benchmarks on real-world applications, not derived quantities. This matches the default expectation that most papers are non-circular; the central construction retains independent content from standard ADMM and Riccati theory.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract supplies no explicit free parameters, axioms, or invented entities; the method is described at the level of standard ADMM and Riccati recursion.
