On Chen-Teo geometries with cosmological constant

Bernardo Araneda This is my paper

Pith reviewed 2026-06-25 22:23 UTC · model grok-4.3

classification 🧮 math.DG gr-qchep-th
keywords Chen-Teo geometryEinstein metricscosmological constantanti-self-dual Weyl tensorgravitational instantonsasymptotically hyperbolicCalderbank-Pedersen classificationPlebański-Demiański metric
0
0 comments X

The pith

Chen-Teo geometries with nonzero cosmological constant are either Plebański-Demiański metrics or have anti-self-dual Weyl tensors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines Einstein extensions of the Chen-Teo geometry that include a nonzero cosmological constant λ. It proves any such extension must be either the Plebański-Demiański metric or a metric with anti-self-dual Weyl tensor. For the anti-self-dual case when λ is negative, a conformal infinity appears that separates two asymptotically hyperbolic metrics. One of these metrics is globally conformal to an ALE scalar-flat Kähler metric, and the geometries produce gravitational instantons of varying topologies that fit as 4-pole solutions in the Calderbank-Pedersen classification.

Core claim

We show that the solution is either the Plebański-Demiański metric with λ, or it has an anti-self-dual Weyl tensor. We study the latter case in detail: we prove that for λ<0, there is a conformal infinity separating two asymptotically hyperbolic metrics; we show that one of them is globally conformal to an ALE scalar-flat Kähler metric; we construct gravitational instantons with different topologies; and we show that the geometry is a 4-pole solution in the Calderbank-Pedersen classification.

What carries the argument

The Weyl-tensor case distinction that splits solutions into Plebański-Demiański metrics or anti-self-dual Weyl tensor metrics.

If this is right

  • For λ<0 the anti-self-dual solutions admit a conformal infinity separating two asymptotically hyperbolic metrics.
  • One of the two asymptotically hyperbolic metrics is globally conformal to an ALE scalar-flat Kähler metric.
  • Gravitational instantons with different topologies arise from these geometries.
  • The resulting geometries are 4-pole solutions in the Calderbank-Pedersen classification.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The case distinction may allow construction of counterexamples to Euclidean black-hole uniqueness in the presence of a cosmological constant.
  • The global conformal relation to scalar-flat Kähler metrics opens the possibility of importing existence or uniqueness results from Kähler geometry into this Einstein setting.
  • Varying topologies in the instantons point to a larger moduli space than the original Chen-Teo example alone would suggest.

Load-bearing premise

Any Einstein extension of the Chen-Teo geometry preserves enough of the original asymptotic or symmetry structure for the Weyl tensor to fall cleanly into one of the two cases.

What would settle it

An explicit Einstein metric with nonzero λ that extends a Chen-Teo geometry but whose Weyl tensor is neither that of the Plebański-Demiański metric nor anti-self-dual would falsify the classification.

Figures

Figures reproduced from arXiv: 2606.24761 by Bernardo Araneda.

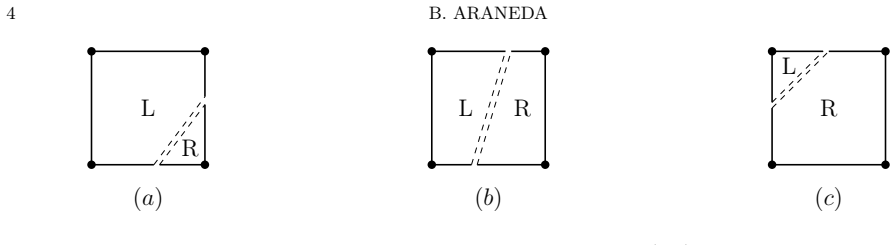

Figure 1
Figure 1. Figure 1: Some possible orbit spaces of the solution (1.3), cf. also [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗

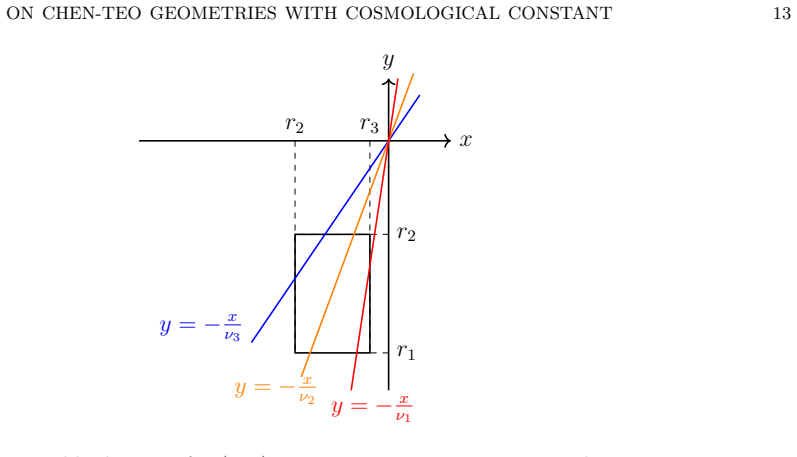

Figure 2
Figure 2. Figure 2: Possible domains for (x, y), assuming r1 < r2 < r3 < 0 and −1 < ν < 0. The different slanted lines x + νiy = 0 correspond to different locations of conformal infinity, depending on the value of ν. In the new coordinates (4.4), the conformal factor is Zˆ = − (x + νy) ν(x − y) . (4.7) Note that |Zˆ| → ∞ when x − y → 0. For the coordinate domain specified in section 4.2, the only point which is also on the li… view at source ↗

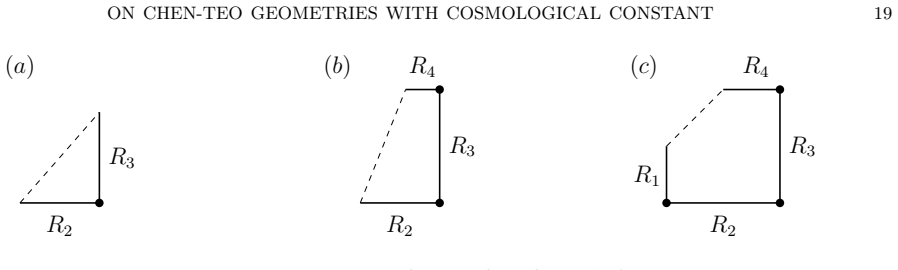

Figure 3
Figure 3. Figure 3: Diagrams corresponding to the solution ‘R’ in [PITH_FULL_IMAGE:figures/full_fig_p019_3.png] view at source ↗
read the original abstract

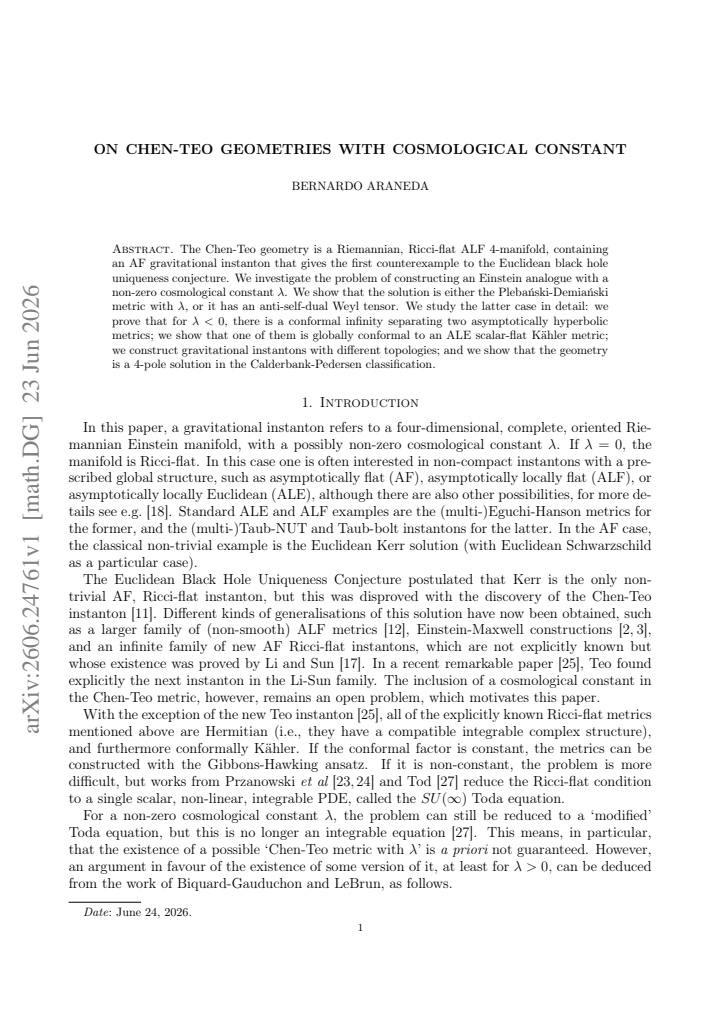

The Chen-Teo geometry is a Riemannian, Ricci-flat ALF 4-manifold, containing an AF gravitational instanton that gives the first counterexample to the Euclidean black hole uniqueness conjecture. We investigate the problem of constructing an Einstein analogue with a non-zero cosmological constant $\lambda$. We show that the solution is either the Pleba\'nski-Demia\'nski metric with $\lambda$, or it has an anti-self-dual Weyl tensor. We study the latter case in detail: we prove that for $\lambda<0$, there is a conformal infinity separating two asymptotically hyperbolic metrics; we show that one of them is globally conformal to an ALE scalar-flat K\"ahler metric; we construct gravitational instantons with different topologies; and we show that the geometry is a 4-pole solution in the Calderbank-Pedersen classification.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 1 minor

Summary. The paper studies Einstein extensions (with nonzero cosmological constant λ) of the Chen-Teo geometry, a Ricci-flat ALF 4-manifold containing an AF gravitational instanton that counters the Euclidean black-hole uniqueness conjecture. It proves that any such extension is either the Plebański-Demiański metric with λ or has anti-self-dual Weyl tensor. In the latter case, for λ<0 the geometry admits a conformal infinity separating two asymptotically hyperbolic metrics; one of these is shown to be globally conformal to an ALE scalar-flat Kähler metric. The authors construct gravitational instantons of varying topologies and identify the geometry as a 4-pole solution in the Calderbank-Pedersen classification.

Significance. If the results hold, the work supplies an explicit case distinction and concrete constructions that link the Chen-Teo counterexample to the broader landscape of Einstein metrics with cosmological constant, including conformal compactifications, Kähler geometry, and the Calderbank-Pedersen pole classification. The direct curvature computations and topological constructions constitute a substantive advance for the study of ALF Einstein 4-manifolds.

minor comments (1)
  1. The abstract and introduction would benefit from a brief parenthetical reminder of the precise asymptotic decay rates that define the original Chen-Teo ALF structure, to make the preservation of these rates under the Einstein extension fully explicit.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary of the manuscript, recognition of its significance in linking Chen-Teo geometries to Einstein metrics with cosmological constant, and recommendation to accept.

Circularity Check

0 steps flagged

No significant circularity; derivation proceeds by direct curvature analysis

full rationale

The paper's central result is a case distinction for Einstein metrics extending the Chen-Teo ansatz: either the solution is the Plebański-Demiański metric with λ, or the Weyl tensor is anti-self-dual. The subsequent constructions (conformal infinity, global conformal equivalence to an ALE scalar-flat Kähler metric, gravitational instantons of varying topology, and identification as a 4-pole Calderbank-Pedersen solution) are obtained from explicit computation of the Einstein condition, Weyl tensor, and conformal rescalings on the given metric form. No parameter is fitted and then relabeled as a prediction, no self-citation supplies a load-bearing uniqueness theorem or ansatz, and the case split follows from the curvature equations rather than from any definitional equivalence or imported result of the same author. The derivation is therefore self-contained against the Einstein equations and the initial metric ansatz.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Review based on abstract only; ledger is therefore minimal and reflects standard background rather than paper-specific additions.

axioms (2)
  • standard math Riemannian 4-manifolds satisfy the Einstein equation Ric = λ g for constant λ
    Central to the entire investigation as stated in the abstract.
  • domain assumption The Chen-Teo geometry exists as a Ricci-flat ALF 4-manifold
    Starting point for constructing the Einstein analogue (abstract opening sentence).
