New constraints on non-unitary neutrino mixing from 8 years of IceCube DeepCore atmospheric neutrino data
Pith reviewed 2026-07-03 09:42 UTC · model grok-4.3
The pith
Eight years of IceCube DeepCore atmospheric neutrino data show no deviation from unitary mixing and set the strongest limit to date of α33 > -0.027 at 90% CL.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The data sample is found to be consistent with the standard unitary mixing framework with no significant deviation. Using this data sample, the most stringent bound to date of α33 > -0.027 at 90% CL is placed, while the other non-unitary parameters are constrained at competitive levels.
What carries the argument
The non-unitary parameters αij that appear at leading order in the νμ survival probability, modified by the neutral-current Earth matter potential in the νμ → νμ channel.
If this is right
- Any model introducing heavy sterile neutrinos must satisfy α33 > -0.027 at 90% CL.
- Atmospheric neutrino data can now compete with or surpass reactor and accelerator bounds on certain non-unitary parameters.
- The wide baseline and energy coverage of atmospheric neutrinos makes them especially sensitive to matter-enhanced non-unitary effects.
Where Pith is reading between the lines
- The bound can be combined with short-baseline and long-baseline data to further restrict the parameter space of sterile-neutrino models.
- Future IceCube upgrades that increase statistics or reduce systematics would directly tighten the α33 limit.
- Similar analyses applied to other atmospheric detectors could provide independent cross-checks on the same non-unitary parameters.
Load-bearing premise
The high-purity νμ CC sample selection and the modeling of Earth matter effects accurately capture the leading-order non-unitary contributions in the νμ → νμ channel without significant systematic biases or unaccounted backgrounds.
What would settle it
A statistically significant mismatch between observed and predicted muon-neutrino event rates at specific energies and zenith angles that cannot be absorbed by known systematics would indicate non-unitary mixing.
Figures
read the original abstract
The mixing between flavor and mass eigenstates of active neutrinos is described by a $3\times3$ unitary matrix. However, the presence of additional heavy sterile neutrino states can lead to a non-unitary neutrino mixing scenario. Atmospheric neutrinos, with their wide range of baselines and energies, provide an excellent probe of such effects. In particular, Earth matter effects in neutrino oscillations play an important role, as the neutral-current potential contributes non-trivially in the presence of non-unitarity. In this work, we use 8 years of publicly available atmospheric neutrino data of IceCube DeepCore to probe this non-unitary neutrino mixing scenario. This high-purity $\nu_\mu$ CC sample provides strong sensitivity, especially to the non-unitary parameters appearing at leading order in the $\nu_\mu \rightarrow \nu_\mu$ channel. The data sample is found to be consistent with the standard unitary mixing framework with no significant deviation. Using this data sample, we place the most stringent bound to date of $\alpha_{33} > -0.027$ at 90% CL, while the other non-unitary parameters are constrained at competitive levels.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript analyzes 8 years of publicly available IceCube DeepCore atmospheric neutrino data using a high-purity νμ CC sample. It augments the standard three-flavor oscillation probabilities with the usual α-parameterized non-unitary mixing matrix, incorporates Earth matter effects via the modified NC potential, and performs a profiled likelihood fit. The data are reported to be consistent with unitary mixing, yielding the bound α33 > −0.027 at 90% CL together with competitive limits on the remaining non-unitary parameters.
Significance. If the central result holds, the work supplies the tightest existing constraint on α33 from atmospheric neutrinos and competitive bounds on the other parameters. The analysis re-uses public data and follows the statistical and systematic framework of prior IceCube publications, which aids reproducibility.
minor comments (3)
- [Methods] §3 (or equivalent methods section): the description of the Earth-matter potential modification for non-unitary mixing should explicitly state whether higher-order terms in the α parameters are retained or neglected, and justify the truncation.
- [Results] Table 1 or equivalent: the 90% CL intervals for all six α parameters should be listed together with the corresponding one-dimensional profiled limits from previous experiments for direct comparison.

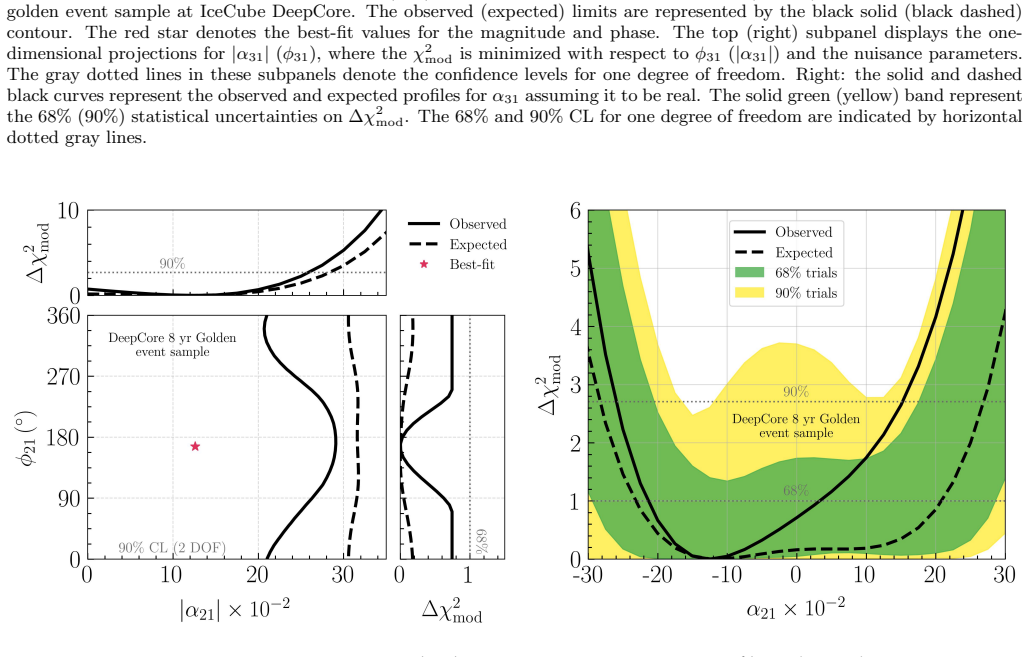

- [Results] Figure 2 (or equivalent): the caption should clarify whether the displayed contours are two-dimensional profiled or marginalised, and whether the unitary point (all α=0) lies inside the 68% and 90% regions.
Simulated Author's Rebuttal
We thank the referee for the positive assessment of our manuscript, the recognition of its significance in providing the tightest atmospheric-neutrino constraint on α33, and the recommendation for minor revision. We note that no specific major comments were raised in the report.
Circularity Check
No significant circularity in experimental bound derivation
full rationale
The paper reports a standard profiled likelihood fit of non-unitary mixing parameters (αij) to 8 years of publicly available IceCube DeepCore atmospheric neutrino data in the high-purity νμ CC channel. The central result (consistency with unitary mixing and the bound α33 > −0.027 at 90% CL) is obtained directly from this external data sample using the usual three-flavor oscillation probabilities augmented by the standard α-parameterized non-unitary matrix and NC matter potential. No load-bearing step reduces by the paper's own equations to a fitted input, self-citation chain, or ansatz smuggled from prior work; the analysis is self-contained against external benchmarks and follows prior IceCube methods without internal redefinition of the target quantities.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption The neutral-current potential contributes non-trivially to neutrino oscillations in the presence of non-unitarity
Reference graph
Works this paper leans on
-
[1]
R. Abbasiet al.(IceCube), Search for a light sterile neu- trino with 7.5 years of IceCube DeepCore data, Phys. Rev. D110, 072007 (2024), arXiv:2407.01314 [hep-ex]
-
[2]
Limits on sterile neutrino mixing using atmospheric neutrinos in Super-Kamiokande
K. Abeet al.(Super-Kamiokande), Limits on ster- ile neutrino mixing using atmospheric neutrinos in Super-Kamiokande, Phys. Rev. D91, 052019 (2015), arXiv:1410.2008 [hep-ex]
work page internal anchor Pith review Pith/arXiv arXiv 2015
-
[3]
Search for nu(mu)-->nu(e) Oscillations in the NOMAD Experiment
P. Astieret al.(NOMAD), Search for nu(mu) —>nu(e) oscillations in the NOMAD experiment, Phys. Lett. B 570, 19 (2003), arXiv:hep-ex/0306037. 17 FIG. D3. Comparison of the observed data and the best- fit MC events as a function of reconstructed energy,E reco (top panel), and reconstructed cosine of zenith angle, cosθ reco (bottom panel). The left (right) pa...
work page internal anchor Pith review Pith/arXiv arXiv 2003
-
[4]
P. Astieret al.(NOMAD), Final NOMAD results on muon-neutrino− →electron-neutrino− →tau-neutrino oscillations including a new search for tau-neutrino ap- pearance using hadronic tau decays, Nucl. Phys. B611, 3 (2001), arXiv:hep-ex/0106102
work page internal anchor Pith review Pith/arXiv arXiv 2001
-
[5]
S. Aielloet al.(KM3NeT), Study of tau neutrinos and non-unitary neutrino mixing with the first six detection units of KM3NeT/ORCA, JHEP07, 213, arXiv:2502.01443 [hep-ex]
-
[6]
P. Adamsonet al.(MINOS+, Daya Bay), Improved Constraints on Sterile Neutrino Mixing from Disappear- ance Searches in the MINOS, MINOS+, Daya Bay, and Bugey-3 Experiments, Phys. Rev. Lett.125, 071801 (2020), arXiv:2002.00301 [hep-ex]
- [7]
-
[8]
K. Goldhagen, M. Maltoni, S. E. Reichard, and T. Schwetz, Testing sterile neutrino mixing with present and future solar neutrino data, Eur. Phys. J. C82, 116 (2022), arXiv:2109.14898 [hep-ph]
-
[9]
M. Blennow, E. Fern´ andez-Mart´ ınez, J. Hern´ andez- Garc´ ıa, J. L´ opez-Pav´ on, X. Marcano, and D. Naredo- Tuero, Bounds on lepton non-unitarity and heavy neu- trino mixing, JHEP08, 030, arXiv:2306.01040 [hep-ph]
-
[10]
M. Blennow, P. Coloma, E. Fern´ andez-Mart´ ınez, J. Hern´ andez-Garc´ ıa, J. L´ opez-Pav´ on, X. Marcano, D. Naredo-Tuero, and S. Urrea, Misconceptions in neu- trino oscillations in presence of non-unitary mixing, Nucl. Phys. B1017, 116944 (2025), arXiv:2502.19480 [hep-ph]
-
[11]
Evidence for oscillation of atmospheric neutrinos
Y. Fukudaet al.(Super-Kamiokande), Evidence for os- cillation of atmospheric neutrinos, Phys. Rev. Lett.81, 1562 (1998), arXiv:hep-ex/9807003
work page internal anchor Pith review Pith/arXiv arXiv 1998
-
[12]
NuFIT v6.1 (2025),http://www.nu-fit.org/
2025
-
[13]
First measurement of reactor neutrino oscillations at JUNO,
A. Abuslemeet al.(JUNO), First measurement of reactor neutrino oscillations at JUNO, (2025), arXiv:2511.14593 [hep-ex]
-
[14]
Lessons from the first JUNO results
I. Esteban, M. C. Gonzalez-Garcia, M. Maltoni, I. Martinez-Soler, J. P. Pinheiro, and T. Schwetz, Lessons from the first JUNO results, JHEP04, 089, arXiv:2601.09791 [hep-ph]
work page internal anchor Pith review Pith/arXiv arXiv
-
[15]
A. Abed Abudet al.(DUNE), DUNE Phase II: scientific opportunities, detector concepts, technological solutions, JINST19(12), P12005, arXiv:2408.12725 [physics.ins- det]
-
[16]
V. Heweset al.(DUNE), Deep Underground Neutrino Experiment (DUNE) Near Detector Conceptual De- sign Report, Instruments5, 31 (2021), arXiv:2103.13910 [physics.ins-det]
- [17]
- [18]
- [19]
-
[20]
B. Abiet al.(DUNE), Deep Underground Neutrino Ex- periment (DUNE), Far Detector Technical Design Re- port, Volume II: DUNE Physics 10.2172/1599307 (2020), arXiv:2002.03005 [hep-ex]
-
[21]
Abiet al.(DUNE), Long-baseline neutrino oscillation physics potential of the DUNE experiment, Eur
B. Abiet al.(DUNE), Long-baseline neutrino oscillation physics potential of the DUNE experiment, Eur. Phys. J. C80, 978 (2020), arXiv:2006.16043 [hep-ex]
-
[22]
B. Abiet al.(DUNE), Prospects for beyond the Stan- dard Model physics searches at the Deep Underground Neutrino Experiment, Eur. Phys. J. C81, 322 (2021), arXiv:2008.12769 [hep-ex]
-
[23]
S. Schaelet al.(ALEPH, DELPHI, L3, OPAL, SLD, LEP Electroweak Working Group, SLD Electroweak Group, SLD Heavy Flavour Group), Precision electroweak mea- surements on theZresonance, Phys. Rept.427, 257 (2006), arXiv:hep-ex/0509008
work page internal anchor Pith review Pith/arXiv arXiv 2006
-
[24]
C. Athanassopouloset al.(LSND), Candidate events in a search for anti-muon-neutrino− →anti-electron-neutrino oscillations, Phys. Rev. Lett.75, 2650 (1995), arXiv:nucl- ex/9504002
-
[25]
A. Aguilaret al.(LSND), Evidence for neutrino oscilla- tions from the observation of ¯νe appearance in a ¯νµ beam, Phys. Rev. D64, 112007 (2001), arXiv:hep-ex/0104049
work page internal anchor Pith review Pith/arXiv arXiv 2001
-
[26]
Reanalysis of the GALLEX solar neutrino flux and source experiments
F. Kaether, W. Hampel, G. Heusser, J. Kiko, and T. Kirsten, Reanalysis of the GALLEX solar neutrino flux and source experiments, Phys. Lett. B685, 47 (2010), arXiv:1001.2731 [hep-ex]
work page internal anchor Pith review Pith/arXiv arXiv 2010
-
[27]
J. N. Abdurashitovet al.(SAGE), Measurement of the solar neutrino capture rate with gallium metal. III: Re- sults for the 2002–2007 data-taking period, Phys. Rev. C 80, 015807 (2009), arXiv:0901.2200 [nucl-ex]. 18
work page internal anchor Pith review Pith/arXiv arXiv 2002
- [28]
-
[29]
R. N. Mohapatra and J. W. F. Valle, Neutrino Mass and Baryon Number Nonconservation in Superstring Models, Phys. Rev. D34, 1642 (1986)
1986
-
[30]
R. N. Mohapatra and G. Senjanovic, Neutrino Mass and Spontaneous Parity Nonconservation, Phys. Rev. Lett. 44, 912 (1980)
1980
-
[31]
E. K. Akhmedov, M. Lindner, E. Schnapka, and J. W. F. Valle, Dynamical left-right symmetry breaking, Phys. Rev. D53, 2752 (1996), arXiv:hep-ph/9509255
work page internal anchor Pith review Pith/arXiv arXiv 1996
-
[32]
Non-unitarity effects in a realistic low-scale seesaw model
M. Malinsky, T. Ohlsson, and H. Zhang, Non-unitarity effects in a realistic low-scale seesaw model, Phys. Rev. D79, 073009 (2009), arXiv:0903.1961 [hep-ph]
work page internal anchor Pith review Pith/arXiv arXiv 2009
-
[33]
Minkowski,µ→eγat a Rate of One Out of 10 9 Muon Decays?, Phys
P. Minkowski,µ→eγat a Rate of One Out of 10 9 Muon Decays?, Phys. Lett. B67, 421 (1977)
1977
-
[34]
Schechter and J
J. Schechter and J. W. F. Valle, Neutrino Masses in SU(2) x U(1) Theories, Phys. Rev. D22, 2227 (1980)
1980
-
[35]
R. N. Mohapatra and G. Senjanovic, Neutrino Masses and Mixings in Gauge Models with Spontaneous Parity Violation, Phys. Rev. D23, 165 (1981)
1981
-
[36]
Pathways to Naturally Small Neutrino Masses
E. Ma, Pathways to naturally small neutrino masses, Phys. Rev. Lett.81, 1171 (1998), arXiv:hep-ph/9805219
work page internal anchor Pith review Pith/arXiv arXiv 1998
-
[37]
Pontecorvo, Mesonium and Antimesonium, Sov
B. Pontecorvo, Mesonium and Antimesonium, Sov. Phys. JETP6, 429 (1958)
1958
-
[38]
Z. Maki, M. Nakagawa, and S. Sakata, Remarks on the unified model of elementary particles, Prog. Theor. Phys. 28, 870 (1962)
1962
-
[39]
Pontecorvo, Neutrino Experiments and the Problem of Conservation of Leptonic Charge, Zh
B. Pontecorvo, Neutrino Experiments and the Problem of Conservation of Leptonic Charge, Zh. Eksp. Teor. Fiz. 53, 1717 (1967)
1967
-
[40]
Okubo, Note on Unitary Symmetry in Strong Inter- action
S. Okubo, Note on Unitary Symmetry in Strong Inter- action. II Excited States of Baryons, Prog. Theor. Phys. 28, 24 (1962)
1962
- [41]
-
[42]
C. Soumya, Probing nonunitary neutrino mixing via long-baseline neutrino oscillation experiments based at J-PARC, Phys. Rev. D105, 015012 (2022), arXiv:2104.04315 [hep-ph]
-
[43]
Non-Unitarity, sterile neutrinos, and Non-Standard neutrino Interactions
M. Blennow, P. Coloma, E. Fernandez-Martinez, J. Hernandez-Garcia, and J. Lopez-Pavon, Non- Unitarity, sterile neutrinos, and Non-Standard neutrino Interactions, JHEP04, 153, arXiv:1609.08637 [hep-ph]
work page internal anchor Pith review Pith/arXiv arXiv
- [44]
- [45]
-
[46]
J. Huang and S. Zhou, Probing unitarity violation of lepton flavor mixing matrix with reactor antineutrinos at JUNO and TAO, Phys. Lett. B873, 140160 (2026), arXiv:2511.15525 [hep-ph]
-
[47]
Probing non-unitary mixing and CP-violation at a Neutrino Factory
S. Antusch, M. Blennow, E. Fernandez-Martinez, and J. Lopez-Pavon, Probing non-unitary mixing and CP- violation at a Neutrino Factory, Phys. Rev. D80, 033002 (2009), arXiv:0903.3986 [hep-ph]
work page internal anchor Pith review Pith/arXiv arXiv 2009
-
[48]
F. J. Escrihuela, D. V. Forero, O. G. Miranda, M. T´ ortola, and J. W. F. Valle, Probing CP violation with non-unitary mixing in long-baseline neutrino oscil- lation experiments: DUNE as a case study, New J. Phys. 19, 093005 (2017), arXiv:1612.07377 [hep-ph]
work page internal anchor Pith review Pith/arXiv arXiv 2017
-
[49]
U. Rahaman and S. Razzaque, Non-Unitary Neutrino Mixing in the NOνA Near Detector Data, Universe8, 238 (2022), arXiv:2108.11783 [hep-ph]
- [50]
- [51]
-
[52]
Global constraints on heavy neutrino mixing
E. Fernandez-Martinez, J. Hernandez-Garcia, and J. Lopez-Pavon, Global constraints on heavy neutrino mixing, JHEP08, 033, arXiv:1605.08774 [hep-ph]
work page internal anchor Pith review Pith/arXiv arXiv
-
[53]
Declaiset al., Search for neutrino oscillations at 15- meters, 40-meters, and 95-meters from a nuclear power reactor at Bugey, Nucl
Y. Declaiset al., Search for neutrino oscillations at 15- meters, 40-meters, and 95-meters from a nuclear power reactor at Bugey, Nucl. Phys. B434, 503 (1995)
1995
-
[54]
Search for Sterile Neutrinos Mixing with Muon Neutrinos in MINOS
P. Adamsonet al.(MINOS), Search for Sterile Neutrinos Mixing with Muon Neutrinos in MINOS, Phys. Rev. Lett. 117, 151803 (2016), arXiv:1607.01176 [hep-ex]
work page internal anchor Pith review Pith/arXiv arXiv 2016
-
[55]
Abbasiet al.(IceCube), Replication Data for: Mea- surement of atmospheric neutrino mixing with im- proved IceCube DeepCore calibration and data process- ing (2025)
R. Abbasiet al.(IceCube), Replication Data for: Mea- surement of atmospheric neutrino mixing with im- proved IceCube DeepCore calibration and data process- ing (2025)
2025
-
[56]
Atifet al.(RENO, NEOS), Search for sterile neutrino oscillations using RENO and NEOS data, Phys
Z. Atifet al.(RENO, NEOS), Search for sterile neutrino oscillations using RENO and NEOS data, Phys. Rev. D 105, L111101 (2022), arXiv:2011.00896 [hep-ex]
-
[57]
Opher, Coherent scattering of cosmic neutrinos, As- tron
R. Opher, Coherent scattering of cosmic neutrinos, As- tron. Astrophys.37, 135 (1974)
1974
-
[58]
Langacker, J
P. Langacker, J. P. Leveille, and J. Sheiman, On the De- tection of Cosmological Neutrinos by Coherent Scatter- ing, Phys. Rev. D27, 1228 (1983)
1983
-
[59]
Wolfenstein, Neutrino Oscillations in Matter, Phys
L. Wolfenstein, Neutrino Oscillations in Matter, Phys. Rev. D17, 2369 (1978)
1978
-
[60]
S. P. Mikheyev and A. Y. Smirnov, Resonance Amplifica- tion of Oscillations in Matter and Spectroscopy of Solar Neutrinos, Sov. J. Nucl. Phys.42, 913 (1985)
1985
-
[61]
S. P. Mikheev and A. Y. Smirnov, Resonant amplifica- tion of neutrino oscillations in matter and solar neutrino spectroscopy, Nuovo Cim. C9, 17 (1986)
1986
-
[62]
E. K. Akhmedov, A. Dighe, P. Lipari, and A. Y. Smirnov, Atmospheric neutrinos at Super-Kamiokande and para- metric resonance in neutrino oscillations, Nucl. Phys. B 542, 3 (1999), arXiv:hep-ph/9808270
work page internal anchor Pith review Pith/arXiv arXiv 1999
-
[63]
E. K. Akhmedov, Parametric resonance of neutrino os- cillations and passage of solar and atmospheric neutri- nos through the earth, Nucl. Phys. B538, 25 (1999), arXiv:hep-ph/9805272
work page internal anchor Pith review Pith/arXiv arXiv 1999
-
[64]
P. I. Krastev and A. Y. Smirnov, Parametric Effects in Neutrino Oscillations, Phys. Lett. B226, 341 (1989)
1989
-
[65]
E. K. Akhmedov, Neutrino oscillations in inhomogeneous matter. (In Russian), Sov. J. Nucl. Phys.47, 301 (1988)
1988
-
[66]
C. Rott, A. Taketa, and D. Bose, Spectrometry of the Earth using Neutrino Oscillations, Sci. Rep.5, 15225 (2015), arXiv:1502.04930 [physics.geo-ph]
work page internal anchor Pith review Pith/arXiv arXiv 2015
- [67]
- [68]
- [69]
- [70]
-
[71]
The Design and Performance of IceCube DeepCore
R. Abbasiet al.(IceCube), The Design and Performance of IceCube DeepCore, Astropart. Phys.35, 615 (2012), arXiv:1109.6096 [astro-ph.IM]
work page internal anchor Pith review Pith/arXiv arXiv 2012
-
[72]
R. Abbasiet al.(IceCube), Measurement of atmospheric neutrino mixing with improved IceCube DeepCore cali- bration and data processing, Phys. Rev. D108, 012014 (2023), arXiv:2304.12236 [hep-ex]
-
[73]
J. H. Friedman, Greedy function approximation: A gra- dient boosting machine., Annals Statist.29, 1189 (2001)
2001
-
[74]
T. Kozynets, P. Eller, A. Zander, M. Ettengruber, and D. J. Koskinen, Constraints on non-unitary neutrino mix- ing in light of atmospheric and reactor neutrino data, JHEP05, 130, arXiv:2407.20388 [hep-ph]
-
[75]
Atmospheric neutrino flux calculation using the NRLMSISE00 atmospheric model
M. Honda, M. Sajjad Athar, T. Kajita, K. Kasahara, and S. Midorikawa, Atmospheric neutrino flux calculation us- ing the NRLMSISE-00 atmospheric model, Phys. Rev. D 92, 023004 (2015), arXiv:1502.03916 [astro-ph.HE]
work page internal anchor Pith review Pith/arXiv arXiv 2015
-
[76]
M. G. Aartsenet al.(IceCube), Measurement of Atmo- spheric Neutrino Oscillations at 6→56 GeV with Ice- Cube DeepCore, Phys. Rev. Lett.120, 071801 (2018), arXiv:1707.07081 [hep-ex]
work page internal anchor Pith review Pith/arXiv arXiv 2018
-
[77]
G. D. Barr, T. K. Gaisser, S. Robbins, and T. Stanev, Un- certainties in Atmospheric Neutrino Fluxes, Phys. Rev. D74, 094009 (2006), arXiv:astro-ph/0611266
work page internal anchor Pith review Pith/arXiv arXiv 2006
-
[78]
Tena-Vidal, C
J. Tena-Vidal, C. Andreopoulos, A. Ashkenazi, C. Barry, S. Dennis, S. Dytman,et al.(GENIE Collaboration), Neutrino-nucleon cross-section model tuning in genie v3, Phys. Rev. D104, 072009 (2021)
2021
-
[79]
Cooper-Sarkar, P
A. Cooper-Sarkar, P. Mertsch, and S. Sarkar, The high energy neutrino cross-section in the Standard Model and its uncertainty, J. High Energy Phys.08, 042
-
[80]
A. Ishihara (IceCube), The IceCube Upgrade - De- sign and Science Goals, PoSICRC2019, 1031 (2021), arXiv:1908.09441 [astro-ph.HE]
