arxiv: 1907.04179 · v1 · pith:HNYTV7KUnew · submitted 2019-07-08 · ⚛️ physics.data-an · physics.comp-ph· physics.flu-dyn

Spot the Difference: Accuracy of Numerical Simulations via the Human Visual System

Kiwon Um , Xiangyu Hu , Bing Wang , Nils Thuerey This is my paper

Pith reviewed 2026-05-25 00:40 UTC · model grok-4.3

classification ⚛️ physics.data-an physics.comp-phphysics.flu-dyn
keywords user studiesvisual evaluationnumerical simulationsfluid dynamicsENO schemescrowd-sourcingperceptual metricsaccuracy assessment
0
0 comments X

The pith

Crowd-sourced visual comparisons reliably rank numerical simulation accuracy where standard metrics fail.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that crowd-sourced user studies, in which non-experts visually compare images from different simulations, produce consistent rankings of numerical accuracy for complex fluid phenomena. This approach works without any physics expertise and remains decisive even for under-resolved cases where classical error measures become inconclusive. The authors apply the method to variants of essentially non-oscillatory schemes across multiple flow configurations and show that human perception supplies a practical alternative metric. A sympathetic reader would care because many real-world simulations never reach grid convergence, leaving traditional quantitative tools without clear guidance on which method is better.

Core claim

User studies that rely on the human visual system yield a very robust metric and consistent answers for complex phenomena without any requirements for proficiency regarding the physics at hand. This holds even for cases away from convergence where traditional metrics often end up with inconclusive results. The method is demonstrated by evaluating results of different essentially non-oscillatory schemes in different fluid flow settings.

What carries the argument

Crowd-sourced spot-the-difference tasks performed by non-expert viewers on rendered images of simulation outputs.

If this is right

  • Visual rankings remain stable across multiple fluid configurations even when grids are coarse.
  • No physics background is needed for participants to produce repeatable orderings of schemes.
  • The approach supplies decisive comparisons precisely where classical norms and convergence checks are inconclusive.
  • Different ENO variants can be ordered by perceived fidelity in under-resolved regimes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same visual protocol could be applied to other simulation domains such as solid mechanics or combustion once suitable image renderings exist.
  • Computer vision models trained on these human judgments might eventually automate the evaluation step.
  • The finding raises the question whether human perception encodes physical invariants that standard L2 or L-infinity norms miss.

Load-bearing premise

That differences spotted by non-expert viewers in simulation images correspond to meaningful differences in the underlying numerical accuracy relative to physical reality.

What would settle it

A controlled experiment in which non-experts consistently select images from a simulation known to be less accurate (by independent physical validation) over images from a more accurate one.

Figures

Figures reproduced from arXiv: 1907.04179 by Bing Wang, Kiwon Um, Nils Thuerey, Xiangyu Hu.

Figure 1

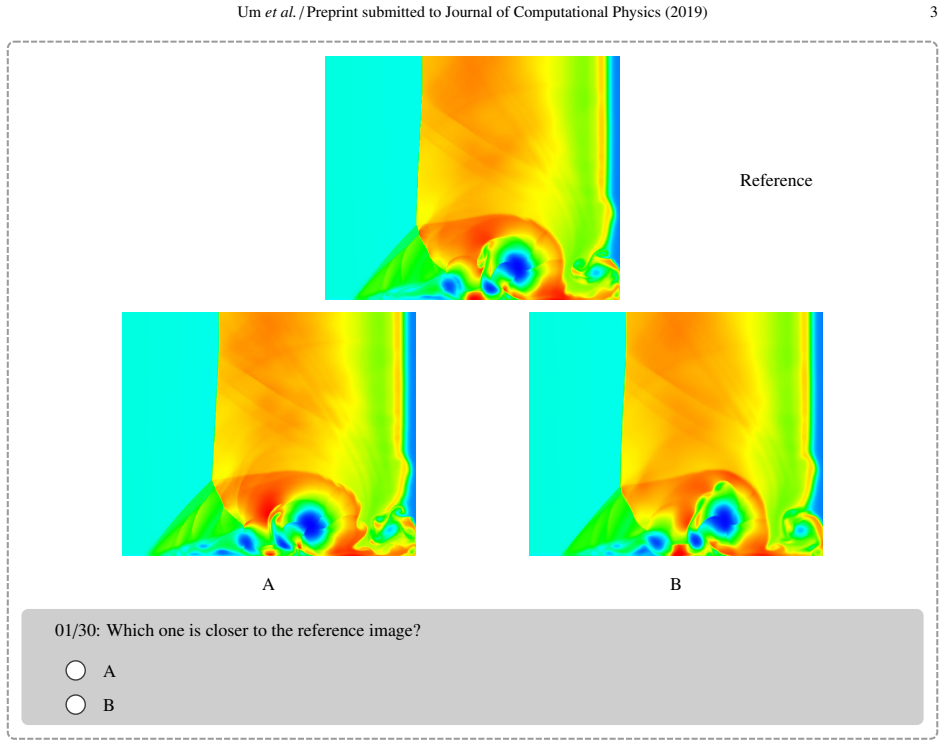

Figure 1. Figure 1: User study design: All user studies in this paper were conducted with the design shown above. Each participant has to make one [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: We have investigated a breaking dam case with a more realistic depiction in addition to four test cases with [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 2

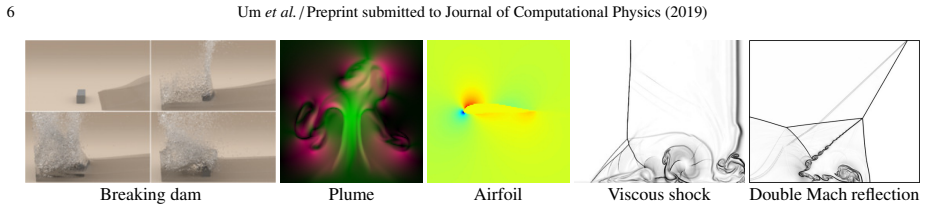

Figure 2. Figure 2: A selection of fluid simulation evaluations: The images show the visualized simulation results where a control parameter such [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

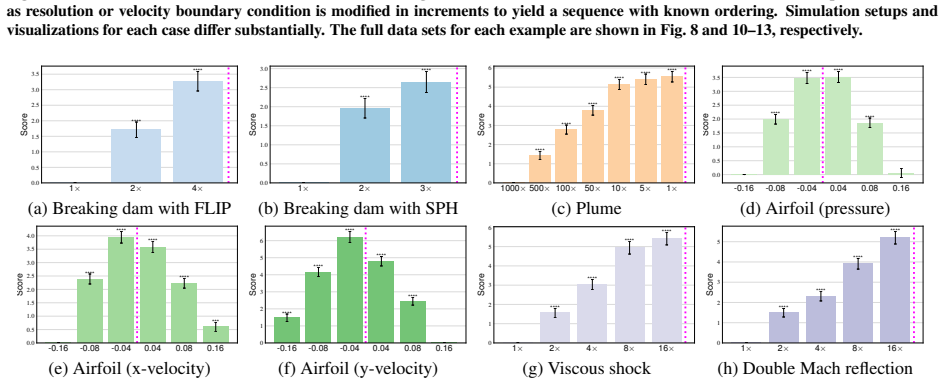

Figure 3. Figure 3: Accuracy evaluations for the different simulation setups shown in [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

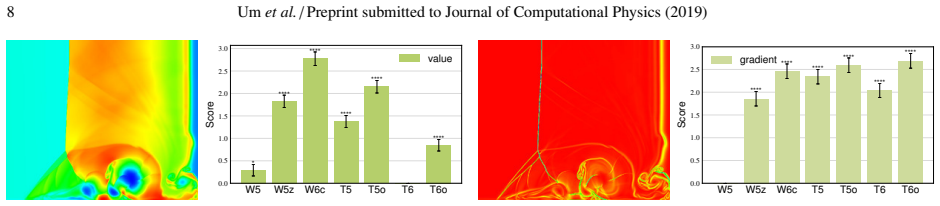

Figure 4. Figure 4: Visualizations of a viscous shock tube simulation and performance evaluations of seven finite di [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5

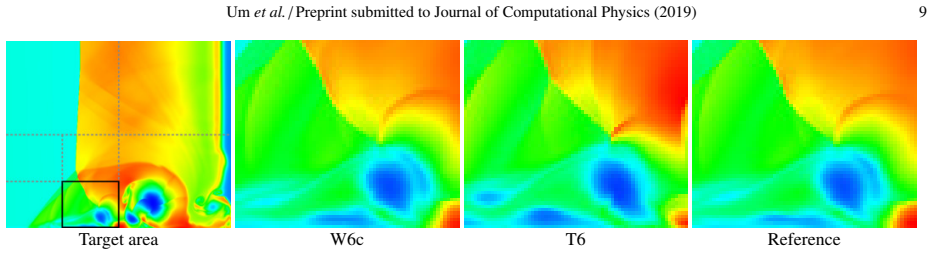

Figure 5. Figure 5: Localization: For the highlighted target area, the best (W6c) and worst (T6) scoring schemes are shown. The T6 solution clearly [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6

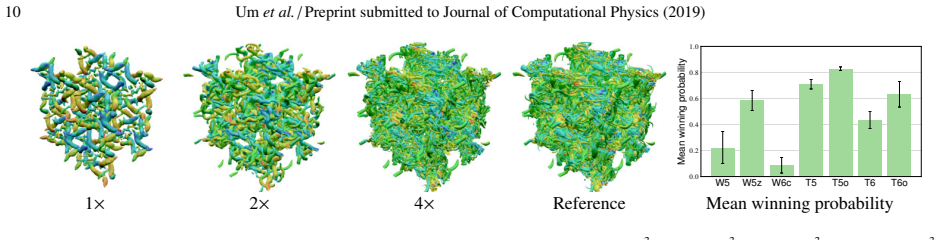

Figure 6. Figure 6: Different resolutions of the Taylor-Green vortex flow simulation: The resolutions are 643 for 1×, 1283 for 2×, 2563 for 4×, and 5123 for Reference. The images show the isosurface for a Q-criterion value of three and are colored by x vorticity magnitude. The graph shows mean and standard deviation of winning probabilities for seven schemes across these resolutions. For a solution outside of the convergence … view at source ↗
Figure 7

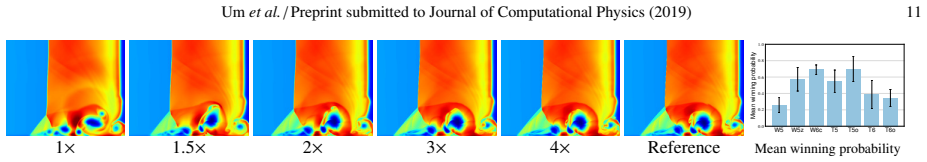

Figure 7. Figure 7: Resolutions used to determine the NCM for viscous shock tube simulations: From left to right, 1 [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
Figure 8

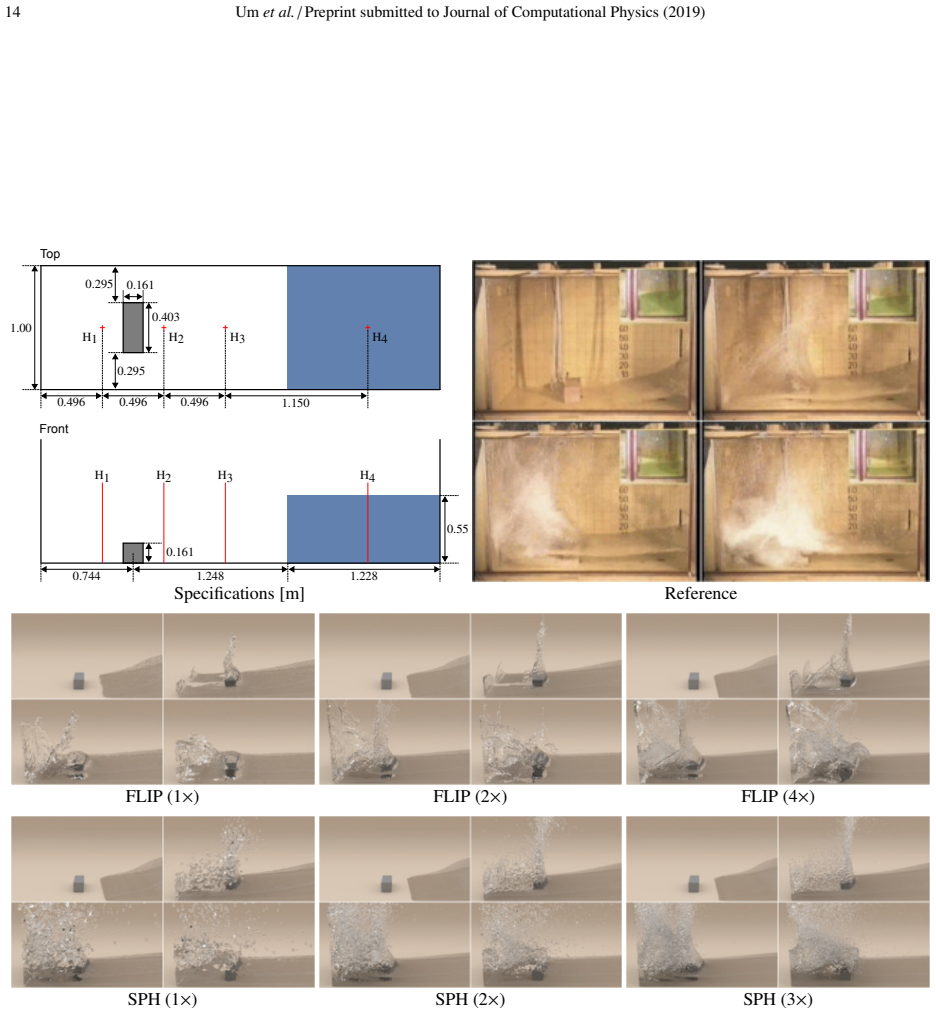

Figure 8. Figure 8: Breaking dam: The top left shows the specifications of this experimental setup [42]. The probe positions for graphs in Fig. 9 are [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Graphs for the breaking dam user study: The graphs plot the water height values measured at four probes, H [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Rising hot plume: This test compares simulations of a hot plume of gas where each simulation adds di [PITH_FULL_IMAGE:figures/full_fig_p016_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Airfoil Reynolds-averaged Navier-Stokes turbulence: An airfoil profile is simulated in two dimensions for di [PITH_FULL_IMAGE:figures/full_fig_p019_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Viscous shock tube: This setup contains simulations of a complex unsteady viscous shock flow [56] with di [PITH_FULL_IMAGE:figures/full_fig_p020_12.png] view at source ↗
Figure 13

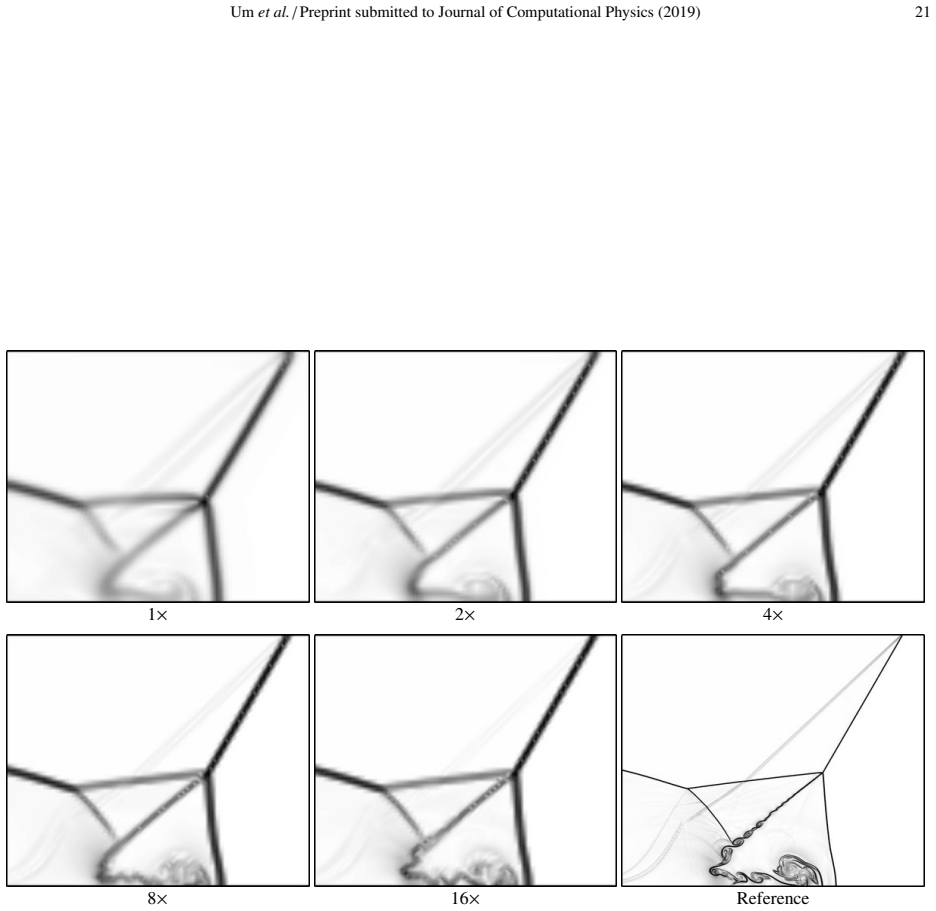

Figure 13. Figure 13: Double Mach reflection: This setup contains simulations of a two-dimensional inviscid flow with a strong shock [61] with di [PITH_FULL_IMAGE:figures/full_fig_p021_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Viscous shock tubes simulated with different discretization schemes: The images (a) and (b) show visualizations of the density value and the density gradient of each solution, respectively. The grid resolutions are 5120×2560 for the reference and 1280×640 for the different ENO schemes [PITH_FULL_IMAGE:figures/full_fig_p022_14.png] view at source ↗
Figure 15

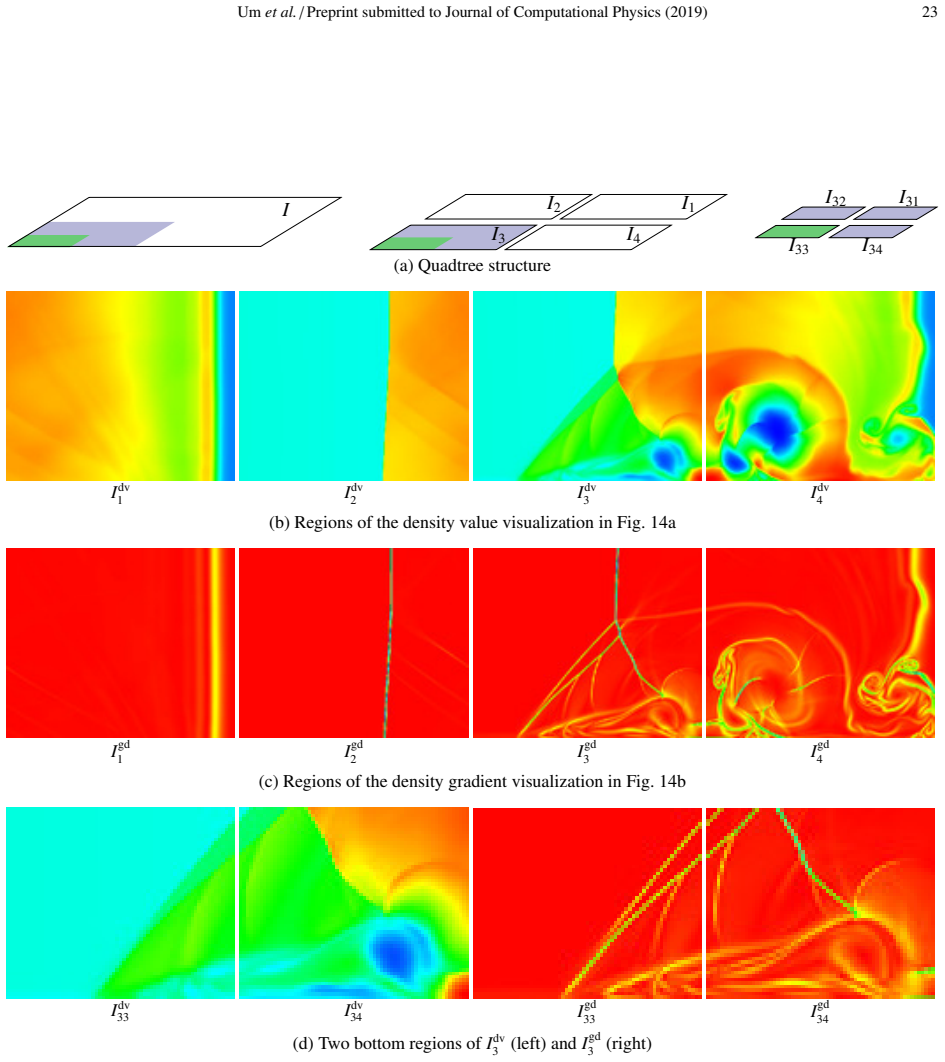

Figure 15. Figure 15: Quadtree-based localization: From the root level [PITH_FULL_IMAGE:figures/full_fig_p023_15.png] view at source ↗
Figure 16

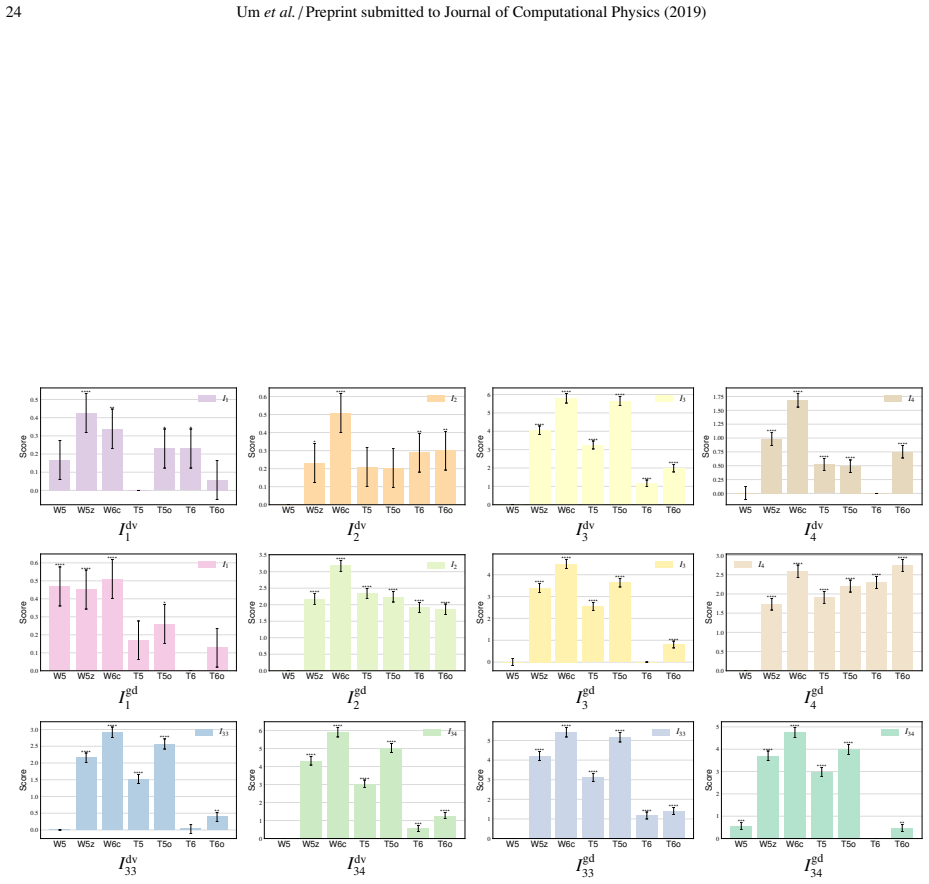

Figure 16. Figure 16: User study results for the error localization (Experiment 3): The graphs show the performance scores of seven discretization [PITH_FULL_IMAGE:figures/full_fig_p024_16.png] view at source ↗
Figure 17

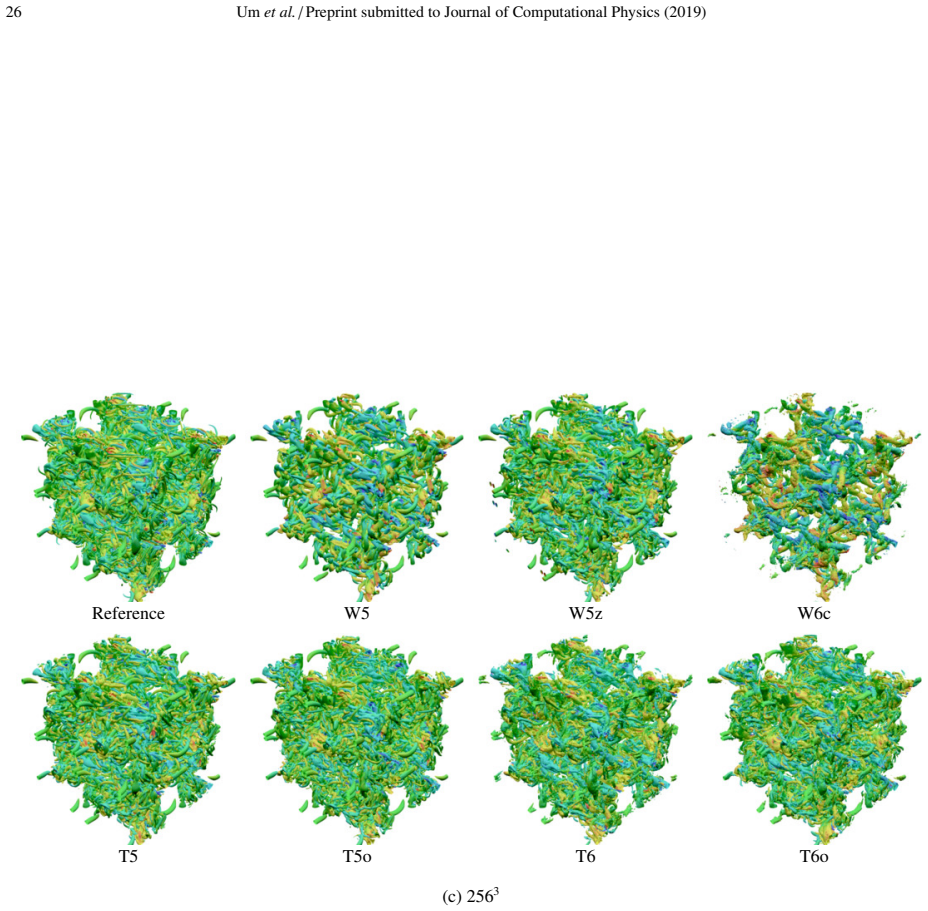

Figure 17. Figure 17: Taylor-Green vortex flow simulations with di [PITH_FULL_IMAGE:figures/full_fig_p026_17.png] view at source ↗
Figure 18

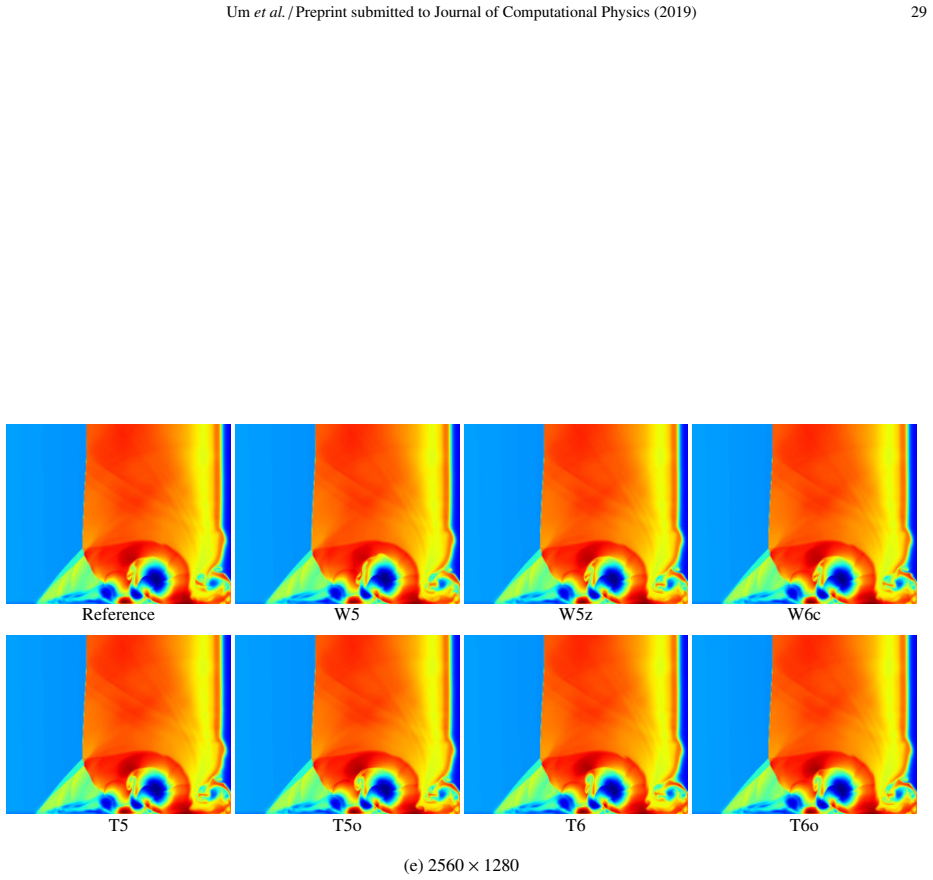

Figure 18. Figure 18: Viscous shock tube simulations using different discretization schemes with different resolutions: The resolution of the reference data set is 5120×2560 [PITH_FULL_IMAGE:figures/full_fig_p029_18.png] view at source ↗
read the original abstract

Comparative evaluation lies at the heart of science, and determining the accuracy of a computational method is crucial for evaluating its potential as well as for guiding future efforts. However, metrics that are typically used have inherent shortcomings when faced with the under-resolved solutions of real-world simulation problems. We show how to leverage crowd-sourced user studies in order to address the fundamental problems of widely used classical evaluation metrics. We demonstrate that such user studies, which inherently rely on the human visual system, yield a very robust metric and consistent answers for complex phenomena without any requirements for proficiency regarding the physics at hand. This holds even for cases away from convergence where traditional metrics often end up inconclusive results. More specifically, we evaluate results of different essentially non-oscillatory (ENO) schemes in different fluid flow settings. Our methodology represents a novel and practical approach for scientific evaluations that can give answers for previously unsolved problems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims that crowd-sourced user studies relying on the human visual system provide a robust and consistent metric for comparing the accuracy of different essentially non-oscillatory (ENO) schemes in fluid-flow simulations. This metric is asserted to work for complex phenomena without requiring physics expertise and to remain effective even away from numerical convergence, where classical metrics become inconclusive.

Significance. If the central claim holds after proper validation, the approach could supply a practical evaluation tool for under-resolved simulations where traditional norms fail, offering a human-perception-based alternative that does not require domain proficiency.

major comments (2)
  1. [Abstract] Abstract: the claim that user studies 'yield a very robust metric and consistent answers' is unsupported by any reported participant numbers, statistical tests, inter-rater agreement measures, or controls for viewer bias, so it is not possible to determine whether the data actually support the stated robustness.
  2. [Abstract] Abstract: no independent calibration of the visual judgments against an analytical solution or a converged high-resolution reference run is described; without it the premise that perceived differences track truncation error (rather than monotonicity or visual smoothness) remains untested and is load-bearing for the claim that the metric identifies numerical accuracy away from convergence.
minor comments (1)
  1. [Abstract] The abstract mentions 'different fluid flow settings' but gives no concrete examples or references to the specific test problems used.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their detailed reading and constructive feedback on the abstract. We address each major comment below, indicating where revisions to the manuscript are warranted.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that user studies 'yield a very robust metric and consistent answers' is unsupported by any reported participant numbers, statistical tests, inter-rater agreement measures, or controls for viewer bias, so it is not possible to determine whether the data actually support the stated robustness.

    Authors: We agree that the abstract would be strengthened by including quantitative support for the robustness claim. The full manuscript reports results from more than 100 crowd-sourced participants, applies statistical tests to demonstrate consistency across raters, and includes inter-rater agreement measures. We will revise the abstract to briefly state the participant count and key agreement statistics, while retaining the focus on the method's applicability to complex flows. revision: yes

  2. Referee: [Abstract] Abstract: no independent calibration of the visual judgments against an analytical solution or a converged high-resolution reference run is described; without it the premise that perceived differences track truncation error (rather than monotonicity or visual smoothness) remains untested and is load-bearing for the claim that the metric identifies numerical accuracy away from convergence.

    Authors: The manuscript deliberately targets regimes where analytical solutions or fully converged references are unavailable, which is the practical setting where classical metrics fail. Comparisons are performed between ENO schemes whose relative accuracy is established in the literature, and the human judgments are shown to be consistent with those known orderings even when L2 norms are inconclusive. We will add a clarifying sentence in the abstract and a short discussion paragraph noting that the visual metric is validated through cross-scheme consistency rather than direct truncation-error calibration, as the latter is often infeasible for the targeted applications. revision: partial

Circularity Check

0 steps flagged

No circularity: methodology rests on independent external human judgments

full rationale

The paper introduces a methodology that collects crowd-sourced pairwise comparisons from non-expert viewers to rank ENO scheme outputs. No equations, fitted parameters, or self-citations are invoked to derive the metric itself; the evaluation chain terminates at raw human responses collected independently of any simulation parameters or target accuracy values. The central claim therefore remains self-contained against external benchmarks and does not reduce to any of the enumerated circular patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities; the approach is presented as an empirical methodology relying on collected human judgments.
