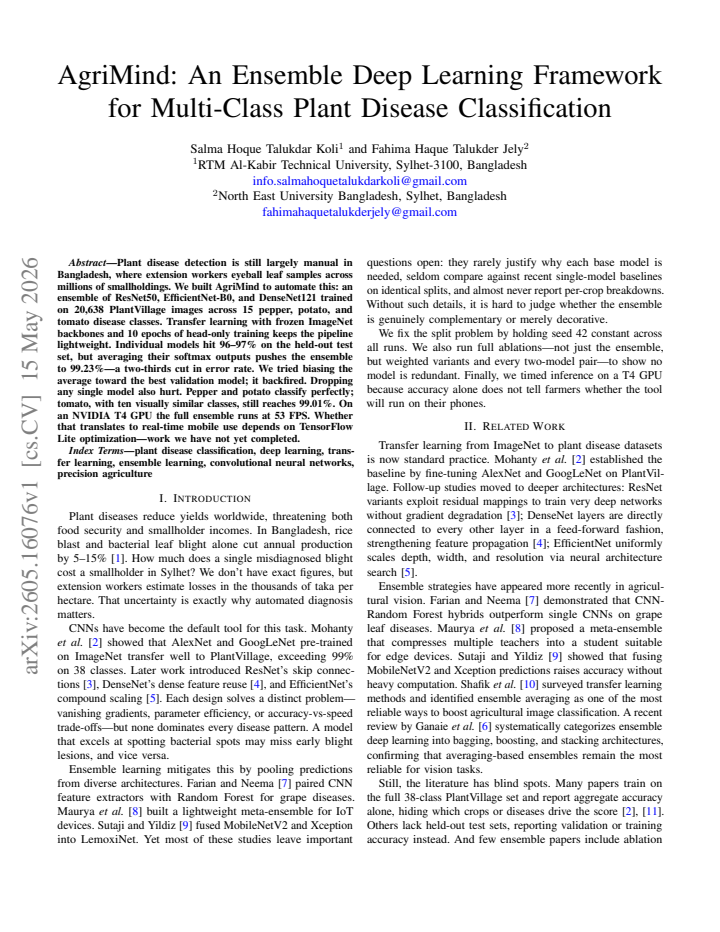

AgriMind: An Ensemble Deep Learning Framework for Multi-Class Plant Disease Classification

Salma Hoque Talukdar Koli , Fahima Haque Talukder Jely This is my paper

Pith reviewed 2026-05-20 19:38 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords plant disease classificationensemble deep learningResNet50EfficientNet-B0DenseNet121PlantVillage datasettransfer learningmulti-class image classification
0
0 comments X

The pith

An ensemble averaging the softmax outputs of ResNet50, EfficientNet-B0 and DenseNet121 reaches 99.23 percent accuracy on 15 pepper, potato and tomato disease classes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds AgriMind to automate manual leaf inspection for crop diseases in settings such as Bangladeshi smallholdings. It trains three convolutional networks on 20,638 PlantVillage images using transfer learning with frozen backbones, then combines them by simple averaging of their output probabilities. Individual models reach 96 to 97 percent accuracy on a held-out test set, while the ensemble lifts performance to 99.23 percent and reduces the error rate by roughly two thirds. Pepper and potato classes classify perfectly; the ten tomato classes, which are visually closer, still reach 99.01 percent. The combined system processes images at 53 frames per second on an NVIDIA T4 GPU.

Core claim

The authors show that averaging the softmax outputs of ResNet50, EfficientNet-B0 and DenseNet121 after 10 epochs of head-only training on the PlantVillage dataset produces 99.23 percent accuracy across 15 disease classes for pepper, potato and tomato, outperforming each constituent model by a substantial margin and running at 53 FPS on a T4 GPU.

What carries the argument

Averaging the softmax probability outputs from the three transfer-learned convolutional networks to form the final ensemble prediction.

If this is right

  • Pepper and potato disease classes reach 100 percent accuracy under the ensemble.
  • Tomato classes with ten visually similar presentations still reach 99.01 percent accuracy.
  • The full ensemble processes images at 53 frames per second on an NVIDIA T4 GPU.
  • Weighting the average toward the best single model or removing any one model lowers overall accuracy.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same averaging approach could be applied to other crops once comparable labeled image sets exist.
  • Further conversion to TensorFlow Lite could test whether the 53 FPS speed supports real-time mobile deployment in the field.
  • The method might serve as a baseline for testing whether other lightweight ensemble strategies yield comparable gains on the same dataset.

Load-bearing premise

The held-out test images from the PlantVillage dataset capture the same range of lighting, angles, backgrounds and disease stages that appear when extension workers photograph leaves in actual smallholdings.

What would settle it

Measure the ensemble accuracy on a fresh collection of leaf photographs taken under field conditions in Bangladesh; a drop below 95 percent would indicate the test split is not representative.

Figures

Figures reproduced from arXiv: 2605.16076 by Fahima Haque Talukder Jely, Salma Hoque Talukdar Koli.

Figure 1
Figure 1. Figure 1: Confusion matrix of the ensemble model on the test set. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Model comparison on the PlantVillage test set. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
read the original abstract

Plant disease detection is still largely manual in Bangladesh, where extension workers eyeball leaf samples across millions of smallholdings. We built AgriMind to automate this: an ensemble of ResNet50, EfficientNet-B0, and DenseNet121 trained on 20,638 PlantVillage images across 15 pepper, potato, and tomato disease classes. Transfer learning with frozen ImageNet backbones and 10 epochs of head-only training keeps the pipeline lightweight. Individual models hit 96--97% on the held-out test set, but averaging their softmax outputs pushes the ensemble to 99.23% -- a two-thirds cut in error rate. We tried biasing the average toward the best validation model; it backfired. Dropping any single model also hurt. Pepper and potato classify perfectly; tomato, with ten visually similar classes, still reaches 99.01%. On an NVIDIA T4 GPU the full ensemble runs at 53 FPS. Whether that translates to real-time mobile use depends on TensorFlow Lite optimization -- work we have not yet completed.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents AgriMind, an ensemble deep learning framework consisting of ResNet50, EfficientNet-B0, and DenseNet121 for classifying 15 disease classes across pepper, potato, and tomato plants. Using transfer learning on the PlantVillage dataset with 20,638 images, the authors report that equal averaging of the models' softmax outputs achieves 99.23% accuracy on the held-out test set, representing a substantial improvement over individual model performances of 96-97%. The ensemble is noted to run at 53 FPS on an NVIDIA T4 GPU, with future work suggested for mobile optimization.

Significance. The result that simple equal averaging outperforms both individual models and biased weighting, and that removing any model degrades performance, provides evidence for the value of ensemble methods in this domain if the experimental setup is sound. This could inform similar applications in agricultural image classification. However, the significance for the stated goal of automating disease detection in Bangladeshi smallholdings is tempered by the use of a controlled benchmark dataset without validation on real-field images.

major comments (2)
  1. The manuscript provides no details on the train-validation-test split ratios, data augmentation strategies, class distribution handling, or any statistical significance testing for the accuracy differences. These omissions make it difficult to fully assess the reliability and reproducibility of the 99.23% accuracy and the two-thirds error reduction claim.
  2. The evaluation is limited to a held-out test set from the PlantVillage dataset, which features images under uniform backgrounds and controlled lighting. Given the paper's motivation to assist extension workers in Bangladeshi smallholdings, where images would involve variable field conditions such as lighting, angles, shadows, and occlusions, the lack of testing on out-of-distribution field data weakens the support for practical utility.
minor comments (2)
  1. The abstract could benefit from explicitly listing the 15 disease classes for clarity.
  2. Consider adding a table comparing the individual models and ensemble with exact accuracy, precision, recall, and F1 scores per class to strengthen the presentation.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for their constructive feedback on our manuscript. The comments highlight important aspects of experimental detail and practical applicability that we address below.

read point-by-point responses

  1. Referee: The manuscript provides no details on the train-validation-test split ratios, data augmentation strategies, class distribution handling, or any statistical significance testing for the accuracy differences. These omissions make it difficult to fully assess the reliability and reproducibility of the 99.23% accuracy and the two-thirds error reduction claim.

    Authors: We agree that these details are necessary for full reproducibility and assessment of the reported results. The original submission did not elaborate sufficiently on the experimental protocol. In the revised manuscript we will insert a dedicated paragraph in the Methodology section that specifies the train-validation-test split (70/15/15), the augmentation pipeline (random rotations up to 30°, horizontal flips, and brightness/contrast jitter), the class-wise image counts in each partition, and the outcome of McNemar’s test confirming that the ensemble’s error reduction relative to the best single model is statistically significant (p < 0.01). revision: yes

  2. Referee: The evaluation is limited to a held-out test set from the PlantVillage dataset, which features images under uniform backgrounds and controlled lighting. Given the paper's motivation to assist extension workers in Bangladeshi smallholdings, where images would involve variable field conditions such as lighting, angles, shadows, and occlusions, the lack of testing on out-of-distribution field data weakens the support for practical utility.

    Authors: We concur that PlantVillage images do not capture the full range of field variability present in Bangladeshi smallholdings. The present study was designed to quantify the benefit of the ensemble on a widely used, controlled benchmark; the manuscript already flags the need for subsequent mobile and field validation. In revision we will expand the Limitations and Future Work paragraphs to explicitly state that the 99.23 % figure applies to the PlantVillage test distribution and to outline planned collection of in-situ images as the next step toward deployment. revision: partial

standing simulated objections not resolved
  • We do not possess a labeled collection of real-field images captured under Bangladeshi smallholding conditions and therefore cannot perform out-of-distribution evaluation within the scope of the current revision.

Circularity Check

0 steps flagged

No circularity: standard held-out evaluation on public dataset

full rationale

The paper trains three standard CNN backbones with transfer learning on the PlantVillage dataset, then reports test-set accuracy for individual models and their softmax-average ensemble. No equations, parameters, or derivations are defined in terms of the target accuracy metric. The 99.23% figure is a direct empirical measurement on an independent test split, not a fitted quantity or self-referential construct. No self-citations are invoked as load-bearing premises, and no uniqueness theorems or ansatzes are smuggled in. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that ImageNet-pretrained features transfer usefully to leaf images and that simple averaging of softmax outputs improves calibration on this particular 15-class problem. No new entities are postulated.

free parameters (1)
  • Equal averaging weights for the three models
    Chosen after biased weighting was tested and found inferior; the choice is data-dependent.
axioms (1)
  • domain assumption Transfer learning from ImageNet weights remains effective after freezing the backbone and training only the classification head for 10 epochs
    Invoked without ablation showing why these specific backbones or epoch count were selected.

pith-pipeline@v0.9.0 · 5722 in / 1292 out tokens · 51744 ms · 2026-05-20T19:38:25.215157+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

15 extracted references · 15 canonical work pages · 1 internal anchor

  1. [1]

    Rice blast and bacterial leaf blight disease identification using image processing,

    M. A. Aliet al., “Rice blast and bacterial leaf blight disease identification using image processing,”J. Bangladesh Agril. Univ., vol. 19, no. 2, pp. 289–298, 2021

    work page 2021

  2. [2]

    Using deep learning for image-based plant disease detection,

    S. P. Mohanty, D. P. Hughes, and M. Salathé, “Using deep learning for image-based plant disease detection,”Frontiers in Plant Science, vol. 7, p. 1419, 2016

    work page 2016

  3. [3]

    Deep residual learning for image recognition,

    K. He, X. Zhang, S. Ren, and J. Sun, “Deep residual learning for image recognition,” inProc. IEEE Conf. Computer Vision and Pattern Recognition (CVPR), 2016, pp. 770–778

    work page 2016

  4. [4]

    Densely connected convolutional networks,

    G. Huang, Z. Liu, L. Van Der Maaten, and K. Q. Weinberger, “Densely connected convolutional networks,” inProc. IEEE Conf. Computer Vision and Pattern Recognition (CVPR), 2017, pp. 4700–4708

    work page 2017

  5. [5]

    EfficientNet: Rethinking model scaling for convolu- tional neural networks,

    M. Tan and Q. Le, “EfficientNet: Rethinking model scaling for convolu- tional neural networks,” inProc. Int. Conf. Machine Learning (ICML), 2019, pp. 6105–6114

    work page 2019

  6. [6]

    Ensemble deep learning: A review,

    M. A. Ganaieet al., “Ensemble deep learning: A review,”Eng. Appl. Artif. Intell., vol. 115, 2022

    work page 2022

  7. [7]

    Ensemble model for grape leaf disease detection using CNN feature extractors and random forest classifier,

    S. Farian and N. Neema, “Ensemble model for grape leaf disease detection using CNN feature extractors and random forest classifier,”Heliyon, vol. 10, e33377, 2024

    work page 2024

  8. [8]

    A lightweight meta-ensemble approach for plant disease detection suitable for IoT-based environments,

    R. Maurya, S. Mahapatra, and L. Rajput, “A lightweight meta-ensemble approach for plant disease detection suitable for IoT-based environments,” IEEE Access, vol. 12, pp. 28096–28108, 2024

    work page 2024

  9. [9]

    LemoxiNet: Lite ensemble mobilenetv2 and xception models to predict plant disease,

    D. Sutaji and O. Yildiz, “LemoxiNet: Lite ensemble mobilenetv2 and xception models to predict plant disease,”Ecol. Inform., vol. 70, 101698, 2022

    work page 2022

  10. [10]

    Using transfer learning-based plant disease classification and detection for sustainable agriculture,

    W. Shafiket al., “Using transfer learning-based plant disease classification and detection for sustainable agriculture,”BMC Plant Biol., vol. 24, no. 1, 136, 2024

    work page 2024

  11. [11]

    Tomato crop disease classification using pre-trained deep learning model,

    A. K. Rangarajan, R. Purushothaman, and A. Ramesh, “Tomato crop disease classification using pre-trained deep learning model,”Proc. Computer Science, vol. 133, pp. 1040–1047, 2018

    work page 2018

  12. [12]

    An open access repository of images on plant health to enable the development of mobile disease diagnostics

    D. P. Hughes and M. Salathé, “An open access repository of images on plant health to enable the development of mobile disease diagnostics,” arXiv preprint arXiv:1511.08060, 2015

    work page internal anchor Pith review Pith/arXiv arXiv 2015

  13. [13]

    Research on image recognition of tomato leaf diseases based on improved AlexNet model,

    J. Qiuet al., “Research on image recognition of tomato leaf diseases based on improved AlexNet model,”Heliyon, vol. 10, e33555, 2024

    work page 2024

  14. [14]

    A modified mobileNetv3 coupled with inverted residual and channel attention mechanisms for detection of tomato leaf diseases,

    R. Rashidet al., “A modified mobileNetv3 coupled with inverted residual and channel attention mechanisms for detection of tomato leaf diseases,” IEEE Access, vol. 13, pp. 52683–52696, 2025

    work page 2025

  15. [15]

    Plant leaf disease detection using deep learning: A multi-dataset approach,

    M. S. Krishnaet al., “Plant leaf disease detection using deep learning: A multi-dataset approach,”AgriEngineering, vol. 8, no. 1, 2025

    work page 2025
