Three real trajectories are enough to train a mesh GNN that matches calibrated MuJoCo and beats differentiable Brax on rigid contact while remaining fully differentiable.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · grok-4.5

2026-07-15 13:55 UTC pith:HWRSYR74

load-bearing objection Solid few-shot real-to-sim pipeline for a mesh GNN contact simulator that matches identified MuJoCo on real cubes and beats Brax; the differentiability claim rests on an untested fixed-contact-set assumption. the 4 major comments →

arxiv 2603.06218 v2 pith:HWRSYR74 submitted 2026-03-06 cs.RO

Few-Shot Neural Differentiable Simulator: Real-to-Sim Rigid-Contact Modeling

Zhenhao Huang , Siyuan Luo , Bingyang Zhou , Ziqiu Zeng , Jason Pho , Fan Shi This is my paper
classification cs.RO
keywords few-shot real-to-simdifferentiable simulationmesh GNNrigid contactsurrogate gradientscollision detectioncontact parameter identificationrobotic manipulation
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Robot learning needs physics engines that both match real contact and admit gradients, yet classical engines mis-model contact and pure learning engines need huge real datasets. This paper shows a middle path: identify a few contact parameters of a high-fidelity analytical engine from only three short real trajectories, use that calibrated engine to generate thousands of varied synthetic contact scenes, then train a mesh-based graph network on the synthetic data. The resulting simulator matches the calibrated analytical engine on held-out real trajectories, substantially outperforms three pipelines of a popular differentiable engine, and stays end-to-end differentiable so that initial velocities or policies can be optimized by gradient descent through multi-object collisions. The practical claim is that few-shot real grounding plus data scaling can give learning-based simulators both physical fidelity and gradient access without collecting large real contact datasets.

Core claim

A mesh GNN trained solely on trajectories generated by a MuJoCo instance whose contact parameters were identified from three real cube-push sequences reproduces real-world rigid-contact trajectories at least as accurately as the identified MuJoCo itself and far more accurately than identified Brax, while the derived surrogate gradients through discrete collision detection make the whole pipeline differentiable for gradient-based contact optimization.

What carries the argument

Surrogate gradients of nearest contact points: treat the discrete-collision-detection contact set as fixed inside a time step (justified by a slightly enlarged distance threshold), then back-propagate through the contact Jacobian relating object generalized positions to the nearest-point locations, rendering non-differentiable collision detection usable inside an end-to-end differentiable mesh GNN.

Load-bearing premise

The method assumes that a modestly larger collision-distance threshold always supplies enough redundant contact pairs so that small state changes never alter which pairs are active; if that fails, the surrogate gradients become wrong.

What would settle it

Collect a new real multi-cube collision sequence whose motions are large enough that the active contact set changes within a single time step under the paper's distance threshold; if the GNN's predicted trajectories and back-propagated gradients then diverge sharply from both real data and the calibrated analytical engine, the surrogate-gradient claim fails.

Watch this falsifier. Get emailed when new claim-graph text bears on it.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper proposes a few-shot real-to-sim pipeline for rigid-contact simulation: contact parameters of MuJoCo (solimp, solref, friction) are identified from only three real cube trajectories via CMA-ES; the calibrated MuJoCo then generates a large synthetic dataset used to train a mesh-based GNN (FIGNet-style) that predicts node accelerations. Full differentiability is claimed by deriving surrogate gradients of nearest contact points through a contact Jacobian (Eq. 7), under the assumption that the discrete-collision-detection contact set remains fixed within a time step when the distance threshold is enlarged. On a 14-trajectory real held-out set the GNN matches or slightly beats identified MuJoCo and substantially outperforms all three Brax pipelines; a simple SGD example optimizes an initial push velocity through the simulator (Fig. 1), and a multi-cube bowling rollout is shown against MuJoCo-generated ground truth.

Significance. If the claims hold, the work offers a practical route to data-efficient, differentiable contact simulators that can be grounded on minimal real pose data and then used for gradient-based contact optimization—valuable for robotic manipulation where analytical contact models are brittle and pure learning methods are data-hungry. Strengths that deserve credit include: (i) a transparent few-shot identification protocol with a clear before/after ablation (Figs. 4–5), (ii) evaluation against held-out real trajectories rather than only simulation, and (iii) an explicit, implementable surrogate-gradient construction that makes a mesh GNN end-to-end differentiable in principle. The combination of real-to-sim scaling with a fully differentiable mesh GNN is a useful contribution to the real-to-sim and differentiable-simulation literature, provided the differentiability assumption and the scope of the optimization experiments are tightened.

major comments (4)
  1. [Sec. III-C.2, Eq. (7)] The differentiability claim rests on treating the GJK/EPA contact-pair set as fixed inside a time step (Sec. III-C.2, Eq. 7), justified only by the informal claim that a slightly larger d_ε yields enough redundant pairs that small state perturbations leave the active set unchanged. No ablation, sensitivity study, or finite-difference check is reported for the cube trajectories, the bowling scene, or—most critically—the finite velocity updates performed by SGD in Fig. 1. If the active set changes under those updates, the surrogate Jacobian is incorrect and the reported optimization success is not evidence of true end-to-end differentiability. A concrete validation (e.g., comparison of surrogate vs. finite-difference gradients under the same motions, or an active-set change rate under the Fig. 1 updates) is needed before the differentiability half of the central claim can be accepted.
  2. [Abstract; Sec. V; Fig. 1] The abstract and conclusion state that the differentiable design is validated through “simulation-based policy learning in multi-object interaction scenarios” and that the framework “increases the efficiency of policy learning.” The only gradient-based experiment shown is open-loop SGD on a single initial push velocity (Fig. 1). There is no policy network, no closed-loop control, no multi-object policy task, and no comparison of sample efficiency against a non-differentiable baseline. Either the abstract/conclusion language must be revised to match the actual experiment, or a genuine policy-learning result (even a simple residual policy or trajectory optimization with a multi-step horizon) must be added.
  3. [Sec. IV-D, Fig. 6] The multi-object generalization claim (bowling-like array of ten cubes, Fig. 6) uses trajectories generated by the same identified MuJoCo that produced the training data as ground truth. Consequently the experiment only demonstrates sim-to-sim consistency, not transfer of real-world contact dynamics to multi-body scenes. Given that the paper’s strongest real-world evidence is restricted to two-cube quasi-planar contacts, the multi-object claim should be clearly labeled as simulation-only, or a real multi-object test set should be collected.
  4. [Sec. IV-D, Fig. 7] The GNN is trained exclusively on trajectories from the identified MuJoCo; the real test-set comparison (Fig. 7) is therefore the decisive non-circular evidence. That comparison is informative, but the paper should more carefully separate (a) fidelity to the calibrated analytical model from (b) residual improvement over that model on real data. Currently the narrative sometimes attributes “learning real-world contact dynamics” to the GNN when the dominant effect may simply be faithful imitation of the already-identified MuJoCo. A short residual analysis (GNN vs. MuJoCo error correlation on the real test set) would clarify how much genuine real-world residual is being captured.
minor comments (5)
  1. [Table I] Table I lists “Ours” contact accuracy as “High” while MuJoCo is also “High”; the table would be more informative if it reported the actual mean trajectory errors from Fig. 7 rather than qualitative labels.
  2. [Eq. (1)] The positional scaling factors w_i in Eq. (1) are never specified numerically; a short note on how they are chosen would aid reproducibility.
  3. [Fig. 1] Fig. 1 caption and the surrounding text refer to “policy learning,” which is inconsistent with the open-loop velocity optimization actually performed; align terminology.
  4. [Sec. I; Sec. III-A] Minor typos: “IssacLab” → “Isaac Lab”; “solrefspecifies” missing space; “bDk” / “bxi” notation is hard to parse in text—consider clearer hats or tildes.
  5. [Sec. II-D] The related-work discussion of differentiable collision detection (Montaut et al., Tracy et al., Zimmermann et al.) is brief; a one-sentence contrast of how the surrogate Jacobian differs from randomized smoothing or convex-primitive methods would help place Eq. (7).

Circularity Check

1 steps flagged

Mild partial circularity: GNN trained exclusively on identified-MuJoCo rollouts is then reported as 'comparable' to that same MuJoCo on real test trajectories; the match is expected once the student approximates the teacher, while real-vs-Brax and differentiability claims remain independent.

specific steps
  1. fitted input called prediction [Sec. IV-D / Fig. 7 and accompanying text]
    "Even though our simulator is trained only on the scaled data generated by the MuJoCo baseline, it still achieves similar error levels and even slightly lower positional errors compared to the identified MuJoCo. Thus, data scaling enables our simulator to learn the real-world rigid-contact dynamics well, thanks to the diverse configurations and relatively accurate contact modeling of the identified MuJoCo."

    The GNN is a supervised student of the identified MuJoCo (3000 synthetic trajectories). Once the student approximates the teacher, its trajectory error relative to any fixed real test set is forced to be nearly identical to the teacher's error. Reporting that near-match as independent confirmation that 'data scaling enables learning real-world dynamics' therefore reduces, by construction of the training objective, to the statement that the GNN fit the MuJoCo data well. The slight numerical improvement does not break the reduction; it is still measured against the same teacher that supplied the labels.

full rationale

The derivation chain is largely non-circular. Contact-parameter identification (CMA-ES on three real trajectories) is ordinary system ID against an external objective; the subsequent synthetic scaling and GNN training are standard distillation; evaluation on a held-out 14-trajectory real test set is an independent external benchmark; the surrogate-gradient formula (Eq. 7) is an explicit approximation under a fixed-contact-set assumption, not a tautology; and no load-bearing uniqueness theorem or self-citation is invoked. The single mild circularity is that the paper repeatedly presents 'comparable (or slightly better) positional/angular error versus the identified MuJoCo' as supporting evidence for the real-to-sim pipeline, even though the GNN was supervised exclusively on trajectories generated by that MuJoCo. Perfect imitation of the teacher forces identical real-world error; the observed near-match is therefore largely by construction of a successful fit rather than an independent validation of the analytical model. Because the decisive claims (outperformance of Brax on real data, few-shot data efficiency, and successful gradient-based optimization) rest on external real trajectories and do not reduce to this comparison, the circularity is only partial and does not collapse the central results.

Axiom & Free-Parameter Ledger

3 free parameters · 4 axioms · 1 invented entities

The central claim rests on (a) a small set of contact parameters fitted by CMA-ES to three real trajectories, (b) the modeling assumption that those parameters plus MuJoCo’s CCP solver generate distributionally realistic multi-object data, and (c) the ad-hoc fixed-contact-pair assumption that licenses the surrogate gradient. No new physical entities are postulated; the free parameters and the surrogate-gradient axiom are the main additions beyond standard rigid-body and GNN machinery.

free parameters (3)
  • MuJoCo contact parameter vector θ = {solimp, solref, μ}
    Fitted by CMA-ES on three real trajectories (Eq. 1, Sec. III-A); ranges given in Table II. All subsequent synthetic data and therefore the GNN’s learned dynamics depend on these fitted values.
  • collision distance threshold d_ε
    Chosen “slightly larger” to create redundant contact pairs that justify treating the contact set as fixed (Sec. III-C.2); value not reported but load-bearing for the surrogate-gradient claim.
  • positional scaling factors w_i
    Per-body weights inside the identification loss (Eq. 1); affect which contact parameters are recovered.
axioms (4)
  • domain assumption Rigid-body dynamics with Coulomb friction and MuJoCo’s convex contact solver adequately approximate the real quasi-planar cube contacts once solimp/solref/μ are identified.
    Invoked throughout Sec. III-A/B; the entire data-scaling pipeline inherits any residual model mismatch (acknowledged in Fig. 5 and the limitations paragraph).
  • ad hoc to paper Inside one simulation time step the set of contact pairs returned by GJK/EPA remains constant under small state perturbations when d_ε is enlarged, so differentiation through discrete collision detection can be replaced by the contact Jacobian alone.
    Stated explicitly in Sec. III-C.2 as the justification for ∂p_ij/∂q = J_ij H; without it the simulator is not end-to-end differentiable.
  • domain assumption Verlet integration plus shape matching recovers rigid motion from predicted mesh-node accelerations.
    Standard in mesh-based learned simulators (FIGNet); used in Sec. III-C.1.
  • domain assumption AprilTag/TagSLAM 6-D poses at 60 Hz are sufficiently accurate ground truth for both identification and evaluation.
    Data-collection premise (Sec. IV-A); any systematic pose bias propagates into all reported errors.
invented entities (1)
  • surrogate gradient of nearest points via contact Jacobian (Eq. 7) no independent evidence
    purpose: Provide back-propagation through otherwise non-differentiable discrete collision detection so the full GNN simulator admits gradient-based optimization.
    Derived under the fixed-contact-pair assumption; no independent experimental validation of gradient accuracy (e.g., finite-difference checks) is reported.

pith-pipeline@v1.1.0-grok45 · 15476 in / 3519 out tokens · 33030 ms · 2026-07-15T13:55:51.526874+00:00 · methodology

0 comments
read the original abstract

Accurate physics simulation is essential for robotic learning and control, yet analytical simulators often fail to capture complex contact dynamics, while learning-based simulators typically require large amounts of costly real-world data. To bridge this gap, we propose a few-shot real-to-sim approach that combines the physical consistency of analytical formulations with the representational capacity of graph neural network (GNN)-based models. Using only a small amount of real-world data, our method calibrates analytical simulators to generate large-scale synthetic datasets that capture diverse contact interactions. On this foundation, we introduce a mesh-based GNN that implicitly models rigid-body forward dynamics and derive surrogate gradients for collision detection, achieving full differentiability. Experimental results demonstrate that our approach enables learning-based simulators to outperform differentiable baselines in replicating real-world trajectories. In addition, the differentiable design supports gradient-based optimization, which we validate through simulation-based policy learning in multi-object interaction scenarios. Extensive experiments show that our framework not only improves simulation fidelity with minimal supervision but also increases the efficiency of policy learning. Taken together, these findings suggest that differentiable simulation with few-shot real-world grounding provides a powerful direction for advancing future robotic manipulation and control.

Figures

Figures reproduced from arXiv: 2603.06218 by Bingyang Zhou, Fan Shi, Jason Pho, Siyuan Luo, Zhenhao Huang, Ziqiu Zeng.

Figure 1
Figure 1. Figure 1: Top: A blue cube is pushed to collide with a green cube, with the objective of stopping it at the red target area. The initial pushing velocity of the blue cube is optimized using stochastic gradient descent in our differentiable simu￾lator, successfully achieving the goal. Bottom: Convergence of optimization across multiple runs, showing the loss curve (left) and the magnitude of the initial pushing veloc… view at source ↗
Figure 2
Figure 2. Figure 2: We begin by identifying key contact parameters that [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 2
Figure 2. Figure 2: Illustration of our framework. (1) We utilize sampling-based identification of contact parameters to minimize the [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: Comparison of trajectory errors (see Eq. (1)) in [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: A rollout example from our GNN-based simulator, illustrating a cube is pushed and collides with a bowling-like array [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗

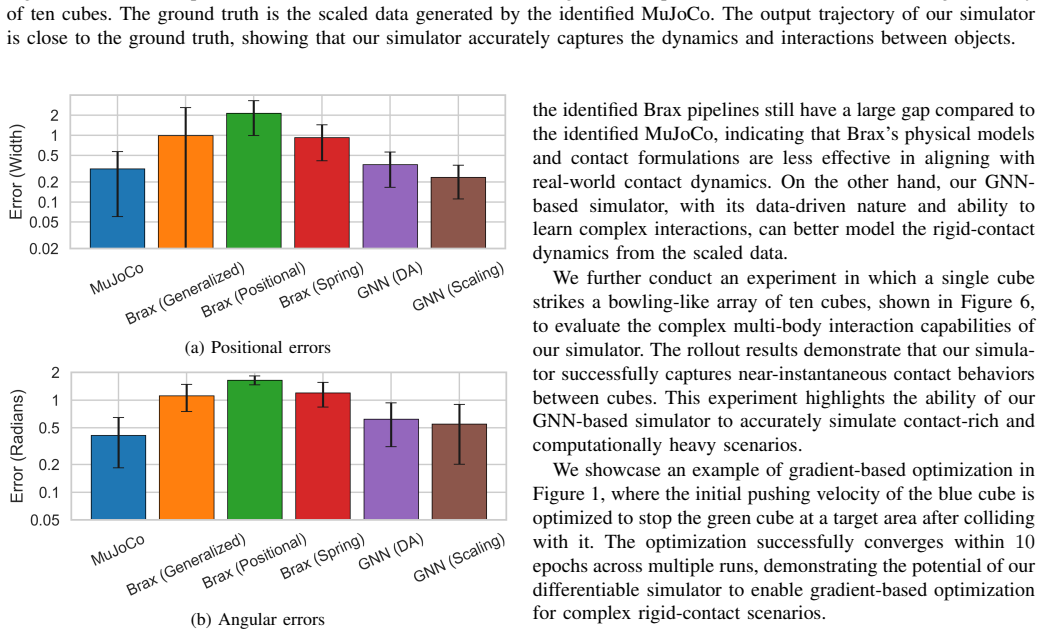

Figure 7
Figure 7. Figure 7: The positional and angular errors of our GNN-based [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
