REVIEW 4 major objections 6 minor 23 references
MAViE: A Multi-scale Adaptive Vision Encoder for Fine-grained Visual Perception and Efficient Multimodal Reasoning
T0 review · 4 major / 6 minor · reviewed 2026-07-31 · grok-4.5
Pith's one-line read A multi-scale vision encoder can cut about 80% of visual tokens while improving fine-grained multimodal answers and lowering time to first token.
desk verdict Clean systems design for multi-scale fusion plus question-aware token routing, but every headline number is simulated and the ablations are too tidy to trust even as placeholders. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument

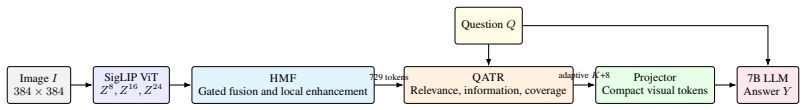

Question-conditioned Adaptive Token Routing (QATR) on Hierarchical Multi-level Fusion (HMF) features: each token is scored by question relevance, local information, global semantics, and spatial coverage; a complexity estimator sets K between 72 and 288; unselected tokens collapse into eight context tokens, trained with full-to-compressed distillation and a spatial diversity regularizer.
What would settle it
Train MAViE end-to-end under the stated 7B protocol and measure official VQAv2, GQA, TextVQA, ScienceQA-IMG, and MMBench scores plus average token count and TTFT against full SigLIP-729; if compressed MAViE does not match or beat the full baseline on fine-grained tasks at ~146 tokens, the central claim fails.
Extended reading notes
Core claim
MAViE claims that position-dependent hierarchical fusion of multi-level ViT features, followed by question-conditioned adaptive token routing with a dynamic budget and recycled context tokens, can preserve fine-grained visual evidence better than full final-layer token streams while reducing average visual tokens by about 80% and improving mean multimodal benchmark scores and time to first token under a unified 7B language-model setup.
Load-bearing premise
The four-part routing score, eight recycled context tokens, and adaptive budget actually keep the local evidence needed for OCR, counting, and multi-object relations better than sending all final-layer tokens.
Editorial extensions
If this is right
- VLMs can raise input resolution without a proportional jump in language-model prefill cost if routing keeps only task-relevant patches.
- OCR- and relation-heavy questions should benefit more than pure scene classification when shallow features and coverage terms are kept.
- Dynamic budgets can shift tokens toward text-dense or multi-object images and away from simple single-subject scenes.
- Full-to-compressed distillation plus diversity penalties become standard tools when aggressive visual pruning is used.
- The same router can later support multi-image, video, or iterative observe-reason-observe re-encoding.
Reading between the lines
- If routing is the real bottleneck, failures will cluster on low-salience distant objects and ambiguous pronouns—exactly the cases the limitations section flags—suggesting a cheap full-token fallback under low router confidence.
- The design implies that fixed-query resamplers leave money on the table whenever the question changes which spatial evidence matters.
- A hardware-aware budget that optimizes measured latency or energy rather than a hand-set K range is a direct next experiment.
- Success here would pressure default VLM pipelines that still project every final-layer patch by default.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes MAViE, a vision-encoder front end for VLMs combining (i) hierarchical gated fusion of SigLIP layers 8/16/24 with local window enhancement (HMF, §3.2), (ii) question-conditioned token routing with a four-term score (relevance, local variation, global similarity, spatial coverage) and a complexity-adaptive budget K∈[72,288] (QATR, §3.3), and (iii) full-to-compressed distillation plus a spatial-diversity regularizer (§3.4). The headline claim (Abstract; Table 1) is ~80% token reduction (729→146), +2.2pp mean accuracy over the full-token SigLIP baseline across five benchmarks, and 228→129 ms TTFT under a unified 7B setup. However, every quantitative table (Tables 1–8 and Appendix B) is explicitly labeled simulated placeholder ("not measurements from actual runs", §4.2), and the NeurIPS checklist answers [No] on claims, reproducibility, code, and significance testing. The paper is therefore a design document with an evaluation protocol, not an empirical result.
Significance. If the claimed operating point were real — 80% fewer visual tokens with a net accuracy gain and 43% lower TTFT — it would be of clear interest to the efficient-VLM community, and the problem setting (preserving OCR strokes, small objects, and relational referents under aggressive compression) is well motivated. To the paper's credit: the disclosure of simulated results is unusually candid and repeated in the Abstract, §4.2, §5, and Appendix B; the training/evaluation protocol (§4.1) is specified in enough detail that the experiments are executable; and the method section is a coherent, if incremental, combination of known components (multi-layer fusion, prompt-aware routing, distillation). There is no code, no checkpoints, and no falsifiable prediction beyond the protocol itself. As submitted, the manuscript contributes a design sketch; its significance is contingent entirely on experiments that do not yet exist.
major comments (4)
- [Abstract; §4.2; Tables 1–2] The central claim has no evidential support as submitted. Abstract, Table 1, and §4.2 report +2.2pp mean accuracy, 79.97% token reduction (Eq. 26), and 228→129 ms TTFT, but §4.2 states these 'are not measurements from actual runs' and Tables 1–8 are all simulated. There are no trained checkpoints, training curves, seeds, or error bars anywhere in the paper. A results-style submission whose entire evidence base is placeholder cannot be evaluated for correctness; the honest labeling mitigates deception but does not substitute for measurement. This is decisive on its own.
- [Tables 3, 6, 7; Appendix B] The simulated ablations are non-neutral and therefore mislead even as illustrations. In Table 3 every component (HMF, QATR, FD, SD) improves every benchmark in exactly the order presented; in Table 6 gated fusion strictly dominates mean fusion and every layer subset on all four benchmarks; in Table 7 each scoring term adds accuracy monotonically. Real ablations essentially never behave this way, so the tables encode the conclusion rather than test it. If placeholders are retained in a revision, they should be clearly separated from the claims or removed; as written they will shape reader belief in the +2.2pp figure.
- [Table 8; §1; §4.4] The paper's own illustrative numbers contradict its motivating premise and its headline mechanism. Table 8 shows fixed-72 tokens (80.3 VQAv2) already exceeding the full 729-token baseline (80.0), which undercuts the Introduction's claim that aggressive pruning discards task-critical local evidence; and fixed-288 (81.5 VQAv2) beats the proposed dynamic-146 configuration (81.4), so the dynamic budget — a core contribution — is not the best-performing option in the authors' own simulated trade-off. Either the real experiments are expected to differ (in which case the placeholders are actively misleading) or the method's central design choice is unmotivated.
- [§3.3, Eqs. (17)–(19); §3.4, Eq. (21)] The dynamic-budget pathway appears to receive no training signal. Eq. (19) defines K via Round(c·(Kmax−Kmin)), which is non-differentiable, and no term in the objective (Eq. 21) supervises the complexity estimator c (Eq. 18). The Gumbel-Top-K relaxation (§3.3) makes token selection differentiable for fixed K but does not propagate gradient through K itself. As specified, c can only drift via weight decay; the claimed adaptive allocation (Table 5) has no stated mechanism to emerge. Relatedly, the coverage term s_cover (Eq. 17) requires a sequentially growing set S, which is consistent with hard Top-K inference but not with simultaneous Gumbel-Top-K training; the train/inference selection protocol is underspecified, and s_cover is undefined for the first selection step (S empty).
minor comments (6)
- [Table 2; Figure 1] Table 2, last row: the MAViE entry is typeset as 'MAViE8721 2112913.3' — column alignment is broken. Figure 1's embedded text is similarly garbled ('ImageI384×384 SigLIP ViTZ8, Z16, Z24...').
- [Eqs. (13), (23)] Eq. (23): τ is used as a logit offset but never defined; z_ij is defined only after the equation. Eq. (13): clarify that q is pooled from the LLM's input embedding table before any LLM forward pass, since routing precedes prefill.
- [§3.2–3.4] Default hyperparameters are asserted without justification or sensitivity analysis: (λr, λu, λg, λc) = (0.45, 0.20, 0.15, 0.20) in §3.3, (α, β, η) = (0.10, 0.50, 0.05) in §3.4, M=8 context tokens, γ init 0.1, and layer indices {8,16,24}. Given that all experiments are simulated, these choices are currently untested premises and should be flagged as such.
- [Table 1; §2] Table 1 omits the most relevant training-free and efficiency baselines discussed in §2 — SparseVLM, PruMerge, FastVLM, LLaVA-UHD — comparing only against pooling/resampling/TokenPacker-style proxies. Any real evaluation should include prompt-aware sparsification methods at matched token counts.
- [§2] §2 contains extended subsections (continual segmentation, broader visual applications) only loosely connected to visual-token compression; roughly a page of citations could be trimmed without loss.
- [Eq. (20)] Eq. (20): the aggregation weights a_mi are described as similarity-based but the normalization (softmax over unselected tokens per query, or over queries per token?) is ambiguous; this matters for whether the 8 context tokens partition or overlap in coverage.
Circularity Check
No derivation circularity: MAViE is an engineering design with explicit placeholder metrics, not a self-sealing first-principles claim.
full rationale
The paper’s load-bearing content is a modular architecture (HMF gated fusion, QATR four-term routing, dynamic K, distillation, spatial diversity) plus planned external benchmarks (VQAv2, GQA, TextVQA, etc.). Equations (1)–(25) define modules and losses; they do not define a target quantity in terms of itself, nor fit a parameter on data and relabel a near-identical quantity as a prediction. Headline numbers (+2.2 pp, 729→146 tokens, 228→129 ms) are repeatedly labeled simulated placeholders for organization, not derived outputs. Related-work self-citations (remote-sensing multi-scale work) motivate design choices but are not uniqueness theorems that force the central claim. Absence of real measurements is a validity failure, not circularity of the derivation chain. Score 0; steps empty.
Assumptions & free parameters
free parameters (6)
- score weights (λr, λu, λg, λc) =
(0.45, 0.20, 0.15, 0.20)
- dynamic token budget bounds Kmin, Kmax =
72 and 288 (multiple of 8)
- context token count M =
8
- loss coefficients α, β, η =
(0.10, 0.50, 0.05)
- fusion residual scale γ init and layer indices {8,16,24} =
γ0=0.1; layers 8/16/24
- placeholder benchmark/TTFT table values =
e.g. 146 tokens, +2.2 pp mean, 129 ms TTFT
assumptions (4)
- domain assumption Shallow/intermediate/deep ViT layers preferentially encode edges-text, parts-structure, and global semantics respectively, so fusing them improves OCR and local attributes over final-layer-only features.
- domain assumption Visual token sequences contain large task-conditional redundancy, so Top-K routing plus a few context aggregates can match or beat full-token projection into a 7B LM.
- domain assumption A fixed 384×384 SigLIP-SO400M/14 patch grid (N=729) is an adequate base representation for the targeted VQA/OCR benchmarks when multi-scale fusion is added.
- ad hoc to paper Gumbel-Top-K training and hard Top-K inference with the stated four-term score yield stable, question-sensitive selections transferable across the listed benchmarks.
invented entities (3)
-
Hierarchical Multi-level Fusion (HMF) with position-dependent gates and high-frequency window enhancement
-
Question-conditioned Adaptive Token Routing (QATR) with complexity estimator c and coverage-updated sequential selection
-
Full-to-compressed representation distillation plus spatial diversity regularizer Ldiv
Cite this review
Pith. "Pith review of MAViE: A Multi-scale Adaptive Vision Encoder for Fine-grained Visual Perception and Efficient Multimodal Reasoning." pith.science (2026). https://pith.science/paper/I4RJDGRH
@misc{pith2026260724424,
author = {Pith},
title = {Pith review of: MAViE: A Multi-scale Adaptive Vision Encoder for Fine-grained Visual Perception and Efficient Multimodal Reasoning},
year = {2026},
howpublished = {\url{https://pith.science/paper/I4RJDGRH}},
note = {Machine review of arXiv:2607.24424}
}
read the original abstract
Vision-language models commonly project all tokens produced by a pretrained vision encoder into a large language model. However, final-layer features can discard text, local attributes, and spatial relationships, while high-resolution inputs substantially increase context length and inference latency. We introduce \method, a Multi-scale Adaptive Vision Encoder. \method uses position-dependent gates to fuse shallow, intermediate, and deep features from a vision Transformer, preserving global semantics while enhancing edges, text, and local structure. It then performs question-conditioned token routing according to question relevance, local information content, global semantics, and spatial coverage, with a token budget that adapts to image complexity. To mitigate compression loss, we further introduce full-to-compressed representation distillation and a spatial diversity regularizer. In an illustrative simulation under a unified 7B language-model framework, \method reduces the average number of SigLIP-SO400M visual tokens from 729 to 146 (approximately 80.0\%) and improves the mean score on VQAv2, GQA, TextVQA, ScienceQA-IMG, and MMBench by 2.2 percentage points, while reducing single-image time to first token from 228\,ms to 129\,ms. We provide the full model design and evaluation protocol. All reported numbers currently serve only as placeholders for paper organization and experimental design; formal claims require real training runs, independent replications, and official benchmark evaluation.
