ClassInvGen: Class Invariant Synthesis using Large Language Models

Chuyue Sun , Viraj Agashe , Saikat Chakraborty , Jubi Taneja , Clark Barrett , David Dill , Xiaokang Qiu , Shuvendu K. Lahiri This is my paper

Pith reviewed 2026-05-23 02:40 UTC · model grok-4.3

classification 💻 cs.AI cs.PLcs.SE
keywords class invariant synthesislarge language modelsC++ specificationsinvariant inferenceexecutable invariantsprogram verificationDaikon comparisonspecification generation
0
0 comments X

The pith

ClassInvGen uses LLMs to co-generate executable C++ class invariants and tests that outperform direct prompting and Daikon.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces ClassInvGen to synthesize class invariants for C++ by prompting large language models to produce both the invariant as a pure function and matching test inputs. This joint generation aims to yield invariants that are correct when executed and complete enough to distinguish program behaviors. On a contributed benchmark of standard C++ data structures the method produces invariants that pass more tests and kill more mutants than baselines. The same approach is shown to scale to classes in a high-integrity production codebase. If the claim holds, developers gain a practical way to obtain enforceable specifications without manual annotation or limited dynamic analysis.

Core claim

ClassInvGen is a method for co-generating executable class invariants and test inputs to produce high-quality class invariants for C++, leveraging LLMs' ability to synthesize pure functions. It outperforms a pure LLM-based technique to generate specifications from code as well as prior data-driven invariant inference techniques such as Daikon on a benchmark of standard C++ data structures, and demonstrates applicability through a case study on classes in a widely used high-integrity C++ codebase.

What carries the argument

ClassInvGen, the co-generation procedure that prompts an LLM to emit both a pure-function class invariant and test inputs used to validate it.

If this is right

  • Generated invariants can be compiled and checked at runtime or fed to static verifiers when the language supports it.
  • The new benchmark and mutant harness supply a concrete way to quantify both correctness and completeness of any invariant generator for C++.
  • The case-study results indicate the method can be applied directly to classes inside existing high-integrity codebases without language changes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same co-generation pattern could be tried on other object-oriented languages that support pure functions for invariants.
  • Test inputs produced alongside invariants might serve as an automatic feedback loop to refine the LLM output in subsequent prompts.
  • If the invariants prove stable across versions, they could be stored as living documentation that is mechanically checked on every build.

Load-bearing premise

Large language models can reliably output correct, executable pure functions that serve as class invariants in C++ and exceed the quality of both direct prompting and dynamic tools like Daikon without systematic logical errors.

What would settle it

On the provided C++ data-structure benchmark, if the invariants produced by ClassInvGen do not pass a higher fraction of tests or kill a higher fraction of mutants than those from pure LLM prompting or from Daikon, the performance claim is false.

Figures

Figures reproduced from arXiv: 2502.18917 by Chuyue Sun, Clark Barrett, David Dill, Jubi Taneja, Saikat Chakraborty, Shuvendu K. Lahiri, Viraj Agashe, Xiaokang Qiu.

Figure 1
Figure 1. Figure 1: An invariant in the doubly linked list class in Z3. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Overview of ClassInvGen. An overview of the ClassInvGen framework is shown in [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

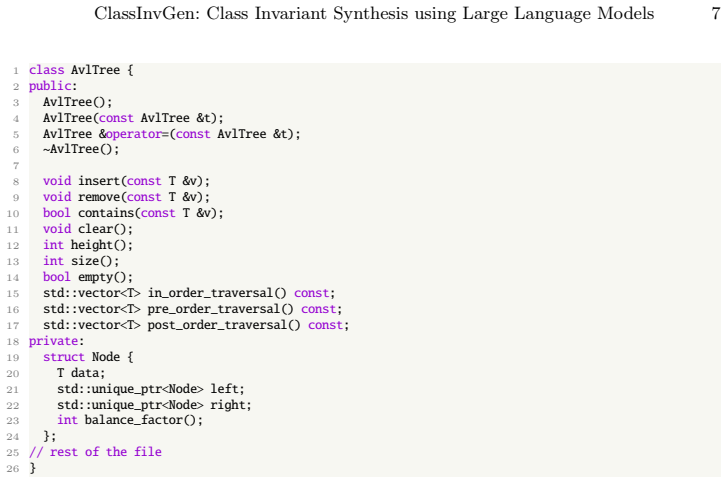

Figure 3. Figure 3: Header file of AvlTree. The algorithm then generates invariants using generateInvariantWithLLM and stores them in invariants_dict (Line 12). The helper function getCodeForClass constructs class representations by combining the declaration text with any existing invariants from invariants_dict (Lines 15–18). The algorithm concludes by returning final_invariants for the target class, effectively managing the… view at source ↗
Figure 4

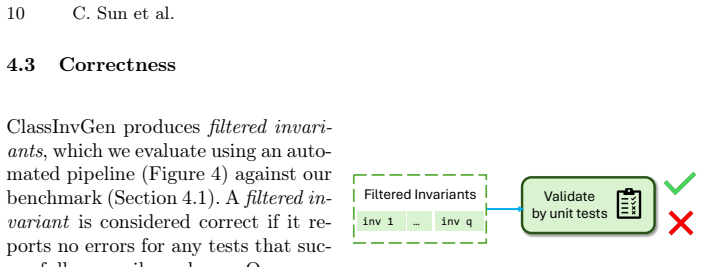

Figure 4. Figure 4: Evaluation of ClassInvGen gener￾ated invariants ClassInvGen produces filtered invari￾ants, which we evaluate using an auto￾mated pipeline ( [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Completeness Experiment Result. The 3 bars from left to right are Tests, [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Mutant that survived unit tests but was killed by ClassInvGen [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Another Mutant that survived unit tests but was killed by ClassInvGen [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗
Figure 8

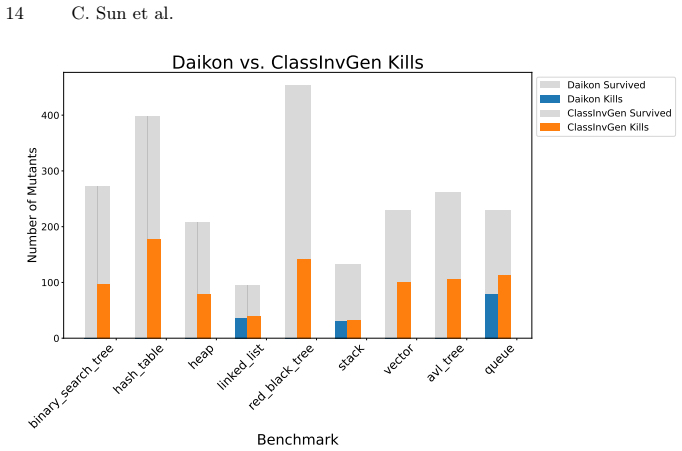

Figure 8. Figure 8: Daikon vs. ClassInvGen Kills KLEE [6], Dafny [26] and Frama-C [20]. We selected the Z3 codebase due to its stringent correctness requirements; as an SMT solver, Z3 is employed in appli￾cations demanding high reliability. This high-stakes environment makes Z3 an ideal testbed for assessing the effectiveness of synthesized invariants. The bdd_manager class5 is particularly noteworthy. It was chosen because i… view at source ↗
Figure 9
Figure 9. Figure 9: Z3 developer-written class invariants for [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Correct and useful invariant for bdd_manager class 1 // Cache consistency: Entries in the operation cache should be valid 2 for (const auto* e : m_op_cache ) { 3 assert(e != nullptr); 4 assert(e->m_result != null_bdd); 5 } [PITH_FULL_IMAGE:figures/full_fig_p016_10.png] view at source ↗
Figure 12
Figure 12. Figure 12: Correct and useless invariant for bdd_manager class 1 // The number of nodes should not exceed the maximum number of BDD nodes 2 assert(m_nodes.size () <= m_max_num_bdd_nodes ); [PITH_FULL_IMAGE:figures/full_fig_p017_12.png] view at source ↗
Figure 14
Figure 14. Figure 14: ClassInvGen Generation system prompt: instruction and task descrip [PITH_FULL_IMAGE:figures/full_fig_p024_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: ClassInvGen Generation system prompt: input-output format. [PITH_FULL_IMAGE:figures/full_fig_p025_15.png] view at source ↗
Figure 17
Figure 17. Figure 17: ClassInvGen Refinement system prompt: instruction and task descrip [PITH_FULL_IMAGE:figures/full_fig_p026_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: ClassInvGen Refinement user prompt template. [PITH_FULL_IMAGE:figures/full_fig_p027_18.png] view at source ↗
Figure 19

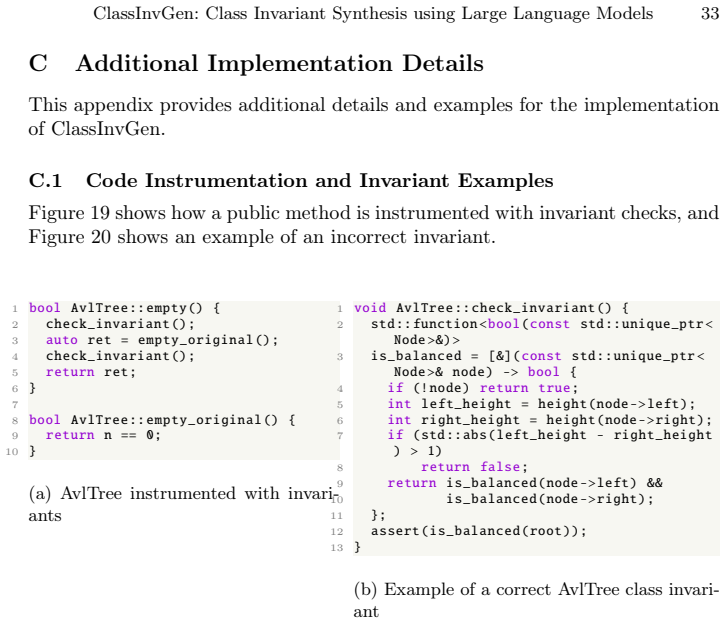

Figure 19. Figure 19: AvlTree instrumentation and invariant example [PITH_FULL_IMAGE:figures/full_fig_p033_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: Example of an incorrect invariant of AvlTree because there is no [PITH_FULL_IMAGE:figures/full_fig_p033_20.png] view at source ↗
Figure 21

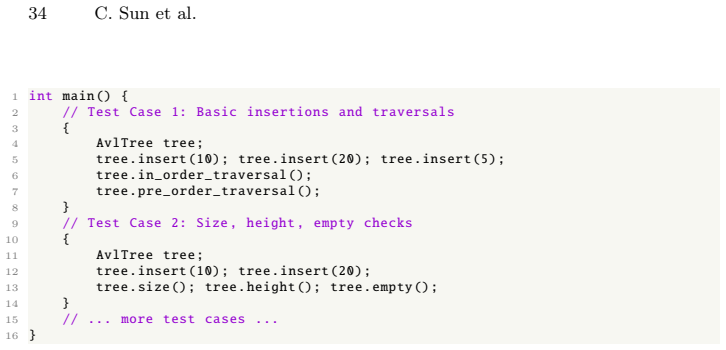

Figure 21. Figure 21: A test suite generated for AvlTree 1 avl_tree.cpp: In lambda function: 2 avl_tree.cpp :21:16: error: use of 3 ’is_balanced’ before deduction of ’ auto’ (a) gcc compiler error messages 1 void AvlTree :: check_invariant () { 2 auto is_bst = [&](const std :: unique_ptr <Node >& node , 3 const T& min , const T& max) -> bool { 4 if (! node) return true; 5 if (node ->data <= min || 6 node ->data >= max) return … view at source ↗
Figure 23

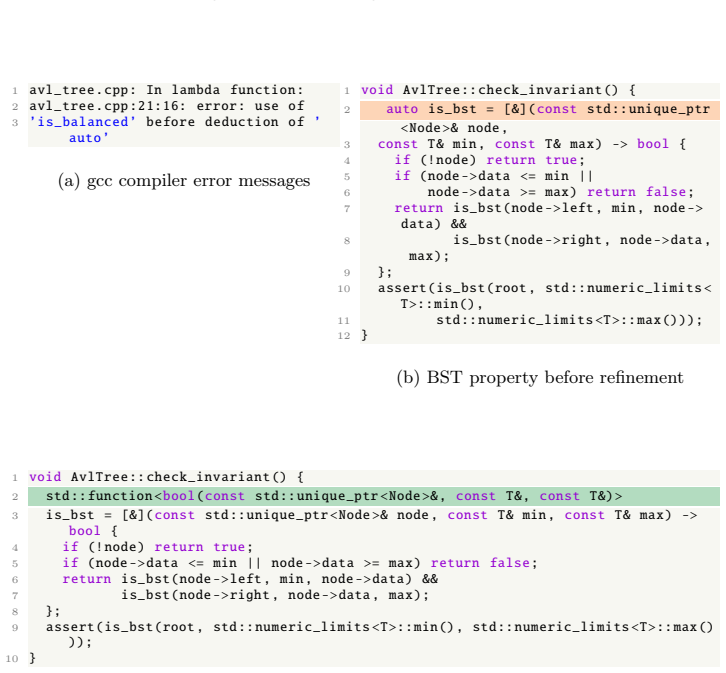

Figure 23. Figure 23: BST property after refinement: auto is changed to explicit declarations [PITH_FULL_IMAGE:figures/full_fig_p034_23.png] view at source ↗
read the original abstract

Formal program specifications in the form of preconditions, postconditions, and class invariants have several benefits for the construction and maintenance of programs. They not only aid in program understanding due to their unambiguous semantics but can also be enforced dynamically (or even statically when the language supports a formal verifier). However, synthesizing high-quality specifications in an underlying programming language is limited by the expressivity of the specifications or the need to express them in a declarative manner. Prior work has demonstrated the potential of large language models (LLMs) for synthesizing high-quality method pre/postconditions for Python and Java, but does not consider class invariants. In this work, we describe ClassInvGen, a method for co-generating executable class invariants and test inputs to produce high-quality class invariants for a mainstream language such as C++, leveraging LLMs' ability to synthesize pure functions. We show that ClassInvGen outperforms a pure LLM-based technique to generate specifications (from code) as well as prior data-driven invariant inference techniques such as Daikon. We contribute a benchmark of standard C++ data structures along with a harness that can help measure both the correctness and completeness of generated specifications using tests and mutants. We also demonstrate its applicability to real-world code by performing a case study on several classes within a widely used and high-integrity C++ codebase.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces ClassInvGen, an LLM-based method for co-generating executable class invariants (as pure C++ functions) and associated test inputs. It claims this approach outperforms both direct LLM prompting for specifications and prior dynamic invariant inference tools such as Daikon, evaluated on a contributed benchmark of standard C++ data structures using a harness that assesses correctness and completeness via tests and mutants. A case study applying the method to classes in a high-integrity real-world C++ codebase is also presented.

Significance. If the empirical claims hold under scrutiny, the work advances automated synthesis of class invariants for C++, supporting program understanding, dynamic enforcement, and verification in a mainstream language. The contributed benchmark and harness represent a concrete resource for the community. The emphasis on executable pure-function invariants and the real-world case study are positive elements.

major comments (2)
  1. [Section 4] Section 4 (Evaluation harness): the co-generation of test inputs together with the invariants creates a potential circularity risk for the central outperformance claim. The manuscript must clarify whether test inputs are produced independently of the synthesized invariants (e.g., via a fixed oracle or exhaustive enumeration) or demonstrate that results remain stable when evaluated against externally supplied test suites.
  2. [Section 4.2–4.3] Section 4.2–4.3 (Mutant analysis and results): mutant killing is used to assess completeness, yet the paper provides no explicit justification that the chosen mutation operators target the classes of faults typical for class invariants (e.g., missed state transitions or incorrect boundary conditions). Without this or supplementary manual validation counts, the superiority claim over Daikon rests on an incomplete fault model.
minor comments (2)
  1. [Abstract] Abstract: the claim of outperformance is stated without any numerical results or effect sizes; including at least the headline correctness/completeness deltas would make the summary self-contained.
  2. [Section 3] Notation: the distinction between “pure LLM-based technique” and ClassInvGen should be made explicit in the first paragraph of Section 3 so readers immediately see the precise difference in prompting strategy.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments and detailed review of our manuscript. We address each major comment point by point below.

read point-by-point responses

  1. Referee: [Section 4] Section 4 (Evaluation harness): the co-generation of test inputs together with the invariants creates a potential circularity risk for the central outperformance claim. The manuscript must clarify whether test inputs are produced independently of the synthesized invariants (e.g., via a fixed oracle or exhaustive enumeration) or demonstrate that results remain stable when evaluated against externally supplied test suites.

    Authors: We acknowledge the potential circularity concern arising from co-generating invariants and test inputs. The current approach has the LLM produce test inputs from the class interface and code to exercise the invariants, which may not be fully independent. In the revised manuscript, we will clarify the generation process to show that test inputs are derived from the class definition without reference to the specific invariant being synthesized. We will also add results evaluating the generated invariants against an externally supplied test suite (drawn from standard C++ data structure tests) to confirm that the outperformance claims remain stable. revision: yes

  2. Referee: [Section 4.2–4.3] Section 4.2–4.3 (Mutant analysis and results): mutant killing is used to assess completeness, yet the paper provides no explicit justification that the chosen mutation operators target the classes of faults typical for class invariants (e.g., missed state transitions or incorrect boundary conditions). Without this or supplementary manual validation counts, the superiority claim over Daikon rests on an incomplete fault model.

    Authors: We agree that an explicit justification for the mutation operators relative to typical class invariant faults is needed to strengthen the completeness evaluation. In the revised manuscript, we will expand the discussion in Sections 4.2–4.3 to explain how the chosen operators (including those for state transitions and boundary conditions) target common invariant faults. We will also include results from manual validation of a sample of mutants to further support the fault model and the comparison against Daikon. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical method evaluated against external baselines

full rationale

The paper presents ClassInvGen as an LLM-based technique for synthesizing executable C++ class invariants, with evaluation against pure LLM prompting and Daikon on a contributed benchmark using tests and mutants. No equations, fitted parameters, self-definitional loops, or load-bearing self-citations appear in the abstract or described claims. The central outperformance result is framed as an empirical comparison rather than a derivation that reduces to its own inputs by construction. The contributed harness is presented as an independent measurement tool, not a self-referential fit.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities are stated.
