The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper attempts to show that principal component analysis (PCA) applied to combined position and velocity data can serve as an order-parameter machine for driven vortex matter: three PCA-derived quantities, P1, P2, and P3, whose peaks, dips, and zero crossings line up with every known dynamic phase transition, and also reveal plastic-flow subphases that transport curves and defect counts cannot see. The reason this matters is that plastic flow phases, where vortices move through disordered channels around pinned islands, have no standardized order parameter, and distinguishing them is necessary to map nonequilibrium phase diagrams in type-II superconductors and related driven disordered systems. The authors construct feature vectors from the sorted distances to each vortex's 144 nearest neighbors plus the sorted velocity components of those neighbors, run PCA over a full drive sweep, and use the projected components as phase-sensitive order parameters. If the claim holds, the same PVB PCA recipe becomes a general tool for locating disorder-to-disorder transitions in depinning systems beyond vortices.

What carries the argument

The load-bearing object is the PVB feature vector. For each frame, Np = 50 probe vortices are chosen; for each probe, the distances to its 144 nearest neighbors are sorted ascending, then the absolute x-velocities and y-velocities of those same neighbors are separately sorted and appended, and the entries are averaged over probes, producing one 432-component vector per frame. Stacking these vectors over the entire force sweep gives a matrix whose principal components define the order parameters P1, P2, and P3. The work this machinery does is to turn local who-is-moving-faster-than-whom information into a low-dimensional signature: a zero crossing in Pn means the effective dimensionality of the data has dropped by one, and the paper interprets the resulting peaks, dips, and zero crossings as boundaries between flow phases, with the trajectory height-field difference serving as an independent check that the identified regimes are indeed ergodic or non-ergodic. The choice n = 144 and Np = 50 is justified as giving the cleanest results, and prewhitening against an ideal gas is found unnecessary because the vortex lattice is nearly hyperuniform.

What would settle it

Compute a quantitative visited-area fraction from the trajectory height-field difference Dh used in the paper, meaning the fraction of grid cells with nonzero flow change over long sampling windows, for many disorder realizations at fine drive steps; if the drive at which this fraction reaches one does not coincide with the P1 zero crossing and the P2 peak that the paper identifies as the non-ergodic-to-ergodic and IV-V boundaries, the PCA features are not reliable phase markers.

Watch

Extended reading notes

Core claim

On its own terms, the paper's central claim is that PCA on position-and-velocity-based (PVB) feature vectors identifies the depinning transition and the dynamical ordering transition at least as sharply as standard measures, and additionally resolves a sequence of plastic-flow phases inside the region that transport curves treat as one featureless plastic state. For a representative sample with strong pinning (Fp = 1.0), the authors find that P1 has a minimum at depinning and a zero crossing at the drive where the fraction of permanently pinned vortices vanishes; P2 peaks at the boundary between heavily braided channel flow and inhomogeneous ergodic plastic flow; and P3's zero crossings mark the boundaries between isolated, lightly braided, and heavily braided channel flow, plus the onset of the moving smectic. Combining these features with direct trajectory-imaging checks (a difference of two trajectory height fields that reveals whether flow visits the whole sample) leads to a proposed phase diagram with seven phases: pinned, isolated channel flow, lightly braided channel flow, heavily braided channel flow, inhomogeneous ergodic plastic flow, emerging one-dimensional flow, and a dynamically reordered moving smectic. The paper also reports that in the non-ergodic plastic regime, where some vortices are permanently pinned, velocity scales as V ∝ $F_D^{2}$, while the ergodic regime has different scaling, and that elastic depinning produces almost no Pn features above threshold, in contrast to the rich structure of plastic depinning.

Load-bearing premise

The load-bearing premise is that a peak, dip, or zero crossing in a PCA order parameter marks a real change of flow phase, with no null model or significance test supplied to rule out that these features instead reflect the chosen feature-vector length, probe count, or drive-sweep design.

Editorial extensions

If this is right

  • If the central claim is right, the conventional plastic flow region of the vortex phase diagram is not one phase: the proposed PVB PCA phase diagram divides it into isolated channel flow, lightly braided channel flow, heavily braided channel flow, and inhomogeneous ergodic plastic flow, with boundaries set by specific P1/P2/P3 features.
  • The boundary between heavily braided channel flow and ergodic plastic flow (peak of P2, second zero crossing of P3) falls near but not on the peak in dV/dFD, implying that the widely used transport-curve peak is a convolution of moving-vortex fraction and average velocity rather than a direct transition signature.
  • The non-ergodic-to-ergodic plastic-flow crossover, where all permanently pinned vortices finally start to move (f = 0), shows up as a zero crossing of P1 and a local minimum of P3 and coincides with a change in velocity-force scaling from V ∝ F_D^2 to a different regime.
  • For elastic depinning (weak pinning), the same Pn have essentially no features above the depinning transition, so a rich Pn structure can serve as a fingerprint that a system is undergoing plastic rather than elastic flow.
  • The same PVB recipe transfers to other driven disordered systems, such as colloids, skyrmions, Wigner crystals, active matter, and interface or avalanche depinning, where disorder-to-disorder transitions lack established order parameters.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Because the PCA is trained on the full drive sweep rather than on a single thermodynamic state, the resulting Pn features are variance-based summaries of the whole trajectory; an implicit, untested assumption is that their zero crossings correspond to physical boundaries rather than to changes in which variance components dominate, and a null-model test with shuffled frame labels would settle this
  • The paper's proposed II-III boundary (lowest zero crossing of P3) is described as possibly associated with percolation of transverse trails; that is a testable hypothesis connecting to directed percolation universality, since one could check whether the boundary's location and width scale with system size as expected for a percolation transition.
  • The PVB feature vector only needs instantaneous positions and velocities, so the same analysis could be applied to experimental vortex movies, for instance magneto-optical or scanning-probe images, to look for these plastic subphases in real superconducting samples.
  • Including thermal fluctuations would test whether the plastic subphases survive; the paper itself notes that dynamical ordering diverges at the melting temperature in prior work, so extending PVB PCA to finite temperature could reveal whether the extra phases are a T = 0 artifact or a robust feature.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The manuscript studies two-dimensional superconducting vortices driven over random disorder using overdamped molecular dynamics, sweeping the driving force for many pinning strengths. The authors construct feature vectors from sorted nearest-neighbor distances and sorted velocity components of randomly chosen probe vortices, and then apply principal component analysis (PCA) across the entire force sweep. The resulting order parameters P1, P2, and P3 are proposed to locate the depinning transition, the dynamic reordering transition, and several previously unreported plastic-flow subphases. A phase diagram with seven phases (pinned, isolated channel flow, lightly braided channel flow, heavily braided channel flow, inhomogeneous ergodic plastic flow, emerging one-dimensional flow, and moving smectic) is constructed from peaks, dips, and zero crossings of the PCA order parameters. Supporting evidence includes the fraction of permanently pinned vortices f, velocity histograms P(vx), trajectory height-field difference maps, and heat maps of p6 and dV/dFD.

Significance. If the identifications are robust, the paper would provide a useful unsupervised method for resolving disordered flow regimes that leave no clear signature in transport curves or topological defect densities. The main strength is that several PCA features are corroborated by independent physical measures not used to construct the PCA: the zero crossing of P1 coincides with the drive at which f vanishes, the velocity histograms show bimodality developing near the relevant PCA features, and trajectory height-field differences support the non-ergodic/ergodic distinction. However, the central phase diagram is built on an interpretive assumption that PCA zero crossings and extrema are phase boundaries, and the paper's own elastic-depinning control shows a counterexample. Because the new subphase boundaries lack quantitative independent validation, the contribution is currently suggestive rather than established.

major comments (3)
  1. [II.B and Fig. 8] The elastic-depinning control undermines the zero-crossing interpretation used throughout the paper. In Fig. 8, P2 and P3 both cross zero at FD/Fp = 1.0, yet the authors state that there are no changes in structure or dynamics above depinning. Since Pn are projections of the mean feature vector onto global variance-maximizing directions obtained from the entire sweep, a zero crossing is a generic hyperplane crossing and is not by itself evidence of a phase transition. The new boundaries II-III and III-IV in Fig. 17 are based solely on the lowest zero crossing and the peak of P3, with no independent quantitative observable shown to change at those drives. I request either a null-model or split-half/bootstrap significance test showing that the Pn features are not expected under a null hypothesis, or an explicit quantitative measure (e.g., a thresholded order parameter from trajectory or velocity data) that defines each of these boundaries.
  2. [Section III vs. Fig. 17 caption] There is an internal inconsistency in the location of the non-ergodic to ergodic plastic-flow transition. Section III states that the zero crossing of P1 at the drive where f = 0 marks the transition from non-ergodic to ergodic plastic flow, but Fig. 17 places the IV-V boundary at the peak of P2 and the V-VI boundary at the zero crossing of P1. Phase V is labeled "inhomogeneous ergodic plastic flow," so the phase labeled ergodic begins before the drive at which the fraction of permanently pinned vortices reaches zero. Both cannot be true under the authors' own operational definition of ergodicity. The authors should state which observable defines the IV-V and V-VI boundaries and reconcile the text with the figure.
  3. [II.B and Fig. 17] The PCA hyperparameters n = 144 and Np = 50 were chosen because they produced the "cleanest results," according to Section II.B, and all results are averaged over only five disorder realizations with no error bars shown. Because the new phase boundaries are features of Pn rather than of physically defined observables, it is essential to show that the boundaries are stable under variation of n, Np, the number of frames, and the number of disorder realizations. Without such a stability analysis, the boundaries in Fig. 17 may partly reflect analysis choices rather than changes in the underlying dynamics. I request a robustness test, for example varying n between roughly 50 and 250 and Np between 20 and 100, and reporting the spread of the extracted boundaries.
minor comments (6)
  1. [Introduction / Eq. (1)] The text near Eq. (1) calls mu0 the "permittivity"; this should read "permeability of free space."
  2. [Section IV / Fig. 13] The text says "in Fig. 12(b) we illustrate the same system at FD/Fp = 0.04," but the reference should be to Fig. 13(b), and the caption for that panel states FD/Fp = 0.4 rather than 0.04. Please correct the reference and the value.
  3. [Fig. 22] All three panels in Fig. 22 are labeled (a) in the caption, and the text refers to panels (a), (a), and (a); the panels should be labeled (a), (b), and (c).
  4. [All figures] The paper states that all results are averaged over five realizations of disorder, but no error bars or confidence intervals are shown for any quantity. At minimum, error estimates for the positions of the PCA features used as phase boundaries would help the reader judge the significance of the proposed boundaries.
  5. [Abstract and Section III] The terminology used for the plastic-flow subphases is inconsistent: the abstract mentions "slowly changing channel flow" and "moving amorphous fluid flow," while the phase diagram uses "lightly braided channel flow," "heavily braided channel flow," and "inhomogeneous ergodic plastic flow." Please align the terminology.
  6. [Fig. 17 and Fig. 19] The phase diagram captions refer to the peak in dV/dI, while the text and most figures use dV/dFD. Please standardize the notation.

Circularity Check

0 steps flagged · score 2.0 of 10

No significant circularity: PCA order parameters are constructed from simulation data, but the phase assignments are corroborated by independent physical measures, and the self-citations are methodological rather than load-bearing.

full rationale

The paper is a data-driven characterization study rather than a derivation in which an output is fitted to an input. The PCA order parameters Pn are computed from the full force sweep (Eq. 6, Sec. II.B) and the phase diagram in Fig. 17 is indeed constructed from features such as the minimum of P1, zero crossings of P3, and peaks of P2/P3. However, the phases are not merely relabeled PCA features: the known phases are independently anchored by transport curves, p6, and structure factor data, and the new plastic-flow subphases are separately characterized by trajectory height maps, pinned-fraction f, and P(vx) histograms (Figs. 3-7, 20), none of which were used to define the PCA directions. The elastic-depinning control (Fig. 8) showing zero crossings without a physical transition is a legitimate statistical-validity concern about attributing meaning to generic PCA features, but it is not circularity: no parameter is fit to the phase labels, and the order parameters are not defined in terms of the claimed phase boundaries. The self-citations to prior PCA work (Refs. 76, 77) are methodological precedent and are not load-bearing, since the PCA procedure is fully specified in Sec. II.B. Overall, the central claims retain independent content, with at most a minor, non-load-bearing reliance on the authors' earlier methodology.

Assumptions & free parameters 2 free parameters · 4 assumptions · 0 invented entities

No new physical entities are introduced. The 'non-ergodic plastic flow' and 'ergodic plastic flow' are proposed phase classifications, not entities. The main free parameters are the PCA feature-vector hyperparameters, and the key assumptions are the modeling choices and the interpretive leap from PCA features to phase boundaries.

free parameters (2)
  • n (number of nearest-neighbor distances and velocity ranks in feature vector) = 144
    Chosen by testing a variety of methods to obtain the 'cleanest results'; not determined by a physical principle or independent validation. Stated in Section II.B.
  • Np (number of probe vortices per frame) = 50
    Chosen without a stated criterion; affects the variance of the averaged feature vectors. Stated in Section II.B.
assumptions (4)
  • domain assumption The overdamped equation of motion with Bessel-function vortex-vortex interactions cut off at 6 lambda and parabolic pinning wells (range 0.3 lambda) is a faithful model of vortex matter at T=0.
    Stated in Section II.A; central to all results, but not validated against experimental data or alternative models.
  • ad hoc to paper The vortex lattice is hyperuniform enough that prewhitening of feature vectors against an ideal gas is unnecessary.
    Stated in Section II.B with a qualitative argument; if false, PCA would pick up spurious geometric signals.
  • domain assumption Principal component analysis of the full force-sweep data gives order parameters whose sign changes can be interpreted as physical phase boundaries.
    The entire phase diagram depends on this interpretive step; no null model or significance test is provided.
  • standard math Standard PCA/SVD properties, including the orthogonal transformation and eigenvalue normalization in Eq. 7.
    Background mathematics, not at issue.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Using Principal Component Analysis to Distinguish Different Dynamic Phases in Superconducting Vortex Matter." pith.science (2026). https://pith.science/paper/IQRHYP7J

@misc{pith2026250113269,
  author       = {Pith},
  title        = {Pith review of: Using Principal Component Analysis to Distinguish Different Dynamic Phases in Superconducting Vortex Matter},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/IQRHYP7J}},
  note         = {Machine review of arXiv:2501.13269}
}
read the original abstract

Vortices in type-II superconductors driven over random disorder are known to exhibit a remarkable variety of distinct nonequilibrium dynamical phases that arise due to the competition between vortex-vortex interactions, the quenched disorder, and the drive. These include pinned states, elastic flows, plastic or disordered flows, and dynamically reordered moving crystal or moving smectic states. The plastic flow phases can be particularly difficult to characterize since the flows are strongly disordered. Here we perform principal component analysis (PCA) on the positions and velocities of vortex matter moving over random disorder for different disorder strengths and drives. We find that PCA can distinguish the known dynamic phases as well as or better than previous measures based on transport signatures or topological defect densities. In addition, PCA recognizes distinct plastic flow regimes, a slowly changing channel flow and a moving amorphous fluid flow, that do not produce distinct signatures in the standard measurements. Our results suggest that this position and velocity based PCA approach could be used to characterize dynamic phases in a broader class of systems that exhibit depinning and nonequilibrium phase transitions.

Figures

Figures reproduced from arXiv: 2501.13269 by the authors.

Figure 1

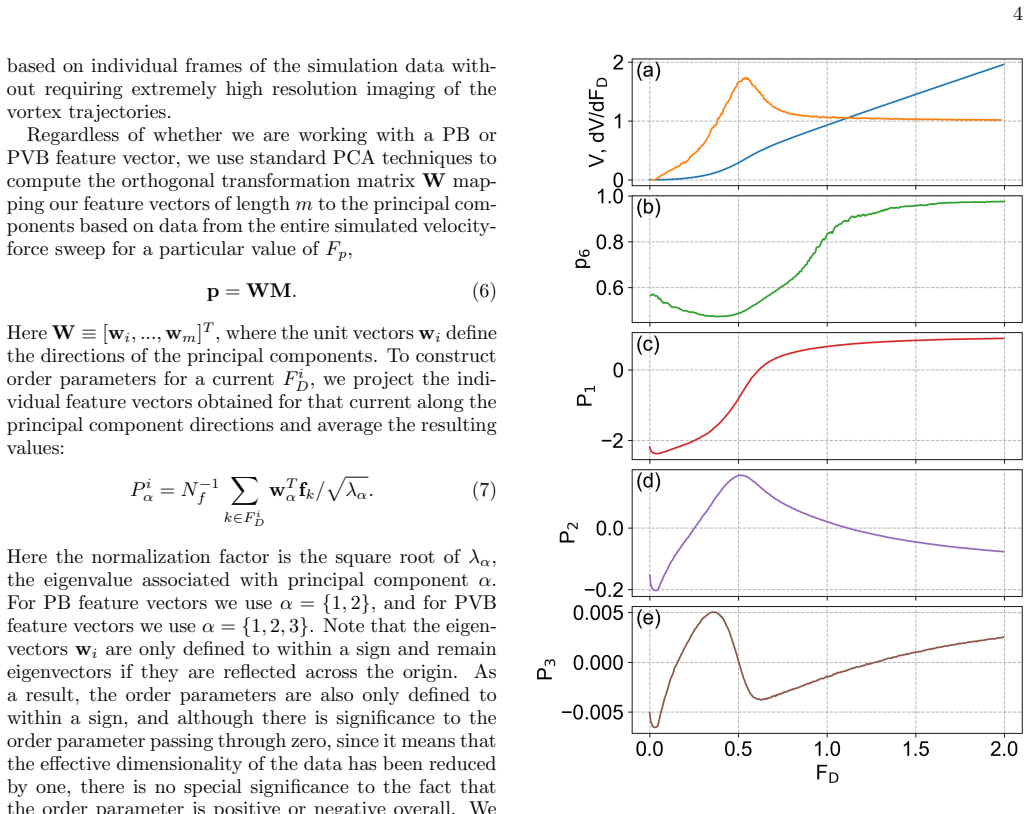

Figure 1. FIG. 1. (a) Velocity [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. FIG. 2. Voronoi constructions of snapshots of vortex posi [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 4
Figure 4. FIG. 4. Images of pinning sites (open circles), vortex positions [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figures from the paper (20 more)
Figure 3
Figure 3. Figure 3: FIG. 3. (a) The fraction [PITH_FULL_IMAGE:figures/full_fig_p006_3.png]
Figure 6
Figure 6. Figure 6: FIG. 6. Histograms of the distribution [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 5
Figure 5. Figure 5: FIG. 5. Height map of the trajectory difference [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 7
Figure 7. Figure 7: (b), the vortices are undergoing ergodic plastic flow and P(vx) is bimodal; however, there is almost no weight at vx = 0, indicating that although the pinning sites are able to slow the motion of the vortices, they are no longer able to capture the vortices. In [PITH_…
Figure 8
Figure 8. Figure 8: FIG. 8. (a) [PITH_FULL_IMAGE:figures/full_fig_p009_8.png]
Figure 10
Figure 10. Figure 10: FIG. 10. (a) Zoomed in plot of [PITH_FULL_IMAGE:figures/full_fig_p010_10.png]
Figure 9
Figure 9. Figure 9: (a) for Fp ≥ 2.4 showing a crossing of the scaled curves. (b) V /Fp vs Fp at fixed drives of FD/Fp = 0.15 (blue) where the velocity increases with increasing Fp and FD/Fp = 0.6 (red) where the velocity decreases with increasing Fp. FD/Fp = 0.6, the scaled velocity drop…
Figure 11
Figure 11. Figure 11: FIG. 11. Images of pinning sites (open circles), vortex posi [PITH_FULL_IMAGE:figures/full_fig_p011_11.png]
Figure 12

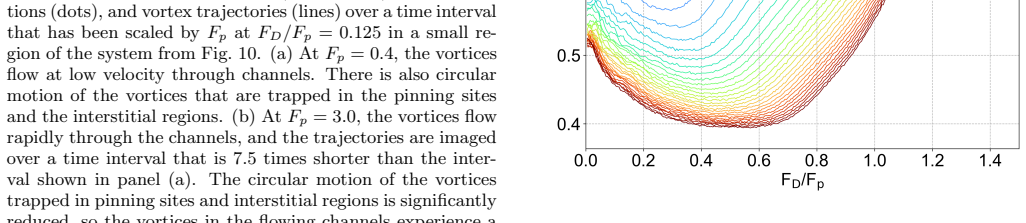

Figure 12. Figure 12: FIG. 12. The fraction of sixfold coordinated vortices [PITH_FULL_IMAGE:figures/full_fig_p011_12.png]
Figure 13
Figure 13. Figure 13: FIG. 13. The Voronoi construction for the system in Fig. 12 [PITH_FULL_IMAGE:figures/full_fig_p011_13.png]
Figure 14
Figure 14. Figure 14: FIG. 14. PVB principal components for [PITH_FULL_IMAGE:figures/full_fig_p012_14.png]
Figure 15
Figure 15. Figure 15: (b) shows a heat map of dV /FD as a function of Fp versus FD/Fp. The minimum value of p6 runs roughly parallel to the line along which dV /dFD = 1. The line marking the flattening of dV /dFD is associated with the emergence of a moving smectic state, but this is a con…
Figure 17
Figure 17. Figure 17: as a function of Fp versus FD/Fp. We also present zoomed in versions of the same phase diagram in Figs. 18 and 19. At low drives we find a pinned state, phase I. Phase II is the isolated channel flow state, illustrated in [PITH_FULL_IMAGE:figures/full_fig_p014_17.png]
Figure 16

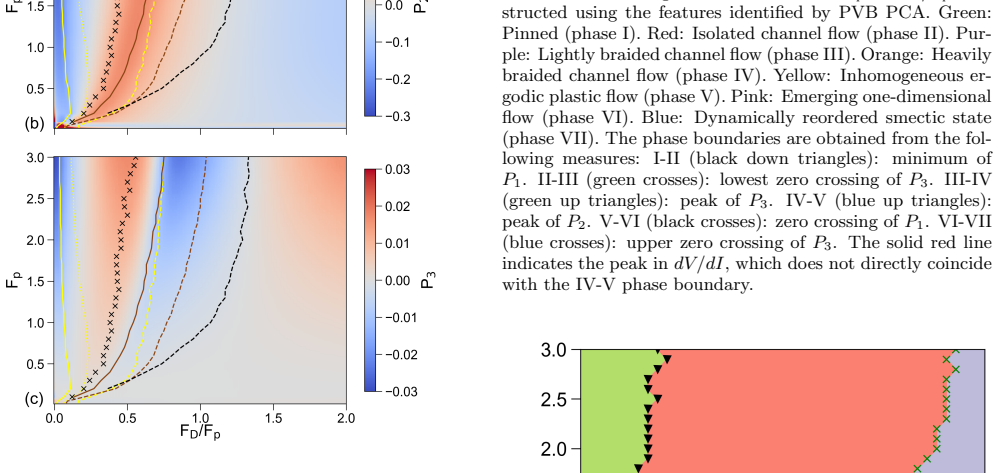

Figure 16. Figure 16: FIG. 16. (a) Height map of [PITH_FULL_IMAGE:figures/full_fig_p014_16.png]
