Identification with Orthogonal Basis Functions: Convergence Speed, Asymptotic Bias, and Rate-Optimal Pole Selection

Jiayun Li , Yiwen Lu , Yilin Mo , Jie Chen This is my paper

Pith reviewed 2026-05-21 17:32 UTC · model grok-4.3

classification 🧮 math.OC
keywords orthogonal basis functionssystem identificationpole selectionasymptotic biasTsuji pointsChebyshev constantH2 normLTI systems
0
0 comments X

The pith

Selecting Tsuji points as model poles makes OBF identification asymptotically optimal with exponentially decaying bias.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows how to select poles for orthogonal basis functions when identifying linear time-invariant systems so that the asymptotic bias under the H2 norm is minimized. It derives that the bias decreases exponentially with the number of basis functions and that the optimal poles are the Tsuji points. A sympathetic reader would care because this provides a way to achieve the best possible identification accuracy for a given model order without prior knowledge of the true system poles. The analysis also supplies the explicit convergence rate and bias bounds that depend on the pole locations.

Core claim

The paper claims that by choosing the model poles to be the Tsuji points, the pole selection algorithm achieves the fundamental lower bound on the worst-case asymptotic identification bias in the H2 sense. Consequently, the bias decreases exponentially as the number of basis functions grows, at a rate determined by the hyperbolic Chebyshev constant. This optimality holds asymptotically for stable LTI systems.

What carries the argument

The Tsuji points, which serve as the optimal locations for the poles of the orthogonal basis functions to minimize the maximum possible H2 bias over all true systems.

If this is right

  • The OBF identification algorithm has an analytically derivable convergence rate.
  • The asymptotic bias admits an explicit bound based on the true and model poles.
  • The proposed selection is robustly optimal for the worst-case bias under H2 criterion.
  • The exponential decay rate of the bias is set by the hyperbolic Chebyshev constant.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the optimality holds, engineers could use fewer basis functions to reach a target accuracy in system models for control design.
  • This result links system identification to classical approximation theory through the use of Chebyshev constants in rational functions.
  • Extensions might include applying the same pole selection to nonlinear or time-varying systems for similar bias reductions.

Load-bearing premise

The true system is stable, linear, and time-invariant with all poles strictly inside the unit circle.

What would settle it

Simulate the identification for a specific stable system with known poles, compute the H2 bias using Tsuji points, and check whether it equals or approaches the predicted lower bound while decreasing exponentially with added basis functions.

Figures

Figures reproduced from arXiv: 2512.21096 by Jiayun Li, Jie Chen, Yilin Mo, Yiwen Lu.

Figure 1
Figure 1. Figure 1: Visualization of the introduced initialization strategy [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Asymptotic relative H2 approximation bias of the nominal system (39) under Gaussian perturbations of the true system poles, visualized using a multi-kernel density estimate (KDE). x(m) y(m) 0 × 1 2 3 1 2 3 [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The shape of the region considered in the diffusion [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: Computation time versus the number of basis poles q for different pole selection algorithms, evaluated on pole regions D = [−0.95, 0.95] (top) and D = [−0.99, 0.99] (bottom). Lemma 12 (Hyperbolic Chebyshev Constant of real in￾tervals; see page 278 in [30]). The hyperbolic Chebyshev constant of the real interval [0, ρ], ρ < 1 is τ ([0, ρ]) = exp    − π 2 K p 1 − ρ 2  K(ρ)    , where K(ρ) = Z 1 0 dx … view at source ↗
Figure 6

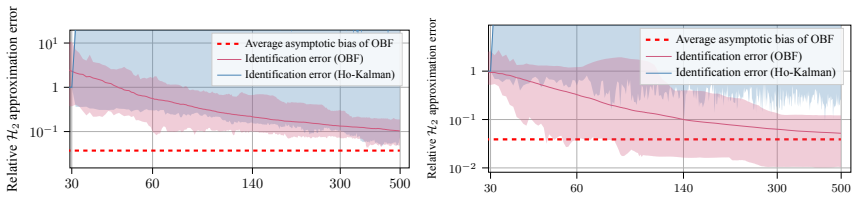

Figure 6. Figure 6: Online relative H2 identification error of the system (39) (left) and the diffusion process (right). Results are shown for OBF-based identification using 10 basis functions with Tsuji points, as well as for the Ho-Kalman algorithm. The plot reports 100 Monte Carlo experiments, where the solid line denotes the mean identification error at each time step and the shaded area indicates the range of errors acro… view at source ↗
Figure 7
Figure 7. Figure 7: Conformal mapping from the real interval [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗
read the original abstract

This paper is concerned with performance analysis and pole selection problem in identifying linear time-invariant (LTI) systems using orthogonal basis functions (OBFs), a system identification approach that consists of solving least-squares problems and selecting poles within the OBFs. Specifically, we analyze the convergence properties and asymptotic bias of the OBF algorithm, and propose a pole selection algorithm that robustly minimizes the worst-case identification bias, with the bias measured under the $\mathcal{H}_2$ error criterion. Our results include an analytical expression for the convergence rate and an explicit bound on the asymptotic identification bias, which depends on both the true system poles and the preselected model poles. Furthermore, we demonstrate that the pole selection algorithm is asymptotically optimal, achieving the fundamental lower bound on the identification bias. The algorithm explicitly determines the model poles as the so-called Tsuji points, and the asymptotic identification bias decreases exponentially with the number of basis functions, with the rate of decrease governed by the hyperbolic Chebyshev constant. Numerical experiments validate the derived bounds and demonstrate the effectiveness of the proposed pole selection algorithm.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper first derives an explicit analytical expression for the asymptotic H2 identification bias that depends on both the unknown true-system poles and the chosen model poles within the orthogonal basis functions. It then constructs a pole-selection procedure (Tsuji points) that minimizes the worst-case value of this same expression and verifies that the resulting bias decays at the rate given by the hyperbolic Chebyshev constant. Because the claimed optimality is simply the statement that the chosen poles attain the infimum of the derived bias functional over all admissible pole placements, the argument does not reduce the result to its own inputs by definition, nor does it rely on a self-citation chain or a fitted parameter renamed as a prediction. The convergence-rate and bias bounds are obtained from standard least-squares analysis on the OBF expansion and are therefore independent of the subsequent optimality claim. The overall derivation remains self-contained with respect to the stated H2 error criterion for stable LTI systems.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claims rest on standard properties of orthogonal rational functions and H2 norms; no new free parameters or invented entities are introduced in the abstract. The optimality result is grounded in an external lower bound whose derivation is not shown here.

axioms (2)
  • domain assumption The true plant is a stable discrete-time LTI system whose poles lie inside the unit disk.
    Required for the bias expression and exponential decay claim to hold.
  • domain assumption The H2 error is the appropriate worst-case performance measure for the identification bias.
    Stated as the criterion under which the pole-selection algorithm is optimal.

pith-pipeline@v0.9.0 · 5730 in / 1377 out tokens · 37586 ms · 2026-05-21T17:32:55.245760+00:00 · methodology

Review history (2 revisions) →

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

51 extracted references · 51 canonical work pages

  1. [1]

    System identification,

    L. Ljung, “System identification,” pp. 163–173, 1998

    work page 1998

  2. [2]

    Madsen,Time Series Analysis

    H. Madsen,Time Series Analysis. Chapman & Hall/CRC, 2008

    work page 2008

  3. [3]

    Lindquist and G

    A. Lindquist and G. Picci,Linear Stochastic Systems: A Geometric Approach to Modeling, Estimation and Identification. Springer Verlag, 2015

    work page 2015

  4. [4]

    From circuit theory to system theory,

    L. A. Zadeh, “From circuit theory to system theory,”Proc. IRE, vol. 50, pp. 856–865, 1962

    work page 1962

  5. [5]

    Linear stochastic filtering-reappraisal and outlook,

    R. E. Kalman, “Linear stochastic filtering-reappraisal and outlook,” in Proc. Symp. System Theory Polytech, pp. 197–205, Jan. 1965

    work page 1965

  6. [6]

    Effective construction of linear state-variable models from input/output functions,

    B. HO and R. E. K ´alm´an, “Effective construction of linear state-variable models from input/output functions,”at- Automatisierungstechnik, vol. 14, no. 1-12, pp. 545–548, 1966

    work page 1966

  7. [7]

    Identification of the deterministic part of mimo state space models given in innovations form from input-output data,

    M. Verhaegen, “Identification of the deterministic part of mimo state space models given in innovations form from input-output data,” Automatica, vol. 30, pp. 61–74, 1 1994

    work page 1994

  8. [8]

    Analysis of the asymptotic properties of the moesp type of subspace algorithms,

    D. Bauer and M. Jansson, “Analysis of the asymptotic properties of the moesp type of subspace algorithms,”Automatica, vol. 36, pp. 497– 509, 2000

    work page 2000

  9. [9]

    Subspace identification for linear systems,

    P. V . Overschee and B. D. Moor, “Subspace identification for linear systems,”Subspace Identification for Linear Systems, 1996

    work page 1996

  10. [10]

    On the ill-conditioning of subspace identifi- cation with inputs,

    A. Chiuso and G. Picci, “On the ill-conditioning of subspace identifi- cation with inputs,”Automatica, vol. 40, pp. 575–589, Apr. 2004

    work page 2004

  11. [11]

    N4sid and moesp algo- rithms to highlight the ill-conditioning into subspace identification,

    S. Hachicha, M. Kharrat, and A. Chaari, “N4sid and moesp algo- rithms to highlight the ill-conditioning into subspace identification,” International Journal of Automation and Computing, vol. 11, no. 1, pp. 30–38, 2014

    work page 2014

  12. [12]

    An optimum time scale for discrete laguerre network,

    Y . Fu and G. A. Dumont, “An optimum time scale for discrete laguerre network,”IEEE Transactions on Automatic control, vol. 38, no. 6, pp. 934–938, 1993

    work page 1993

  13. [13]

    System identification using kautz models,

    B. Wahlberg, “System identification using kautz models,”IEEE Trans- actions on Automatic Control, vol. 39, no. 6, pp. 1276–1282, 1994

    work page 1994

  14. [14]

    The fundamental role of general orthonormal bases in system identification,

    B. Ninness, H. Hjalmarsson, and F. Gustafsson, “The fundamental role of general orthonormal bases in system identification,”IEEE Transactions on Automatic Control, vol. 44, no. 7, pp. 1384–1406, 1999

    work page 1999

  15. [15]

    System identification using Laguerre models,

    B. Wahlberg, “System identification using Laguerre models,”IEEE Transactions on Automatic Control, vol. 36, pp. 551–562, May 1991

    work page 1991

  16. [16]

    System iden- tification with generalized orthonormal basis functions,

    P. M. J. Van Den Hof, P. S.C. Heuberger, and J. Bokor, “System iden- tification with generalized orthonormal basis functions,”Automatica, vol. 31, pp. 1821–1834, Dec. 1995

    work page 1995

  17. [17]

    A generalized orthonormal basis for linear dynamical systems,

    P. Heuberger, P. Van Den Hof, and O. Bosgra, “A generalized orthonormal basis for linear dynamical systems,”IEEE Transactions on Automatic Control, vol. 40, pp. 451–465, Mar. 1995

    work page 1995

  18. [18]

    Asymptotic Analysis of MIMO Sys- tem Estimates by the Use of Orthonormal Bases,

    B. Ninness and J. Carlos G ´omez, “Asymptotic Analysis of MIMO Sys- tem Estimates by the Use of Orthonormal Bases,”IFAC Proceedings Volumes, vol. 29, pp. 4291–4296, June 1996

    work page 1996

  19. [19]

    A unifying construction of orthonormal bases for system identification,

    B. Ninness and F. Gustafsson, “A unifying construction of orthonormal bases for system identification,”IEEE Transactions on Automatic Control, vol. 42, pp. 515–521, Apr. 1997

    work page 1997

  20. [20]

    P. S. Heuberger, P. M. Van den Hof, and B. Wahlberg,Modelling and Identification with Rational Orthogonal Basis Functions. London: Springer London, 2005

    work page 2005

  21. [21]

    Asymptotically optimal orthonormal basis functions for LPV system identification,

    R. T ´oth, P. S. Heuberger, and P. M. Van Den Hof, “Asymptotically optimal orthonormal basis functions for LPV system identification,” Automatica, vol. 45, pp. 1359–1370, June 2009

    work page 2009

  22. [22]

    On selecting the MIMO Generalized Orthonormal Basis Functions poles by using Particle Swarm Optimization,

    B. C. Reginato and G. H. C. Oliveira, “On selecting the MIMO Generalized Orthonormal Basis Functions poles by using Particle Swarm Optimization,” in2007 European Control Conference (ECC), pp. 5182–5188, July 2007

    work page 2007

  23. [23]

    A hybrid genetic algorithm for estimating the optimal time scale of linear systems approximations using Laguerre models,

    A. Sabatini, “A hybrid genetic algorithm for estimating the optimal time scale of linear systems approximations using Laguerre models,” IEEE Transactions on Automatic Control, vol. 45, pp. 1007–1011, May 2000

    work page 2000

  24. [24]

    Regularized system identification using orthonormal basis functions,

    T. Chen and L. Ljung, “Regularized system identification using orthonormal basis functions,” in2015 European Control Conference (ECC), pp. 1291–1296, July 2015

    work page 2015

  25. [25]

    Perspectives of orthonor- mal basis functions based kernels in bayesian system identification,

    M. Darwish, G. Pillonetto, and R. T ´oth, “Perspectives of orthonor- mal basis functions based kernels in bayesian system identification,” in2015 54th IEEE Conference on Decision and Control (CDC), pp. 2713–2718, IEEE, 2015

    work page 2015

  26. [26]

    Bayesian Frequency Domain Identification of LTI Systems with OBFs Kernels*,

    M. A. H. Darwish, J. Lataire, and R. T ´oth, “Bayesian Frequency Domain Identification of LTI Systems with OBFs Kernels*,”IFAC- PapersOnLine, vol. 50, pp. 6238–6243, July 2017

    work page 2017

  27. [27]

    Adaptive Rational Orthogonal Basis Func- tions for Identification of Continuous-Time Systems,

    W. Mi and W. X. Zheng, “Adaptive Rational Orthogonal Basis Func- tions for Identification of Continuous-Time Systems,”IEEE Transac- tions on Automatic Control, vol. 66, pp. 1809–1816, Apr. 2021

    work page 2021

  28. [28]

    Frequency-domain identification: An algorithm based on an adaptive rational orthogonal system,

    W. Mi and T. Qian, “Frequency-domain identification: An algorithm based on an adaptive rational orthogonal system,”Automatica, vol. 48, pp. 1154–1162, June 2012

    work page 2012

  29. [29]

    Some metrical theorems on Fuchsian groups,

    M. Tsuji, “Some metrical theorems on Fuchsian groups,”Kodai Mathematical Seminar Reports, vol. 2, no. 4-5, pp. 89 – 93, 1950

    work page 1950

  30. [30]

    Chapter 6 - transfinite diameter, chebyshev constant and capacity,

    S. Kirsch, “Chapter 6 - transfinite diameter, chebyshev constant and capacity,” inGeometric Function Theory(R. K ¨uhnau, ed.), vol. 2 of Handbook of Complex Analysis, pp. 243–308, North-Holland, 2005

    work page 2005

  31. [31]

    An online approach to physical watermark design,

    H. Liu, Y . Mo, J. Yan, L. Xie, and K. H. Johansson, “An online approach to physical watermark design,”IEEE Transactions on Auto- matic Control, vol. 65, no. 9, pp. 3895–3902, 2020

    work page 2020

  32. [32]

    Model quality evaluation inH 2 iden- tification,

    L. Giarre and M. Milanese, “Model quality evaluation inH 2 iden- tification,”IEEE Transactions on Automatic Control, vol. 42, no. 5, pp. 691–698, 1997

    work page 1997

  33. [33]

    H 2 model reduction for large-scale linear dynamical systems,

    S. Gugercin, A. C. Antoulas, and C. Beattie, “H 2 model reduction for large-scale linear dynamical systems,”SIAM Journal on Matrix Analysis and Applications, vol. 30, no. 2, pp. 609–638, 2008

    work page 2008

  34. [34]

    Control under stochastic multiplica- tive uncertainties: Part i, fundamental conditions of stabilizability,

    T. Qi, J. Chen, W. Su, and M. Fu, “Control under stochastic multiplica- tive uncertainties: Part i, fundamental conditions of stabilizability,” IEEE Transactions on Automatic Control, vol. 62, no. 3, pp. 1269– 1284, 2017

    work page 2017

  35. [35]

    Control under stochastic multi- plicative uncertainties: Part ii, optimal design for performance,

    W. Su, J. Chen, M. Fu, and T. Qi, “Control under stochastic multi- plicative uncertainties: Part ii, optimal design for performance,”IEEE Transactions on Automatic Control, vol. 62, no. 3, pp. 1285–1300, 2017

    work page 2017

  36. [36]

    An input–output approach to structured stochastic uncertainty,

    B. Bamieh and M. Filo, “An input–output approach to structured stochastic uncertainty,”IEEE Transactions on Automatic Control, vol. 65, no. 12, pp. 5012–5027, 2020

    work page 2020

  37. [37]

    Mean-square stability and stabilizability analyses of lti systems under spatially correlated multiplicative pertur- bations,

    J. Chen, T. Qi, and J. Chen, “Mean-square stability and stabilizability analyses of lti systems under spatially correlated multiplicative pertur- bations,”arXiv preprint arXiv:2112.05363, 2021

    work page arXiv 2021

  38. [38]

    Semi-infinite programming: Theory, methods, and applications,

    R. Hettich and K. O. Kortanek, “Semi-infinite programming: Theory, methods, and applications,”SIAM Review, vol. 35, no. 3, pp. 380–429, 1993

    work page 1993

  39. [39]

    Numerical Conformal Mapping with Rational Func- tions,

    L. N. Trefethen, “Numerical Conformal Mapping with Rational Func- tions,”Computational Methods and Function Theory, vol. 20, pp. 369– 387, Nov. 2020

    work page 2020

  40. [40]

    On the distribution of Tsuji points,

    K. Menke, “On the distribution of Tsuji points,”Mathematische Zeitschrift, vol. 190, pp. 439–446, Sept. 1985

    work page 1985

  41. [41]

    On the approximation order of extremal point methods for hyperbolic minimal energy problems,

    M. Stiemer, “On the approximation order of extremal point methods for hyperbolic minimal energy problems,”Numerische Mathematik, vol. 99, pp. 533–555, Jan. 2005

    work page 2005

  42. [42]

    Linear systems can be hard to learn,

    A. Tsiamis and G. J. Pappas, “Linear systems can be hard to learn,” in2021 60th IEEE Conference on Decision and Control (CDC), pp. 2903–2910, 2021

    work page 2021

  43. [43]

    Fundamental limit on siso system iden- tification,

    J. Li, S. Sun, and Y . Mo, “Fundamental limit on siso system iden- tification,” in2022 IEEE 61st Conference on Decision and Control (CDC), pp. 856–861, 2022

    work page 2022

  44. [44]

    Revisiting Ho–Kalman-Based System Identi- fication: Robustness and Finite-Sample Analysis,

    S. Oymak and N. Ozay, “Revisiting Ho–Kalman-Based System Identi- fication: Robustness and Finite-Sample Analysis,”IEEE Transactions on Automatic Control, vol. 67, pp. 1914–1928, Apr. 2022

    work page 1914

  45. [45]

    Finite sample analysis of stochastic sys- tem identification,

    A. Tsiamis and G. J. Pappas, “Finite sample analysis of stochastic sys- tem identification,”Proceedings of the IEEE Conference on Decision and Control, vol. 2019-December, pp. 3648–3654, 12 2019

    work page 2019

  46. [46]

    A unifying construction of orthonormal bases for system identification,

    B. Ninness and F. Gustafsson, “A unifying construction of orthonormal bases for system identification,” inProceedings of 1994 33rd IEEE Conference on Decision and Control, vol. 4, pp. 3388–3393 vol.4, 1994

    work page 1994

  47. [47]

    Bachnas,Advancing Process Control using Orthonormal Basis Functions

    A. Bachnas,Advancing Process Control using Orthonormal Basis Functions. Phd thesis 1 (research tu/e / graduation tu/e), Electrical Engineering, Feb. 2023. Proefschrift

    work page 2023

  48. [48]

    Network Energy Minimiza- tion via Sensor Selection and Topology Control,

    Y . Mo, R. Ambrosino, and B. Sinopoli, “Network Energy Minimiza- tion via Sensor Selection and Topology Control,”IFAC Proceedings Volumes, vol. 42, pp. 174–179, Sept. 2009

    work page 2009

  49. [49]

    D. E. Knuth,The Art of Computer Programming, Volume 1 (3rd Ed.): Fundamental Algorithms. USA: Addison Wesley Longman Publishing Co., Inc., 1997

    work page 1997

  50. [50]

    Fundamental limits in sensitivity minimization: Multiple-input-multiple-output (mimo) plants,

    T. S. Brinsmead and G. C. Goodwin, “Fundamental limits in sensitivity minimization: Multiple-input-multiple-output (mimo) plants,”IEEE Transactions on Automatic Control, vol. 46, pp. 1486–1489, 9 2001

    work page 2001

  51. [51]

    Verzerrungss ¨atze f ¨ur quasikonforme Abbildungen,

    O. Lehto and K. I. Virtanen, “Verzerrungss ¨atze f ¨ur quasikonforme Abbildungen,” inQuasikonforme Abbildungen, pp. 54–113, Berlin, Heidelberg: Springer Berlin Heidelberg, 1965. Jiayun Lireceived her Bachelor of Engineering degree from Department of Automation, Tsinghua University in 2022. She is currently a Ph.D. candidate in the Department of Automation...

    work page 1965
