Field-Induced Ferroelectric Phase Transition Dynamics in PMN-PT compositions near the Morphotropic Phase Boundary

Shivjeet Chanan , Joseph Kerchenfaut , Eduard Illin , Eugene V. Colla This is my paper

Pith reviewed 2026-05-16 10:09 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.dis-nn
keywords PMN-PTmorphotropic phase boundaryfield-induced ferroelectric transitionhistory dependencephase transition dynamicspolarization memoryrelaxor ferroelectrics
0
0 comments X

The pith

PMN-PT near the morphotropic phase boundary remembers prior electric-field exposure to accelerate ferroelectric ordering.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper examines the dynamics of field-induced ferroelectric phase transitions in PMN-PT compositions close to the morphotropic phase boundary. It shows that these compositions display transition behaviors unlike those far from the boundary, with the transition temperature, delay times after zero-field cooling, and resulting polarization all depending on the sequence of applied fields. Under certain field and temperature conditions the material keeps a record of its field history and uses that record to speed up the ordering process. The findings suggest that field protocols can be used to control how quickly the ferroelectric state appears.

Core claim

PMN-PT compositions near the MPB exhibit phase-transition dynamics that differ markedly from those far below the MPB. Electric-field history significantly affects the field-induced transition temperature Tc, zero-field-cooling delay time tau_ZFC, and induced polarization Pc gained or lost during the transition. Under specific field-temperature conditions, PMN-PT retains a memory of its electric-field history and uses it to kinetically accelerate ferroelectric ordering.

What carries the argument

Electric-field history memory that kinetically accelerates the field-induced ferroelectric phase transition in MPB-proximal PMN-PT.

If this is right

  • The transition temperature Tc shifts according to the electric-field history applied before the measurement.
  • The zero-field-cooling delay time tau_ZFC lengthens or shortens depending on prior field exposure.
  • The induced polarization Pc increases or decreases based on the sequence of fields used.
  • Under specific conditions the material accelerates ferroelectric ordering by recalling its electric-field history.
  • These history effects are absent or weaker in compositions far from the MPB.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Device designers could program faster switching in ferroelectric capacitors by pre-applying specific field sequences.
  • Similar history-dependent kinetics may exist in other relaxor materials near composition-driven phase boundaries.
  • Systematic variation of field ramp rates and dwell times could map how the memory is stored at the nanoscale.
  • The effect offers a route to adaptive sensors whose response speed is set by their recent electrical environment.

Load-bearing premise

The marked differences in dynamics and the memory effect arise primarily from proximity to the morphotropic phase boundary rather than from variations in sample quality, electrode interfaces, or the chosen field protocols.

What would settle it

Finding the same history-dependent shifts in Tc, tau_ZFC, and Pc in PMN-PT compositions well away from the MPB when tested with identical field protocols would falsify the claim that MPB proximity is the main driver.

Figures

Figures reproduced from arXiv: 2601.21055 by Eduard Illin, Eugene V. Colla, Joseph Kerchenfaut, Shivjeet Chanan.

Figure 1

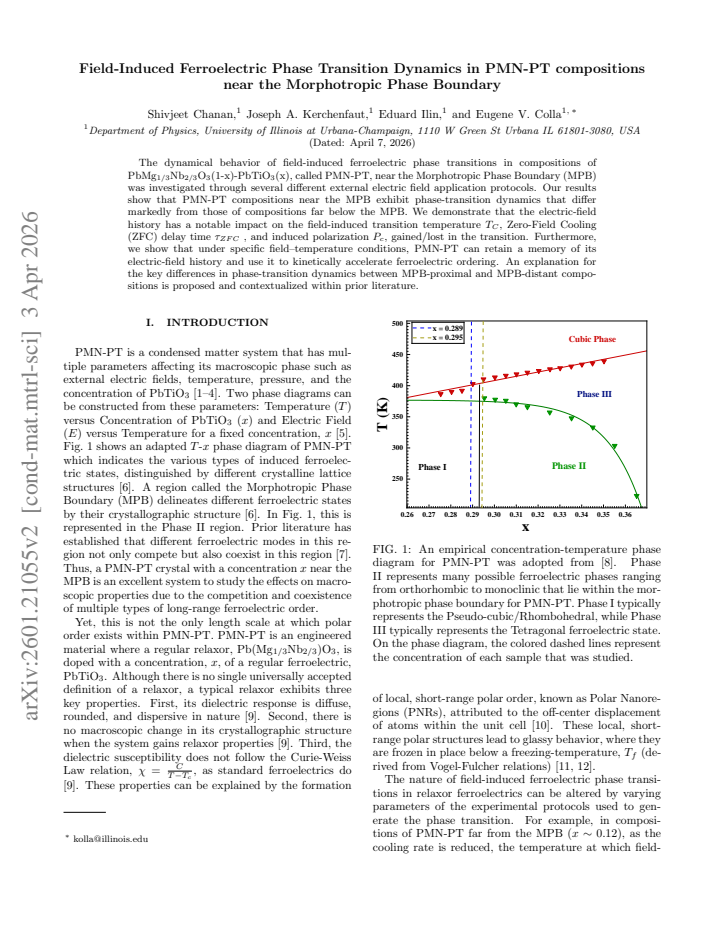

Figure 1. Figure 1: FIG. 1: An empirical concentration-temperature phase [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

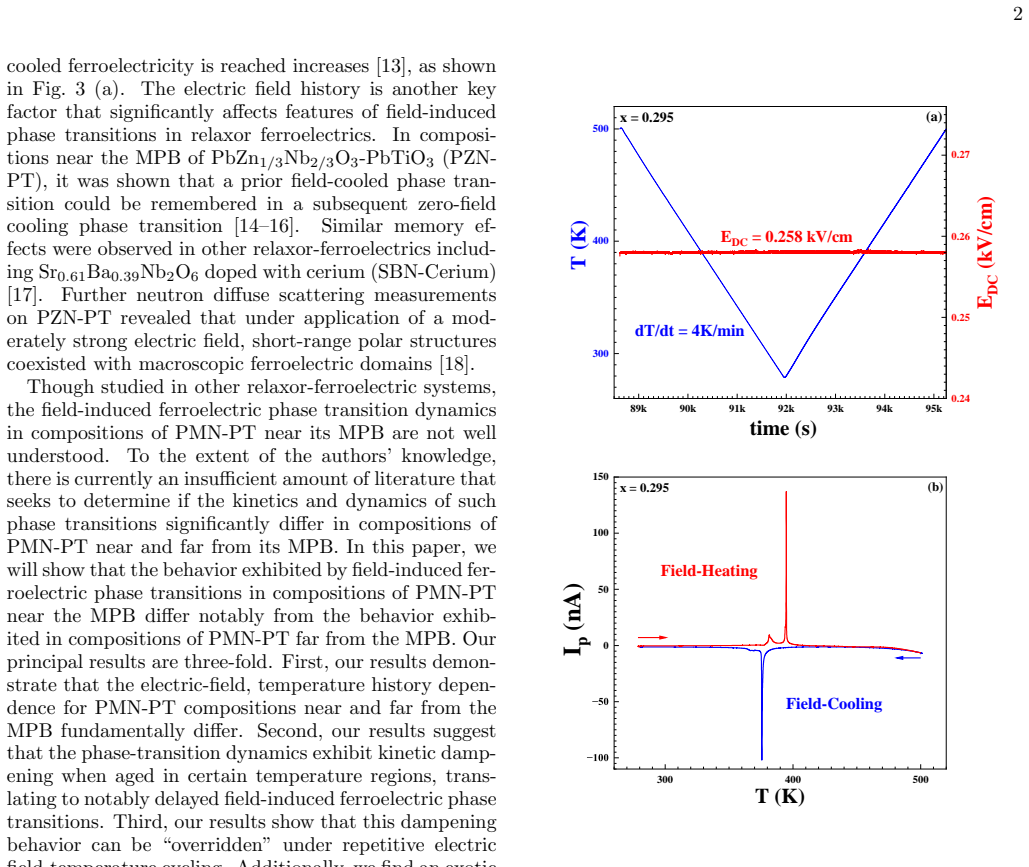

Figure 2. Figure 2: FIG. 2: (a) FC-FH Regime Protocol; (b) Polarization [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

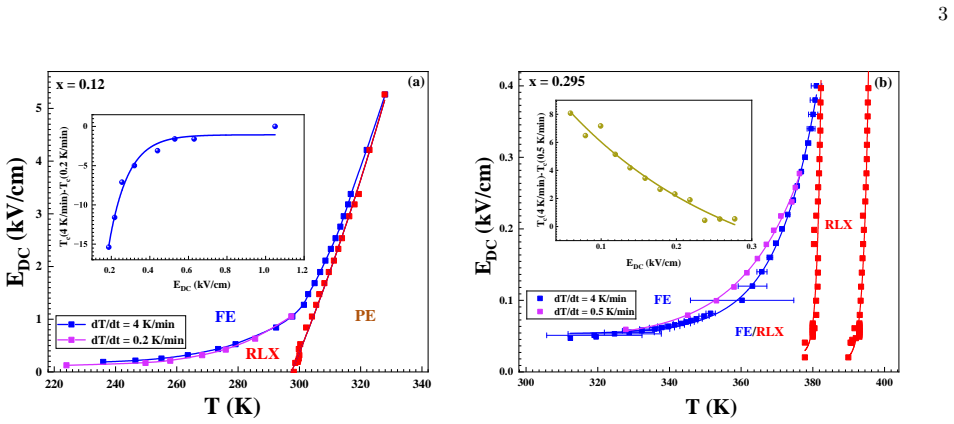

Figure 3. Figure 3: FIG. 3: Empirical field-induced electric field-temperature phase diagrams are shown for (a) PMN-PT composition [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

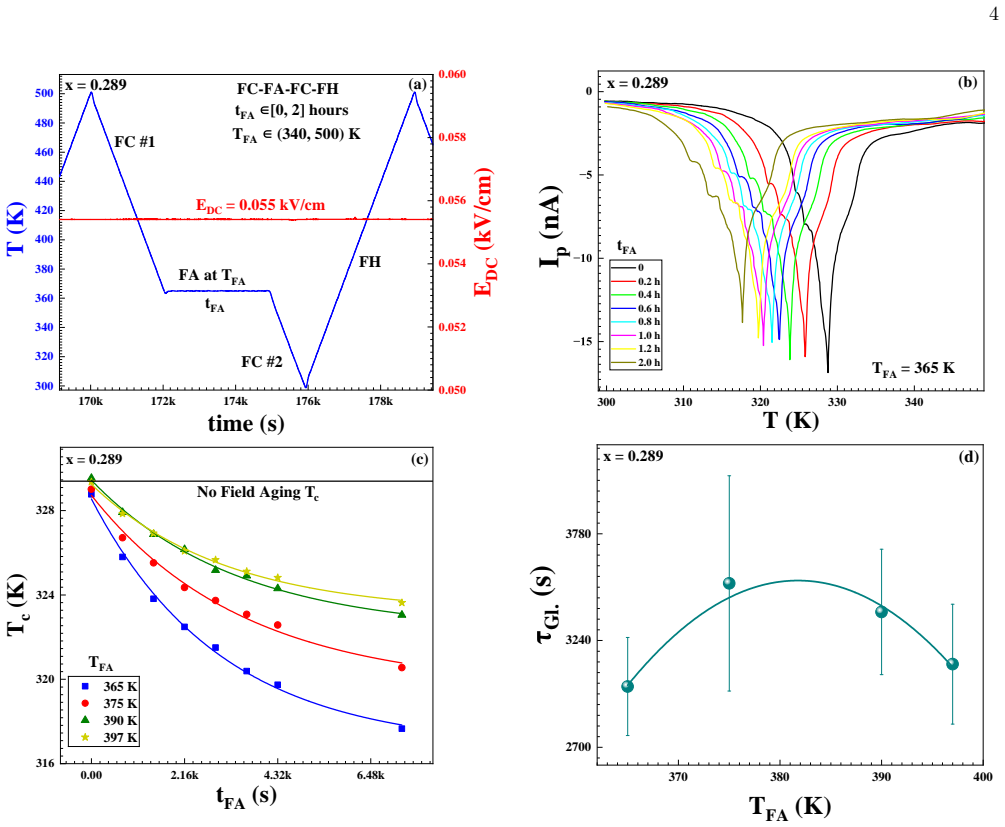

Figure 4. Figure 4: FIG. 4: (a) Intermediate Field-Aging step protocol showing temperature and external electric field strength as func [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

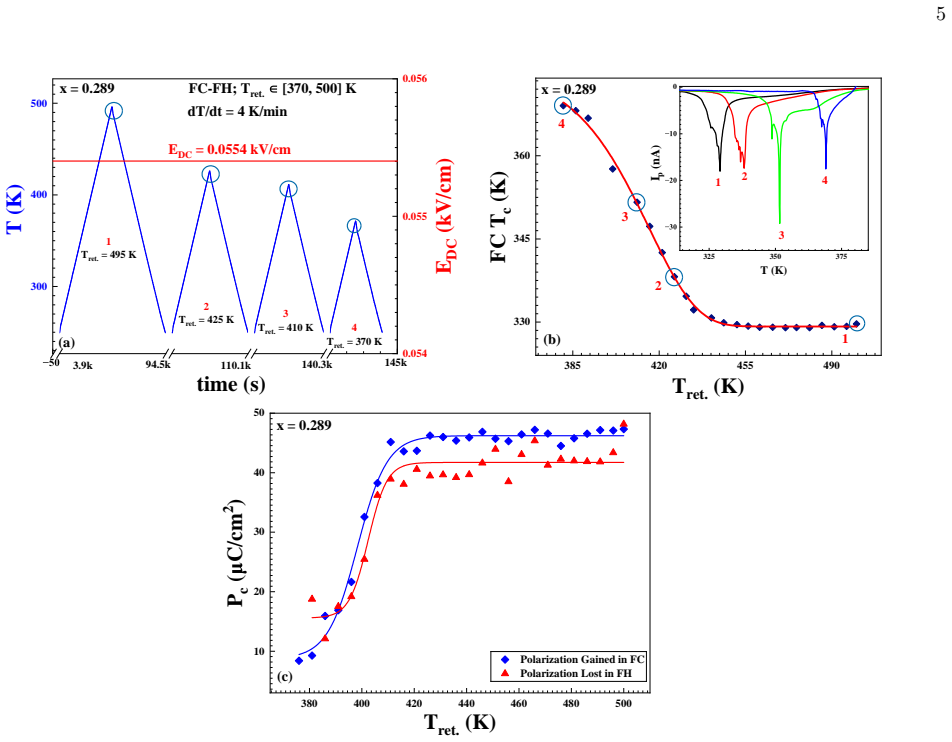

Figure 5. Figure 5: FIG. 5: (a) Certain time slices of the different return point temperature experimental protocol are shown. (b) The [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6: (a) The temperature-field protocol for the regular [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 8

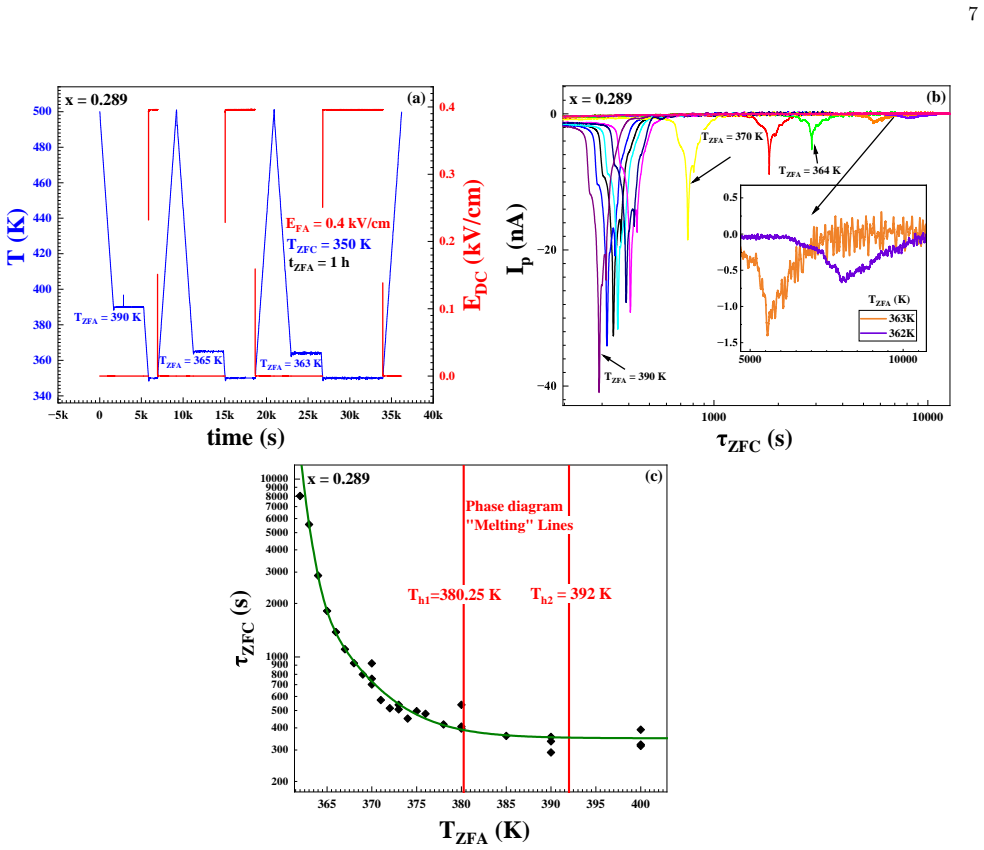

Figure 8. Figure 8: FIG. 8: (a) The intermediate zero-field aging step experimental protocol is plotted as temperature and DC electric [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9

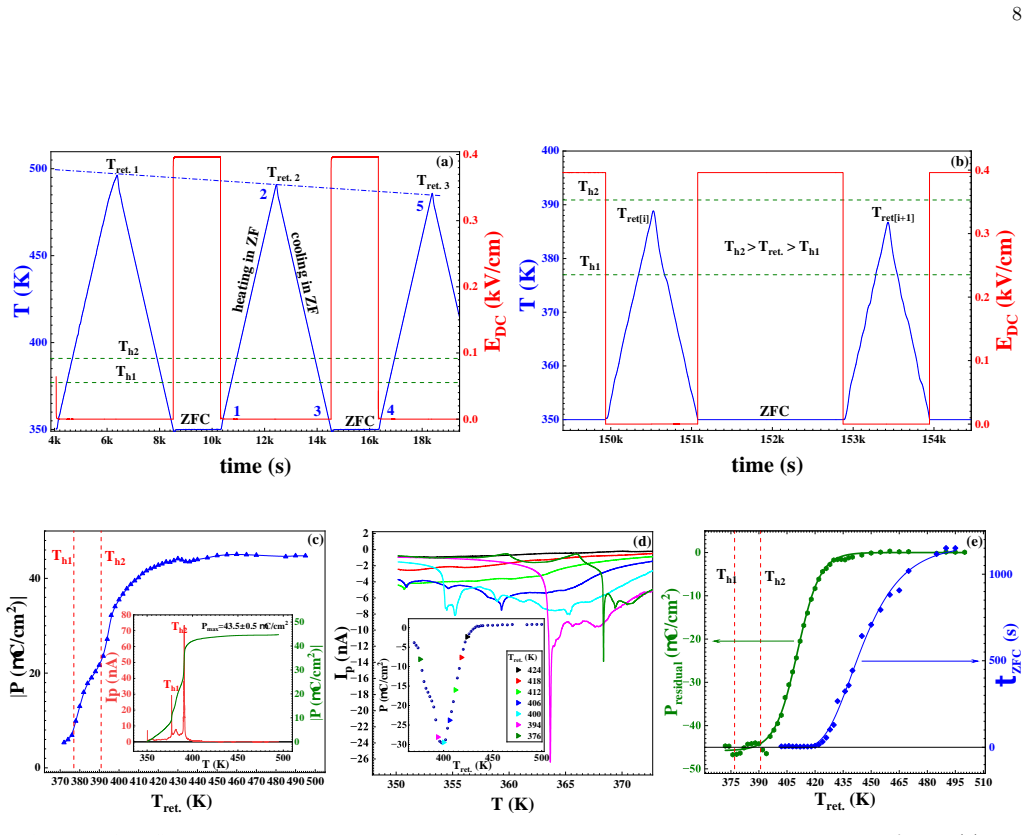

Figure 9. Figure 9: FIG. 9: ZFC Different Return Point Temperature experimental protocol is shown for [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 10

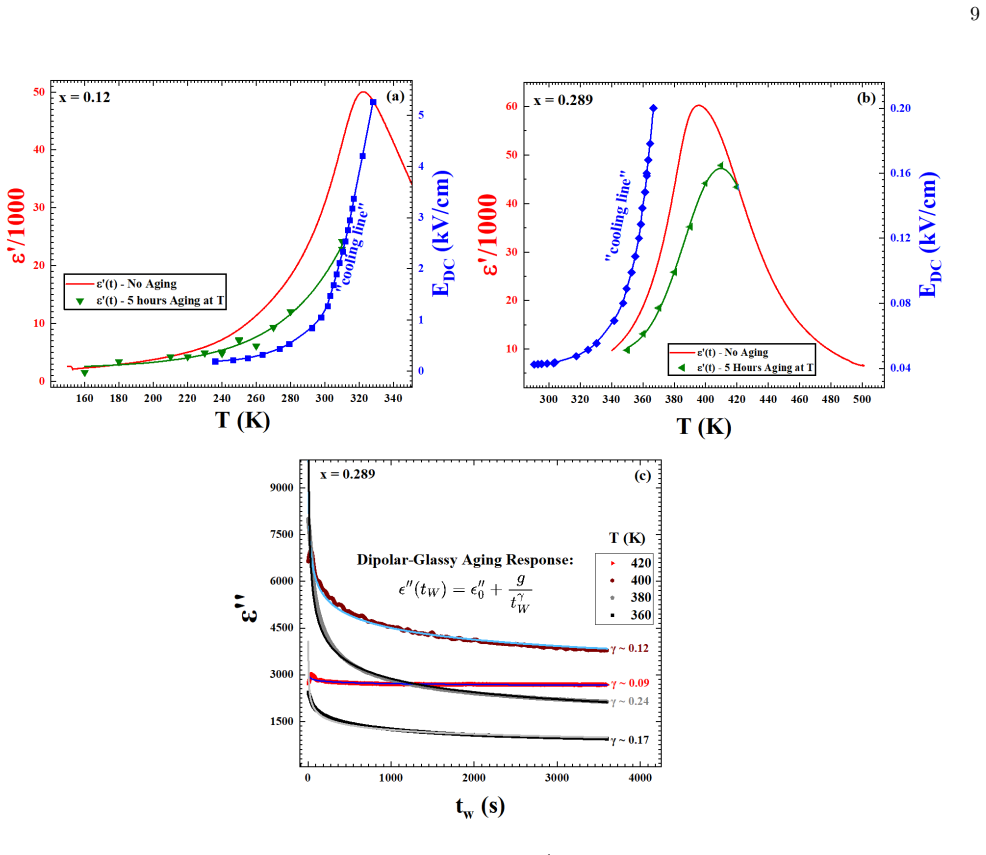

Figure 10. Figure 10: FIG. 10: Real component of the scaled dielectric susceptibility, [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 11

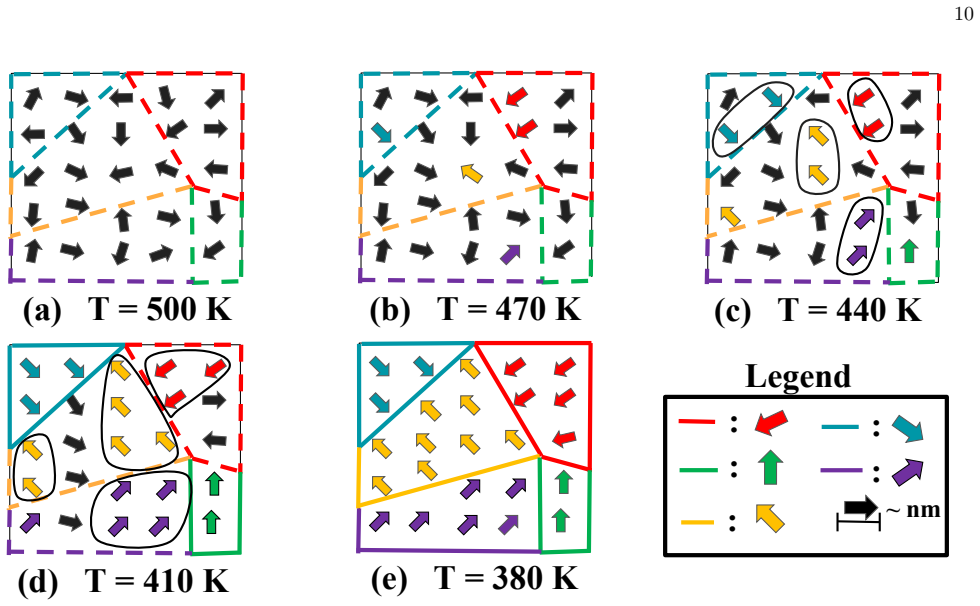

Figure 11. Figure 11: FIG. 11: A visual schematic of the polarization retention phenomenon observed in the different [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
read the original abstract

The dynamical behavior of field-induced ferroelectric phase transitions in compositions of PbMg1/3Nb2/3O3(1-x)-PbTiO3(x) (PMN-PT) near the morphotropic phase boundary (MPB) was investigated using several electric-field application protocols. Our results show that PMN-PT compositions near the MPB exhibit phase-transition dynamics that differ markedly from those far below the MPB. We demonstrate that electric-field history significantly affects the field-induced transition temperature Tc, zero-field-cooling (ZFC) delay time tau_ZFC, and induced polarization Pc gained or lost during the transition. Furthermore, under specific field-temperature conditions, PMN-PT retains a memory of its electric-field history and uses it to kinetically accelerate ferroelectric ordering. We propose an explanation for the differences in phase-transition dynamics between MPB-proximal and MPB-distant compositions, contextualized within prior literature.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper examines the dynamical behavior of field-induced ferroelectric phase transitions in PMN-PT compositions near the morphotropic phase boundary (MPB) using various electric-field application protocols. It reports that compositions near the MPB exhibit phase-transition dynamics markedly different from those far below the MPB. Electric-field history affects the field-induced transition temperature Tc, zero-field-cooling delay time tau_ZFC, and induced polarization Pc. Under specific conditions, the material retains a memory of its electric-field history to kinetically accelerate ferroelectric ordering. An explanation is proposed contextualized in prior literature.

Significance. If the central claims hold after addressing controls for sample variations, this study would significantly advance understanding of how proximity to the MPB influences phase transition kinetics and history-dependent memory effects in relaxor ferroelectric materials like PMN-PT. Such findings could inform the development of materials with tunable ferroelectric properties for applications in sensors, actuators, and memory devices. The use of multiple field protocols is a positive aspect of the experimental design.

major comments (1)
  1. [Methods] Methods section: The manuscript does not report quantitative cross-sample metrics such as dielectric loss at 200–300 K, XRD FWHM, or leakage current to confirm that MPB-proximal (x≈0.30) and MPB-distant (x<0.20) compositions have matched defect densities, grain sizes, and electrode interfaces. Without these, the attribution of differences in Tc, tau_ZFC, and Pc to MPB proximity rather than fabrication variations cannot be firmly established.
minor comments (1)
  1. [Abstract] Abstract: The abstract refers to 'several electric-field application protocols' without specifying them; including a brief description would improve clarity for readers.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive assessment of our work's significance and for the constructive comment on the methods. We address the major comment point by point below.

read point-by-point responses

  1. Referee: [Methods] Methods section: The manuscript does not report quantitative cross-sample metrics such as dielectric loss at 200–300 K, XRD FWHM, or leakage current to confirm that MPB-proximal (x≈0.30) and MPB-distant (x<0.20) compositions have matched defect densities, grain sizes, and electrode interfaces. Without these, the attribution of differences in Tc, tau_ZFC, and Pc to MPB proximity rather than fabrication variations cannot be firmly established.

    Authors: We agree that quantitative cross-sample metrics would strengthen the attribution of observed differences to MPB proximity. In the revised manuscript we will add dielectric loss data at 200–300 K, XRD FWHM values, and leakage current measurements for the MPB-proximal (x≈0.30) and MPB-distant (x<0.20) samples. These will be presented in the Methods section together with a brief discussion confirming comparable defect densities, grain sizes, and electrode interfaces across the compositions studied. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental measurements with no derivations or self-referential reductions

full rationale

The paper is an experimental study reporting measurements of field-induced transition temperature Tc, ZFC delay time tau_ZFC, induced polarization Pc, and history-dependent effects in PMN-PT compositions using various electric-field protocols. No mathematical derivations, fitted parameters renamed as predictions, or self-citation chains are present that reduce the central claims to inputs by construction. Claims rest on direct observations and contextualization with prior literature, making the work self-contained against external benchmarks with no load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

No free parameters, invented entities, or ad-hoc axioms are introduced; the work rests on standard experimental assumptions in ferroelectric characterization.

axioms (1)
  • standard math Standard assumptions of ferroelectric phase-transition measurements (uniform field, negligible leakage, reversible polarization)
    Invoked implicitly when reporting Tc, tau_ZFC, and Pc from field-temperature protocols.
