A simple quantum dot: numerical and variational solutions

Connor Walsh , Ian MacPherson , Davidson Joseph , Suyash Kabra , Ripanjeet Singh Toor , Mason Protter , Frank Marsiglio This is my paper

Pith reviewed 2026-05-25 07:18 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords quantum dotbound statemode matchingvariational methodSchrödinger equationcrossed troughstwo-dimensional confinement
0
0 comments X

The pith

Two crossed troughs create a bound state at their crossing despite having no potential well.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that a particle confined to two crossed two-dimensional troughs of zero potential experiences a bound state localized at the intersection. This is surprising because there is no potential minimum to trap the particle. The authors compare matrix mechanics, finite differences, and mode matching to solve the Schrödinger equation, finding that mode matching at the crossing gives the most accurate energy. The same method also produces a simple analytical wave function that achieves the lowest energy known for any variational trial function in this geometry.

Core claim

The geometry of two crossed troughs supports a bound state centered at the crossing point. The mode-matching method generates both the most accurate numerical solution and an analytical variational wave function that achieves the lowest known energy for this problem.

What carries the argument

Mode matching of wave-function solutions from each trough direction at the intersection to enforce continuity of the wave function and its derivative.

If this is right

  • The bound state exists and its energy can be computed to higher precision than with matrix or finite-difference methods.
  • A simple closed-form variational wave function is obtained that improves on prior analytical approximations.
  • This geometry provides a pedagogical example of bound states arising purely from confinement shape rather than a potential dip.
  • Multiple standard techniques can be applied and directly compared on the identical problem.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same crossing geometry could be used to study bound states in other intersecting quantum-wire or waveguide structures.
  • Mode matching may simplify calculations for particles in networks of channels with abrupt direction changes.
  • The model could be realized and tested in semiconductor devices with lithographically defined crossed channels.

Load-bearing premise

The troughs are modeled as regions of strictly zero potential inside with infinite walls outside, allowing direct mode matching at the crossing with no boundary corrections.

What would settle it

A numerical solution of the time-independent Schrödinger equation on this geometry that returns a non-negative ground-state energy would disprove the existence of the bound state.

Figures

Figures reproduced from arXiv: 2511.16053 by Connor Walsh, Davidson Joseph, Frank Marsiglio, Ian MacPherson, Mason Protter, Ripanjeet Singh Toor, Suyash Kabra.

Figure 1
Figure 1. Figure 1: FIG. 1: Schematic of the crossed troughs of width [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2: Ground state wave function, computed with [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: Bound state energy versus 1 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

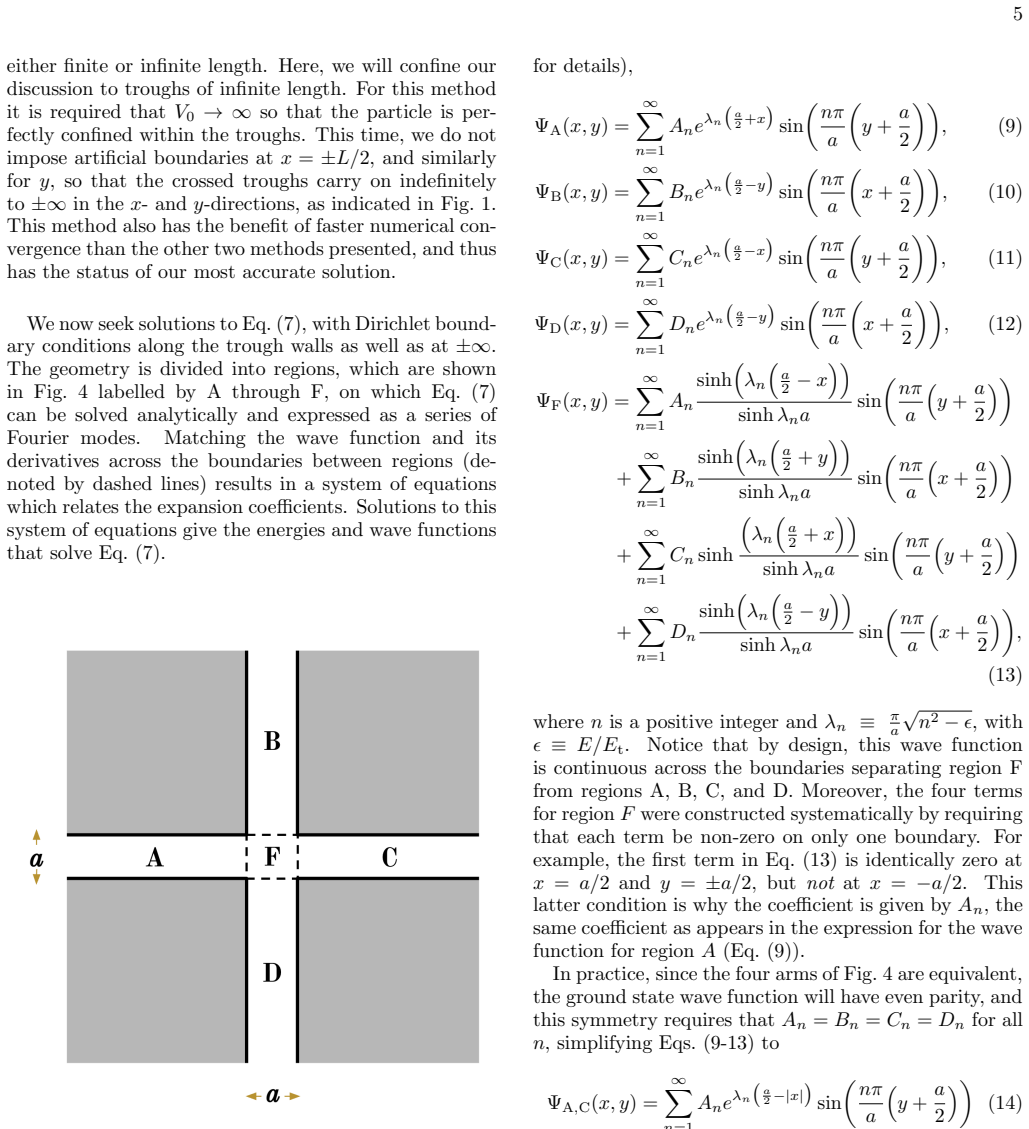

Figure 4. Figure 4: FIG. 4: A sketch of the crossed trough geometry, with [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5: Ground state wave function for [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6: Schematic of the crossed troughs of width [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7: Normalized energies [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8: Grid of points used to discretize the geometry [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
read the original abstract

We describe a simple quantum dot that consists of two crossed two-dimensional troughs. As such there is no potential well; nonetheless, this geometry gives rise to a bound state, centred on the point at which these troughs cross one another. This problem is interesting both because the existence of a bound state may surprise students and because it can be solved using a variety of computational techniques, including matrix mechanics, finite differences, and mode matching. We present these methods and show how the mode-matching method in this case provides the most accurate solution to the problem. Additionally, the mode-matching method can be used to generate a simple wave function that yields the lowest energy known to date to arise out of an analytical variational solution for this problem.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper models a quantum dot as two crossed 2D hard-wall troughs of zero interior potential. It shows that this geometry supports a bound state localized at the crossing, below the continuum threshold of the isolated arms. The Schrödinger equation is solved numerically via matrix mechanics and finite differences, and analytically via mode matching at the junction; the authors claim mode matching supplies both the numerically most accurate energy and a simple variational trial function that improves on all prior analytical results for this problem.

Significance. If the central claim holds, the work supplies a clean, student-accessible example of geometry-induced binding in quantum waveguides and a concrete benchmark for variational methods. The mode-matching construction is standard and systematically improvable; its use here to produce both a high-accuracy numerical value and an improved closed-form trial function is a modest but useful contribution to the waveguide literature.

minor comments (3)
  1. The abstract asserts that mode matching 'provides the most accurate solution' and 'yields the lowest energy known to date,' yet supplies neither numerical values nor explicit comparison with the matrix-mechanics and finite-difference results; a short table or paragraph in §3 or §4 giving the three energies (with estimated uncertainties) would make the claim immediately verifiable.
  2. Section 2 (or wherever the variational trial function is introduced) should state the explicit functional form of the mode-matched wave function and the single variational parameter (if any) that is optimized; the current description is too terse to allow immediate reproduction.
  3. The continuum threshold energy for an isolated trough is stated as ħ²π²/(2m w²) where w is the trough width; a brief reminder of the transverse quantization condition and the value adopted for w would help readers who are not waveguide specialists.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of the manuscript, accurate summary of its content, and recommendation of minor revision. No specific major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper applies standard quantum-mechanical techniques (matrix diagonalization, finite differences, and mode-matching at the junction) to an idealized hard-wall crossed-trough geometry whose potential is defined independently of the solution. Mode-matching supplies both a numerically convergent energy and a simple trial function for a variational upper bound; neither step reduces to a fitted parameter or to a self-citation whose validity depends on the present result. The bound-state existence follows directly from the geometry and the infinite-wall boundary conditions, which are external modeling choices, not derived from the computed energies. No equations or claims in the provided text exhibit self-definition, fitted-input-as-prediction, or load-bearing self-citation chains.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work rests on standard quantum mechanics; no free parameters, invented entities or ad-hoc axioms are mentioned in the abstract.

axioms (1)
  • standard math Time-independent Schrödinger equation governs the stationary states
    All three numerical methods solve this equation for the given geometry.

pith-pipeline@v0.9.0 · 5666 in / 1168 out tokens · 53879 ms · 2026-05-25T07:18:40.656581+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

9 extracted references · 9 canonical work pages

  1. [1]

    − λa 2 1 + tanh λa 2 + 2π2 π2 +λ 2a2 # . (D9) All together, Eq. (D3) becomes ⟨ ˆH⟩= ℏ2π2 2ma2

    to solve this problem (see details of this method in Ref. [5]). This method was further expounded by Lon- dergan and Murdoch [6] in the context of a related model, and then the crossed trough problem was suggested with- out a solution. We will present a simplified version of this finite-difference method (relaxation is not needed to solve this problem) ap...

    work page

  2. [2]

    Introduction To Quantum Mechanics, 3rd Edition

    D.J. Griffiths, “Introduction To Quantum Mechanics, 3rd Edition”, (Cambridge University Press, Cambridge, 2018). See Problem 8.27, titled “Quantum Dots”, where a varia- tional solutions is presented, and it is demonstrated that this solution has a lower energy than any of the propagat- ing (i.e. unbound) solutions. Note that the 2nd edition of this same b...

    work page 2018

  3. [3]

    The harmonic oscillator in quantum me- chanics: A third way

    F. Marsiglio, “The harmonic oscillator in quantum me- chanics: A third way”, Amer. J. Phys.77, 253-258 (2009)

    work page 2009

  4. [4]

    Calculation of 2D elec- tronic band structure using matrix mechanics

    R.L. Pavelich and F. Marsiglio, “Calculation of 2D elec- tronic band structure using matrix mechanics”, Amer. J. Phys.84, 924-935 (2016)

    work page 2016

  5. [5]

    Quan- tum bound states in a classically unbound system of crossed wires,

    R. L. Schult, D. G. Ravenhall, and H. W. Wyld, “Quan- tum bound states in a classically unbound system of crossed wires,” Phys. Rev.B39, 5476-5479 (1989)

    work page 1989

  6. [6]

    Numerical Recipes: The Art of Scientific Computing

    William H. Press, Brian P. Flannery, Saul A. Teukolsky, and William T. Vetterling, “Numerical Recipes: The Art of Scientific Computing”, (Cambridge University Press, Cambridge, 1986). See Chap. 17.5, page 652

    work page 1986

  7. [7]

    Confined modes in two-dimensional tubes

    J.T. Londergan and D.P. Murdoch, “Confined modes in two-dimensional tubes”, Amer. J. Phys.80, 1085-1093 (2012)

    work page 2012

  8. [8]

    Numerical investigation of isospectral cavities built from triangles

    Hua Wu, D.W.L. Sprung and J. Martorell, “Numerical investigation of isospectral cavities built from triangles”, Phys. Rev. bf E51, 703-708 (1995)

    work page 1995

  9. [9]

    Handbook of Mathe- matical Functions with Formulas, Graphs, and Mathemat- ical Tables, 9th Edition

    M. Abramowitz and I. A Stegun, “Handbook of Mathe- matical Functions with Formulas, Graphs, and Mathemat- ical Tables, 9th Edition”, (Dover Publications, New York, 1970). See Chap. 25, page 885

    work page 1970
