Multimodal Medical Image Binding via Shared Text Embeddings

T0 review · 3 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Medical images from five modalities can be aligned through shared text embeddings, with no paired image data between modalities.

desk verdict Text-anchored binding of five medical CLIP-like models is a plausible idea with broad evaluation, but the central text-pair alignment in Eq. (2) is never specified, which undercuts the method as written. read the letter →

arxiv 2506.18072 v2 pith:JZRNTYPO submitted 2025-06-22 eess.IV cs.AIcs.CV

Yunhao Liu , Suyang Xi , Shiqi Liu , Hong Ding , Chicheng Jin , Chong Zhong , Junjun He , Catherine C. Liu
show 1 more author
Yiqing Shen
This is my paper
classification eess.IVcs.AIcs.CV
keywords multimodalmedicalimagingsharedtextembeddingcontrastivelanguage-imagepretrainingknowledgedistillationzero-shotclassificationfew-shotcross-modalretrievaltext-anchoredalignment
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Medical images come in many modalities, but pairing them with each other for training is expensive and often impossible. This paper argues that text can serve as the common anchor instead: every modality already has clinical reports or descriptions, so aligning the text spaces of five existing image-text models should align the image spaces too. It introduces M3Bind, which fine-tunes five modality-specific CLIP-like models with a text-text alignment loss while preserving each one's image-text alignment, then distills their text encoders into a single model. The reported result is that zero-shot and few-shot classification improve over each modality's original model, and X-ray-to-ECG retrieval works without ever training on paired X-ray-ECG data. A sympathetic reader would take this as evidence that text-bridged alignment can substitute for explicit image pairing in medical multimodal learning.

What carries the argument

The load-bearing mechanism is a two-phase text-anchored alignment. In the first phase, each modality-specific CLIP-like model is fine-tuned via LoRA so its text embeddings are pulled toward text embeddings from other modalities through the MSE loss of Eq. (2), while Eq. (1) preserves the original image-text contrastive alignment; adaptive sampling, learning-rate scaling, and loss weighting balance dataset sizes. In the second phase, Shared Embedding Space Knowledge Distillation (SESKD) compresses the five teacher text encoders into a single BioClinicalBERT student by combining embedding-matching MSE with a contrastive loss against all five image encoders, so the unified text model remains aligned with every modality. The unifying identity is simply that text, which already co-occurs with each image modality, becomes the shared coordinate system for the image spaces.

What would settle it

Train M3Bind twice on the same modalities: once with text pairs that are verified to describe the same finding across modalities, and once with randomly shuffled text pairs. If cross-modal retrieval on a held-out set is not clearly better in the verified-pair run, the shared text space is not actually binding through semantics.

Watch

Extended reading notes

Core claim

M3Bind's central claim is that multiple medical imaging modalities can be brought into one embedding space without any paired data between image modalities, by using text as the bridging anchor. Starting from five pre-trained CLIP-like models — one each for X-ray, CT, retina, ECG, and pathology — the framework aligns their text encoders with an MSE loss on text samples that share semantic content, while a contrastive loss keeps each image encoder aligned to its own text. An adaptive modality-balancing scheme prevents large datasets like X-ray from dominating, and a distillation stage (SESKD) trains a single BioClinicalBERT student to reproduce the teacher text embeddings and to stay contrastively aligned with all five image encoders. The paper reports that the resulting shared space improves or matches the original models on zero-shot and few-shot classification across twelve datasets, and enables cross-modal retrieval between X-ray and ECG without direct image-image pairs.

Load-bearing premise

The load-bearing premise is that text descriptions from different modalities can be matched to the same semantic content without paired images, so that pulling their text embeddings together aligns meanings rather than gluing unrelated reports.

Editorial extensions

If this is right

  • Any two of the five modalities can be compared or retrieved through the shared text space despite never being paired in training.
  • Adding a new modality requires only a CLIP-like model for that modality and alignment of its text encoder to the shared space, avoiding the quadratic number of image-image pairings.
  • The unified distilled text encoder makes inference cheaper than running five separate text encoders while preserving cross-modal alignment.
  • Stronger base CLIP-like models should translate directly into stronger M3Bind performance, since the framework inherits each modality's image-text alignment.
  • Modalities with small datasets, such as ECG and retina, receive extra weight in training, so the framework can support rare modalities alongside data-rich ones.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If text anchoring generalizes, a natural extension is to bind modalities that share little or no text vocabulary by using a pivot modality's text, or by translating text spaces; the paper does not test such indirect binding.
  • The paper leaves unspecified how text-text pairs with the same semantic content are obtained; one testable implication is that the framework's gains should depend on semantic matching of reports rather than lexical overlap, so shuffling those pairs should degrade cross-modal retrieval.
  • Because the shared space is built from independent CLIP-like models, one could probe whether aligning text encoders alone is sufficient for image-image alignment by checking whether cross-modal image retrieval correlates with text similarity on held-out pairs.
  • The reported gains from adding each modality suggest a scaling effect: more anchor modalities should monotonically improve the shared space, which could be tested by binding additional modalities such as ultrasound or MRI.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper proposes M3Bind, a pre-training framework that aligns five medical imaging modalities (X-ray, CT, retina, ECG, pathology) by binding their modality-specific CLIP-like image-text models through a shared text embedding space, without requiring explicit image-image pairs. The method first fine-tunes the text encoders of the five base models using a contrastive image-text loss plus an MSE loss between text embeddings of 'the same semantic content' across modalities, then distills the five text encoders into a unified BioClinicalBERT-based text encoder via SESKD. The authors evaluate zero-shot and few-shot classification and cross-modal retrieval on 12 datasets and report competitive or state-of-the-art results relative to the base CLIP-like models and several baselines.

Significance. If the central mechanism is valid, the framework is practically attractive because it turns multiple single-modality medical CLIP models into a unified multimodal space without collecting paired cross-modal images, and the evaluation is broad (five modalities, 12 datasets, three task types). The paper also gives credit for explicit adaptive modality balancing and a distillation stage that reduces the number of text encoders at inference. However, the main claim rests on the construction of semantically matched text-text pairs in Eq. (2), which is not specified, and the zero-shot protocol has unresolved data-split questions. The contribution is therefore not yet established even though the empirical scope is commendable.

major comments (3)
  1. [3.2, Eq. (2)] The key alignment loss L_MSE requires text embeddings 'corresponding to the same semantic content i' for two different modalities, but the manuscript never specifies how such cross-modal text-text pairs are constructed. Section 4.2 only states that text-modality alignment used a batch size of 64 with adaptive sampling; if the index i pairs the i-th text from an independently sampled batch of modality m1 with the i-th text from a batch of modality m2, the MSE loss aligns unrelated clinical texts and would corrupt the text space rather than bind modalities. Please specify the exact source of semantic correspondence (shared disease-label prompts, translated reports, same-patient reports across modalities, or another construction), give examples of the paired inputs, and explain how this does not reintroduce the paired-data burden the paper claims to remove.
  2. [4.2-4.3] The zero-shot evaluation protocol is incomplete. The model is fine-tuned on text data from each modality, but the paper does not state which corpus splits are used for M3Bind pre-training (Eq. (6)) and SESKD (Eq. (9)) and which are held out for evaluation. In particular, if text from MIMIC-ECG or CT-RATE contributes to pre-training, then the internal validation results reported in Table 1 for MIMIC-ECG and CT-RATE are not true zero-shot results. Please report exact dataset splits and confirm that no evaluation subjects or reports were seen during fine-tuning or distillation, including at the patient level for the MIMIC-PAIR retrieval experiment in Table 3.
  3. [3.2, 4.1, 4.3] The ECG results depend on an ECG-CLIP model trained by the authors, but the manuscript does not provide enough detail to reproduce it: no architecture, training data split, text preprocessing, loss function, or hyperparameters beyond the generic settings in Section 4.2. Since ECG-CLIP is the only baseline for MIMIC-ECG and PTB-XL zero-shot retrieval in Table 1 and is also a component of M3Bind, the missing details make fair comparison and reproducibility difficult. Please provide the training protocol or release the checkpoint.
minor comments (5)
  1. [3.2] The phrase 'novel pertaining method' should be 'novel pre-training method'.
  2. [Table 1] Table 1 contains typographical issues: 'MESIDOR' should be 'MESSIDOR', 'CT-RA TE' should be 'CT-RATE', and the ECG-CLIP row appears to be missing entries for the MIMIC-ECG and PTB-XL columns that are listed in the header.
  3. [Table 2] In Table 2, the MedBind rows use '−.−' for missing standard deviations; please use an explicit 'not reported' marker and add error bars if available.
  4. [Related Work] The related work cites DeCLIP [39] as leveraging multi-dimensional supervision for data efficiency, but reference [39] is a deepfake localization paper; the intended citation is the earlier DeCLIP work (Li et al., 2021) on multi-dimensional supervision.
  5. [4.6, Table 5] The ablation results in Table 5 are reported without standard deviations or significance tests; given the small differences (e.g., ODIR200x3 πnaive 0.452 vs. 0.478 with AMB), please state the number of seeds and, if possible, include variance.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: M3Bind's cross-modal alignment is produced by explicit training objectives and evaluated on held-out downstream tasks; no reported prediction reduces to a fitted constant or to a self-citation chain.

full rationale

The paper's derivation chain is a training pipeline, not a prediction derived from its own definition. Eq. (1) preserves each modality's image-text contrastive alignment; Eq. (2) adds an MSE loss that pushes text embeddings from different modality encoders together; Eq. (6) combines these with adaptive balancing; and Eqs. (7)-(9) distill the modality-specific text encoders into a BioClinicalBERT student. All of these are training objectives. The paper's claims of cross-modal alignment are then evaluated empirically on held-out zero-shot classification (Table 1), few-shot classification (Table 2), and cross-modal retrieval (Table 3) benchmarks such as CheXpert, MESIDOR, ODIR, PTB-XL, MIMIC-PAIR, and RAD-ChestCT. No table entry is identical by construction to any loss term, and no hyperparameter such as beta=0.5 or lambda=10 is presented as a fitted prediction of the downstream metrics. The framework cites external prior models (MGCA, CT-CLIP, FLAIR, QuiltNet, MedBind, BioClinicalBERT) and does not depend on a self-citation chain or on a 'uniqueness theorem' imported from the authors' own prior work. The main legitimate concern raised in the skeptical note is that Eq. (2) relies on text embeddings 'corresponding to the same semantic content i' without specifying how such text-text matches are constructed; however, that is an implementation and reproducibility gap, not a circular reduction. The central claim is not equivalent to its inputs by definition, so the circularity score is 0.

Assumptions & free parameters 6 free parameters · 6 assumptions · 0 invented entities

The framework rests on standard contrastive and distillation losses, the reliability of five pretrained CLIP-like models, and the availability of semantically matched text across modalities. The least-supported element is the text-text matching assumption behind Eq. (2); it is load-bearing and not described. All other entries are either standard optimization tools or domain-specific modeling choices.

free parameters (6)
  • beta (modality balancing exponent) = 0.5
    Set empirically in Section 3.3, Eq. (3); controls how strongly underrepresented modalities are oversampled and affects training balance.
  • lambda (inter-modality MSE weight) = 10
    Set in Section 4.2; weights the text-space alignment loss in Eq. (6); the paper says it prioritizes inter-modality text alignment before connecting modalities.
  • temperature tau = not reported
    Used in contrastive losses Eqs. (1) and (8); no value is reported, so the implementation is not fully reproducible.
  • base learning rate = 2e-5
    Set in Section 4.2 for optimization; chosen by hand and not swept.
  • batch sizes = 72 (most), 8 (CT-CLIP), 64 (text alignment)
    Configured in Section 4.2 according to model complexity and hardware constraints; affects contrastive learning and alignment quality.
  • training iterations = 15,000 pretraining; 1,200 plus 1,200 for SESKD
    Set in Section 4.2; the distillation schedule is split into two stages and chosen without reported sensitivity analysis.
assumptions (6)
  • standard math Contrastive losses and MSE are valid objectives for aligning embedding spaces.
    Used in Eqs. (1), (2), (7), and (8); these are standard optimization assumptions in representation learning.
  • domain assumption Pretrained medical CLIP-like models provide usable image-text alignments that survive LoRA fine-tuning.
    Sections 3.2 and 4.1 rely on MGCA, CT-CLIP, FLAIR, ECG-CLIP, and QuiltNet as starting points, and assume fine-tuning preserves their original image-text alignments.
  • ad hoc to paper Text-text matches with the same semantic content exist across modalities without image-image pairs.
    Eq. (2) requires text embeddings Tm1,i and Tm2,i for the same semantic content i; the paper does not specify how these text-text pairs are constructed across datasets.
  • domain assumption Text descriptions across modalities share enough semantics to act as a universal medical anchor.
    Section 1 argues that radiology reports, pathology annotations, retina evaluations, and other clinical text can bridge heterogeneous imaging modalities.
  • ad hoc to paper The inverse-dataset-size balancing scheme with beta=0.5 improves learning for small modalities.
    Section 3.3 introduces this strategy specifically for this framework and sets beta empirically without a sensitivity analysis.
  • domain assumption BioClinicalBERT can consolidate five teacher text spaces without losing image-text alignment.
    Section 3.4 assumes distillation with MSE and contrastive losses into a BioClinicalBERT student preserves the useful semantic structure of all teacher encoders.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Multimodal Medical Image Binding via Shared Text Embeddings." pith.science (2026). https://pith.science/paper/JZRNTYPO

@misc{pith2026250618072,
  author       = {Pith},
  title        = {Pith review of: Multimodal Medical Image Binding via Shared Text Embeddings},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/JZRNTYPO}},
  note         = {Machine review of arXiv:2506.18072}
}
read the original abstract

Medical image analysis increasingly relies on the integration of multiple imaging modalities to capture complementary anatomical and functional information, enabling more accurate diagnosis and treatment planning. Achieving aligned feature representations across these diverse modalities is therefore important for effective multimodal analysis. While contrastive language-image pre-training (CLIP) and its variant have enabled image-text alignments, they require explicitly paired data between arbitrary two modalities, which is difficult to acquire in medical contexts. To address the gap, we present Multimodal Medical Image Binding with Text (M\textsuperscript{3}Bind), a novel pre-training framework that enables seamless alignment of multiple medical imaging modalities through a shared text representation space without requiring explicit paired data between any two medical image modalities. Specifically, based on the insight that different images can naturally bind with text, M\textsuperscript{3}Bind first fine-tunes pre-trained CLIP-like image-text models to align their modality-specific text embedding space while preserving their original image-text alignments. Subsequently, we distill these modality-specific text encoders into a unified model, creating a shared text embedding space. Experiments on X-ray, CT, retina, ECG, and pathological images on multiple downstream tasks demonstrate that M\textsuperscript{3}Bind achieves state-of-the-art performance in zero-shot, few-shot classification and cross-modal retrieval tasks compared to its CLIP-like counterparts. These results validate M\textsuperscript{3}Bind's effectiveness in achieving cross-image-modal alignment for medical analysis.

Figures

Figures reproduced from arXiv: 2506.18072 by the authors.

Figure 1
Figure 1. We illustrate the M3Bind framework, designed to embed multiple medical imaging modalities (X-ray, CT, retina, ECG, and Pathology) within a cohesive text-anchored space. In this figure, the transition from Phase One to Phase Two represents the five modality-specific CLIP-like models we used. These models start by aligning each modality with the text modality in isolation and then use text as the anchor modality, achi… view at source ↗
Figure 2

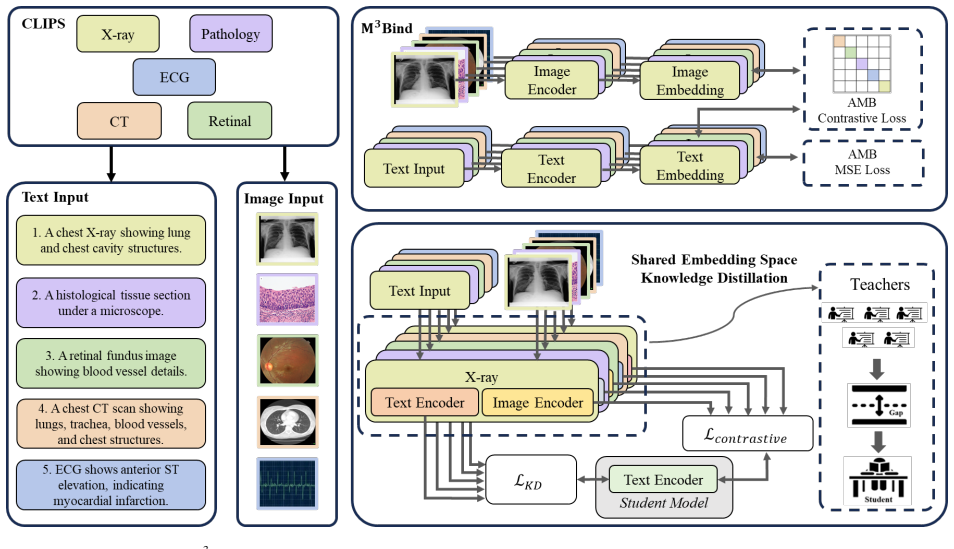

Figure 2. Overview of the M3Bind. We start with five modality-specific CLIP-like models (X-ray, CT, retina, ECG, and pathology). The M3Bind integrates these models by maintaining image-text alignment within each modality while aligning text representations across different modalities. LoRA is applied to efficiently fine-tune these pre-trained models while preserving their original capabilities. The Shared Embedding Space Know… view at source ↗
Figure 3
Figure 3. Comparison of Few-Shot Performance Across Various Datasets (ODIR200x3, CheXpert, SICAPv2, RAD-ChestCT) With In [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
