arxiv: 1906.09992 · v1 · pith:K3MUG64Ynew · submitted 2019-06-24 · 💻 cs.CL · cs.LG

Learning Latent Trees with Stochastic Perturbations and Differentiable Dynamic Programming

Caio Corro , Ivan Titov This is my paper

Pith reviewed 2026-05-25 17:31 UTC · model grok-4.3

classification 💻 cs.CL cs.LG
keywords latent tree learningGumbel perturbationsdifferentiable dynamic programmingprojective dependency treessentiment analysisnatural language inferencestructure induction
0
0 comments X

The pith

Projective dependency trees can be induced as latent variables to benefit NLP tasks using Gumbel perturbations and differentiable dynamic programming without any tree supervision.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a model that treats projective dependency trees as latent variables to support downstream tasks such as sentiment analysis and natural language inference. It induces useful trees without direct supervision by combining Gumbel perturbations for stochastic global sampling with differentiable dynamic programming, resulting in a fully differentiable parser. This differs from earlier latent tree approaches that lack global stochastic sampling. Experiments demonstrate the method's effectiveness, while ablations confirm that both stochasticity and the projective constraint matter for the observed gains.

Core claim

We treat projective dependency trees as latent variables in our probabilistic model and induce them in such a way as to be beneficial for a downstream task, without relying on any direct tree supervision. Our approach relies on Gumbel perturbations and differentiable dynamic programming. Unlike previous approaches to latent tree learning, we stochastically sample global structures and our parser is fully differentiable. We illustrate its effectiveness on sentiment analysis and natural language inference tasks. We also study its properties on a synthetic structure induction task. Ablation studies emphasize the importance of both stochasticity and constraining latent structures to be projectve

What carries the argument

Gumbel perturbations combined with differentiable dynamic programming, which permits stochastic sampling of global projective dependency tree structures as latent variables.

If this is right

  • The approach shows effectiveness on sentiment analysis and natural language inference tasks.
  • Properties of the method are studied via a synthetic structure induction task.
  • Stochasticity in global structure sampling contributes to the results.
  • Constraining the latent structures to projective trees is important according to the ablations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The fully differentiable nature may allow seamless combination with other neural modules in larger pipelines.
  • Similar perturbation techniques could be tested on non-projective structures or different structured prediction problems.
  • Task-specific trees learned this way may differ systematically from those produced by standard supervised parsers.

Load-bearing premise

That constraining latent structures to projective trees and using stochastic global sampling will produce trees beneficial for the downstream task.

What would settle it

If the full model shows no performance gain on sentiment analysis or natural language inference compared with versions that remove stochastic sampling or the projectivity constraint.

Figures

Figures reproduced from arXiv: 1906.09992 by Caio Corro, Ivan Titov.

Figure 1

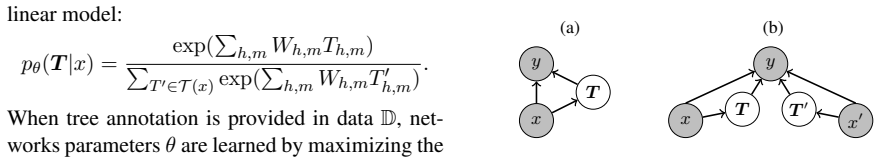

Figure 1. Figure 1: The two directed graphical models used in [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: An example from the ListOps dataset. Num [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Examples of trees induced on the matched development set of MultiNLI, the model using 2 GCN layers. [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: (a) Single output of an arg max function. The derivative is null almost everywhere, i.e. there is no descent direction. (b) Single output of the differentiable relaxation. The derivatives are non-null. static graph. Instead of relying on masking, we add an input the DDP node that contains the sen￾tence size : therefore, even if the size of the graph is fixed, the cubic-time algorithm is run on the true inp… view at source ↗
Figure 5
Figure 5. Figure 5: Accuracy of tagging and attachment score of the latent tree during training. [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
read the original abstract

We treat projective dependency trees as latent variables in our probabilistic model and induce them in such a way as to be beneficial for a downstream task, without relying on any direct tree supervision. Our approach relies on Gumbel perturbations and differentiable dynamic programming. Unlike previous approaches to latent tree learning, we stochastically sample global structures and our parser is fully differentiable. We illustrate its effectiveness on sentiment analysis and natural language inference tasks. We also study its properties on a synthetic structure induction task. Ablation studies emphasize the importance of both stochasticity and constraining latent structures to be projective trees.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes a method to treat projective dependency trees as latent variables in a probabilistic model, inducing them via Gumbel perturbations and differentiable dynamic programming to benefit downstream tasks without direct tree supervision. Unlike prior latent tree approaches, it enables stochastic sampling of global structures with a fully differentiable parser. Effectiveness is shown on sentiment analysis and natural language inference, with properties studied on a synthetic structure induction task; ablations highlight the roles of stochasticity and the projective constraint.

Significance. If the results hold, this advances latent structure learning by enabling fully differentiable stochastic global sampling of projective trees, addressing limitations of local or non-differentiable prior methods. The combination of Gumbel perturbations with differentiable DP for global structures is a clear technical strength, and the synthetic task provides an opportunity for controlled analysis of induction properties.

major comments (2)
  1. [Ablation studies and synthetic task section] The central claim that the induced trees are beneficial for the downstream task (rather than the method providing regularization or inductive bias) rests on ablations showing performance drops when stochasticity or projectivity is removed. However, these ablations do not include direct validation that the sampled trees capture task-relevant dependencies (e.g., no tree inspection, comparison to gold structures, or recovery metrics on the synthetic task).
  2. [Evaluation sections] The abstract and evaluation sections claim effectiveness on SA and NLI tasks, but without reported quantitative results, error bars, dataset details, or baseline comparisons in the provided text, the strength of the empirical support for the method's superiority remains difficult to assess.
minor comments (1)
  1. The abstract would be strengthened by including at least one key quantitative result (with error bars) from the main experiments to substantiate the effectiveness claim.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thoughtful and constructive comments. We address each major comment below, providing clarifications and indicating where revisions will be made.

read point-by-point responses

  1. Referee: [Ablation studies and synthetic task section] The central claim that the induced trees are beneficial for the downstream task (rather than the method providing regularization or inductive bias) rests on ablations showing performance drops when stochasticity or projectivity is removed. However, these ablations do not include direct validation that the sampled trees capture task-relevant dependencies (e.g., no tree inspection, comparison to gold structures, or recovery metrics on the synthetic task).

    Authors: We agree that additional direct validation of the induced trees, such as example inspections or recovery metrics on the synthetic task, would strengthen the interpretation that performance gains arise from task-relevant structures rather than generic regularization. The synthetic task is intended to enable controlled study of induction properties under known conditions, and the ablations isolate the contributions of stochastic global sampling and the projective constraint. We will incorporate further analysis of the induced structures in the revised manuscript. revision: partial

  2. Referee: [Evaluation sections] The abstract and evaluation sections claim effectiveness on SA and NLI tasks, but without reported quantitative results, error bars, dataset details, or baseline comparisons in the provided text, the strength of the empirical support for the method's superiority remains difficult to assess.

    Authors: The full manuscript reports quantitative results with error bars, dataset details, and baseline comparisons in the evaluation sections for both sentiment analysis and natural language inference. The abstract summarizes the findings at a high level without numerical values, following standard conventions. We will ensure these empirical details are clearly highlighted and cross-referenced in the revised version. revision: no

Circularity Check

0 steps flagged

No circularity in derivation or claims

full rationale

The paper introduces an algorithmic method for latent projective tree induction via Gumbel perturbations and differentiable dynamic programming, evaluated empirically on SA/NLI tasks and a synthetic task. No equations, self-citations, or derivations reduce any claimed result to a fitted input or self-definition by construction. Ablations are presented as supporting evidence for component importance but do not constitute a circular reduction. This matches the expected non-circular outcome for a methodological contribution.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The approach rests on standard assumptions from dependency parsing and differentiable optimization; no new free parameters or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption Projective dependency trees form a useful and sufficient class of latent structures for the target tasks.
    The paper explicitly constrains structures to be projective and reports ablations showing the constraint matters.
