arxiv: 1907.01504 · v1 · pith:K5L7GC42new · submitted 2019-06-21 · 🧬 q-bio.NC · physics.comp-ph

FEM-based Scalp-to-Cortex data mapping via the solution of the Cauchy problem

Nikolay Koshev , Nikolay Yavich , Mikhail Malovichko , Ekaterina Skidchenko , Maxim Fedorov This is my paper

Pith reviewed 2026-05-25 18:33 UTC · model grok-4.3

classification 🧬 q-bio.NC physics.comp-ph
keywords EEGCauchy problemLaplace equationfinite element methodscalp-to-cortex mappingspatial resolutionelectrocorticography
0
0 comments X

The pith

Finite element solution of the Cauchy problem maps EEG potentials from scalp to cortex surface.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a numerical method to solve the ill-posed Cauchy problem for Laplace's equation in order to map measured potentials from the scalp to the brain surface. This pre-processing step for EEG data uses tetrahedral finite elements with linear approximation. A sympathetic reader would care because it promises to boost the spatial resolution of non-invasive EEG to levels approaching invasive ECoG recordings. The approach treats the head as a conductor where potential satisfies Laplace's equation and solves for the potential on the cortex.

Core claim

The proposed FEM-based algorithm for solving the Cauchy problem generates an accurate mapping of the electric potential from the scalp to the brain surface, sufficiently increasing the spatial resolution of EEG to make it comparable with ECoG.

What carries the argument

The numerical solution of the ill-posed Cauchy problem for Laplace's equation using tetrahedral finite element linear approximation, which extrapolates the potential from scalp measurements inward to the cortex.

If this is right

  • The method enables higher resolution EEG without invasive procedures.
  • EEG data can be pre-processed to generate cortex surface potentials directly.
  • Resolution gain makes EEG competitive with ECoG in spatial detail.
  • Applicable to standard EEG setups for improved source localization.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the mapping is accurate, it could reduce the need for invasive recordings in some clinical settings.
  • Combining this with existing source localization techniques might further improve brain activity mapping.
  • Testing on real patient data with known cortical activity would validate the resolution claims.
  • The stability under noise suggests potential for real-time applications if computation is optimized.

Load-bearing premise

The head can be modeled as a homogeneous or piecewise-homogeneous conductor where the potential obeys Laplace's equation, and the numerical solution stays stable and accurate enough with realistic noise to achieve the resolution improvement.

What would settle it

If simulations or experiments show that the mapped cortical potentials do not match direct ECoG measurements within the claimed accuracy under typical noise levels, the resolution gain would not hold.

Figures

Figures reproduced from arXiv: 1907.01504 by Ekaterina Skidchenko, Maxim Fedorov, Mikhail Malovichko, Nikolay Koshev, Nikolay Yavich.

Figure 1

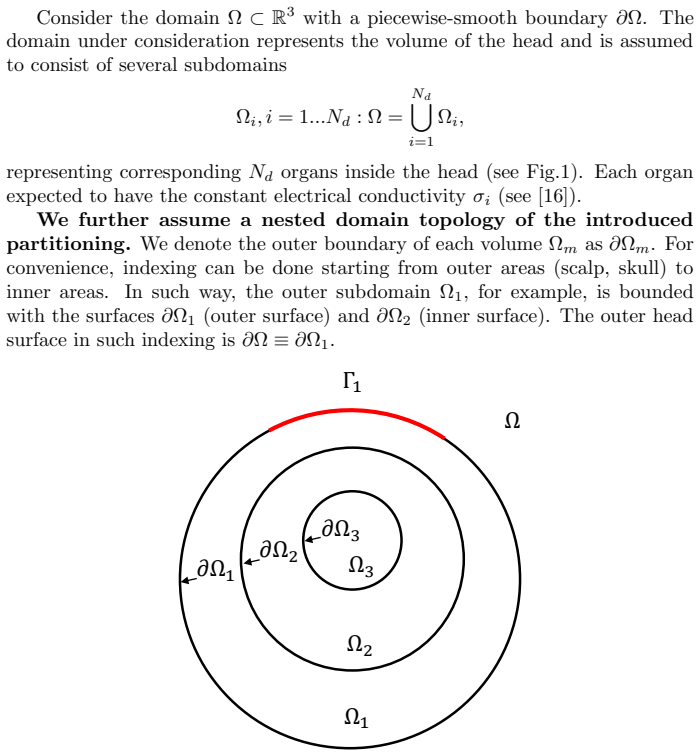

Figure 1. Figure 1: Computational domains and boundaries. In the EEG technique, the measurements are being performed in a bounded area of the surface located commonly at the top of a head. In further consider￾ation, this part of the boundary, which we call accessible part of the boundary, is represented by the subdomain of the outer surface Γ1 ⊂ ∂Ω1 (see [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Spherical model (sources located under the surface of the active domain): a) sim [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Spherical model (sources located on the surface of the inner sphere): a) The current [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: MRI-based model of the head: case with piecewise-constant current distribution on [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: MRI-based model of the head: case with random current, distributed within big [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗
read the original abstract

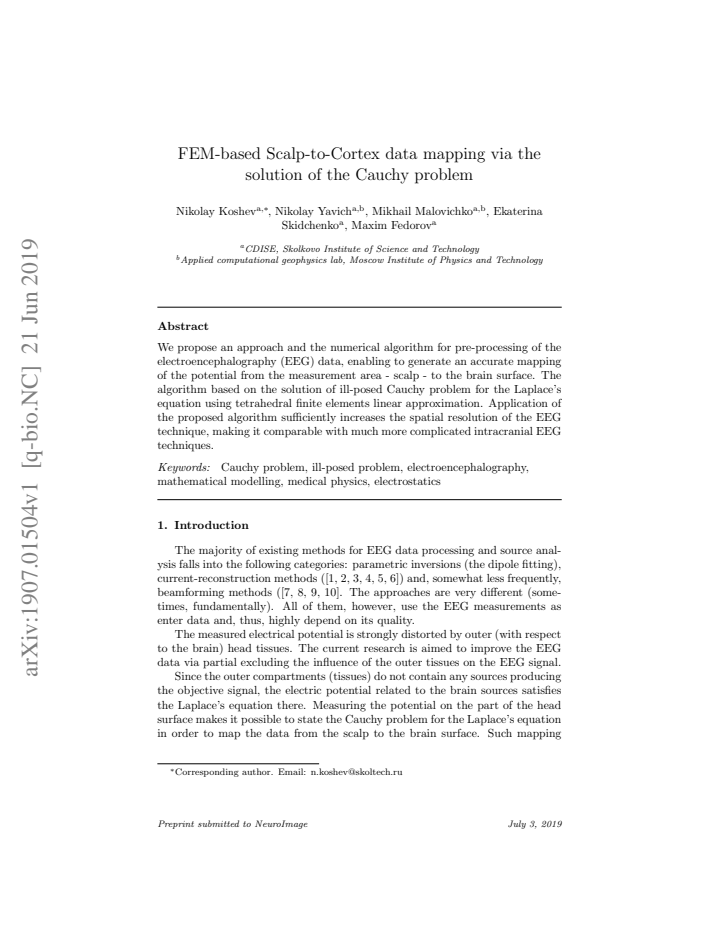

We propose an approach and the numerical algorithm for pre-processing of the electroencephalography (EEG) data, enabling to generate an accurate mapping of the potential from the measurement area - scalp - to the brain surface. The algorithm based on the solution of ill-posed Cauchy problem for the Laplace's equation using tetrahedral finite elements linear approximation. Application of the proposed algorithm sufficiently increases the spatial resolution of the EEG technique, making it comparable with much more complicated electrocorticography (ECoG) method.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper proposes a numerical algorithm based on linear tetrahedral finite-element discretization to solve the ill-posed Cauchy problem for Laplace's equation, thereby mapping measured scalp potentials to the cortical surface. It asserts that this pre-processing step raises the effective spatial resolution of non-invasive EEG to a level comparable with invasive electrocorticography.

Significance. A validated, stable implementation would supply a practical, non-invasive route to higher-resolution cortical potential estimates from standard EEG arrays, which could be useful for source-localization pipelines and clinical monitoring. The approach rests on well-known FEM machinery applied to a standard forward model, but its claimed resolution gain hinges on unshown numerical properties.

major comments (2)
  1. [Abstract] Abstract: the central claim that the method 'sufficiently increases the spatial resolution ... making it comparable with ... ECoG' is unsupported by any reconstruction error, noise-sensitivity study, or comparison against ground-truth cortical data; the exponential ill-posedness of the Cauchy problem makes such quantification load-bearing for the resolution assertion.
  2. [Abstract] Abstract / method description: no regularization strategy, stability bound, or convergence analysis is indicated for the linear FEM solution of the Cauchy problem under the 10–20 dB SNR levels typical of EEG; without this, the mapping cannot be guaranteed to preserve high-frequency cortical detail.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment below, indicating where revisions will be made to the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that the method 'sufficiently increases the spatial resolution ... making it comparable with ... ECoG' is unsupported by any reconstruction error, noise-sensitivity study, or comparison against ground-truth cortical data; the exponential ill-posedness of the Cauchy problem makes such quantification load-bearing for the resolution assertion.

    Authors: We agree that the abstract's claim regarding spatial resolution becoming comparable to ECoG lacks supporting quantitative evidence such as reconstruction errors, noise-sensitivity studies, or ground-truth comparisons. The manuscript presents the FEM-based mapping algorithm and illustrative numerical results but does not contain the requested analyses. We will revise the abstract to remove this specific claim about comparability to ECoG, limiting the description to the method's purpose of mapping scalp potentials to the cortical surface. revision: yes

  2. Referee: [Abstract] Abstract / method description: no regularization strategy, stability bound, or convergence analysis is indicated for the linear FEM solution of the Cauchy problem under the 10–20 dB SNR levels typical of EEG; without this, the mapping cannot be guaranteed to preserve high-frequency cortical detail.

    Authors: The described algorithm applies a direct linear tetrahedral FEM discretization to the Cauchy problem without an explicit regularization strategy, stability bounds, or convergence analysis. We acknowledge that the ill-posedness of the problem implies potential instability at typical EEG noise levels, and the current text does not address preservation of high-frequency details. In the revised manuscript we will add a dedicated discussion of these aspects, including the role of the discretization in providing implicit regularization and suggestions for explicit regularization approaches. revision: yes

Circularity Check

0 steps flagged

No circularity: standard numerical PDE solver

full rationale

The paper presents a direct numerical algorithm (linear tetrahedral FEM) for solving the Cauchy problem for Laplace's equation to map scalp to cortical potentials. No equations, parameters, or self-citations are shown that reduce the output to the input by construction, nor any fitted-input-called-prediction or ansatz-smuggled steps. The derivation is self-contained as a forward solver of a standard elliptic PDE; the resolution-gain claim is an empirical assertion about the solver's output rather than a definitional equivalence.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The approach rests on the standard bioelectromagnetic modeling assumption that the head volume satisfies Laplace's equation; no free parameters or new entities are introduced in the abstract.

axioms (1)
  • domain assumption Electric potential inside the head volume obeys Laplace's equation in source-free regions.
    Invoked implicitly when the Cauchy problem for Laplace's equation is posed on the head domain.

pith-pipeline@v0.9.0 · 5622 in / 1228 out tokens · 33912 ms · 2026-05-25T18:33:59.270482+00:00 · methodology
