Case-Aware Medical Image Classification with Multimodal Knowledge Graphs and Reliability-Guided Refinement

Yiming Xu , Yixuan Liu , Yuhang Zhang , Ling Zheng , Yihan Wang , Qi Song This is my paper

Pith reviewed 2026-05-22 06:09 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords medical image classificationmultimodal knowledge graphscase-aware reasoninggraph attention networksconfidence calibrationexplainable diagnosisknowledge propagation
0
0 comments X

The pith

A framework builds multimodal knowledge graphs from retrieved similar cases to make medical image classification more accurate and explainable.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that diagnosis can be improved by simulating clinical use of historical cases through construction of a multimodal knowledge graph from adaptively retrieved similar images. Knowledge is propagated using an image-centric Graph Attention Network and injected into visual features via bidirectional cross-modal attention. A confidence-calibrated refinement then adjusts contributions from each case based on prediction confidence and similarity to reduce noise effects. This yields consistent gains over baselines on several medical imaging datasets while supplying interpretable case-level evidence for decisions. A sympathetic reader would care because current deep learning methods often ignore the relational context that doctors routinely apply.

Core claim

Given an input image, the method constructs a multimodal knowledge graph from adaptively retrieved similar cases, enabling more effective utilization of related samples through knowledge propagation via an image-centric Graph Attention Network, followed by bidirectional cross-modal attention for feature injection, and a confidence-calibrated decision refinement that estimates reliability by jointly considering prediction confidence and sample similarity to adaptively adjust contributions and provide case-level evidence.

What carries the argument

Multimodal knowledge graph built from adaptively retrieved similar cases, with propagation via Graph Attention Network, injection via bidirectional cross-modal attention, and reliability-guided refinement.

If this is right

  • Predictions become supported by explicit case-level evidence that clinicians can inspect.
  • Noisy or less relevant retrieved cases contribute less to the final output through adaptive weighting.
  • Performance improvements hold across multiple distinct medical imaging datasets.
  • Each added component, including the graph attention and refinement steps, can be isolated as contributing to the gains.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same retrieval-plus-graph structure could be tested on non-medical image tasks where historical examples carry diagnostic value, such as defect detection in manufacturing.
  • Combining the graph with longitudinal patient records might allow tracking how case influence evolves over time.
  • If the refinement scheme proves robust, it offers a template for other retrieval-augmented systems that must guard against bad matches.

Load-bearing premise

The framework assumes that adaptively retrieved similar cases contain useful and relevant knowledge that can be reliably propagated and injected without introducing unmanageable noise.

What would settle it

Running the method on a dataset where retrieved cases are deliberately chosen to be dissimilar or noisy, then checking whether accuracy drops below non-graph baselines even after refinement.

Figures

Figures reproduced from arXiv: 2605.22547 by Ling Zheng, Qi Song, Yihan Wang, Yiming Xu, Yixuan Liu, Yuhang Zhang.

Figure 1
Figure 1. Figure 1: Challenges of medical image diagnosis. Each row [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

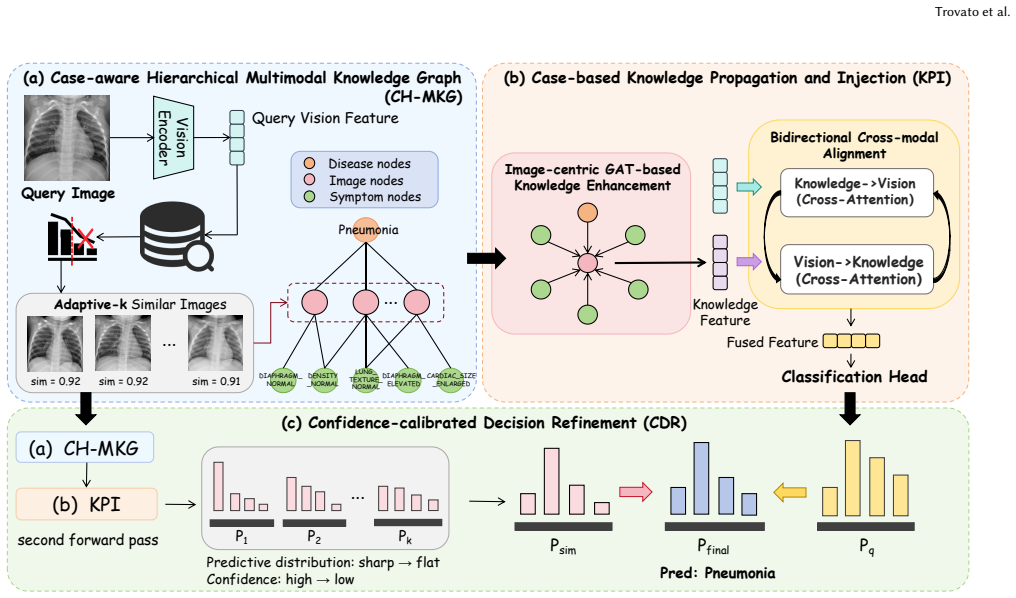

Figure 2. Figure 2: The overall framework of MKG-CARE, which consists of three modules: (a) Case-aware Hierarchical Multimodal [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Visualization of confidence calibration with knowledge graph reasoning on the Kvasir dataset. (a) Prediction evolution [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4

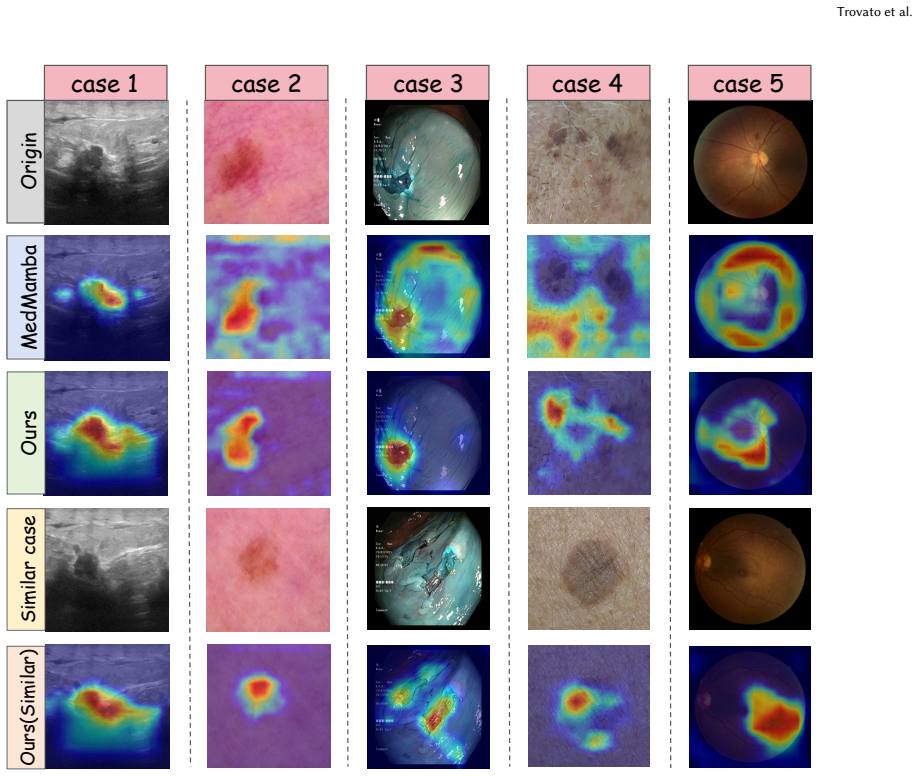

Figure 4. Figure 4: Grad-CAM visualization across five datasets (Case 1–5 correspond to BreastMNIST, DermaMNIST, Kvasir, PAD_UFES_20, [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5

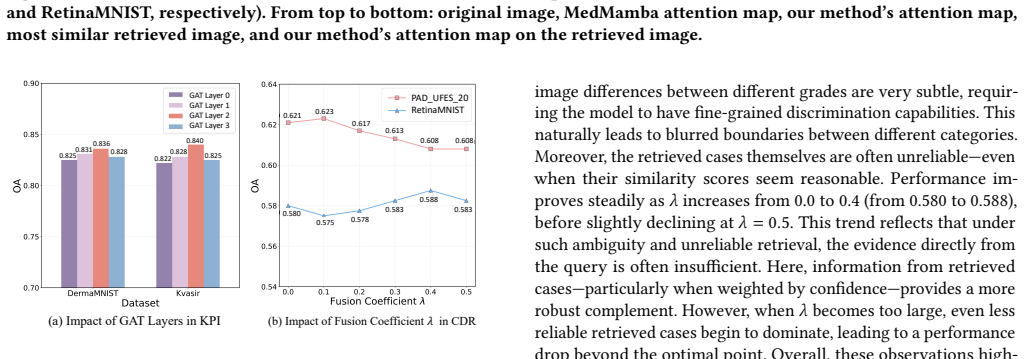

Figure 5. Figure 5: Parameter Sensitivity Analysis of MKG-CARE. [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
read the original abstract

Deep learning has brought significant progress to medical image classification, yet most existing methods still rely on isolated visual evidence and cannot effectively leverage similar cases or external knowledge. In clinical practice, diagnosis is typically supported by similar historical cases and their associated symptoms. To explicitly model this evidence-based diagnostic process, we propose a case-aware reasoning framework driven by multimodal knowledge graphs for medical image classification. Specifically, we construct a case-aware multimodal knowledge graph as a structured diagnostic memory, where diseases, images, and symptoms are hierarchically organized. Given an input image, our method adaptively retrieves similar cases from this memory and extracts their corresponding case-centered subgraphs. We further introduce a knowledge propagation and injection mechanism, in which an image-centric Graph Attention Network aggregates heterogeneous semantics into case-based features, followed by a bidirectional cross-modal attention mechanism that injects these features into visual representations for cross-modal alignment. To mitigate noisy retrieval, we design a confidence-calibrated decision refinement scheme that estimates the reliability of each retrieved case by jointly considering prediction confidence and sample similarity, and reweights its contribution to the final prediction, providing interpretable case-level evidence. Extensive experiments on multiple medical imaging datasets demonstrate that our approach consistently outperforms strong baselines, while ablation and qualitative analyses validate its effectiveness and interpretability. The code is available at https://anonymous.4open.science/r/MKG-CARE-8B7B.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper proposes a case-aware framework for medical image classification that constructs a multimodal knowledge graph from adaptively retrieved similar cases. It uses an image-centric Graph Attention Network to propagate knowledge semantics into case-based features, followed by bidirectional cross-modal attention to inject these into visual representations. A confidence-calibrated refinement scheme jointly considers prediction confidence and sample similarity to modulate contributions from retrieved cases, aiming to mitigate noise while providing interpretable case-level evidence. Extensive experiments on multiple medical imaging datasets are reported to show consistent outperformance over strong baselines, with ablation studies validating each component; source code is released publicly.

Significance. If the results hold under rigorous validation, the work advances integration of case-based reasoning and multimodal knowledge graphs into medical imaging pipelines, potentially improving both accuracy and explainability in clinical decision support. The reliability-guided refinement and public code release are particular strengths that could facilitate follow-up research on noise-robust knowledge injection.

major comments (1)
  1. [Experiments / Ablation studies] The central claim that the confidence-calibrated refinement reliably gates useful knowledge from retrieved cases rests on the assumption that the joint score suppresses noise effectively. However, no experiment isolates the regime of high visual similarity with conflicting labels (common in medical imaging due to overlapping appearances), leaving open whether the scheme actually mitigates noise or merely correlates with easy cases. This directly affects the load-bearing claim of reliable knowledge utilization from adaptively retrieved samples.
minor comments (2)
  1. [Abstract] The abstract refers to 'multiple medical imaging datasets' without naming them or providing basic statistics (e.g., number of classes, sample sizes); this should be stated explicitly for immediate assessment of scope.
  2. [Method] Notation for the joint reliability score (prediction confidence combined with sample similarity) is introduced without a clear equation or pseudocode in the methods overview; adding a compact definition would improve readability.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback on our work. The concern regarding the evaluation of the confidence-calibrated refinement in challenging noisy regimes is well-taken, and we address it directly below while revising the manuscript to strengthen the supporting evidence.

read point-by-point responses

  1. Referee: [Experiments / Ablation studies] The central claim that the confidence-calibrated refinement reliably gates useful knowledge from retrieved cases rests on the assumption that the joint score suppresses noise effectively. However, no experiment isolates the regime of high visual similarity with conflicting labels (common in medical imaging due to overlapping appearances), leaving open whether the scheme actually mitigates noise or merely correlates with easy cases. This directly affects the load-bearing claim of reliable knowledge utilization from adaptively retrieved samples.

    Authors: We agree that an explicit isolation of the high-similarity conflicting-label regime would provide more direct validation of the refinement's noise-suppression behavior. In the revised manuscript we have added a targeted experiment that constructs subsets of test samples exhibiting high visual similarity (measured via embedding cosine similarity above a threshold) yet conflicting ground-truth labels with their retrieved neighbors. On these subsets we compare the full model against an ablated variant that disables the reliability-guided weighting. The results indicate a larger performance gap in favor of the full model precisely in these noisy regimes, with the reliability scores assigning lower weights to conflicting cases as intended. We also report the distribution of reliability estimates and include qualitative examples of down-weighted retrieved cases. This addition directly supports the claim without altering the original experimental protocol. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper describes an algorithmic framework that retrieves similar cases to build a multimodal knowledge graph, applies a Graph Attention Network for propagation, uses bidirectional cross-modal attention for feature injection, and employs a confidence-calibrated refinement based on prediction confidence and similarity scores. No equations, first-principles derivations, or self-referential definitions are presented that reduce any claimed result to fitted parameters or inputs by construction. The method relies on standard, externally defined components (GAT, attention mechanisms, retrieval) whose behavior is not forced by the paper's own outputs, and claims are supported by experiments on multiple datasets rather than internal self-consistency loops. This is a typical empirical ML proposal with low circularity burden.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that similar cases retrieved from historical data provide transferable diagnostic knowledge that can be effectively structured in a multimodal graph and refined for noise; no free parameters or invented entities are explicitly detailed in the abstract.

axioms (1)
  • domain assumption Similar historical cases and their associated symptoms provide relevant external knowledge that improves diagnosis of a new medical image.
    The entire case-aware reasoning pipeline is built on the premise that retrieved similar cases are diagnostically useful, as stated in the motivation and method description.
