Enhancing LLM Medical Coding with Structured External Knowledge

T0 review · 3 major / 4 minor · reviewed 2026-07-13 · grok-4.5

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Structuring ICD tables as a knowledge graph and guidelines as code-specific summaries lifts training-free LLM medical coding past prior LLM methods and matches supervised models while tracking guideline updates.

desk verdict Solid systems paper: structured tabular KG + code-specific guideline summaries beat raw-text RAG agents on MDACE; MDACE-2025 generalisation claim rests on a single-annotator 61-encounter gold standard. read the letter →

arxiv 2605.27377 v2 pith:LD4NDAJJ submitted 2026-04-09 cs.CL cs.AIcs.IR

Yidong Gan , David D. Nguyen , Yang Lin , Peter Zhong , Thanh Vu , Long Duong , Yuan-Fang Li This is my paper
classification cs.CLcs.AIcs.IR
keywords medicalcodingICD-10-CMlargelanguagemodelsretrieval-augmentedgenerationknowledgegraphguidelinesMDACE-2025agenticsystems
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Medical coding maps clinical notes to ICD codes, but accurate work depends on two official resources: the hierarchical tabular list and the long coding guidelines. Existing large-language-model approaches mostly rely on what the model already knows, so they hallucinate and fall behind annual guideline changes. This paper claims that the form of external knowledge matters as much as its presence. RAG-Coding is a four-step, training-free agent pipeline that first proposes candidate codes, then validates them against a knowledge graph built from the tabular list (capturing parent-child and instructional relations such as excludes and use-additional-code), then retrieves and condenses the relevant guideline sections into short code-specific rules, and finally re-audits with those rules. To test adaptation to new rules, the authors also release MDACE-2025: expert re-annotations of the MDACE test set under the 2025 ICD-10-CM guidelines, with principal-diagnosis sequencing and written justifications. Across five LLM backbones the method improves micro-F1 by 3–13% over the strongest prior LLM baseline; it matches the supervised state-of-the-art overall while raising recall and covering the full ~70k-code space; and on the 2025 re-annotations it leads every baseline, showing that structured external knowledge, not parametric memory, is what lets the system stay current.

What carries the argument

RAG-Coding: a four-agent pipeline whose core is the knowledge-graph auditor (step 2) that validates candidates against hierarchical and instructional edges parsed from the tabular list, plus the guideline summariser (step 3) that turns multi-page narrative rules into short, code-specific bullet lists used by a final auditor.

What would settle it

Re-annotate the same MDACE test encounters under 2025 guidelines with two or more independent certified coders; if multi-coder consensus reverses the ranking of RAG-Coding versus the strongest baselines on micro- and macro-F1, the generalisation claim fails.

Watch

Extended reading notes

Core claim

The paper establishes that encoding the ICD-10-CM tabular list as a knowledge graph of hierarchical and instructional relations, and distilling the narrative coding guidelines into concise code-specific summaries, lets a training-free multi-agent LLM system outperform prior LLM coders by 3–13% micro-F1, match supervised PLM-ICD performance (higher recall, lower precision), and generalise to 2025 guidelines where purely parametric or raw-text RAG methods lag.

Load-bearing premise

The claim that the method generalises to updated guidelines rests on a single certified coder’s re-annotation of only 61 encounters as the new gold standard.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The paper proposes RAG-Coding, a training-free multi-agent pipeline that grounds LLM medical coding in structured external knowledge: an ICD-10-CM knowledge graph encoding hierarchical and instructional relations from the tabular list, plus code-specific summaries distilled from the official coding guidelines. It also releases MDACE-2025, a single-expert re-annotation of the MDACE test set under 2025 guidelines that adds sequencing and justifications. Across five LLM backbones on the original MDACE test set, RAG-Coding improves micro-F1 by 3–13% over the strongest LLM baseline (CLH) and is roughly on par with supervised PLM-ICD (higher recall, lower precision); on MDACE-2025 it outperforms all baselines, which the authors attribute to the structured knowledge integration rather than parametric memory. Ablations and a closed-book self-correction control support the contribution of the KG and guideline stages.

Significance. If the empirical gains hold under multi-annotator consensus and broader evaluation, the work is a useful advance for LLM-based clinical coding: it shows that representing the tabular list as a KG and guidelines as code-specific summaries measurably reduces hallucination relative to raw-text RAG (CLH) and closed-book generation, while remaining training-free and covering the full ~70K ICD-10-CM space. The MDACE-2025 resource, even if imperfect, is the first public set with 2025-guideline labels, sequencing, and justifications, enabling research on guideline drift and principal-diagnosis coding. Strengths include matched external knowledge sources across LLM baselines, three-run means with low variance, stepwise ablations, and an explicit closed-book control showing that parametric self-correction alone fails.

major comments (3)
  1. [Section 4 / Table 3] Section 4 and the MDACE-2025 generalisation claim (Abstract, §7.2, Table 3): the gold standard is a single CCS/CPC coder’s re-annotation of 61 encounters (Krippendorff α = 0.67 vs original MDACE diagnoses, 0.41 for procedures). Because RAG-Coding (and CLH) are supplied the identical 2025 tabular list and guidelines used by that annotator, systematic personal style—especially expanded R/Z codes and sequencing—can inflate relative F1 without establishing multi-coder consensus or true robustness to guideline drift. The generalisation narrative is therefore load-bearing yet rests on a fragile target; either multi-annotator agreement statistics or a clear qualification of the claim is required.
  2. [Table 2 / §7.1] Table 2 / §7.1: the “fairer” comparison to PLM-ICD applies post-hoc filtering of RAG-Coding outputs to the ~16K codes seen in MIMIC-IV+MDACE training. The paper correctly notes this is imperfect (RAG-Coding still reasons over the full space), yet still presents micro/macro F1 as “on par.” Given the constrained decoding space and distributional match of PLM-ICD, the claim of parity (and the +11% recall / −6% precision trade-off) needs either an unconstrained PLM-ICD baseline or a clearer statement that the comparison remains asymmetric.
  3. [§7.3 / Table 4] §7.3 / Table 4 and Appendix H: the ablation reports that Step 3 (guideline retrieval/summarisation) “has no measurable impact” when isolated, yet the full pipeline (steps 1–4) is credited with the final gains and the abstract emphasises “structured external knowledge.” The manual analysis further shows Step 4 addition accuracy is only 20% (specificity over-correction). The paper should quantify how much of the reported F1 lift is attributable to the KG versus the guideline summaries, and whether the latter’s net contribution is robust or sample-dependent.
minor comments (4)
  1. [Limitations / Abstract] Evaluation is restricted to ICD-10-CM even though both MDACE and MDACE-2025 contain PCS codes; the Limitations section acknowledges this but the abstract and contributions still frame the method as supporting “the full U.S. ICD-10-CM system,” which can be misread as broader ontology coverage.
  2. [Figure 1 / §5.4] Figure 1 and §5.4: the guideline-summariser retrieval via table-of-contents navigation is clear, but the paper never reports how often chapter-level versus code-specific rules are retrieved, nor the average length of the distilled summaries; a short quantitative characterisation would aid reproducibility.
  3. [Appendix I] Appendix I cost analysis is useful, yet the main text never mentions that Step 3 dominates cost and is cacheable; a one-sentence note in §6 or §8 would help readers assess practicality.
  4. [Throughout] Typographical / consistency: “codersout-of-the-box” (p.1), “MIMIC-IV ,” (extra space), and mixed use of “guideline” vs “guidelines” in figure captions; also standardise “micro-F1” hyphenation throughout tables.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: empirical multi-label coding pipeline evaluated against held-out human annotations; external CMS resources are oracles, not self-defined targets.

full rationale

RAG-Coding is a training-free agentic pipeline whose four steps (candidate generation, KG validation from the official ICD-10-CM tabular list, guideline summarisation, and final audit) are engineering choices, not a mathematical derivation. Performance claims are ordinary micro/macro F1 numbers measured on the MDACE and MDACE-2025 test sets against human gold labels; no parameters are fitted to the evaluation targets and then re-presented as predictions. The same official 2022/2025 tabular lists and guidelines supplied to the method are also used by the human annotator of MDACE-2025, which is intentional external grounding rather than circular self-definition. Minor self-citations (e.g., Gan et al. 2025 on PLM-ICD) appear only in related-work statements of SOTA status and do not underwrite any uniqueness claim or force the reported F1 gains. Ablations simply remove pipeline stages and re-measure F1; they do not close a definitional loop. The paper is therefore self-contained against external benchmarks and exhibits zero circularity of the kinds enumerated.

Assumptions & free parameters 3 free parameters · 4 assumptions · 3 invented entities

Empirical systems paper. Load-bearing premises are domain conventions of ICD-10-CM, the fidelity of the authors’ KG parse and guideline distillation, and the reliability of a single-coder 2025 re-annotation. No physical constants or fitted scientific parameters; a few engineering hyperparameters (temperature, few-shot k) are free choices that affect absolute scores but not the qualitative claim structure.

free parameters (3)
  • LLM temperature
    Empirically set to 0.2 for all backbones; affects sampling variance of candidate generation and audits.
  • dynamic few-shot k
    Chosen as k=2 after validation-set sweep {0,1,2,3} (Appendix B, Table 5); directly shapes Candidate Generator precision/recall.
  • Tree Search max iterations / MedCodER retrieval count
    Baseline hyperparameters fixed to original-paper optima (50 iterations; 1 retrieved code per diagnosis); not free for RAG-Coding itself but affect comparative claims.
assumptions (4)
  • domain assumption Official ICD-10-CM tabular list hierarchy and instructional notes (includes, excludes1, use_additional_code, etc.) correctly encode the constraints human coders must obey.
    Invoked throughout Section 3 and Step 2 KG construction; the KG is treated as ground truth for validation.
  • domain assumption Navigating the guidelines table of contents and summarising retrieved sections into code-specific bullets preserves the rules needed for correct keep/remove/replace decisions.
    Core of Steps 3–4 (Section 5.4–5.5); if summarisation drops or distorts rules, the Guideline-Based Auditor fails silently.
  • domain assumption Encounter-level union of note-level predictions is the correct evaluation unit for real-world coding.
    Stated in Section 6.2 and used for all metrics; matches Cheng et al. 2023 practice.
  • ad hoc to paper A single CCS/CPC-credentialed coder’s holistic re-annotation under 2025 guidelines is a valid gold standard for measuring guideline generalisation.
    Section 4 annotation process; no second annotator or adjudication reported for MDACE-2025.
invented entities (3)
  • RAG-Coding four-agent pipeline (Candidate Generator, KG-Based Auditor, Guideline Summariser, Guideline-Based Auditor)
    purpose: Decompose ICD coding into generation + structured validation stages that inject external knowledge at inference time.
    Defined in Section 5 and Figure 1; the paper’s primary methodological object.
  • ICD-10-CM knowledge graph G=(V,E) with hierarchical and instructional edges independent evidence
    purpose: Represent tabular-list structure so the auditor can detect conflicts, missing companions, and description mismatches.
    Constructed by parsing the tabular list (Section 5.3); edges such as excludes1 and use_additional_code are the structured signal claimed to beat raw-text RAG.
  • MDACE-2025 dataset
    purpose: Provide 2025-guideline labels, code sequencing, and justification comments for evaluating guideline drift.
    Introduced in Section 4; re-annotation of the 61-encounter MDACE test split.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Enhancing LLM Medical Coding with Structured External Knowledge." pith.science (2026). https://pith.science/paper/LD4NDAJJ

@misc{pith2026260527377,
  author       = {Pith},
  title        = {Pith review of: Enhancing LLM Medical Coding with Structured External Knowledge},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/LD4NDAJJ}},
  note         = {Machine review of arXiv:2605.27377}
}
abstract

Accurate medical coding requires consulting authoritative resources such as the ICD tabular list and coding guidelines. Existing LLM-based automated methods largely rely on LLMs' internal knowledge, which is prone to hallucination and cannot keep pace with guideline updates. We introduce RAG-Coding, an agentic, training-free method that augments LLMs with structured external knowledge: the tabular list is encoded as a knowledge graph capturing hierarchical and instructional code relationships, and the guidelines are distilled into concise, code-specific summaries rather than retrieved as raw text. To enable our study, we also introduce MDACE-2025, expert re-annotations of the MDACE dataset under the 2025 ICD-10-CM/PCS guidelines, adding code sequencing and justification comments. On MDACE, RAG-Coding outperforms the best LLM-based baseline by 3--13\% in micro-F1 across five LLM backbones, and achieves comparable micro- and macro-F1 to the supervised state-of-the-art, with higher recall ($+$11\%) at the cost of precision ($-$6\%). On MDACE-2025, RAG-Coding outperforms all baselines, demonstrating effective generalisation to updated guidelines. Ablations confirm stepwise gains, highlighting the importance of integrating structured external knowledge for LLM-based medical coding.

Figures

Figures reproduced from arXiv: 2605.27377 by the authors.

Figure 1
Figure 1. Overall architecture of the proposed RAG-Coding method. Blue lines denote input to the agents. Red [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Although using the table of contents to retrieve chapter-specific guidelines may appear redundant, it ensures consideration of all relevant rules, as a code may relate to others in different chapters. For example, elevated blood pressure (R03.0) can indi￾cate underlying hypertension (I10-I16), and guide￾lines in Section I.C.9 (for codes I00-I99) explicitly prohibit coding R03.0 when hypertension is defini￾tively dia… view at source ↗
Figure 3

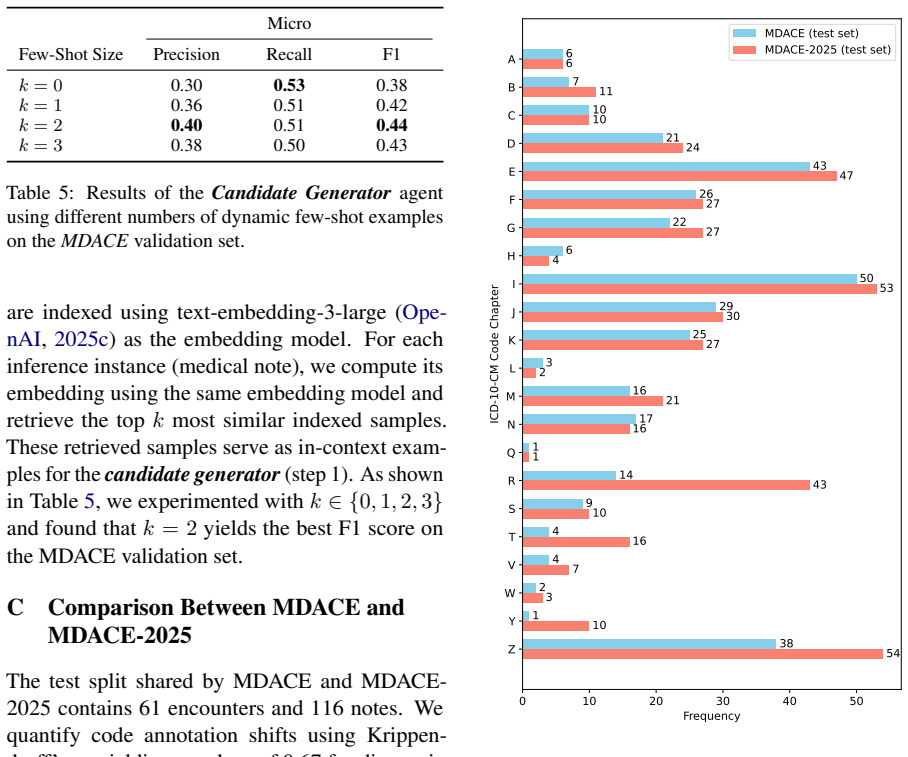

Figure 3. Distribution of ICD-10-CM codes by chapter. [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗

Discussion (0). Sign in to comment.

Reference graph

Works this paper leans on

3 extracted references · 2 linked inside Pith

  1. [1]

    Joakim Edin, Alexander Junge, Jakob D Havtorn, Lasse Borgholt, Maria Maistro, Tuukka Ruotsalo, and Lars Maaløe

    The faiss library.IEEE Transactions on Big Data. Joakim Edin, Alexander Junge, Jakob D Havtorn, Lasse Borgholt, Maria Maistro, Tuukka Ruotsalo, and Lars Maaløe. 2023. Automated medical coding on mimic- iii and mimic-iv: A critical review and replicability study. InProceedings of the 46th International ACM SIGIR Conference on Research and Development in In...

    2023

  2. [2]

    InProceedings of the 4th Clinical Natural Language Processing Workshop, pages 10–20, Seattle, W A

    PLM-ICD: Automatic ICD coding with pre- trained language models. InProceedings of the 4th Clinical Natural Language Processing Workshop, pages 10–20, Seattle, W A. Association for Computa- tional Linguistics. Sirui Huang, Yanggan Gu, Zhonghao Li, Xuming Hu, Li Qing, and Guandong Xu. 2025. StructFact: Rea- soning factual knowledge from structured data with...

    arXiv 2025

  3. [3]

    results

    Qwen3 technical report.arXiv preprint arXiv:2505.09388. Zhichao Yang, Sunjae Kwon, Zonghai Yao, and Hong Yu. 2023. Multi-label few-shot icd coding as autore- gressive generation with prompt. InProceedings of the AAAI Conference on Artificial Intelligence, vol- ume 37, pages 5366–5374. Zheng Yuan, Chuanqi Tan, and Songfang Huang. 2022. Code synonyms do mat...

    arXiv 2023
