Low-loss Material for Infrared Protection of Cryogenic Quantum Applications
Pith reviewed 2026-05-21 16:30 UTC · model grok-4.3
The pith
A mixture of epoxy and sapphire spheres can block infrared radiation while letting gigahertz signals pass with little loss at millikelvin temperatures.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The paper claims that an epoxy resin filled with an optimized distribution of sapphire spheres strongly attenuates infrared radiation via Mie scattering, achieving performance comparable to common filter materials, while maintaining high transmission at gigahertz frequencies with insertion loss below 0.4 dB under 10 GHz even at millikelvin temperatures.
What carries the argument
The Mie scattering mechanism, in which sapphire spheres sized to match infrared wavelengths scatter those photons out of the beam in a low-loss epoxy host, while longer-wavelength gigahertz radiation propagates with little interaction.
Load-bearing premise
The size distribution of sapphire spheres can be selected to produce strong infrared scattering while keeping absorption and scattering negligible for gigahertz waves at cryogenic temperatures.
What would settle it
Experimental data showing infrared attenuation much weaker than standard materials or an insertion loss exceeding 0.4 dB below 10 GHz in the cooled prototype filter.

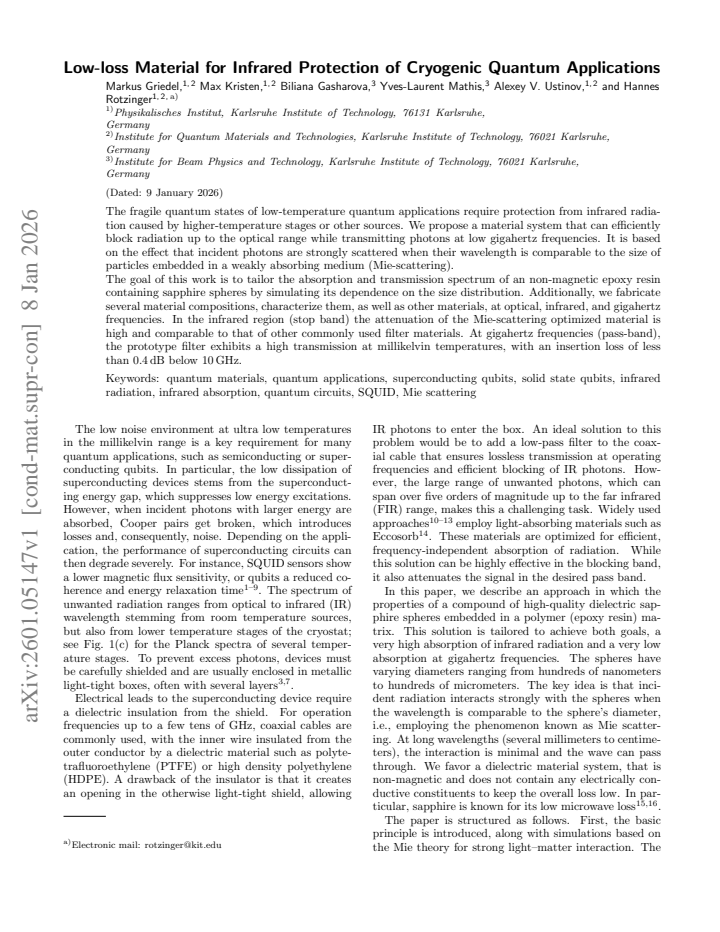

read the original abstract
The fragile quantum states of low-temperature quantum applications require protection from infrared radiation caused by higher-temperature stages or other sources. We propose a material system that can efficiently block radiation up to the optical range while transmitting photons at low gigahertz frequencies. It is based on the effect that incident photons are strongly scattered when their wavelength is comparable to the size of particles embedded in a weakly absorbing medium (Mie-scattering). The goal of this work is to tailor the absorption and transmission spectrum of an non-magnetic epoxy resin containing sapphire spheres by simulating its dependence on the size distribution. Additionally, we fabricate several material compositions, characterize them, as well as other materials, at optical, infrared, and gigahertz frequencies. In the infrared region (stop band) the attenuation of the Mie-scattering optimized material is high and comparable to that of other commonly used filter materials. At gigahertz frequencies (pass-band), the prototype filter exhibits a high transmission at millikelvin temperatures, with an insertion loss of less than $0.4\,$dB below $10\,$GHz.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes a composite material of sapphire spheres dispersed in epoxy resin, with sphere size distribution optimized via Mie-scattering simulations to block infrared radiation (stop-band) while transmitting gigahertz-frequency photons (pass-band) for protecting cryogenic quantum devices. Simulations guide the design; several compositions are fabricated and characterized at optical, infrared, and gigahertz frequencies, including at millikelvin temperatures. The central claims are that the optimized material achieves high IR attenuation comparable to standard filters and exhibits insertion loss below 0.4 dB below 10 GHz at mK temperatures.
Significance. If the simulation-to-fabrication transfer holds, the work offers a practical, low-loss IR filter material tailored for quantum applications at cryogenic temperatures. The use of physical Mie-theory modeling combined with direct multi-frequency experimental validation is a positive feature that supports reproducibility and falsifiability of the performance claims.
major comments (1)
- The central claim that the Mie-scattering optimized size distribution yields both high IR attenuation and low GHz insertion loss at millikelvin temperatures rests on the assumption that refractive index, absorption, and polydispersity remain close to modeled values after mixing, curing, and cooling. The manuscript should provide a direct side-by-side comparison of simulated versus measured transmission spectra for the fabricated prototypes (including error bars) to confirm this transfer; without it the optimization's predictive power is not fully demonstrated.
minor comments (1)
- Clarify the exact frequency range and temperature points used for the IR stop-band attenuation measurements and how they compare quantitatively to the 'commonly used filter materials' referenced.
Simulated Author's Rebuttal
We thank the referee for their careful reading and constructive feedback. We address the single major comment below and have revised the manuscript to strengthen the validation of our modeling approach.
read point-by-point responses
-
Referee: The central claim that the Mie-scattering optimized size distribution yields both high IR attenuation and low GHz insertion loss at millikelvin temperatures rests on the assumption that refractive index, absorption, and polydispersity remain close to modeled values after mixing, curing, and cooling. The manuscript should provide a direct side-by-side comparison of simulated versus measured transmission spectra for the fabricated prototypes (including error bars) to confirm this transfer; without it the optimization's predictive power is not fully demonstrated.
Authors: We agree that an explicit side-by-side comparison would strengthen the demonstration of model fidelity after fabrication and cryogenic cooling. While the manuscript already reports measured transmission at IR and GHz frequencies together with design simulations, we acknowledge that a direct overlay for the exact fabricated prototypes was not presented. In the revised manuscript we have added a new figure showing simulated transmission spectra (using the nominal refractive index, absorption, and size distribution from the Mie optimization) overlaid with the measured data for the prototypes, including error bars from repeated measurements and sample-to-sample variation. The agreement is within experimental uncertainty across the stop-band and pass-band, confirming that the key material parameters remain sufficiently close to the modeled values after mixing, curing, and cooling to millikelvin temperatures. A short discussion of the small observed deviations has also been added. revision: yes
Circularity Check
No significant circularity; derivation grounded in standard Mie theory and independent measurements
full rationale
The paper optimizes sapphire-sphere size distribution via Mie-scattering simulations in a weakly absorbing epoxy matrix, then fabricates prototypes and performs direct characterization at optical, infrared, and gigahertz frequencies including millikelvin temperatures. The central claims (high IR attenuation comparable to standard filters, <0.4 dB insertion loss below 10 GHz) follow from applying established Mie theory to predict scattering and from empirical transmission data; neither step reduces to a fitted parameter renamed as prediction nor to a self-citation chain. No load-bearing self-definitional loops, uniqueness theorems, or ansatz smuggling are present. The derivation remains self-contained against external physical models and measurements.
Axiom & Free-Parameter Ledger
free parameters (1)
- sphere size distribution parameters
axioms (1)
- domain assumption Mie scattering dominates the interaction for the chosen particle sizes and wavelengths
