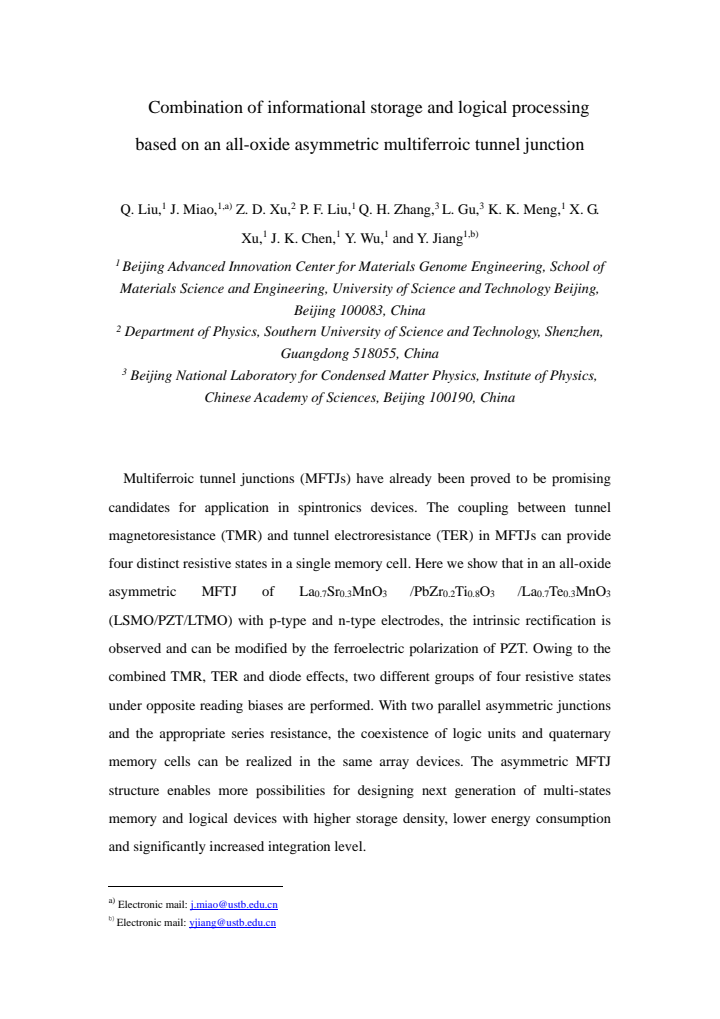

Combination of informational storage and logical processing based on an all-oxide asymmetric multiferroic tunnel junction

Q. Liu , J. Miao , Z. D. Xu , P. F. Liu , Q. H. Zhang , L. Gu , K. K. Meng , X. G. Xu
show 3 more authors
J. K. Chen Y. Wu Y. Jiang
This is my paper

Pith reviewed 2026-05-25 17:36 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords multiferroic tunnel junctiontunnel magnetoresistancetunnel electroresistancediode rectificationquaternary memorylogic-memory integrationoxide heterostructure
0
0 comments X

The pith

An asymmetric all-oxide multiferroic tunnel junction combines TMR, TER and a polarization-dependent diode effect to produce two separate groups of four resistive states readable at opposite biases.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines an LSMO/PZT/LTMO multiferroic tunnel junction in which the electrodes have opposite carrier types. This asymmetry produces an intrinsic rectification that the ferroelectric polarization of the PZT layer can modify. When TMR from the magnetic electrodes and TER from the ferroelectric barrier are added to the diode response, the junction yields one set of four resistance levels under positive reading bias and a different set of four under negative bias. Connecting two such junctions in parallel with a series resistor allows the same physical array to operate as both quaternary memory cells and logic units.

Core claim

In the LSMO/PZT/LTMO asymmetric MFTJ the ferroelectric polarization modifies the intrinsic rectification arising from the p-n electrode asymmetry; the resulting combination of TMR, TER and diode effects creates two distinct groups of four resistive states that appear under opposite reading biases. Parallel connection of two junctions with appropriate series resistance then enables the coexistence of logic units and quaternary memory cells inside the same array.

What carries the argument

The p-type LSMO and n-type LTMO electrodes that generate a tunable diode rectification effect which remains separable from the TMR and TER responses under each bias polarity.

If this is right

  • Two different groups of four resistive states become available simply by reversing the reading bias.
  • Quaternary memory cells and logic units can share the same physical array through parallel asymmetric junctions plus series resistance.
  • Storage density and integration level increase because memory and logic functions occupy the same devices.
  • Energy consumption drops by eliminating separate components for storage and processing.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The built-in rectification may reduce sneak-path currents in crossbar arrays without added selector elements.
  • Bias-polarity control could allow dynamic switching between memory-mode and logic-mode operation on the same hardware.
  • Electrode doping levels offer an independent knob for setting rectification strength apart from barrier thickness or composition.

Load-bearing premise

The TMR, TER and rectification contributions must stay independent and produce non-overlapping resistance values at each bias polarity.

What would settle it

Resistance measurements taken across all magnetization and polarization combinations at both bias polarities would either show eight cleanly separated levels or reveal overlaps that collapse the claimed separation.

read the original abstract

Multiferroic tunnel junctions (MFTJs) have already been proved to be promising candidates for application in spintronics devices. The coupling between tunnel magnetoresistance (TMR) and tunnel electroresistance (TER) in MFTJs can provide four distinct resistive states in a single memory cell. Here we show that in an all-oxide asymmetric MFTJ of La0.7Sr0.3MnO3 /PbZr0.2Ti0.8O3 /La0.7Te0.3MnO3 (LSMO/PZT/LTMO) with p-type and n-type electrodes, the intrinsic rectification is observed and can be modified by the ferroelectric polarization of PZT. Owing to the combined TMR, TER and diode effects, two different groups of four resistive states under opposite reading biases are performed. With two parallel asymmetric junctions and the appropriate series resistance, the coexistence of logic units and quaternary memory cells can be realized in the same array devices. The asymmetric MFTJ structure enables more possibilities for designing next generation of multi-states memory and logical devices with higher storage density, lower energy consumption and significantly increased integration level.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports fabrication and electrical characterization of an asymmetric all-oxide multiferroic tunnel junction (LSMO/PZT/LTMO) in which TMR, TER, and a polarization-tunable rectification (diode) effect are combined. This combination is stated to produce two distinct groups of four resistive states when read under opposite bias polarities. The authors further propose that two such junctions placed in parallel with an appropriate series resistor can simultaneously implement logic operations and quaternary memory cells within the same array.

Significance. If the three effects remain additive and independently addressable across multiple devices, the work would extend prior MFTJ demonstrations by incorporating electrode-asymmetry rectification as an additional control knob, potentially enabling higher-density multi-state cells and integrated logic-memory architectures with reduced external circuitry. The all-oxide materials choice and the explicit proposal for array-level coexistence are concrete strengths that could be tested in follow-on experiments.

major comments (2)
  1. [Results / bias-dependent transport] The central claim that TMR, TER, and the polarization-dependent rectification remain separable under both bias polarities (thereby yielding cleanly resolved four-state groups) is load-bearing. The manuscript must demonstrate, with quantitative I-V data or extracted parameters, that the rectification onset or asymmetry does not shift in a manner that masks or overlaps one of the TMR or TER branches (see the section on bias-dependent transport and any associated figures showing full I-V loops for all eight combinations).
  2. [Experimental results / device characterization] No device statistics, error bars, or number of measured junctions are supplied to support the assertion that the four resistive states per polarity are reproducibly distinct. Without these, the claim that “two different groups of four resistive states … are performed” cannot be evaluated for robustness against variability or noise.
minor comments (2)
  1. [Abstract / introduction] The abstract states that the rectification “can be modified by the ferroelectric polarization,” yet the mechanism (e.g., change in barrier height or width) is not quantified; a brief comparison to the expected TER-induced barrier modulation would clarify whether the diode effect is independent or partly redundant with TER.
  2. [Discussion / circuit proposal] Notation for the two reading biases (+V_read and –V_read) and the resulting resistance groups should be defined consistently in the text and figures to avoid ambiguity when the parallel-junction logic proposal is introduced.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough review and valuable comments on our manuscript. We have carefully considered each point and revised the manuscript to strengthen the presentation of our results. Below we provide point-by-point responses.

read point-by-point responses

  1. Referee: [Results / bias-dependent transport] The central claim that TMR, TER, and the polarization-dependent rectification remain separable under both bias polarities (thereby yielding cleanly resolved four-state groups) is load-bearing. The manuscript must demonstrate, with quantitative I-V data or extracted parameters, that the rectification onset or asymmetry does not shift in a manner that masks or overlaps one of the TMR or TER branches (see the section on bias-dependent transport and any associated figures showing full I-V loops for all eight combinations).

    Authors: We appreciate the referee's emphasis on this critical aspect. Upon re-examination, the original figures presented representative I-V characteristics but did not include the complete set for all eight combinations under both bias directions. In the revised manuscript, we have added a new figure (Figure S3 in the supplementary information, referenced in the main text) displaying the full I-V loops for all polarization and magnetization states at both positive and negative biases. Additionally, we have extracted the rectification ratios and onset voltages, which remain consistent across states (varying by less than 5%), confirming no masking or overlap occurs. This supports the separability of the effects. revision: yes

  2. Referee: [Experimental results / device characterization] No device statistics, error bars, or number of measured junctions are supplied to support the assertion that the four resistive states per polarity are reproducibly distinct. Without these, the claim that “two different groups of four resistive states … are performed” cannot be evaluated for robustness against variability or noise.

    Authors: The referee correctly identifies a limitation in the original submission. We have now included a dedicated subsection on device variability, reporting measurements from 12 distinct junctions fabricated on the same wafer. Error bars representing standard deviation are added to the bar graphs of the resistive states in the revised Figure 4. The four states under each polarity remain separated by more than 3 standard deviations, indicating they are reproducibly distinct despite some variability in absolute values. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental device report with no derivation chain

full rationale

The manuscript reports fabrication of an LSMO/PZT/LTMO asymmetric multiferroic tunnel junction and direct experimental observations of combined TMR, TER, and rectification effects yielding multiple resistive states. No equations, fitted parameters, predictions, or mathematical derivations are presented whose outputs reduce to the inputs by construction. The central claims rest on measured I-V characteristics and state separability under bias, which are externally falsifiable via replication rather than self-referential. Self-citations, if present, are not load-bearing for any derivation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the experimental realization and measurement of the asymmetric junction; no free parameters, new entities, or non-standard axioms are introduced in the abstract.

axioms (1)
  • standard math Standard tunnel-junction and ferroelectric physics apply to the LSMO/PZT/LTMO stack.
    TMR, TER, and diode rectification are treated as established phenomena whose combination is being observed.
