Mask-RadarNet: Enhancing Transformer With Spatial-Temporal Semantic Context for Radar Object Detection in Autonomous Driving

T0 review · 3 major / 5 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Mask-RadarNet claims a hybrid transformer with class-masked attention and zero-cost temporal patch shifts detects radar objects on the CRUW benchmark at 84.29% AP, surpassing the previous transformer baseline at lower computational cost.

desk verdict Interesting radar detection architecture, but the CMAM complexity claim is contradicted by its own equations; needs a corrected description and a more rigorous evaluation before the results can be trusted. read the letter →

arxiv 2412.15595 v1 pith:NL5PW2RP submitted 2024-12-20 cs.CV cs.AI

Yuzhi Wu , Jun Liu , Guangfeng Jiang , Weijian Liu , Danilo Orlando This is my paper · ORCID
classification cs.CVcs.AI
keywords radarobjectdetectionautonomousdrivingFMCWRFimagetransformerspatial-temporalcontextpatchshiftclassmaskingattention
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that radar object detection in autonomous driving can be improved by explicitly modeling spatial-temporal semantic context in radio-frequency image sequences, rather than relying on convolutional networks or plain attention alone. It proposes Mask-RadarNet, a transformer whose encoder interleaves convolution and self-attention and uses patch shift and channel shift to mix information across frames at zero computation cost. A class masking attention module projects features into a per-class semantic space and uses the resulting similarity to update value features, producing prior maps that an auxiliary decoder supervises during training. On the CRUW benchmark, the model reports 84.29% average precision and 87.36% average recall, about one percentage point higher in AP than the previous transformer-based method, while using fewer parameters and fewer GFLOPs.

What carries the argument

The load-bearing mechanism is the class masking attention module (CMAM), a self-attention variant in which the query and key are produced by a class embedding layer that collapses the channel dimension to the number of object classes, so the similarity matrix encodes class-dependent semantic context rather than raw visual similarity. This matrix reweights the value features, and the resulting feature maps are used both as encoder output and as prior maps that an auxiliary decoder aggregates and supervises with ground-truth confidence maps. The complementary temporal mechanism is patch shift: before shifted-window attention, patches of each frame are swapped with patches of neighbouring frames following a fixed mosaic pattern (Pattern C, temporal field of 9), so inter-frame information is mixed without any additional FLOPs. Together these mechanisms let the encoder capture local, global, and temporal semantic context.

What would settle it

Re-run Mask-RadarNet and the T-RODNet baseline multiple times with different random seeds and with several different train/test splits of the CRUW sequences; if the average AP of Mask-RadarNet does not consistently exceed the baseline's, the reported superiority is not established. A second check is to remove the CMAM and auxiliary decoder and verify that AP drops from 84.29% to 81.69%, as the paper's ablation reports.

Watch

Extended reading notes

Core claim

Mask-RadarNet claims that the missing ingredient in prior radar RF-image detectors is spatial-temporal semantic context at the encoding stage. Its encoder stacks PatchShift 3D SwinTransformer blocks, which alternate channel shift and patch shift to exchange patches across the temporal dimension in a zero-computation way, and a class masking attention module (CMAM), which uses a class embedding layer to turn features into class-specific queries and keys, computes a similarity matrix, and reweights the value features before a feed-forward network. The prior maps produced by CMAM at each stage are aggregated by a lightweight auxiliary decoder and supervised with the same binary cross-entropy target as the main detection output, with the auxiliary loss weighted by $\alpha = 0.4$ during training. With 16-frame RF input, the model reports 84.29% AP and 87.36% AR on CRUW, outperforming the T-RODNet baseline's 83.27% AP and 86.98% AR while reducing GFLOPs from 182.53 to 176.91 and parameters from 44.31M to 32.12M.

Load-bearing premise

The central comparison rests on a single run of each model on one fixed split of the CRUW dataset (36 training sequences, 4 test sequences), so if that split or the single run is not representative, the roughly one-percent average-precision advantage over the prior transformer baseline could disappear.

Editorial extensions

If this is right

  • On the CRUW benchmark, Mask-RadarNet reports 84.29% AP and 87.36% AR overall, with the largest per-class gain on cyclists (85.06% AP versus 82.28% for T-RODNet).
  • Because temporal mixing is done by zero-cost patch and channel shifts, the spatial-temporal model costs 176.91 GFLOPs and 32.12M parameters, both below the T-RODNet baseline, so the accuracy gain does not trade against efficiency.
  • Since the auxiliary decoder and its loss are used only during training, the semantic prior maps improve the learned features without adding any inference-time computation.
  • Replacing the CMAM with a standard transformer module in the ablation drops overall AP from 84.29% to 81.72%, which supports the paper's claim that the class-masking attention, not attention in general, is what supplies the semantic context.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same class-masking attention design could transfer to other low-resolution sensing modalities whose raw data are hard for humans to interpret, such as sonar or mmWave security imaging, where class-conditional attention may substitute for missing visual cues.
  • The ablation trend across shift patterns suggests the temporal receptive field is a useful dial; extending Pattern C to a wider temporal field or learning the shift pattern could push accuracy further, but the paper does not test this.
  • The reported margin over the baseline is about one AP point on a single fixed split with one run per model, so the practical superiority claim should be read with that measurement uncertainty in mind.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper proposes Mask-RadarNet, a 3D transformer-based detector for radar RF image sequences. The architecture combines interleaved 3D convolutions and windowed self-attention with patch shift and channel shift for spatial-temporal modeling, adds a class masking attention module (CMAM) to inject semantic context, and uses a lightweight auxiliary decoder to supervise prior maps. On the CRUW dataset (36/4 train/test split, 16-frame input), the method is reported to achieve 84.29% AP and 87.36% AR with 176.91 GFLOPs and 32.12M parameters, outperforming T-RODNet and SS-RODNet while using fewer resources. The paper also presents ablations for shift patterns, the CMAM module, and the auxiliary loss weight.

Significance. The problem is timely and the paper is clearly written: the extension of patch shift to radar RF sequences, the hybrid convolution-attention encoder, and the auxiliary decoder are all described in enough detail to be reimplemented, and the ablations directly test each component. If the reported efficiency and accuracy numbers were reliable, Mask-RadarNet would be a useful efficient alternative to T-RODNet for radar object detection. However, the central efficiency claim is currently unverifiable because the CMAM as specified in Eqs. (13)–(15) would require at least an N×N attention matrix with N=T·H·W, which is computationally inconsistent with the reported 176.91 GFLOPs. In addition, the empirical support for the SOTA claim is weak: single runs, no error bars, and hyperparameter selection on the test set. These issues are fixable in a revision, so the paper has a defensible core that needs substantial strengthening.

major comments (3)
  1. [III-B2, Eqs. (11)–(15)] The CMAM is described as computing S = Softmax(Q⊗K) with Q,K ∈ R^{T·H·W × class}. At the first encoder stage, T=16, H=W=128, so N=T·H·W=262,144, giving an N×N similarity matrix with about 6.9×10^10 entries; even at the smallest 32×32 stage, N=16,384 and N²≈2.7×10^8. Such an attention operation would add far more than the reported total of 176.91 GFLOPs and would be infeasible on a single RTX 3080. The paper never describes windowing, spatial downsampling, a low-rank or linear attention variant, or any other approximation that would make Eqs. (13)–(15) tractable. The implementation therefore either does not match the stated equations or the reported GFLOPs exclude the CMAM. This unresolved inconsistency directly undermines the 'relatively lower computational complexity' component of the central claim.
  2. [IV-C and Table IV] The auxiliary loss weight α is tuned by sweeping values on the test set: Table IV reports AP/AR for α = 0 to 0.9, and α = 0.4 is selected because it gives the best test AP. This is a test-set-based hyperparameter selection. In addition, every table (Tables I–IV) reports a single run with no standard deviation, multiple seeds, or statistical comparison. The overall AP advantage over T-RODNet is only 1.02 percentage points (84.29% vs 83.27%), which could easily be within run-to-run noise for this fixed 36/4 sequence split. The authors should provide multiple runs with variance, and should select hyperparameters on a validation split rather than the test split, before the SOTA claim can be assessed.
  3. [III-B2 and IV-E2] The 'semantic prior maps' generated by the CMAM are produced from the network's own Q features, which are computed by a class embedding layer from the encoder feature X, and they are supervised by the same ground-truth confidence maps as the main decoder (Eqs. (8), (27)). Thus the CMAM does not inject any external or additional semantic knowledge; it is an internal deep-supervision branch on the same labels. The paper's repeated statements that CMAM 'captures spatial-temporal semantic context' or 'contains class-dependent RF image semantic information' overstate what is a self-supervised auxiliary signal. The authors should either provide evidence that this internal signal is semantically different from the main decoder supervision, or temper the conceptual claims throughout the abstract, introduction, and Section III-B2.
minor comments (5)
  1. [III-B2] The reshape operations Reshape1, Reshape2, and Reshape3 are not formally defined; please specify the target shapes and the dimension ordering (e.g., whether T,H,W are flattened in row-major order) to make the equations unambiguous.
  2. [III-B2, Eq. (13)] The symbol ⊗ is used for matrix multiplication; using ⊗ conventionally denotes a Kronecker or tensor product. Please replace it with a standard matrix multiplication notation to avoid confusion.
  3. [Throughout] There are several typographical and formatting issues, such as 'XClassM asking' instead of 'X_{ClassMasking}' in Eq. (17) and 'Sections II-A' in the related-work preamble; a careful proofread is needed.
  4. [References] Reference [2] appears in the bibliography but is not cited in the text; please check the citation list for consistency.
  5. [IV-E1] In Table II, the line 'We first remove all shift operations' is followed by a comparison of Patterns A, B, and C; it would be clearer to label the no-shift row as 'No shift' and to state explicitly that channel shift is also removed in that row, since the text later says channel shift is a supplement to patch shift.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the central claims rest on external CRUW benchmarks and controlled ablations, not on self-referential definitions or author-unique results.

full rationale

Mask-RadarNet's main claims are empirical: higher AP/AR on the CRUW dataset and lower GFLOPs/parameters relative to published SOTA models. These comparisons are against external systems (T-RODNet, SS-RODNet, RODNet variants, DCSN) and are not derived from the paper's own definitions. The CMAM's 'semantic prior maps' are internal network features supervised by the same ground-truth confidence maps used for the main loss; this is a form of deep supervision whose contribution is tested by a controlled ablation (Table III: None vs. CMAM), so the performance gain is not forced by construction. The auxiliary-loss weight α is chosen by sweeping on the test split (Table IV), which is a test-set selection risk rather than a circularity. The patch-shift and T-SwinTransformer components are explicitly adapted from prior work [54], [28], [22], and that prior work is not author-self-cited in a load-bearing way. The possible inconsistency between the O(N^2) CMAM attention written in Eqs. (13)-(15) and the reported 176.91 GFLOPs is a correctness/reproducibility concern, not an equivalence between inputs and outputs. No step in the derivation chain reduces, by the paper's own equations or by self-citation, to its own inputs.

Assumptions & free parameters 2 free parameters · 4 assumptions · 0 invented entities

The paper's central claim depends on two data-selected hyperparameters (auxiliary loss weight and shift pattern) and on the reliability of the CRUW benchmark and its fixed split. It introduces no new physical or theoretical entities. The main assumptions are the accuracy of the CRF-generated ground truth, the representativeness of the single split, and the semantic interpretation of the class-embedding prior, which is supervised by the same labels used for the main task.

free parameters (2)
  • Auxiliary loss weight alpha = 0.4
    Chosen empirically in the ablation of Table IV by evaluating alpha from 0.0 to 0.9 on the test set and selecting the value with the best AP. This is hyperparameter tuning on the test set.
  • Patch shift pattern = Pattern C (temporal field 9)
    Selected by comparing three shift patterns (A, B, C) in Table II on the test set; Pattern C yields the best AP and is used for all reported results.
assumptions (4)
  • standard math Standard matrix multiplication and softmax define the CMAM attention (Eqs. 11-13).
    These are standard linear-algebra operations with no unproved lemmas.
  • domain assumption CRUW ground-truth labels produced by the camera-radar fusion (CRF) framework are accurate enough for training and evaluation.
    Section IV-A describes labels coming from cross-modal supervision; if these labels contain systematic bias, all AP/AR numbers are affected.
  • domain assumption The fixed 36/4 sequence split and the OLS metric form a valid benchmark protocol.
    Section IV-B and IV-C; the paper uses a single fixed split inherited from T-RODNet and gives no confidence intervals or multi-split analysis.
  • ad hoc to paper The class embedding output Q carries class-dependent semantic prior information that can be supervised by the same ground truth via the auxiliary decoder.
    Section III-B2, Eqs. 8-13. This is a design assumption supported only by a feature visualization and ablations, not by an independent source of semantic knowledge.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Mask-RadarNet: Enhancing Transformer With Spatial-Temporal Semantic Context for Radar Object Detection in Autonomous Driving." pith.science (2026). https://pith.science/paper/NL5PW2RP

@misc{pith2026241215595,
  author       = {Pith},
  title        = {Pith review of: Mask-RadarNet: Enhancing Transformer With Spatial-Temporal Semantic Context for Radar Object Detection in Autonomous Driving},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/NL5PW2RP}},
  note         = {Machine review of arXiv:2412.15595}
}
read the original abstract

As a cost-effective and robust technology, automotive radar has seen steady improvement during the last years, making it an appealing complement to commonly used sensors like camera and LiDAR in autonomous driving. Radio frequency data with rich semantic information are attracting more and more attention. Most current radar-based models take radio frequency image sequences as the input. However, these models heavily rely on convolutional neural networks and leave out the spatial-temporal semantic context during the encoding stage. To solve these problems, we propose a model called Mask-RadarNet to fully utilize the hierarchical semantic features from the input radar data. Mask-RadarNet exploits the combination of interleaved convolution and attention operations to replace the traditional architecture in transformer-based models. In addition, patch shift is introduced to the Mask-RadarNet for efficient spatial-temporal feature learning. By shifting part of patches with a specific mosaic pattern in the temporal dimension, Mask-RadarNet achieves competitive performance while reducing the computational burden of the spatial-temporal modeling. In order to capture the spatial-temporal semantic contextual information, we design the class masking attention module (CMAM) in our encoder. Moreover, a lightweight auxiliary decoder is added to our model to aggregate prior maps generated from the CMAM. Experiments on the CRUW dataset demonstrate the superiority of the proposed method to some state-of-the-art radar-based object detection algorithms. With relatively lower computational complexity and fewer parameters, the proposed Mask-RadarNet achieves higher recognition accuracy for object detection in autonomous driving.

Figures

Figures reproduced from arXiv: 2412.15595 by the authors.

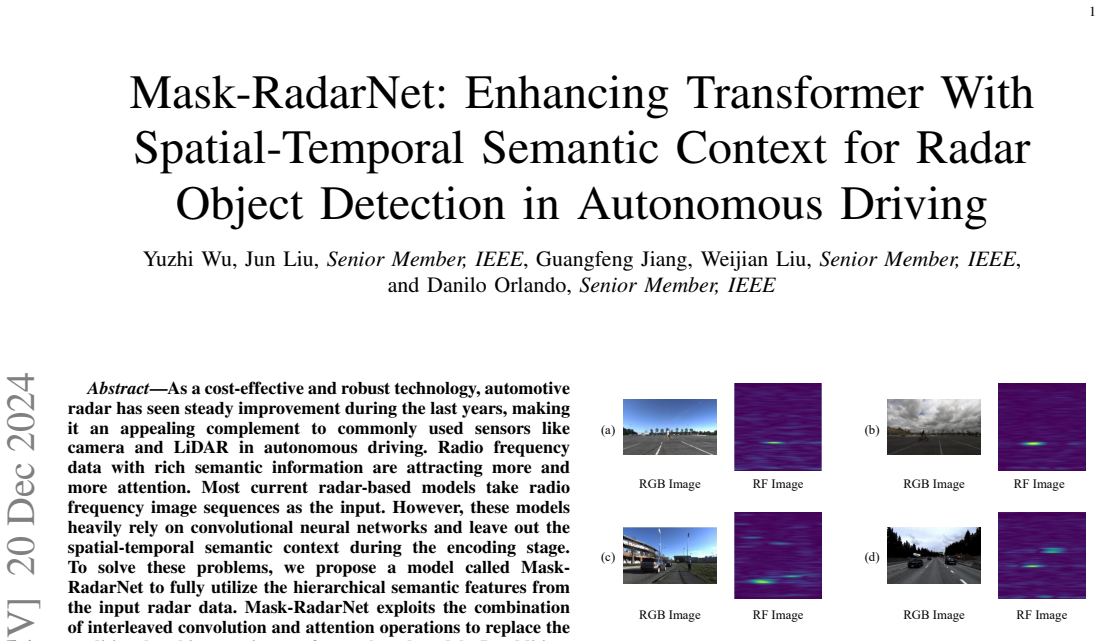

Figure 1
Figure 1. Examples of RGB images and their corresponding RF [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

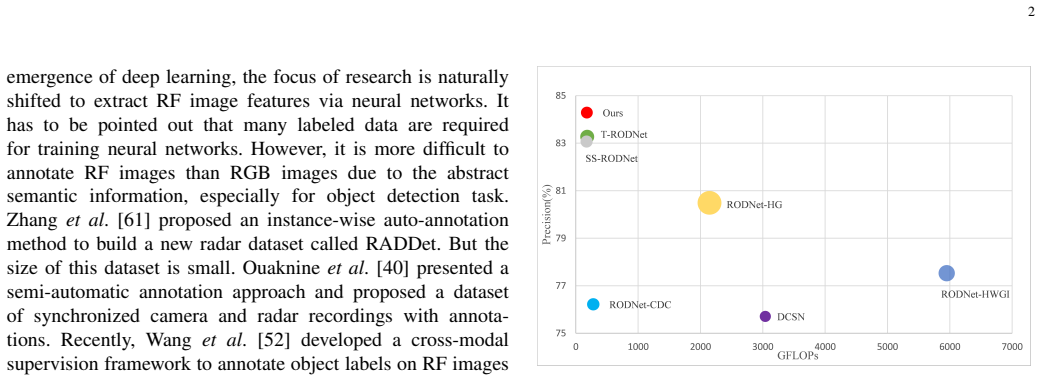

Figure 2
Figure 2. Comparisons of Mask-RadarNet with other SOTA mod [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Overview of proposed Mask-RadarNet. The encoder is in the middle, and the two decoders are on the left and right. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (7 more)
Figure 6
Figure 6. Figure 6: An example of channel shift for four neighbouring [PITH_FULL_IMAGE:figures/full_fig_p005_6.png]
Figure 5
Figure 5. Figure 5: Three typical shift patterns. Pattern A only shifts [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 8
Figure 8. Figure 8: Overview of two consecutive PatchShift 3D SwinTrans [PITH_FULL_IMAGE:figures/full_fig_p005_8.png]
Figure 9
Figure 9. Figure 9: Overview of CMAM in the encoder. Given the output feature X ∈ R T ×H×W×C from previous 3D SwinTransformer module, we first utilize a class em￾bedding layer to query feature Q and key feature K. Class embedding layer is a linear layer that converts the channel C to clas…
Figure 11
Figure 11. Figure 11: Overview of two consecutive T-SwinTransformer [PITH_FULL_IMAGE:figures/full_fig_p007_11.png]
Figure 10
Figure 10. Figure 10: Visualization of the feature maps before and after the [PITH_FULL_IMAGE:figures/full_fig_p007_10.png]
Figure 12
Figure 12. Figure 12: Visual comparison with other models on the CRUW dataset. Mask-RadarNet outperforms others in all scenarios. The [PITH_FULL_IMAGE:figures/full_fig_p010_12.png]
