Universal Magnetic Structure Prediction from Atomic Coordinates with Near-Experimental Accuracy

Abhijatmedhi Chotrattanapituk , Ryotaro Okabe , Eunbi Rha , Mariya Al-Hinai , Eugene Jiang , Daniel Pajerowski , Yongqiang Cheng , Joshua J. Turner
show 1 more author
Mingda Li
This is my paper

Pith reviewed 2026-05-20 16:15 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cs.LG
keywords magnetic structure predictiongraph neural networkequivariant modelmagnetic materialsincommensurate structuresmaterials discoveryMAGNDATAmodulated magnetic order
0
0 comments X

The pith

A neural network trained on experimental data predicts magnetic structures of materials directly from their atomic coordinates.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a machine learning method that takes only the positions of atoms in a crystal and outputs the material's magnetic ordering. It trains an equivariant graph neural network on measured structures to handle both simple aligned spins and complex non-collinear or modulated patterns. A new representation encodes these patterns uniformly without assuming particular symmetries. If the approach works as described, researchers could screen large numbers of candidate materials for magnetic behavior far more quickly than with experiments or traditional calculations.

Core claim

The MSN model, an E(3) equivariant graph neural network, reconstructs experimental magnetic structures with high fidelity and achieves strong performance across modulation components for both collinear and non-collinear orders when trained directly on MAGNDATA entries and equipped with the primitive modulated structure representation that encodes commensurate and incommensurate cases in a unified way without symmetry assumptions.

What carries the argument

The primitive modulated structure representation (PMSR), which encodes commensurate and incommensurate magnetic structures uniformly without symmetry assumptions to serve as input for the E(3) equivariant graph neural network.

If this is right

  • Magnetic structure prediction scales to large numbers of candidate materials without requiring specialized experiments for each one.
  • Collinear and non-collinear orders, including incommensurate modulations, receive consistent treatment inside one framework.
  • Data-driven searches for functional magnetic materials gain a practical starting point before any synthesis or measurement.
  • Complex orders that challenge first-principles methods become accessible through direct learning from measured examples.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Pairing the predictor with automated crystal structure generators would allow end-to-end computational searches for materials with targeted magnetic responses.
  • The patterns captured by the network could highlight geometric rules that connect atomic arrangements to preferred spin orderings beyond traditional symmetry analysis.
  • Extending the same architecture to predict how structures evolve with temperature or applied fields offers a clear next experimental test.

Load-bearing premise

The experimental structures collected in the training database represent a sufficiently broad and unbiased sample of real magnetic materials to support accurate generalization to unseen crystal structures.

What would settle it

Running the model on crystal structures absent from the training database and comparing its magnetic structure predictions against independent neutron diffraction measurements on those same materials would settle the accuracy claim.

Figures

Figures reproduced from arXiv: 2605.16230 by Abhijatmedhi Chotrattanapituk, Daniel Pajerowski, Eugene Jiang, Eunbi Rha, Joshua J. Turner, Mariya Al-Hinai, Mingda Li, Ryotaro Okabe, Yongqiang Cheng.

Figure 1
Figure 1. Figure 1: FIG. 1. Primitive Modulated Structure Representation (PMSR). Commensurate structures both with (middle row) and without [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Magnetic structure network (MSN). [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

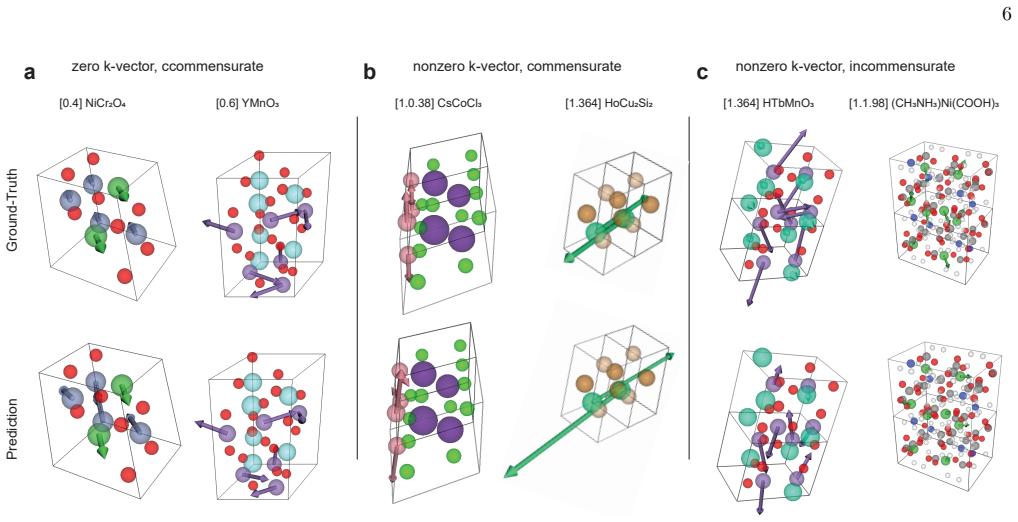

Figure 3. Figure 3: FIG. 3. Predicted magnetic structures. For each material (MAGNDATA ID, formula), the ground-truth structure from [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
read the original abstract

Magnetic order is a fundamental property of materials, governing collective behavior and enabling a broad range of functionalities. Yet magnetic structure remains difficult to determine: experiments are costly and specialized, while first-principles methods often struggle with the noncollinear and incommensurate orders found in real materials. Here we introduce magnetic structure network (MSN), an E(3) equivariant graph neural network that predicts both collinear and non-collinear magnetic structures directly from atomic crystal structures, trained directly on experimentally determined structures from MAGNDATA. By proposing the primitive modulated structure representation (PMSR), we are able to encode commensurate and incommensurate structures in a unified way without symmetry assumptions. The model achieves strong performance across all modulation components and reconstructs experimental magnetic structures with high fidelity. Our approach provides a scalable framework for rapid magnetic structure prediction and opens a route to data-driven discovery of magnetic materials.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript introduces the Magnetic Structure Network (MSN), an E(3) equivariant graph neural network that predicts both collinear and non-collinear magnetic structures directly from atomic crystal structures. It proposes the Primitive Modulated Structure Representation (PMSR) to encode commensurate and incommensurate orders in a unified way without symmetry assumptions. The model is trained on experimentally determined structures from the MAGNDATA database and claims strong performance across modulation components with high-fidelity reconstruction of experimental magnetic structures.

Significance. If the generalization to unseen structures holds, this provides a scalable, data-driven route to magnetic structure prediction that could complement or reduce reliance on specialized experiments and first-principles methods that struggle with noncollinear and incommensurate cases. Credit is given for training directly on external experimental data rather than simulated structures and for the unified PMSR encoding that avoids separate treatments for different modulation types.

major comments (1)
  1. [Data and Methods] The generalization claim is load-bearing for the central result yet rests on an unverified assumption about the MAGNDATA train/test partition. No details are provided on split methodology, prototype-level hold-out, space-group distribution across splits, or structural similarity metrics (e.g., crystal fingerprints). Without this, high-fidelity reconstruction on modulation components could arise from leakage of near-isostructural examples rather than transferable physics learned by the E(3) layers and PMSR.
minor comments (1)
  1. [Abstract] The abstract states 'strong performance' and 'high fidelity' without any numerical values; adding at least one key metric (e.g., mean error on a modulation component or comparison to a baseline) would improve immediate readability.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful review and constructive comments. We appreciate the focus on rigorously demonstrating generalization and address the major comment below.

read point-by-point responses

  1. Referee: [Data and Methods] The generalization claim is load-bearing for the central result yet rests on an unverified assumption about the MAGNDATA train/test partition. No details are provided on split methodology, prototype-level hold-out, space-group distribution across splits, or structural similarity metrics (e.g., crystal fingerprints). Without this, high-fidelity reconstruction on modulation components could arise from leakage of near-isostructural examples rather than transferable physics learned by the E(3) layers and PMSR.

    Authors: We agree that transparent details on the data partitioning are necessary to support the generalization claims. The MAGNDATA structures were randomly divided into training (80%), validation (10%), and test (10%) sets at the level of individual magnetic structures. In the revised manuscript we will add a dedicated paragraph in the Methods section that specifies the exact split procedure, reports the space-group distribution across the three sets, and includes quantitative structural similarity analysis using crystal fingerprints (e.g., average pairwise fingerprint distance and the fraction of test structures with a nearest-neighbor train structure below a chosen similarity threshold). These metrics show low structural overlap between train and test, indicating that performance is not driven by leakage of near-isostructural examples. We will also note that a strict prototype-level hold-out was not performed because MAGNDATA contains many unique magnetic orderings even within the same structural prototype; the random split therefore provides a realistic test of transferability. The added information will allow readers to verify that the E(3)-equivariant layers and PMSR capture transferable physics. revision: yes

Circularity Check

0 steps flagged

No circularity: standard data-driven ML training on external experimental database

full rationale

The paper introduces an E(3)-equivariant GNN (MSN) trained directly on MAGNDATA experimental magnetic structures to predict collinear and non-collinear orders from atomic coordinates via the PMSR encoding. No derivation chain, equations, or first-principles results are presented that reduce by construction to fitted inputs or self-citations. Performance claims rest on model outputs evaluated against held-out experimental data rather than any self-referential redefinition or renaming of known results. This is a conventional supervised learning setup with external benchmarks, so the central claim remains independent of its own training procedure.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 1 invented entities

The central claim rests on the assumption that experimental magnetic structures in MAGNDATA are representative and that the PMSR encoding preserves all necessary information for accurate prediction without introducing artifacts.

free parameters (1)
  • GNN model weights and hyperparameters
    The network parameters are fitted to the MAGNDATA training set to achieve the reported performance.
axioms (1)
  • domain assumption E(3) equivariance is sufficient to capture all relevant symmetries for magnetic structure prediction
    Invoked implicitly by choice of architecture for handling rotations and translations in crystal structures.
invented entities (1)
  • Primitive Modulated Structure Representation (PMSR) no independent evidence
    purpose: Unified encoding of commensurate and incommensurate magnetic modulations without symmetry assumptions
    New representation introduced to handle both types of structures in a single framework.
