Multihair thermodynamics of Kerr-Newman-NUT-AdS₄ spacetimes
Pith reviewed 2026-06-28 08:44 UTC · model grok-4.3
The pith
NUT charge enters Kerr-Newman-NUT-AdS4 thermodynamics as two secondary hairs that produce a compact squared-mass formula.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
In Kerr-Newman-NUT-AdS4 spacetimes with symmetric Misner strings and conical deficits, the NUT charge parameter enters the homogeneous thermodynamic state space through two secondary hairs: a rotation-like hair J_n = m n / K² and a charge-like hair N = n / √K. These are thermodynamic response variables rather than additional metric parameters. Together with the electric charge, pressure, angular momentum, and string tensions, they yield a compact Christodoulou-Ruffini-type squared-mass formula. Differentiating this equation of state produces the horizon temperature, angular velocities, electric potential, NUT potential, thermodynamic volume, and thermodynamic lengths; the resulting first law
What carries the argument
The two secondary hairs J_n = m n / K² (rotation-like) and N = n / √K (charge-like), which function as thermodynamic response variables to build the squared-mass formula in the enlarged state space.
If this is right
- Differentiation of the squared-mass formula directly supplies the horizon temperature, angular velocities, electric potential, NUT potential, thermodynamic volume, and thermodynamic lengths.
- The first law and Smarr relation hold algebraically once the secondary hairs are included.
- Alternative parametrizations of the NUT sector, such as one based on dual mass, remain thermodynamically consistent.
- The choice of thermodynamic volume is fixed once the NUT sector is chosen.
- First-law consistency alone does not uniquely determine the state space, but the secondary-hair construction supplies one controlled example.
Where Pith is reading between the lines
- The same re-interpretation of a metric parameter as derived response variables might apply to NUT charges in higher-dimensional or non-AdS spacetimes.
- The approach suggests that additional selection criteria beyond first-law consistency will be needed to fix thermodynamic state spaces for black holes with multiple hairs.
- Direct comparison of the derived potentials with independent calculations of surface gravity on explicit metrics could test the secondary-hair definitions for specific parameter values.
Load-bearing premise
That the NUT charge can be consistently recast as thermodynamic response variables via the specific definitions J_n = m n / K² and N = n / √K so that the squared-mass formula and its derivatives produce a valid first law without circular dependence on the mass parameter m.
What would settle it
An explicit algebraic or numerical check showing that the first law obtained by differentiating the squared-mass formula fails to match the variation of the metric mass parameter m when the NUT-related quantities are varied, or that the derived NUT potential does not reproduce the expected surface gravity or electromagnetic potential for a chosen parameter set.

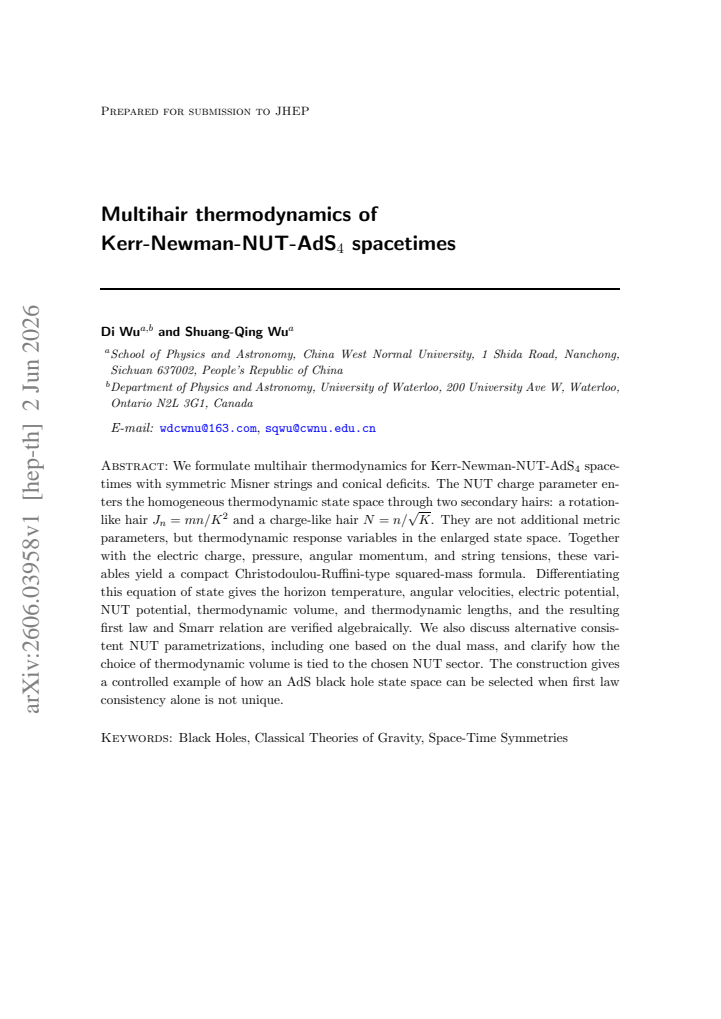

read the original abstract
We formulate multihair thermodynamics for Kerr-Newman-NUT-AdS$_4$ spacetimes with symmetric Misner strings and conical deficits. The NUT charge parameter enters the homogeneous thermodynamic state space through two secondary hairs: a rotation-like hair $J_n=mn/K^2$ and a charge-like hair $N=n/\sqrt K$. They are not additional metric parameters, but thermodynamic response variables in the enlarged state space. Together with the electric charge, pressure, angular momentum, and string tensions, these variables yield a compact Christodoulou-Ruffini-type squared-mass formula. Differentiating this equation of state gives the horizon temperature, angular velocities, electric potential, NUT potential, thermodynamic volume, and thermodynamic lengths, and the resulting first law and Smarr relation are verified algebraically. We also discuss alternative consistent NUT parametrizations, including one based on the dual mass, and clarify how the choice of thermodynamic volume is tied to the chosen NUT sector. The construction gives a controlled example of how an AdS black hole state space can be selected when first law consistency alone is not unique.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper formulates multihair thermodynamics for Kerr-Newman-NUT-AdS₄ spacetimes with symmetric Misner strings. The NUT parameter enters the state space via two secondary hairs defined as J_n = m n / K² (rotation-like) and N = n / √K (charge-like). These are presented as thermodynamic response variables (not independent metric parameters) that, together with Q, P, J and string tensions, yield a compact Christodoulou-Ruffini-type squared-mass formula. Algebraic differentiation of this equation of state is asserted to recover the first law and Smarr relation, with the resulting potentials (T, Ω, Φ, Ψ_N, V, ℓ_i) verified explicitly. Alternative NUT parametrizations, including one based on dual mass, are discussed.
Significance. If free of circular dependence, the construction supplies a controlled example of how an AdS black-hole state space can be selected when first-law consistency is non-unique, by reinterpreting NUT parameters as response variables. It also clarifies the link between thermodynamic volume choice and the NUT sector.
major comments (2)
- [Abstract and §3] Abstract and §3: The secondary hairs are defined explicitly as J_n = m n / K² and N = n / √K. Because both expressions contain the mass parameter m that appears on the left-hand side of the squared-mass formula, the algebraic differentiation that is claimed to recover the first law risks being an identity by construction rather than an independent consistency check. The manuscript must exhibit the explicit form of the mass formula and demonstrate that the derived potentials remain non-trivial after the m-dependence is accounted for.
- [§3] §3: The assertion that J_n and N are 'thermodynamic response variables' rather than additional metric parameters requires a concrete demonstration that their definitions do not presuppose the very mass relation whose thermodynamic consistency is being verified.
minor comments (1)
- The symbol K is used in the definitions of J_n and N but its explicit relation to the metric parameters should be stated at first appearance for readability.
Simulated Author's Rebuttal
We thank the referee for the careful reading and for identifying the need to clarify the logical independence of the thermodynamic construction. We address each major comment below and will revise the manuscript to include the explicit mass formula together with the differentiation steps.
read point-by-point responses
-
Referee: [Abstract and §3] Abstract and §3: The secondary hairs are defined explicitly as J_n = m n / K² and N = n / √K. Because both expressions contain the mass parameter m that appears on the left-hand side of the squared-mass formula, the algebraic differentiation that is claimed to recover the first law risks being an identity by construction rather than an independent consistency check. The manuscript must exhibit the explicit form of the mass formula and demonstrate that the derived potentials remain non-trivial after the m-dependence is accounted for.
Authors: The squared-mass formula is first obtained geometrically by expressing the ADM mass in terms of the metric parameters and then reparametrizing the state space using J_n and N; the resulting expression isolates M on the left-hand side with the right-hand side depending only on the independent thermodynamic variables (J, Q, P, N, J_n, ℓ_i) and contains no residual explicit m. Differentiation is performed while treating J_n and N as independent coordinates in the enlarged state space; the resulting partial derivatives recover the known horizon quantities (T, Ω, Φ, Ψ_N, V) that were previously computed directly from the metric. We will add the explicit mass formula and the full differentiation in the revised §3 to make this accounting transparent. revision: yes
-
Referee: [§3] §3: The assertion that J_n and N are 'thermodynamic response variables' rather than additional metric parameters requires a concrete demonstration that their definitions do not presuppose the very mass relation whose thermodynamic consistency is being verified.
Authors: The definitions of J_n and N are introduced after the geometric mass relation has been written down; they are chosen so that the first law takes a homogeneous form with the selected thermodynamic volume. The mass formula itself follows from the asymptotic Komar integrals and the metric asymptotics, without reference to the subsequent thermodynamic differentiation. The verification step then confirms that differentiation of this geometrically derived relation reproduces the first law. We will expand the discussion in §3 to exhibit this logical sequence explicitly. revision: yes
Circularity Check
J_n and N defined using m, then inserted into m² formula
specific steps
-
self definitional
[abstract]
"The NUT charge parameter enters the homogeneous thermodynamic state space through two secondary hairs: a rotation-like hair J_n=mn/K^2 and a charge-like hair N=n/√K. ... these variables yield a compact Christodoulou-Ruffini-type squared-mass formula."
J_n and N are defined in terms of m; the squared-mass formula then expresses m² in terms of J_n, N and other quantities. The subsequent differentiation step therefore inherits the m-dependence already inserted by definition, so the first law and Smarr relation hold by algebraic rearrangement rather than by independent thermodynamic derivation.
full rationale
The paper defines the secondary hairs explicitly as J_n = m n / K² and N = n / √K (which contain the mass parameter m on the right-hand side). These are then used as independent variables in the Christodoulou-Ruffini-type relation that solves for m². Differentiating that relation is claimed to recover the first law. Because the input definitions already embed m, the algebraic verification reduces to an identity by construction rather than an independent consistency check. This matches the self-definitional pattern with load-bearing impact on the central claim.
Axiom & Free-Parameter Ledger
free parameters (1)
- K
axioms (1)
- domain assumption The NUT charge enters the thermodynamic state space through secondary hairs defined from metric parameters rather than as independent metric parameters.
invented entities (2)
-
rotation-like hair J_n
no independent evidence
-
charge-like hair N
no independent evidence
Reference graph
Works this paper leans on
-
[1]
Taub,Empty space-times admitting a three parameter group of motions,Annals Math
A.H. Taub,Empty space-times admitting a three parameter group of motions,Annals Math. 53(1951) 472
1951
-
[2]
Newman, L
E. Newman, L. Tamburino, T. Unti,Empty-space generalization of the Schwarzschild metric, J. Math. Phys.4(1963) 915
1963
-
[3]
Misner,The flatter regions of Newman, Unti and Tamburino’s generalized Schwarzschild space,J
C.W. Misner,The flatter regions of Newman, Unti and Tamburino’s generalized Schwarzschild space,J. Math. Phys.4(1963) 924
1963
-
[4]
D. Kastor, S. Ray, J. Traschen,Enthalpy and the mechanics of AdS black holes,Class. Quant. Grav.26(2009) 195011 [arXiv:0904.2765]
Pith/arXiv arXiv 2009
-
[5]
Dolan,Pressure and volume in the first law of black hole thermodynamics,Class
B.P. Dolan,Pressure and volume in the first law of black hole thermodynamics,Class. Quant. Grav.28(2011) 235017 [arXiv:1106.6260]
Pith/arXiv arXiv 2011
-
[6]
M. Cvetiˇ c, G.W. Gibbons, D. Kubizˇ n´ ak, C.N. Pope,Black hole enthalpy and an entropy inequality for the thermodynamic volume,Phys. Rev.D84(2011) 024037 [arXiv:1012.2888]
Pith/arXiv arXiv 2011
-
[7]
D. Kubizˇ n´ ak, R.B. Mann,P-Vcriticality of charged AdS black holes,JHEP07(2012) 033 [arXiv:1205.0559]
Pith/arXiv arXiv 2012
-
[8]
Christodoulou,Reversible and irreversible transformations in black hole physics,Phys
D. Christodoulou,Reversible and irreversible transformations in black hole physics,Phys. Rev. Lett.25(1970) 1596
1970
-
[9]
Christodoulou, R
D. Christodoulou, R. Ruffini,Reversible transformations of a charged black hole,Phys. Rev. D4(1971) 3552. – 16 –
1971
-
[10]
S.-Q. Wu, D. Wu,Thermodynamical hairs of the four-dimensional Taub-Newman-Unti-Tamburino spacetimes,Phys. Rev.D100(2019) 101501 [arXiv:1909.07776]
arXiv 2019
- [11]
-
[12]
Bekenstein,Black holes and entropy,Phys
J.D. Bekenstein,Black holes and entropy,Phys. Rev.D7(1973) 2333
1973
-
[13]
Hawking,Black holes and thermodynamics,Phys
S.W. Hawking,Black holes and thermodynamics,Phys. Rev.D13(1976) 191
1976
-
[14]
S.W. Hawking, C.J. Hunter, D.N. Page,Nut charge, anti-de Sitter space and entropy,Phys. Rev.D59(1999) 044033 [hep-th/9809035]
Pith/arXiv arXiv 1999
-
[15]
Mann,Entropy of rotating Misner string space-times,Phys
R.B. Mann,Entropy of rotating Misner string space-times,Phys. Rev.D61(2000) 084013 [hep-th/9904148]
Pith/arXiv arXiv 2000
-
[16]
Ghosh,Thermodynamics of a class of Kerr-Bolt-AdS space-time, [hep-th/0305119]
T. Ghosh,Thermodynamics of a class of Kerr-Bolt-AdS space-time, [hep-th/0305119]
-
[17]
MacDonald,Thermodynamic volume of Kerr-bolt-AdS spacetime, [arXiv:1406.1257]
S. MacDonald,Thermodynamic volume of Kerr-bolt-AdS spacetime, [arXiv:1406.1257]
-
[18]
R.A. Hennigar, D. Kubizˇ n´ ak, R.B. Mann,Thermodynamics of Lorentzian Taub-NUT spacetimes,Phys. Rev.D100(2019) 064055 [arXiv:1903.08668]
arXiv 2019
-
[19]
A.B. Bordo, F. Gray, D. Kubizˇ n´ ak,Thermodynamics and phase transitions of NUTty dyons, JHEP07(2019) 119 [arXiv:1904.00030]
Pith/arXiv arXiv 2019
- [20]
- [21]
-
[22]
Durka,The first law of black hole thermodynamics for Taub-NUT spacetime,Int
R. Durka,The first law of black hole thermodynamics for Taub-NUT spacetime,Int. J. Mod. Phys.D31(2022) 2250021 [arXiv:1908.04238]
arXiv 2022
-
[23]
M. Appels, R. Gregory, D. Kubizˇ n´ ak,Black hole thermodynamics with conical defects,JHEP 05(2017) 116 [arXiv:1702.00490]
Pith/arXiv arXiv 2017
-
[24]
H.-S. Liu, H. L¨ u, L. Ma,Thermodynamics of Taub-NUT and Plebanski solutions,JHEP10 (2022) 174 [arXiv:2208.05494]
arXiv 2022
-
[25]
A. Awad, S. Eissa,Topological dyonic Taub-Bolt/NUT-AdS: thermodynamics and first law, Phys. Rev.D101(2020) 124011 [arXiv:2007.10489]
arXiv 2020
-
[26]
A. Awad, S. Eissa,Lorentzian Taub-NUT spacetimes: Misner string charges and the first law,Phys. Rev.D105(2022) 124034 [arXiv:2206.09124]
arXiv 2022
-
[27]
A. Awad, E. Elkhateeb,Dyonic Taub-NUT-AdS: unconstrained thermodynamics and phase structure,Phys. Rev.D108(2023) 064022 [arXiv:2304.06705]
arXiv 2023
-
[28]
M. Tharwat, A. AlBarqawy, A. Awad, E. Elkhateeb,Dyonic Taub-NUT-AdS spaces: phase structures of all horizon geometries,Phys. Rev.D109(2024) 084026 [arXiv:2312.15811]
arXiv 2024
-
[29]
A. AlBarqawy, A. Awad, E. Elkhateeb, M. Tharwat,Dyonic Taub-NUT-AdS black branes: thermodynamics and phase diagrams,Eur. Phys. J.C85(2025) 1411 [arXiv:2502.19511]
arXiv 2025
- [30]
- [31]
-
[32]
S.-Q. Wu, D. Wu,Consistent mass formulas for higher even-dimensional Reissner-Nordstr¨ om-NUT-AdS spacetimes,Phys. Rev.D108(2023) 064035 [arXiv:2306.00062]
arXiv 2023
-
[33]
G.W. Gibbons, M.J. Perry, C.N. Pope,The First law of thermodynamics for Kerr-anti-de Sitter black holes,Class. Quant. Grav.22(2005) 1503 [hep-th/0408217]
Pith/arXiv arXiv 2005
-
[34]
Plebanski,A class of solutions of Einstein-Maxwell equations,Annals Phys.90(1975) 196
J.F. Plebanski,A class of solutions of Einstein-Maxwell equations,Annals Phys.90(1975) 196
1975
-
[35]
Pleba´ nski, M
J.F. Pleba´ nski, M. Demia´ nski,Rotating, charged, and uniformly accelerating mass in general relativity,Annals Phys.98(1976) 98
1976
-
[36]
J.B. Griffiths, J. Podolsky,A new look at the Plebanski-Demianski family of solutions,Int. J. Mod. Phys.D15(2006) 335 [gr-qc/0511091]
Pith/arXiv arXiv 2006
-
[37]
J.B. Griffiths, J. Podolsky,Accelerating and rotating black holes,Class. Quant. Grav.22 (2005) 3467 [gr-qc/0507021]
Pith/arXiv arXiv 2005
-
[38]
W. Chen, H. L¨ u, C. N. Pope,Mass of rotating black holes in gauged supergravities,Phys. Rev.D73(2006) 104036 [hep-th/0510081]
Pith/arXiv arXiv 2006
-
[39]
M.M. Caldarelli, G. Cognola, D. Klemm,Thermodynamics of Kerr-Newman-AdS black holes and conformal field theories,Class. Quant. Grav.17(2000) 399 [hep-th/9908022]
Pith/arXiv arXiv 2000
-
[40]
Bardeen, B
J.M. Bardeen, B. Carter, S.W. Hawking,The Four laws of black hole mechanics,Commun. Math. Phys.31(1973) 161
1973
-
[41]
Smarr,Mass formula for Kerr black holes,Phys
L. Smarr,Mass formula for Kerr black holes,Phys. Rev. Lett.30(1973) 71, Erratum:Phys. Rev. Lett.30(1973) 521
1973
-
[42]
Johnson,Thermodynamic volumes for AdS-Taub-NUT and AdS-Taub-Bolt,Class
C.V. Johnson,Thermodynamic volumes for AdS-Taub-NUT and AdS-Taub-Bolt,Class. Quant. Grav.31(2014) 235003 [arXiv:1405.5941]
Pith/arXiv arXiv 2014
-
[43]
D. Wu,Classifying topology of consistent thermodynamics of the four-dimensional neutral Lorentzian NUT-charged spacetimes,Eur. Phys. J.C83(2023) 365 [arXiv:2302.01100]
arXiv 2023
-
[44]
D. Wu,Consistent thermodynamics and topological classes for the four-dimensional Lorentzian charged Taub-NUT spacetimes,Eur. Phys. J.C83(2023) 589 [arXiv:2306.02324]
arXiv 2023
- [45]
-
[46]
Wu,Topological classes of rotating black holes, Phys
D. Wu,Topological classes of rotating black holes, Phys. Rev. D107(2023) 024024 [arXiv:2211.15151]
arXiv 2023
-
[47]
D. Wu and S.-Q. Wu,Topological classes of thermodynamics of rotating AdS black holes, Phys. Rev. D107(2023) 084002 [arXiv:2301.03002]
arXiv 2023
-
[48]
D. Wu,Topological classes of thermodynamics of the four-dimensional static accelerating black holes, Phys. Rev. D108(2023) 084041 [arXiv:2307.02030]
arXiv 2023
- [49]
-
[50]
X.-D. Zhu, D. Wu, and D. Wen,Topological classes of thermodynamics of the rotating charged AdS black holes in gauged supergravities, Phys. Lett. B856(2024) 138919 [arXiv:2402.15531]
arXiv 2024
-
[51]
W. Liu, L. Zhang, D. Wu, and J. Wang,Thermodynamic topological classes of the rotating, accelerating black holes, Class. Quant. Grav.42(2025) 125007 [arXiv:2409.11666]
arXiv 2025
-
[52]
X.-D. Zhu, W. Liu, and D. Wu,Universal thermodynamic topological classes of rotating black holes, Phys. Lett. B860(2025) 139163 [arXiv:2409.12747]
arXiv 2025
- [53]
-
[54]
D. Wu, W. Liu, S.-Q. Wu, and R.B. Mann,Novel topological classes in black hole thermodynamics, Phys. Rev. D111(2025) L061501 [arXiv:2411.10102]
arXiv 2025
-
[55]
Y. Chen, X.-D. Zhu, and D. Wu,Universal thermodynamic topological classes of three-dimensional BTZ black holes, Phys. Lett. B865(2025) 139482 [arXiv:2504.10858]
arXiv 2025
- [56]
-
[57]
D. Wu and S.-Q. Wu,Thermodynamics and topological classifications of static non-extremal four-charge AdS black hole in the five-dimensionalN= 2,ST U−W 2Ugauged supergravity, Eur. Phys. J. C86(2026) 187 [arXiv:2510.20164]
arXiv 2026
-
[58]
M. Tian, Y. Chen, and D. Wu,Dimensional structure of thermodynamic topology in ultraspinning Kerr-AdS black holes, arXiv:2602.05231. – 19 –
