An FPGA overlay processor that skips unneeded tokens and layers at runtime claims 1.23x–3.83x better bandwidth efficiency than GPUs and other FPGAs for LLM inference.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · deepseek-v4-flash

2026-08-02 18:09 UTC pith:NYGCJ4DJ

load-bearing objection Real architecture novelty under a comparison that doesn't reconstruct: the KV-buffer and overpacking work deserves review, but the 1.23x–3.83x bandwidth claim is not yet falsifiable. the 5 major comments →

arxiv 2603.14785 v2 pith:NYGCJ4DJ submitted 2026-03-16 cs.AR

SkipOPU: An FPGA-based Overlay Processor for Large Language Models with Dynamically Allocated Computation

Zicheng He , Anhao Zhao , Xiaoyu Shen , Chen Wu , Lei He This is my paper
classification cs.AR
keywords dynamic computation allocationtoken-wise pruningFPGA acceleratorLLM inferenceKV cache reuseKV invariance buffermixed-precision DSP packingoverlay processor
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tries to show that token-wise and layer-wise dynamic pruning—where a lightweight router decides which computations each token actually needs—can be made hardware-efficient rather than remaining a theoretical FLOP saving. SkipOPU is an FPGA overlay processor that hides the latency of nonlinear operations by fusing their reductions with adjacent matrix multiplications, packs mixed-precision (FP16 activation, INT4 weight) multiply-accumulates into DSP blocks using an overpacking technique, and keeps reused key-value cache entries on-chip via a KV-invariance buffer so skipped tokens do not fragment HBM traffic. If the results hold, dynamic pruning shifts from an algorithmic curiosity to a deployable inference method, and the KV-reuse strategy cuts KV storage by up to 25.4% while sustaining near-peak bandwidth on an off-the-shelf FPGA with HBM.

Core claim

SkipOPU demonstrates a complete hardware mapping for token-level dynamic computation: instead of treating routers and nonlinearities as serial overheads, it decouples reductions (RMSNorm/softmax statistics) from element-wise computation, computes them incrementally in parallel with linear layers, and then streams normalized tiles directly into the next matrix multiply. On the memory side, it observes that the key/value entries of skipped tokens are invariant across layers until reactivated, so it pins those reused entries in an on-chip URAM buffer and restricts HBM traffic to newly generated KV entries, converting irregular cross-layer accesses into long, local bursts. On the compute side, i

What carries the argument

The carrier of the argument is a set of three coupled mechanisms: (1) a fused dataflow for router/RMSNorm and self-attention that performs softmax and RMSNorm statistics incrementally on-chip while the PE array is still computing, so nonlinear latency is hidden; (2) a mixed-precision PE array that overpacks two FP16 mantissa multiplications into one DSP via 5-bit truncation and uses one-time FP-to-BFP conversion for fixed-point accumulation, avoiding expensive floating-point accumulation; (3) a token-wise HBM mapping plus a proactive KV-invariance buffer that serves reused KV entries from URAM, eliminating irregular AXI bursts and channel collisions. These are what convert dynamic sparsity i

Load-bearing premise

The claimed 1.23x–3.83x bandwidth-efficiency advantage rests on normalization factors in the comparison table that are stated but not derived, and on runtime figures whose source (measured on the board, simulated, or estimated) is never disclosed; if those factors or figures are not what they appear, the headline comparison is unsupported.

What would settle it

Run the same implementation on the target board, measure raw tokens/s for a 7B model with 4-bit weights at the reported prefill/decode lengths without normalization, and compare against a standard GPU inference engine at the same quantization; if the raw throughput gap does not reproduce, the core bandwidth-efficiency claim collapses.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • Dynamic token/layer pruning can be executed on real hardware with bandwidth efficiency close to the HBM ceiling, not just claimed as FLOP reductions.
  • KV-cache reuse across layers cuts storage by up to 25.4%, extending the feasible context length on memory-limited edge FPGAs.
  • The fused, incremental nonlinear dataflow removes the pipeline bubbles typically caused by softmax/RMSNorm row reductions.
  • DSP overpacking with BFP accumulation roughly halves the LUT cost of accumulation for hybrid FP16/INT4 workloads under the same DSP budget.
  • The design sustains its advantage at 1,024-token decode lengths, where prior FPGA accelerators degrade.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The KV-invariance buffer idea transfers beyond FPGAs: any accelerator with a software-managed scratchpad could pin reused KV entries to avoid scattered DRAM fetch, so the claimed memory-system benefit is architectural, not vendor-specific.
  • If the paper's aggregate effective bandwidth (467.8 GB/s) is real, on-chip reuse can push throughput past the physical HBM2 ceiling, suggesting that for this workload the binding constraint shifts from off-chip bandwidth to on-chip buffer capacity and ports.
  • The DSP overpacking/BFP accumulation scheme may generalize to any mixed-precision transformer inference, even without dynamic pruning, making low-bit-weight LLM inference cheaper on FPGAs generally.
  • A natural testable extension is to scale the KV-invariance buffer to batch sizes above 1, where multiple concurrent sequences could share or contend for buffer ports; the paper evaluates only batch 1.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

5 major / 5 minor

Summary. The paper presents SkipOPU, an FPGA overlay processor for SkipGPT-style LLM inference with token-wise and layer-wise dynamic computation skipping. The architecture combines a fused dataflow for routing/RMSNorm/softmax, a mixed-precision DSP-overpacked PE array with BFP-style fixed-point accumulation, a tile-based nonlinear processing engine, and a proactive on-chip KV invariance buffer that converts irregular cross-layer KV reuse traffic into localized URAM accesses. Evaluation on an AMD U280 is reported for Llama-2-7B/13B workloads, with the abstract claiming 1.23x–3.83x higher bandwidth efficiency than GPU/FPGA baselines and up to 25.4% KV storage reduction.

Significance. If the performance and memory-efficiency numbers can be substantiated, the work would be a useful contribution to FPGA-based LLM acceleration for dynamic, input-dependent execution. The paper has real strengths: a complete RTL implementation described in detail, explicit resource utilization tables, cycle-level scheduling diagrams, two concrete fused dataflow algorithms, and a novel on-chip KV reuse mechanism. The central comparison, however, is built on a normalization procedure that cannot be reconstructed from the text, and the paper never states how the reported token/s and bandwidth numbers were obtained. The significance of the headline claims is therefore conditional: the architecture may be sound, but the evidence for its claimed advantage is not yet independently checkable.

major comments (5)
  1. [§5.5, Table 3] The headline 1.23x–3.83x bandwidth-efficiency advantage rests on the normalization stated as “to a 7B parameter model with dense 4-bit weight quantization,” but the table cannot be reproduced from that rule. vLLM is scaled 45.3→181.2 (×4.0) despite being HF16; FlightLLM is left at 55 despite W8; the gpt2-345m rows are scaled by ≈0.096–0.098; SkipOPU 7B scales 124.1→143.4 (×1.16) and 13B scales 75.6→144.5 (×1.91). No formula or per-row basis is given. Moreover, the denominator for BW efficiency is “the maximum achievable bandwidth supported by the design’s operating frequency,” which is never defined; for SkipOPU, 88.4% corresponds to 467.8 GB/s aggregate, implying a denominator near 529 GB/s, above the U280’s physical 460 GB/s HBM2 ceiling. Counting on-chip URAM reuse in an HBM bandwidth-efficiency metric is apples-to-oranges unless precisely justified. Please provide a closed-form norma
  2. [§5.1.2, §5.5] The provenance of the performance numbers is missing. The paper states synthesis and implementation details (Vivado 2020.1, 225 MHz core, 450 MHz HBM) but never says whether the reported token/s figures (e.g., 124.1 tokens/s for Llama-2-7B) come from on-board measurement, RTL simulation, or an analytical/compiler model. This distinction is essential for judging the memory-bandwidth claims in §5.4 (408.7 GB/s dense, 360.2 GB/s mapped, 467.8 GB/s aggregate) and the end-to-end table. Please specify the measurement methodology, describe the test harness and how the CPU/FPGA system is invoked, and, if simulation was used, provide at least one on-board/simulation correlation point.
  3. [§4.4.2, §4.4.3] The zero-overhead claim for the KV history buffer is internally inconsistent. §4.4.2 describes the buffer update as “computationally free” and “temporal-free,” but §4.4.3 explicitly restricts scheduling width: Round 1 is limited to two reused entries to match buffer read ports, and Round 2 is capped at three unskipped entries so that proactive updates do not exceed the buffer’s write-port capacity. A capacity-driven cap on the memory schedule is a throughput constraint, not a zero-cost mechanism. Please quantify how often this cap binds in the evaluated prefill/decode traces and include its effect in the aggregate-bandwidth figures, or temper the “free” claim accordingly.
  4. [Abstract, §5.4] The second headline claim—reducing KV storage overhead by up to 25.4% across varying sequence lengths—is not supported by any experiment or derivation. §5.4 only states that KV reuse reduces total data volume by “approximately 25%.” No measurement or formula links the 25.4% figure to the skip statistics or to the prefill:decode configurations. Please provide the storage reduction as a function of sequence length and derive the reported percentage, or remove the precise number.
  5. [§5.1.1] No end-to-end accuracy or perplexity result is reported for the pruned and quantized workloads. The motivation claims that dynamic computation allocation preserves model accuracy, and Table 1 reports only PE-level numerical error. Since the accelerator’s performance is meaningful only if the SkipGPT+GTPQ models remain accurate, please report at least one end-to-end quality metric (perplexity or task accuracy) for Llama-2-7B/13B at the 25% skip rate used in Table 3, or explicitly state that accuracy validation is inherited from prior work with a quantitative citation.
minor comments (5)
  1. [Table 3] The table formatting is broken: the design/device rows list seven columns, the Frequency row lists eight values, and Token/s, Norm Throughput, and BW efficiency rows list nine values. This must be fixed before the table can be interpreted.
  2. [§2.2, §4.1, §4.4.2] Typos and wording: “dynmaic” (§2.2), “Grumbel-softmax” (§2.2), “continous datflow” (§4.1), “slighted pruned LLMs” (§4.4.2), and “reduces the the” (near §4.4.2) should be corrected.
  3. [Figure 8/9] Figures 8 and 9 lack complete axis labels and units. In particular, the x-axis in Figure 8 (“prefill:decode”) should list the exact sequence lengths used, and Figure 9 should state whether the y-axis is GB/s or normalized bandwidth.
  4. [Algorithm 2] The notation in Algorithm 2 is dense: the loop bound H/2 and the two-head packing variables are not clearly defined in the text before the algorithm. A short explanation of the head-packing grouping would improve reproducibility.
  5. [§4.2.3, Table 1] Table 1 reports resource usage “averaged for one column of accumulation,” but the row for IMPL3 lists “32 + 31.5” DSPs. Please clarify the units and why a fractional DSP average is reported.

Circularity Check

2 steps flagged

Partial circularity: the reported 25.4% KV-storage reduction is the configured ~25% skip rate restated as a result, and the bandwidth-efficiency table is normalized by a self-defined 'maximum achievable bandwidth'; the core DSP/dataflow design is independently derived.

specific steps
  1. fitted input called prediction [Section 5.1.1 (Workload); Section 5.4; Abstract/§7 conclusion]
    "We evaluate SkipOPU with Llama2 [40] and apply SkipGPT methodology to prune Llama2 models with around 25% skipping probability. ... As we move toward the more memory-efficient scenarios utilizing KV reuse, the total data volume is reduced by approximately 25% ... can reduce up to 25.4% KV storage overhead across varying sequence lengths."

    The headline storage-reduction number is the experiment's input skip rate renamed as an output result. Under the KV-reuse rule of Eq. (1)-(2), a token skipped at a layer by definition contributes no new KV entry; total KV storage scales with the active token-layer visits. Setting the SkipGPT pruning target to 'around 25% skipping probability' therefore forces a maximum KV-storage reduction of roughly 25%. The 'up to 25.4%' claim is a restatement of this chosen workload parameter, not an independent quantity derived from the hardware.

  2. self definitional [Section 5.5 (end-to-end comparison) and Table 3; Section 5.4 (effective bandwidth)]
    "our bandwidth efficiency metric is calculated relative to the maximum achievable bandwidth supported by the design's operating frequency, which allows us to recognize performance gains resulting from architectural dataflow optimizations. ... an aggregate effective bandwidth of 467.8 GB/s, effectively surpassing the physical ceiling of the HBM2 interface through architectural data reuse."

    The central 1.23x-3.83x bandwidth-efficiency comparison is normalized by a self-chosen denominator that is never defined. For SkipOPU on U280, 467.8 GB/s (which already includes on-chip URAM reuse) is reported as 88.4% efficiency, implying a denominator near 529 GB/s, above the physical 460 GB/s HBM2 ceiling. Efficiency defined relative to the design's own 'maximum achievable bandwidth' is a self-referential ratio; comparing it with vLLM's 31.5% or FlightLLM's 66% (relative to physical peak) does not measure the same quantity, so the headline advantage is by construction partly an artifact of the chosen normalization.

full rationale

The FPGA implementation contributions—the deep-fused router/RMSNorm/softmax dataflow, DSP overpacking with BFP accumulation, and KV-invariance buffer scheduling—are developed from internal reasoning and are not circular. The circularity burden is partial: (1) the KV-storage reduction headline restates the ~25% skip rate selected in §5.1.1, and (2) the bandwidth-efficiency metric in §5.5 is normalized by an undefined, design-specific 'maximum achievable bandwidth', making the headline cross-platform comparison internally normalized rather than independently falsifiable. The paper also uses SkipGPT [55] and cross-layer KV-reuse [16], both from the same group, as the workload and the memory-reuse premise; these are load-bearing for the application-level value proposition but the hardware derivation itself does not reduce to those citations. Per the hard rules, I have not treated the unexplained per-row normalization factors in Table 3 as circularity per se; they are a correctness/reproducibility concern. Overall score 6 reflects one input-derived result plus a self-defined efficiency metric, with the central architecture retaining substantial independent content.

Axiom & Free-Parameter Ledger

6 free parameters · 8 axioms · 4 invented entities

The paper contributes a hardware implementation, so its 'axioms' are the upstream algorithm assumptions it imports plus the hardware-datasheet behaviors it relies on. The most notable feature of the ledger is that nearly every algorithm-level input comes from the authors' own prior publications: the SkipGPT routing paradigm and its accuracy claims ([55], co-authored by present authors), cross-layer KV reuse ([16, 55]), and the 25% skip rate. The engineering degrees of freedom - truncation widths, buffer capacity, packing factor - are tuned against the paper's own control experiments and workload, which is normal for architecture but means the headline numbers are not parameter-free. There are no invented physical entities; the invented structures are hardware components with no external falsifiable handle.

free parameters (6)
  • Skip probability (router skip rate) = ~25%
    Workload parameter from SkipGPT (§5.1.1). It determines the ~25% KV traffic reduction, the 25.4% storage-saving headline, and most of the memory-side speedups.
  • Table 3 normalization multipliers = 4.0 (vLLM), 1.0 (FlightLLM), 0.098 (gpt2-345m rows), 1.156 (SkipOPU 7B), 1.912 (SkipOPU 13B)
    Per-row factors chosen to bring all designs to a '7B/W4 dense' baseline; applied inconsistently with the stated rule, and the SkipOPU factors have no stated basis (§5.5, Table 3). Directly shape the 1.23x-3.83x headline.
  • DSP overpacking truncation/injection widths = Truncate LSB of u0 and MSB of u1; 5-bit auxiliary multiplier; 15-bit product to accumulation tree
    Chosen via Table 1 control experiments to trade numerical error (0.035-0.116%) against LUT savings; documented engineering tuning, specific to this PE.
  • KV invariance buffer capacity = 512 URAMs / 1024 tokens' KV entries
    Matches the maximum evaluated decode length (1024 tokens), so the headline KV-buffer benefit is only shown within its capacity envelope (§5.2, §5.1.1).
  • Multi-head packing factor = 2 heads per pass (H/2 loop)
    Dataflow choice in Algorithm 2 that aggregates KV accesses and bounds on-chip attention storage; not swept in experiments.
  • Core/HBM clock frequencies = 225 MHz core+DDR4; 450 MHz HBM2
    Design choice in §5.1.2; the bandwidth-efficiency denominator is defined relative to a 'maximum achievable bandwidth supported by the design's operating frequency' (§5.5), so the frequency choice directly affects reported efficiency.
axioms (8)
  • domain assumption SkipGPT's token-wise routing at ~25% skip preserves the model's generation accuracy.
    Imported from [55] (co-authored by two present authors); this paper measures no end-to-end accuracy. §5.1.1.
  • domain assumption Replacing a skipped token's KV entries with those from the most recent executed layer preserves attention semantics (Eq. 2).
    Adopted from [16,55]; the paper explicitly relies on this for the KV-invariance buffer. §2.1.
  • domain assumption During decode, routing bitmasks for all preceding tokens at layer i+1 are known one step ahead, so buffer maintenance is 'temporal-free'.
    Argued in prose, not measured; underpins the zero-overhead claim. §4.4.2.
  • standard math DSP48E2 behaves per the Xilinx datasheet (27x18 native multiply, pre-adder, sign inversion, C-port injection, 48-bit adder) and the truncation/sign-inversion arithmetic exactly recovers the two FP16 products.
    The overpacking derivation in §4.2.1 depends on the DSP internal datapath.
  • domain assumption Block-floating-point accumulation with 15-bit truncated fractional products preserves accuracy within LLM dynamic range.
    Validated only on random data and Llama-2-sampled inputs in Table 1; no attention-output or end-to-end error measured. §4.2.2-4.2.3.
  • standard math FlashAttention's online-softmax update rules carry over to the fused QK^T pipeline without significant error accumulation.
    Algorithm 2 uses the m/l rescaling from [8] verbatim. §3.2.
  • ad hoc to paper 'Maximum achievable bandwidth supported by the design's operating frequency' is a valid cross-platform normalization denominator.
    Defined only in §5.5; it produces efficiency values (88.4%) whose absolute basis is design-relative, and lets aggregate on-chip+off-chip throughput exceed the HBM2 physical ceiling.
  • domain assumption GPTQ symmetric 4-bit weight quantization preserves generation quality on the evaluated tasks.
    Taken from [14]; the workload section adopts it without re-evaluation. §5.1.1.
invented entities (4)
  • KV invariance buffer (on-chip URAM history buffer) no independent evidence
    purpose: Stores cross-layer-invariant KV entries of skipped tokens so attention reads them on-chip instead of issuing irregular HBM fetches (§4.4.2, §5.2).
    Internal design component; its benefit is shown only in the paper's own scheduling analysis and self-reported bandwidth figures, and it is capped at 1024 tokens.
  • 'Temporal-free' proactive buffer update no independent evidence
    purpose: Background maintenance of the KV buffer using one-step-ahead bitmasks, claimed to have zero latency overhead (§4.4.2).
    Asserted in prose ('We argue', 'computationally free'); no dedicated measurement isolates buffer-update cost.
  • Truncated-mantissa DSP overpacking with pre-adder sign inversion no independent evidence
    purpose: Maps two FP16 mantissa products onto one DSP48E2 with a 5-bit auxiliary correction multiply, raising DSP throughput with recovery logic folded into the C-port addition (§4.2.1).
    A bit-level arithmetic scheme; validated only by Table 1 control experiments, without formal proof of exactness or bitstream-level power/timing measurements.
  • Token-wise HBM port mapping no independent evidence
    purpose: Pins each token's KV to a single HBM pseudo-channel so reused and fresh KV reads are long contiguous bursts (§4.4.1).
    A memory-layout scheme validated only in the paper's reported bandwidth numbers; no externally reproducible trace.

pith-pipeline@v1.3.0-alltime-deepseek · 20646 in / 32096 out tokens · 286568 ms · 2026-08-02T18:09:42.707447+00:00 · methodology

0 comments
read the original abstract

Large language models (LLMs) have achieved remarkable performance across a wide range of tasks, but their inference efficiency remains a critical bottleneck due to rapidly growing parameters. Recent advances in dynamic computation allocation address this challenge by exploiting the highly uneven contributions of different tokens and layers, enabling selective execution that significantly reduces redundant computation while preserving model accuracy. However, existing hardware platforms and accelerators are primarily optimized for uniform, static execution, limiting their ability to efficiently support such dynamic inference patterns. In this work, we propose SkipOPU, an FPGA-based overlay processor that dynamically allocates computation across tokens and layers with high flexibility through a lightweight routing mechanism. First, we decouple reduction operations from element-wise computation in nonlinear modules and perform reductions incrementally, which enables both stages to be fused with adjacent linear operations (router or matrix multiplication) for effective latency hiding. Second, motivated by asymmetric sensitivity to numerical precision between activation and weight, we design a PE array that efficiently supports float-fixed hybrid execution. A novel DSP overpacking technique is introduced to maximize hardware utilization while minimizing resource overhead. Finally, we develop a proactive on-chip KV history buffer that exploits cross-layer KV invariance of pruned tokens, eliminating irregular HBM accesses during decoding and supplementing off-chip bandwidth through high-locality on-chip reuse. Experimental results demonstrate that SkipOPU on an AMD U280 FPGA outperforms GPU and other FPGA-based accelerators by 1.23x-3.83x in bandwidth efficiency for LLMs inference with dynamic computation allocation and can reduce up to 25.4% KV storage overhead across varying sequence lengths.

Figures

Figures reproduced from arXiv: 2603.14785 by Anhao Zhao, Chen Wu, Lei He, Xiaoyu Shen, Zicheng He.

Figure 1
Figure 1. Figure 1: (b) summarizes the key challenges in developing hardware accelerators for SkipGPT: [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 1
Figure 1. Figure 1: (a) The framework of SkipGPT models. (b) Challenges in SkipGPT computation, and the corresponding solution in [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

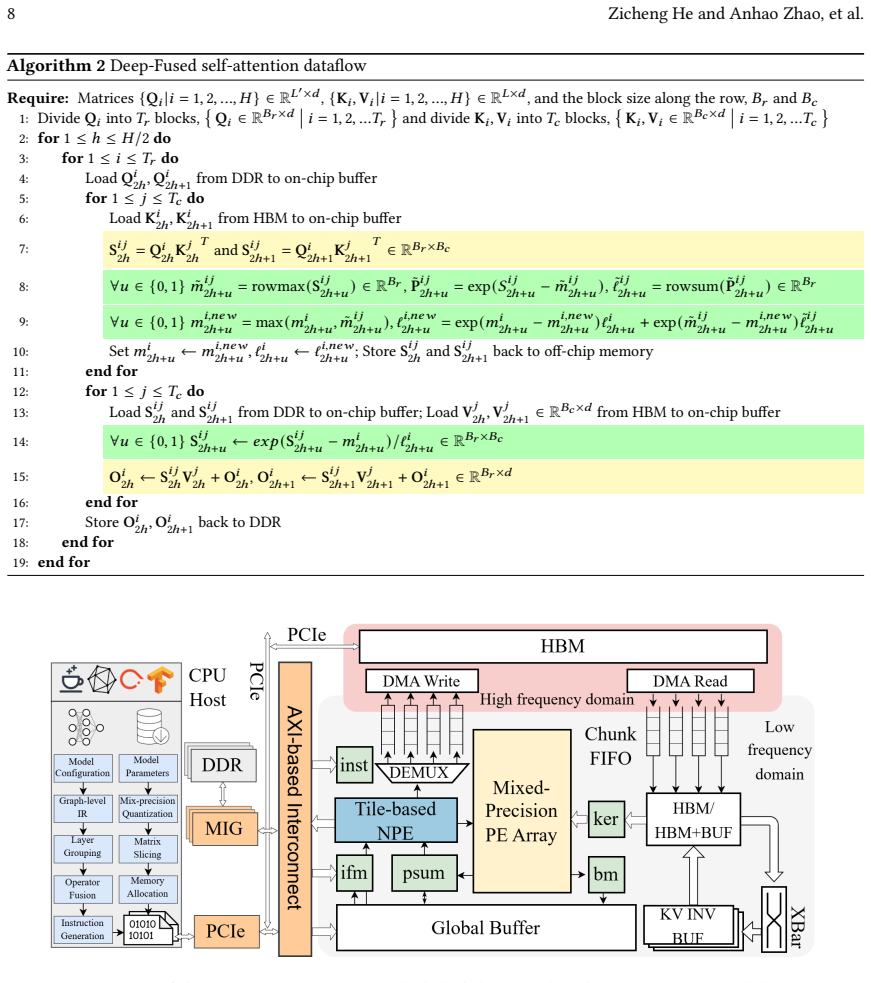

Figure 2. Figure 2: Overview of SkipOPU where HBM operates at high clock domain and accelerator operates at low clock domain [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Comparison between differences DSP packing techniques for FP16 fraction multiplication. [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: (a) The detailed design of mixed precision PE. (b) FP16 accumulation tree with BFP-FP convertion [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: The micro-architecture of nonlinear processing engine(NPE). [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: (a) Token-wise memory mapping scheme for KV cache (b) Channel interference to load KV cache from previous layer. [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: (a) Valid KV cache scheduling. (b) Invalid KV cache scheduling. [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Normalized MHA speedup under different dataflow optimization and varying [prefill:decode] [PITH_FULL_IMAGE:figures/full_fig_p017_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Effective memory bandwidth for KV cache with different mapping and scheduling options. [PITH_FULL_IMAGE:figures/full_fig_p017_9.png] view at source ↗
