pith. sign in

arxiv: 1907.03636 · v1 · pith:OBKSZNCEnew · submitted 2019-07-08 · ❄️ cond-mat.mtrl-sci

An Ab Initio Study of Aluminium self-compensation in Bulk Silicon

Jack T.L. Poulton , David R. Bowler This is my paper

Pith reviewed 2026-05-25 01:00 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords aluminium dopantssiliconself-compensationdensity functional theoryspin statessubstitutional pairselectrical activitynearest neighbour
0
0 comments X

The pith

Aluminium dopant pairs in silicon bond and become electrically active only in a high spin state.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper applies density functional theory to map the energies and electronic states of aluminium atoms substituted for silicon in a crystal lattice. It shows that when two aluminium atoms occupy adjacent sites, the pair forms a bond in the high-spin configuration and contributes to electrical activity. The same geometry in the low-spin state instead self-compensates, so the dopants cancel each other’s effect on carrier density. A reader cares because this spin-dependent switch offers a concrete mechanism for why some aluminium-doped silicon samples show lower-than-expected conductivity.

Core claim

Pairs of substitutional aluminium dopants placed on nearest-neighbour sites in crystalline silicon bond when the system occupies a high-spin state, making the pair electrically active; the identical geometry in the low-spin state produces self-compensation with no net doping effect.

What carries the argument

Density-functional-theory comparison of nearest-neighbour substitutional Al–Al pairs in silicon, evaluated separately in high-spin and low-spin electronic configurations.

If this is right

  • Nearest-neighbour Al pairs contribute carriers only when forced into the high-spin state.
  • Self-compensation is the default outcome for adjacent Al pairs in the low-spin state.
  • The electronic structure of the bonded high-spin pair differs from that of isolated aluminium acceptors.
  • Doping efficiency calculations must account for the fraction of pairs that can access the high-spin configuration.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If processing routes can selectively populate the high-spin state, aluminium doping could be made more efficient than random-pair statistics predict.
  • The same spin-dependent bonding may appear in other group-III dopant pairs in silicon or germanium.
  • Magnetic or optical probes sensitive to spin could distinguish the active versus compensated configurations in real devices.

Load-bearing premise

The high-spin state of nearest-neighbour aluminium pairs can be reached and remains stable long enough to influence measurable electrical properties.

What would settle it

Direct measurement of conductivity or carrier concentration in silicon crystals containing a controlled density of nearest-neighbour aluminium pairs, comparing samples prepared or measured under conditions that stabilise high spin versus low spin.

Figures

Figures reproduced from arXiv: 1907.03636 by David R. Bowler, Jack T.L. Poulton.

Figure 1
Figure 1. Figure 1: A 2D plot of total charge density across the [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The total and atom projected DOS for both undoped Si and the Si [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The total and atom projected DOS for the Si [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: A 2D plot of total charge density across the [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5

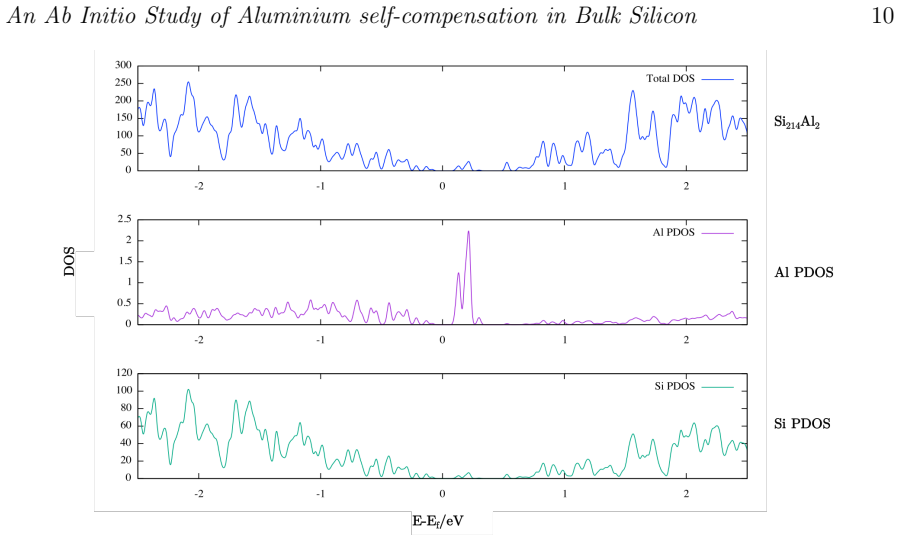

Figure 5. Figure 5: The total and atom projected DOS for both undoped Si and the Si [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6

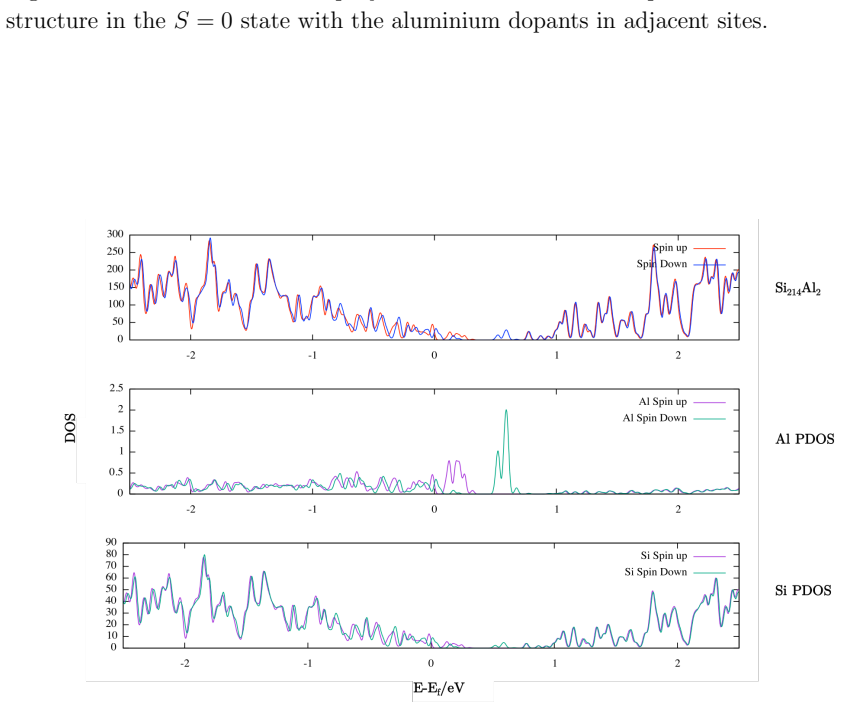

Figure 6. Figure 6: The total and atom projected DOS for both undoped Si and the Si [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 7

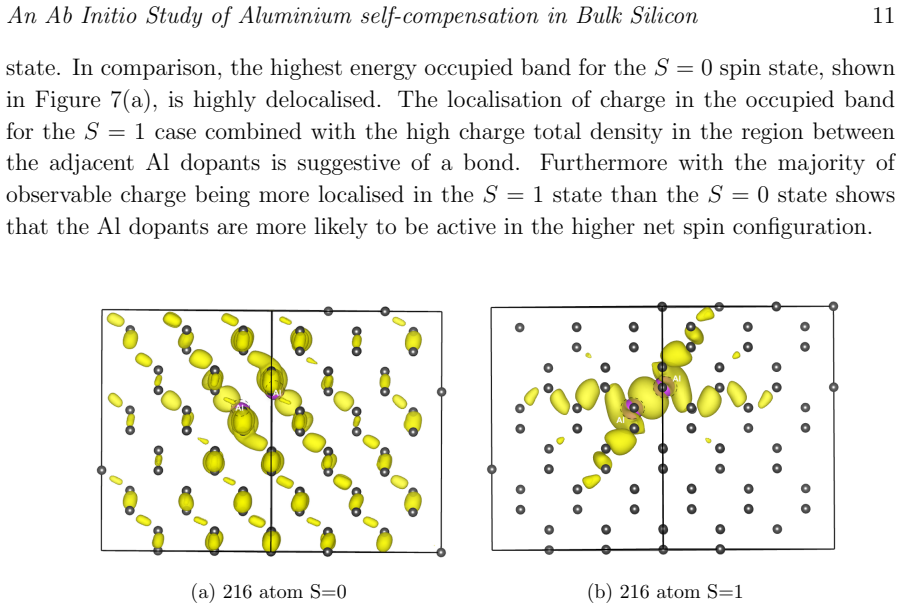

Figure 7. Figure 7: The isosurface of the partial charge density for the highest energy fully [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: 2D ELF plots across the {1 , 0 , 1} plane containing both neighbouring Aluminium dopants in S=0 and S=1 states. 4. Conclusions We have used DFT to investigate the structure and energetics of aluminium dopants within bulk silicon including multiple dopants occupying adjacent substitutional sites. The interaction between the acceptor dopants has been studied using a combination of the ELF and visualisations … view at source ↗
read the original abstract

We have used density functional theory to study the energetics and electronic structure of aluminium dopants in crystalline silicon. We present data regarding the atomic and electronic structure and properties of pairs of substitutional aluminium dopants. We find that pairs of dopants, when occupying nearest neighbouring subsitutional sites in a high spin state, can bond to form aluminium pairs. This suggests that such a configuration of dopants will be electrically active when made to occupy a high spin state, whereas in the low spin state the neighbouring dopant pairs are found to be self compensating.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript reports density functional theory calculations examining the energetics and electronic structure of substitutional aluminum dopant pairs in crystalline silicon. The central claim is that nearest-neighbor Al pairs occupying a high-spin state form bonds and remain electrically active, whereas the same pairs in the low-spin state are electrically self-compensating.

Significance. If the high-spin configuration proves both stable and thermally accessible, the result would offer a concrete atomistic mechanism for spin-dependent dopant activity and self-compensation in silicon, with potential relevance to doping control in semiconductor processing. The work is grounded in direct total-energy and electronic-structure calculations rather than fitted parameters.

major comments (3)
  1. [Abstract] Abstract: the claim that high-spin nearest-neighbor pairs 'can bond to form aluminium pairs' and 'will be electrically active' is presented without any reported energy difference, formation-energy comparison, or barrier between the high-spin and low-spin solutions. Without this metric it is impossible to assess whether the high-spin state is physically realizable or merely an artifact of the imposed spin constraint.
  2. [Abstract] Abstract: no information is supplied on the exchange-correlation functional, supercell size, k-point sampling, or convergence tests. These parameters directly control the reliability of the reported spin-state energetics and electronic-structure conclusions that underpin the self-compensation claim.
  3. [Abstract] Abstract: the distinction between 'electrically active' and 'self compensating' configurations is stated qualitatively; the manuscript does not indicate whether the high-spin state produces a donor or acceptor level inside the gap or merely a change in total spin multiplicity.
minor comments (1)
  1. [Abstract] Abstract: 'subsitutional' is misspelled.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their thorough review and valuable comments on our manuscript. All comments focus on improving the abstract, and we agree that incorporating quantitative data and computational details will strengthen the presentation. We will revise the abstract in the resubmitted version to address these issues while ensuring the claims are properly supported by the calculations in the main text.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that high-spin nearest-neighbor pairs 'can bond to form aluminium pairs' and 'will be electrically active' is presented without any reported energy difference, formation-energy comparison, or barrier between the high-spin and low-spin solutions. Without this metric it is impossible to assess whether the high-spin state is physically realizable or merely an artifact of the imposed spin constraint.

    Authors: The main manuscript reports the total energy differences between the high-spin and low-spin states for the nearest-neighbor Al pairs, demonstrating that the high-spin bonded configuration is energetically preferred. To address the referee's concern about the abstract, we will include the relevant energy difference in the revised abstract to show that the high-spin state is not an artifact but the lower-energy solution. revision: yes

  2. Referee: [Abstract] Abstract: no information is supplied on the exchange-correlation functional, supercell size, k-point sampling, or convergence tests. These parameters directly control the reliability of the reported spin-state energetics and electronic-structure conclusions that underpin the self-compensation claim.

    Authors: These details are provided in the Computational Methods section of the manuscript. However, we recognize the value of having them referenced in the abstract for immediate assessment of reliability. In the revision, we will add a concise statement to the abstract indicating the functional, supercell size, and sampling used, along with confirmation of convergence. revision: yes

  3. Referee: [Abstract] Abstract: the distinction between 'electrically active' and 'self compensating' configurations is stated qualitatively; the manuscript does not indicate whether the high-spin state produces a donor or acceptor level inside the gap or merely a change in total spin multiplicity.

    Authors: We will clarify this in the revised abstract by noting that the high-spin state results in the appearance of electronic states within the band gap, consistent with electrical activity (specifically acceptor behavior due to the bonding), while the low-spin state shows filled states leading to self-compensation without gap levels from the pair. revision: yes

Circularity Check

0 steps flagged

No circularity: direct ab initio DFT outputs

full rationale

The paper performs standard density functional theory calculations of total energies, atomic structures, and electronic properties for substitutional Al pairs in Si. The reported distinction between high-spin bonding (electrically active) and low-spin self-compensation follows directly from the computed eigenstates and formation energies under each spin constraint; these quantities are not obtained by fitting parameters to the target observables, nor by renaming prior results, nor by load-bearing self-citation. The derivation chain is therefore self-contained against external benchmarks (plane-wave DFT codes, standard functionals) and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The abstract invokes standard density-functional-theory methodology without listing additional free parameters, ad-hoc axioms, or new postulated entities.

axioms (1)
  • domain assumption Density functional theory supplies reliable relative energies and electronic structures for substitutional dopant pairs in crystalline silicon.
    This is the implicit foundation for interpreting the reported bonding and self-compensation results.

pith-pipeline@v0.9.0 · 5619 in / 1242 out tokens · 32907 ms · 2026-05-25T01:00:58.575349+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

28 extracted references · 28 canonical work pages · 3 internal anchors

  1. [1]

    Dennard R H, Gaensslen F H, Hwa-Nien Y U, Leo Rideout V, Bassous E and Leblanc A R 1999 Proceedings of the IEEE 87 668–678 ISSN 00189219

    work page 1999

  2. [2]

    Shinada T, Okamoto S, Kobayashi T and Ohdomari I 2005 Nature 437 1128–1131 ISSN 14764687

    work page 2005

  3. [3]

    Fuechsle M, Miwa J A, Mahapatra S, Ryu H, Lee S, Warschkow O, Hollenberg L C L, Klimeck G and Simmons M Y 2012 Nature Nanotechnology 7 242–246 ISSN 1748-3387 URL http://www.nature.com/articles/nnano.2012.21

    work page 2012

  4. [4]

    Lyding J W, Abeln G C, Shen T, Wang C and Tucker J R 1994 Journal of Vacuum Science & Technology B: Microelectronics and Nanometer Structures 12 3735 ISSN 0734211X URL http://scitation.aip.org/content/avs/journal/ jvstb/12/6/10.1116/1.587433

    work page doi:10.1116/1.587433 1994

  5. [5]

    Owen J H G, Ballard J, Randall J N, Alexander J and Von Ehr J R 2011 Journal of Vacuum Science & Technology B, Nanotechnology and Microelectronics: Materials, Processing, Measurement, and Phenomena 29 ISSN 2166-2746 URL http://avs.scitation.org/doi/10.1116/1.3628673

    work page doi:10.1116/1.3628673 2011

  6. [6]

    Shen T C, Wang C, Abeln G C, Tucker J R, Lyding J W, Avouris P and Walkup R E 1995 Science 268 1590–1592 ISSN 0036-8075

    work page 1995

  7. [7]

    scitation.org/doi/10.1116/1.579682

    Wang Y and Hamers R J 1995 Journal of Vacuum Science & Technology A: Vacuum, Surfaces, and Films 13 1431–1437 ISSN 0734-2101 URL http://avs. scitation.org/doi/10.1116/1.579682

    work page doi:10.1116/1.579682 1995

  8. [8]

    Wang Y, Shan J and Hamers R J 1996 Journal of Vacuum Science & Technology B: Microelectronics and Nanometer Structures 14 1038 ISSN 0734211X URL http: //scitation.aip.org/content/avs/journal/jvstb/14/2/10.1116/1.588450

    work page doi:10.1116/1.588450 1996

  9. [9]

    Sarubbi F, Scholtes T L and Nanver L K 2010 Journal of Electronic Materials 39 162–173 ISSN 03615235

    work page 2010

  10. [10]

    org/?DOI=10.1039/9781847558794

    Jones A C and Hitchman M L 2009 Chemical Vapour Deposition (Cambridge: Royal Society of Chemistry) ISBN 978-0-85404-465-8 URL http://ebook.rsc. org/?DOI=10.1039/9781847558794

    work page doi:10.1039/9781847558794 2009

  11. [11]

    Zhang J, Tse K, Wong M, Zhang Y and Zhu J 2016 Frontiers of Physics 11 117405 ISSN 20950470

    work page 2016

  12. [12]

    Mandel G, Morehead F F and Wagner P R 1964 Physical Review 136 826–832 ISSN 0031899X

    work page 1964

  13. [13]

    Longini R L and Greene R F 1956 Physical Review 102 992–999 ISSN 0031899X REFERENCES 14

    work page 1956

  14. [14]

    Smith R L and Bowler D R 2017 Journal of Physics Condensed Matter 29 395001 ISSN 1361648X ( Preprint 1704.06156)

    work page internal anchor Pith review Pith/arXiv arXiv 2017

  15. [15]

    Joubert D 1999 Physical Review B - Condensed Matter and Materials Physics 59 1758–1775 ISSN 1550235X ( Preprint 0927-0256(96)00008)

    work page 1999

  16. [16]

    Perdew J P, Burke K and Ernzerhof M 1996 Physical Review Letters 77 3865–3868 ISSN 10797114 ( Preprint 0927-0256(96)00008)

    work page 1996

  17. [17]

    Bl¨ ochl P E 1994 Physical Review B 50 17953–17979 ISSN 01631829 ( Preprint arXiv:1408.4701v2)

    work page internal anchor Pith review Pith/arXiv arXiv 1994

  18. [19]

    Momma K and Izumi F 2011 Journal of Applied Crystallography 44 1272–1276 ISSN 00218898

    work page 2011

  19. [20]

    Becker P and Mana G 1994 Metrologia 31 203–209 ISSN 00261394

    work page 1994

  20. [21]

    Ashcroft N and Mermin N 1976 Solid State Physics (Cengage Learning) ISBN 13:987-0-03-083993-1

    work page 1976

  21. [22]

    Becke A D and Edgecombe K E 1990 The Journal of Chemical Physics 92 5397– 5403 ISSN 00219606 ( Preprint PhysRevA.38.3098)

    work page 1990

  22. [23]

    Savin A, Nesper R, Wengert S and F¨ assler T F 1997 Angewandte Chemie (International Edition in English) 36 1808–1832 ISSN 05700833 ( Preprint arXiv: 1011.1669v3)

    work page internal anchor Pith review Pith/arXiv arXiv 1997

  23. [24]

    Ramos L E, Degoli E, Cantele G, Ossicini S, Ninno D, Furthm¨ uller J and Bechstedt F 2007 Journal of Physics Condensed Matter 19 466211 ISSN 09538984

    work page 2007

  24. [25]

    Ojwang’ J G, Van Santen R, Kramer G J, Van Duin A C and Goddard W A 2008 Journal of Chemical Physics 129 244596 ISSN 00219606

    work page 2008

  25. [26]

    Fu Z, Lemire G W, Bishea G A and Morse M D 2002 The Journal of Chemical Physics 93 8420–8441 ISSN 0021-9606

    work page 2002

  26. [27]

    Jacobs P, Zhukovskii Y and Mastrikov Y 2002 Computer Modelling & New Technologies 6 7–28

    work page 2002

  27. [28]

    Dai P, Zhang Y and Sarachik M P 1992 Physical Review B 45 3984–3994 ISSN 01631829

    work page 1992

  28. [29]

    Ferreira Da Silva A 1988 Physical Review B 37 4799–4800 ISSN 01631829

    work page 1988
