Connection between optical and radio/millimeter flares in blazar OJ287

S.J Qian This is my paper

Pith reviewed 2026-05-25 17:28 UTC · model grok-4.3

classification 🌌 astro-ph.HE astro-ph.GA
keywords OJ287blazar flaresoptical variationsradio variationssuperluminal knotshelical motionlighthouse effectrelativistic jets
0
0 comments X

The pith

Optical and radio light curves of blazar OJ287 decompose into 36 symmetric elementary flares produced by helical motion of superluminal knots.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines the connection between optical and radio/millimeter variations in the blazar OJ287 during its 1995.8-1996.1 outburst. It demonstrates that the multi-wavelength light curves can be decomposed into 36 individual flares, each with a symmetric profile. These flares arise from the lighthouse effect due to the helical motion of superluminal knots in the relativistic jet. This interpretation links the emissions across wavelengths and suggests helical knot motion is common in the inner jet regions formed near a supermassive black hole system. The work provides a framework for understanding the periodic optical outbursts observed in this source.

Core claim

It is shown that the multi-wavelength light curves at optical V-band and radio/mm wavelengths (37, 22, 14.5 and 8 GHz) can be decomposed into 36 individual elementary flares, each of which has a symmetric profile. The elementary flares can be understood to be produced through lighthouse effect due to the helical motion of corresponding superluminal optical/radio knots. Helical motion of superluminal knots should be prevailing in the inner regions of its relativistic jet formed in the magnetosphere of the putative supermassive black hole/accretion disk system. A comprehensive and compatible framework for understanding the entire phenomena in OJ287 is described.

What carries the argument

Lighthouse effect from helical motion of superluminal knots, which produces symmetric flare profiles in the light curves.

If this is right

  • The helical motion of superluminal knots prevails in the inner regions of the relativistic jet.
  • This decomposition explains the multi-wavelength connections observed in the 1995.8-1996.1 outburst.
  • The model is compatible with the quasi-periodic double-peaked optical outbursts with a 12-year cycle.
  • Emissions at optical V-band and radio/mm frequencies arise from the same knot motions in the jet.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar decompositions into symmetric flares could be tested in other blazars to check for widespread helical jet structures.
  • Future monitoring of OJ287 outbursts could verify whether the 36-flare pattern repeats consistently.
  • The approach implies that jet emission is dominated by discrete knot passages rather than smooth continuous processes.

Load-bearing premise

The observed light curves can be accurately represented as the sum of exactly 36 independent symmetric elementary flares with no significant overlap or contributions from other emission mechanisms.

What would settle it

A new outburst observation where the light curves at these wavelengths cannot be fit by 36 symmetric flares or show asymmetric profiles would challenge the decomposition.

Figures

Figures reproduced from arXiv: 1906.09782 by S.J Qian.

Figure 1

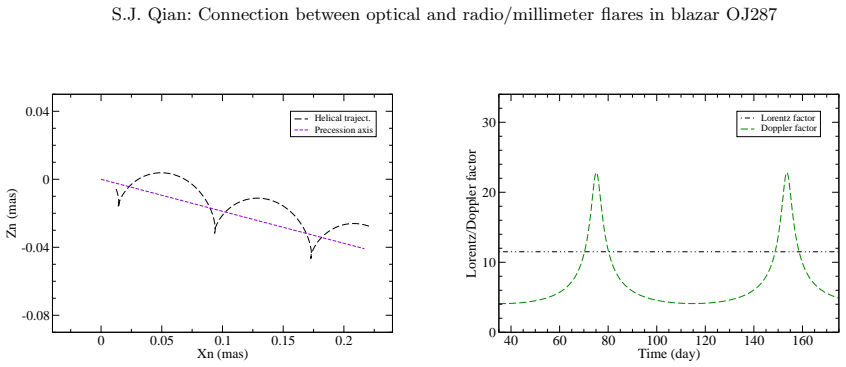

Figure 1. Figure 1: Left panel: Scenario for a precessing jet and helical motion. The straight line denotes the precessing jet axis (projected on the plane of the sky) which is defined by precession phase ω=–2.0 rad. The helix indicates the trajectory of the optical knot moving around the jet axis in the perfect collimation zone for the elementary flare in 1995.98 (peaking at JD2450075). The corresponding Lorentz and Doppler … view at source ↗
Figure 2
Figure 2. Figure 2: Modeled spectrum of the elementary optical/radio flare in 1995.98 (peaking at JD2450075; filled black circles). In order to simulate the radio light-curve the spectral indexes between the optical and radio frequencies are selected to be: α37,v≡α(37GHz,V-band)=0.51, α22,v≡α(22GHz,V-band)=0.49, α15,v≡α(14.5GHz,V-band)=0.48 and α8,v≡ α(8GHz,V￾band)=0.45, respectively. The K-, U- and UV-band flux densities (op… view at source ↗
Figure 3

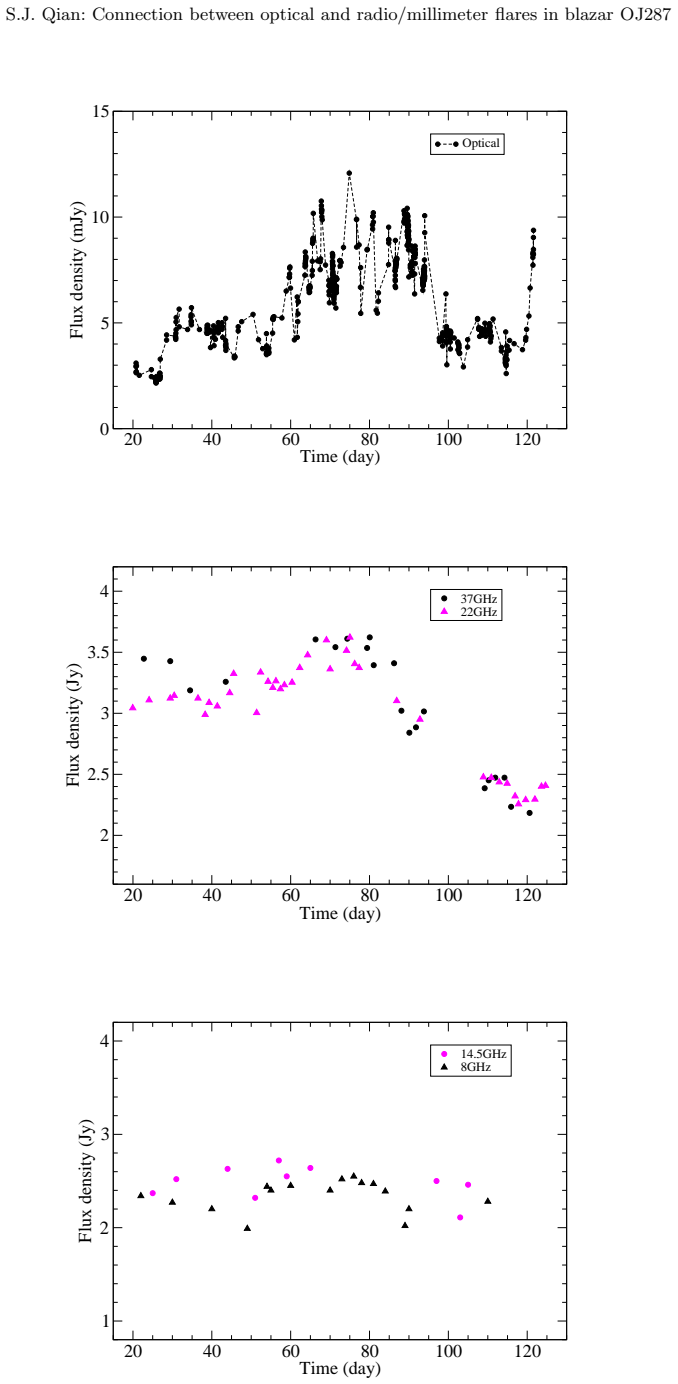

Figure 3. Figure 3: Quasi-periodic optical outburst in 1995.84: optical V-band light curve (upper panel) and radio/millimeter light curves observed at 37/22 GHz (middle panel) and 14.5/8 GHz (bottom panel). Zero point of time=Julian date 2450000 (1995.7735). 7 [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: Only five data-points are available and four el [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 4

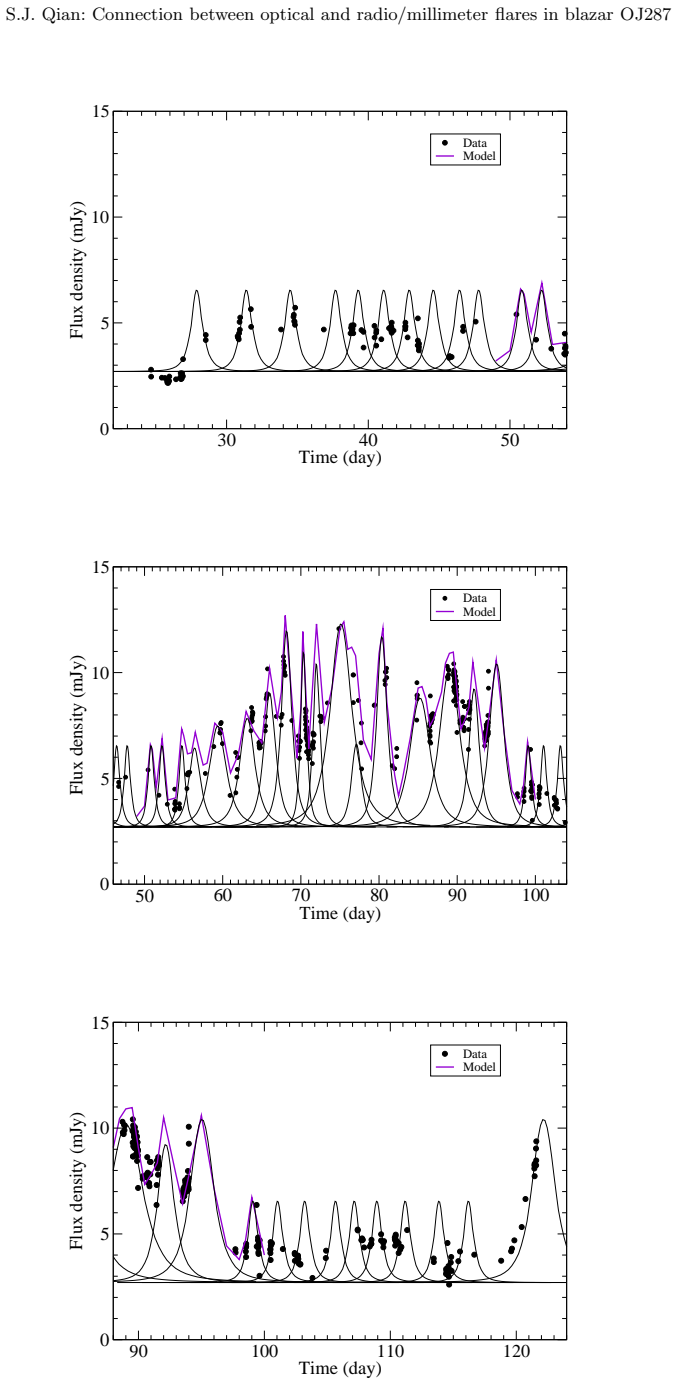

Figure 4. Figure 4: Model simulation of the optical light curve for the 1995.8 optical outburst event (1995.84–1996.10): the light curve is displayed in three segments, separately. The model parameters are listed in [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Model simulation of the 37 GHz light curve during the outburst event between 1995.84 and 1996.10 (JD2450024– 2540118). The model parameters are listed in [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Model simulation of the 14.5 GHz light curve. The model parameters are listed in [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗
read the original abstract

Blazar OJ287 is a unique source in which optical outbursts with double-peak structure have been observed quasi-periodically with a cycle of 12yr. It may be one of the best candidates for searching supermassive black hole binaries. We investigate the connection between its optical and radio/millimeter variations and interpret the emissions in terms of relativistic jet models. Specifically, we make a detailed analysis and model simulation of the optical and radio/mm light curves for the outburst during the period of 1995.8--1996.1. It is shown that the multi-wavelength light curves at optical V-band and radio/mm wavelengths (37, 22, 14.5 and 8 GHz) can be decomposed into 36 individual elementary flares, each of which has a symmetric profile. The elementary flares can be understood to be produced through lighthouse effect due to the helical motion of corresponding superluminal optical/radio knots. Helical motion of superluminal knots should be prevailing in the inner regions of its relativistic jet formed in the magnetosphere of the putative supermassive black hole/accretion disk system. A comprehensive and compatible framework for understanding the entire phenomena in OJ287 is described.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript analyzes the 1995.8--1996.1 outburst in blazar OJ287, claiming that the optical V-band and radio/mm light curves (37, 22, 14.5, and 8 GHz) can be decomposed into exactly 36 individual elementary flares, each with a symmetric profile. These are interpreted as arising via the lighthouse effect from helical motion of superluminal knots, providing a framework linking the flares to jet structure in a putative supermassive black hole binary system.

Significance. If the decomposition is demonstrated to be unique and robust with quantitative support, the result would supply a concrete multi-wavelength model for helical jet motions in OJ287 and strengthen connections between periodic optical outbursts and radio/mm emission. The elementary-flare decomposition approach could inform jet studies in other blazars if the fitting methodology is made reproducible.

major comments (2)
  1. [Abstract / model simulation] Abstract and model-simulation description: the central claim that the light curves 'can be decomposed into 36 individual elementary flares' supplies no fitting procedure, degrees of freedom, goodness-of-fit metrics, or justification for selecting precisely 36 flares rather than other counts. Without these, the decomposition cannot be assessed for uniqueness or overfitting.
  2. [Interpretation of elementary flares] Helical-motion interpretation: the inference that the flares result from lighthouse-effect helical knot motion rests entirely on the untested premise that the observed curves are the sum of exactly 36 independent symmetric components with negligible overlap or other emission mechanisms. No comparison to alternative models (asymmetric profiles, different flare numbers, or additional components) is described, so the physical conclusion is not shown to follow uniquely from the data.
minor comments (1)
  1. Notation for the five frequencies and the 1995.8--1996.1 interval is clear in the abstract but should be repeated with explicit units and reference epochs when the light-curve figures are introduced.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major point below and will revise the manuscript accordingly to provide the requested details on methodology and model comparisons.

read point-by-point responses

  1. Referee: [Abstract / model simulation] Abstract and model-simulation description: the central claim that the light curves 'can be decomposed into 36 individual elementary flares' supplies no fitting procedure, degrees of freedom, goodness-of-fit metrics, or justification for selecting precisely 36 flares rather than other counts. Without these, the decomposition cannot be assessed for uniqueness or overfitting.

    Authors: We agree that the original manuscript does not describe the decomposition procedure in sufficient detail. The 36 flares were identified by matching symmetric components to distinct peaks visible across the optical V-band and radio/mm (37, 22, 14.5, 8 GHz) light curves during 1995.8--1996.1, with the count determined by the number of such features that could be consistently aligned at all frequencies. In the revised version we will add an explicit description of the identification criteria, the effective degrees of freedom, and quantitative goodness-of-fit measures (e.g., reduced chi-squared) to allow evaluation of uniqueness and overfitting. revision: yes

  2. Referee: [Interpretation of elementary flares] Helical-motion interpretation: the inference that the flares result from lighthouse-effect helical knot motion rests entirely on the untested premise that the observed curves are the sum of exactly 36 independent symmetric components with negligible overlap or other emission mechanisms. No comparison to alternative models (asymmetric profiles, different flare numbers, or additional components) is described, so the physical conclusion is not shown to follow uniquely from the data.

    Authors: The lighthouse-effect interpretation follows from the observed symmetry of the components and their simultaneous appearance at optical and radio frequencies, consistent with helical trajectories of superluminal knots. We acknowledge that the manuscript does not present explicit comparisons with asymmetric profiles or alternative flare counts. The revised manuscript will include a dedicated discussion comparing the symmetric 36-component model against asymmetric and alternative-count models, showing why the former provides a more consistent description of the multi-frequency data. revision: yes

Circularity Check

0 steps flagged

No significant circularity; standard model fit to multi-band light curves

full rationale

The paper performs a model simulation in which the 1995.8--1996.1 light curves are decomposed into 36 symmetric elementary flares whose parameters are adjusted to reproduce the observed data at five frequencies. This decomposition is presented as an empirical representation that is then interpreted as consistent with the lighthouse effect from helical knot motion. No step claims a first-principles derivation of the flare count or profiles independent of the fit; the number 36 and the symmetric shapes are outputs of the fitting procedure itself. No self-citation chain, uniqueness theorem, or ansatz imported from prior work is invoked to force the result. The analysis is therefore a conventional forward-modeling exercise whose central claim (that such a decomposition is possible and compatible with helical motion) does not reduce to its inputs by construction.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim depends on fitting multiple parameters to match the light-curve shapes and on domain assumptions about flare symmetry and production mechanism; no independent evidence or external benchmarks are provided in the abstract.

free parameters (2)
  • Number of elementary flares = 36
    Set to 36 to reproduce the observed light-curve structure
  • Amplitude, duration, and peak time for each of the 36 flares
    Individually adjusted to fit the multi-wavelength data points
axioms (2)
  • domain assumption Each elementary flare has a symmetric profile
    Invoked as the basis for decomposing the light curves in the 1995.8--1996.1 analysis
  • domain assumption Flares arise from lighthouse effect of helically moving superluminal knots
    Used to interpret the decomposed flares as physical jet features
