Quantum-Limited Acoustoelectric Amplification in a Piezoelectric-2DEG Heterostructure

Eric Chatterjee , Daniel Soh , Matt Eichenfield This is my paper

Pith reviewed 2026-05-18 08:08 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall quant-ph
keywords acoustoelectric amplificationtwo-dimensional electron gasphonon amplificationpiezoelectric heterostructurequantum noisepopulation inversionstimulated emission
0
0 comments X

The pith

A 2DEG on piezoelectric material enables efficient acoustic amplification for any wavelength longer than the average electron spacing.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a quantum description of phonon amplification where a drift voltage pumps 2DEG electrons into a momentum population inversion, causing spontaneous phonon emission that seeds stimulated emission when an acoustic wave is present. Unlike 1D electron gases, which need the acoustic wavelength to match the electron spacing for efficient gain, the 2DEG geometry permits strong amplification whenever the wavelength exceeds that spacing. The authors derive the real and imaginary parts of the 2DEG acoustic susceptibility versus drift velocity, obtain the resulting gain per unit length for both signal and quantum noise, and show that the gain reduces to the classical result when electronic lifetime is short.

Core claim

Efficient acoustoelectric amplification occurs in a 2DEG-piezoelectric stack for any acoustic wavelength greater than the average electron-electron spacing because the two-dimensional density of states allows population inversion to drive stimulated phonon emission over a broad range of wave vectors; the first-order acoustic susceptibility is computed explicitly in limiting cases of drift velocity, its imaginary part supplies the gain, and the derived gain matches the classical expression in the low-mobility regime while also yielding the quantum noise floor and the intensity limit set by pump depletion.

What carries the argument

The 2DEG first-order acoustic susceptibility, whose imaginary part encodes the drift-velocity-dependent gain from stimulated emission and whose real part encodes the reactive response.

If this is right

  • Gain per unit length for both the acoustic signal and the accompanying quantum noise follows directly from the imaginary part of the susceptibility.
  • Gain clamping occurs once pump depletion reduces the inversion, setting an upper limit on achievable acoustic intensity.
  • The same framework supplies the operating point for a quantum phononic laser or a phase-insensitive amplifier.
  • The wavelength flexibility removes the strict matching condition required in 1D devices, broadening the range of usable acoustic frequencies.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The result suggests that 2DEG amplifiers could be integrated directly with superconducting qubit or quantum-dot circuits to provide low-noise phonon links.
  • Because the gain expression recovers the classical limit at low mobility, the quantum derivation can be used to quantify how much additional noise arises when mobility is increased.
  • The same population-inversion mechanism might be realized in other 2D systems such as transition-metal dichalcogenides or graphene, provided piezoelectric coupling is present.

Load-bearing premise

The applied drift voltage maintains a population inversion in the 2DEG electron momentum states long enough for stimulated phonon emission to dominate over relaxation.

What would settle it

Direct measurement of acoustic gain versus wavelength in a fabricated 2DEG-piezoelectric device, showing strong amplification persisting at wavelengths several times larger than the mean electron spacing and agreeing with the calculated susceptibility in the short-lifetime limit.

Figures

Figures reproduced from arXiv: 2510.09248 by Daniel Soh, Eric Chatterjee, Matt Eichenfield.

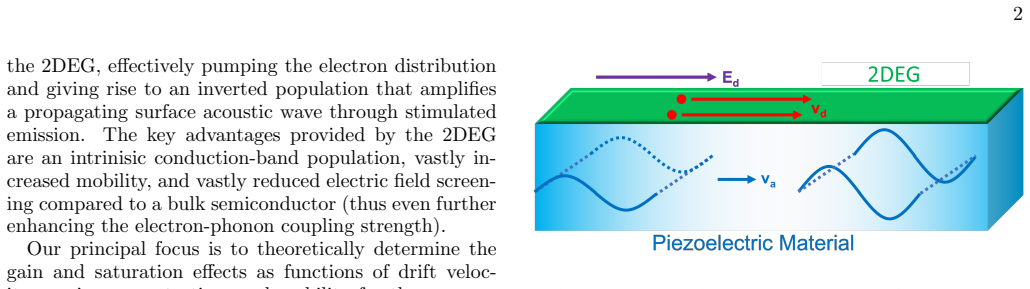

Figure 1
Figure 1. Figure 1: FIG. 1: Diagram of acoustoelectric amplifier. Note that [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

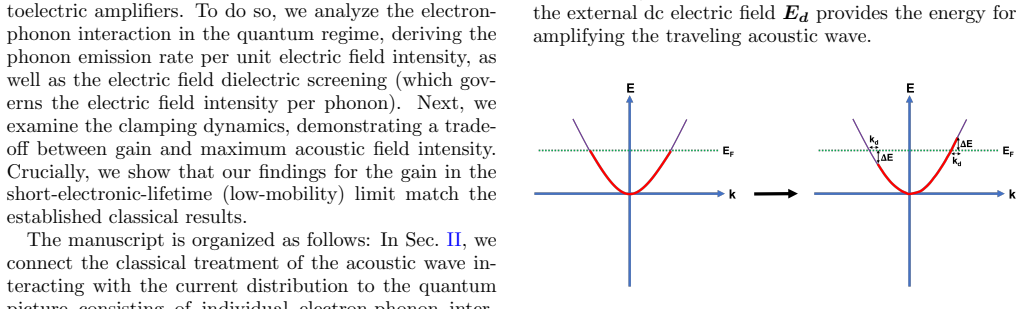

Figure 2. Figure 2: FIG. 2: Shift in semiconductor electronic spectrum due [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

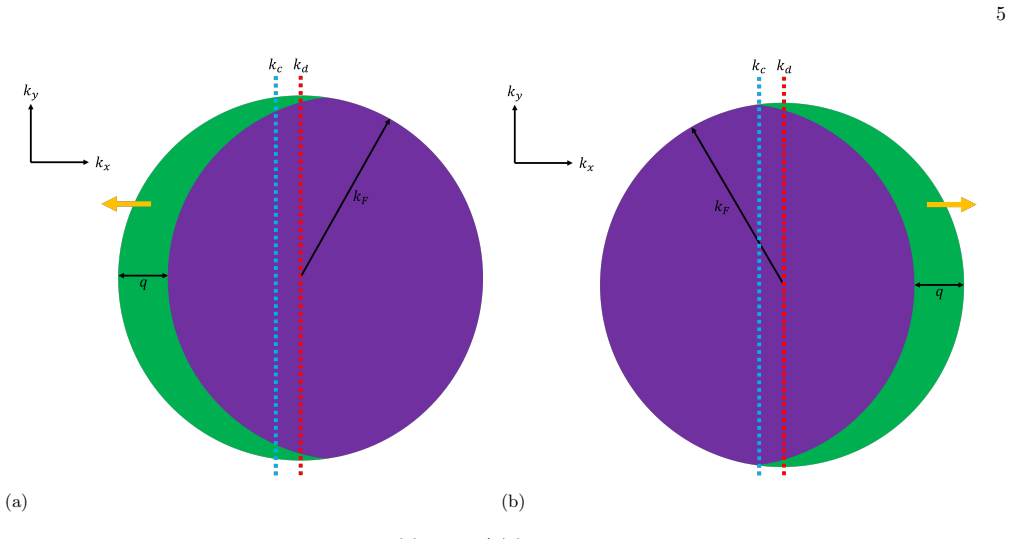

Figure 3
Figure 3. Figure 3: FIG. 3: Phase-space diagram of the regions [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

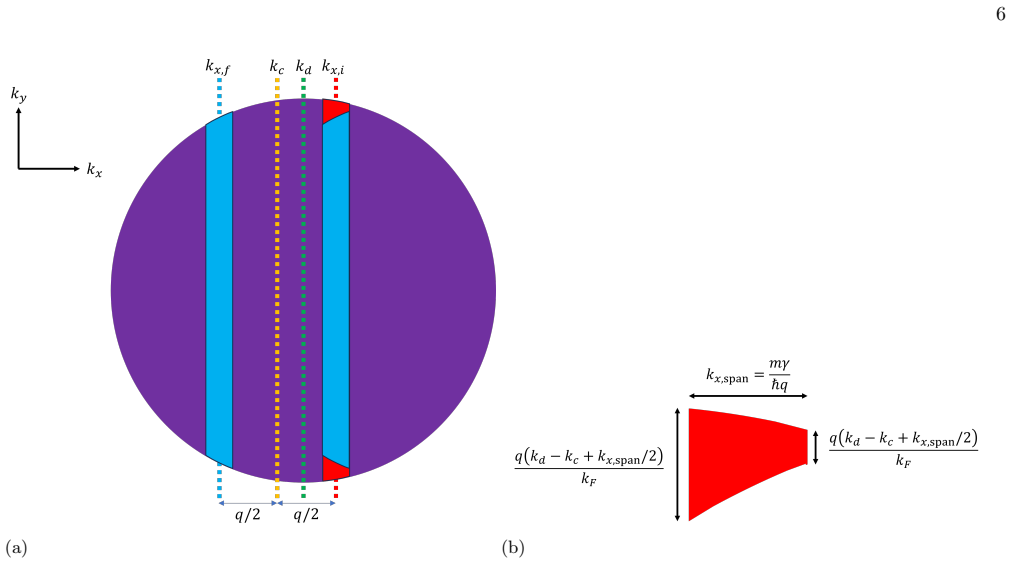

Figure 4
Figure 4. Figure 4: FIG. 4: Phase-space diagram (a) of the acoustoelectric amplification process in the high-mobility/low-drift-velocity [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

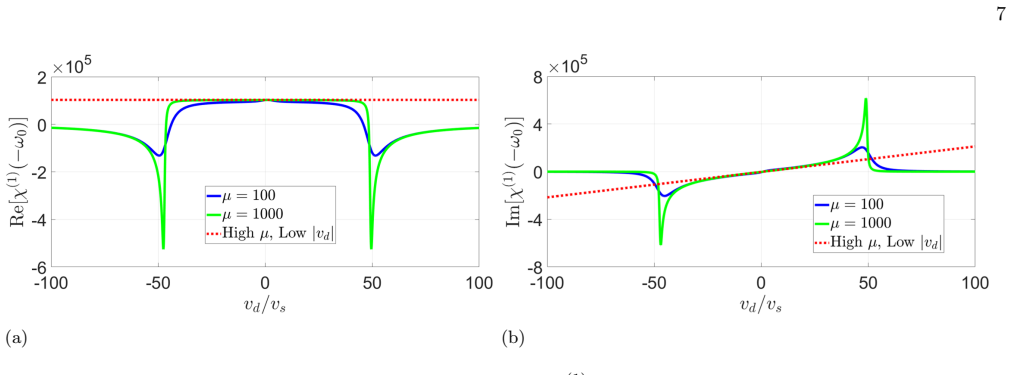

Figure 5
Figure 5. Figure 5: FIG. 5: Numerical results for the real (a) imaginary (b) parts of [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

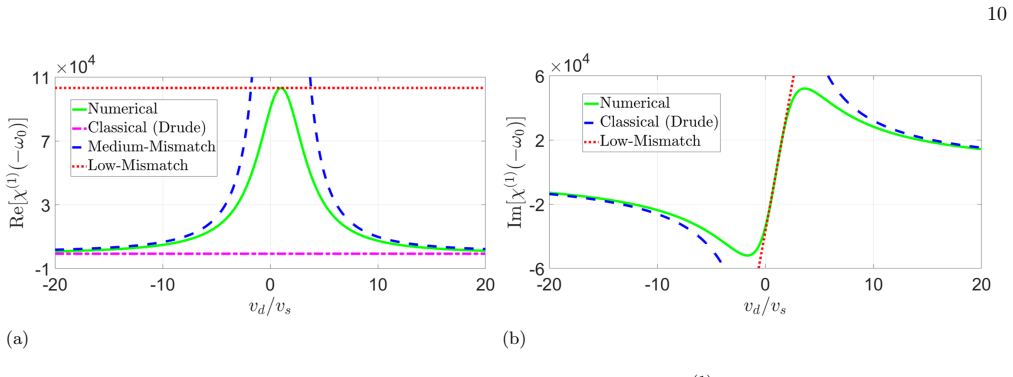

Figure 6
Figure 6. Figure 6: FIG. 6: Numerical results (solid, green) for the real (a) imaginary (b) parts of [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗

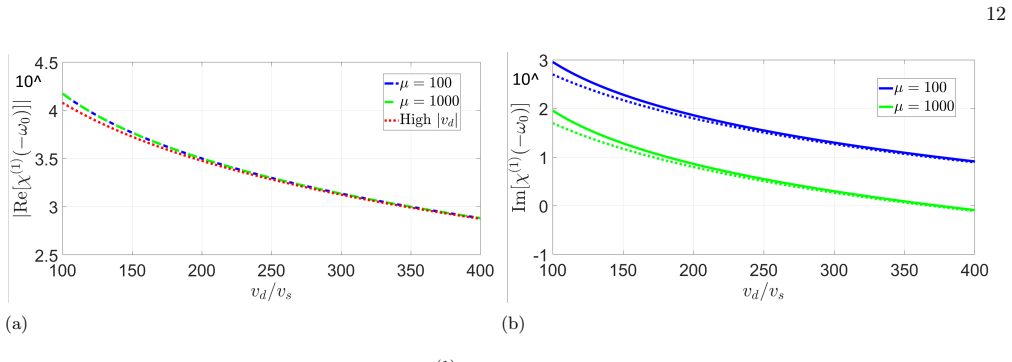

Figure 7
Figure 7. Figure 7: FIG. 7: (a) Numerical results for the real part of [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗

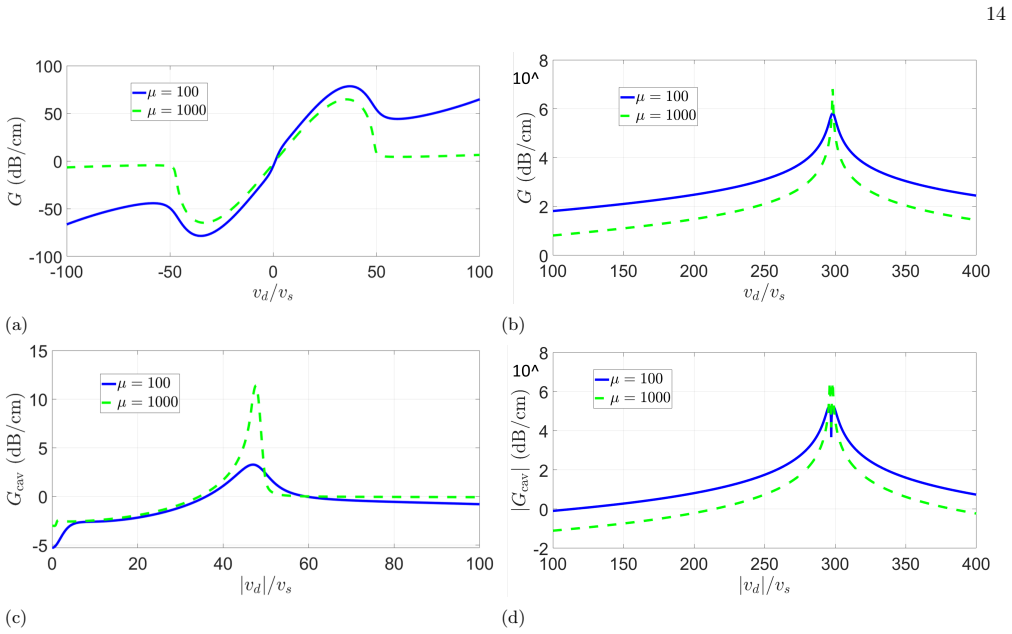

Figure 8
Figure 8. Figure 8: FIG. 8: Numerical results for the amplifier waveguide gain per unit length [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
read the original abstract

We provide a quantum mechanical description of phonon amplification in a heterostructure consisting of a two-dimensional electron gas (2DEG) stacked on top of a piezoelectric material. An applied drift voltage effectively creates a population inversion in the momentum states of the 2DEG electrons, giving rise to spontaneous emission of phonons. Once an acoustic wave is launched, the pumped electrons release phonons via stimulated emission, returning to depleted ground states before being pumped back to the excited states. We show that whereas efficient amplification using a 1D electron gas requires the acoustic wavelength to roughly equal the average electron-electron spacing, a 2DEG enables efficient amplification for any wavelength greater than the average electron-electron spacing. We derive the imaginary and real parts of the 2DEG first-order acoustic susceptibility as functions of electronic drift velocity in specific limits and derive the gain per unit length for the signal and the quantum noise, with the gain matching the classical result in the short-electronic-lifetime (low-mobility) regime. Moreover, we analyze the gain clamping due to pump depletion and calculate the maximum achievable intensity. Our results provide a framework for designing novel acoustic devices including a quantum phononic laser and phase-insensitive quantum phononic amplifiers.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript develops a quantum-mechanical treatment of acoustoelectric phonon amplification in a piezoelectric-2DEG heterostructure. An applied drift voltage is said to produce a population inversion among 2DEG momentum states, enabling spontaneous phonon emission that is followed by stimulated emission once an acoustic wave is launched. The authors contrast this with 1D electron gases, asserting that a 2DEG permits efficient amplification for any acoustic wavelength longer than the mean inter-electron spacing. They derive the real and imaginary parts of the first-order acoustic susceptibility of the 2DEG as functions of drift velocity in selected limits, obtain the gain per unit length for both the signal and quantum noise (recovering the classical result in the short-lifetime, low-mobility regime), analyze gain clamping arising from pump depletion, and compute the maximum achievable intensity, thereby outlining a route to quantum phononic lasers and phase-insensitive amplifiers.

Significance. Should the derivations prove internally consistent and the non-equilibrium distribution be shown to persist, the work would supply a useful theoretical framework for quantum-limited acoustic amplification that relaxes the strict wavelength-matching requirement of 1D channels. The explicit recovery of the classical gain expression in the low-mobility limit constitutes a valuable consistency check. The treatment of quantum noise and pump-depletion clamping is directly relevant to device design. These strengths are tempered by the need to verify that the inversion lifetime exceeds the stimulated-emission timescale outside the regime where the result reduces to classical behavior.

major comments (2)
  1. [Abstract] Abstract: the central claim that drift voltage produces a population inversion whose lifetime permits stimulated emission to dominate is load-bearing for the quantum-limited regime. Because the derived gain recovers the classical result precisely in the short-electronic-lifetime (low-mobility) limit, an explicit comparison of momentum-relaxation rates to the calculated gain per unit length is required to establish that the inversion survives in the longer-lifetime regimes where genuinely quantum behavior would be distinguishable.
  2. [Abstract] Abstract and susceptibility derivations: the imaginary and real parts of the 2DEG first-order acoustic susceptibility are stated to be obtained as functions of drift velocity in specific limits, yet the manuscript provides neither the explicit functional forms nor the intermediate steps that demonstrate how these expressions yield the claimed wavelength-independent amplification for the 2DEG. Without these details the reduction to the classical result cannot be independently verified.
minor comments (1)
  1. The abstract refers to 'specific limits' for the susceptibility without defining the ordering of drift velocity, scattering time, and acoustic frequency; these should be stated explicitly at the first appearance in the main text.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading and constructive comments, which have helped us identify areas where the manuscript can be clarified and strengthened. We address each major comment below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that drift voltage produces a population inversion whose lifetime permits stimulated emission to dominate is load-bearing for the quantum-limited regime. Because the derived gain recovers the classical result precisely in the short-electronic-lifetime (low-mobility) limit, an explicit comparison of momentum-relaxation rates to the calculated gain per unit length is required to establish that the inversion survives in the longer-lifetime regimes where genuinely quantum behavior would be distinguishable.

    Authors: We agree that an explicit comparison of momentum-relaxation rates to the gain per unit length is needed to confirm the persistence of the population inversion in regimes where quantum effects are distinguishable. In the revised manuscript, we will add this comparison, including estimates showing that the inversion lifetime exceeds the stimulated-emission timescale for parameters corresponding to longer electronic lifetimes. This analysis will be incorporated into the discussion of the quantum-limited regime to support the central claim. revision: yes

  2. Referee: [Abstract] Abstract and susceptibility derivations: the imaginary and real parts of the 2DEG first-order acoustic susceptibility are stated to be obtained as functions of drift velocity in specific limits, yet the manuscript provides neither the explicit functional forms nor the intermediate steps that demonstrate how these expressions yield the claimed wavelength-independent amplification for the 2DEG. Without these details the reduction to the classical result cannot be independently verified.

    Authors: We acknowledge that the explicit functional forms and intermediate derivation steps for the real and imaginary parts of the susceptibility were not presented in sufficient detail. In the revised manuscript, we will include the full expressions for these quantities as functions of drift velocity in the specified limits, along with the key steps demonstrating the wavelength-independent amplification for wavelengths longer than the mean inter-electron spacing in the 2DEG. We will also show explicitly how the classical gain result is recovered in the short-lifetime limit. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivations of susceptibility and gain are independent functions of drift velocity

full rationale

The paper presents derivations of the imaginary and real parts of the first-order acoustic susceptibility and the gain per unit length explicitly as functions of electronic drift velocity evaluated in specific limits, with the low-mobility limit recovering the classical result. No equations reduce by construction to fitted parameters, self-citations, or ansatzes imported from prior author work. The population-inversion assumption is stated as a physical premise rather than defined circularly via the output gain. The 2DEG vs 1D comparison and wavelength condition follow from the derived susceptibility without renaming known results or smuggling in uniqueness theorems. The chain is self-contained against external benchmarks such as classical acoustoelectric amplification.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities; the work appears to rest on standard quantum mechanics and solid-state assumptions for electron-phonon coupling and drift-induced inversion.
