Simulator-guided search lifts analog topology generation success from 12% to 65% on a six-component benchmark.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · deepseek-v4-flash

2026-08-02 05:16 UTC pith:OZTEZABT

load-bearing objection A credible test-time-search recipe for analog topology generation, with a real but addressable data-provenance confound. the 3 major comments →

arxiv 2607.13416 v1 pith:OZTEZABT submitted 2026-07-15 cs.LG

EXPLORE: Exploration with Guided Search for Analog Topology Generation using Language Models

Guanglei Zhou , Chen-Chia Chang , Yikang Shen , Jonathan Ku , Isaac Jacobson , Jingyu Pan , Yiran Chen , Xin Zhang This is my paper
classification cs.LG
keywords analog topology generationMonte Carlo Tree Searchtest-time scalinglanguage modelspower converter designp-filteringadjacency-matrix formulationsimulator-guided search
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper argues that analog circuit topology generation should be treated as a search problem, not a one-pass generation problem: instead of decoding a single circuit from a language model, the model's token probabilities steer a Monte Carlo tree search, and each candidate is checked with a circuit simulator before the search back-propagates a reward. On a benchmark of six-component power converters with a tight tolerance of 0.01, the method raises the success rate from 12% for one-shot decoding and 33% for sampling-and-filtering to 65% under the same budget of 100 transformer generations, with more than twenty times lower mean squared error. The same search also produces nonzero success at seven to nine components, a regime where one-shot decoding nearly collapses. If this holds, it means expensive simulator calls can be concentrated on genuine topology decisions rather than on forced syntax tokens, making larger design spaces reachable with the same model.

Core claim

EXPLORE claims that test-time search, guided by language-model priors and validated by a circuit simulator, is a better decoding strategy for analog topology generation than greedy, beam, or sampling-and-filter decoding. On the FM adjacency-matrix formulation, a PUCT-style tree search that auto-commits near-certain structural tokens via p-filtering (p=0.99), expands only low-confidence decision tokens, beam-completes partial topologies, and simulates each candidate reaches 65% success at tolerance 0.01 on six components versus 33% for sampling-and-filter and 12% for one-shot decoding, under 100 transformer generations, with over 20x lower MSE. It keeps an advantage at 7-9 components, while a

What carries the argument

LM-guided MCTS with p-filtering: a Monte Carlo tree search whose node selection uses PUCT scores that multiply the exploration term by the language model's token probability. Because over half the tokens in the FM adjacency-matrix formulation are structural and carry no topology choice, p-filtering auto-commits any token with model probability at least 0.99 and only spawns top-k children at genuine decision points; partial sequences are beam-completed and simulated, and the resulting voltage/efficiency reward is backpropagated. This concentrates a fixed simulator budget on edge decisions between component pairs.

Load-bearing premise

The load-bearing assumption is that the composition of the 32k fine-tuning set does not matter; if those topologies are mostly EXPLORE's own prior search outputs, the reported success-rate gap could partly reflect training on the search distribution rather than search quality itself.

What would settle it

Retrain the model on 32k six-component topologies drawn only from random enumeration, then rerun EXPLORE's test-time search on the same validation set; if the 65% success rate drops toward the 33% sampling-and-filter level, the gain is driven by data provenance rather than by test-time search. A smaller check: report the success-rate curve with the 32k set replaced by 32k independent Stage-1 random circuits while holding the search algorithm and simulator budget unchanged.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • At fixed inference budget (100 generations), structured search outperforms all four tested decoding baselines on 6-component circuits at tolerance 0.01, and lowers MSE by over 20x versus sampling-and-filter.
  • The method extends generation to 7-9 components where one-shot decoding scores near zero, with EXPLORE reaching 0.21, 0.26, and 0.16 success respectively.
  • Filtering near-certain structural tokens skips 24-48% of token expansions, reducing simulator calls without hurting final search quality when p=0.99.
  • The same search loop doubles as a data-collection engine, cutting the fraction of sub-2%-efficiency 6-component topologies from 66.1% to 18.2% and raising the over-90%-efficiency fraction from 8.3% to 23.3%.
  • All methods fail on 10-component circuits (0.00 success), so the paper frames its 7-9 component results as a scalability trend rather than practical readiness.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Editorial: the 32k fine-tuning set is assembled with 'model-native' data collection, and the paper does not state how much of it consists of EXPLORE's own outputs; an ablation using only random-enumeration data at the same size would separate test-time search quality from training-on-search-output effects.
  • Editorial: p-filtering's threshold sweep suggests formulations that remove structural tokens entirely could concentrate search budget even more; compressed adjacency representations are a natural next target.
  • Editorial: the clean zero at 10 components implies the current simulator-budget regime will not scale indefinitely; replacing some simulations with a learned surrogate could extend the approach.
  • Editorial: the reward's equal 0.5/0.5 weighting of voltage and efficiency error is untuned; per-target weighting or a Pareto treatment could raise effective success without changing the search.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper proposes EXPLORE, a test-time search framework for analog topology generation. It combines an encoder-decoder LM (Flan-T5-base with the LaMAGIC float-input adjacency-matrix formulation) with PUCT-style MCTS, top-k expansion, p-filtering of high-confidence structural tokens, and NGSPICE simulation rewards. The authors also construct a 350k 6-component corpus via a two-stage pipeline in which Stage 2 uses the trained model plus EXPLORE itself as a data generator. On a 6-component benchmark at tolerance 0.01, EXPLORE reports success 0.65 vs 0.12 (Greedy), 0.33 (Sampling+Filter), 0.32 (Beam Search), and 0.31 (MCTS-Base) with the FM-32k model, with lower MSE; results extend to 7–9 components. The paper includes uniform-random validation sets (App. B.4) and sweeps of the exploration constant c and p-filtering threshold p.

Significance. If the reported gains are reproducible and cleanly attributable to test-time search, EXPLORE would be a meaningful advance for LM-based analog design: it demonstrates that a fixed simulator budget can be spent more effectively on guided partial expansions than on independent sampling, and it introduces a practical search-based data-collection loop. I credit the authors for pre-empting the curated-benchmark objection with the random-100/random-500 splits in App. B.4, for the MCTS-Base ablation that isolates LM-prior guidance, and for the systematic p-filtering analysis. However, the headline claim is currently confounded by the unknown composition of the fine-tuning data, and the lack of variance reporting makes it hard to assess how much of the 0.65 vs 0.33 gap is signal. The stated 10-component all-zero regime is appropriately framed as outside current capability.

major comments (3)
  1. [§3.2, §4.1, App. B.3] The two-stage pipeline in §3.2 explicitly uses the trained model plus EXPLORE to assemble the 350k 6-component corpus, and App. B.3 shows that this Stage-2 data is far richer than random enumeration (23.3% vs 8.3% above 90% efficiency). Section 4.1 states only that models are 'finetuned with 1k and 32k 6-component circuits' and does not disclose whether these sets are Stage-1 random, Stage-2 EXPLORE-native, or a mix. If the 32k set is enriched with EXPLORE-generated topologies, then every decoder shares a model already fine-tuned on the output distribution of the search being tested, so the headline 0.65 vs 0.33 conflates test-time search with training on search-native data. This is not full circularity because NGSPICE targets come from LaMAGIC's validation set, but an ablation separating 'more random data' from 'EXPLORE-native data' (e.g., random-only vs mixed 1k/32k, evaluated with all
  2. [Table 1, §4.2] The fairness claim is undermined by the footnote 'All methods use up to 100 Transformer generations' while Greedy is defined as one-shot generation in §4.1. If Greedy uses only one generation, the 12%→65% comparison is not under the same budget; if it is run 100 times, a deterministic greedy decoder would not improve, so the comparison needs clarification. More generally, the unit 'Transformer generations' is not defined for Beam Search (one run with width 20 counts as 20 generations?) or for MCTS (one rollout with k=3 and b=1 may generate several sequences, and p-filtering changes the number of tokens per generation). Because the central claim is superior performance under a fixed 100-generation budget, the paper must define the budget unit precisely and report the actual number of evaluated sequences per target for each method.
  3. [Tables 1–4, Fig. 4] All success rates are single point estimates on 100 or 500 targets, with no seeds, standard errors, or confidence intervals. MCTS and Sampling+Filter are stochastic, and the models themselves are trained once, so run-to-run variance is unreported. The large gaps—e.g., 0.65 vs 0.31 in Table 1—are suggestive, but the smaller differences (Table 3: 0.84 vs 0.70; Table 4: 0.73 vs 0.59) could be within noise. Please report means over at least three seeds, or at minimum exact binomial 95% confidence intervals for the 100-sample benchmarks, and show variance on the iteration-wise curves in Fig. 4.
minor comments (6)
  1. [Abstract] The main-text abstract says 'over 20×' lower MSE, but the front-page abstract excerpt in the submitted text says 'over 20%'. Make the two versions consistent.
  2. [Table 4] The Greedy row is not actual greedy decoding but 'the first per-target sample of the S+F generations.' This is an important disclosure; move it from the footnote into the main text or the table caption so readers are not misled.
  3. [§3.2] Please state explicitly how many of the 350k 6-component circuits come from Stage 1 vs Stage 2. Currently only quality distribution statistics are given, not counts.
  4. [Algorithm 1 / §3.1] The pseudocode condition 'len(node.top-p tokens)==1' is confusing; I assume it means the top-1 token has probability ≥ p. Please clarify the notation and define 'top-p tokens' here.
  5. [Fig. 4d / §4.1] The runtime breakdown lists total time 9.22h for n=100; specify the hardware, whether this includes cache warm-up, and whether the same budget was used for the baseline runtimes.
  6. [§5] The conclusion claims superiority 'over prior RL-based search methods,' but the experiments compare only to decoding baselines (Greedy, Beam, S+F, MCTS-Base). Either add an RL/BO baseline from §2.2 on 6-comp or temper the conclusion to 'decoding strategies'.

Circularity Check

1 steps flagged

Data-provenance loop: §3.2 builds the 6-component corpus with EXPLORE itself, and §4.1 fine-tunes on unspecified '6-component circuits' from that corpus, partially conflating training data with test-time search.

specific steps
  1. other [Section 3.2 (Stage 2) and Section 4.1 (Models and datasets), Table 1]
    "Once a model has acquired a basic understanding of the formulation from Stage-1 data, we reuse the trained model together with the EXPLORE framework as a data generator. ... Using this pipeline we assemble, to our knowledge, the largest 6-component converter dataset to date (350k samples) ... we extend models trained with 3,4,5-components to be finetuned with 1k and 32k 6-component circuits and leverage our decoding algorithm to evaluate."

    The 6-component fine-tuning sets are not specified as Stage-1 random-only or Stage-2 EXPLORE outputs; the only 6-component corpus described is the two-stage pipeline whose Stage-2 is generated by EXPLORE. If the 1k/32k sets draw from that corpus, the model in Table 1 has been fine-tuned on the search's own output distribution. Appendix B.3 shows Stage-2 data is sharply enriched (23.3% >90% efficiency vs 8.3% random). Thus the headline 65% vs 33% measures, at least in part, the model's alignment with the EXPLORE generator rather than pure test-time search; an ablation separating random-only from EXPLORE-native training data is required and is absent.

full rationale

The paper's central empirical claim—that EXPLORE is a superior decoding strategy under a fixed 100-generation budget—rests on models fine-tuned with 1k/32k 6-component circuits whose provenance is never stated. Section 3.2 presents only one 6-component collection pipeline, and its Stage 2 is explicitly 'model-native data collection' using the trained model plus EXPLORE. If the fine-tuning sets are drawn from this corpus, then the model's prior has been shaped by the very search procedure being evaluated. All baselines share the same model, so the comparison is not wholly circular, and the external LaMAGIC validation targets and NGSPICE simulator provide independent grounding. Nevertheless, the missing random-only vs EXPLORE-native ablation means the reported 65% success rate and 20× MSE improvement conflate test-time search quality with training on the search's own output distribution. This is a genuine self-referential loop in the data pipeline, though not a definitional collapse; the evaluation targets remain external, so the circularity is partial rather than total.

Axiom & Free-Parameter Ledger

7 free parameters · 7 axioms · 0 invented entities

No new physical entities are introduced; the novel constructs (p-filtering, P-UCB, structural-token concept) are algorithmic techniques and are empirically tested within the paper's own ablations. The central claim rests on seven domain/background assumptions, most notably the decision-free nature of FM structural tokens and the assumed neutrality of the fine-tuning data, the latter being the main circularity surface.

free parameters (7)
  • PUCT exploration constant c = 4 (swept 0.5, 1, 4)
    Controls exploration/exploitation in node selection; headline results use c=4 chosen on the 6-comp benchmark (Sec. 4.2, Fig. 4b).
  • p-filtering threshold p = 0.99 (swept 0.5, 0.7, 0.9, 0.99)
    Auto-commits tokens with top-1 probability ≥ p; headline uses p=0.99; sweep shows p=0.5 caps at 0.37 success (Sec. 4.2, Fig. 4c).
  • top-k expansion width k = 3
    Number of child branches at a genuine decision point (Sec. 4.2).
  • beam search width b = 1
    Beam width for completing partial topologies before simulation (Sec. 4.2).
  • reward weights (voltage, efficiency) = 0.5 / 0.5
    Eq. (1); authors note the weighting is untuned ("tuning this weighting is left to future work").
  • per-target generation budget = 100 rollouts
    All methods capped at 100 transformer generations; EXPLORE's p-filtering/beam-completion make its per-iteration transformer/simulator cost non-identical to baselines.
  • evaluation tolerance t = 0.01 (sweep 0.01–0.10)
    Headline success rate reported at t=0.01; sweep (Fig. 4a) shows ordering holds across tolerances, so not a cherry-pick.
axioms (7)
  • domain assumption NGSPICE simulation accurately returns output voltage and conversion efficiency for candidate topologies
    Every reward and success metric in the paper comes from NGSPICE (Sec. 3.1 Evaluation); no cross-validation against fabricated hardware or other simulators.
  • domain assumption LaMAGIC's FM text formulation is a faithful, decision-complete encoding of the circuit hypergraph
    The search space is defined over FM tokens (Sec. 3); any lossiness of the formulation bounds what search can find. Inherited from [3].
  • domain assumption Structural tokens in FM carry no topological choice and constitute >50% of tokens
    Basis for p-filtering (Sec. 3.1, Fig. 3a); the p-sweep (Fig. 4c) indirectly supports it, since aggressive filtering plateaus at 0.37.
  • domain assumption Beam-search completion of partial topologies yields valid circuits often enough that simulator budget is well spent
    Evaluation step (Sec. 3.1) relies on beam completion; failure rate of completion is not quantified; invalid simulations count as failures.
  • domain assumption Fine-tuning data for the evaluated model is not biased by the framework being tested
    Sec. 3.2 Stage 2 generates data with the trained model + EXPLORE; if that data enters the 1k/32k fine-tuning sets, evaluation conflates search with training on the search's own output distribution. Paper does not state the composition.
  • domain assumption The 6-comp benchmark (100 high-efficiency samples mined from the 7k LaMAGIC validation set) is representative of the target generation task
    Sec. 4.1; mitigated by random-100/random-500 (Appendix B.4), but those subsets reuse the same 7k pool.
  • standard math MCTS/PUCT with a noisy reward oracle explores the search space effectively at the given budget
    Relies on UCT/PUCT convergence results (Kocsis & Szepesvári [11]; AlphaCode [15]); the 100-rollout budget is far from asymptotic.

pith-pipeline@v1.3.0-alltime-deepseek · 14068 in / 28529 out tokens · 260454 ms · 2026-08-02T05:16:13.463659+00:00 · methodology

0 comments
read the original abstract

Automating analog circuit topology design is essential to reduce the extensive manual effort required to meet increasingly diverse and customized application demands. Recent advances have applied sequence-to-sequence fine-tuning on pretrained language models to directly generate circuit topologies from user specifications in a single pass. However, these one-shot generation methods failed to generate complex circuits due to their exponentially growing search spaces and limited training datasets. In this paper, we present EXPLORE, a search-enhanced framework that integrates simulator-guided Monte Carlo Tree Search (MCTS) with transformer-based decoding to enable test-time scaling for analog topology generation. By leveraging language-model priors and bypassing high-confidence structural tokens, EXPLORE allocates expensive simulator budget primarily toward topology-altering decisions during search. On a 6-component benchmark at a tight tolerance of 0.01, EXPLORE raises the success rate from 12% for one-shot generation and 33% for a sampling-and-filter baseline to 65%, and lowers MSE by over 20% relative to sampling-and-filter under the same search budget. These results establish EXPLORE as the first framework to integrate structured test-time search with LM decoding for analog topology generation, and a practical step toward scaling LLM-driven design automation.

Figures

Figures reproduced from arXiv: 2607.13416 by Chen-Chia Chang, Guanglei Zhou, Isaac Jacobson, Jingyu Pan, Jonathan Ku, Xin Zhang, Yikang Shen, Yiran Chen.

Figure 1
Figure 1. Figure 1: Topology space grows combinatorially with circuit complex [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: (a) An example power converter circuit and (b) its corre [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: (a) A circuit example of float-input adjacency-based matrix formulation for the edge generation task, highlighting its inefficiency due [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Comparison of success rates and runtime analysis on the 6-comp benchmark (FM-1k). (a): final success rate under varying error [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Comparison of generation results on validation sets with varying number of components (7 [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Device count distribution for the first 10000 generated cir [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7

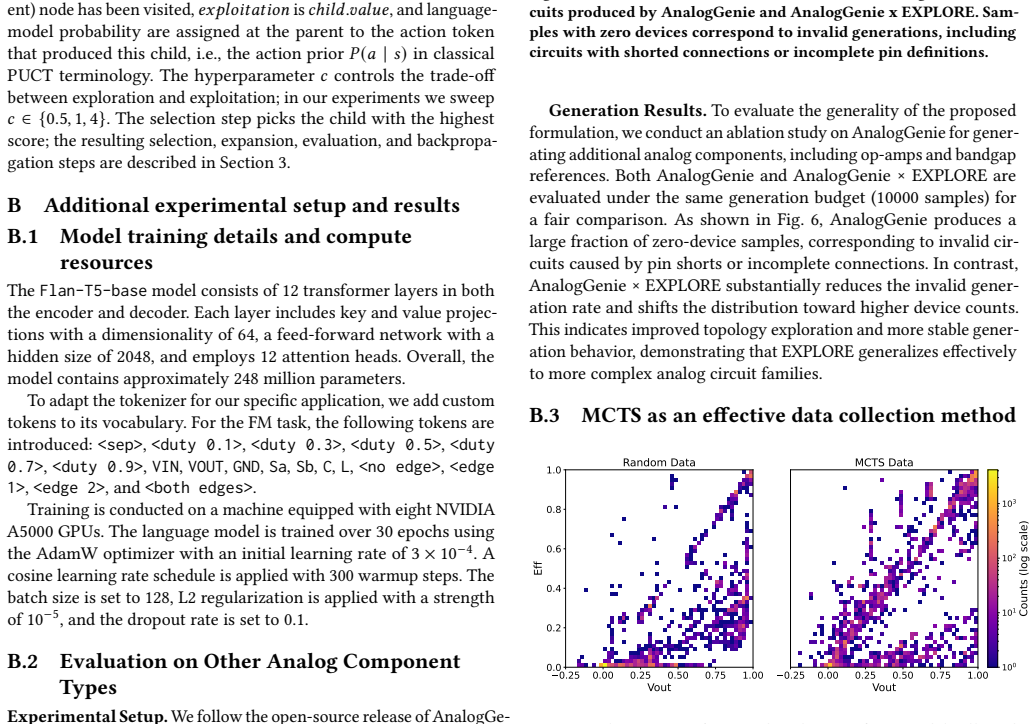

Figure 7. Figure 7: The Vout vs efficiency distribution of our model collected [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Success rate of our method with MCTS (Baseline) and its [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
