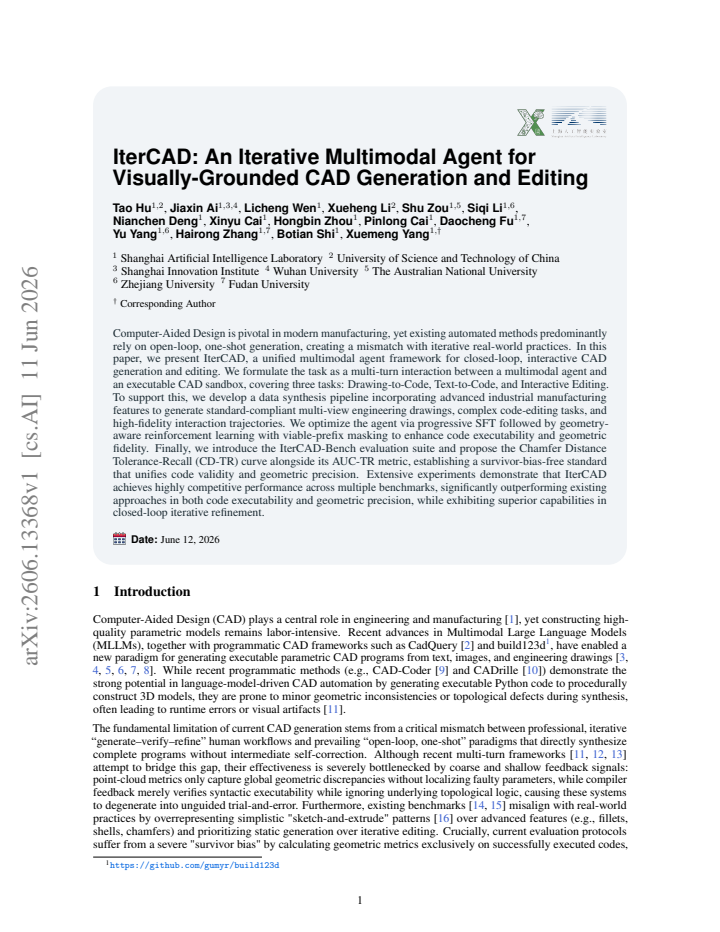

IterCAD: An Iterative Multimodal Agent for Visually-Grounded CAD Generation and Editing

Tao Hu , Jiaxin Ai , Licheng Wen , Xueheng Li , Shu Zou , Siqi Li , Nianchen Deng , Xinyu Cai
show 7 more authors
Hongbin Zhou Pinlong Cai Daocheng Fu Yu Yang Hairong Zhang Botian Shi Xuemeng Yang
This is my paper

Pith reviewed 2026-06-27 06:33 UTC · model grok-4.3

classification 💻 cs.AI cs.CV
keywords CAD generationmultimodal agentiterative refinementcode generationgeometric precisionreinforcement learningengineering drawingsclosed-loop interaction
0
0 comments X

The pith

IterCAD frames CAD generation as closed-loop multi-turn agent interaction with an executable sandbox to enable iterative refinement from drawings or text.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents IterCAD as a multimodal agent that treats CAD tasks as repeated interactions inside a code-executing sandbox rather than single-pass outputs. It covers drawing-to-code, text-to-code, and editing by first building a data pipeline that produces engineering drawings, editing sequences, and interaction traces from industrial-style features. The agent then receives progressive supervised fine-tuning followed by geometry-aware reinforcement learning that masks invalid prefixes. A new benchmark suite measures both whether code runs and how closely the resulting geometry matches targets using a tolerance-recall curve. Experiments indicate the resulting system produces more executable code, tighter geometric matches, and stronger handling of successive edits than prior one-shot methods.

Core claim

IterCAD is a unified multimodal agent framework for closed-loop interactive CAD generation and editing formulated as multi-turn interaction between the agent and an executable CAD sandbox. The approach rests on a data synthesis pipeline that creates standard-compliant multi-view drawings, complex code-editing tasks, and high-fidelity trajectories, followed by progressive supervised fine-tuning and geometry-aware reinforcement learning with viable-prefix masking. Evaluation on the introduced IterCAD-Bench uses the Chamfer Distance Tolerance-Recall curve and its AUC-TR metric to show higher code executability, geometric precision, and iterative refinement ability than existing approaches.

What carries the argument

the closed-loop multi-turn interaction between a multimodal agent and an executable CAD sandbox, trained first by progressive SFT then by geometry-aware RL with viable-prefix masking

If this is right

  • Code generated by the agent runs successfully at higher rates on CAD interpreters.
  • Final shapes lie closer to target geometry across tolerance levels tracked by the CD-TR curve.
  • Multi-turn editing sessions converge faster and with fewer invalid steps than open-loop baselines.
  • The AUC-TR metric supplies a single scalar that jointly scores validity and precision without discarding invalid outputs.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same sandbox-loop structure could be applied to other parametric modeling environments that expose an execution API.
  • Adding sensor feedback from physical prototypes into the reward signal would turn the loop into a full digital-twin controller.
  • Extending the synthesis pipeline to assemblies of multiple parts would test whether the agent can maintain consistency across linked components.

Load-bearing premise

The data synthesis pipeline produces drawings, editing tasks, and interaction trajectories that match the distribution and difficulty of real industrial CAD work.

What would settle it

A head-to-head test on a held-out collection of actual engineer CAD sessions in which IterCAD requires the same or more refinement turns than one-shot baselines to reach an executable design of target geometry.

Figures

Figures reproduced from arXiv: 2606.13368 by Botian Shi, Daocheng Fu, Hairong Zhang, Hongbin Zhou, Jiaxin Ai, Licheng Wen, Nianchen Deng, Pinlong Cai, Shu Zou, Siqi Li, Tao Hu, Xinyu Cai, Xueheng Li, Xuemeng Yang, Yu Yang.

Figure 1

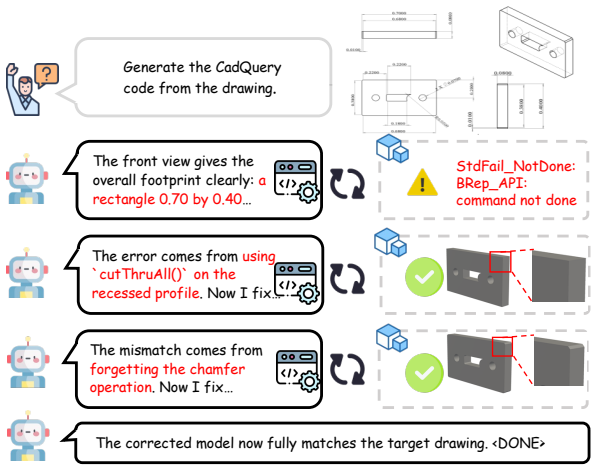

Figure 1. Figure 1: IterCAD mimics the human “generate–verify–refine” workflow. Guided by multi-view engineering [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

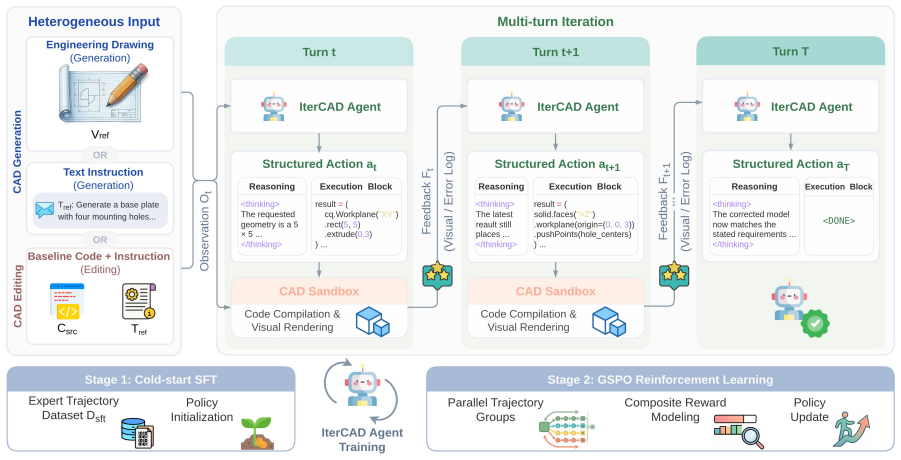

Figure 2. Figure 2: Overview of the IterCAD framework. IterCAD formulates interactive CAD generation and editing as a [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

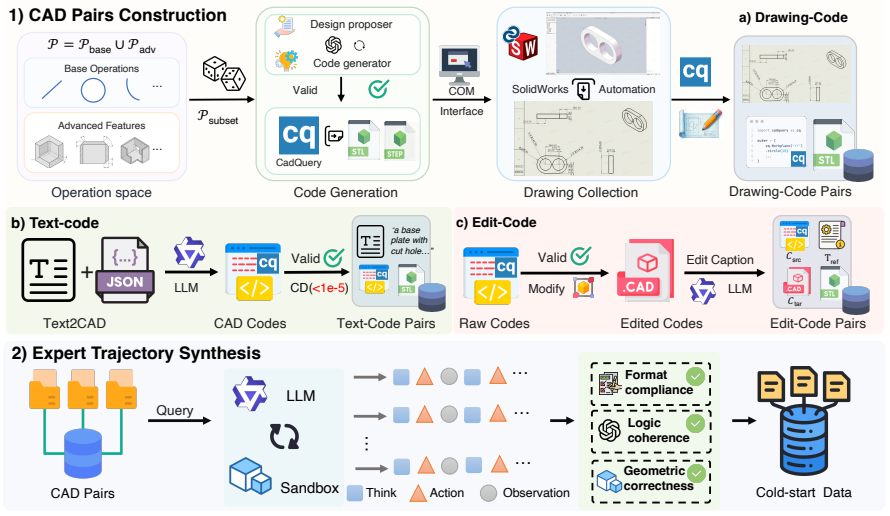

Figure 3. Figure 3: Data curation pipeline for IterCAD. The pipeline first constructs three categories of high-quality CAD [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

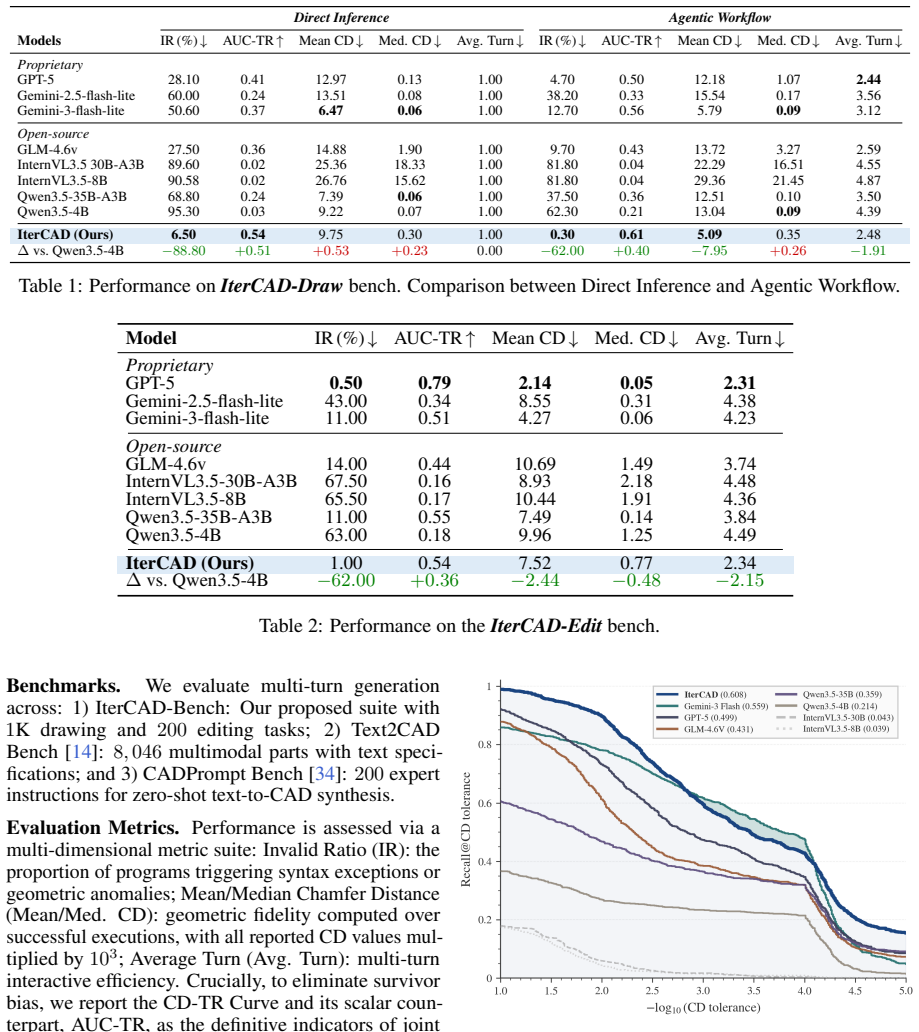

Figure 4. Figure 4: CD-TR Curve on IterCAD-Draw bench. Benchmarks. We evaluate multi-turn generation across: 1) IterCAD-Bench: Our proposed suite with 1K drawing and 200 editing tasks; 2) Text2CAD Bench [14]: 8, 046 multimodal parts with text speci￾fications; and 3) CADPrompt Bench [34]: 200 expert instructions for zero-shot text-to-CAD synthesis. Evaluation Metrics. Performance is assessed via a multi-dimensional metric suit… view at source ↗
Figure 5

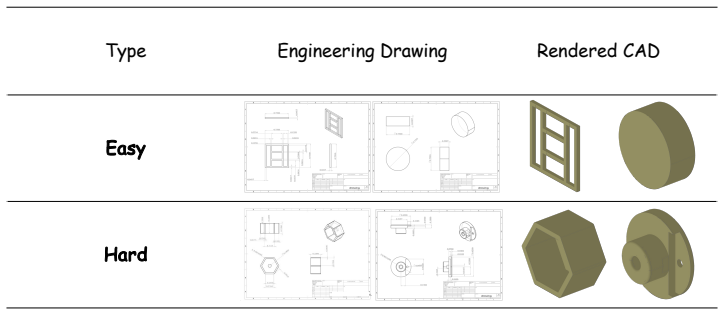

Figure 5. Figure 5: Representative samples from the IterCAD-Draw benchmark across two difficulty levels, showcasing multi-view engineering drawings paired with ground-truth 3D geometries. Complexity increases from simple extruded profiles (Easy-level) to parts requiring advanced operations such as shells, fillets, and through-cuts (Hard-level). Csrc. For each corrupted instance, we pair it with a concise design-change instruc… view at source ↗
Figure 6

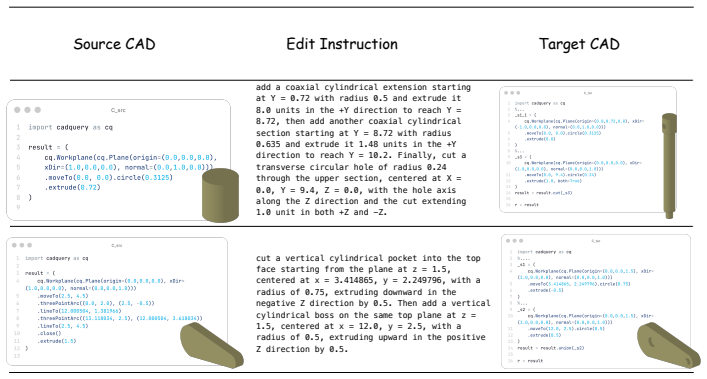

Figure 6. Figure 6: Representative samples from the IterCAD-Edit benchmark. Each pair shows the source code (left), the editing instruction (middle), and the target code after modification (right), illustrating diverse edit operations including feature addition, Boolean subtraction, and parametric adjustment [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗
Figure 7

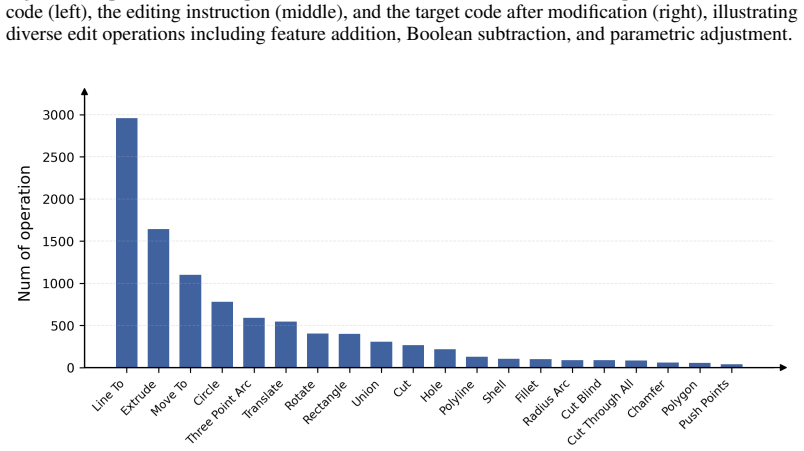

Figure 7. Figure 7: Top-20 CadQuery API operation distribution in the [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗
Figure 8

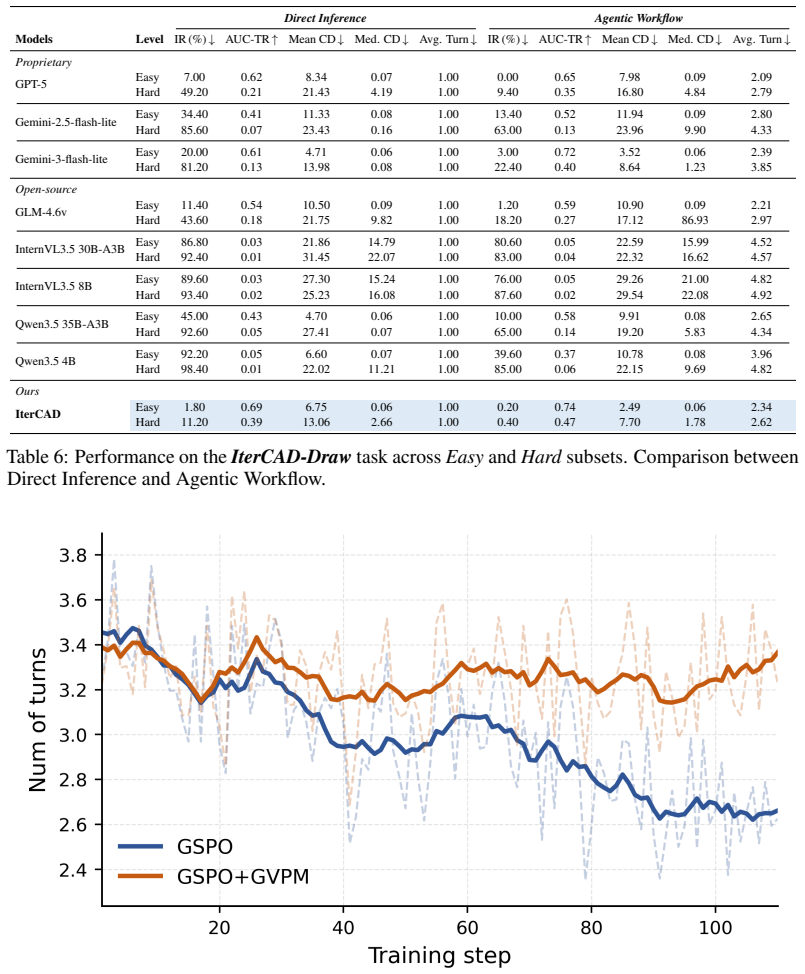

Figure 8. Figure 8: Average number of interaction turns during RL training. GSPO alone (blue) rapidly [PITH_FULL_IMAGE:figures/full_fig_p017_8.png] view at source ↗
Figure 9

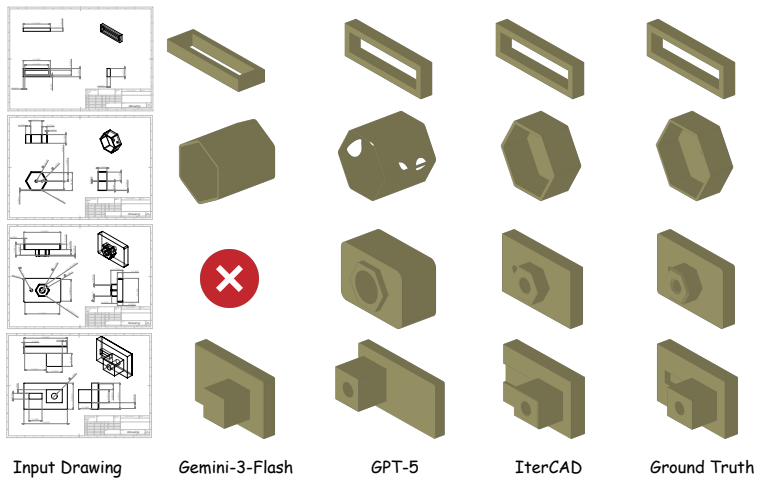

Figure 9. Figure 9: Qualitative comparison on representative [PITH_FULL_IMAGE:figures/full_fig_p018_9.png] view at source ↗
Figure 10

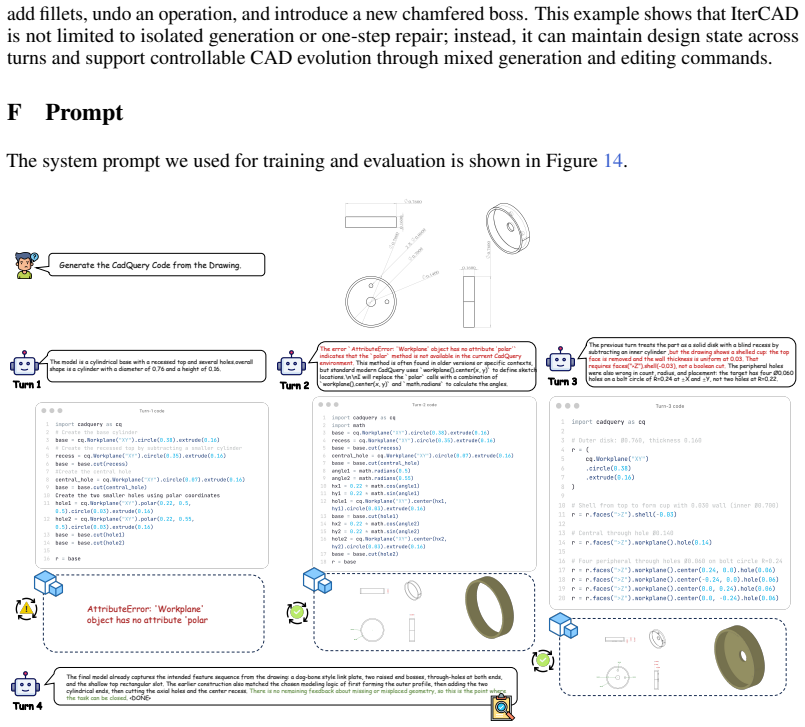

Figure 10. Figure 10: Drawing-to-code self-correction case. Starting from a dimensioned engineering drawing, [PITH_FULL_IMAGE:figures/full_fig_p019_10.png] view at source ↗
Figure 11

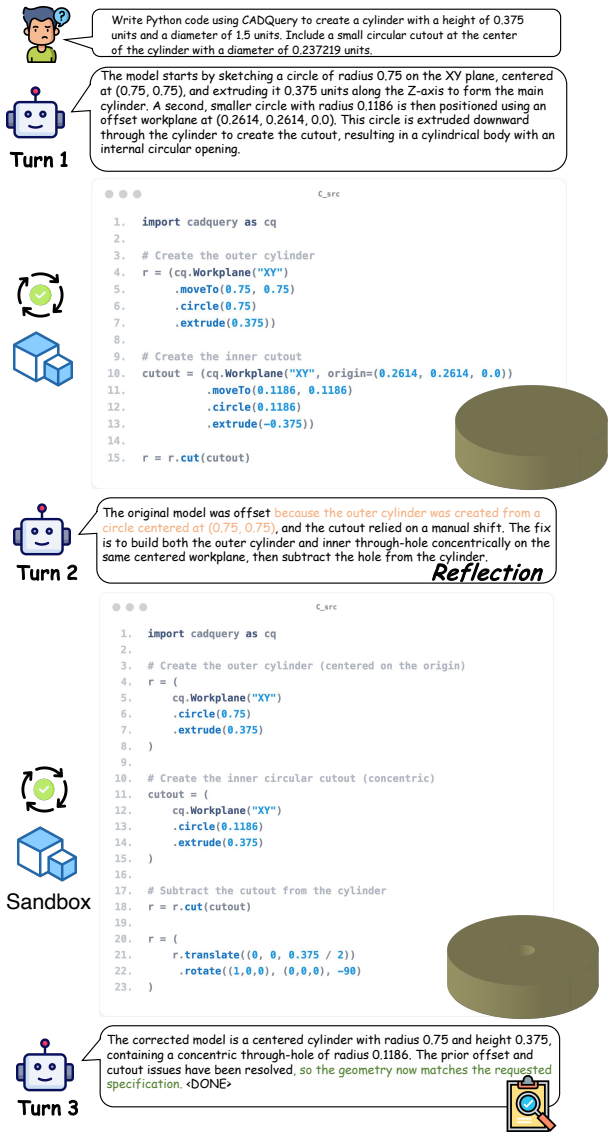

Figure 11. Figure 11: Text-to-CAD self-correction case. The initial code creates an offset cylinder and misses the [PITH_FULL_IMAGE:figures/full_fig_p020_11.png] view at source ↗
Figure 12

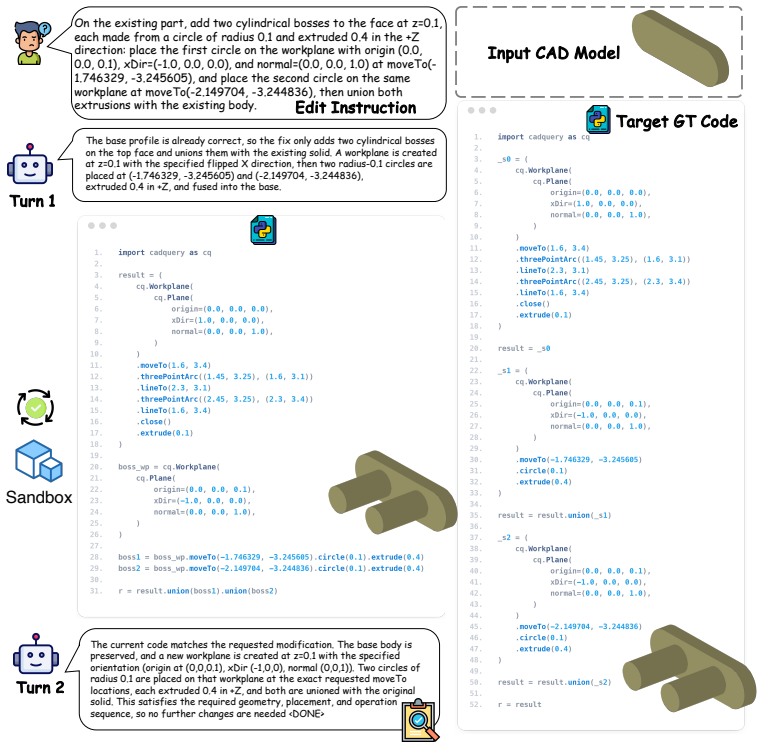

Figure 12. Figure 12: Instruction-based CAD editing case. Starting from an existing rounded base, IterCAD [PITH_FULL_IMAGE:figures/full_fig_p021_12.png] view at source ↗
Figure 13

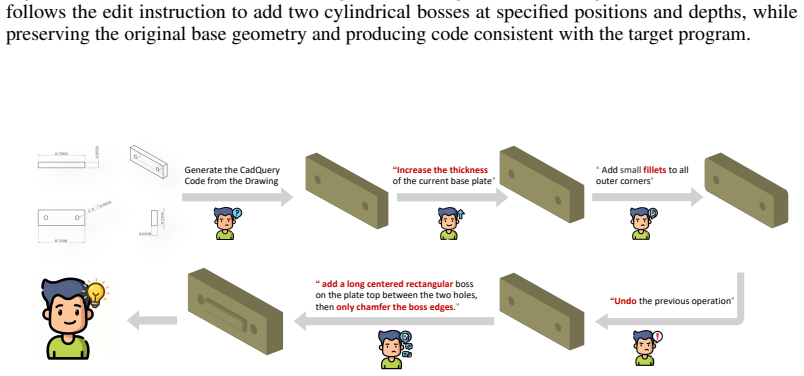

Figure 13. Figure 13: Unified generation-and-editing example. IterCAD first reconstructs a base plate from [PITH_FULL_IMAGE:figures/full_fig_p021_13.png] view at source ↗
Figure 14

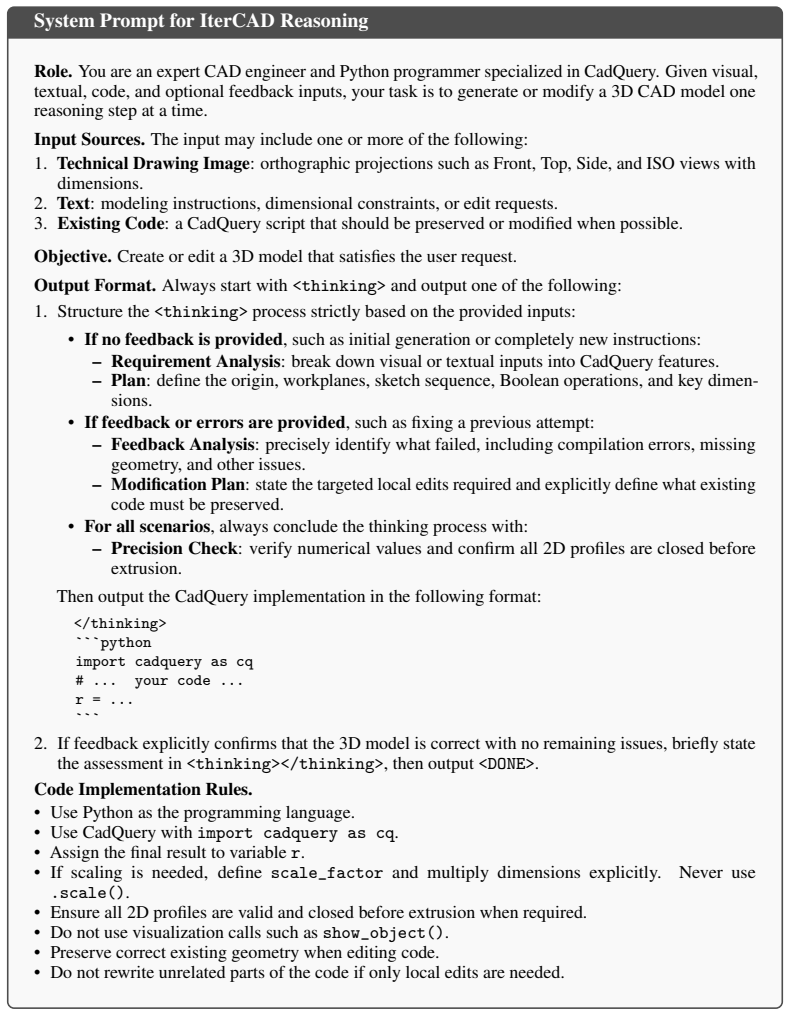

Figure 14. Figure 14: System prompt for IterCAD code generation and editing. [PITH_FULL_IMAGE:figures/full_fig_p022_14.png] view at source ↗
