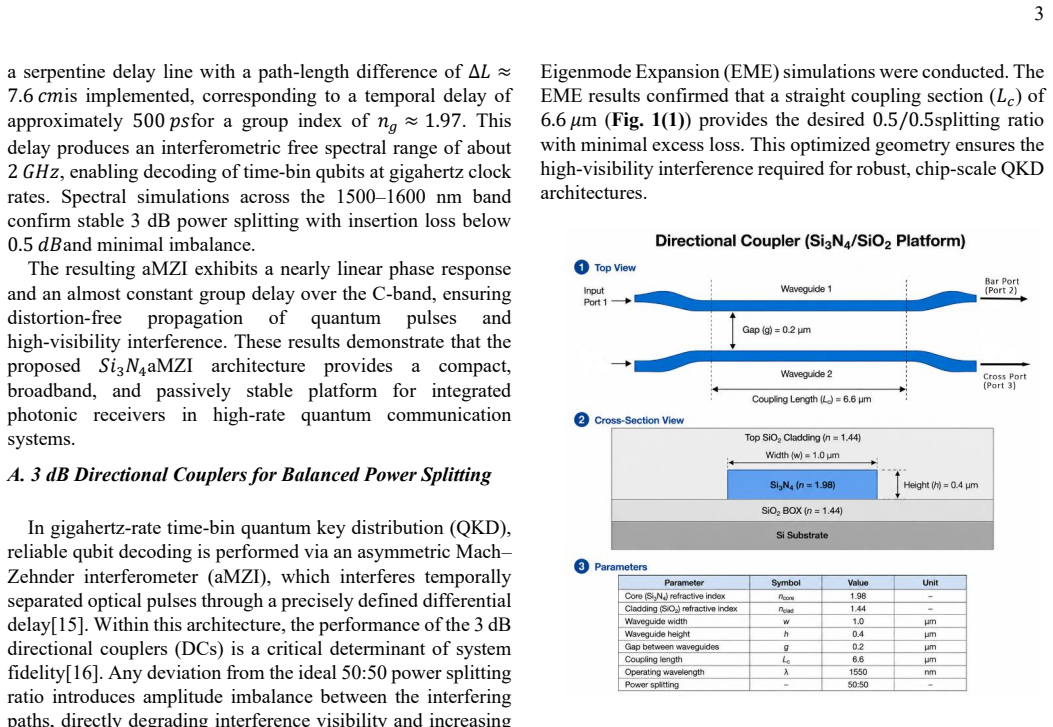

Figure 1. Figure 1: Design and geometric configuration of the integrated Si3N4/SiO2directional coupler. (1) Top-view schematic of the 2×2 directional coupler, highlighting the symmetric evanescent coupling region with a gap (𝑔) and interaction length (𝐿𝑐 ). Light launched into Input Port 1 is distributed between the Bar (Port 2) and Cross (Port 3) ports through supermode interference. (2) Cross-sectional view of the waveguide… view at source ↗
Figure 3

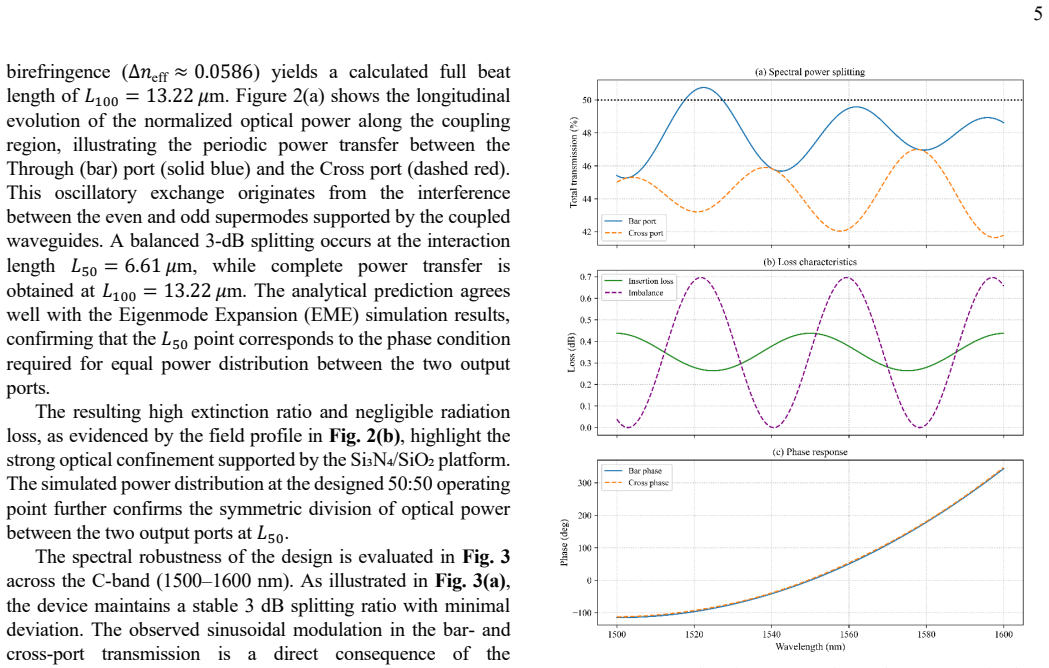

Figure 3. Figure 3: Comprehensive spectral performance of the 𝑆𝑖3𝑁4directional coupler. (a) Spectral power splitting ratio for the bar and cross ports. (b) Loss characteristics, including insertion loss and power imbalance, confirming high transmission efficiency. (c) Broadband phase response of the output ports The primary achievement of this architecture lies in the synergistic optimization of broadband power-splitting and … view at source ↗
Figure 1

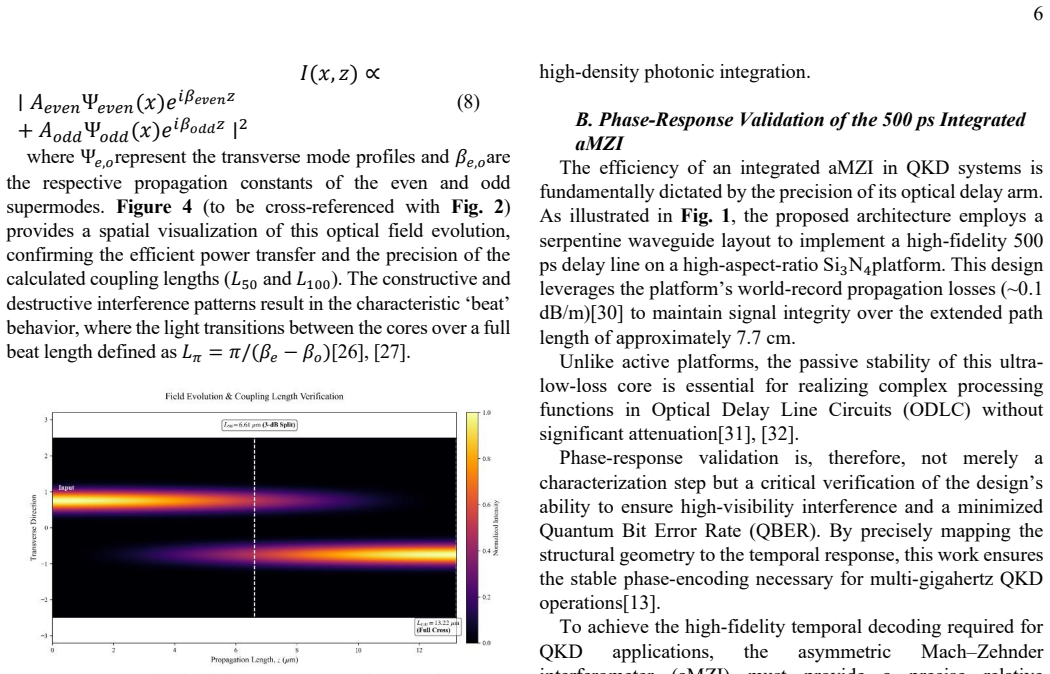

Figure 1. Figure 1: Longitudinal field intensity evolution along the Si3N4directional coupler simulated via the EME method. The heatmap illustrates the gradual evanescent coupling of optical power from the input (upper) waveguide to the adjacent (lower) waveguide. The dashed vertical line indicates the calculated coupling length 𝐿50 = 6.61 𝜇mfor a symmetric 3 dB power split, while 𝐿100 = 13.22 𝜇mmarks the point of complete po… view at source ↗
read the original abstract

Precise temporal delay generation is a key requirement for asymmetric Mach-Zehnder interferometers (aMZIs) used in high-speed quantum key distribution (QKD) receivers. In this work, a compact integrated aMZI architecture based on a silicon nitride on silicon dioxide (Si3N4/SiO2) photonic platform is presented. A 3-dB directional coupler enabling accurate 50:50 power splitting at the 1550 nm telecommunication wavelength is designed and optimized. The coupling length is initially estimated from the effective index difference between the even and odd supermodes and subsequently refined using three-dimensional eigenmode expansion (EME) simulations. The optimized structure employs single-mode Si3N4 waveguides with a cross section of 1 um x 0.4 um, providing a group index close to 2 and enabling accurate delay engineering. Spectral analysis demonstrates stable 3-dB power splitting across the C-band with insertion loss below 0.5 dB and negligible power imbalance, indicating high transmission efficiency and structural symmetry. An integrated Si3N4 aMZI delay line providing a 500 ps optical delay, corresponding to a 2 GHz free spectral range (FSR), is further demonstrated. Simulations show nearly constant group delay across the 190-200 THz frequency range with sub-10 ps variation and a smooth, near-linear phase response. These characteristics enable interference visibility above 0.99, corresponding to an estimated quantum bit error rate (QBER) below 0.5 percent for gigahertz-rate time-bin QKD systems. The wideband linear phase behavior also indicates compatibility with wavelength division multiplexed (WDM) QKD architectures. The results confirm that the proposed Si3N4 integrated aMZI provides a low-loss, dispersion-controlled, and spectrally stable delay solution suitable for scalable chip-scale quantum photonic receivers.
