Scalable Semantic Steering of Embedding Projections

T0 review · 3 major / 5 minor · reviewed 2026-07-11 · grok-4.5

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Group-level hybrid prototypes can steer embedding projections with one LLM call and match per-item global alignment at over 1000× lower cost.

desk verdict Solid methods paper: O(1) group prototypes get you roughly per-item global alignment at ~1000× lower LLM cost; the quality match is a bit soft, the cost claim is not. read the letter →

arxiv 2607.03978 v1 pith:QOQS2LGG submitted 2026-07-04 cs.HC cs.AIcs.CV

Wei Liu , Eric Krokos , Kirsten Whitley , Rebecca Faust , Chris North This is my paper · ORCID
classification cs.HCcs.AIcs.CV
keywords SemanticSteeringInteractionEmbeddingProjectionsLargeLanguageModelsPrototypesHybridMultimodalEmbeddings
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Low-dimensional projections of text or image embeddings often fail to match the semantic relationships an analyst cares about. Recent methods fix this by letting an analyst seed a few groups and then asking a language model to reason about every remaining item, but that design makes cost grow with collection size. This paper claims the right unit of semantic work is the group, not the item. One language-model call produces structured profiles for all groups; those profiles are embedded and fused with seed centroids into hybrid prototypes; items are then softly assigned and gently moved in embedding space before the projection is redrawn. On a 5,000-document COVID literature corpus the hybrid approach reaches global alignment comparable to full per-item reasoning while cutting language-model calls by more than three orders of magnitude. A parallel image experiment shows the same prototype mechanism works with multimodal embeddings. If the claim holds, interactive semantic steering becomes practical for collections that were previously too large or too expensive to reshape.

What carries the argument

Hybrid semantic prototype: the normalized convex combination of a seed-example centroid and the embedding of a single LLM-generated group profile. Soft assignment with per-group adaptive thresholds, abstention, and alignment-scaled blending then moves every item toward its assigned prototypes before reprojection.

What would settle it

On the same 5K LitCovid split, replace the simulated ground-truth seeds with real analyst-selected groups that are deliberately noisy or overlapping; if hybrid global alignment then falls well below per-item LLM steering, the scalability claim for practical interactive use fails.

Watch

Extended reading notes

Core claim

Hybrid group-level semantic prototypes—each the average of a seed-centroid and an LLM-generated group-profile embedding—can reorganize a full embedding collection so that global alignment matches per-item LLM steering, while the language model is called only once regardless of collection size.

Load-bearing premise

That five clean seeds drawn from ground-truth categories are a fair stand-in for the noisier, more ambiguous groups real analysts actually form.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper proposes a scalable alternative to per-item LLM semantic steering of embedding projections. From a small set of user-defined seed groups, a single LLM call produces structured group profiles; each profile embedding is fused with the corresponding seed centroid into a hybrid prototype (Eq. 1). Intent is then propagated entirely in embedding space via adaptive soft assignment with abstention (Eq. 2) and alignment-scaled blending toward multi-prototype targets (Eqs. 3–4), followed by UMAP reprojection. On a 5K LitCovid subset the hybrid method reports global alignment comparable to a prior per-item LLM baseline (ΔSil 0.302 ± 0.070 vs 0.259 ± 0.015) at ~1,294× lower LLM cost (1 call / $0.025 vs ~5,001 calls / $32), with an image case study on Stanford-40 Actions indicating the same pipeline works for CLIP embeddings.

Significance. If the quality–cost claim holds under fairer controls, the work removes a genuine barrier to interactive LLM-augmented semantic interaction: linear growth of LLM calls with collection size. The hybrid prototype design is a clean, modality-agnostic adaptation of few-shot prototype ideas to projection steering, and the O(1) LLM budget is a concrete, falsifiable engineering contribution. Strengths include an explicit comparison to the closest prior method, measured (not only projected) cost at N=5K, and a multimodal case study that shows the mechanism is not text-specific. The result would be of practical interest to the visual analytics and semantic-interaction communities.

major comments (3)
  1. §4.1 and Table 1: the fairness of the quality comparison rests on setting the per-item LLM fixed blend coefficient to the hybrid’s mean effective λ_eff = 0.49 ± 0.02 while hybrid itself uses α = 0.9 with per-item λ_i = α · max_k w_ik (Eq. 4) and soft multi-prototype targets m_i (Eq. 3). Matching only the average scalar leaves open that the reported ΔSil edge (0.302 vs 0.259) is produced by a stronger or differently shaped update rule rather than by group-level abstraction alone. A controlled ablation that equalizes both mean blend strength and target construction (single vs multi-prototype) is needed before the central “comparable alignment” claim can be treated as settled.
  2. Table 1: hybrid ΔSil is reported as 0.302 ± 0.070 over only three random seed draws, versus 0.259 ± 0.015 for per-item. The hybrid standard deviation is more than four times larger and the intervals overlap substantially; with n = 3 the claim that hybrid “achieves the strongest global alignment” and is “comparable” is under-powered. Either more seed repetitions or a formal paired test (or both) should be supplied, or the language should be softened to reflect the uncertainty.
  3. §4.1 / §6: evaluation uses five seeds drawn from ground-truth LitCovid categories that are never shown to the LLM but that perfectly match the evaluation labels. The authors correctly flag this as a limitation, yet it remains load-bearing for the reported numbers: real analyst groups may be noisier or less representative. At minimum, a sensitivity experiment with deliberately noisy or cross-category seeds (or a small human-selected seed set) is required to show that the alignment and cost claims survive more realistic interaction conditions.
minor comments (5)
  1. Table 1 footnote: one article is excluded “due to non-parseable LLM responses in the per-item baseline on some seeds.” Clarify whether the same N is used for all methods and whether the exclusion affects only the per-item row.
  2. §3.4: the adaptive threshold b_k and the constants τ = 20, ρ = 0.85, t_none = 0.20 are introduced without sensitivity analysis in the main text (only mentioned as available in supplemental). A short main-text note or figure on robustness would strengthen confidence.
  3. Figure 1 caption and §5: the image case study reports ΔSil = 0.20, ΔNC = 0.05, top-1 = 0.70 but does not state the number of seed draws or variance; aligning the reporting style with Table 1 would help.
  4. §2: ModalChorus and constrained/label-guided projection methods are cited; a brief explicit contrast of computational complexity (fine-tuning vs O(1) LLM + embedding ops) would sharpen the positioning.
  5. Notation: normalize(·) is used after every vector combination; stating once that all embeddings remain L2-normalized would avoid repetition and potential ambiguity.

Circularity Check

0 steps flagged · score 0.0 of 10

No circular derivation: quality claims are empirical comparisons on held-out labels; cost O(1) is by design, not a fitted prediction.

full rationale

The paper’s load-bearing claims are (i) hybrid group prototypes achieve global alignment comparable to per-item LLM steering on LitCovid and (ii) LLM cost drops from O(N) to O(1). Neither reduces to its inputs by construction. Seeds are sampled from ground-truth categories only to simulate interaction; labels are never given to the LLM or the steering pipeline and are used solely for evaluation metrics (ΔSil, ΔNC, assignment accuracy). Free parameters (γ=0.5, α=0.9, τ, ρ, t_none) are stated defaults, not fitted to maximize reported ΔSil on the evaluation set. Matching the per-item blend coefficient to the hybrid’s mean effective λ_eff is a fairness choice for comparison, not a circular fit-then-predict loop. The O(1) LLM cost follows directly from issuing one group-profile call (method design), while alignment quality is measured against an unsteered baseline and an external prior method. Self-citation to Liu et al. [12] supplies the per-item baseline and the cluster-card profile format; it does not justify the hybrid prototype result via an unverified uniqueness claim. Prototype ideas are grounded in external few-shot and vision–language work. No equation equates a claimed prediction to a fitted input; no uniqueness theorem is imported from the authors. Experimental-design concerns (blend-strength matching, simulated seeds) affect correctness risk, not circularity of the derivation chain.

Assumptions & free parameters 5 free parameters · 4 assumptions · 1 invented entities

The central claim rests on standard embedding geometry, a small set of hand-chosen hyperparameters, and the modeling choice that one LLM-generated group profile plus seed centroid is a sufficient carrier of analyst intent. No new physical entities are postulated. The main external assumptions are that pretrained encoders and UMAP preserve enough structure for soft assignment to be meaningful, and that simulated ground-truth seeds approximate analyst groups for evaluation.

free parameters (5)
  • γ (seed vs profile mix) = 0.5
    Default 0.5; ablated at 0 and 1 in Table 1. Controls hybrid prototype construction (Eq. 1).
  • α (global steering strength) = 0.9
    Default 0.9; scales per-item blend λ_i in Eq. 4. Chosen by authors, not derived.
  • τ (sigmoid sharpness) = 20
    Default 20 in soft weight Eq. 2. Hand-set.
  • ρ (adaptive top-k mask) = 0.85
    Default 0.85; retains near-max prototype weights. Hand-set.
  • t_none (abstain threshold) = 0.20
    Default 0.20; items with max weight below this are left unchanged. Hand-set to mirror prior abstention rates.
assumptions (4)
  • domain assumption Cosine similarity in a pretrained L2-normalized embedding space is a valid proxy for semantic relatedness for soft assignment and prototype construction.
    Used throughout §3.3–3.5; standard in embedding-based VA but not proved for the specific LitCovid/CLIP spaces.
  • domain assumption A single structured LLM group profile (name, description, inclusion/exclusion) externalizes analyst intent sufficiently for the whole group.
    Core design choice in §3.2; adopted from cluster cards [12] but now the only LLM call.
  • domain assumption UMAP (or equivalent DR) applied after embedding updates yields a layout whose silhouette and neighbor purity reflect the intended semantic reorganization.
    Evaluation metrics ΔSil and ΔNC are computed in the 2D projection (§4.1).
  • ad hoc to paper Five seeds per ground-truth category adequately simulate analyst-defined groups for measuring alignment quality.
    Evaluation protocol in §4.1; authors note in §6 that real groups may be noisier.
invented entities (1)
  • hybrid semantic prototype (seed centroid + LLM profile embedding)
    purpose: Single group-level carrier of analyst intent that replaces per-item LLM reasoning.
    Defined in Eq. 1 (§3.3). Built from known components (centroids, text embeddings) but packaged as the method's central construct. No independent evidence outside this steering task.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Scalable Semantic Steering of Embedding Projections." pith.science (2026). https://pith.science/paper/QOQS2LGG

@misc{pith2026260703978,
  author       = {Pith},
  title        = {Pith review of: Scalable Semantic Steering of Embedding Projections},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/QOQS2LGG}},
  note         = {Machine review of arXiv:2607.03978}
}
read the original abstract

Low-dimensional projections support interactive visual analysis of high-dimensional data embeddings, but their structure often does not align with analyst-defined semantic relationships. Recent LLM-augmented semantic steering methods address this gap by externalizing analyst intent from user-defined groups of seed examples, but they propagate intent through per-item LLM reasoning, causing LLM calls and cost to grow linearly with collection size. We propose a scalable semantic steering method that shifts semantic computation from individual items to user-defined groups. A single LLM call generates structured profiles for all groups, which are embedded and combined with seed centroids to form hybrid semantic prototypes. The method then propagates intent without retraining, using embedding-space soft assignment, abstention, and alignment-scaled updates before reprojection. On a 5K-document LitCovid corpus, our method achieves global alignment comparable to per-item LLM steering while reducing LLM calls by over three orders of magnitude. An image case study shows that the same prototype-based mechanism extends to multimodal embeddings. These results suggest that group-level representations can make semantic steering more practical for larger embedding collections.

Figures

Figures reproduced from arXiv: 2607.03978 by the authors.

Figure 1
Figure 1. Prototype-based semantic steering on a text (LitCovid) dataset and an image (Human Actions) dataset. In each pair, the [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

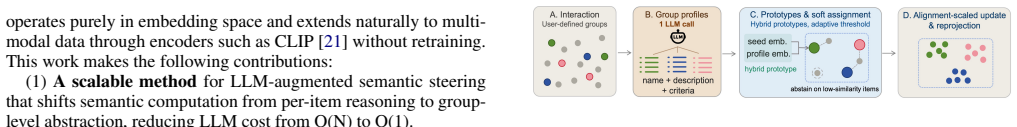

Figure 2
Figure 2. Scalable semantic steering pipeline. From user-defined [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
