Do VLMs See What Sensors Feel? A Scalable Expert-Guided Design for Wheelchair Accessibility Assessment from Street View
Pith reviewed 2026-06-28 14:40 UTC · model grok-4.3
The pith
Vision-language models partially align with real wheelchair mobility data when assessing street view accessibility.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The paper claims that VLM ratings produced by an expert-guided retrieval-augmented framework are both negatively correlated and distributionally similar with dwell time from 407 GSV locations, indicating partial but consistent alignment with a behavioral proxy for mobility friction.
What carries the argument

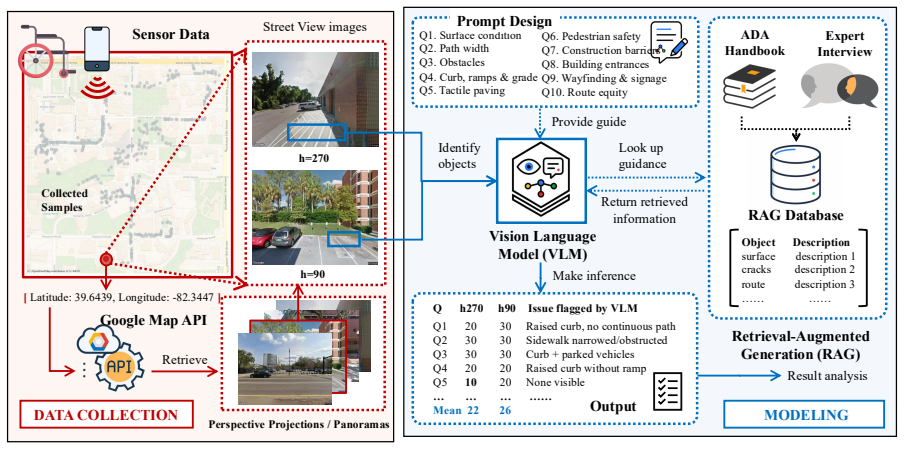

Expert-guided retrieval-augmented framework that combines GSV images, ADA-informed guidance, and expert-derived rubrics to evaluate accessibility dimensions.
If this is right
- VLM ratings can indicate locations with higher mobility friction based on visual cues.
- Objects like curb ramps and crosswalks are linked to higher accessibility scores.
- Alignment is limited for subtle surface conditions and transient obstructions.
- The framework enables scalable assessment without on-site visits for every location.
Where Pith is reading between the lines
- If the method scales, planners could use existing street view data to prioritize accessibility improvements across cities.
- Extending the framework to other sensor types or mobility modes could address a wider range of navigation challenges.
- Testing the correlation in different environments would check if the partial alignment is general.
- Models may need updates to better handle dynamic barriers not visible in static images.
Load-bearing premise

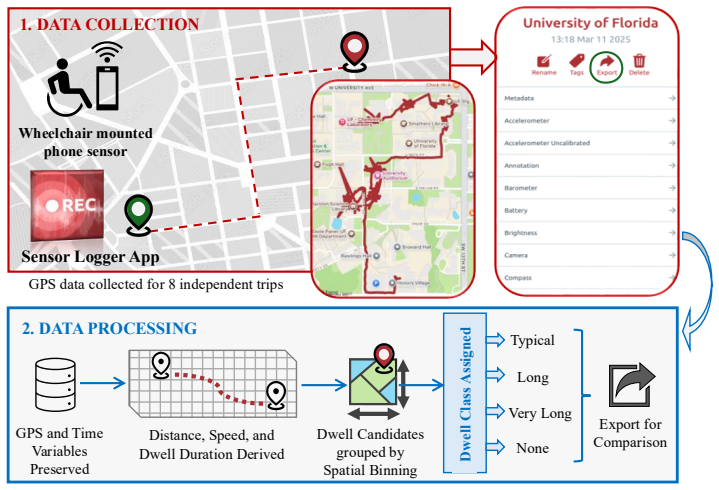

The GPS-derived wheelchair dwell behavior at the 407 locations serves as a reliable and unbiased proxy for mobility friction caused by accessibility barriers.
What would settle it
Finding no negative correlation between VLM scores and actual wheelchair navigation difficulty measured independently at the same locations would falsify the alignment.
Figures
read the original abstract
Assessing built-environment interaction, such as wheelchair accessibility, is difficult because real-world mobility is shaped by distributed, context-dependent, and temporary barriers that are hard to capture at scale. To support scalable assessment, this paper examines whether vision-language models (VLMs) can identify accessibility barriers from Google Street View (GSV) imagery. We propose an expert-guided retrieval-augmented framework that combines GSV images, ADA-informed guidance, and expert-derived rubrics to evaluate accessibility dimensions. We collect a campus-scale dataset at the University of Florida, linking 407 unique GSV locations with GPS-derived wheelchair dwell behavior as a mobility-friction signal. Results show that VLM ratings are both negatively correlated and distributionally similar with dwell time, indicating partial but consistent alignment with a behavioral proxy for mobility friction. Visual cue analysis shows that certain environmental objects, such as curb ramps and crosswalks, are associated with higher VLM accessibility scores, while alignment remains limited for subtle surface conditions, transient obstructions, and viewpoint-dependent barriers. Overall, our findings show the potential of expert-guided VLMs for scalable accessibility assessment aligning with sensor-derived indicators of real-world wheelchair navigation.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes an expert-guided retrieval-augmented framework that uses vision-language models (VLMs) to evaluate wheelchair accessibility dimensions from Google Street View (GSV) imagery, informed by ADA guidance and expert rubrics. It introduces a dataset of 407 unique GSV locations on a university campus linked to GPS-derived wheelchair dwell times as a behavioral proxy for mobility friction. The central empirical claim is that VLM accessibility ratings exhibit negative correlation and distributional similarity with these dwell times, indicating partial alignment with real-world navigation difficulty; additional analysis links higher VLM scores to visual cues such as curb ramps and crosswalks while noting limitations for subtle or transient barriers.
Significance. If the correlation holds after addressing proxy validity, the work could support scalable, imagery-based accessibility assessment that aligns with sensor-derived mobility signals, with the linked GSV-GPS dataset serving as a reproducible resource for future studies in computer vision and urban accessibility. The expert-guided design is a constructive step toward incorporating domain knowledge into VLM evaluation.
major comments (2)
- [Abstract / Results] Abstract and Results section: The claim that 'VLM ratings are both negatively correlated and distributionally similar with dwell time' is presented without any reported correlation coefficient, p-value, sample statistics, controls for confounding factors, or details on dwell-time processing, which is load-bearing for the central claim of alignment with a behavioral proxy for mobility friction.
- [Data Collection / Empirical Evaluation] Data Collection and Empirical Evaluation sections: The use of GPS-derived wheelchair dwell behavior at the 407 locations as a reliable proxy for mobility friction caused by accessibility barriers is invoked to link VLM scores to real-world navigation difficulty but receives no validation against ground-truth barriers or adjustment for potential confounders (route choice, user-specific pauses, location popularity, temporary events, or GPS artifacts).
minor comments (2)
- [Abstract] The abstract would be strengthened by including at least one key quantitative result (e.g., the observed correlation value) rather than a purely qualitative description of the findings.
- [Proposed Framework] Notation for the accessibility dimensions and rubrics could be made more explicit when first introduced to aid reproducibility of the expert-guided component.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback. We address the two major comments point-by-point below. Where the manuscript is missing explicit statistics or discussion, we will revise accordingly.
read point-by-point responses
-
Referee: [Abstract / Results] Abstract and Results section: The claim that 'VLM ratings are both negatively correlated and distributionally similar with dwell time' is presented without any reported correlation coefficient, p-value, sample statistics, controls for confounding factors, or details on dwell-time processing, which is load-bearing for the central claim of alignment with a behavioral proxy for mobility friction.
Authors: We agree that the specific quantitative details are not reported in the abstract or results. The manuscript states the existence of negative correlation and distributional similarity but omits the coefficient, p-value, n=407, processing steps, and any controls. In the revision we will add these values (computed from the existing dataset), processing description, and a brief note on confounders considered. revision: yes
-
Referee: [Data Collection / Empirical Evaluation] Data Collection and Empirical Evaluation sections: The use of GPS-derived wheelchair dwell behavior at the 407 locations as a reliable proxy for mobility friction caused by accessibility barriers is invoked to link VLM scores to real-world navigation difficulty but receives no validation against ground-truth barriers or adjustment for potential confounders (route choice, user-specific pauses, location popularity, temporary events, or GPS artifacts).
Authors: We acknowledge that the proxy is not validated against direct ground-truth barrier annotations and that potential confounders are not explicitly adjusted for in the current analysis. This stems from the practical difficulty of obtaining exhaustive ground-truth labels at campus scale. In the revision we will expand the limitations section to discuss these issues, provide additional dwell-time processing details, and note possible confounders, while retaining the proxy as a behavioral signal rather than claiming direct validation. revision: partial
Circularity Check
No circularity: empirical correlation with external GPS data
full rationale

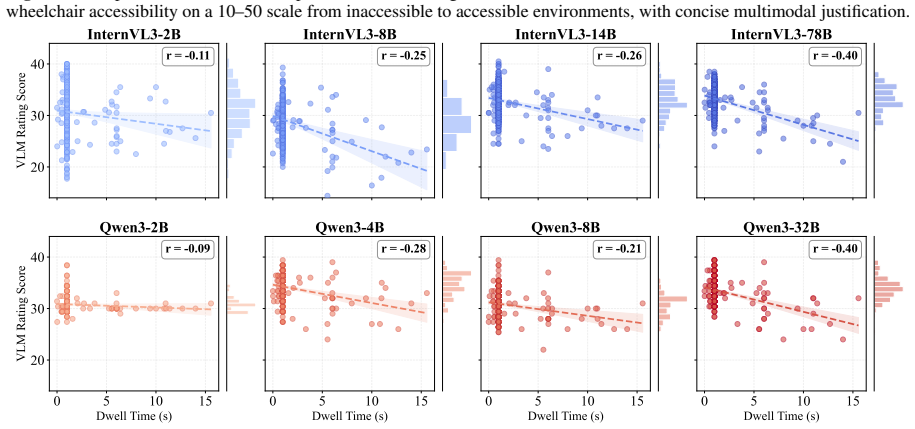

The paper reports negative correlation and distributional similarity between VLM accessibility ratings and GPS-derived wheelchair dwell times at 407 GSV locations. This is a direct empirical comparison against an external behavioral signal with no equations, parameter fitting, predictions by construction, or self-citation chains that reduce the result to its inputs. The derivation chain consists of data collection followed by statistical comparison, which is self-contained and falsifiable against the sensor data.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Wheelchair dwell time derived from GPS serves as a valid proxy for mobility friction due to built-environment barriers
