arxiv: 2606.30967 · v1 · pith:R5ULVKEHnew · submitted 2026-06-29 · ❄️ cond-mat.mtrl-sci · physics.comp-ph

Computed materials proposals depart from the structural memory of experimental discovery

Dan Nguyen , Karen Cao , Brian Chu , Nick Lemoff , Paul Kienzle , William Ratcliff II This is my paper

Pith reviewed 2026-07-01 00:59 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci physics.comp-ph
keywords crystal structuresmaterials discoverystructural similaritycommunity detectionsynthesizabilitygenerative modelsDFT databaseshistorical trends
0
0 comments X

The pith

Computed materials proposals depart from the structural memory of experimental discovery.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper embeds 167500 ICSD crystal entries in a structural-similarity space and partitions them into graph communities that are replayed over time. It reports that 82.9 percent of new formulas join pre-existing communities and that the rate of entirely new community formation has fallen from 40.2 percent in the 1930s to 2.6 percent in the 2010s. When sets from GNoME, MatterGen, Materials Project, JARVIS-DFT and Alexandria are projected into the same historical maps, they lie farther outside experimental communities than held-out real structures do. The departure is observed across both generative-AI and conventional computed databases rather than being unique to any single method.

Core claim

Experimental discovery of inorganic crystals exhibits strong structural memory: most new formulas enter pre-existing communities whose formation rate has declined sharply over decades, and these communities correctly recover nine textbook historical renaissances. Projection of five large computed materials collections into the frozen historical maps yields a robust ordering of structural departure from experimental basins, with held-out ICSD entries closest and Alexandria farthest. The pattern indicates that structural departure is a general feature of current computed proposals.

What carries the argument

A continuous structural-similarity embedding of ICSD entries partitioned into graph communities that define historical structural basins of discovery.

If this is right

  • The communities positively recover nine major historical renaissances including cuprates, colossal-magnetoresistance manganites, MAX phases and Li-ion battery cathodes.
  • Structural proximity to experimental communities combined with reduced-formula precedent supplies a historical synthesizability prior for ranking computed candidates.
  • The observed ordering of departure is stable across different community-detection cutoffs.
  • Departure from experimental basins is shared by both generative models and conventional high-throughput DFT collections.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If proximity to experimental communities correlates with synthesizability, triaging future proposals by this metric could raise the fraction of computed candidates that reach experiment.
  • The same embedding and community framework could be applied to organic or alloy systems to test whether analogous structural memory exists outside inorganic crystals.
  • Generative models could incorporate the historical community structure as an explicit training or post-generation filter to reduce departure from experimental basins.

Load-bearing premise

The chosen structural embedding and graph-community partitioning produce communities that meaningfully capture the structural memory of experimental discovery and that this memory is predictive of synthesizability.

What would settle it

Measure whether computed proposals that fall inside the experimental communities are realized in the laboratory at higher rates than those outside when the same synthesis effort is applied to both groups.

Figures

Figures reproduced from arXiv: 2606.30967 by Brian Chu, Dan Nguyen, Karen Cao, Nick Lemoff, Paul Kienzle, William Ratcliff II.

Figure 1
Figure 1. Figure 1: Experimental discovery is structurally path-dependent. Stacked-area decade-level discovery classification: community-birth (top band) collapses from 40.2% in the 1930s to 2.6% in the 2010s; same-community, cross-community and bridge attachment grow as a thin layer over a densified core. Continuous structural basins absorb 44.2 distinct space groups on aver￾age among the ten largest communities, resisting t… view at source ↗
Figure 2
Figure 2. Figure 2: Communities track field-defining scientific events. (a) high-Tc cuprate community (community 6425, n=378): pre-1986 = 0 entries, post-1986 = 22.3 entries/yr; the community first appears after Bednorz & Müller 1986. (b) CMR-manganite community (community 160, n=571): pre-1994 = 0.7/yr, post-1994 = 22.3/yr (32× fold change); the community captures the doped (Sr,La)MnOff family rather than Goodenough’s parent… view at source ↗
Figure 3
Figure 3. Figure 3: Five external sources depart from the experimental baseline. (a) ICSD KDE topographical map in the 2-D PCA visualization plane with pub￾lic GNoME (orange) and MatterGen (purple) overlay; the deep-blue valley is the historically densified region. (b) Same ICSD background with MP-theoretical (green), JARVIS-DFT (blue), and Alexandria off-hull (red) overlay. (c) Held-out in-basin rates across 1990 / 2000 / 20… view at source ↗
Figure 4
Figure 4. Figure 4: Synthesizability-prior quadrant. {In-basin / frontier} × {post￾1980 ICSD formula match / no match} for all five external sources; bub￾ble area proportional to the fraction of each source’s proposals in each quad￾rant. The in-basin / frontier classification uses per-community 95th-percentile within-community centroid-distance thresholds (each Louvain community sets its own scale), consistent with the held-o… view at source ↗
Figure 3
Figure 3. Figure 3: 17 [PITH_FULL_IMAGE:figures/full_fig_p017_3.png] view at source ↗
Figure 1

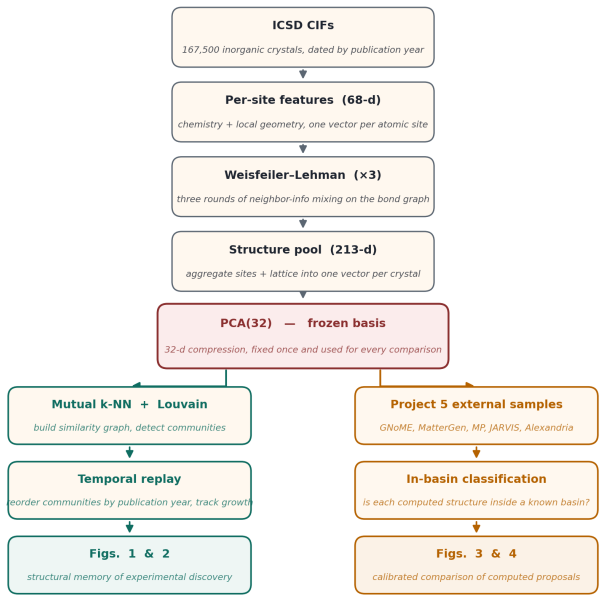

Figure 1. Figure 1: Extended Data [PITH_FULL_IMAGE:figures/full_fig_p023_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Extended Data [PITH_FULL_IMAGE:figures/full_fig_p024_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Extended Data [PITH_FULL_IMAGE:figures/full_fig_p025_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Extended Data [PITH_FULL_IMAGE:figures/full_fig_p026_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Extended Data [PITH_FULL_IMAGE:figures/full_fig_p027_5.png] view at source ↗
Figure 1

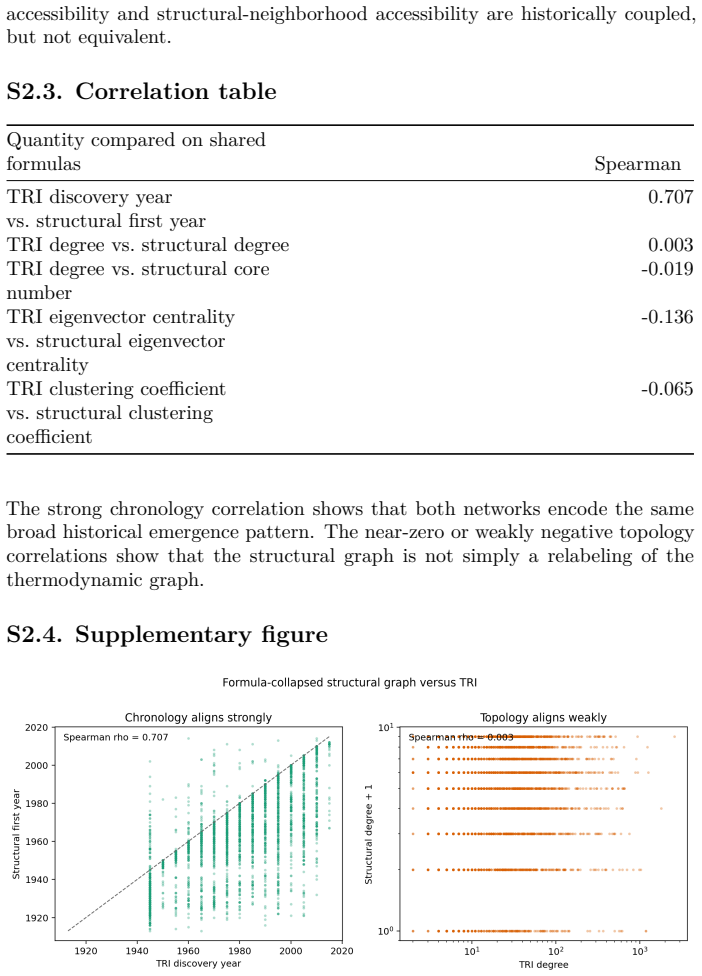

Figure 1. Figure 1: Formula-collapsed structural graph versus TRI. Left: chronology [PITH_FULL_IMAGE:figures/full_fig_p040_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: TRI degree versus structural fragmentation entropy across the shared [PITH_FULL_IMAGE:figures/full_fig_p047_2.png] view at source ↗
Figure 3

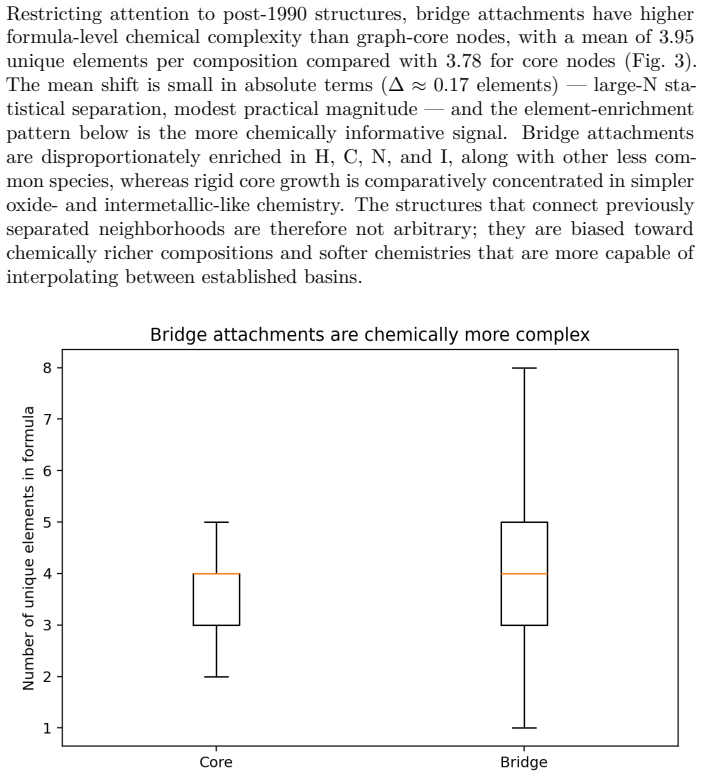

Figure 3. Figure 3: Post-1990 bridge attachments are chemically more complex than [PITH_FULL_IMAGE:figures/full_fig_p049_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Composition-matched in-basin rates across five external sources. Left: [PITH_FULL_IMAGE:figures/full_fig_p054_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Per-year histogram of first ICSD entries in two renaissance communi [PITH_FULL_IMAGE:figures/full_fig_p059_5.png] view at source ↗
Figure 6

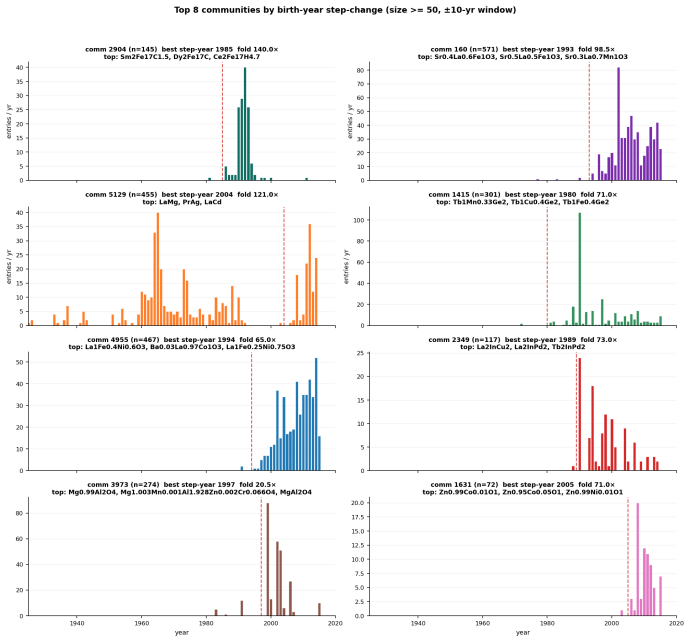

Figure 6. Figure 6: Per-year histograms for the top-eight communities by step-change [PITH_FULL_IMAGE:figures/full_fig_p064_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Targeted renaissance probes. Top to bottom: (1) Fe-pnictide 1111 fam [PITH_FULL_IMAGE:figures/full_fig_p069_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Densification cliff under an independent structural represen￾tation. Per-decade share of ICSD entries that (a) open a new structural com￾munity and (b) attach to an existing community of the same kind, computed by the same temporal-replay procedure (mutual-kNN k=16, Louvain resolution 1.0, compute_temporal_metrics from scripts/icsd_graph_time_evolution.py) on two independent structural representations: the… view at source ↗
read the original abstract

Generative AI and high-throughput DFT pipelines propose millions of inorganic crystal structures, but lack a calibrated reference frame against experimentally realized chemistry. Here we embed 167,500 Inorganic Crystal Structure Database entries in a continuous structural-similarity space, partition it into graph communities, and replay them in time. Experimental discovery shows strong structural memory: 82.9% of new formulas enter pre-existing communities; new-community formation falls from 40.2% (1930s) to 2.6% (2010s). The communities are chemically meaningful, positively identifying nine textbook field-defining renaissances, including cuprates, colossal-magnetoresistance manganites, MAX phases, and Li-ion battery cathodes. Projecting GNoME, MatterGen-public, Materials Project, JARVIS-DFT, and Alexandria-PBE into frozen historical maps yields a cutoff-robust ordering: held-out ICSD > MatterGen > {GNoME ~ MP-theoretical} > JARVIS > Alexandria. Structural departure from experimental basins is not specific to generative AI but general across the tested computed sets. Combining structural proximity with reduced-formula precedent defines a historical synthesizability prior for triaging computed materials.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript embeds 167,500 ICSD entries into a continuous structural-similarity space, partitions it into graph communities, and replays discovery in time. It reports strong structural memory in experimental chemistry: 82.9% of new formulas enter pre-existing communities, with new-community formation declining from 40.2% (1930s) to 2.6% (2010s). The communities recover nine known renaissances. Projecting GNoME, MatterGen-public, Materials Project, JARVIS-DFT, and Alexandria-PBE into frozen historical maps produces a cutoff-robust ordering of structural departure from experimental basins (held-out ICSD > MatterGen > {GNoME ~ MP-theoretical} > JARVIS > Alexandria). A historical synthesizability prior combining structural proximity and reduced-formula precedent is proposed for triaging computed materials.

Significance. If the embedding and partitioning choices prove robust, the work supplies a quantitative, time-resolved reference frame for measuring how far computationally proposed inorganic structures depart from the structural basins of realized experimental chemistry. The explicit recovery of textbook renaissances and the consistent ordering across multiple external computed sets are concrete strengths that could help prioritize synthesis targets. The approach is data-driven and falsifiable in principle via future experimental outcomes.

major comments (3)
  1. [Methods (structural embedding and community detection)] Methods section on structural embedding and graph partitioning: no information is supplied on the embedding algorithm, similarity metric, community-detection parameters (resolution, modularity, etc.), or cutoff definitions. These choices directly determine the reported 82.9% entry rate, the 2.6% new-community statistic, and the ordering of computed sets, yet no sensitivity analysis or alternative-metric tests are described.
  2. [Results (projection of computed sets and synthesizability prior)] Results on projection and synthesizability prior: the communities and the reduced-formula precedent used to define the historical synthesizability prior are both derived from the identical ICSD corpus, creating dependence between the reference frame and the metric being evaluated. While the external-set comparisons are independent, this dependence is load-bearing for the claim that departure is 'not specific to generative AI but general.'
  3. [Validation / Results (renaissance identification)] Validation of communities: the only reported validation is post-hoc recovery of nine known renaissances. No quantitative test is provided that an alternative similarity metric or partitioning algorithm would preserve the same community boundaries, the same historical memory statistics, or the same ordering when the computed sets are projected.
minor comments (1)
  1. [Abstract] Abstract states quantitative results (82.9%, 40.2%, 2.6%) without a pointer to the methods section that would allow a reader to locate the embedding and partitioning details.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback and for recognizing the potential of the quantitative reference frame. We respond to each major comment below and commit to revisions that address the identified gaps in documentation, clarification, and validation.

read point-by-point responses

  1. Referee: [Methods (structural embedding and community detection)] Methods section on structural embedding and graph partitioning: no information is supplied on the embedding algorithm, similarity metric, community-detection parameters (resolution, modularity, etc.), or cutoff definitions. These choices directly determine the reported 82.9% entry rate, the 2.6% new-community statistic, and the ordering of computed sets, yet no sensitivity analysis or alternative-metric tests are described.

    Authors: We agree that the Methods section is insufficiently detailed. In the revised manuscript we will fully specify the embedding algorithm, the structural similarity metric, the community-detection parameters (resolution, modularity optimization), and the cutoff definitions used for assignment. We will also add a dedicated sensitivity subsection that varies these choices and reports the resulting stability of the 82.9 % entry rate, the temporal decline in new-community formation, and the ordering of the projected computed sets. revision: yes

  2. Referee: [Results (projection of computed sets and synthesizability prior)] Results on projection and synthesizability prior: the communities and the reduced-formula precedent used to define the historical synthesizability prior are both derived from the identical ICSD corpus, creating dependence between the reference frame and the metric being evaluated. While the external-set comparisons are independent, this dependence is load-bearing for the claim that departure is 'not specific to generative AI but general.'

    Authors: We acknowledge the shared ICSD origin of both the community map and the reduced-formula component of the prior. The projection step itself, however, places independent external datasets into a frozen historical map; the held-out ICSD control further isolates the comparison. We will revise the text to state this dependence explicitly as a limitation of the synthesizability prior while retaining the claim that the observed ordering across multiple independent computed collections (GNoME, MatterGen, MP, JARVIS, Alexandria) indicates that structural departure is not unique to generative models. No change to the underlying analysis is required. revision: partial

  3. Referee: [Validation / Results (renaissance identification)] Validation of communities: the only reported validation is post-hoc recovery of nine known renaissances. No quantitative test is provided that an alternative similarity metric or partitioning algorithm would preserve the same community boundaries, the same historical memory statistics, or the same ordering when the computed sets are projected.

    Authors: The recovery of nine textbook renaissances supplies chemically grounded qualitative validation. We agree that quantitative robustness checks are needed. In the revision we will add tests that apply alternative similarity metrics and community-detection parameters to the same data, confirming that the community boundaries, the 82.9 % entry statistic, the temporal trend, and the projected ordering of computed sets remain consistent within acceptable variation. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is observational analysis of external data

full rationale

The paper constructs a structural embedding and community partition from the full ICSD corpus, then measures historical entry rates and projects external computed sets (GNoME, MatterGen, etc.) into the resulting map. These steps constitute a comparative reference frame rather than a self-referential loop: the reported statistics (82.9 % entry into pre-existing communities, temporal decline, ordering of computed sets) are direct empirical outputs of the chosen embedding applied to held-out or external data, not quantities forced by construction or by re-using fitted parameters as predictions. No self-citations, ansatzes smuggled via prior work, or uniqueness theorems appear in the supplied text. The method is therefore self-contained against the external benchmarks it evaluates.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based solely on the abstract, no explicit free parameters, axioms, or invented entities are identifiable; the embedding and community detection steps necessarily involve modeling choices whose details are not provided.

pith-pipeline@v0.9.1-grok · 5757 in / 1210 out tokens · 55920 ms · 2026-07-01T00:59:36.209889+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

17 extracted references · 17 canonical work pages

  1. [1]

    Successfully projected

    Right branch (orange, external-source projection): five publicly- released computed-structure samples (GNoME, MatterGen-public, Materials Project theoretical-only, JAR VIS-DFT off-hull, Alexandria-PBE off-hull) are featurized through the identical pipeline and projected into the frozen basis; per-community 95th-percentile within-community centroid-distanc...

    work page 2008

  2. [2]

    experimental-only until 2016

    CIF-member modification times in ICSD_CIFs.zip cluster around Oc- tober 2015. Therefore, by FIZ’s documented inclusion policy, none of the 167,500 entries we analyse can be a genuine theoretical entry — they all pre-date the policy. As a transparency check we nevertheless ran a CIF-header keyword audit on the encrypted ICSD_CIFs.zip (181,362 CIFs total). ...

    work page 2015

  3. [3]

    grouping ICSD entries by reduced formula,

    work page

  4. [4]

    averaging the frozen PCA embedding coordinates within each formula group,

    work page

  5. [5]

    retaining formulas represented by at least three ICSD entries,

    work page

  6. [6]

    building a mutual k-NN graph with k = 8 , and

    work page

  7. [7]

    ease of synthesis

    computing structural graph statistics on that formula-level graph. The resulting graph contains: • 9,563 formula nodes • 21,375 edges • 4,802 formulas shared with TRI S2.2. Main result The comparison reveals a clear asymmetry: • chronology aligns strongly between TRI and the formula-collapsed struc- tural graph, • graph topology aligns weakly. That is, th...

    work page 1980

  8. [8]

    RE–Fe–N permanent magnets (#1, ~1990, Coey)

    work page 1990

  9. [9]

    CMR manganites (#2 + #20, 1994, Jin et al.)

    work page 1994

  10. [10]

    SOFC perovskite cathodes (#5, mid-1990s)

    work page

  11. [11]

    Dilute magnetic semiconductors (#8, 2003–2007 post-Dietl)

    work page 2003

  12. [12]

    MAX phases (#9, 1996+ Barsoum)

    work page 1996

  13. [13]

    Ordered double perovskites for spintronics (#11 + #14, ~1998 Kobayashi Sr￿FeMoO￿)

    work page 1998

  14. [14]

    NaCoO￿ thermoelectrics (#12, 1997 Terasaki)

    work page 1997

  15. [15]

    Li-ion battery cathodes (#15, Mizushima/Goodenough 1980 LiCoO￿ 13, Sony commercialization 1991)

    work page 1980

  16. [16]

    Layered Ruddlesden-Popper cuprates/manganites (#16, post-1986 high- Tc) The remaining nine ranks are real chemistry signals at the same statistical strength as the textbook nine — not missed renaissances — driven by program-level activity, applied chemistry, or systematic crystal-chemistry surveys rather than a single field-defining publication. They divi...

    work page 1986

  17. [17]

    Fe-based superconductor family

    with chemistry identification but no single anchoring event. The fact that the top hit by absolute step-change score is Sm￿Fe￿￿N permanent magnets, that high-Tc-related communities appear at ranks #6, #10, and #16, that the doped manganite family takes ranks #2 and #20, and that Li-ion battery cath- odes, MAX phases, dilute magnetic semiconductors, NaCoO￿...

    work page 2008
